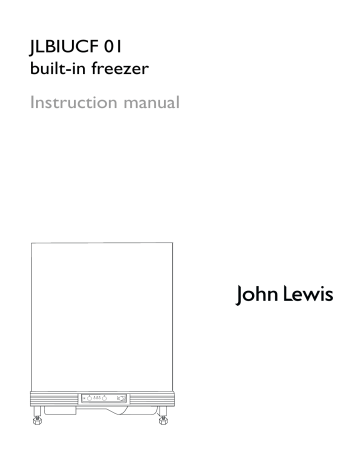

JLBIUCF 01
built-in freezer
Instruction manual
6
5
4
1
2
3
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house
and leave the appliance, always ensure that the book is supplied with the appliance in order that the
new owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety.You MUST read them carefully before
installing or using the appliance. If you are unsure of the meanings of these warnings contact the John
Lewis branch from which you purchased the appliance.
Installation
• Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
• This appliance is heavy. Care should be taken when
moving it.
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, please
contact our extended warranty administrators who
will put you in touch with your local Service Force
Repair Centre for further advice.
• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.
• The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
• This freezer is designed to be operated by adults.
Do not allow children to tamper with the controls
or play with the product.
Use
• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.
• Frozen food must NOT be re-frozen once it has
thawed out.
• Do not place carbonated or fizzy drinks in the
freezer.
• Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.
• Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.
• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.
• The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.
• Keep all packaging well away from children.
General Safety
• This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging
must therefore only be carried out by
authorised technicians.
• Take utmost care when handling your
appliance so as not to cause any damages to
the cooling unit with consequent possible
fluid leakages.
• The appliance must not be located close to
cookers, radiators or boilers.
• Avoid prolonged exposure of the appliance
to direct sunlight.
• Do not use other electrical appliances (such
as ice cream makers) inside of refrigerating
appliances.
2
Maintenance and Cleaning
• Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.
Service
• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.
Environmental Information
•
When disposing of your appliance, use an authorised
disposal site.
•
Remove the plug and ensure that any locks or catches
are removed, to prevent young children being trapped
inside.
•
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
3
Contents
For the Installer
For the User
Important Safety Information
2
Installation
6
Description of the appliance
5
Technical Specification
6
Control panel
13
Electrical Connection
6
Start your appliance
13
Positioning
6
Temperature control
13
Before using
14
Door Reversal
8
Freezing fresh food
14
Building In
9
Frozen food storage
14
Thawing
15
Making ice cubes
15
Normal operating sounds
15
Hints and Tips
16
Maintenance and Cleaning
17
Internal cleaning
17
When the appliance is not in use
17
Periodic cleaning
17
Defrosting
17
Something Not Working
18
Repairs - After Sales Service
19
Guide to use the Instruction
Manual
The following symbols will be found in the text to
guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683 (Low Voltage Directive);
* 93/68 (General Directive);
* 87/308 (Radio Interference Suppression);
* 89/336 (Electromagnetic Compatibility
Directive)
and subsequent modifications.
4
Description of the Appliance
1
1 Frozen food storage compartments
2 Freezing fresh food compartment
3 Control panel
1
2
2
6
5
4
1
2
3
3
5
Installation
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
Technical Data
Heating elements rating
Dimensions of recess
Supply voltage (50 Hz)
Height
820 mm
Width
600 mm
Depth
550 mm
220-230 V
Connected load,
90 W
Dimensions of the appliance cavity
Height
815 mm
Width
596 mm
Depth
550 mm
Freezer Gross capacity
108 litres
Freezer Net capacity
100 litres
Electrical connection
GREEN & YELLOW
13 AMP
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
13 AMP. FUSE
WARNING:THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable
for your socket outlet, it must be cut off and the
appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into a
13amp socket in another part of your home.
Important
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug,
proceed as follows:
6
BROWN
BLUE
D207
CORD CLAMP
1. Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter
«E» or the earth symbol
yellow.
or coloured green and
2. Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
3. Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
4. Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.The plug moulded onto
the lead incorporates a fuse. For replacement, use a
13amp BSI362 fuse. Only ASTA or BSI approved fuses
should be used.
The plug must not be used if the fuse cover/carrier is
lost.The cover/carrier is indicated by the coloured insert
at the base of the plug.
A replacement cover/carrier must be obtained from your
local Service Force Centre.
Important
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE
THAT HAS A LOCK OR CATCH ON THE DOOR,
YOU MUST ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG CHILDREN
BEING TRAPPED INSIDE.
It must be possible to disconnect the appliance from the
mains power supply; the plug must therefore be easily
accessible after installation.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens.To do this, refer to
instructions on “Door reversal directions”.
Positioning
This appliance should only be installed at a location
where the ambient temperature corresponds to the
climate classification indicated on the rating plate,
which is located at the left on the inside of the
appliance.
The following table shows which ambient
temperature is correct for each climate
classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry atmosphere, out of
direct sunlight and away from extreme temperature
e.g. not next to a boiler or radiator, or in a very cold
room e.g. an outhouse . If these temperatures are
exceeded i.e. colder or warmer, then the appliance
may not operate correctly.
For building-in and door reversibility, if necessary ,
refer to the relevant instructions in the following
pages.
7
Door Reversal
To reverse the opening direction of the door,
proceed as shown in the figures:
6
6
4
1
7
8
5
2
1
6
3
2
6
Warning
After completion of the door reversing
operation, check that the door gasket adheres
to the cabinet. If the ambient temperature is
cold (i.e. in Winter), the gasket may not fit
perfectly to the cabinet. In that case, wait for
the natural fitting of the gasket or accelerate
this process by heating up the part involved
with a normal hairdryer on a low setting.
10
13
9
6
11
3
8
12
Building In
Before carrying out any work, remove the plug from
the power socket.
Grid preparation
Building in the appliance
under a worktop
The dimensions of the recessed installation area
must correspond with those indicated in the figure.
Left door opening:
Remove the left side (A) of the grid cutting it from
the rear (see figure).
60
0
A
5
min50
.
600
B
DO013
Installation kit
DO002/2
1xB
2xC
Right door opening:
Remove the right side (B) of the grid cutting it from
the rear (see figure).
1xA
1xK
To position the grid on the appliance proceed as
follows:
Apply the grid to the base of the appliance by
pushing on to the clasps (a) until they click.
2xG
18xI
2xL
2xF
2xD
2xE
1
a
a
DO001
1. Two cabinet securing brackets are supplied with
the installation pack.They need to be assembled
onto the cabinet prior to cabinet being pushed
into the Kitchen aperture.
- To fit these brackets remove the two screws at
the top left and right hand front corners of the
cabinet.
- Position the two brackets as shown in the figure
and replace the two securing screws.
2
Left hand bracket
Right hand bracket
9
2. Push the appliance into place.The plug socket
necessary for connection of the appliance to the
electricity supply should be positioned, so that the
plug is not placed in the recess.
3. To adjust the height proceed as follows:
- Loosen or tighten the two front feet.
- The rear feet are adjusted by turning the screw
in the front kick plate to the left or right.
4. The joint cover (B) is to be assembled after having
installed the appliance in the recess.
b)
1
596
B
5
55 x
ma
+
-
-
4
+
E
3
5. Screw appliance into place and retain the cabinet
with screws (I) through the securing brackets into
the worktop or adjacent woodwork as necessary.
If necessary, pads (E) are supplied for the rear feet to
make sliding the appliance in and out of the recess
easier.To fit the pads, press them onto the rear feet.
If required, the dimensions of these pads can be
reduced by breaking them where marked.
I
5
E
6. To mount the furniture door proceed as shown in
the figures:
II52
2
1
a
10
C
4
3
b
6
10
F
I
27
,5
cm
55
27
,5
cm
cm
10
7
1
2
45°
a
b
3
C
click
11
click
c
8
1
Upper part of kitchen
furniture
panel
Möbeltür
Innenseite
a
I
=
=
=
2
10
=
c
9
12
b
11
Fitting the plinth
m
8m
I
F
K
G
13
Important
For the efficient operation of the appliance, it
is important that the original ventilation grid is
used.
• For an opening height dimension A=820 mm and a
plinth height dimension a=100 mm, the plinth may
be fitted without adjustments.The same applies to
an opening height dimension B=870 mm and a
plinth height dimension b=150 mm.
• For plinth heights greater than a=100 mm, b=150
mm, a cut should be made in the plinth, 580 mm
wide, in the centre of the appliance position,
leaving a remaining height of a=100 mm, b=150
mm.
• Attach plinth to the kitchen units.
A
a = 100
b = 150
A = 820
B = 870
7. Refit the covering strip (A).
25
25
580
- 80
DO008
Important
The plinth must be positioned at a minimun
distance of 25 mm from the door.
14
L
90°
L
15
12
115°
The Control Panel
1
2
6
5
4
3
➀ ➁
1
2
3
Pilot light
Thermostat control knob
Fast-freezing indicator light
➂➃➄
4
5
Push button for fast-freezing and for stopping
the audible signal (warning light on)
Warning light
Start your appliance
Warning light (red)
Insert the plug into the wall socket.The appliance
can be activated by turning the thermostat knob (2)
beyond the «O» position.When the pilot light (1) is
illuminated , this shows that the appliance is on.
If the temperature warning light (4) blinks, it
indicates that the temperature within the freezer has
reached a level where the safe food storage is no
longer ensured.
When the freezer is first switched on, the warning
light will blink until the temperature has dropped to
a safe level for the storage of frozen food.
Temperature control
The temperature within the freezer is controlled by
the thermostat control knob (2) situated at the
bottom of the cabinet .
To operate the freezer proceed as follows:
Position 1 = minimum coldness
Position 6 = maximum coldness
Turn the thermostat control knob beyond the «O»
position.
When you first start the freezer, we suggest that
you turn the thermostat control to a medium
setting. For easier turning of this control, use a small
coin.The internal temperature of the freezer is
automatically adjusted by the thermostat to ensure
safe food storage.
Temperature acoustic alarm
This appliance incorporates an alarm which gives off
an audible signal whenever the warning light comes
on.This signal can be temporarily stopped by
depressing the push button for fast-freezing (4).
The fast-freezing push button can be released as
soon as the warning light is off.
Open door acoustic alarm
This appliance also incorporates an alarm which
sounds if the door is left open for more than 60
seconds.The signal will be stopped when the door is
closed again.
However, if the appliance is working in unfavourable
room conditions such as
- poor ventilation,
- high temperature,
- frequent door openings,
it may be necessary to select a more suitable
setting.
13
Before using
Frozen food storage
Remove all securing tapes.Wash inside the appliance
with lukewarm water and bicarbonate of soda (5 ml
to 0.5 litre of water).
When you first start the freezer or if the freezer has
been out of use for some time, we advise you to run
your appliance for at least two hours in the «fast
freeze» mode before storing frozen food.
To obtain the best performance from this appliance,
we strongly recommend that you make sure that the
commercially frozen foodstuffs were adequately
stored by the retailer and, furthermore, be sure that
these frozen foodstuffs are transferred from the
foodstore to the consumer in the shortest possible
time (a temperature increase of the frozen food
could shorten its storage period).
It is also advisable not to exceed the storage period
indicated by the producer of the food.
Finally, do not open the door frequently or leave it
open longer than is absolutely necessary.
Do not use soap or detergent as the smell
may linger. Dry thoroughly.
Freezing fresh food
In any 24 hour period you can freeze up to 18 kg of
fresh food.
Activate fast freeze by depressing the fast-freeze
switch (4) 24 hours before you want to freeze your
fresh food, the yellow light (3) illuminates.
If the quick-freezing function is not ended manually,
the appliance switch off the quick-freezing function
after 52 hours.The yellow light goes out.
This time can be shortened, depending on the
quantity of food to be frozen. After the time has
elapsed place the food to be frozen in the two top
compartments of the freezer as this is the coldest
part; if freezing only a small amount of food, always
use the top compartment.
Once the food is completely frozen (which could
take up to 24 hours) press the fast freeze switch to
deactivate the fast freeze mode; the yellow light (3)
goes off.
Distribute the frozen food packages in the other
compartments, so that the top compartments can be
used for a further freezing operation.
Only freeze top quality, fresh and thoroughly cleaned
foodstuffs.
Do not allow fresh food to touch food which is
already frozen.
During the freezing process, ensure that the freezer
door remains closed.
14
Warning
Do not put carbonated liquids, (fizzy drinks etc.), in
the freezer compartment.
Ice lollies, if consumed immediately after removal
from the freezer, can possibly result in a low
temperature skin burn.
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions or
"frost/freezer burns".
If there is a power failure during the storage of
frozen food, do not open the door during the whole
time of the power failure. If the freezer is fully
loaded, the frozen food will not be affected if the
power cut is of short duration; otherwise, it is
recommended to consume the food within a very
short time.
Thawing
Making ice cubes
Frozen food, prior to being used, can be thawed in
the fridge or at room temperature depending on the
time available. Small food items may even be cooked
from frozen; in this case cooking will take longer.
The appliance is provided with one or more trays
for ice-cubes trays.
Any frozen food which is allowed to thaw
accidentally should either be eaten as soon as
possible or thrown away.Alternatively, if the food is
uncooked and has not been completely defrosted it
can be cooked and then refrozen.
To release the ice cubes simply give the tray a slight
twist.
Meat, fish and fruit should be thawed in the
refrigerator compartment and small pieces of meat
can even be cooked while still frozen, but you must
ensure that it is thoroughly cooked through.
Normal Operating Sounds
Vegetables should be directly immersed in boiling
water; ready-cooked dishes can be placed directly in
the oven in their aluminium wrapping.
A microwave oven is particularly suitable for
thawing any type of frozen or deep-frozen food:
follow the oven instructions, particularly regarding
the placement of aluminium wrapping or containers
in the oven.
Fill the tray(s) 3/4 full to give the ice space to
expand and place them in the freezer compartment.
Do not use sharp or metallic instruments to remove
the trays from the freezer.
• You may hear faint gurgling or bubbling sounds
when the refrigerant is pumped through the coils
or tubing at the rear, to the cooling
plate/evaporator or to the fixed freezer shelves.
• When the compressor is on, the refrigerant is
being pumped round, and you will hear a whirring
sound or pulsating noise from the compressor.
• A thermostat controls the compressor, and you
will hear a faint ’click’ when the thermostat cuts
in and out.
Defrosted cooked food must never be
refrozen.
15
Hints and Tips
Food Storage
• To obtain the best results from your appliance,
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
• Keep the time between buying chilled food and
placing it in your fridge as short as possible.
• Do not push food together too much, try to
allow air to circulate around each item.
• Do not store food uncovered.
• Remove suspect food from your refrigerator and
clean, refer to ‘Maintenance and Cleaning’.
• Ensure that food placed in the freezer is dated
and labelled and used in date order to ensure
that food is consumed at its best.
• Avoid buying frozen food if you cannot store it
straight away.The use of an insulated container is
advisable.When you arrive home place the
frozen food in the freezer immediately.
• The symbols on the drawers show different
types of frozen goods.The numbers indicate
storage times in months for the appropriate
types of frozen goods.Whether the upper or
lower value of the indicated storage time is valid
depends on the quality of the foods and pretreating before freezing.
Energy Saving Advice
• Do not install the cabinet close to sources of
heat, i.e. boiler or radiator.
• Locate the appliance in a cool well ventilated
room and make sure that the air openings of the
cabinet are not obstructed.
• Avoid unnecessary frosting in the cabinet by
packing all foodstuffs into airtight packages
before placing them in the freezer.
• Always leave warm food to cool down to room
temperature before placing in the fridge or
freezer.
• Food which is to be frozen (when cool) should
be placed in the fridge before being transferred
to the freezer.
• Thaw frozen food in the fridge.This will ensure
safer defrosting of foods and reduce the work of
the refrigeration unit.
16
• Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
• Ensure there are no obstructions preventing the
door from closing properly.
In the Event of a Power
Failure
If there is a power failure during the storage of
frozen foods, keep the door closed. If the
temperature within your freezer should rise do not
refreeze the food without checking it’s condition.
The following guidelines should assist you.
Ice Cream:
Once thawed should be discarded.
Fruit and Vegetables:
If soft should be cooked and used up.
Bread and Cakes:
Can be refrozen without danger.
Shellfish:
Should be refrigerated and used up quickly.
Cooked Dishes:
i.e. casseroles, should be refrigerated and used up.
Large Pieces of Meat:
Can be re-frozen providing there are ice crystals
remaining within them.
Small Joints:
Should be cooked and then re-frozen as cooked
dishes.
Chicken:
Should be cooked and re-frozen as a fresh dish.
Maintenance and Cleaning
Before any maintenance or cleaning work is carried
out, DISCONNECT the appliance from the
ELECTRICITY supply.
Internal cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
NEVER USE DETERGENTS,
ABRASIVE POWDERS, HIGHLY
PERFUMED CLEANING PRODUCTS
OR WAX POLISHES,TO CLEAN THE
INTERIOR AS THESE WILL DAMAGE
THE SURFACE AND LEAVE A
STRONG ODOUR.
When the appliance is not in
use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all
foods and clean the appliance, leaving the doors ajar
to prevent unpleasant smells.
Periodic cleaning
The appliance is equipped with a ventilation grid.
Keep clean to guarantee good ventilation and good
working order of the appliance.
An accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
The structure of the appliance permits cleaning of
the rear zone close to the wall, using a vacuum
cleaner.
1. Remove the plinth (1), then the ventilation grid
(2);
2. Carefully pull the air deflector out (3).
3
2
Defrosting
The freezer compartment will become progressively
covered with frost.This should be removed with the
special plastic scraper provided, whenever the
thickness of the frost exceeds 1/4".
During this operation it is not necessary to switch
off the power supply or to remove the foodstuffs.
However, when the ice becomes very thick on the
inner liner, complete defrosting should be carried
out and it is advisable to carry out this operation
when the appliance is empty.
To carry out complete defrosting proceed as
follows:
1. Remove any stored food, wrap it in several layers
of newspaper and put it in a cool place.
2. Turn the thermostat control knob (1) to the «O».
3. Leave the door open.
4. Remove the three large drawers.
5. When defrosting is completed, remove the water
that has collected in the small bottom drawer and
dry the interior thoroughly.
Turn the thermostat control knob to a medium
setting and, after letting the appliance run for at least
two hours in the «fast freeze» mode, replace the
previously removed food into the compartments.
Important
A temperature rise of the frozen food packs
during defrosting may shorten their storage
life.
Never use sharp metal tools to scrape off
frost from the evaporator as you could
damage the appliance beyond repair.
1
S.I.013
17
Something not working
Important: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation a charge will be made, even if the appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
SYMPTOM
! No power to the appliance
SOLUTION
♦ Check there is power at the socket.
♦ Check there is not a power cut by checking the
household lights.
♦ Check the fuse has not blown.
! The temperature in the freezer section is too
high
♦ Check the thermostat control knob mounted
in the cross piece between the fridge and
freezer is turned to the correct setting relative
to ambient conditions.
♦ Check the ambient temperature is within the
! The freezer door will not open
! The compressor runs continously
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
♦ Has door just been opened? If so leave for a
few minutes to allow the air pressure to
equalise.
♦ Adjust the thermostat control knob to give
correct temperature control. See “Setting the
temperature”.
♦ Check that the doors are closed.
♦ Large quantities of food have recently been
placed in the cabinet and/or door is frequently
opened.
♦ Check that air ventilation is not obstructed.
! Excessive frost and ice has built up
♦ Ensure the doors are not left open.
♦ Check that nothing is preventing the doors
from closing.
♦ Is the door gasket intact and clean.
♦ Has advised periodic defrosting been carried
out?
! Noise
18
♦ Refer to normal operating sounds.
Repairs - After Sales Service
If your appliance is not performing satisfactorily;
consult the fault finding guide within this instruction
book (Something not working). In the event of a
fault occurring which you cannot resolve yourself
from advice given within this instruction manual
your first step is to contact our extended warranty
administrators on 0870 0107887 who will give you
details for your local Service Force Repair Agent.
When contacting the repair agent, please quote the
model (Mod.) and serial number (S.N.), both of
which are shown on the rating plate located on the
side of the oven door (see picture).
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Spare parts
This product should be serviced by an authorised
service engineer, and only genuine spare parts should
be used.
Under no circumstances should you attempt to
repair the appliance yourself.
Repairs carried out by inexperienced persons may
cause injury or serious malfunctioning. Contact our
extended warranty administrators on 0870
0107887 who will give you details for your local
Service Force Repair Agent.
Always insist on genuine spare parts.
Mod. : . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . .
Your applaince is covered by a 3 year parts and
labour guarantee (see separate details given at point
of sale). Please retain your purchase receipt safely
for the service engineer to verify the purchase
details.
Manufacturer
Model
Energy Efficiency
class
Energy Consumption
kWh/year
Fresh food volume l
Star Rating
19
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com
03/06
2222 717-81
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
