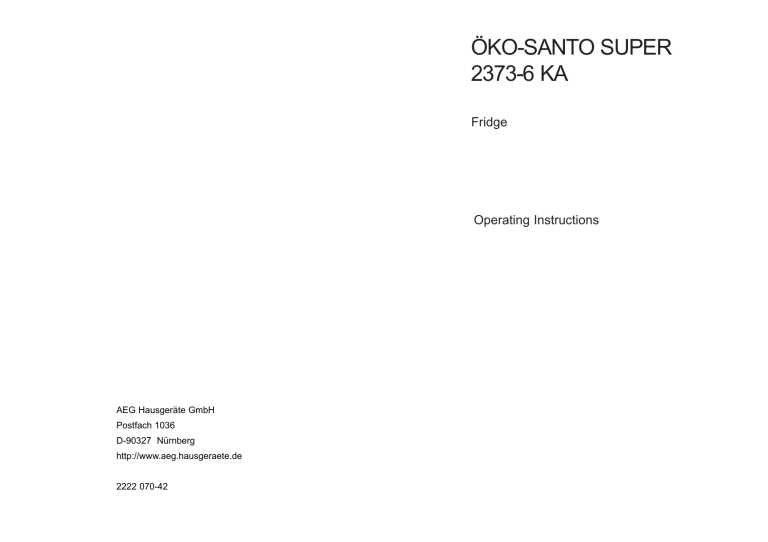

ÖKO-SANTO SUPER
2373-6 KA
Fridge
Operating Instructions
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
2222 070-42
Dear customer,
Before placing your new refrigerator/freezer into operation please
read these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass
them on to possible new owners of the appliance.
Notes which are important for your safety or for the proper functioning
of the appliance are stressed with a warning triangle and/or the words
(Warning!, Important!, Attention!). Please observe the following
instructions carefully.
Additional information regarding operation and practical applications
of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound
use of the appliance are marked with the flower.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the “Something Not
Working” section.
For futher assistance contact your local AEG service Force Centre,
see the chapter “Service and Spare parts.
Printed on paper manufactured with environmentally sound processes.
who thinks ecologically acts accordingly ...
2
Regulations, Standards, Guidelines
This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary
measures in accordance with appliance safety legislation regulations
(GSG), accident prevention regulations for refrigeration appliances
(VBG 20) and the regulations of the German Society of Electrical
Engineers (VDE) were observed in the manufacture of this appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
– 73/23/EWG dated 19 February 1973 - low voltage guidelines.
– 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Appliance Packaging Information . . . . . . . . . . . . . . . . . . . . . .5
Disposal of old Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Remove Transport Packaging . . . . . . . . . . . . . . . . . . . . . . .6
Operating and indicator panel . . . . . . . . . . . . . . . . . . . . . . .7
Starting up and temperature regulation . . . . . . . . . . . . . . .7
Interior Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Storage shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Adjusting the upper door rack . . . . . . . . . . . . . . . . . . . . . . . . .9
Fresh food refrigeration . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Freezing and storing frozen food . . . . . . . . . . . . . . . . . . . .9
Preparation of Ice Cubes . . . . . . . . . . . . . . . . . . . . . . . . . .10
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Switching off the appliance
. . . . . . . . . . . . . . . . . . . . . . .11
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Energy Saving Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Something not working . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Changing the light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Service and Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Guarantee Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Installation . . . . . . . . . .
Electrical Connection . . .
Installation Location . . . .
Your appliance needs air
Rear spacers . . . . . . . . .
Reversing the door . . . . .
Inner door reversal . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.18
.18
.19
.19
.20
.20
.21
Regulations, Standards, Guidelines . . . . . . . . . . . . . . . . .22
22
2222 070-42
3
7.
Insert the bottom hinge into the
bottom of the freezer compartment door.
Please read this instruction book before using the appliance and retain
for future reference. These warnings are provided in the interests of your
safety, ensure you understand them fully before using the appliance.
8.
Refit bottom hinge.
9.
Refit ventilation grille (D) clipping it into place.
Intended use
10.
Unscrew the handle. Refit
them on the opposite side after
having pierced the plugs with a
punch. Cover the holes left
open with the plugs contained
in the documentation pack.
Safety
• The appliance is intended for use in the home. It is suitable for the
cooling, freezing and storage of frozen food, as well as for making
ice. If the appliance is used for purposes other than those intended
or used incorrectly, no liability can be accepted by the manufacturer
for any damage that may be caused.
• Alterations or changes to the appliance are not permitted for reasons
of safety.
PR228
Inner door reversal
Prior to initial start–up
• Check the appliance for transport damage. Under no circumstances
should a damaged appliance be plugged in! In the event of damage,
please contact your retailer.
1.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that
none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition;
– thoroughly ventilate the room in which the appliance is situated.
2.
Using a screwdriver release
bracket (1) by pressing on the
internal spring and withdraw it
from its seat together with the
door; remove plug (2) and fit it
in the hole left open on the
opposite side; turn the door
through 180°, remove the
bracket (1) and refit it on the
opposite side.
180°
2
1
PR140
Refit the door and insert the top pin and bottom bracket (1), pushing
it into place.
To ensure correct storage of food, the door is fitted with a simple spring
device which holds it in the open position until it is properly closed.
Safety of children
• Keep packaging material away from children.
• Please make old appliances unusable prior to disposal. Pull out the
mains plug, cut off the mains cable and remove any locks or catches, to prevent young children being trapped inside.
• Do not allow children to tamper with the controls or play with the product.
Daily Operation
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
4
21
extinguisher refill cartridges etc in the refrigerator/freezer.
Rear spacers
• Bottles and cans must not be placed in the freezer compartment.
They can burst when the contents freeze, high carbonate content
drinks can even explode! Never store lemonade, juices, beer, wine,
sparkling wine etc. in the freezer compartment.
Fit the rear spacers contained
in the documentation bag to
ensure escape of heat generated during operation. Proceed
in the sequence illustrated in
figures.
• Ice cream or ice cubes can cause “frost/freezer” burns if consumed
straight from the freezer.
• Do not touch frozen food with wet hands. Your hands could freeze
to the food.
• Do not operate any electrical appliances in the refrigerator/freezer
(e.g. electric ice cream makers, mixers etc.).
D594
Reversing the door
The side the door opens can be changed from the right side (factory
fitted) to the left side.
Warning! When changing the side the door opens, the appliance
must not be connected to the mains. Remove plug from the mains
before reversing the door.
F
E
Proceed as follow:
1.
2.
4.
Unscrew the pin from the top
hinge and refit it on the lefthand side. Remember to fit the
washers.
5.
Slide the door onto the top pin.
6.
Unscrew the bottom hinge pin
and refit it on the opposite side
of the hinge
20
Service
• Under no circumstances should you attempt to repair the appliance
yourself. Repairs carried out by inexperienced persons may cause
injury or serious malfunctioning. Contact your local AEG Service
Force Centre.
Disposal
F
Remove blanking cover (F)
from ventilation grille by
pushing it in the direction of the
arrow and refit it on the opposite side.
Unscrew the bottom hinge and
remove the door by pulling it
downwards.
• When unplugging always pull the plug from the mains socket, do not
pull on the cable.
F
Pull off ventilation grille (D).
3.
• Before cleaning the appliance, always switch off the appliance and
disconnect from the electricity supply.
Appliance Packaging Information
D
All materials are environmentally sound.
The plastics can be recycled and are identified as follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.
F
D
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of
its service life - to your new appliance as well.
D590
5
Installation Location
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy
any snap or latch closures, to prevent small children being trapped
inside.
• Use an authorised disposal site.
Contact your local Council or Enviromental Health Office to see if
there are facilities in your area to recycle the appliance;
Remove Transport Packaging
The appliance and the interior fittings are protected for transport.
• Remove all adhesive tape and packing pieces from the interior of the
appliance.
The appliance should be set up in a well ventilated, dry room.
Energy use is affected by the ambient temperature. The appliance
should therefore
– not be exposed to direct sunlight;
– not be installed next to radiators, cookers or other sources of heat;
– only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.
The climate classification can be found on the rating plate, which is
located at the left on the inside of the appliance.
The following table shows which ambient temperature is correct for
each climate classification:
Climate classification
for an ambient temperature of
You can remove any remnants of adhesive using white spirit.
SN
+10 to +32 °C
N
+16 to +32 °C
6
10 mm
10 mm
Air flows in from under the
door, at the front, and flows out
upwards, over the back. For
correct air circulation, it is
important that the ventilation
openings are not covered or
obstructed.
Important: If the appliance is
positioned under a kitchen wall
unit, a minimum clearance of
10 cm must be left between
the top of the appliance and
the overhanging wall unit.
100 mm
Your appliance needs air
NP007
19
Installation
Operating and indicator panel
4
0 1
Electrical Connection
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED
The manufacturer declines any liability should these safety measures not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate. The rating plate
is inside, on the left.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
Important!
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow Earth
Blue
Neutral
Brown
Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in
your plug, proceed as follows:
1.
The wire coloured green and yellow must be connected to the terminal marked with the letter “E” or by the earth symbol
or coloured
green and yellow.
2.
The wire coloured blue must be connected to the terminal marked “N”
or coloured black.
3.
The wire coloured brown must be connected to the terminal marked
“L” or coloured red.
4.
Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of
safely.
18
3
A
2
B
A. Pilot light (green)
B. Temperature regulator and ON/OFF switch
The temperature regulator (B), which serves at the same time as
the appliance’s On-/Off switch.
The green pilot lamp (A), which comes on when the appliance is
switched on and the mains voltage is available. In this position, the
refrigerating unit will operate automatically operates.
Starting up and temperature regulation
• Wash the inside of the appliance with luckwarm water with a little
bicarbonate of soda added (5ml to 0.5 litre of water). Do not use soap
or detergent as the smell may linger. Dry the appliance thoroughly.
• When the refrigerator compartment door is opened, the internal lighting is switched on. The temperature selector knob is located on the
top of the appliance.
Setting “0”: Off.
Setting “1”: Hightest temperature, (warmest setting).
Setting “4” (end-stop) : Lowest temperature, (coldest setting).
The exact setting should be chosen keeping in mind that the temperature inside the refrigerator depends on:
-the quantity of food stored
-how often the door is opened
The temperatures in the refrigerator compartment and freezer compartment cannot be independently regulated.
If you want to freeze fresh food rapidly, select setting “4”, ensuring that
the temperature in the refrigerator compartment does not drop below
0°C. You should also promptly reset the temperature regulator to setting “2” or “3”, if this does occur.
Important!
High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"3" to "4") can cause the
compressor to run continuously.
7
If this happens, turn the temperature regulator back to a warmer setting (position "2" to "3"). At this setting the compressor will be switched
on and off as usual and automatic defrosting recommenced.
Interior Accessories
Storage shelves
• You should always slide one
of the full size glass storage
shelves into the lowest set of
guides, above the fruit and
vegetable containers, and
keep it in this position.
• The height of the storage
shelves can be adjusted:
• To do this pull the storage
shelf forward until it can be
swivelled upwards or downwards and removed.
D338
• Please do the same in reverse to insert the shelf at a different height. Slide the front half of the Vario storage shelf in another level to
the rear. This will enable you to place tall items on the storage shelf
below.
Adjusting the upper door rack
• Depending on the food stored, the upper door racks
can be changed to other holders or removed. Take out
the food from the door, press
the door racks diagonally
upwards at their edges,
reposition them, and press
them back into place.
PR270/1
8
Guarantee Conditions
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is
handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage,
neglect, faulty installation, unauthorised modification or attempted repair,
commercial use or failure to observe requirements and recommendations
set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest customer service office (manufacturer’s service or authorised agent).
AEG reserves the right to stipulate the place of the repair (i.e. the customer’s home, place of installation or AEG workshop).
4. The guarantee or free replacement includes both labour and materials.
5. Repairs carried out under guarantee do not extend the guarantee period for
the appliance. Parts removed during guarantee repairs become the property of AEG.
6. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee
moves with you to your new home subject to the following qualifications:
- The guarantee starts from the date you first purchased your product.
- The guarantee is for the same period and to the same extent for labour and
parts as exist in the new country of use for this brand or range of products.
- This guarantee relates to you and cannot be transferred to another user.
- Your new home is within the European Community (EC) or European Free
Trade Area.
- The product is installed and used in accordance with our instructions and is
only used domestically, i.e. a normal household.
- The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed
below, to give them details of your new home. They will then ensure that the
local Service Organisation is aware of your move and able to look after you
and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
17
Service and Spare Parts
If you require a service engineer or wish to purchase spare parts,
contact your local AEG Service Force Centre by telephoning:
0870 5 929929
Help us to help you
Please determine your type of enquiry before telephoning. When you
contact us we need to know:
1.Your name, address and post code
2.Your telephone number
Fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquid in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely around it.
Useful hints:
Meat (all types): wrap in polythene bags and place on the glass shelf
above the vegetable drawer(s).
3.Clear and concise details of the fault
For safety, store in this way for only one or two days at the most.
- What is the fault?
Cooked foods, cold dishes, etc: these should be covered and may
be placed on any shelf.
- When does the fault occur?
4. The model, production number and product identification number.
This information can be found on the serial plate in the interior at the
left of the appliance.
• Model Name
• Model Number (PNC)
• Serial Number (S-No.)
5.Date of purchase
Customer Care Department
For general enquiries regarding your AEG appliance, or futher information on AEG products please contact our customer care department.
Customer Care Department
AEG Domestic Appliances
55-77 High Street, Slough, Berkshire SL1 1DZ
Tel: 08705 350 350*
*calls to this number may be recorded for training purposes
Fruit and vegetables: these should be thoroughly cleaned and
placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or wapped in aluminium foil or polythene bags to exclude as
much air as possible.
Milk bottles: these should have a cap and should be stored in the
bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be
kept in the refrigerator.
Freezing and storing frozen food
You can use your freezer for freezing fresh food yourself.
Important!
• The temperature in the freezer compartment must be –18 °C or colder before freezing food.
• Please observe the freezing capacity given on the rating plate. The
freezing capacity is the maximum quantity of fresh food that can be
frozen within a period of 24 hours. If you wish to freeze food several
days in a row, please observe a maximum capacity of only 2/3 to 3/4
of that on the rating plate. The quality of the food is best preserved
when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
16
9
• Please note the maximum storage times specified by the manufacturer.
Changing the light bulb
• Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers
with flammable materials such as, for example, spray cans, fire
extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst
when the contents freeze, high carbonate content drinks can even
explode! Never store lemonade, juices, beer, wine, sparkling wine
etc. in the freezer.
• All foods must be packed air tight prior to freezing, so that they do
not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.
Important! Do not touch frozen food with wet hands. Your hands
could freeze to the food.
1.
Place the food to be frozen in the freezer compartment. Unfrozen food
must not touch items already frozen, otherwise the frozen food could
begin to defrost.
2.
Do not open the door frequently or leave it open longer than absolutely necessary.
Warning! There is a risk of electric shocks! Before changing the light
bulb, switch off the appliance and disconnect from the mains supply.
Light bulb data: 220-240 V, max. 15 W
1.
To switch off the appliance, turn the temperature regulator to position
"0".
2.
Unplug the mains plug.
3.
To change the light bulb, unscrew
the light cover.
4.
Unhook the light bulb cover as
shown.
5.
Change the defective light bulb.
6.
Refit the light bulb cover and the
screw.
7.
Put the refrigerator back into operation.
D613
Preparation of Ice Cubes
1.
Fill the ice cube tray 3/4 full with cold water, place it in the freezer
compartment and leave to freeze.
2.
To loosen the frozen cubes, either bend the ice cube tray or hold it
under running water for a few seconds.
Important! Never try to free an ice tray that is frozen to the freezer
compartment using pointed or sharp edged objects.
Defrosting
Refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special
container at the back of the appliance, over the motor compressor,
where it evaporates.
10
15
Symptom
The food is too warm.
Interior lighting does not work.
Possible Cause
Remedy
Temperature is not properly
adjusted.
Please look in the "Initial Start
Up" section.
Door was open for an extended period.
Open the door only as long
as necessary.
A large quantity of warm food Turn the temperature regulawas placed in the appliance tor to a colder setting.
within the last 24 hours.
The appliance is near a heat
source.
Please look in the "Installation
location" section.
Light bulb is defective.
Please look in the "Changing
the Light Bulb" section.
Door seal is not air tight (pos- Carefully warm the leaking
sibly afterreversing the door). sections of the door seal with
a hair dryer (not hotter than
Heavy build up of frost, possiapprox. 50 °C). At the same
bly also on the door seal.
time shape the warmed door
seal by hand such that it sits
correctly.
Appliance is not level.
Unusual noises.
The compressor does not
start immediately after changing the temperature setting.
2.
3.
4.
5.
Readjust the feet.
The appliance is touching the Move the appliance slightly.
wall or other objects.
This is normal, no error has
occurred.
The compressor starts after a
period of time.
Water on the floor or on stora- Water drain hole is blocked.
ge shelves.
See the "Cleaning and Care"
section.
If after all these checks your appliance does not operate correctly,
contact your local AEG Service Force Centre.
Please note that it will be necessary to provide proof of purchase for
any in-guarantee service calls.
In-guarantee customers should ensure that the above checks have
been made as the engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
14
1.
Freezer
The freezer compartment, however, will become progressively covered with frost. This should be removed with a plastic scraper, whenever the thickness of the frost exceeds 4 mm. During this operation it
is not necessary to switch off the power supply or to remove the foodstuffs.
However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:
Remove the frozen food from the freezer, wrap it in several layers of
newspaper and put it in a very cool place.
Switch off the appliance and
pull out the plug or turn the temperature selector to “0” OFF.
Leave the freezer compartment door open.
Lift the plug as shown in figure
and place a collecting basin
under it.
Turn the thermostat knob to
the required setting and replace the plug in the power
socket.
Warning!
PR151
Never use metal tools to scrape off the frost
Do not use a mechanical device or any artificial means to speed up
the thawing process.
A temperature rise of the frozen food packs, during defrosting, may
shorten their safe storage life.
Switching off the appliance
To switch off the appliance, turn the temperature regulator to position
"0"or disconnect from the electricity supply.
If the appliance is not going to be used for an extended period:
1.
Remove all refrigerated and deep-frozen packages as well as ice
trays.
2.
Remove the mains plug or switch off.
11
3.
Defrost freezer compartment and clean thoroughly (see section:
“Cleaning and Care”).
4.
Leave the door open to avoid the build up of odours.
• Do not install the appliance near cookers, radiators or other sources
of continuous warmth. High ambient temperatures cause longer,
more frequent operation of the compressor.
Cleaning and Care
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
• Ensure sufficient air circulation at the appliance base and at the back
wall of the appliance. Never cover air vent openings.
Warning!
• Do not place warm foods into the appliance. Allow warm foods to
cool first.
Before carrying out any cleaning or maintenance, disconnect the appliance from the electricity supply or turn the temperature regulator to “0”.
• Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, which could cause an electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.
Warning!
• Ethereal oils and organic solvents can attack plastic parts, e.g.
– lemon juice or the juice from orange peel,
– cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance parts.
Do not use any abrasive cleansers.
1.
Remove frozen food and the food from the refrigerator. Wrap frozen food
in several layers of newspaper. Store it in a cool place, well covered.
2.
Clean the appliance and the
interior accessories lukewarm
water, with a little bicarbonate
of soda added ( 5ml to 0,5 litre
of water). Commercially available dish washing detergents
may also be used.
3.
Dry the appliance thoroughly.
4.
Check the water drain hole on
the rear wall of the fridge. Clear
a blocked drain hole with the
aid of the drain cleaning tool
included with the appliance.
12
• Do not leave the door open any longer than necessary.
• Do not set temperature any colder than necessary.
• Put frozen food in the fridge to defrost. The cold in the frozen food
will then be used to cool the fridge.
Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the
appliance once a year with a soft brush or a vacuum cleaner. Ensure
the appliance is switched off.
Something Not Working
– butyric acid;
5.
Energy Saving Tips
If the appliance is not functioning correctly, please carry out the following checks before contacting your local AEG Service Force Centre.
Warning!
Repairs should only be carried out by qualified service engineers.
Repairs carried out by inexperienced persons may cause injury or
serious malfunctioning.
Symptom
Appliance does not work.
Possible Cause
Remedy
Appliance is not switched on
Switch on the appliance.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Fuse has blown or is defective. Check fuse, replace if necessary.
Socket is defective.
Mains malfunctions are to be
corrected by an electrician.
Temperature is set too cold.
Turn the temperature regulator to a warmer setting.
D037
After everything is dry place appliance back into service.
Appliance cools too much.
13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
