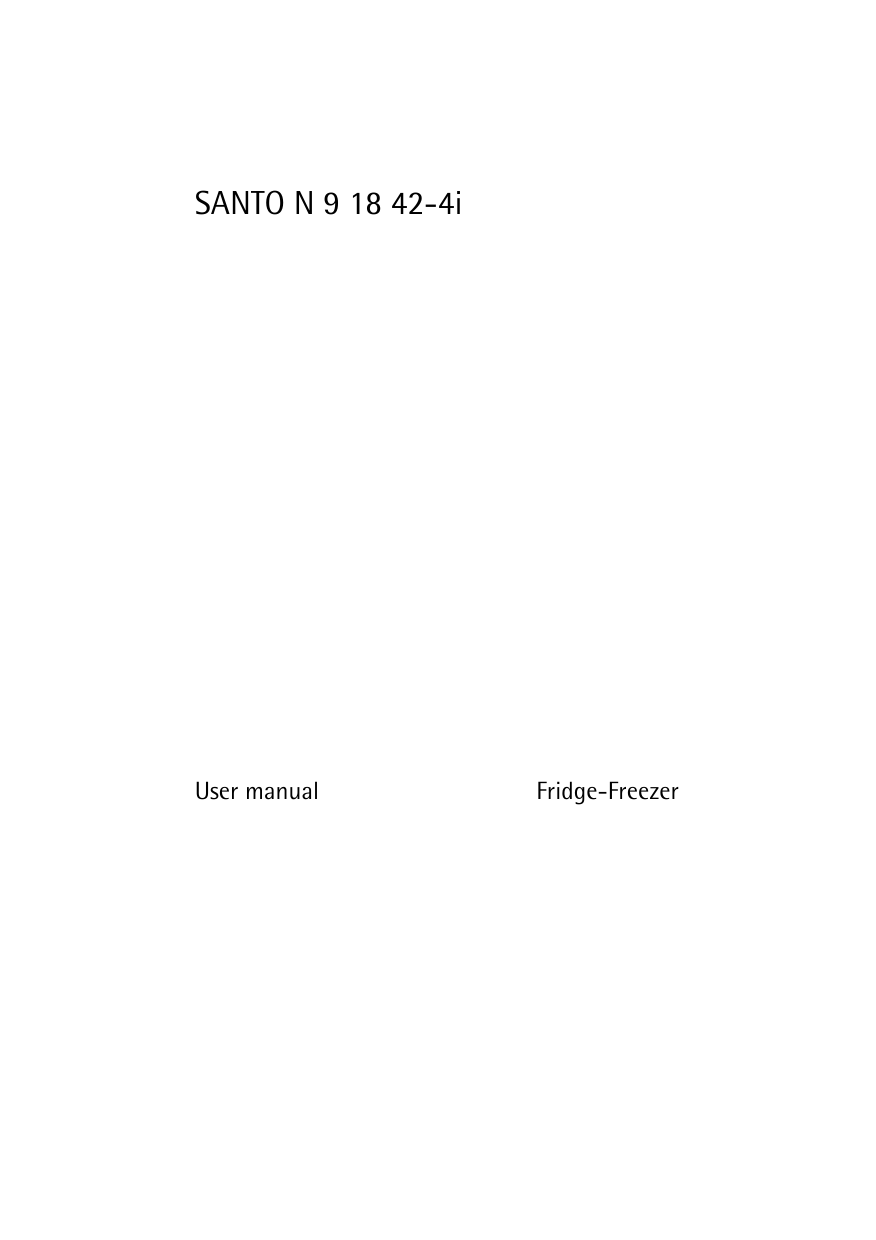

SANTO N 9 18 42-4i
User manual
Fridge-Freezer
2
Contents
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we
recommend you to keep it in a safe place. And please pass it to any future owner
of the appliance.
We wish you much joy with your new appliance.
CONTENTS
SAFETY INFORMATION
Children and vulnerable people safety
General safety
Daily Use
Care and cleaning
Installation
Service
CONTROL PANEL
Switching on
Switching off the fridge
Switching off the appliance
High temperature alarm
Temperature setting buttons
Temperature indicators
Temperature regulation
COOLMATIC function
FROSTMATIC function
FIRST USE
Cleaning the interior
DAILY USE
Freezing fresh food
Storage of frozen food
Frozen Food Calendar
Thawing
Ice-cube production
Cold accumulators
Movable shelves
Positioning the door shelves
Positioning the door half shelf
3
3
3
4
4
5
5
5
6
6
6
6
7
7
7
7
8
8
8
8
8
9
9
10
10
10
10
10
10
Humidity control
Clean Air Control Filter
HELPFUL HINTS AND TIPS
Hints for energy saving
Hints for fresh food refrigeration
Hints for refrigeration
Hints for freezing
Hints for storage of frozen food
CARE AND CLEANING
Periodic cleaning
Replacing the Clean Air Control filter
Defrosting of the refrigerator
Defrosting of the freezer
Periods of non-operation
WHAT TO DO IF…
Replacing the lamp
Closing the door
TECHNICAL DATA
INSTALLATION
Positioning
Removing the shelf holders
Electrical Connection
Installation of the carbon air filter
Door reversibility
Ventilation requirements
Installing the appliance
ENVIRONMENTAL CONCERNS
11
11
11
11
12
12
12
12
13
13
13
13
14
14
14
16
16
17
17
17
18
18
19
19
21
21
26
Subject to change without notice
Safety information
3
SAFETY INFORMATION
In the interest of your safety and to ensure the correct use, before installing and first
using the appliance, read this user manual carefully, including its hints and warnings. To
avoid unnecessary mistakes and accidents, it is important to ensure that all people using
the appliance are thoroughly familiar with its operation and safety features. Save these
instructions and make sure that they remain with the appliance if it is moved or sold, so
that everyone using it through its life will be properly informed on appliance use and
safety.
For the safety of life and property keep the precautions of these user's instructions as the
manufacturer is not responsible for damages caused by omission.
Children and vulnerable people safety
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection
cable (as close to the appliance as you can) and remove the door to prevent playing
children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having
a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for
a child.
General safety
CAUTION!
Keep ventilation openings clear of obstruction.
• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the
components of the refrigerant circuit become damaged.
If the refrigerant circuit should become damaged:
– avoid open flames and sources of ignition
– thoroughly ventilate the room in which the appliance is situated
4
Safety information
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.
WARNING!
Any electrical component (power cord, plug, compressor) must be replaced by a certified
service agent or qualified service personnel.
•
•
•
•
1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the
appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of
electric shock or fire.
6. You must not operate the appliance without the lamp cover1) of interior lighting.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if your hands are
damp/wet, as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.
Bulb lamps2) used in this appliance are special purpose lamps selected for household
appliances use only. They are not suitable for household room illumination.
Daily Use
•
•
•
•
•
Do not put hot pot on the plastic parts in the appliance.
Do not store flammable gas and liquid in the appliance, because they may explode.
Do not place food products directly against the air outlet on the rear wall.3)
Frozen food must not be re-frozen once it has been thawed out.
Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to.
Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.
Care and cleaning
• Before maintenance, switch off the appliance and disconnect the mains plug from the
mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean
the drain. If the drain is blocked, water will collect in the bottom of the appliance.
1) If the lamp cover is foreseen.
2) If the lamp is foreseen.
3) If the appliance is Frost Free.
Control panel
5
Installation
For electrical connection carefully follow the instructions given in specific paragraphs.
• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought
it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the
oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching
or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only. 4)
Service
• Any electrical work required to do the servicing of the appliance should be carried out
by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare
parts must be used.
Environment Protection
This appliance does not contain gasses which could damage the ozone layer, in either its
refrigerant circuit or insulation materials. The appliance shall not be discarded together
with the urban refuse and rubbish. The insulation foam contains flammable gases: the
appliance shall be disposed according to the applicable regulations to obtain from your
local authorities. Avoid damaging the cooling unit, especially at the rear near the heat
exchanger. The materials used on this appliance marked by the symbol are recyclable.
CONTROL PANEL
1 2
1
2
3
4
3
4
5
6 7
8 9
Fridge Pilot light
Fridge ON/OFF switch
Fridge temperature regulator, + button
Fridge temperature indicator
4) If a water connection is foreseen.
10
11
12 13 14 15 16
6
Control panel
5
6
7
8
9
10
11
12
13
14
15
16
Fridge temperature regulator, - button
COOLMATIC indicator
COOLMATIC button
Appliance Pilot light
Appliance ON/OFF switch
Freezer temperature regulator, + button
Freezer temperature indicator
Freezer temperature regulator, - button
FROSTMATIC indicator
FROSTMATIC button
Alarm indicator ( ALARM OFF)
Alarm reset button (ALARM OFF)
Switching on
1.
2.
3.
4.
Insert the plug into the mains socket.
Press ON/OFF switch .
The Pilot Light will light up.
The alarm indicator light flashes since the temperature is reached.
The acoustic alarm sounds.
5. Press the alarm reset button to reset the alarm.
Switching off the fridge
1. Keep ON/OFF switch pressed for more than 5 seconds.
2. A countdown on the temperature indicator, from -3 -2 -1 will be shown. When “1”
appears the fridge is turned off. The temperature indicator switches off. The Pilot
light switches off.
Switching off the appliance
1. Keep ON/OFF switch pressed for more than 5 seconds.
2. A countdown on the temperature indicators, from -3 -2 -1 will be shown. When “1”
appears the appliance is turned off. The temperature indicators switch off. The Pilot
lights switch off.
High temperature alarm
In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm
indicator light will start to flash and a buzzer will sound.
Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will
continue to flash.
The buzzer will stop automatically when the temperature has returned to normal while
the alarm indicator light will continue to flash.
Press the alarm reset button. The alarm indicator light goes out and at the same time the
freezer temperature indicator show for about 5 seconds the warmest temperature
reached in the freezer compartment.
Control panel
7
Temperature setting buttons
The temperature is adjusted using the temperature setting buttons. These buttons are
connected to the temperature indicator.
• The temperature indicator is switched over from the indicator of the ACTUAL temperature (Temperature indicator is illuminated) to the indicator of the DESIRED temperature (Temperature indicator flashes) by pressing one of the Temperature setting buttons.
• Each time one of the two buttons is pressed again the DESIRED temperature is adjusted by 1°C. The DESIRED temperature must be reached within 24 hours.
If neither button is pressed, the temperature indicator automatically switches back after
a short period (approx. 5 sec.) to the indicator of the ACTUAL temperature.
DESIRED temperature means:
The temperature that has been selected for inside the corresponding compartment. The
DESIRED temperature is indicated by flashing numbers.
ACTUAL temperature means:
The temperature indicator shows the current temperature inside the corresponding compartment. The ACTUAL temperature is indicated with illuminated numbers.
Temperature indicators
The temperature indicators show several information:
• During normal operation, the temperature currently set for fridge and freezer are displayed.
• When the temperature is being adjusted a flashing display indicates the fridge temperature currently set .
Temperature regulation
To operate the appliance, proceed as follows:
1. Set the required temperature by pressing the corresponding temperature regulator.
The temperature indicator will immediately show the changed setting and the temperature indicator flashes.
2. Each time the temperature regulator is pressed the temperature is adjusted by 1 °C.
The set temperature will be reached within 24 hours.
3. The temperature indicator will change from flashing to continuous illumination.
For a correct storage of the food the following temperatures should be set:
• +5 °C in the fridge
• -18 °C in the freezer.
When the setting is changed, the compressor does not start immediately if automatic
defrosting is currently taking place. As the storage temperature within the fridge is
reached quickly you can store food immediately after switching on.
COOLMATIC function
The COOLMATIC function is suited for quick cooling of large quantities of goods in the
refrigerator.
To activate the function, do these steps:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches on.
8
First use
The COOLMATIC function now provides for intensive cooling. A temperature of +2°C is
automatically selected.
The COOLMATIC function is ended automatically after a period of 6 hours.
You can deactivate the function at any time:
1. Press the COOLMATIC button.
2. The COOLMATIC indicator switches off.
FROSTMATIC function
The FROSTMATIC function accelerates the freezing of fresh food and, at the same time,
protects foodstuffs already stored from undesirable warming.
To activate the function, do these steps:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches on.
The FROSTMATIC function is ended automatically after a period of 52 hours.
You can deactivate the function at any time:
1. Press the FROSTMATIC button.
2. The FROSTMATIC indicator switches off.
FIRST USE
Cleaning the interior
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a
brand-new product, then dry thoroughly.
Do not use detergents or abrasive powders, as these will damage the finish.
DAILY USE
Freezing fresh food
The freezer compartment is suitable for freezing fresh food and storing frozen and deepfrozen food for a long time.
To freeze fresh food activate the FROSTMATIC function at least 24 hours before placing
the food to be frozen in the freezer compartment.
Daily use
9
Place the fresh food to be frozen in the "X" compartment, as shown in the figure.
The maximum amount of food that can be frozen in 24 hours is specified on the rating
plate , a label located on the inside of the appliance.
The freezing process lasts 24 hours: during this period do not add other food to be frozen.
Storage of frozen food
When first starting-up or after a period out of use, before putting the products in the
compartment let the appliance run at least 2 hours on the higher settings.
If large quantities of food are to be stored, remove all drawers and baskets from appliance and place food on cooling shelves to obtain the best performance.
WARNING!
Make sure that foods do not exceed the load limit stated on the side of the upper section
(where applicable)
In the event of accidental defrosting, for example due to a power failure, if the power
has been off for longer that the value shown in the technical characteristics chart under
"rising time", the defrosted food must be consumed quickly or cooked immediately and
then re-frozen (after cooling).
Frozen Food Calendar
The symbols show different types of frozen goods.
The numbers indicate storage times in months for the appropriate types of frozen goods.
Whether the upper or lower value of the indicated storage time is valid depends on the
quality of the foods and treating before freezing.
10
Daily use
Thawing
Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.
Ice-cube production
This appliance is equipped with one or more trays for the production of ice-cubes. Fill
these trays with water, then put them in the freezer compartment.
Do not use metallic instruments to remove the trays from the freezer.
Cold accumulators
One or more cold accumulators are supplied in the freezer; these increase the length of
time for which food will keep in the event of a power failure or breakdown.
Movable shelves
The walls of the refrigerator are equipped with a
series of runners so that the shelves can be positioned as desired.
For better use of space, the front half-shelves
can lie over the rear ones.
Positioning the door shelves
To permit storage of food packages of various sizes, the door shelves can be placed at
different heights.
Positioning the door half shelf
The door half shelf can be placed at different heights.
To make these adjustments proceed as follow:
Helpful hints and tips
11
1. lift the shelf with the door half shelf upwards and out of the holders in the door
2. remove the retaining bracket out of the
guide under the shelf
3. Reverse the above operation to insert
the half shelf at a different height.
Humidity control
The glass shelf incorporates a device with slits
(adjustable by means of a sliding lever), which
makes it possible to regulate the temperature in
the vegetable drawer(s).
When the ventilation slots are closed:
the natural moisture content of the food in the
fruit and vegetable compartments is preserved
for longer.
When the ventilation slots are opened:
more air circulation results in a lower air moisture content in the fruit and vegetable compartments.
Clean Air Control Filter
Your appliance is equipped with a carbon filter behind the air lever flap.
The filter purifies the air from unwanted odours in the fridge compartment preserving
food quality.
On delivery the filter is in a plastic bag. Refer to "Installation of the Clean Air Control
filter" for instructions.
Make sure that the air lever flap is closed to obtain proper function.
HELPFUL HINTS AND TIPS
Hints for energy saving
• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously,
causing frost or ice on the evaporator. If this happens, set the Temperature Regulator
toward warmer settings to allow automatic defrosting and so a saving in electricity
consumption.
12
Helpful hints and tips
Hints for fresh food refrigeration
To obtain the best performance:
• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it
Hints for refrigeration
Useful hints:
Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special airtight containers or wrapped in
aluminium foil or polythene bags to exclude as much air as possible.
Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.
Hints for freezing
To help you make the most of the freezing process, here are some important hints:
• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating
plate;
• the freezing process takes 24 hours. No further food to be frozen should be added
during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to
make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are
airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding
a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of
food;
• water ices, if consumed immediately after removal from the freezer compartment, can
possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to
keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appliance, you should:
• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the
shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
Care and cleaning
13
• Do not exceed the storage period indicated by the food manufacturer.
CARE AND CLEANING
CAUTION!
Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and recharging
must therefore only be carried out by authorized technicians.
Periodic cleaning
The equipment has to be cleaned regularly:
• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from
debris.
• rinse and dry thoroughly.
Do not pull, move or damage any pipes and/or cables inside the cabinet.
Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.
Clean the condenser (black grill) and the compressor at the back of the appliance with a
brush or a vacuum cleaner. This operation will improve the performance of the appliance
and save electricity consumption.
Take care of not to damage the cooling system.
Insert the 2 upper shelves in the original position after leaving them for cleaning.
Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the
plastics used in this appliance. For this reason it is recommended that the outer casing of
this appliance is only cleaned with warm water with a little washing-up liquid added.
After cleaning, reconnect the equipment to the mains supply.
Replacing the Clean Air Control filter
To get the best performance replace the Clean Air Control filter once every year.
New active filters can be purchased from your local dealer.
Refer to "Installation of the Clean Air Control filter" for instructions.
Defrosting of the refrigerator
Frost is automatically eliminated from the evaporator of the refrigerator compartment
every time the motor compressor stops, during normal use. The defrost water drains out
through a trough into a special container at the back of the appliance, over the motor
compressor, where it evaporates.
14
What to do if…
It is important to periodically clean the defrost
water drain hole in the middle of the refrigerator compartment channel to prevent the water
overflowing and dripping onto the food inside.
Use the special cleaner provided, which you will
find already inserted into the drain hole.
Defrosting of the freezer
The freezer compartment of this model, on the other hand, is a "no frost" type. This
means that there is no buildup of frost when it is in operation, neither on the internal
walls nor on the foods.
The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.
Periods of non-operation
When the appliance is not in use for long periods, take the following precautions:
• disconnect the appliance from electricity supply
• remove all food
• defrost5) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.
If the cabinet will be kept on, ask somebody to check it once in a while to prevent the
food inside from spoiling in case of a power failure.
WHAT TO DO IF…
WARNING!
Before troubleshooting, disconnect the mains plug from the mains socket.
Only a qualified electrician or competent person must do the troubleshooting that is not
in this manual.
There are some sounds during normal use (compressor, refrigerant circulation).
Problem
The appliance is noisy
5) If foreseen.
Possible cause
Solution
The appliance is not supported
properly
Check if the appliance stands
stable (all the four feet should be
on the floor)
What to do if…
Problem
The appliance does not
operate. The lamp does
not operate.
Possible cause
15
Solution
The appliance is switched off.
Switch on the appliance.
The mains plug is not connected to the mains socket correctly.
Connect the mains plug to the
mains socket correctly.
The appliance has no power.
Connect a different electrical
There is no voltage in the mains appliance to the mains socket.
socket.
Contact a qualified electrician.
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp is defective.
Refer to "Replacing the lamp".
The Pilot light flashes.
The appliance is not working
properly.
Contact a qualified electrician.
The buzzer sounds. The
Alarm light flashing.
The temperature in the freezer
is too high.
Refer to "High Temperature
Alarm".
The compressor operates
continually.
The temperature is not set correctly.
Set a higher temperature.
The door is not closed correctly. Refer to "Closing the door".
The door has been opened too
frequently.
Do not keep the door open longer than necessary.
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
The room temperature is too
high.
Decrease the room temperature.
The compressor does not
start immediately after
pressing the FROSTMATIC or COOLMATIC button, or after changing
the temperature.
This is normal, no error has occurred.
The compressor starts after a period of time.
Water flows on the rear
plate of the refrigerator.
During the automatic defrosting process, frost defrosts on
the rear plate.
This is correct.
Water flows into the refrigerator.
The water outlet is clogged.
Clean the water outlet.
Products prevent that water
flows into the water collector.
Make sure that products do not
touch the rear plate.
16
What to do if…
Problem
Possible cause
Solution
Temperature cannot be
set .
FROSTMATIC or COOLMATIC
functions switched on.
Switch off FROSTMATIC or
COOLMATIC manually, or wait to
set the temperature until the
function has reset automatically.
Refer to "FROSTMATIC or COOLMATIC function"..
The temperature in the
appliance is too low/
high.
The temperature regulator is
not set correctly.
Set a higher/lower temperature.
The door is not closed correctly. Refer to "Closing the door".
The product temperature is too
high.
Let the product temperature decrease to room temperature before storage.
Many products are stored at
the same time.
Store less products at the same
time.
The temperature in the
refrigerator is too high.
There is no cold air circulation
in the appliance.
Make sure that there is cold air
circulation in the appliance.
The temperature in the
freezer is too high.
Products are too near to each
other.
Store products so that there is
cold air circulation.
There is too much frost.
Food is not wrapped correctly.
Wrap the food correctly.
The door is not closed correctly. Refer to "Closing the door".
The temperature regulator is
not set correctly.
Replacing the lamp
CAUTION!
Disconnect the plug from the mains socket.
1. Press on the rear hook and at the same
time slide the cover in the direction of
the arrow.
2. Replace the lamp with one of the same
power and specifically designed for
household appliances. (the maximum
power is shown on the light bulb cover).
3. Install the lamp cover by fixing it into its
original position.
4. Connect the plug to the mains socket.
5. Open the door. Make sure that the light
comes on.
Closing the door
1. Clean the door gaskets.
Set a higher temperature.
Technical data
17
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.
TECHNICAL DATA
Dimension of the recess
Height
1780 mm
Width
560 mm
Depth
550 mm
Rising Time
25 h
The technical information are situated in the rating plate on the internal left side of the
appliance and in the energy label.
INSTALLATION
WARNING!
Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.
Positioning
Install this appliance at a location where the ambient temperature corresponds to the
climate class indicated on the rating plate of the appliance:
Climate class
Ambient temperature
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
18
Installation
Removing the shelf holders
Your appliance is equipped with shelf retainers
that make it possible to secure the shelves during transportation.
To remove them proceed as follows:
1. Move the shelf holders in the direction of
the arrow (A).
2. Raise the shelf from the rear and push it forward until it is freed (B).
3. Remove the retainers (C).
A
B
C
Electrical Connection
CAUTION!
Any electrical work required to install this appliance should be carried out by a qualified
electrician or competent person.
WARNING!
This appliance must be earthed.
The manufacturer declines any liability should these safety measures not be observed.
1
5
2
3
4
The wires in the mains lead are coloured in accordance with the following code:
1
Green and Yellow:
Earth
Installation
3
Brown:
Live
5
Blue:
Neutral
19
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
1. Connect the wire coloured green and yellow to the terminal marked either with the
letter “E“ or by the earth symbol or coloured green and yellow.
2. Connect the wire coloured blue to the terminal either marked with the letter “N“ or
coloured black.
3. Connect the wire coloured brown to the terminal either marked with the “L“ or coloured red.
4. Check that no cut, or stray strands of wire is present and the cord clamp 4 is secure
over the outer sheath.
5. Make sure the electricity supply voltage is the same as that indicated on the appliance rating plate.
6. Switch on the appliance.
The appliance is supplied with a 13 amp plug fitted 2 . In the event of having to change
the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
WARNING!
A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure
that it is disposed of safely.
Installation of the carbon air filter
The carbon air filter is an active carbon filter which absorbs bad odours and permits to
maintain the best flavour and aroma for all foodstuffs without risk of odour cross contamination.
On delivery the carbon filter is in a plastic bag to
maintain it’s duration and characteristics. The
filter should be placed behind the flap before
the appliance is turned on.
1. Open the flap cover
2. Remove the filter from the plastic bag
3. Insert the filter inside filter support
2
4. Push upwards filter support into slot.
During operation, always keep the air ventilation
flap closed.
The filter should be handled carefully so fragments do not loosen from the surface.
1
Door reversibility
The door of the appliance opens to the right. If you want to open the door to the left, do
these steps before you install the appliance:
20
Installation
1. Loosen and remove the upper pin.
2. Remove the upper door.
3. Remove the spacer.
4. Loosen the middle hinge.
5. Remove the lower door.
S
6. Loosen and remove the lower pin.
On the opposite side:
1. Tighten the lower pin.
2. Install the lower door.
3. Tighten the middle hinge.
4. Install the spacer.
5. Install the upper door.
6. Tighten the upper pin.
Installation
21
Ventilation requirements
The airflow behind the appliance must be sufficient.
50 mm
min.
200 cm2
min.
200 cm2
Installing the appliance
CAUTION!
Make sure that the mains cable can move freely.
Do these steps.
1. Apply the adhesive sealing strip to the
appliance as shown in figure.
22
Installation
2.
Install the appliance in the niche.
Push the appliance in the direction of
the arrow (1) until the upper gap cover
stops against the kitchen furniture.
Push the appliance in the direction of
the arrow (2) against the cupboard on
the opposite side of the hinge.
2
1
3.
4.
Adjust the appliance in the niche.
Make sure that the distance between
the appliance and the cupboard frontedge is 44 mm.
The lower hinge cover (in the accessories bag) makes sure that the distance
between the appliance and the kitchen
furniture is correct.
Make sure that the clearance between
the appliance and the cupboard is 4
mm.
Open the door. Put the lower hinge
cover in position.
Attach the appliance to the niche with 4
screws.
4mm
44mm
I
I
23
Installation
5.
Remove the correct part from the
hinge cover (E). Make sure to remove
the part DX, in the case of right hinge,
SX in opposite case.
6.
Attach the covers (C, D) to the lugs and
the hinge holes.
Install the vent grille (B).
Attach the hinge covers (E) to the
hinge.
D
C
E
E
7.
B
Connect the appliance laterally to the
kitchen furniture sidewall:
a) Fit the bracket (E) and (F), adjust
the distance.
b) Fix using the screws (as in figure).
c) Fit the cover (D).
E
F
D
24
Installation
8.
Disconnect the parts (Ha), (Hb), (Hc)
and (Hd)
9.
Install the part (Ha) on the inner side
of the kitchen furniture.
ca. 50 mm
90°
21 mm
90°
ca. 50 mm
21 mm
10. Push the part (Hc) on the part (Ha).
Ha
Hc
Installation
11. Open the appliance door and the kitchen furniture door at an angle of 90°.
Insert the small square (Hb) into guide
(Ha).
Put together the appliance door and
the furniture door and mark the holes.
25
8 mm
Ha
Hb
12. Remove the brackets and mark a distance of 8 mm from the outer edge of
the door where the nail must be fitted
(K).
8 mm
K
Ha
13. Place the small square on the guide
again and fix it with the screws supplied.
Align the kitchen furniture door and
the appliance door by adjusting the
part Hb.
Hb
26
Environmental concerns
14. Press the part (Hd) on the part (Hb).
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
Hb
Hd
ENVIRONMENTAL CONCERNS
The symbol on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should be taken to the appropriate collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. For more detailed information about recycling of this
product, please contact your local council, your household waste disposal service or the
shop where you purchased the product.
27
222344532-A-352010
www.aeg-electrolux.com/shop

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
