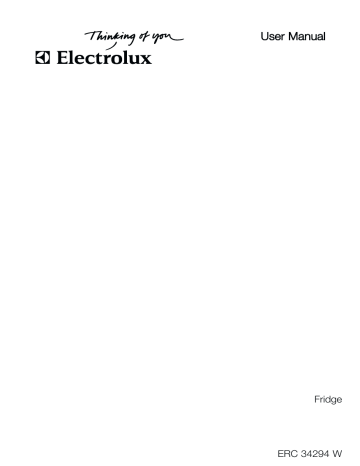

User Manual
Fridge
ERC 34294 W
electrolux 3
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety
of quality products that would make your life even more comfortable. You can look
at some examples on the cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from your new machine. We
promise that it’ll make your life a little easier. Good luck!
4 electrolux
The following symbols are used in this manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
The symbol
on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased
the product.
electrolux 5
CONTENTS
Safety Information
Use
Cleaning the interior
Control panel
Operation
Temperature regulation
Fresh food refrigeration
Movable shelves
Positioning the door shelves
Bottle rack
Health and safety guidelines
6
9
9
9
9
9
10
10
10
11
12
Maintenance
Internal cleaning
External cleaning
When the appliance is not in use
Defrosting
Interior light
Something not working
Technical specifications
Installation
Positioning
Rear spacers
Electrical connection
Shelf holders
Door reversibility
13
13
13
13
14
14
15
16
17
17
18
18
20
20
6 electrolux
SAFETY INFORMATION
It is most important that this
instruction book should be retained
with the appliance for future reference.
Should the appliance be sold or
transferred to another owner, or
should you move house and leave the
appliance, always ensure that the
book is supplied with the appliance in
order that the new owner can be
acquainted with the functioning of the
appliance and the relevant warnings.
If this appliance featuring magnetic
door seals is to replace an older
appliance having a spring lock (latch)
on the door or lid, be sure to make
that spring lock unusable before you
discard the old appliance. This will
prevent it from becoming a death-trap
for a child.
These warnings are provided in the
interest of safety. You must read them
carefully before installing or using the
appliance.
General Safety
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
• It is dangerous to alter the
specifications or modify this
product in any way.
• Before any cleaning or
maintenance work is carried out,
be sure to switch off and unplug
the appliance.
• This appliance is heavy. Care
should be taken when moving it
• Ice lollies can cause frost burns if
consumed straight from the
appliance.
• Take utmost care when handling
your appliance so as not to cause
any damages to the cooling unit
with consequent possible fluid
leakages.
• The appliance must not be located
close to radiators or gas cookers.
• Avoid prolonged exposure of the
appliance to direct sunlight.
• There must be adequate ventilation
round the back of the appliance
and any damage to the refrigerant
circuit must be avoided.
• For freezers only (except built-iin
models): an ideal location is the
cellar or basement.
• Do not use other electrical
appliances (such as ice cream
makers) inside of refrigerating
appliances.
Service/Repair
•
Any electrical work required to
install this appliance should be
carried out by a qualified electrician
or competent person
• This product should be serviced by
an authorized Service Centre, and
only genuine spare parts should be
used.
electrolux 7
• Under no circumstances should
you attempt to repair the appliance
yourself. Repairs carried out by
inexperienced persons may cause
injury or more serious
malfunctioning. Refer to your local
Service Centre, and always insist
on genuine spare parts.
• This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging must
therefore only be carried out by
authorized technicians.
Use
• The domestic refrigerators and
freezers are designed to be used
specifically for the storage of edible
foodstuffs only.
• Best performance is obtained with
ambient temperature between
+18°C and +43°C (class T); +18°C
and +38°C (class ST); +16°C and
+32°C (class N); +10°C and +32°C
(class SN). The class of your
appliance is shown on its rating
plate.
Warning: when the ambient
temperature is not included within
the range indicated for the class of
this appliance, the following
instructions must be observed:
when the ambient temperature
drops below the minimum level, the
storage temperature in the freezer
compartment cannot be
guaranteed; therefore it is advisable
to use the food stored as soon as
possible.
• Frozen food must not be re-frozen
once it has been thawed out.
• Manufacturers’ storage
recommendations should be strictly
adhered to. Refer to relevant
instructions.
• The inner lining of the appliance
consists of channels through which
the refrigerant passes. If these
should be punctured this would
damage the appliance beyond
repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS
to scrape off frost or ice. Frost may
be removed by using the scraper
provided. Under no circumstances
should solid ice be forced off the
liner. Solid ice should be allowed to
thaw when defrosting the
appliance.
• Do not place carbonated or fizzy
drinks in the freezer as it creates
pressure on the container, which
may cause it to explode, resulting
in damage to the appliance.Do not
use a mechanical device or any
artificial means to speed up the
thawing process other than those
recommended by the
manufacturer. Never use metal
objects for cleaning your appliance
as it may get damaged.
Installation
• During normal operation, the
condenser and compressor at the
back of the appliance heat up
considerably. For safety reasons,
minimum ventilation must be as
shown in the instructions.
8 electrolux
Attention: keep ventilation openings
clear of obstruction.
• Care must be taken to ensure that
the appliance does not stand on
the electrical supply cable.
Important: if the supply cord is
damaged, it must be replaced by a
special cord or assembly availa-ble
from the manufacturer or its service
agent.
• If the appliance is transported
horizontally, it is possible that the
oil contained in the compressor
flows in the refrigerant circuit. It is
advisable to wait at least two hours
before connecting the appliance to
allow the oil to flow back in the
compressor.
• There are working parts in this
product which heat up. Always
ensure that there is adequate
ventilation as a failure to do this will
result in component failure and
possible food loss. See installation
instructions.
• Parts which heat up should not be
exposed. Wherever possible the
back of the product should be
against a wall.
Environment
Protection
This appliance does not contain
gasses which could damage the ozone
layer, in either its refrigerant circuit or
insulation materials. The appliance
shall not be discarded together with
the urban refuse and rubbish. Avoid
damaging the cooling unit, especially
at the rear near the heat exchanger.
Information on your local disposal sites
may be obtained from municipal
authorities. The materials used on this
appliance marked by the symbol
are recyclable.
electrolux 9
USE
Cleaning the interior
Before using the appliance for the first
time, wash the interior and all internal
accessories with luke-warm water and
some neutral soap so as to remove
the typical smell of a brand-new
product, then dry thoroughly.
Do not use detergents or
abrasive powders, as these will
damage the finish.
Control panel
A
B
A. Pilot light
B. Thermostat knob
Operation
Temperature regulation
Insert the plug into the wall socket.
Turn the thermostat knob (B) to the
right to a medium setting.The pilot light
(A) will light up, indicating that the
appliance is powered. To stop
operation, simply turn the thermostat
knob to position «O».
The pilot light remains lit up.
The temperature is automatically
regulated and can be increased to
achieve a higher temperature (warmer)
by rotating the thermostat knob toward
lower settings or reduced (colder)
rotating the knob towards higher settings.
However, the exact setting should be
chosen keeping in mind that the
temperature inside the refrigerator
depends on:
• room temperature;
• how often the door is opened;
• the quantity of food stored;
• location of appliance.
10 electrolux
Important
If the ambient temperature is high or
the appliance is fully loaded, and the
appliance is set to the lowest
temperatures, it may run continuously
causing frost to form on the rear wall.
In this case the dial must be set to a
higher temperature to allow automatic
defrosting and therefore reduced
energy consumption.
Fresh food refrigeration
To obtain the best performance:
• do not store warm food or
evaporating liquids in the
refrigerator;
• do cover or wrap the food,
particularly if it has a strong flavour.
• Position food so that air can
circulate freely round it.
Movable shelves
The walls of the refrigerator are
equipped with a series of runners so
that the shelves can be positioned as
desired.
D338
Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed
as follows: Gradually pull the shelf in
the direction of the arrows until it
comes free, then reposition as
required.
electrolux 11
Bottle rack
Place bottles in the rack with the
bottleneck to the front.
Important: Only store unopened bottles
horizontally.
The bottle rack can be tilted for storing
opened bottles.
To do this pull the bottle rack forward
until it can be tilted upwards, then slide
the front support into the next level up.
12 electrolux
HEALTH AND SAFETY GUIDELINES
Because of consumer demand, preservatives have been removed from many
pre-p
prepared foods. This together with the changes in shopping habits to a
once-a
a-w
week shop, mean that safe handling and storage of food is even more
important than ever.
The following tips should help you to ensure that the food in your home is in as
perfect condition as possible.
•
Keep the time between buying
chilled food and placing it in your
fridge as short as possible. Tests
showed that the temperature of 1
litre of orange juice rose to 22°C in
an hour between the supermarket
and home. It then took 11 hours to
get down to 7°C in the refrigerator.
• Keep the refrigerator door closed
as much as possible.
• Do not push food together too
much, try to allow air to circulate
around each item.
• Cool cooked food as quickly as
possible but do NOT place in the
refrigerator until cool. (Leave food
in a place as cool as possible in
order that it can then be placed in
the refrigerator as soon as
possible).
• Do NOT mix raw and cooked
meat, they must be in separate
containers. Take care not to let the
meat juices drip onto other food. If
the meat does drip, remove
everything and clean thoroughly.
• Do not store food uncovered.
• Remove suspect food from your
refrigerator and clean (refer to
“Maintenance and Cleaning).
• Never allow spillages to dry and
harden.
• Store eggs in the egg rack provided
in the refrigerator door. Discard any
broken or chipped eggs.
• Regularly check the refrigerator
door seal to ensure that it is clean
and free from debris.
• Always wash your hands with
soapy water and dry them with a
clean towel before handling food.
• Keep work surfaces clean and
avoid cross contamination by not
using the same work surface or
knife, without washing them
thoroughly in between.
electrolux 13
MAINTENANCE
Before any maintenance or
cleaning work is carried out,
DISCONNECT the appliance
from the ELECTRICITY supply.
Warning
This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging
must therefore only be carried
out by authorized technicians.
Internal cleaning
Clean the inside with warm water and
bicarbonate of soda.(5ml to 0.5 litre of
water). Rinse and dry thoroughly.
Do not pull, move or damage any
pipes and /or cables inside the cabinet
External cleaning
Many proprietary kitchen surface
cleaners contain chemicals that can
attack/damage the plastics used in
this appliance. For this reason it is
recommended that the outer casing of
this appliance is only cleaned with
warm water with a little washing-u
up
liquid added.
An accumulation of dust will affect the
performance of the appliance and
cause excessive electricity
consumption.
You MUST ensure that the appliance
is switched OFF.
Once or twice a year dust the
condenser (black grill) and the
compressor at the back of the
appliance, with a brush or vacuum
cleaner, see diagram.
PR259
NEVER USE DETERGENTS,
ABRASIVE POWDERS, HIGHLY
PERFUMED CLEANING
PRODUCTS OR WAX
POLISHES, TO CLEAN THE
INTERIOR AS THESE WILL
DAMAGE THE SURFACE AND
LEAVE A STRONG ODOUR.
When the appliance is
not in use
When the appliance is not in use for
long periods, disconnect from the
electricity supply, empty all foods and
clean the appliance, leaving the doors
ajar to prevent unpleasant smells.
14 electrolux
Defrosting
Interior light
Frost is automatically eliminated from
the evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
If it becomes necessary to replace the
lamp, press on the rear hook and at
the same time slide the cover in the
direction indicated by the arrow.
D037
It is important to periodically clean the
defrost water drain hole in the middle
of the refrigerator compartment
channel to prevent the water
overflowing and dripping onto the food
inside. Use the special cleaner
provided, which you will find already
inserted into the drain hole.
Attention
Replace the lamp with one of the
same power (the maximum power is
shown on the light diffuser).
electrolux 15
SOMETHING NOT WORKING
Important: If you call out an engineer to a fault listed below, or to repair a fault
caused by incorrect use or installation a charge will be made, even if the
appliance is under guarantee.
Before contacting your local Service Force Centre, check the following points:
Symptom
Solution
No power to the appliance
Check there is power at the socket.
Check there is not a power cut by checking
the household lights.
Check the fuse has not blown.
The light does not come on
Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
Check the door light switch is not jammed.
The temperature in the fridge
The compressor runs
continously
Check the thermostat control knob in the fridge
is turned to the correct setting relative to
ambient conditions.
Check the ambient temperature is within the
appliance’s operating limits, please refer to the
installation section in this instruction book.
Relocate the appliance if necessary.
Adjust the thermostat control knob to give
correct temperature control. See “Setting the
temperature”.
Check that the door is closed.
Large quantities of food have recently been placed
in the cabinet and/or door is frequently opened.
Check that air ventilation is not obstructed.
Noise
Refer to normal operating sounds.
Water under the salad crispers
Check the drain hole is not blocked. (see
Maintenance and Cleaning).
If, after the above checks, there is still a fault, call your local Service Force
Centre. In guarantee customers should ensure that the above checks have been
made as the engineer will make a charge if the fault is not a mechanical or
electrical breakdown. Please note that proof of purchase is required for any inguarantee service calls.
16 electrolux
TECHNICAL SPECIFICATIONS
DIMENSIONS
Height
160
cm
Width
60
cm
Depth
64,5
cm
POWER SUPPLY VOLTAGE AND FREQUENCY
230-240 V / 50 Hz
TOTAL POWER ABSORBED
120 W
AVERAGE DAILY UNITS ELECTRICITY *
0.386 kWh
GROSS CAPACITY
Fridge
335 l
Fridge
330 l
NET CAPACITY
*
This figure is based on standard test results in accordance with European
Standard EN 153.
Actual consumption will depend on how the appliance is used and where it is
located.
electrolux 17
Depending upon the position which
you choose for your appliance, you
may wish to reverse the way in which
the door opens. To do this, refer to
instructions on “Door reversal
directions” paragraph.
Positioning
This appliance should only be installed
at a location where the ambient
temperature corresponds to the
climate classification indicated on the
rating plate, which is located at the left
on the inside of the appliance.
The following table shows which
ambient temperature is correct for
each climate classification:
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+18°C to + 38°C
T
+18°C to + 43°C
It should be located in a dry
atmosphere, out of direct sunlight and
away from extreme temperature e.g.
not next to a boiler or radiator, or in a
very cold room e.g. an outhouse,
You should also ensure that air can
circulate freely around the back and
the top of the cabinet. There must also
be at least 100 mm (4”) distance
between the top of the cabinet and
any overhanging kitchen furniture (A).
Ideally, the appliance should not be
positioned beneath overhanging
furniture (B).
A
B
10 mm
IF YOU ARE DISCARDING AN OLD
APPLIANCE THAT HAS A LOCK OR
CATCH ON THE DOOR, YOU MUST
ENSURE THAT IT IS MADE
UNUSABLE TO PREVENT YOUNG
CHILDREN BEING TRAPPED INSIDE.
100 mm
Warning
where the temperatures may fall below
10°C (50°F). If these temperatures are
exceeded i.e. colder or warmer, then
the appliance may not operate
correctly.
10 mm
INSTALLATION
NP006
There should also be a gap of 25 mm
either side of the appliance. Do not
obstruct the space underneath. The
back of the cabinet may be placed
close to the wall but must not touch it.
DO NOT install in places with restricted
ventilation.
18 electrolux
Adjust the level of the appliance by
screwing out the adjustable foot, or
feet, at the bottom of the cabinet using
your fingers.
Important
It must be possible to disconnect the
appliance from the mains power
supply; the plug must therefore be
easily accessible after installation.
Electrical
connections
Any electrical work required to install
this appliance should be carried out by
a qualified electrician or competent
person.
WARNING: THIS APPLIANCE MUST
BE EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
If the plug that is fitted to your
appliance is not suitable for your
socket outlet, it must be cut off and
the appropriate plug fitted.
Remove the fuse from the cut off plug.
D200
Rear spacers
In the appliance, there are two spacers
which must be fitted as shown in the
figure .
Slacken the screws and insert the
spacer under the screw head, then retighten the screws.
The cut off plug should then be
disposed of to prevent the hazard of
shocks in case it should be plugged
into a 13amp socket in another part of
your home.
Important
The wires in the mains lead are
coloured in accordance with the
following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
If you fit your own plug, the colours of
the wires in the mains lead of your
appliance may not correspond with
the markings identifying the terminals
in your plug, proceed as follows:
electrolux 19
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth)
wire to the terminal in the plug which is
marked with the letter «E» or the earth
symbol
yellow.
This appliance complies with the
following E.E.C. Directives:
13 AMP. FUSE
13 AMP
GREEN & YELLOW
or coloured green and
Connect the blue (neutral) wire to the
terminal in the plug which is marked
with the letter «N» or coloured black.
Connect the brown (live) wire to the
terminal in the plug which is marked
with the letter «L» or coloured red.
The plug moulded onto the lead
incorporates a fuse. For replacement,
use a 13amp BSI362 fuse. Only ASTA
or BSI approved fuses should be used.
The plug must not be used if the fuse
cover/carrier is lost. The cover/carrier
is indicated by the coloured insert at
the base of the plug.
A replacement cover/carrier must be
obtained from your local Electrolux
Service Force Centre.
This appliance complies with the
E.E.C. Directive No. 87/308 of 2.6.87
relative to radio interference
suppression.
-
73/23 EEC of 19.2.73 (Low Voltage
Directive) and subsequent
modifications;
-
89/336 EEC of 3.5.89
(Electromagnetic Compatibility
Directive) and subsequent
modifications.
Please ensure that when the appliance
is installed it is easily accessible for the
engineer in the event of a breakdown.
20 electrolux
Shelf holders
Door reversibility
Your appliance is equipped with shelf
retainers that make it possible to
secure the shelves during transportation.
To remove them proceed as follows:
Move the shelf holders in the direction
of the arrow, raise the shelf from the
rear and push it forward until it is freed
and remove the retainers.
Before carrying out any operations,
remove the plug from the power socket.
To change the opening direction of the
door, proceed as follows:
• To carry out the following operations,
we suggest that this be made with
another person that will keep a firm
hold on the doors of the appliance
during the operations.
A
• Open the door with the appliance in
the upright position. Unscrew the
screws and remove the upper door
plastic trim.
B
• Remove the little plastic cover from
the door plastic trim and refit on the
opposite side (d).
C
• Lay down the appliance back side
down.
• Remove the screw of the hinge cover
plug (a).
• Unscrew the upper hinge and remove
it (b).
• Unscrew the screw and remove the
door stopper (c).
• Remove the door.
electrolux 21
b
a
• Lift up the appliance to vertical position.
• Open the door and reposition the
upper door plastic trim with screws.
c
• Remove using a tool the cover (e)
unscrew the lower hinge pivot (f)
and place it on the opposite side.
• Reinsert the cover (e) on the
opposite side.
• Fix the handle on the opposite side.
Reposition, level the appliance, wait for at
least two hours and then connect it to the
power socket.
In case you do not want to carry
out the above mentioned
operations, contact the nearest After
Sales Service Force. The After Sales
Service specialist will carry out the
reversibility of the doors at your cost.
Warning
• Reinsert the door .
• Pay attention that the front board of
the doors are parallel to the front
board of the top.
• Fix the door stopper on the
opposite side.
• Position and fix the upper hinge (that
can be found in the instruction for use
bag) on the opposite side .
• Fix the screw of the new cover hinge
(that can be found in the instruction for
use bag).
After having reversed the opening
direction of the doors check that all the
screws are properly tightened and that
the magnetic seal adheres to the
cabinet.
If the ambient temperature is cold (i.e.
in Winter), the gasket may not fit
perfectly to the cabinet. In that case,
wait for the natural fitting of the gasket
or accelerate this process by heating
up the part involved with a normal
hairdrier. Lay down the appliance back
side down.
www.electrolux.com
www.electrolux.co.uk
2223 442-53-00 04122008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
