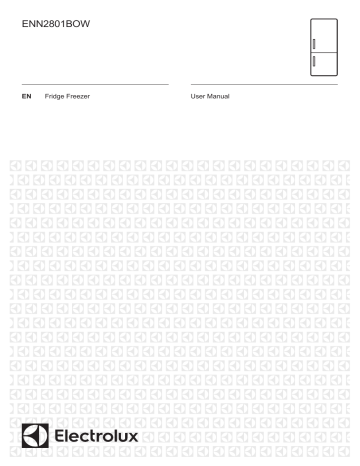

ENN2801BOW
EN
Fridge Freezer
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. OPERATION.......................................................................................................5
4. DAILY USE......................................................................................................... 6
5. HINTS AND TIPS............................................................................................... 8
6. CARE AND CLEANING......................................................................................9
7. TROUBLESHOOTING......................................................................................10
8. INSTALLATION................................................................................................ 13
9. NOISES............................................................................................................ 14
10. TECHNICAL INFORMATION......................................................................... 15
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
ENGLISH
3
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
This appliance can be used by children aged 8 years
and above and by persons with reduced capabilities
provided that they have been given instruction and/or
supervision regarding the safe use of the appliance
and understand the potential hazards involved.
Do not let children play with the appliance.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•
•
•
•
•
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments
– By clients in hotels, motels, bed and breakfast and
other residential type environments
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
4
www.electrolux.com
•
•
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
•
•
•
•
•
•
•
•
•
•
•
WARNING!
Only a qualified person must
install this appliance.
•
Remove all the packaging and the
transit bolts.
Do not install or use a damaged
appliance.
Follow the installation instruction
supplied with the appliance.
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Make sure the air can circulate
around the appliance.
Wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
Do not install the appliance close to
radiators or cookers, oven or hobs.
The rear of the appliance must stand
against the wall.
Do not install the appliance where
there is direct sunlight.
Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
•
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
•
•
The appliance must be earthed.
Make sure that the electrical
information on the rating plate agrees
•
•
•
•
with the power supply. If not, contact
an electrician.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
The mains cable must stay below the
level of the mains plug.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
•
•
•
•
Do not change the specification of this
appliance.
Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
a high level of environmental
compatibility. This gas is flammable.
If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
ENGLISH
•
•
•
•
•
•
•
•
Do not let hot items to touch the
plastic parts of the appliance.
Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
Do not store flammable gas and liquid
in the appliance.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
Do not touch the compressor or the
condenser. They are hot.
Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
Do not freeze again food that has
been thawed.
Obey the storage instructions on the
packaging of frozen food.
2.4 Internal light
•
The type of lamp used for this
appliance is not suitable for
household room illumination
•
•
2.6 Disposal
WARNING!
Risk of injury or suffocation.
•
•
•
•
•
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
•
Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
•
Disconnect the appliance from the
mains supply.
Cut off the mains cable and discard it.
Remove the door to prevent children
and pets to be closed inside of the
appliance.
The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Switching on
1. Insert the plug into the wall socket.
2. Turn the Temperature regulator
clockwise to a medium setting.
3.2 Switching off
To turn off the appliance, turn the
temperature regulator to the "O" position.
3.3 Temperature regulation
The temperature is regulated
automatically.
5
This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
A medium setting is
generally the most suitable.
However, the exact setting
should be chosen keeping in
mind that the temperature
inside the appliance
depends on:
• room temperature,
• how often the door is
opened,
• the quantity of food
stored,
• the location of the
appliance.
6
www.electrolux.com
1. Turn the Temperature regulator
toward lower settings to obtain the
minimum coldness.
2. Turn the Temperature regulator
toward higher settings to obtain the
maximum coldness.
CAUTION!
If the ambient temperature is
high or the appliance is fully
loaded, and the appliance is
set to the lowest
temperatures, it may run
continuously causing frost to
form on the rear wall. In this
case the dial must be set to
a higher temperature to
allow automatic defrosting
and therefore reduced
energy consumption.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
4.2 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
This model is equipped with a
variable storage box which can be
moved sideways.
4.3 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
1. Gradually pull the shelf in the
direction of the arrows until it comes
free.
2. Reposition as required.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
ENGLISH
7
4.4 Humidity control
4.6 Storage of frozen food
The glass shelf incorporates a device
with slits (adjustable by means of a
sliding lever), which makes it possible to
regulate the humidity in the vegetable
drawer(s).
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours on the higher settings.
When the ventilation slots are closed:
4.7 Thawing
the natural moisture content of the food
in the fruit and vegetable compartments
is preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and
vegetable compartments.
4.5 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh foods it is not necessary
to change the medium setting.
However, for a faster freezing operation,
turn the temperature regulator toward
higher settings to obtain the maximum
coldness.
CAUTION!
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then refrozen (after cooling).
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
4.8 Ice-cube production
This appliance is equipped with one or
more trays for the production of icecubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water
2. Put the ice trays in the freezer
compartment.
8
www.electrolux.com
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
•
•
•
•
•
•
A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
A faint click noise from the
temperature regulator when the
compressor switches on or off.
5.2 Hints for energy saving
•
•
Do not open the door frequently or
leave it open longer than absolutely
necessary.
If the ambient temperature is high and
the Temperature Regulator is set to
low temperature and the appliance is
fully loaded, the compressor may run
continuously, causing frost or ice on
the evaporator. If this happens, set
the Temperature Regulator toward
warmer settings to allow automatic
defrosting and so a saving in
electricity consumption.
•
•
5.5 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
•
the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
•
the freezing process takes 24 hours
no further food to be frozen should be
added during this period;
•
freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
•
prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
•
wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
•
do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
•
lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
•
water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
•
do not store warm food or evaporating
liquids in the refrigerator
•
do cover or wrap the food, particularly
if it has a strong flavour
•
position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
•
Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
Cooked foods, cold dishes: cover and
place on any shelf.
Fruit and vegetables: clean thoroughly
and place in a special drawer.
Bananas, potatoes, onions and garlic
must not be kept in the refrigerator if
not packed.
Butter and cheese: place in a special
airtight container or wrap in an
aluminium foil or a polythene bag to
exclude as much air as possible.
Bottles: close with a cap and place on
the door bottle shelf, or (if available)
on the bottle rack.
ENGLISH
•
it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
5.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
•
make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
•
be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
•
not open the door frequently or leave
it open longer than absolutely
necessary;
•
once defrosted, food deteriorates
rapidly and cannot be refrozen;
•
do not exceed the storage period
indicated by the food manufacturer.
9
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
10
www.electrolux.com
2. Remove any stored food, wrap it in
several layers of newspaper and put
it in a cool place.
6.4 Defrosting the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost from the
evaporator as you could
damage it. Do not use a
mechanical device or any
artificial means to speed up
the thawing process other
than those recommended by
the manufacturer. A
temperature rise of the
frozen food packs, during
defrosting, may shorten their
safe storage life.
About 12 hours prior to
defrosting, set a lower
temperature, in order to build
up sufficient chill reserve for
the interruption in operation.
A certain amount of frost will always form
on the freezer shelves and around the
top compartment.
Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.
1. Switch off the appliance, or pull out
electrical plug from the wall socket.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
WARNING!
Do not touch frozen
goods with wet hands.
Hands can freeze to the
goods.
3. Leave the door open.
In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.
4. When defrosting is completed, dry
the interior thoroughly.
5. Switch on the appliance.
After three hours reload the previously
removed food into the freezer
compartment.
6.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost (if necessary) and clean the
appliance and all accessories.
4. Clean the appliance and all
accessories.
5. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If you want to keep the
appliance switched on, ask
somebody to check it once
in a while to prevent the food
inside from spoiling in case
of a power failure.
ENGLISH
11
7.1 What to do if...
Problem
Possible cause
Solution
The appliance does not
operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐ Connect the mains plug to
nected to the mains socket the mains socket correctly.
correctly.
There is no voltage in the
mains socket.
Connect a different electri‐
cal appliance to the mains
socket. Contact a qualified
electrician.
The appliance is noisy.
The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp is defective.
Refer to "Replacing the
lamp".
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
Many food products to be
frozen were put in at the
same time.
Wait some hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature be‐
fore storing.
The compressor operates
continually.
The door is not closed cor‐ Refer to "Closing the door".
rectly.
There is too much frost
and ice.
Water flows on the rear
plate of the refrigerator.
The door is not closed cor‐ Refer to "Closing the door".
rectly or the gasket is de‐
formed/dirty.
The water drainage plug is
not correctly positioned.
Position the water drain‐
age plug in the correct
way.
Food products are not
wrapped properly.
Wrap the food products
better.
Temperature is set incor‐
rectly.
Refer to "Operation" chap‐
ter.
During the automatic de‐
frosting process, frost
melts on the rear plate.
This is correct.
12
www.electrolux.com
Problem
Possible cause
Solution
Water flows into the refrig‐
erator.
The water outlet is clog‐
ged.
Clean the water outlet.
Food products prevent that Make sure that food prod‐
water flows into the water
ucts do not touch the rear
collector.
plate.
Water flows on the floor.
The melting water outlet is Attach the melting water
not connected to the evap‐ outlet to the evaporative
orative tray above the com‐ tray.
pressor.
The temperature in the ap‐ The temperature regulator
pliance is too low/too high. is not set correctly.
Set a higher/lower temper‐
ature.
The door is not closed cor‐ Refer to "Closing the door".
rectly.
The food products' temper‐ Let the food products tem‐
ature is too high.
perature decrease to room
temperature before stor‐
age.
Many food products are
stored at the same time.
Store less food products at
the same time.
The thickness of the frost
is greater than 4-5 mm.
Defrost the appliance.
The door has been opened Open the door only if nec‐
often.
essary.
There is no cold air circula‐ Make sure that there is
tion in the appliance.
cold air circulation in the
appliance.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
7.2 Replacing the lamp
1
2
1
CAUTION!
Disconnect the plug from the
mains socket.
1. At the same time, with the fingers
expand up and down the transparent
cover and unhook it in the direction of
the arrows.
2. Replace the lamp with one of the
same power and shape, specifically
designed for household appliances.
The maximum power is shown on the
light bulb cover.
ENGLISH
3. Reassemble the lamp cover.
4. Connect the plug to the mains
socket.
5. Open the door.
Make sure that the light comes on.
13
2. If necessary, adjust the door. Refer
to assembly instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
7.3 Closing the door
1. Clean the door gaskets.
8. INSTALLATION
8.1 Location
Refer to the assembly
instructions for the
installation.
To ensure best performance, install the
appliance well away from sources of heat
such as radiators, boilers, direct sunlight
etc. Make sure that air can circulate
freely around the back of the cabinet.
8.3 Electrical connection
•
•
8.2 Positioning
Install the appliance in a dry, well
ventilated indoors where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance.
Climate Ambient temperature
class
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
•
•
Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
The manufacturer declines all
responsibility if the above safety
precautions are not observed.
This appliance complies with the
E.E.C. Directives.
8.4 Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm
min.
200 cm2
min.
200 cm2
CAUTION!
Refer to the assembly
instructions for the
installation.
14
www.electrolux.com
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
SSS
RRR
!
HISSS!
OK
UB
BL
SSSRRR!
HISSS!
SSSRRR!
HISSS!
B!
CLICK!
BRRR!
ICK
CL
!
BRRR!
CR
AC
CLICK!
BRRR!
K!
ENGLISH
BLUBB!
CRACK!
BLUBB!
15
CRACK!
10. TECHNICAL INFORMATION
10.1 Technical data
Dimensions of the recess
Height
mm
1780
Width
mm
560
Depth
mm
550
Rising time
Hours
22
Voltage
Volts
230 - 240
Frequency
Hz
50
The technical information is situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
11. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
222372613-A-432015
www.electrolux.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
