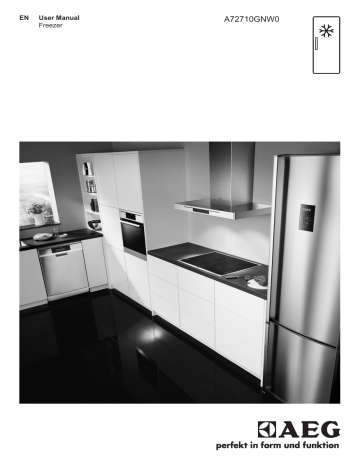

EN
User Manual
Freezer
A72710GNW0
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 4
3. PRODUCT DESCRIPTION.............................................................................................. 6
4. OPERATION.................................................................................................................... 6
5. DAILY USE........................................................................................................................8
6. HINTS AND TIPS........................................................................................................... 10
7. CARE AND CLEANING................................................................................................ 11
8. TROUBLESHOOTING...................................................................................................12
9. INSTALLATION............................................................................................................. 14
10. TECHNICAL INFORMATION.....................................................................................17
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Keep all packaging away from children.
1.2 General Safety
•
•
•
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments
– By clients in hotels, motels, bed and breakfast and
other residential type environments
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
4
www.aeg.com
•
•
•
•
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
ENGLISH
• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to
the refrigerant circuit. It contains
isobutane (R600a), a natural gas with a
high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
5
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
6
www.aeg.com
3. PRODUCT DESCRIPTION
3.1 Product overview
1
2
3
4
6
5
1
2
3
4
Control panel
Cold module
Flap
Freezer baskets
5 Rating plate
6 MaxiBox baskets
4. OPERATION
4.1 Control panel
1
6
1 Display
5
4
3
2
2 Temperature warmer button
ENGLISH
3 Temperature colder button
4 OK
5 Mode
6 ON/OFF
It is possible to change predefined
sound of buttons by pressing together
Mode and Temperature colder button
for some seconds. Change is reversible.
7
Display
A
B
C
F E D
A)
B)
C)
D)
Timer function
FROSTMATIC function
Temperature indicator
Alarm indicator
4.2 Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off.
The alarm buzzer could operate after few
seconds.
The temperature indicators show the set
default temperature.
To reset the alarm refer to "High
temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If "dEMo" appears on the display, refer
to "Troubleshooting" chapter.
4.3 Switching off
1. Press ON/OFF for a few seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
4.4 Temperature regulation
The set temperature of the freezer may
be adjusted by pressing the temperature
button.
Default temperature:
• -18°C for the freezer
E) ChildLock function
F) MinuteMinder function
The temperature indicator shows the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
4.5 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure) is indicated by:
• flashing of the alarm and freezer
temperature indicators;
• sounding of the buzzer.
Press any button to reset the alarm.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a
few seconds. Then show again the set
temperature.
The alarm indicator continues to flash
until the normal conditions are restored.
4.6 FROSTMATIC function
The FROSTMATIC function accelerates
the freezing of fresh food and, at the
8
www.aeg.com
same time, protects foodstuffs already
stored from undesirable warming.
1. Press Mode button until the
corresponding icon appears.
The FROSTMATIC indicator flashes.
2. Press OK button to confirm.
The FROSTMATIC indicator is shown.
The FROSTMATIC function
shuts off automatically after
52 hours.
To switch off the function
before its automatic end,
repeat the steps until the
FROSTMATIC indicator goes
off.
4.7 Door open alarm
1. Press Mode until the corresponding
icon appears.
The MinuteMinder indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Temperature colder or
Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
3. Press OK to confirm.
The MinuteMinder indicator is shown.
The Timer starts to flash (min).
It is possible to change the time at any
time during the countdown and at the
end by pressing the Temperature colder
button and the Temperature warmer
button.
An acoustic alarm will sound if the door
is left open for a few minutes. The door
open alarm conditions are indicated by:
At the end of the countdown, the
MinuteMinder indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
4.9 ChildLock function
4.8 MinuteMinder function
The MinuteMinder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for
a certain length of time.
It is also useful when a reminder is
needed in order not to forget the bottles
placed in the freezer for fast cooling.
It is possible to deactivate the function at
any time during the countdown by
repeating the function steps, until the
indicator turns off.
Activate the ChildLock function to lock
the buttons from unintentional
operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products
in the compartment let the appliance run
at least 2 hours with the FROSTMATIC
function turned on. The freezer drawers
ensure that it is quick and easy to find
the food package you want. If large
quantities of food are to be stored,
remove all drawers except for the
bottom drawer which needs to be in
place to provide good air circulation. On
all shelves it is possible to place food
that protrude until 15 mm from the door.
ENGLISH
WARNING!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer that the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then refrozen (after cooling).
5.2 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
9
5.4 Cold accumulators
The freezer contains at least one cold
accumulator which increases storage
time in the event of a power cut or
breakdown.
5.5 Removal of freezing
baskets and glass shelves from
the freezer
The freezing baskets have a limit stop to
prevent their accidental removal or
falling out. At the time of its removal
from the freezer, pull the basket towards
yourself and, upon reaching the end
point, remove the basket by tilting its
front upwards.
To freeze small amount of fresh foods it
is not necessary to change the present
setting.
To freeze fresh food activate the
FROSTMATIC function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
2
1
Place the food to be frozen in the two
top compartments.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the inside
of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FROSTMATIC Function").
5.3 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
At the time of putting it back, slightly lift
the front of the basket to insert it into the
freezer. Once you are over the end
points, push the baskets back in their
position.
The appliance is equipped with shelf
stops to secure the shelves.
The shelves must be lifted up (1) on each
side and than pulled outwards (2).
10
www.aeg.com
Afterwards pull out both locking pins (1)
and pull the glass shelf outwards (2).
1
1
2
1
The glass shelves equipped with
expander rollers are secured with locking
pins.
1
1
2
To remove them, loose the locking pin
on each side on the expander roller. If
necessary, use a screwdriver.
6. HINTS AND TIPS
6.1 Normal operating sounds
6.3 Hints for freezing
The following sounds are normal during
operation:
To help you make the most of the
freezing process, here are some
important hints:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic
dilatation (a natural and not
dangerous physical phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
6.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If foreseen, do not remove the cold
accumulators from the freezer basket.
• the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
• the freezing process takes 24 hours
no further food to be frozen should
be added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the
quantity required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
ENGLISH
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
6.4 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
11
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave
it open longer than absolutely
necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
7.3 Periodic cleaning
CAUTION!
Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet,
lift it by the front edge to
avoid scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
7.4 Defrosting the freezer
The freezer compartment is frost free.
This means that there is no build up of
frost when it is in operation, neither on
the internal walls nor on the foods.
12
www.aeg.com
The absence of frost is due to the
continuous circulation of cold air inside
the compartment, driven by an
automatically controlled fan.
7.5 Periods of non-operation
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
8.1 What to do if...
Problem
Possible cause
Solution
The appliance does not operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con- Connect the mains plug to the
nected to the mains socket mains socket correctly.
correctly.
The appliance is noisy.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is not supported properly.
Check if the appliance stands
stable.
Audible or visual alarm is on. The cabinet has been recently switched on or the
temperature is still too
high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the ap- Refer to "Door Open Alarm"or
pliance is too high.
"High Temperature Alarm".
The door is left open.
Close the door.
The temperature in the ap- Contact a qualified electrician
pliance is too high.
or contact the nearest Authorised Service Centre.
ENGLISH
Problem
Possible cause
13
Solution
A rectangular symbol is
Temperature sensor probshown instead of numbers
lem.
on the Temperature Display.
Contact the nearest Authorised Service Centre (the cooling system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp does not work.
The lamp is defective.
Contact the nearest Authorised Service Centre.
The compressor operates
continually.
Temperature is set incorrectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before storing.
The door is not closed cor- Refer to "Closing the door".
rectly.
The FROSTMATIC function Refer to "FROSTMATIC funcis switched on.
tion".
There is too much frost and
ice.
The door is not closed cor- Refer to "Closing the door".
rectly or the gasket is deformed/dirty.
The compressor does not
start immediately after
pressing the FROSTMATIC,
or after changing the temperature.
This is normal, no error has The compressor starts after a
occurred.
period of time.
Water flows on the floor.
The melting water outlet is Attach the melting water outnot connected to the
let to the evaporative tray.
evaporative tray above the
compressor.
Temperature cannot be set.
The FROSTMATIC or
COOLMATIC function is
switched on.
Switch off FROSTMATIC or
COOLMATIC manually, or wait
until the function resets automatically to set the temperature. Refer to "FROSTMATIC
or COOLMATIC function".
14
www.aeg.com
Problem
Possible cause
Solution
DEMO appears on the display.
The appliance is in demon- Keep the OK pressed for apstration mode.
proximately 10 seconds until a
long sound is heard and display shuts off for a short time.
Door is misaligned or interferes with ventilation grill.
The appliance is not levelled.
The temperature in the appliance is too low/too high.
The temperature regulator Set a higher/lower temperais not set correctly.
ture.
Refer to "Levelling".
The food products' temperature is too high.
Let the food products temperature decrease to room temperature before storage.
The door has been
opened often.
Open the door only if necessary.
The FROSTMATIC function Refer to "FROSTMATIC funcis switched on.
tion".
There is no cold air circula- Make sure that there is cold air
tion in the appliance.
circulation in the appliance.
If the advice does not lead
to the desired result, contact
the nearest Authorised
Service Centre.
8.2 Closing the door
8.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
9. INSTALLATION
WARNING!
Refer to Safety chapters.
9.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
ENGLISH
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature
range. If you have any
doubts regarding where to
install the appliance, please
turn to the vendor, to our
customer service or to the
nearest Authorised Service
Centre.
9.2 Location
The appliance should be installed well
away from sources of heat such as
radiators, boilers, direct sunlight etc.
Ensure that air can circulate freely around
the back of the cabinet. To ensure best
performance, if the appliance is
positioned below an overhanging wall
unit, the minimum distance between the
top of the cabinet and the wall unit must
be at least 100 mm . Ideally, however, the
appliance should not be positioned
below overhanging wall units. Accurate
levelling is ensured by one or more
adjustable feet at the base of the
cabinet.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
9.4 Rear spacers
You can find the two spacers in the bag
with documentation.
1.
2.
3.
4.
Release the screw.
Engage the spacer below the screw.
Turn the spacer to the right position.
Tighten again the screws.
2
1
4
3
100 mm
min
9.5 Levelling
Accurate levelling prevents the vibration
and noise of the appliance during
operation.
B
20 mm
A
15
9.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
To adjust the heigh of the appliance
loosen or tighten the two adjustable
front feet.
16
www.aeg.com
9.6 Door reversibility
WARNING!
Before carrying out any
operations, remove the plug
from the power socket.
CAUTION!
To carry out the following
operations, we suggest that
this be made with another
person that will keep a firm
hold on the doors of the
appliance during the
operations.
Before carrying out any
operation, please be sure
that the appliance is empty.
If not, please move all goods
into right temperature for
proper food storage reason.
1. Tilt back the appliance carefully so
that the compressor cannot touch
the floor.
2. Remove the plinth. (1)
3. Remove the cap (2) and position it on
the opposite side.
4. Unscrew the lower pin and remove
the washers (3)
2
1
8. Remove the handle. Unscrew the top
handle bracket from the handle rod
(1). Unscrew the bottom handle
bracket from the door (2)
9. Unscrew the top handle bracket from
the door (3).
3
1
2
10. Re-screw the handle bracket on the
door (4). Turn the handle bracket with
the handle and screw them to the
door (5) and the fitted handle bracket
(6)
5
3
4
6
4
2
5
1
5. Remove the door.
6. Position the pin and the washers on
the opposite side (4).
7. Unscrew the upper pin (1) and screw
it on the opposite side. (2)
11. Re-insert the door on the lower hinge
pivot .
12. Re-insert the door on the upper
hinge pivot slightly tilting the door.
13. Screw the lower hinges.
14. Refit the plinth.
CAUTION!
Reposition, level the
appliance, wait for at least
four hours and then connect
it to the power socket.
ENGLISH
17
CAUTION!
Reposition, level the
appliance, wait for at least
four hours and then connect
it to the power socket.
Do a final check to make
sure that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature
is cold (i.e. in Winter), the
gasket may not fit perfectly
to the cabinet. In that case,
wait for the natural fitting of
the gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.
10. TECHNICAL INFORMATION
10.1 Technical data
Height
mm
1865
Width
mm
595
Depth
mm
668
Rising time
Hours
28
Voltage
Volts
230 - 240
Frequency
Hz
50
The technical information are situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
11. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
18
www.aeg.com
ENGLISH
19
280155175-B-172015
www.aeg.com/shop
Download PDF

advertising
