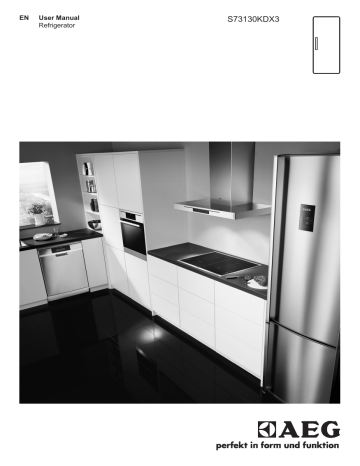

EN
User Manual
Refrigerator
S73130KDX3
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION.................................................................................................3
2. SAFETY INSTRUCTIONS................................................................................................ 4
3. OPERATION.................................................................................................................... 5
4. DAILY USE........................................................................................................................7
5. HINTS AND TIPS............................................................................................................. 9
6. CARE AND CLEANING................................................................................................ 10
7. TROUBLESHOOTING...................................................................................................11
8. INSTALLATION............................................................................................................. 14
9. NOISES...........................................................................................................................17
10. TECHNICAL INFORMATION.....................................................................................18
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable
performance for many years, with innovative technologies that help make life simpler
features you might not find on ordinary appliances. Please spend a few minutes
reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following
data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible if an incorrect
installation and use causes injuries and damages. Always
keep the instructions with the appliance for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not let children play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Keep all packaging away from children.
1.2 General Safety
•
•
•
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments
– By clients in hotels, motels, bed and breakfast and
other residential type environments
Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
4
www.aeg.com
•
•
•
•
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Service or an electrician
to change the electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
ENGLISH
• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to
the refrigerant circuit. It contains
isobutane (R600a), a natural gas with a
high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION
3.1 Control panel
1
6
1
2
3
4
Display
Temperature warmer button
Temperature colder button
OK button
5
5
4
3
2
5 Mode button
6 ON/OFF button
6
www.aeg.com
It is possible to change predefined
sound of buttons by pressing together
Mode and Temperature colder button
for some seconds. Change is reversible.
3.2 Display
A
B
H
C
D
G F E
3.3 Switching on
1. Connect the mains plug to the power
socket.
2. If the display is off, press ON/OFF.
If DEMO appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if...".
The temperature indicators show the set
default temperature.
To select a different set
temperature refer to
"Temperature regulation".
CAUTION!
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.4 Switching off
1. Press ON/OFF for a few seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
3.5 Temperature regulation
The set temperature of the fridge may be
adjusted by pressing the temperature
button.
Default temperature:
• +5°C for the fridge
The temperature indicator shows the set
temperature.
A)
B)
C)
D)
E)
F)
G)
H)
Timer indicator
COOLMATIC function
Holiday function
Temperature indicator
Alarm indicator
ChildLock function
MinuteMinder function
DYNAMICAIR function
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.6 MinuteMinder function
The MinuteMinder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for
a certain length of time.
1. Press Mode until the corresponding
icon appears.
The MinuteMinder indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Temperature colder or
Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
3. Press OK to confirm.
The MinuteMinder indicator is shown.
The Timer starts to flash (min).
It is possible to change the time at any
time during the countdown and at the
end by pressing the Temperature colder
button and the Temperature warmer
button.
At the end of the countdown, the
MinuteMinder indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown by
repeating the function steps, until the
indicator turns off.
ENGLISH
3.7 ChildLock function
Activate the ChildLock function to lock
the buttons from unintentional
operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
3.8 COOLMATIC function
If you need to insert a large amount of
warm food, for example after doing
grocery shopping, we suggest activating
the COOLMATIC function to chill the
products more rapidly and to avoid
warming the other food which is already
in the refrigerator.
1. Press Mode until the corresponding
icon appears.
The COOLMATIC indicator flashes.
2. Press OK to confirm.
The COOLMATIC indicator is shown.
The COOLMATIC function
shuts off automatically after
6 hours.
To switch off the function
before its automatic end,
repeat the steps until the
COOLMATIC indicator goes
off or select a different
fridge set temperature.
3.9 Holiday function
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the
formation of a bad smell.
1. Press the Mode until the Holiday
indicator icon appears.
The Holiday icon flashes.
The fridge temperature indicator shows
the set temperature.
2. Press the OK to confirm.
The Holiday icon appears.
To turn off the Holiday function, repeat
the procedure until the Holiday indicator
icon goes off.
3.10 DYNAMICAIR function
1. Press Mode until the corresponding
icon appears.
The DYNAMICAIR indicator flashes.
2. Press OK to confirm.
The DYNAMICAIR indicator is shown.
The activation of the
DYNAMICAIR function
increases energy
consumption.
If the function is activated
automatically, the
DYNAMICAIR indicator is
not shown (refer to "Daily
use").
To switch off the function, repeat the
steps until the DYNAMICAIR indicator
goes off.
3.11 Door open alarm
An acoustic alarm will sound if the door
is left open for a few minutes. The door
open alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
Empty the fridge
compartment before turning
the Holiday function on.
4. DAILY USE
WARNING!
Refer to Safety chapters.
7
4.1 Vegetable Drawer
The drawer is suitable for storing fruit
and vegetables.
8
www.aeg.com
Some models have a separator inside the
drawer that can be placed in different
positions to allow for the subdivision
best suited to personal needs.
All parts inside the drawer can be
removed for cleaning purposes.
4.2 Movable shelves
The walls of the refrigerator are
equipped with a series of runners so that
the shelves can be positioned as desired.
Do not move the big lower
door shelf to ensure correct
air circulation.
4.4 Bottle rack
1. Place the bottles (with the opening
facing front) in the pre-positioned
shelf.
If the shelf is positioned
horizontally, place only
closed bottles.
2. To store previously opened bottles,
pull the shelf up so it can rotate
upwards and be placed on the next
higher level.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
4.3 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
To make these adjustments proceed as
follows:
1. Gradually pull in the direction of the
arrows until it comes free.
A few positions can't be
used due to interference
with the temperature sensor.
4.5 DYNAMICAIR
2. Reposition the shelf as required.
The refrigerator compartment is
equipped with a device that allows for
rapid cooling of foods and more uniform
temperature in the compartment.
ENGLISH
This device activates by itself when
needed, for example for a quick
temperature recovering after door
opening or when the ambient
temperature is high.
9
remove the typical smell of a brandnew product, then dry thoroughly.
2. Check that the drain hose at the rear
of the cabinet discharges into the
drip tray.
It is possible to switch on the device
manually when needed (refer to
"DYNAMICAIR Function").
The DYNAMICAIR device
stops when the door is open
and restarts immediately
after the door closing.
4.6 Cleaning the interior
1. Before using the appliance for the
first time, wash the interior and all
internal accessories with lukewarm
water and neutral soap so as to
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic
dilatation (a natural and not
dangerous physical phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
5.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or
evaporating liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
5.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one
or two days at the most.
• Cooked foods, cold dishes, etc..:
these should be covered and may be
placed on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or
polythene bags to exclude as much
air as possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or
(if equipped) on the bottle rack.
• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
10
www.aeg.com
5.5 Hints for temperature
inside the fridge
• A suitable temperature inside the
fridge is approx. +5° C. When the
temperature regulator is set to +5° C
this represents the mean temperature
in the fridge. It is normal with higher
temperature in the top of the fridge
and lower in the bottom. If the
temperature regulator is set to a cold
temperature, the ambient
temperature is high or if the fridge is
fully loaded the compressor will run
for a longer time. If too cold, change
to a higher temperature setting.
CAUTION!
Do not place food
against or close to the
temperature sensor (A).
This can result in too cold
temperatures.
A
• If you want to check the temperature
of food stored in the refrigerator,
place a glass of water centrally in the
cabinet, and put a proper
thermometer with an accuracy of +/–
1 °C into it. After 6 hours the
temperature can be monitored. The
measuring shall be performed under
steady-stated conditions (without
changing the load).
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or
damage any pipes and/or
cables inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
CAUTION!
When moving the cabinet,
lift it by the front edge to
avoid scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
ENGLISH
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Cleaning the ventilation
grille
11
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
Make sure the door is open.
The ventilation grille can be removed for
washing.
1. Loosen the edge of the grille by
pulling it according to the figure.
6.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
2. Pull the grille straight out to
completely remove it.
3. Vacuum clean under the cabinet.
6.4 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem
Possible cause
Solution
The appliance does not operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con- Connect the mains plug to the
nected to the mains socket mains socket correctly.
correctly.
12
www.aeg.com
Problem
The appliance is noisy.
Possible cause
Solution
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket.
Contact a qualified electrician.
The appliance is not supported properly.
Check if the appliance stands
stable.
Audible or visual alarm is on. The cabinet has been recently switched on or the
temperature is still too
high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the ap- Refer to "Door Open Alarm"or
pliance is too high.
"High Temperature Alarm".
The door is left open.
Close the door.
The temperature in the ap- Contact a qualified electrician
pliance is too high.
or contact the nearest Authorized Service Centre.
A rectangular symbol is
Temperature sensor probshown instead of numbers
lem.
on the Temperature Display.
Contact the nearest Authorized Service Centre (the cooling system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work.
The lamp is in stand-by.
Close and open the door.
The lamp does not work.
The lamp is defective.
Contact the nearest Authorized Service Centre.
The compressor operates
continually.
Temperature is set incorrectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart on
the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before storing.
The door is not closed cor- Refer to "Closing the door".
rectly.
The COOLMATIC function Refer to "COOLMATIC funcis switched on.
tion".
There is too much frost and
ice.
The door is not closed cor- Refer to "Closing the door".
rectly or the gasket is deformed/dirty.
ENGLISH
Problem
Possible cause
The compressor does not
start immediately after
pressing the COOLMATIC,
or after changing the temperature.
This is normal, no error has The compressor starts after a
occurred.
period of time.
Water flows inside the refrig- The water outlet is clogerator.
ged.
Food products prevent
that water flows into the
water collector.
13
Solution
Clean the water outlet.
Make sure that food products
do not touch the rear plate.
Water flows on the floor.
The melting water outlet is Attach the melting water outnot connected to the
let to the evaporative tray.
evaporative tray above the
compressor.
Temperature cannot be set.
The COOLMATIC function Switch off COOLMATIC manis switched on.
ually, or wait until the function
resets automatically to set the
temperature. Refer to "
COOLMATIC function".
DEMO appears on the display.
The appliance is in demon- Keep the Mode pressed for
stration mode.
approximately 10 seconds until a long sound is heard and
display shuts off for a short
time.
Door is misaligned or interferes with ventilation grill.
The appliance is not levelled.
The temperature in the appliance is too low/too high.
The temperature regulator Set a higher/lower temperais not set correctly.
ture.
Refer to "Levelling".
The door is not closed cor- Refer to "Closing the door".
rectly.
Food products placed in
the appliance were too
warm.
Allow food products to cool to
room temperature before storing.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The door has been
opened often.
Open the door only if necessary.
The COOLMATIC function Refer to "COOLMATIC funcis switched on.
tion".
There is no cold air circula- Make sure that there is cold air
tion in the appliance.
circulation in the appliance.
14
www.aeg.com
If the advice does not lead
to the desired result, call the
nearest Authorized Service
Centre.
7.2 Closing the door
7.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN
+10°C to + 32°C
N
+16°C to + 32°C
ST
+16°C to + 38°C
T
+16°C to + 43°C
8.2 Location
To ensure best performance, if the
appliance is positioned below an
overhanging wall unit, the minimum
distance between the top of the cabinet
and the wall unit must be at least 40 mm.
Ideally, however, the appliance should
not be positioned below overhanging
wall units.
The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm
deep.
50 mm
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature
range. If you have any
doubts regarding where to
install the appliance, please
turn to the vendor, to our
customer service or to the
nearest Service Centre
8.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
ENGLISH
15
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
8.4 Removing the transport
support
Your appliance is equipped with
transport support to secure the door
during transportation.
1. Open the door.
2. Remove the transport support from
the door sides.
3. Remove the transport support from
the lower hinge (some models).
8.6 Levelling
When placing the appliance ensure that
it stands level. If necessary adjust the feet
using the adjustment spanner supplied.
Door alignment is dependent on proper
levelling.
CAUTION!
Some models are fitted with
a silencing pad under the
cabinet. Do not remove this
pad.
8.7 Door reversibility
WARNING!
Before carrying out any
operations, remove the plug
from the power socket.
3
2
8.5 Rear spacers
Install the two spacers and the locking
pins provided within the accessory bag
as shown in the figure.
1. Remove the ventilation grille.
Remove the upper filling and install it
on the opposite side of the grille.
2. Lay down the appliance back side
down on a wooden support.
3. Unscrew the handle from the bottom
and the top of the door (1, 3) and the
screw on top of the handle (2).
16
www.aeg.com
1
2
3
11. Install the handle on the opposite
side.
12. Raise the appliance and install the
ventilation grille.
13. Put the cabinet in position.
4. Unscrew the hinge (1) and remove
the cover plate (2).
5. Remove the support (3) and install
the cover plate and hinge on the
opposite side. Install the support on
the opposite side.
1
2
3
6. Unscrew and move the lower hinge
(1).
7. Move the pin to the opposite side
(2).
8. Unscrew the support (3).
9. Screw on the lower hinge and the
support on the opposite side (4, 5).
10. Tighten the pin with the adjustment
spanner supplied.
4
1
5
3
2
CAUTION!
Reposition, level the
appliance, wait for at least
four hours and then connect
it to the power socket.
Do a final check to make
sure that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature
is cold (i.e. in Winter), the
gasket may not fit perfectly
to the cabinet. In that case,
wait for the natural fitting of
the gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.
ENGLISH
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
SSS
R
RR!
HISSS!
OK
UB
BL
SSSRRR!
HISSS!
SSSRRR!
HISSS!
B!
CLICK!
BRRR!
ICK
CL
!
BRRR!
CR
AC
CLICK!
BRRR!
K!
17
18
www.aeg.com
BLUBB!
CRACK!
BLUBB!
CRACK!
10. TECHNICAL INFORMATION
10.1 Technical data
Height
mm
1800
Width
mm
595
Depth
mm
623
Voltage
Volts
230 - 240
Frequency
Hz
50
The technical information are situated in
the rating plate, on the external or
internal side of the appliance and in the
energy label.
11. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable
containers to recycle it. Help protect the
environment and human health and to
recycle waste of electrical and electronic
appliances. Do not dispose appliances
*
marked with the symbol with the
household waste. Return the product to
your local recycling facility or contact
your municipal office.
ENGLISH
19
298377081-B-342014
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
