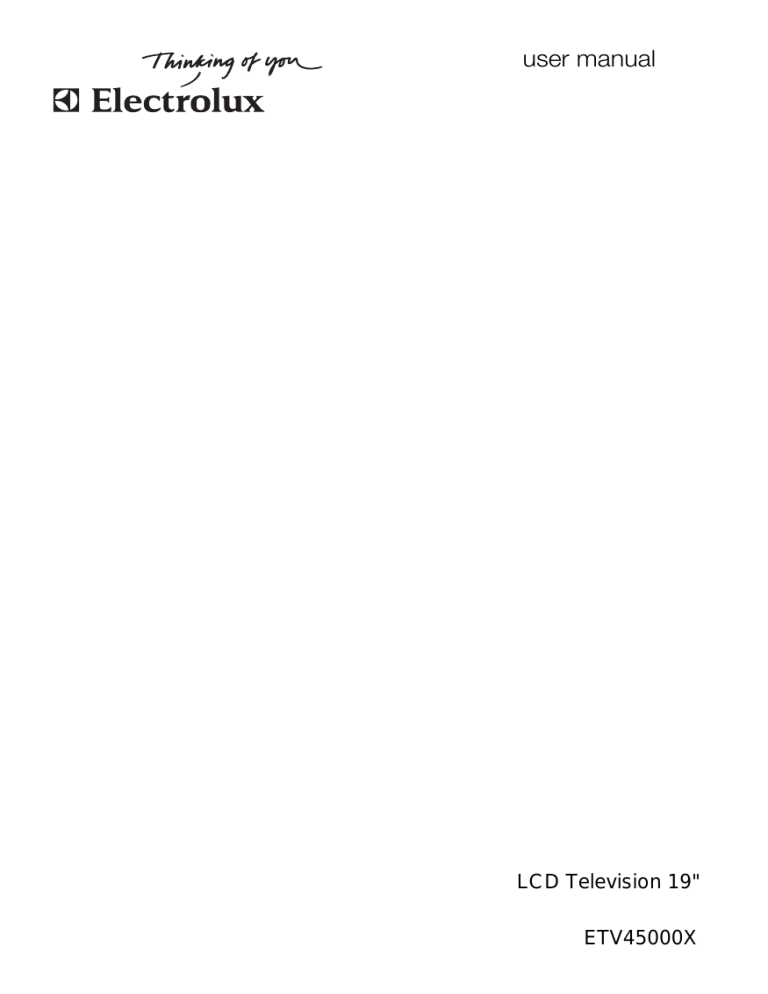

user manual
LCD Television 19"
ETV45000X
Contents
Features ............................................................... 4
Accessories ......................................................... 4
Introduction ........................................................... 5
Preparation ........................................................... 5
Safety precautions ............................................... 5
Child safety: ...................................................... 5
Power source ................................................... 5
Information for users in European Union
countries ........................................................... 6
Headphone Volume ........................................... 7
Installation ......................................................... 7
LCD screen ....................................................... 7
When unused ................................................... 7
Overview of the remote control ........................... 8
LCD TV and operating buttons ............................. 9
Viewing the connections .................................... 10
Power connection .............................................. 12
Aerial connection ............................................... 12
Connecting the LCD TV to a PC .......................... 13
Connecting to a DVD player ............................... 14
Using other connectors ...................................... 15
Connecting other equipment via scart ................ 16
Inserting batteries in the remote control handset 17
Operating range for the remote control .............. 17
Switching the TV on/off ..................................... 18
To switch the TV on ....................................... 18
To switch the TV off ....................................... 18
Input selection .................................................... 18
Basic operations ................................................ 19
Operation with the Buttons on the TV ............ 19
Volume setting ............................................. 19
Programme selection ................................... 19
Entering main menu ..................................... 19
AV mode ..................................................... 19
Operation with the remote control .................. 19
Volume setting ............................................. 19
Programme selection (Previous or next
programme) ................................................. 19
Programme selection (Direct access) ......... 19
Initial settings ...................................................... 20
General operation ............................................... 20
Information Banner ......................................... 20
Electronic programme guide (EPG) ................. 21
Displaying the subtitles ................................... 22
Digital teletext .................................................. 22
Over air download .......................................... 23
Widescreen .................................................... 23
IDTV menu system ............................................. 23
Channel list ..................................................... 23
Navigating the entire channel list ................. 24
Deleting the channels in the channel list ..... 24
Renaming channels ..................................... 24
Adding locks to channels ............................ 24
Setting Favourites ....................................... 25
On Screen Help ........................................... 25
Installation ....................................................... 25
Add new channels ..................................... 26
Automatic Search ................................. 26
Manual Search ...................................... 26
Configuration .................................................. 27
Audio language ........................................... 27
Subtitles .......................................................... 27
Favourite mode ........................................... 27
EPG preference .......................................... 28
Receiver upgrade ....................................... 28
Automatic download (Automatic upgrade)
28
Search for new version (Manual
Upgrade) ............................................... 28
Parental settings ......................................... 28
Timers ............................................................. 29
Language ........................................................ 30
TV setup ......................................................... 30
Common Interface ........................................... 30
Analogue TV menu map ..................................... 32
Navigating the analogue TV menu system .......... 33
Analogue TV menu system ................................ 33
Sound Menu .................................................... 33
Volume ........................................................ 33
Balance ....................................................... 33
Sound mode ................................................ 33
AVL ............................................................. 33
Effect .......................................................... 33
Equalizer ..................................................... 34
HP volume ................................................... 34
Store ........................................................... 34
Picture menu ................................................... 34
Picture mode ............................................... 34
Brightness/contrast/colour/ ......................... 34
sharpness/tint ............................................. 34
Colour temp ................................................. 34
Room lighting ............................................... 34
Picture zoom ............................................... 34
Store ........................................................... 34
Features menu ................................................ 35
Sleep timer .................................................. 35
Language .................................................... 35
Child lock ..................................................... 35
Menu colour ................................................ 35
Favourite mode ........................................... 35
Install menu ..................................................... 35
Programming ............................................... 35
Programme ............................................ 35
Band ..................................................... 35
Channel ................................................. 35
Standard ............................................... 36
Colour system ....................................... 36
Search .................................................. 36
English - 2 -
VCR Mode ............................................. 36
Decoder ................................................ 36
Store ..................................................... 36
A.P.S. .......................................................... 36
A.P.S. country ............................................. 36
Teletext region ............................................. 37
Install menu in AV modes ............................ 37
Programming ......................................... 37
Colour system ....................................... 37
Program table .............................................. 37
Name .................................................... 37
Move ..................................................... 37
Delete .................................................... 38
APS (Auto Programming System) ......... 38
Favourite mode ..................................... 38
Program lock ......................................... 38
Enter PIN ............................................... 38
Change PIN ........................................... 38
PC Mode Menu System ....................................... 39
Sound menu .................................................... 39
Feature menu .................................................. 39
PC picture menu .............................................. 39
Geometry menu ........................................... 39
H. (Horizontal) position .......................... 39
V. (Vertical) position ............................. 39
Clock ..................................................... 39
Phase .................................................... 39
Auto adjustment .................................... 39
Displaying TV Information ................................... 40
Mute function ...................................................... 40
Personal preference .......................................... 40
Zoom modes ....................................................... 40
Auto ............................................................ 40
4:3 ............................................................... 40
16:9 ............................................................. 40
Cinema ........................................................ 40
Subtitle ........................................................ 40
Teletext ............................................................... 41
Tips .................................................................... 42
Screen care .................................................... 42
No power ........................................................ 42
Poor picture .................................................... 42
Input sources .................................................. 42
CI module ........................................................ 42
Appendix A: PC Input typical display modes ....... 43
Specifications ..................................................... 44
Pin specifications ............................................... 45
Electrical connection .......................................... 46
English - 3 -
Features
Accessories
• Remote controlled colour television.
• Fully integrated digital TV (DVB-T).
• 100 programmes from VHF, UHF bands or
cable channels can be preset.
M
• It can tune cable channels.
INFO
SELECT
• Controlling the TV is very easy by its menu
driven system.
• It has a scart socket for external devices
(such as video, video games, audio set, etc.)
OK
ABC
DEF
GHI
1
2
3
JKL
MNO
PQR
4
5
6
STU
VWX
YZ
7
8
9
PP
0
-/-EXIT
P+
• Stereo sound system (Nicam).
P-
• Fully functional teletext .
P<P
I-II
• Fastext (10 pages), top text.
/
• Favourite channel.
/
GUIDE
WIDE
• Channel lock.
• Headphone connection.
Remote Controller
• A.P.S. (Automatic Programming System).
• All programmes can be named.
• Forward or backward automatic tuning.
• Sleep timer.
• Child lock.
•Automatic sound mute when no transmission.
Batteries
• NTSC playback.
• It has an HDMI connector for digital video
and audio. This connection is also designed
2 X AAA
to accept high definition signals.
• AVL (automatic volume limiting).
• When no valid signal is detected, after 5
minutes the TV switches itself automatically
to standby mode.
• PLL (frequency search).
• PC input.
Instruction Book
• Plug & Play for Windows 9X, ME, 2000, XP, Vista.
• Audio Line Out.
English - 4 -
Safety precautions
Introduction
Thank you for choosing this
product. This manual will guide
you through the proper
operation of your TV. Before
operating the TV, please read this manual
thoroughly.
Please keep this manual in a safe place for
future references.
Preparation
Please read the following recommended
safety precautions carefully for your safety.
Child safety:
This appliance is designed to be operated by
adults. Do not allow children to tamper with
the controls.
For your Safety
·All warning on the product and in this manual
must be observed.
·Never attempt to repair the product yourself.
For ventilation, leave a free space of at least
10 cm all around the set. To prevent any fault
·Take extra care not to be distracted by the
television while cooking or preparing food,
and unsafe situations, please do not place
any objects on top of the set.
particularly when using hot or sharp objects.
Use this device in moderate climates.
The TV set should be operated only from a
220-240 V AC, 50 Hz outlet. Ensure that you
10 cm
10 cm
10 cm
Power source
select the correct voltage setting for your
convenience.
Power cord
Do not place the set, a piece of furniture, etc.
on the power cord (mains lead) or pinch the
cord. Handle the power cord by the plug. Do
not pull out the plug by tugging the cord and
never touch the power cord when your hands
are wet as this could cause a short circuit or
electric shock. Never make a knot in the cord
or tie it with other cords. The power cords
should be placed in such a way that they are
not likely to be stepped on. A damaged power
cord can cause fire or give you an electric
shock. When the power
cord is damaged and
needs to be replaced, it
should be done by
qualified personnel.
Moisture and water
Do not use this device in a
English - 5 -
humid and damp place (avoid the bathroom,
Replacement parts
the sink in the kitchen, and near the washing
machine). Do not expose this equipment to
When replacement parts are required, make
sure only genuine spare parts are
rain or water, as this may be dangerous and
do not place objects filled with liquids, such
used.Unauthorized substitutions may result in
fire, electrical shock or other hazards.
as flower vases, on top of the set. Avoid from
dripping or splashing.
Servicing
If any solid object or liquid
qualified personnel. Do not
remove the cover yourself as
falls into the cabinet, unplug
the set and have it checked
Please refer all servicing to
this may result in an electric
shock.
by qualified personnel
before operating it any
Waste disposal
further.
Instructions for Waste Disposal
Cleaning
• Packaging and packaging
aids are recyclable and should
Before cleaning, unplug the adaptor from the
wall outlet. Do not use liquid or aerosol
principally be recycled.
Packaging materials, such as
cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the back cover are
intended for ventilation and to
ensure reliable operation. To
foil bag, must be kept away from
children.
• Batteries, including those which are heavy
metal-free, should not be disposed of with
prevent overheating, these
openings must not be blocked
household waste. Please dispose of used
battery in an environment friendly manner.
or covered in anyway.
Find out about the legal regulations which
apply in your area.
Heat and flames
The set should not be placed near to open
flames and sources of intense heat, such as
an electric heater. Ensure that no open flame
sources, such as lighted candles, are placed
• Cold cathode fluorescent lamp in LCD
PANEL contains a small amount of mercury;
please follow the local laws or regulations
for disposal.
on top of the set. Batteries
should not be exposed to
Information for users in European
Union countries
excessive heat such
sunshine, fire or the like.
This symbol on the product or on its packaging
as
means that your electrical and electronic
device should be disposed at the end of its
Lightning
In case of storm and lightning or when going
on holiday, disconnect the power cord from
the wall outlet.
service life separately from your household
wastes. There are separate collection
systems for recycling in EU.
For more information, please contact the local
authority or the dealer where you purchased
the product.
English - 6 -
Disconnecting the device
The mains plug is used to disconnect the TV
set from the mains and therefore it must
remain readily operable.
Headphone Volume
Excessive sound pressure from
earphones and headphones can
cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the
installation instructions when mounted to the
wall (if the option is available).
LCD screen
The LCD panel is a very high technology
product with about a million thin film
transistors, giving you fine picture details.
Occasionally, a few non-active pixels may
appear on the screen as a fixed blue, green
or red point. Please note that this does not
affect the performance of your product.
When unused
Do not leave your TV at STANDBY or operating
when you leave your house.
English - 7 -
Overview of the remote control
Standby
Cursor up
Cursor right
Info
32
Direct programme
31
Double digit/ No function
30
Programme up
29
Volume up
28
1
2
3
M
4
INFO
SELECT
TV/Digital TV Mode
OK
External source
Feature
ABC
DEF
GHI
1
2
3
JKL
MNO
PQR
Install
4
5
6
Hold/No function
STU
VWX
YZ
7
8
9
PP
0
-/--
27
Update/No function
Index page/Electronic
Programme Guide (EPG)
Reveal/Switch from TV to PC
EXIT
26
P+
5
6
7
8
Expand/Image size
Mix/No function
25
Teletext
24
Time/Subtitles on-off
23
Sound
Previous programme
Mono-Stereo/Dual I-II
Programme down
22
21
20
19
18
17
Volume down
Personal preference
Okay (Store)
Cursor down
Cursor left
31 Menu
32 Mute
English - 8 -
9
PSWAP
P<P
SOURCE
I-II
TV
DTV
AV
10
11
/
/
GUIDE
WIDE
12
13
14
15
16
LCD TV and operating buttons
VOL UME
VOLUME
P/CH
P/CH
MENU
TV/AV
MENU
TV/AV
MENU
- VOLUME +
- P/CH +
REAR VIEW
English - 9 -
STAND-BY
TV/AV
Viewing the connections
Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
Power Cable
PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
HDMI Inputs are for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Definition pictures from devices such as a
High Definition Satellite Receiver or DVD Player. These devices must be connected via the
HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals.
No sound connection is needed for an HDMI to HDMI connection.
Audio Line Out outputs audio signals to an external device such as an optional sound
system.
To connect the external speakers to your TV, use AUDIO LINE OUTof the TV with an audio
cable.
Component Audio Inputs are used for connecting component audio.
Connect the audio cable between COMPONENT AUDIO INPUTS on the TV and audio outputs
of your device.
English - 10 -
Component Video Inputs (YpBPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component
output. Connect the component video cables between the COMPONENT VIDEO INPUTS on
the TV and the component video outputs of your device. While connecting, be sure that the
letters on your TV, “Y”, “Pb”, “Pr” correspond with your device’s connectors.
Use an appropriate RCA cable to connect the set to a subwoofer unit.
SCART 1 inputs or outputs for external devices.
RF Input connects to an antenna or a cable.
Note that if you use a decoder or a media recorder, you should connect the aerial cable
through the device to the television with an appropriate antenna cable, as shown in the
illustration below.
CI Slot .
CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you
subscribe to. For more information, see “Common Interface” section.
English - 11 -
Power connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you
connect the set to the mains.
• Plug the power cable to the mains socket outlet.
Aerial connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
Aerial Input
REAR VIEW
English - 12 -
Connecting the LCD TV to a PC
For displaying your computer’s screen image on your LCD TV, you can connect your computer
to the TV set.
• Power off both computer and display before making any connections.
• Use 15-pin D-sub display cable to connect a PC to the LCD TV.
• When done, switch to PC source. See, “Input selection” section.
• Set the resolution that suits your viewing requirements.
PC RGB cable
(not supplied)
to PC RGB output
PC audio cable
(not supplied)
to component
audio input
English - 13 -
Connecting to a DVD player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD
players may have different connectors. Please refer to your DVD player’s instruction book for
additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
• If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD
player as illustrated below, switch to HDMI source. See, “Input selection” section.
• Most DVD players are connected through COMPONENT SOCKETS. Use a component video
cable to connect video input. For enabling audio, use a component audio cable as illustrated
below. When done, switch to YPbPr source. See, “Input selection” section.
• You may also connect through the SCART 1 . Use a SCART cable as shown below.
SCART
cable
REAR VIEW
Component
video
cable
Component
audio
cable
HDMI
cable
Note: These three methods of connection perform the same function but in different levels of
quality. It is not necessary to connect by all three methods.
English - 14 -
Using other connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are
shown below. Note that cables shown in the illustration are not supplied.
• To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and
AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are
made. Refer to your speaker set’s manual for further queries.
• To listen to the sound from headphones, connect to the HEADPHONE jack of theTV.
Headphone
external speaker
English - 15 -
Connecting other equipment via scart
Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a
decoderto yourLCD TV by using the SCART sockets. Note that cables shown in the illustration
are not supplied.
• Power off both the TV and the devices before making any connections.
• For more information, refer to your device’s own instruction book.
DVD Recorder
REAR VIEW
scart
sockets
VCR
Decoder
English - 16 -
Inserting batteries in the
remote control handset
Operating range for the remote
control
IMPORTANT : The TV set is designed to operate on
220-240V AC ,50Hz.
• Remove the battery cover located on the back
of the handset by gently pulling backwards
from the indicated part.
• Point the top of the remote control toward
the LCD TV's remote sensor LED while
pressing a button.
• Insert two AAA/R03 or equivalent type
batteries inside. Place the batteries in the
right directions and replace the battery cover.
30
30
M
IN FO
SELECT
OK
ABC
DEF
GH I
1
2
3
JK L
MNO
PQ R
5
6
VWX
YZ
4
STU
7
PP
8
9
0
-/-EXIT
P+
PP<P
I-II
/
/
GUI DE
W IDE
Remote range is approximately 7m/23ft.
Note: Remove the battery from remote control
handset when it is not to be used for a
long period. Otherwise, it can be
damaged due to any leakage of
batteries.
English - 17 -
Switching the TV on/off
Input selection
To switch the TV on
Once you have connected external systems
to your TV, you can switch to different input
• Your TV will switch on in two steps.
• Connect the power cord to 220-240V AC 50
Hz. Press stand-by button. Then the TV
sources.
switches itself to stand-by mode (Optional).
• Press the AV button on your remote control
until the desired source is highlighted. The
• To switch on the TV from stand-by mode
either:
TV will then switch to the selected source
after a short while.
• Press a digit button on the remote control so
that a channel number is selected, or press
the -P/CH or P/CH+ button on the TV or press
the P/CH+ or P/CH- button on the remote
control, so that last mode switched off is
selected. By either method the TV will switch
on.
To switch the TV off
• Press the “
(stand-by)” button on the
remote control or stand-by button on the TV,
so the TV will switch to stand-by mode.
• To power down the TV completely, unplug
the power cord from the mains socket.
English - 18 -
Source
TV
EXT1
PC
YPBPR
DTV
HDMI
Volume setting
Basic operations
You can operate your TV using both the
remote control and onset buttons.
Operation with the Buttons on the TV
Volume setting
• Press
- button to decrease volume or
+ button to increase volume, so a volume
level scale (slider) will be displayed on the
screen.
Press V + button to increase the volume.
Press V - button to decrease the volume. A
volume level scale (slider) will be displayed
on the screen.
Programme selection (Previous or
next programme)
• Press P - button to select the previous programme.
• Press P + button to select the next programme.
Programme selection
Programme selection (Direct access)
• Press P/CH + button to select the next
•Press numeric buttons on the remote control
to select programmes between 0 and 9. The
programme or P/CH - button to select the
previous programme.
Entering main menu
• Press the MENU button to enter main menu.
In the Main menu select sub-menu using P/
CH - or P/CH + buttons and enter the sub- or
+ buttons. To learn
menu using
the usage of the menus, refer to the menu
system sections.
TV will switch to the selected programme.
To select programmes between 10 - 999 (for
IDTV) or 10-99 (for analogue), press the
numeric buttons consecutively (e.g. for
programme 27, first press 2 and then 7).
When the pressing time is due for the second
numeric button, only the first digit programme
will be displayed. The limit of the delay time
is 3 seconds.
AV mode
• Press the TV/AV button at the control panel
on the TV to switch your TV to AV modes.
• Press directly the programme number to
reselect single digit programmes.
Operation with the remote control
• The remote control of your TV is designed to
control all the functions of the model you
selected. The functions will be described in
accordance with the menu system of your
TV.
• Functions of the menu system are described
in the following sections.
English - 19 -
Initial settings
When the TV set is operated for the first time,
the IDTV turns on first.
Because this is the first time the TV is used, there
are no channels stored in the memory and the
following message appears on the screen:
Auto. Programming System
Language
Please ensure aerial is plugged in. Do you
want to start first time installation?
U.K.
West Europe
Check the antenna cable
Yes
No
Start : Ok
• To start installation process, select “Yes”,
to cancel select “No”.
• To select the “Yes” or “No” option, highlight
the item by using
the OK button.
English
Country
Txt. Region
or
buttons and press
The IDTV will automatically tune to the UHF
transmission channels 21 to 68, searching
Exit : TV
Set Language item by pressing  or  button.
Press  or  button to highlight Country item
and then use  or  to set. Press  or 
button to highlight Txt. Region. Select a region
by using  or  button. When finished, press
OK button to continue. To cancel, press the
TV
DTV
button.
for digital terrestrial TV broadcasts and
displaying the names of channels found. This
For more information on this process, see
process will take about five minutes. To cancel
searching, you can press the M button at any
NOTE: For proper functioning of digital teletext
in DTV mode, you should set country
time during the process.
“Install Menu” section.
as UK in analogue APS.
General operation
AUTOMATIC SEARCH
Channels:
Pressing the
BBC ONE
BBC TWO
BBC CHOICE
Searching UHF channels 30. Please wait. This will take a few minutes
button at any time
digital terrestrial television broadcasting and
its normal analogue broadcasting.
Cancel search
After Automatic Search is completed, the
following message asking for analogue channel
search appears on the screen:
Information Banner
• Whenever you change channel, using the P/ P+ button or the numeric buttons, the TV
displays the broadcast picture along with an
Do you want to search for
analogue channels?
Yes
DTV
while watching television programmes will
switch the TV set between displaying the
12 %
MEN U
TV
information banner at the bottom of the
screen. This will remain on the screen for
No
To search for analogue channels, select
“Yes”. TV switches to the analogue TV mode.
The menu below is displayed to search for
analogue channels:
approximately three seconds.
• The information banner can also be
displayed at any time while watching TV by
button on the remote
pressing the
control:
English - 20 -
09:25 - 11:00
11:00 - 11:25
Now: 50/50
Next: Ace Lighting
Signal Level:
1.
BBC ONE
13:15
Current channel is highlighted. Use
or
buttons to change channels. Also press
GREEN/RED buttons to scroll up/down the
pages for the channels.
• The information banner gives information
on the channel selected and the
• If you highlight an event; short event
description, extended event description, start
programmes on it. The name of the channel
is displayed, along with its channel list
and end times of the event will be displayed
on the screen.
number and an indication of the strength of
the signal received.
Hint: Not all channels broadcast the
programme data. If the name and time
of the programme are not available,
then “No Information Available” will be
displayed in the information banner.
• Icons are also displayed in the information
banner and if this channel is a favourite
channel, favourite channel icon “
also be displayed.
” will
If the selected channel is locked, you must
enter the correct four numeric code to view
the channel. “Enter Lock Key” will be
displayed on the screen in such a case:
Enter Lock Key
Electronic programme guide (EPG)
• When the current programme is highlighted,
the box is switched to the highlighted channel
by pressing the OK button.
• If you press the OK button when a next event
is highlighted, a reminder is set for the
highlighted programme and a clock appears
across the highlighted channel line.
Programme reminders can be set to signal
that a programme is about to start when you
are watching another channel. If you set
reminder for a programme, then you will be
asked for switching to that channel when the
reminder time is reached.
• Press the M button to view the 7 day EPG.
• Press or button to navigate in Channels
or Programmes.
• Press or button to navigate through the
channel and programme list.
• Some, but not all, channels send information
ELECTRONIC PROGRAMME GUIDE(7 Day)
about the current and next events.
• Please note that event information is updated
automatically. If there is no event information
Channels
• Press GUIDE button to view the EPG menu.
button.
• Press this button again to close this window.
• In the EPG menu, all channels are displayed.
Programmes on Saturday 21/8, 13:00 - 15:00
30. CBBC Channel 13:00 Chuckle Vision (Now)
40. BBC NEWS 24
14:00 Tracy Beaker
41. ITV News
14:55 Newsround
50. Four Text
800. BLUE/LEFT 1k...
801. CCIR17/1kHz...
banner is displayed.
• In EPG menu, you can easily see the extended
13:00-14:00
Triple bill. In the Ring/Romany Days/On the Radio: Paul and Barry
grapple with the world of wrestling; hunt for a mysterious Emperor's
underpants; and record their first pop song.
data available in channels, only channel
names with “No Information Available”
help information by pressing
Saturday 21/8 13:49
Chuckle Vision
Navigate
Change Time
Change Day
I More
• With RED/GREEN buttons, you can change
the schedule time. By pressing YELLOW/
BLUE you can advance the schedule
backward/forward of a day.
English - 21 -
• If you press
button you can see the
detailed help information easily. Press
button again to exit help menu.
menu and use
or
button to set Subtitle to
Off or a language.
• The starting time for EPG is the current time.
If “Subtitle” is on and a language option is
set, pressing the
button causes the
You can see the event information for the
next two hours. By pressing
or
button,
following warning message display on the
screen:
you can go to the next/previous hours while
Programmes list is highlighted.
Interactive services cannot be used
while subtitles are on. Would you like
to turn subtitles off now?
• lf you press the OK button when a next event
is highlighted, a reminder is set for the
highlighted programme and a clock appears
on the screen.
• Programme reminders can be set to signal
that a programme is about to start when you
are watching another channel. If you set
reminder to a programme, then you will be
asked for switching to that channel when the
Yes
Digital teletext
With digital terrestrial broadcasting (DVB-T),
in addition to pictures and sound, you can also
view digital teletext.
Digital teletext is sometimes broadcast at the
same time with the normal broadcasting.
• Press the
reminder time is due.
No
button.
• The digital teletext information appears.
ELECTRONIC PROGRAMME GUIDE(7 Day)
Saturday 21/8 13:51
Newsround
16:55-17:00
CBBC joins the Newsround team, keeping you up to date on the latest
stories and events happening at home and abroad.
Channels
30. CBBC Channel 15:00 Even Stevens
40. BBC NEWS 24
15:50 Newsround Showbiz
41. ITV News
16:00 Basil Brush
50. Four Text
16:55 Newsround
51. BBCI
800. BLUE/LEFT 1k...
801. CCIR17/1kHz...
Change Time
Change Day
/ / /
The operation method may differ depending
on the contents of the digital teletext.
Programmes on Saturday 21/8, 15:00 - 17:00
Navigate
• Operate it with the coloured buttons,
buttons and OK button.
Follow the instructions displayed on digital
teletext screen.
I More
• When “Press SELECT” button or similar
message appears on the screen, press the
OK button.
Displaying the subtitles
With digital terrestrial broadcasting (DVB-T),
some programmes are broadcast with
subtitles. Subtitles can be displayed while
watching these programmes.
• When the
(Text) button is pressed, the
TV returns to television broadcasting.
• With digital terrestrial broadcasting (DVBT), in addition to digital teletext broadcasting
Press the M button to display the main menu,
highlight the Configuration line using or
at the same time with the normal
broadcasting, there are also channels with
button and press the OK button to display the
configuration menu.
just digital teletext broadcasting.
• The aspect ratio when watching a channel
Highlight the “Subtitle” item in configuration
English - 22 -
with just digital teletext broadcasting is the
same as the aspect ratio of the picture
watched previously.
• When you press the
(Text) button again,
the digital teletext screen will be displayed.
Over air download
To ensure that your IDTV always has the most
up-to-date information, please ensure that,
IDTV menu system
The IDTV menu can only be viewed when
watching digital terrestrial broadcasting.
Press the TV DTV button to turn IDTV on
while the TV is in analogue mode.
Press the M button. The menu below appears
on the screen:
after use, it is set to standby mode. At 3 A.M.
each day, the IDTV automatically searches for
Main Menu
any new information which may be broadcast
and will download this to your IDTV
Installation
Channel List
Configuration
automatically. This operation will normally
take approximately 30 seconds.
Timers
Language
If you want to perform this, you need to set
Automatic Download to “Enabled” in Receiver
TV Setup
Upgrade setting.
Common Interface
Widescreen
Channel list
Depending on the type of the broadcast being
transmitted, programmes can be viewed in a
Using the or button on the remote control,
make sure that the first item, Channel List, is
number of formats. Press the WIDE button
repeatedly to select between Auto, 4:3, 16:9,
highlighted and press the OK button to display
the Channel List.
Cinema or Subtitle.
The following operations can be performed
When Auto is selected, the format being
in this menu:
displayed is determined by the picture being
broadcast.
• Navigating the entire list of channels
PLEASE NOTE: Menu size changes
• Renaming channels
depending on the
chosen image size.
• Deleting channels
• Adding locks to channels
• Setting favourites
Channel List is the place where the channels
are managed.
CHANNEL LIST
1
BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select
Function
English - 23 -
Delete
Edit Name
SELECT
Select Channel
Lock
SELECT
Watch
Favourites
i More
Navigating the entire channel list
Press
Press or button for selecting the previous
or next channel. You can press RED or GREEN
option. If OK button is pressed while “Yes” is
highlighted, the highlighted channel is
button to move page up or page down.
deleted. Selecting “No” cancels the deletion.
To watch a specific channel, highlight it using
Renaming channels
or button and then press OK button, while
the “Select” item on Channel List menu is
To rename a specific channel, the channel
must be highlighted by pressing
or
highlighted by using
button. Then highlight the Edit Name item by
pressing
or
button as illustrated below..
or
button.
Then the name and number of the selected
channel will be displayed in the top-left and
top-right of the channel display at the top-right
of the screen, respectively.
Deleting the channels in the channel
list
Press
or
button to select the channel
that will be deleted.
Press
or
button to select the “Delete’’
delete the highlighted channel in the channel
list.
CHANNEL LIST
1
BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select
Function
button to highlight the desired
Press the OK button to activate the rename
feature.
CHANNEL LIST
1
BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
item on Channel List menu. As seen on
Channel List menu, SELECT is displayed next
to Delete item at the bottom of the screen to
indicate that you must press the OK button to
or
Select
Delete
Function
Edit Name
SELECT
Select Channel
Now pressing
or
Lock
SELECT
Edit Name
Favourites
i More
button moves to the
or
previous/next character. Pressing
button toggles the current character, i.e., ‘b’
and ‘c’ by .
character becomes ‘a’ by
Pressing the numeric buttons ‘0...9’ replaces
the highlighted character with the characters
printed above the button one by one as the
button is pressed.
Press the M button to cancel the editing or OK
button to save the new name.
Delete
Edit Name
SELECT
Select Channel
Lock
SELECT
Favourites
Delete
i More
Press the OK button to delete the highlighted
channel in the channel list. Then the message
below appears on the screen:
The selected service will be permanently
deleted. Are you sure?
Yes
No
Adding locks to channels
Channel locking provides a passwordprotected access to channels selected by
parents. In order to lock a channel you should
know the parental lock password (default
value is set to 0000 in the factory and can only
be changed from the Configuration menu).
Select the channel to be locked by highlighting
it and select the Lock option by pressing
English - 24 -
or
button. When the OK button is pressed, a
dialogue OSD asking for the password will
be displayed.
CHANNEL LIST
1
BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select
Function
CHANNEL LIST
1
BBC ONE
1. BBC ONE
2. BBC TWO
3. ITV 8
4. Channel 4
5. BBC THREE
6. Teletext
7. BBC FOUR
8. Sky Travel
9. UKHistory
10. RTL
Select
Delete
Function
Edit Name
SELECT
Select Channel
Lock
SELECT
Favourites
Add/Remove... i More
On Screen Help
Delete
Edit Name
SELECT
Select Channel
Lock
SELECT
Favourites
Lock/Unlock
i More
For all menus, press the
button to display
the help information about the menu functions.
For Channel List menu the following
message is displayed on the screen:
Enter Lock Key
Enter the password by using the numeric
Press the SELECT button on your remote control to tune to the
highlighted channel.
Press MENU to exit this screen.
buttons on the remote control. The lock icon
“ ” will now be displayed next to the selected
Installation
channel. Repeat the same operation to cancel
the lock.
The Installation menu is mainly intended to
help you to create a Channel Table in the most
Setting Favourites
efficient way.
You can set various channels as favourites
Main Menu
so that only the favourite channels are
navigated. To set a favourite you should
Channel List
highlight the Favourites item at the bottom of
the Channel List menu.
Installation
Configuration
or
button to highlight the
Use the
“Favourites” item at the base of the screen
Timers
and then, in turn, highlight each channel you
want to add to the favourites list, using the
Language
and
buttons (or red/green buttons), and
press the OK button.
TV Setup
A channel selected as a favourite appears in
Common Interface
the main channel list with a favourites icon
(
) against the channel name as illustrated
below:
This menu includes the following items:
• Add New Channels.
• First Time Installation.
English - 25 -
Add new channels
Your previous digital channel list will be destroyed.
Are you sure you want to delete all digital channels
and settings for first time installation?
This tuning menu consists of two parts:
• Automatic Search
Yes
• Manual Search
No
By selecting Yes and pressing the OK button,
the existing channel table will be deleted.
Installation
Add New Channels
Automatic Search
First Time Installation Manual Search
After factory settings are loaded, “First Time
Installation” menu will be displayed:
Automatic Search
Automatic search is started by pressing the
OK button in the auto-search pop up menu.
Please ensure aerial is plugged in. Do you
want to start first time installation?
Yes
No
All the services will be searched and a channel
table will be created automatically.
Press the OK button to start installation. After
All channels found are stored in a sorted form
with respect to their channel numbers. Some
search is completed for digital channels, a
message asking whether to search for
services may not appear with the correct
channel number. If the broadcaster has no
analogue channels appears on the screen:
Do you want to search for
analogue channels?
channel information, this may happen due to
missing info.
Yes
No
Manual Search
In manual search, the number of the multiplex
is entered manually and only that multiplex is
searched for the channels. For every valid
Press the OK button to search for analogue
channels.The following menu appears on the
screen for analogue channel search:
channel number, signal level, signal quality
and network name are shown at the bottom
of the screen.
In both manual and auto search, any existing
channel in the database is not re-stored to
avoid redundant duplicates of that channel.
First Time Installation
Auto. Programming System
The user can use this item to load default
Country
Txt. Region
Language
settings, which were loaded to the receiver at
the factory.
To install factory settings, highlight “First Time
Installation” menu and press the OK button.
Installation
Add New Channels
First Time Installation
English
U.K.
West Europe
Check the antenna cable
Start : Ok
Exit : TV
Set Language item by pressing  or  button.
Press  or  button to highlight Country item
and then use  or  to set. Press  or 
button to highlight Txt. Region. Select a region
Then you will be asked to confirm for deleting
all channels and settings:
by using  or  button. When finished, press
OK button to continue. To cancel, press the
English - 26 -
TV
DTV
button. The following menu will be
can select a function by highlighting the
or
corresponding menu line using the
button. Configuration menu will look like this:
displayed during the APS process:
CONFIGURATION
Audio Language
Subtitle
Favourite Mode
EPG Preference
Receiver Upgrade
Parental Settings
English
Off
Off
Now&Next
V.1.5
Auto. Programming System
Automatic tuning runs at:
State: Fine scanning ...
Change Default Audio Language
78 %
Exit : TV
After APS is finalized, the programme table
will appear on the screen. In the programme
table you will see the programme numbers
and names assigned to the programmes.
If you do not accept the locations and/or the
programme names, you can change them in
the programme table.
Configuration
i More
Audio language
Digital terrestrial television channels can
broadcast simultaneous soundtracks in more
than one language. This function selects
which language soundtrack you will hear
when switching to a channel broadcasting with
the multiple soundtracks.
Highlight the Audio Language line in the
Configuration menu and use the
or
button to cycle through the language options.
Press the M button to display the main menu
and press the
button twice to highlight
Configuration. Then press the OK button to
display the configuration menu. Press the M
button to leave the menu screen.
Subtitles
Digital terrestrial television channels can
broadcast subtitles displayed on the screen
for people with hearing difficulties. This
function selects the desired subtitle language
and enables the automatic display of subtitles
whenever subtitle information is broadcast.
Main Menu
Channel List
Highlight the Subtitle line in the Configuration
menu and use the
or
button to cycle
Installation
Configuration
through “Off” and language options.
Timers
Favourite mode
Language
This function enables or disables the favourite
channel list mode.
TV Setup
Common Interface
Use
The various configuration functions are
displayed in a list, along with a quarter-screen
image of the currently selected channel. You
or
button to turn on/off favourite
mode. If the “Favourite Mode” is on; while in
normal operating mode, pressing P+ and Pbuttons will only navigate
English - 27 -
through the
channels that were previously defined as
• Both automatic upgrade methods result in
standby mode either the upgraded or not.
favourites in the channel list.
EPG preference
Digital terrestrial television channels can
broadcast simultaneous Next&Now and 7-
If the automatic upgrade is set to “Disabled”
then this function will not work.
Search for new version (Manual Upgrade)
Day electronic programme.
Manual upgrade starts if the “Search for New
Highlight the EPG Preference line in the
Configuration menu and use the
or
or
Version” item is highlighted by using
button and activated via pressing the OK
button to select Next&Now or 7-Day.
button.
Receiver upgrade
After “Search for New Version” is activated,
The IDTV can be upgraded via the
configuration menu, entered from the main
the IDTV tunes to each frequency that have
been stored in its database and looks for the
menu.
new software. During this process, the
following OSD is displayed:
In the configuration menu, highlight the
Software Upgrade
“Receiver Upgrade” item by pressing
or
button and press the OK button to start
Searching for upgrade. Please wait, or
press MENU to cancel.
upgrade process.
Search Progress:
There are two possibilities for receiver
software to be upgraded: automatic and
manual.
Some channels broadcast material which you
do not want younger members of the family to
watch. Any channel can be ‘locked’ so that it
CONFIGURATION
Audio Language
Subtitle
Favourite Mode
EPG Preference
Receiver Upgrade
Parental Settings
English
Off
Off
Now&Next
V.1.5
cannot be selected for viewing unless a fourdigit PIN code is entered. In this way, any
channel not suitable for younger viewers can
be prohibited.
Automatic Download
Enabled
Search for New Version
MENU
Parental settings
Exit
i More
This function enables or disables the menu
protection system and allows the PIN code to
Automatic download (Automatic upgrade)
be changed.
Automatic Download can be enabled or
or
button to highlight Parental
Use
Settings option. Press the OK button to enter
or
button. If it is
disabled by pressing
enabled, then there are two ways for
automatic upgrade:
Parental Settings menu. A dialog box asking
for the lock key is displayed:
• The first one is checking the existence of a
new software every time the IDTV goes to
standby.
• The second one is being activated at 03:00
A.M. every night, provided that the IDTV is left
in standby mode.
English - 28 -
Enter Lock Key
There is only one key which is set to “0000”
Main Menu
initially. Enter lock key. If wrong lock key is
entered, the following message is displayed
Channel List
and the TV then returns to the previous menu:
Installation
Configuration
Wrong Lock Key
Timers
If it is correct, the Parental Settings menu will
be displayed including the following items:
Menu Lock
Language
TV Setup
Installation
Common Interface
Set Lock Key
There you can set/reset locking for the main
menu or the installation menu to restrict
Up to five separate timer events can be set
and each is displayed in the Timer screen,
access. If the menu lock is disabled, there
will be free access to the menu system. Also
showing the event number, the channel to be
selected, the start time, end time, date and
in this menu you can change the lock key and
set/change parental lock mode.
the mode - whether that event is active (and
will be acted on) or not.
Disabled:
All menus are unlocked.
TIMER MENU
Main Menu: Main menu is accessible only with
the correct lock key. So the user
cannot add, delete, rename,
move channels, cannot set
No Channel Name
Start
End
1.
2.
3.
4.
5.
6.
20:00
00:00
00:00
00:00
00:00
00:00
21:00
00:00
00:00
00:00
00:00
00:00
ITV 1
BBC ONE
BBC ONE
BBC ONE
BBC ONE
BBC ONE
Date
12/05/2005
01/01/2005
01/01/2005
01/01/2005
01/01/2005
01/01/2005
Mode
Active
Inactive
Inactive
Inactive
Inactive
Inactive
timers.
Installation: Installation menu is locked, so
the user cannot add channels.
Note: Changes will be updated after exiting
configuration menu.
MENU
Exit
SELECT
Edit Timer
i More
• To set an event, highlight its mode button
using the
or
button and press the OK
button to display the timer entry window.
Timers
You can set a timer to switch the TV to any
channel without your intervention. This is also
for making video recordings of programmes
when you are out.
Display the main menu by pressing the M
button. Highlight the Timers line by pressing
or
button and press the OK button to
display the Timer menu:
Toggle Mode
Name:
Start:
End:
Date:
Mode:
3. ITV 1
00:00
00:00
03/06/2005
Once
• Here the five settings consisting of the
channel name, start time, end time, date and
frequency mode can be set. You can move
or
freely between each setting using the
buttons.
• The channel name is set using the
or
button to display the channel which
broadcasts the programme.
English - 29 -
• The start time, end time and date are each
Languages
set with the numeric buttons on the remote
control in 24-hour format.
• The frequency mode determines how often
the receiver operates this event and is set
with the
or
button to be either Once,
Daily, or Weekly.
If an invalid number for the start or end times
or the date is entered, “Entered time is not
valid” message appears on the menu
screen.
English
TV setup
You can use this item to display the TV
functions.
The digital TV Setup menu screen is
accessed from the main menu. Press the M
button to display the main menu and use
or button to highlight “TV Setup”, press the
OK button to display TV Setup menu screen.
If timer action occurs while the TV is being
watched, the TV switches to the selected
Main Menu
channel. When timer expires, the TV switches
back to the channel which it is switched from.
Channel List
Installation
Language
Configuration
Some programmes are broadcast in two or
Timers
more languages simultaneously. The
language thus can be selected from the
Language
Language menu.
TV Setup
• Press the M button to display the main menu
or
button to highlight the
and use
Language line and press the OK button:
Common Interface
You can find detailed information for all menu
items in “Analogue TV Menu System” section.
Main Menu
Common Interface
Channel List
• Press the M button to display the main menu
and use the
or
button to highlight the
Installation
Configuration
“Common Interface” line and press the OK
button:
Timers
Language
TV Setup
Common Interface
• Use the
or
button to highlight the
soundtrack language required and press the
OK button. Normal viewing, with the required
language soundtrack, can be resumed by
pressing the M button.
English - 30 -
menu, Common Interface then pressing the
Main Menu
OK button. (CAM set up menu is not
displayed when it is not required.)
Channel List
Installation
• To see the viewing contract information: enter
Configuration
IDTV; press the M button, then highlight
Common Interface and press the OK button.
Timers
• When no module is inserted, “No Common
Interface module detected” message
Language
TV Setup
appears on the screen.
Common Interface
You are required to subscribe to a pay channel
company to view the pay channels of the digital
terrestrial broadcasting.
• Refer to the module instruction manual for
details of the settings.
NOTE: Insert or remove the CI module only
when the TV is in STAND-BY mode or
Obtain the Conditional Access Module (CAM)
and the viewing card by subscribing to a pay
channel company, then insert them in the TV
using the following procedure.
Please note that you must be able to receive
Channel 5 in order to use the CI Slot with a
CAM.
• Switch off the TV and unplug from the mains.
• Insert the CAM, then viewing card to the slot
that is located in the terminal cover at the
left-hand side of the TV (from front view).
• The CAM should be correctly inserted, it is
impossible to insert fully if reversed. The
CAM or the TV terminal may be damaged if
the CAM is forcefully inserted.
• Connect the TV to the mains supply, switch
on and then wait for few moments until the
card is activated.
• Some CAMs may require the following set
up. Please set the CAM by entering the IDTV
English - 31 -
SWITCHED OFF.
Analogue TV menu map
FEATURES
SOUND
Volume
Balance
Sound Mode
AVL
Effect
0
Stereo
On
Off
Back : Menu
Exit : TV
Off
English
Off
Gray
On
Back : Menu
Exit : TV
INSTALL
Picture Mode
Brightness
Contrast
Colour
Sharpness
Back : Menu
Sleep Timer
Language
Child Lock
Menu Colour
Favourite mode
Bright
Exit : TV
Programming
A.P.S.
Txt. region
Program Table
West Europe
Back : Menu
SOUND MENU
PICTURE MENU
-Volume
-Balance
-Sound Mode
-AVL
-Effect
-Equalizer
-Mode
-HP Volume
-Store
-Picture Mode
-Brightness
-Contrast
-Colour
-Sharpness
-Colour Temp
-Room Lightning
-Picture zoom
-Store
FEATURES MENU
INSTALL MENU
-Sleep Timer
-Language
-Child lock
-Menu Colour
-Favourite Mode
Exit : TV
-Programming
-Programme
-Band
-Channel
-Standard
-Colour System
-Search
-VCR Mode
-Decoder
-Store
-APS
-Auto Programming System
-Txt. Region
-Program Table
A menu map is provided above. For details of the items,
refer to relevant explanations in the “MENU SYSTEM”.
English - 32 -
Navigating the analogue TV
menu system
Analogue TV menu system
Sound Menu
For navigation
SOUND
M
To confirm
choices
SELECT
Volume
For displaying
menu options
Balance
Sound Mode
AVL
Effect
0
Back : Menu
INFO
Stereo
On
Off
Exit : TV
OK
• Press M to display the main menu.
• Press
or
button to select an icon. Press
or OK button for more options.
• Use
or
• Press
or
Volume
button to highlight.
When you enter the sound menu, Volume will
buttons to change the settings.
Press OK to set as default.
• To exit the menu or return from sub-menu
screen, press M.
be the first selected option. Press  /  button
to change the level of the Volume.
Balance
This setting is used for emphasizing the left
Note: These explanations are valid for the
navigation of the whole menu system.
or right speaker balance.
Press
or
button to select Balance. Press
To select options that are explained in
the following parts, refer to “Navigating
Balance level can be adjusted between -32
the Analogue TV Menu System”.
and + 32.
 /  button to change the level of the balance.
Sound mode
Press
or
button to select Sound Mode.
Using  /  button, you can select Mono,
Stereo, Dual I or Dual II mode, only if the
selected channel supports that mode.
AVL
Automatic Volume Limiting (AVL) function adjusts
the sound to obtain fixed output level between
programmes (For instance, volume level of
advertisement s tends to be louder than
programmes).
Press
or
button to select AVL
VL. Press  / 
button to set the AVL as On or Off.
Effect
If you are watching a mono broadcast, set
Effect on to obtain a better sound effect which
English - 33 -
will be more stereo-like. If the current sound
system is stereo, switching this effect on will
give a more spatial effect.
Press
or
button to select Effect. Press 
/  button to set Effect as On or Off.
Brightness/contrast/colour/
sharpness/tint
Press
or
button to select the desired
option. Press  /  button to set the level.
Hint: Tint (Hue) is displayed in picture menu when
the TV receives an NTSC signal.
Equalizer
Press or button to select Equalizer. Press
 /  button to change the Equalizer setting. In
equalizer menu, the mode can be changed to
Flat, Speech, Music, Personal and Jazz.
Select the desired frequency by pressing /
button and increase or decrease the frequency
gain by pressing  /  button.
Colour temp
Press
or
button to select Colour Temp.
Press  /  to choose from one of these
options: Cool, Normal and Warm.
Note:
• Setting Cool option gives white colours a
slight blue stress.
Note: Equalizer menu settings can be changed only
when the mode is in Personal.
HP volume
To adjust headphone volume level, press
or button to select HP Volume. Press  / 
button to change the level of the HP Volume.
Store
Select Store by pressing  /  button. Press
 or OK button to store the settings. “Stored”
• Setting Warm option gives white colours a
slight red stress.
• For normal colours, select Normal option.
Room lighting
Select Room Lighting by pressing the /
button. Press
/
button to set Room
Lighting as Normal, Bright or Movie.
Picture zoom
will be displayed on the screen.
Picture Zoom setting enables you to select
Picture menu
the aspect ratio of the broadcast.
Picture Mode
Brightness
Contrast
Colour
Sharpness
Back : Menu
Bright
Select Picture Zoom by pressing / button.
Use  /  buttons to change Picture Zoom to
Auto, 4:3, 16:9, Cinema or Subtitle.
Store
Exit : TV
Select Store by pressing  /  button. Press
 or OK button to store the settings. “Stored”
will be displayed on the screen.
Picture mode
For your viewing requirements, you can set
the related mode option.
Press
or
button to select Picture Mode.
Press or button to choose from one of these
options: Bright, Standard, Soft and Manual.
English - 34 -
Features menu
Install menu
FEATURES
Sleep Timer
Language
Child Lock
Menu Colour
Favourite Mode
Back : Menu
Off
English
Off
Gray
On
INSTALL
Exit : TV
Programming
A.P.S.
Txt. region
Program Table
Sleep timer
Press
or
button to select Sleep Timer.
Use  /  button to set the Sleep Timer.
West Europe
Back : Menu
Exit : TV
Programming
and 120 minutes in steps of 10 minutes.
Select Programming by pressing / button.
Then press
button to display Programming
If Sleep Timer is activated, at the end of the
menu:
The timer can be programmed between Off
selected time, the TV goes automatically to
standby mode.
Language
Press
or
button to select Language. Use
 /  button to select the Language.
Child lock
Press
or
PROGRAMMING
button to select Child Lock.
Programme
Band
Channel
Standard
Colour System
Use  /  button to set the Child Lock On or
Off. When On is selected, the TV can only be
controlled by the remote control handset. In
4
S
30
BG
PAL
Back : Menu
Exit : TV
this case the control panel buttons (except for
the STANDBY button) will not work.
Programme
Hence, if one of those buttons is pressed,
Press
“Child Lock On” will be displayed on the
screen when the menu screen is not visible.
number. You can also enter a number via the
numeric buttons on the remote control. There
Menu colour
are 100 programme storage spaces between
0 and 99.
Press
or
button to select Menu Colour.
Select Programme by pressing
Use  /  button to change menu background
to Transparent or Gray.
Band
Favourite mode
/
Press
Channel
or
button to select Favourite Mode.
Use  /  button to set Favourite mode On or Off
(See the “Program Table” section for details).
/
/
button.
button to select the programme
Band can be selected either C or S. Press
button to select Band.
Select Channel by pressing
/
button.
Channel can be changed by pressing
/
button or the numeric buttons.
English - 35 -
Standard
A.P.S.
Select Standard by pressing / button. Use
/ button to change the standard to B/G,
Select A.P.S. by pressing  /  button. Press
button to enter the A.P.S. submenu:
D/K, I or L/L'.
Colour system
Select Colour System by pressing / button.
Use  /  button to change the colour system
to PAL, SECAM or AUTO.
Search
Select Search by pressing / button. Press
 /  button to start search. The search will
Auto. Programming System
stop when a signal is found.
Warning! All prestored programs
will be deleted
Note: If you press the buttons with one-step moves,
a frequency of 0.25 Mhz will be advanced.
However if you press the buttons all at once, it
will advance automatically. To stop searching
at a certain time, you may press / buttons.
Start : Ok
Back : Menu
VCR Mode
Select VCR Mode by pressing
/
button.
Use  /  buttons to set VCR Mode as On or Off.
Hint: If you want to watch a DVD , then you
Country
U.K.
Exit : TV
A.P.S. country
Press
/
button to set your country..
If you want to exit from A.P.S. function, press
the TV DTV button. For going back, press M.
When you press OK button for starting APS,
all stored programs will be erased and the
following screen will be displayed:
have to set this item as Off.
Decoder
You can use this mode to connect any decoder to
your TV.
Select Decoder by pressing / button. Press
the  /  buttons to turn it On or Off.
When you switch the Decoder setting to Off,
EXT-1 output will be muted. In this case, EXT1 output will not be available to display video.
Auto. Programming System
Automatic tuning runs at:
State: Fine scanning ...
If it is switched on, the EXT-1 output will be the
selected video source. Any decoder can be
connected to EXT-1 to unscramble required
video signals.
Hint: Decoder setting should be stored separately
for each programme.
Store
Select Store by pressing  /  button. Press
 or OK button to store the settings. “Stored”
will be displayed on the screen.
78 %
Exit : TV
Whenever you press the TV DTV button, A.P.S.
function stops and program table appears on
the screen.
If you wait until the end of A.P.S., Program Table
is displayed with the programmes found and
located.
English - 36 -
Teletext region
Program table
Select Txt. region by pressing  /  button.
Using  /  buttons, select your teletext region.
Program Table
There are five options to select: West Europe,
East Europe, Turk/Gre, Cyrillic and Arabic/
P01 BBC 1
P02 C 04
P03
P04
P05
P06
P07
P08
P09
P10
Hebrew.
Install menu in AV modes
The following screen appears in the install
menu:
INSTALL
Programming
Txt. Region
West Europe
Back : Menu
Delete
Name
Exit : TV
Programming
menu appears on the screen:
Move
A.P.S
Program Table lists the channels that are
stored in the memory. By moving the cursor in
four directions, you can reach 20 programmes
in the same page. You can scroll up or scroll
PROGRAMMING
Back : Menu
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
Exit: TV
Select Programming by pressing  / 
button. After pressing button, programming
Colour System
VCR Mode
Store
P01
PAL
Off
down to see all the programmes while in TV
mode by pressing the navigation buttons. By
Exit : TV
cursor action, programme selection is done
automatically.
Colour system
Select Colour System by pressing  / 
button. Press / button to change the colour
Name
system to PAL, SECAM or AUTO.
the desired programme and press the
YELLOW button.
To change the name of a programme, select
The first letter of the selected name starts to
blink. Press  /  button to change that letter
and  /  button to select the other letters. By
pressing the YELLOW button, you can store
the name.
Move
Select the programme that you want to insert
by using the navigation buttons. Press the
GREEN button. Using navigation buttons, move
the selected programme to the decided
programme space and press the GREEN
button again.
English - 37 -
Delete
the following warning screen will be
To delete a programme, press the RED button.
Pressing the RED button again erases the
displayed:
selected programme from the programme list
and the programmes below shift one line up.
Program Is Locked!
You May Unlock this Program
from Program Table.
APS (Auto Programming System)
When you press the BLUE button for APS, Auto
Programming System menu will appear on
the screen.
Favourite mode
You can set various channels as favourites
so that only the favourite channels are
navigated. To set a favourite, use the navigation
buttons to select a channel and then press
item. The channel selected as a
the
favourite appears in the Program Table with a
favourites icon (
) against the channel
name. For removing a favourite, carry out the
same operation. To exit, press M.
Program lock
Change PIN
Select Change PIN by pressing / button.
Use
button to change the PIN code. After
button, the following message
pressing
appears on the screen:
Program Lock
Enter old PIN
Back : Menu
Enter old PIN code through the numeric
buttons and then enter your new PIN code.
Program Lock menu will be displayed on the
screen when you enter the new PIN code:
Program Lock
Program Lock
Enter new PIN
Enter PIN
Change PIN
Back : Menu
Exit : TV
Exit : TV
Program Locking provides a passwordprotected access to channels selected by
parents. In order to lock a channel you should
know the Program Lock password (default
value is set to 0000 in the factory and can only
be changed from the Program Lock menu).
Enter PIN
Back : Menu
Exit : TV
Program Lock Menu will again be displayed
after a short while of the identification of new
PIN.
Hint: If you forget your Program Lock password, you
can deactivate the Program Lock by using the
code 7910 and be able to set new password for
future use. Thus, do keep this code in a safe
place for future reference.
Select the channel that you desire to lock by
highlighting it and then press the
button.
When the
button is pressed, Program Lock
menu will be displayed on the screen. After
entering the pin code, desired channel will be
locked. The program lock icon will appear next
to the channel name. W hen the locked
channel is selected through P+ or P- buttons,
English - 38 -
H. (Horizontal) position
PC Mode Menu System
See the “Connecting the LCD TV to a PC”
section for connecting a PC to the TV set.
For switching to PC source, press the
AV
button on your remote control and select PC
input.
Note that PC mode menu settings are
available only while the TV is in PC source.
Sound menu
The items in this menu are described at
“Sound Menu” section explained in the “Menu
System” section.
Feature menu
Feature menu settings are identical to the
settings explained in “Feature Menu” section
in the “Menu System” section.
This item shifts the image horizontally to right
hand side or left hand side of the screen.
Select H. position by pressing /
Use  /  button to adjust the value.
button.
V. (Vertical) position
This item shifts the image vertically towards
the top or bottom of the screen.
Select V. position by pressing /
Use  /  button to adjust the value.
button.
Clock
Clock adjustments correct interference that
appear as vertical banding in dot intensive
presentations like spreadsheets or
paragraphs or text in smaller fonts.
Select Clock by pressing
/
button. Use
PC picture menu
 /  button to adjust the value.
Select PC Picture menu by pressing  / button
Phase
button. PC Picture menu
and then press
appears on the screen. Brightness, Contrast and
Depending on the resolution and scan
Colour Temperature adjustments in this menu
are identical to adjustments defined in TV picture
see a hazy or noisy picture on the screen. In
such a case, you can use this item to get a
menu in “Menu System” part.
clear picture by trial and error method.
Geometry menu
Select Phase by pressing
Select the fourth icon by pressing  /  button
and then press
button. Geometry menu
Auto adjustment
appears on the screen:
If you shift the picture horizontally or vertically
frequency that you input to the TV set, you may
/
button. Use
 /  button to adjust the value.
to an unwanted position, use this item to put
the picture into correct place automatically.
Select Auto Adjustment item by using
/
buttons. Press  or OK button.
Warning: Auto position adjustment recommended
to be done with the full screen image for
the proper adjustment.
GEOMETRY
H Position
V Position
Clock
Phase
Auto Adjustment
Back : Menu
Exit : TV
English - 39 -
4:3
Displaying TV Information
Programme Number, Programme Name,
Sound Indicator and Zoom Mode information
Use to view a normal picture (4:3 aspect ratio)
as this is its original size.
are displayed on the screen when a new
programme is entered or
button is pressed.
Mute function
Press
button to disable sound. Mute
indicator will be displayed in the upper side
of the screen.
To cancel mute, there are two alternatives; the
first one is pressing the
button and the
second one is increasing the volume level.
Personal preference
Press PP button to adopt the previous settings
that you had stored before.
of a normal picture (4:3 aspect ratio) to fill the
wide TV screen.
• For 16:9 aspect ratio pictures that have been
squeezed into a normal picture (4:3 aspect
ratio), use the 16:9 mode to restore the
picture to its original shape.
This zooms up the wide picture (16:9 aspect
You can change the aspect ratio of the TV for
viewing the picture in different zoom modes.
/WIDE
This uniformly stretches the left and right sides
Cinema
Zoom modes
Press
16:9
ratio) to the full screen.
button to directly change the
zoom mode. Available zoom modes are listed
below:
Subtitle
Auto
This zooms up the wide picture (16:9 aspect
W hen a WSS (Wide Screen Signalling)
ratio) with subtitles to the full screen.
signal, which shows the aspect ratio of the
picture, is included in the broadcast signal or
the signal from an external device, the TV
automatically changes the ZOOM mode
according to the WSS signal.
• When the AUTO mode does not function
correctly due to poor WSS signal quality or
when you want to change the ZOOM mode,
change to another ZOOM mode manually.
English - 40 -
Teletext
Note: Most TV stations use code 100 for their
Teletext system transmits information such
as news, sports and weather on your TV. Note
index pages.
Coloured Buttons
that if the signal becomes insufficient, some
text errors may occur or the teletext mode may
(RED/GREEN/YELLOW/BLUE)
be quitted.
systems. When these systems are available,
the pages are divided into groups or topics.
Teletext function buttons are listed below:
Teletext On-Off / PAT mode
Your TV supports both FASTEXT and TOP text
Activates teletext mode when pressed once.
When FASTEXT system is available, sections
in a teletext page will become colour-coded
Pressing this button again will split the screen
into two windows, one displaying the teletext
and can be selected by pressing the coloured
buttons. Press a coloured button that
and the other displaying the current channel.
Pressing again will quit the teletext mode.
corresponds to with your needs.
Index
The coloured writings will appear, showing
you, which coloured buttons to use when TOP
text transmission is present. Pressing P - or
P + commands will request the next or
Selects the teletext index page.
Mix
previous page respectively.
Places the teletext screen over the programme.
Expand
Press once to enlarge top half of the page,
press again to enlarge the bottom half of the
page. Press again to revert back to normal
size.
Reveal
Shows hidden information (e.g. solutions of
games).
Hold
Holds a text page when convenient. Press again to
resume.
Subcode pages / time
Selects subcode pages if available when the
teletext is activated. When the teletext is not
activated, displays time info if the programme
has teletext transmission.
P+ / P- and numbers (0-9)
Press to select a page.
English - 41 -
No picture
Tips
Screen care
Clean the screen with a slightly damp, soft
cloth. Do not use abrasive solvents as they
may damage the coating layer of the TV
screen.
For your safety, unplug the mains plug when
cleaning the set. When moving the TV, hold it
properly from the bottom part.
Image persistence
Please note that ghosting may occur while
displaying a persistent image. LCD TVs’
image persistence may disappear after a short
time. Try turning off the TV for a while.
Is the aerial connected properly? Are the plugs
connected tightly to the aerial socket? Is the
aerial cable damaged? Are suitable plugs
used to connect the aerial? If you are in doubt,
consult your dealer.
No Picture means that your TV is not receiving
a transmission. Have you selected the correct
button on the remote control? Try once more.
Sound
You cannot hear any sound. Did you perhaps
interrupt the sound, pressing the
button?
Sound is coming from only one of the
speakers. Is the balance set to one extreme?
See Sound menu.
To avoid this, do not leave the screen in still
picture for extended periods.
Remote control
No power
Your TV no longer responds to the remote
control. Perhaps the batteries are exhausted.
If your TV system has no power, please check
the main power cable and connection to the
mains socket outlet.
Poor picture
Have you selected the correct TV system? Is
your TV set or house aerial located too close
to a non-earthed audio equipment or neon
If so you can still use the local buttons at the
top of the TV.
Input sources
If you cannot select an input source, it is
possible that no device is connected.
Check the AV cables and connections if you
lights, etc.?
have tried to connect a device.
Mountains or high buildings can cause double
CI module
pictures or ghost images. Sometimes you can
improve the picture quality by changing the
If you are experiencing a problem with the CI
module, it is possible that CI module is not
direction of the aerial.
properly inserted. Remove the CI card and
then reinsert.
Is the picture or teletext unrecognisable?
Check if you have entered the correct
frequency.
If the problem persists, it is possible that your
CI module is not recognized. Try inserting a
The picture quality may degrade when two
different CI module.
peripherals are connected to the TV at the
same time. In such a case, disconnect one of
the peripherals.
English - 42 -
Appendix A: PC Input typical display modes
The display has a maximum resolution of 1360 x 768 (optional), frequency range of 56-75 Hz.
The following table is an illustration of some of the typical video display modes.
Your TV may not support different resolutions. Supported resolution modes are listed below.
If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.
R e s o lutio n
Fre q u en cy (H z)
H o rizo n ta l
Vertical
1
2
3
6 40
7 20
8 00
480
400
600
60
70
56
IBM, VGA
IBM, VGA
VESA
4
5
6
7
8
9
10
11
12
8 00
600
6 40
6 40
8 00
8 00
1 02 4
1 02 4
1 02 4
1 28 0
480
480
600
600
768
768
768
720
60
72
75
72
75
60
70
75
60
VESA
VESA
VESA
VESA
VESA
VESA
VESA
VESA
VESA
13
14
1 28 0
1 36 0
768
768
60
60
VESA
VESA
OPTIONAL
Mo d e
Information for users applicable in European Union
countries
This symbol on the product or on its packaging means that your electrical
and electronic equipment should be disposed at the end of life separately
from your household wastes. There are separate collection systems for
recycling in EU. For more information, please contact the local authority
or the dealer where you purchased the product.
English - 43 -
POWER CONSUMPTION (W)
Specifications
60W
TV BROADCASTING
1 W (Standby)
PAL/SECAM B/G D/K K' I/I' L/L'
RECEIVING CHANNELS
PANEL
VHF (BAND I/III)
UHF (BAND U)
HYPERBAND
CABLE TV (S1-S20/ S21-S41)
16:10 display, 19” screen size
DIMENSIONS (mm)
D
NUMBER OF PRESET CHANNELS
140
80
100
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
220 - 240V AC, 50 Hz
AUDIO
Nicam
AUDIO OUTPUT POWER (WRMS.) (%10 THD)
2x3W
English - 44 -
L
480
480
H
397
352
Weight (kg)
5,4
5,1
With foot
Without foot
Pin specifications
Signal Input
PC RGB Terminal (D-sub 15-pin connector)
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Input signal
R
G or sync on green
B
No connection
No connection
R.GND
G.GND
B.GND
No connection
GND
No connection
[SDA]
H.sync or H/V composite sync
V.sync. [V.CLK]
[SCL]
• When different kinds of input signals are
simultaneously input to the monitor via a graphics
board or the like, the monitor will automatically
select the signals in the following priority order:
Sync signal type
H/V separate sync.
H/V composite sync.
sync.on Green *
Priority
1
2
3
• Even in the case of the recommended
signals shown on the following page,
there may be instances when correct
display is not possible. In this case, use
H/V separate sync, H/V composite sync.
HDMI connector pin specifications
Pin
1
2
3
4
5
6
7
8
9
10
Input signal
TMDS Data2+
TMDS Data2 Shield
TMDS Data 2TMDS Data 1+
TMDS Data1 Shield
TMDS Data1TMDS Data0+
TMDS Data0 Shield
TMDS Data0TMDS Clock+
Pin
11
12
13
14
15
16
17
18
19
Input signal
TMDS Clock Shield
TMDS ClockCEC
Reserved (N.C. on device)
SCL
SDA
DDC/CED Ground
+5V Power
Hot Plug Detect
SCART connector pin specifications
Pin
1
2
3
4
5
6
7
8
9
10
11
Input signal
AUDIO OUT (RIGHT)
AUDIO IN (RIGHT)
AUDIO OUT (LEFT/MONO)
AUDIO GND
RGB-B GND
AUDIO IN (LEFT/MONO)
RGB-B IN
AUDIO / RGB SWITCH / 16:9
RGB-G GND
Not used
RGB-G IN
Pin
12
13
14
15
16
17
18
19
20
21
Input signal
Not used
RGB-R GND
GND
RGB-R / S.VHS CHROMINANCE IN
BLANKING SIGNAL
COMPOSITE VIDEO GND
BLANKING SIGNAL GND
COMPOSITE VIDEO OUT
COMPOSITE VIDEO / S.VHS LUMINANCE IN
GND / SHIELD (CHASSIS)
English - 45 -
Electrical connection
For your own safety read the following instruction carefully before attempting to connect this
unit to the mains supply.
MAINS (AC) OPERATION
The wires in the mains lead are coloured in accordance with the following code :
GREEN
&
YELLOW
(Earth)
(if there is
earth cable)
FUSE
BROWN
(Live)
BLUE
(Neutral)
IMPORTANT
As the colours of the wires in the mains lead of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green and yellow must be connected to the terminal which
is marked with the letter E, or by the earth symbol, or coloured green or green and
yellow.
The wire which is coloured blue or black must be connected to the terminal which is
marked with the letter N or coloured Black.
The wire which is coloured brown or red must be connected to the terminal which is
marked with the letter L or coloured Red.
For continued protection against risk of fire, replace only with same type and rating of
fuse (ASTA approved 5A 250VAC fuse).
gd
nn
i
a
v
l
oe
mn
en
r
o
s
er
r
e
o
f
p
e
be
c
sv
i
n
r
ie
a
ms
d
ee
hs
t
i
r
o
mh
ot
r
u
f
ea
cy
nu
ab
i
l
t
p
pu
ao .
sd d
e
i
i
e
h
r
s
r
t
a
u
tc
c
e e
ne b
nb d
l
oy u
l
cn
o
so
i
h
d
ds
kl
s
cu r
oo t
hh a
ss p
e
sr
cr
i
ia
r
ta
p
c
ps
ee
l
e
e
R
n
t i
.
n
u
r
ee
n
vv
e
eo
g
r
cy
p
l
en
oh
Tt
o
CAUTION
SAFETY PRECAUTION
THIS EQUIPMENT MUST BE DISCONNECTED FROM THE MAINS WHEN NOT IN
USE. DO NOT ALLOW THIS UNIT TO BE EXPOSED TO RAIN OR MOISTURE.
English - 46 -
www.electrolux.com
www.electrolux.co.uk
315 9110 13-D-01052008
Download PDF

advertising
