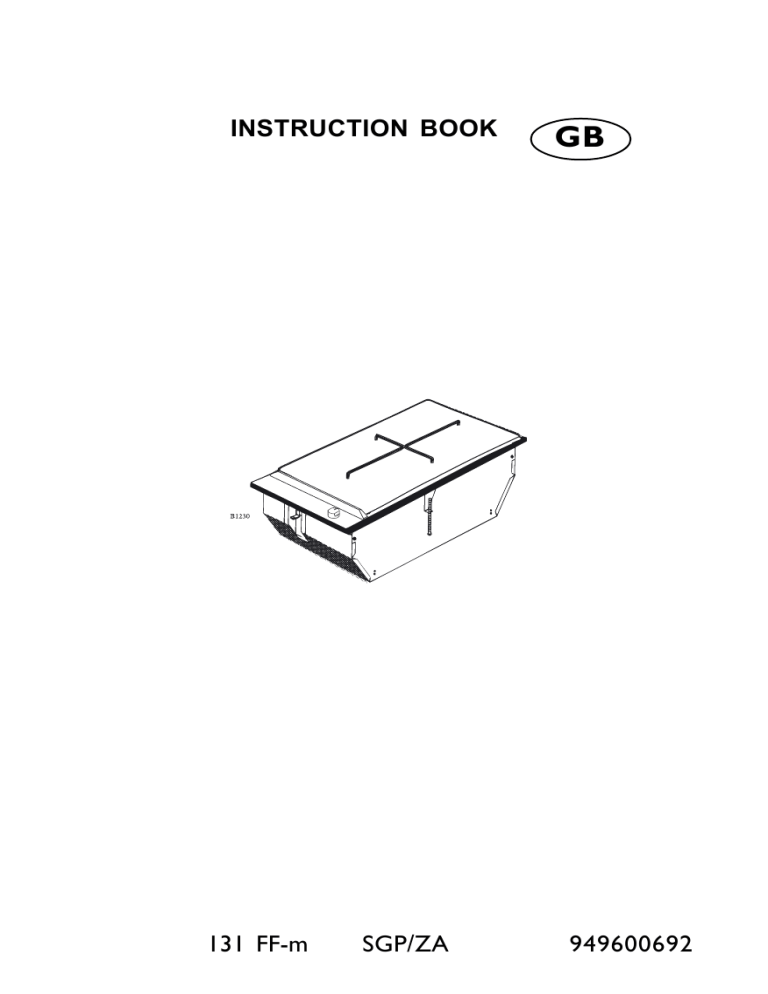

INSTRUCTION BOOK
131 FF-m
SGP/ZA
1
GB
949600692
Congratulations from AEG
Dear Customer,
Congratulations with your new Hob.
It is important that you become familiar with the functions and features of
the Hob. You should therefore read these operating instructions as they will
help you get the most out of your new Hob.
Pay extra attention to sections marked
. These are warning texts to help
you avoid accidents.
Keep the operating instructions. They will come in handy if there is
something you are not sure about, and should accompany the Hob if it is
transferred to a new owner.
The structure of the operating instructions enables you to use them as a
reference manual. The first part of the operating instructions contains a
general description of your new product. Then follows a short introduction
of the things to do before you use the Hob for the first time. The section
“How to use” describes how the Hob is used in everyday life. Use this
section until you are familiar with your new Hob. The section “Cleaning
and Maintenance” provides information on both daily and more thorough
cleaning of the individual components of the Hob. Should problems arise
when you use the Hob, you can look in the section “Before calling service”,
where there are instructions on how to remedy some practical and technical
problems yourself.
Enjoy!
Regards,
2
Table of contents
Contents
Page no
For the user
Congrafulations from AEG ......................................................................... 2
Important to know ....................................................................................... 4
Description of the product ......................................................................... 7
How to use .................................................................................................... 8
Fryer .................................................................................................... 8
Maintenance and cleaning of ................................................................... 10
Panel .................................................................................................. 10
Stainless steel surfaces ....................................................................... 11
Fryer .................................................................................................. 11
Draining of the oil ..................................................................................... 12
If the hot does not function ...................................................................... 18
Service and spare parts ...................................................................... 18
Tips on frying .............................................................................................. 19
For the installer
Technical specifications ............................................................................ 13
Mounting .................................................................................................. 14
Electrical installation ................................................................................. 17
How to read the operating instructions:
1... 2...Step by step
Hint and tips
Safety information
Environmental information
3
Important to know
the cleaning agents used.
The hob unit is intended for ordinary
household cooking purposes. Any
other use can result in damage to the
unit as well as personal injury.
The appliance is not intended for use
by young children or infirm
persons without supervision.
During use
Please read the warranty.
During deep-fat frying, sauteèing,
melting of butter, etc., one must always
remain near the unit, due to the danger
of fire. In the event of fire the unit
must be shut off immediately (and the
cooker hood as well, if in use).
Service
Service and repair may only be
performed by the distributor, or by a
service organization approved by the
distributor. Only repair parts delivered
by the distributor may be used.
Make sure that the unit is shut off
when not in use - the knob should rest
at “0”.
Disposal
Help to avoid accidents; if the hob unit
should ever be discarded, render it
useless by removing the cable, or by
cutting the cable as close to the unit as
possible.
The unit becomes dangerously hot
during use, and remain so for a period
of time. They should therefore be
treated with due respect. Keep children
at a distance.
Product liability
Never place plastic or paper, ect., on
the unit. If the unit should be switched
on by accident, the paper could burn,
plastic melt, etc.
Our liability is limited to that which is
stipulated by law, and covers only
damage to persons and property, which
results from defects in materials and
workmanship of the unit itself.
This liability extends for a period of 10
years from the date of purchase as a
factory-new unit.
For hygienic and safety reasons the
unit must be kept clean. Grease, oil
and food spills create unpleasant
odours when burnt, and can in some
cases result in open flames.
Read - and adhere to - the users
instructions, as well as any instructions
and warnings printed on the labels of
4
frying receptacle. The filter dome
must face upwards when in position.
That the safety rules in the instructions
have not been complied with.
That repair has been made by others
than an authorised service technician.
The unoriginal spare parts have been
used.
That the damage is caused by transport
at a later date, for instance during
removal or resale.
That the damage is caused by any form
of use contrary to common sense.
Installation
The electrical installation must be
made by a certified electrician. Avoid
pinching the cable. The electric parts
of the hob must not be tampered with.
Safety rules
You can prevent fire and avoid serious
injuries by following the safety rules
below. Remember that the grill
becomes so hot that it can set fire to
paper, cleaning rags etc. Remember
that hot frying-oil can cause serious
burns. Never leave the appliance
unattended when in use.
Areas of use
The hob is only intended for normal
household use. It is important that you
follow the advice given in these
instructions in order to avoid any risk
of damage to persons and objects.
Used for any other purpose invalidates
the guarantee as well as product
liability.
Before using the unit
Some unpleasant odour and smoke
may occur the first time you use the
hob. Therefore please wash the frying
container, basket and the heating
element in hot water with washing-up
liguid. Pour 3 liters of water with some
detergent into the frying container.
Warm up the water and let it boil for
about 10 minutes. Empty the water
into a bowl through the bottom tap and
flush with hot water. Before using the
chip-fryer, fit the enclosed metal filter
over the drain hole in the base of the
5
Please keep childeren out of reach!!
Rember that the heating elements and
the frying oil remain searing hot for a
long period after you have turned off
the appliance. Never pour water into
hot frying-oil. If the frying oil catches
fire, turn off the extractor hood.
Suffocate the fire by covering it with
the lid, a pan, baking tray or similar
object.
Never try to put out the fire with
water.
Steel cover
The cover supplied may only be used
on this model.
6
Description of the product
Steel cover
Frying basket
Max. oil level
MIN
Min. oil level
Control lamp
Heating element for fryer
Control knob
7
How to use
Operation of the fryer
Control knob for fryer. The
temperature is regulated by a
thermostat and may be set
between 120˚C and 190˚C.
Controllamp
for the
Kontrolleuchte
für fryer
die Friteuse
190˚
Control lamp
170˚
The control lamp will light when the
fryer is switched on and will switch off
when the set temperature is achieved.
The light will come on and off in line
with the thermostat regulation of the
temperature.
Frying
Make sure the heating element is
positioned at the bottom. Oil is poured
into the frying container. The “Min”
mark must be observed. This
corresponds to an oil content of 1,5
liters. Maximum amount of oil in the
container is 3,5 litres. The heating
elements stay turned down and the
fryer may be switched on at the
desired temperature setting. The lid
may be on the fryer to shorten the
preheatingtime.
8
Overheating protection
Overheating protection during any
overheating of the oil at the fryer will
switch the inserted
overheating protection off the friteuse.
Customer service for the remedy of the
disturbance contacts.
Steel lid for the fryer
When using the combi-grill as a fryer
you can place the steel lid on top of the
frying container, it will shorten the
preheating time.
9
Maintenance and cleaning
The heating elements and the
oil will stay hot long time
after the fryer has been
shut off.
Do never pour water into the
hot oil as the water
explosiverly will start boiling
Panel
Taking off the panel
You can take the panel off, which
makes it easier to clean the surface.
What to do:
1. Hold the panel as shown in the
diagram
2. Lift the panel straight up
3. Clean the top surface as shown
under “cleaning the steel
surface”
Beware of the two pegs, which
are sharp
4. Replace the panel in position
MAKE SURE that the panel is
turned the right way
Never use hard or sharp
implements to lift off the
panel.
Do not wash the panel in a
dishwasher.
May not be used with the
panel off.
10
Stainless steel surfaces
Perform daily cleaning with a slightly
damp cloth. For more severe soiling,
use a liquid scouring cream. Always
clean the steel in the direction of the
steel finish. To ensure that the steel
retains its shine, it is recommended
that you use a polishing agent for
stainless steel on a regular basis.
Always polish in the direction of the
steel finish (cross-wise).
Never use steel wool, metal sponges or
other abrasive cleaning agents.
The fryer
You can leave the oil in the container
from time to time. How often you need
to change the oil depends on how often
you use the fryer and for what.
You should change the oil and clean
the frying container when the oil
changes colour and/or if the oil begins
to smell.
11
Draining of the oil
1. Remove the safety shield from the
drain cock.
2. Place a bowl under the drain cock.
Make sure the bowl is large enough
to hold the oil in the container.
3. Open the drain cock and let the oil
run into the bowl.
4. Close the drain cock.
Closed
The frying container
The drain cock must closed.
1. Remove the metal filter and wash it
in warm soap water.
2. Pour warm water with washing-up
liquid in the container. You can
leave the heating element down
when cleaning the container. Clean
the container with a brush.
3. Place a bowl under the drain cock.
Make sure the bowl is large enough
to hold the water in the container.
4. Open the drain cock and let the
water run into the bowl.
5. Rinse the container in cold water.
Remember to place a bowl under
the drain cock to catch the rinsing
water.
Eventually wipe the container with
a dry cloth.
6. Close the drain cock and replace
the safety shield.
Place the metal filter with the
curved side upwards over the drain
hole in the container.
Open
12
Technical date
230 V
230 AV, 1 phase, neutral + earth
2000 W
This unit is
labelled to indicate
conformity with the lowvoltage
directive ( 73/23/EEC ) and the EMC
directive ( 89/336/EEC ).
13
Mounting
The hob unit can be mounted in any
type of kitchen with a table surface
whose thickness is between 28 mm and
40 mm.
Minmum distance to
any shelf underneath
shall be 245 mm +
room enough for a
bowl that can take at
least 4 litres.
Fixing
Unscrew the fixing brackets just enough
so they may be turmed. Fasten the
brackets to the worktop with a screw
driver.
Cut-out measurements
One rectangular hole is sawn out for the
hob combination chosen.
The depth of the cut-out for any unit is:
490 mm
Length of hole = sum of all units`
externally measured length, less 20 mm.
Mounting of Reinforcement
Beams
Minimum distance
to wall:
150 mm
A reinforcement Beam, with supporting
flanges at each end, is included with
each two-burner unit. For unit
combinations, a reinforcement beam
must be used between each unit. It is not
Reinforcement
necessary to attach the reinforcement
beam to the worktop surface, as it is held beams
in place by a specially designed
moulding, which is incorporated in the
hob unit´s flanges.
14
Minimum distance
to wall (nonflammable material):
150 mm
Mounting of attachment fitting
on the sides of the hob
If the appliance is mounted in a 270 X
490 mm cutout, or if for other reasons
there is no room for the side
attachments, these should be removed
before the appliance is set into the
worktop.
Set the appliance into the worktop and
then raise it enough to expose the
screws in the sides.
Remove the screws.
Mount the attachment fittings so that
they interlock with the frame (See
illustration).
Reinsert the screws in the sides
through the oblong hole in the fitting.
Set the appliance into the worktop and
tighten the attachment fittings.
15
The units externally measured
length
145 mm:
Cooker hood
290 mm:
Two-burner ceramic-top electric hob
Two-burner gas hob
Grill
Fryer
Combi grill
580 mm:
Four-zone ceramic-top electric hob
Four-burner gas hob
725 mm:
Four-zone ceramic-top electric hob
16
Electrical installation
The electrical installation must only be
made by a certified electrician. The
electrical installation must be made
according to prevailing regulations for
heavy current installations and comply
with local public regulations.
No attempt must be made to tamper
with the electrical parts of the unit.
The hob is supplied with a 1,5 metre
power cable without plug and is to be
connected to an external relay with a
contact separation off at least 3mm in
each pole.
Black
Blue
Yellow/
green
The guarantee is void in the case of
faulty installation or if the electrical
parts have been tampered with.
Connections to the unit:
1 phase - neutral - earth (max. 10A)
Type of cable, min. 1,0 mm² HO5 RNF.
17
If the fryer does not function
Check to see whether a fuse has
blown.
Check to see whether the relay is
switched off.
by an alternative service organisation,
approved by the distributor. Only spare
parts delivered by the distributor may
be used. Spare parts and service are the
domain of our service network.
If the problem is not with the fuse or
relay, do not attempt to correct it
yourself.
Instead, contact our service network all repairs must be performed by our
service personnel.
Warranty
This unit is warranted against defects
in materials and workmanship, when
used as intended, for a period of one
year from the date of purchase. The
warranty covers both parts and service,
as well as necessary transportation
costs. Keep your proof of purchase.
Reservations
The warranty does not cover damages
which are not due to defects in
materials or workmanship. Repair, or
attempted repair, by any party other
than our authorized service network
will invalidate the warranty. The
warranty does not cover an unjustified
house-call by our service network.
Service and spare parts
Service and repair of this unit must be
carried out by our service personnel, or
18
Tips on frying
Select the desired temperature and
wait for the fryer lamp to go out. The
oil is now at the desired temperature.
NB!! Remember that moist foodstuff
should be dried before frying (ie.
seafood, vegetables, fruit, fish). After
frying the basket is lifted out and
carefully shaken to remove excess oil
(the basket may be hung on the fixing
bracket in order to let the oil run off
further). In the table the approximate
times are given for frying, which may
serve as a guide. The times depend on
the finished appearance and personal
taste.
If you should want to fry large
amounts of food at the same time, it is
best to take up the basket after 1-2
minutes so that the oil may quickly
reach the correct temperature again.
The fried food will get more crispy
this way. If it does not get crispy
enough (even if the temperature is set
correctly), or if the oil changes colour
to light brown, the oil should be
changed.
NB!! Make sure that no naked
flames are near the fryer. The oil is
hot and ignites easily. Remember to
set the temperature dial back to 0
once the frying is finished.
19
Foods
Amount Temperature Time min.
French fries, deep frozen
French fries, deep frozen
French fries, fresh
500 gr.
100 gr.
500 gr.
Poato chips, fresh
500 gr
Pooato croquettes, deep frozen 500 gr.
1/4 chicken
Turkey steak
Fish fingers, deep frozen
Fillet of plaice, deep frozen
Calamari rings, deep frozen
Schnitzel
Camenbert
Parsley
Dumplings
Jam doughnuts
Banana fritters
Vegetable fritters
2*250 gr.
2*250 gr.
300 gr.
300 gr.
300 gr.
200 gr.
4 x ½ pkt
4
4
2
500 gr.
20
180
180
first 170
then 180
180
first 170
then 180
8-10
4-6
4-6
2-4
3-5
1-2
3-5
180
180
180
170
170
180
180
180
170
180
180
180
8-10
3-5
4-6
3-5
3-5
5-7
2-3
2-3
6-8
6-8
3-4
8-10
Food residue left in the oil must be
removed before the fryer is used again
because of fire risk!
If you should want to use both the grill
and the fryer, for instance to make a
beef steak with french fries, the
following method may be used:
side and switch on the fryer. After a
few minutes the oil is once again hot
enough and the chips may be fried
until they are crispy.
Dinner is now ready to be served..
1. Prepare the fryer for use by
removing the grill grid and box for
lava blocks, and turn the grill elements
upright. Heat the oil to 190˚C (Approx.
10 minutes). Put the chips into the
basket and lower it in the heated oil.
Boil the chips almost ready (crispy
an light brown). Hang the basket for
dripping on the bracket and then place
it on kitchen paper.
Switch off the fryer.
2. The grill is used as follows:
install the lava blocks box, lower the
grill elements and lay on the grill grid.
Preheat on setting 12 for about 5-8
minutes before laying on the beef
steaks. Fry the steaks (10-15 minutes
form rare to well done).
Switch off the grill.
3. Then place the steaks on a serving
platter and keep warm. The French
fries can now be finished. Take off the
grill grid. Turn up the grill elements
and remove the lava block box. Use
kitchen gloves as the grill is hot.
Turn the grill elements down along one
21
22
23
24
325 88-7734 Rev. 1-218
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
