Electric hobs

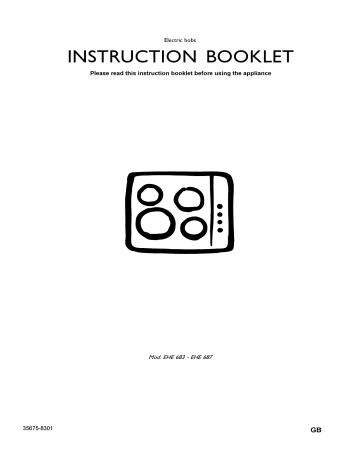

INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
Mod. EHE 683 - EHE 687
35675-8301
GB
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need
assistance, contact our Customer Care Department on 08705 950950
Installation
l
l
l
l
This hob must be installed by qualified personnel,
according to the manufacturer’s instructions and to
the relevant British Standards.
Remove all packaging before using the hob.
Ensure that the electrical supply complies with the
type stated on the rating plate, located on the bottom
of the hob.
Do not attempt to modify the hob in any way.
Child Safety
l
l
l
l
This hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
The hob gets hot when it is in use.
Children should be kept away until it has cooled.
Children can also injure themselves by pulling pans
or pots off the hob.
During Use
l
l
l
l
l
l
l
l
This hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
Do not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
Ensure the control knobs are in the ‘OFF’ position
when not in use.
When using other electrical appliances, ensure the
cable does not come into contact with the hot surfaces
of the hob.
Unstable or misshapen pans should not be used on
the hob as unstable pans can cause an accident by
tipping or spillage.
Never leave the hob unattended when cooking with
oil and fats.
Never use plastic or aluminium foil dishes on the hob.
Perishable food, plastic items and areosols may be
affected by heat and should not be stored above or
below the hob unit.
Service
l
2
This hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
l
l
After installation, please dispose of the packaging with
due regard to safety and the environment.
When disposing of an old appliance, make it unusable,
by cutting off the cable.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Safety Instructions
F
Step by step instructions for an operation
Hints and Tips
Environmental Information
This appliance is manufactured according to the
following EEC directives:
- 73/23 EEC - 90/683 EEC - 93/68 EEC
- 89/336 EEC current edition.
Contents
For the User
For the Installer
Important Safety Information
2
Building In
11
Description of the Hob
3
Installation
11
Operation
4
Electrical connections
13
Maintenance and Cleaning
5
Wiring diagram
14
Something Not Working?
6
Service and Spare Parts
6
Customer Care Department
7
Guarantee Conditions
7
Description of the Hob
3
4
2
1
5
6
7
1. Hob Top
2. Normal Hotplate - 1570 W - 180 mm dia.
3. Normal Hotplate - 1040 W - 145 mm dia.
4. Rapid Hotplate - 2090 W - 180 mm dia.
5. Rapid Hotplate - 1570 W - 145 mm dia.
6. Control knobs
7. Electric Hotplates Control Light
3
Operation
Electric Hotplates
To switch on a hotplate, turn the relevant control knob
anticlockwise to the required heat setting.
The control knob is numbered 1 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has two types of hotplates:
Normal Hotplates
We recommend the plates are switched to maximum (6)
for a short while to boost the plate, and then adjusted to
the required setting.
Rapid Hotplates
The rapid hotplates are indicated by a red dot, and will
heat up more quickly than a normal plate. As the red dots
are painted on the plate, they may deteriorate during use
and even disappear completely after a period of time. This
will not affect the performance of the hob.
It is important to note that the plate may smoke
and produce a slightly unpleasant odour when
used for the first time. This is quite normal and will
disappear after a short while.
Electric Hotplates Control Light
The Hotplates Control Light will come on each time a
cooking zone is switched on.
Hints and Tips
Saucepans for use on solid plates should have several
characteristics:
l
l
l
They should be fairly heavy duty
They should fit the heat area exactly, or be slightly
larger for efficient use, NEVER smaller.
They should have a flat base to ensure good contact
with the plate.
This is particularly important when using pans for high
temperature frying or pressure cooking.
As soon as liquid starts boiling, turn down the plate control
knob so that it will barely keep the liquid simmering.
You can switch off the plate a short while before you
finish cooking, and the final stage will be completed on
the accumulated heat. Similarly, stews etc. cooked in
well covered saucepans cook at lower temperature which
is more economical.
Ensure pans are large enough to avoid liquids
being spilt onto the plates.
Never leave the plates on without a pan on them
or with an empty pan on them.
4
Suggestions for the correct setting of the plates are given
in the following table.
OFF
0
Very Gentle
1
To keep food warm
To melt butter and chocolate
Gentle
2
To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow
3
Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium
4
Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High
5
Larger stews, meat roll, fish,
omelettes, steaks
Fast
6
Steaks, escalopes and frying.
Take care never to lean or reach over a hot electric
plate. Always point pan handles inward or over the
work surface next to the hob to avoid accidentally
knocking over a pan as you pass by.
Take care when frying food in hot oil or fat, as the
overheated splashes could easily ignite.
If the control knobs become difficult to turn, please
contact your local Electrolux Service Centre.
Maintenance and Cleaning
Before any maintenance or cleaning can be carried
out, you must DISCONNECT the hob from the
electricity supply.
The hob is best cleaned whilst it is still warm, as spillage
can be removed more easily than if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up liquid
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, the following
products are recommended:
- For stainless steal hobs use a proprietary stainless
steel cleaner.
- For other hobs use Hob Brite or Bar Keepers Friend.
The control knobs may be removed by carefully pulling
them upward for easier cleaning.
The Hotplates
Spills onto the actual plate should be removed using
warm water and a soft brush, nylon or plastic scourer. To
keep the plates looking as new, hotplate conditioner can
be purchased from most hardware stores, e.g. "4 Hob" by
HomeCare Products (follow the manufacturer's instruction
for use).
Alternatively, wipe the plates with a drop of olive oil on a
kitchen towel to avoid rust. It is important to note that the
plate will smoke a little and produce a slightly unpleasant
odour when next used.
Stainless steel parts: the stainless steel spill rings may
become straw coloured with use. Use a proprietary
stainless steel cleaner to remove this straw
discolouration. This also applies to the area around the
hotplates on stainless steel hobs.
Failure to clean and condition hotplates may lead
to rust and corrosion forming on the surface.
5
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting your local Service Force
Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
SYMPTOM
SOLUTION
n The plate does not heat up.
u Check that the unit is plugged in and the electrical
supply is switched on
u Check that the RCCB has not tripped (if fitted)
u Check the mains fuse has not blown
u Check the correct control knob has been turned.
n The plate is not giving satisfactory results
u Check the plate is clean and dry
u Check the cooking pan is the correct size for the plate.
u Check the cooking pan has a flat bottom
u Check the setting is correct for the type of cooking.
If after all these checks, your hob still does not operate
correctly, contact your local Electrolux Service Force
Centre.
Please note that it will be necessary to provide proof of
purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made as the engineer will
make a charge if the fault is not a mechanical or
electrical breakdown.
Service and Spare Parts
In the event of your appliance requiring service, or if you
wish to purchase spare parts, please contact your local
Electrolux Service Force Centre by telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area. The
addresses are listed on the following pages.
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working.”
When you contact the Service Force Centre you will need
to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found
on the rating plate)
5. The purchase date
6
Customer Care Department
For general enquiries concerning your Electrolux
appliance or for further information on Electrolux products,
please contact our Customer Care Department by letter
or telephone at the address below.
Customer Care Department
ELECTROLUX
55-77 High Street
Slough
Berkshire
SL1 1DZ
08705 950950 (*)
* calls to this number may be recorded for training purposes.
Guarantee Conditions
Electrolux Guarantee conditions
We, Electrolux, undertake that if, within 12 months of
the date of the purchase, this Electrolux appliance or
any part thereof is proved to be defective by any reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
* The appliance has been correctly installed and used
only on the gas and electricity supply stated on the
rating plate.
* The appliance has been used for normal domestic
purpose only, and in accordance with the
manufacturer's instructions.
* The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any person
not authorised by us.
* All service work under this guarantee must be
undertaken by a Electrolux Service Centre.
* Any appliance or defective part replaced shall
become the Company's property.
* This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside these
hours, in which case a premium will be charged.
Exclusions
This guarantee does not cover:
* Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
* Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliance
outside the United Kingdom.
*
*
Appliances found to be in use within a commercial
or similar environment, plus those which are the
subject to rental agreements.
Products of Electrolux manufacture which are not
marketed by Electrolux.
European Guarantee
If you should move to another country within Europe then
your guarantee moves with you to your new home
subject to the following qualifications:
* The guarantee starts from the date you first
purchased your product.
* The guarantee is for the same period and to the same
extent for labour and parts as exist in the new country
of use for this brand or range of products.
* This guarantee relates to you and cannot be
transferred to another user.
* Your new home is within the European Community
(EC) or European Free Trade Area.
* The product is installed and used in accordance with
our instructions and is only used domestically, i.e. a
normal household
* The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest Customer
Care centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after
you and your appliances.
France
Senlis
+33 (0) 3 44 62 20 13
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone +39 (0) 800 117511
Sweden
Stockholm +46 (0) 20 78 77 50
UK
Slough
+44 (0)1753 219898
7
To contact your local Service Force Centre telephone 08705 929 929
CHANNEL ISLANDS
GUERNSEY
Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD
JERSEY
Jersey Electricity Company
Haut De L’orme
Rue De Haut De L’orme
Trinity
Jersey
Channel Islands JE3 5FG
ISLE OF LEWIS
54 Claremont Street
Aberdeen AB10 6RA
AUCHTERMUCHTY
33a Burnside
Auchtermuchty
Fife KY14 7AJ
BLANTYRE
DUMFRIES
DUNOON
EDINBURGH
GLASGOWUnit 4
Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ
93 Irish Street
Dumfries
DG1 2 PQ
7 Hill Street
Dunoon
Argyll
PA23 7AL
Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB
Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7WL
ISLE OF ARRAN
Arran Domestics
The Douglas Centre
Brodick
Isle of Arran KA27 8AJ
ISLE OF BARRA
J Zerfah
244 Bruernish
Isle of Barra
Western Islands HS9 5QY
ISLES OF BUTE
8
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH
GATESHEAD
Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH
GRIMSBY
15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS
2, 6 & 8 Woodmarket
Kelso
Borders
TD5 7AX
ORKNEY
7 King Street
Kirkwall
Orkney
KW15 1JF
HULL
Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY
PERTH
Scottish Hydro Electric
Central Warehouse
Inveralmond
Perth PH1 3AF
LEEDS
64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS
3-4 Carlton Place
Lerwick
Shetland
ZE1 0PW
NEWTON AYCLIFFE Unit 23
Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ
(OWN SALES)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
Bolts Shetland
26 North Road
Lerwick
Shetland ZE1 0PE
SHEFFIELD
Leask Electrical
Harisdale
Symbister, Whalsay
Shetland ZE2 9AA
BELFAST
Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD
Pennine House
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD
1 Kelvin Park
Dock Road
Birkenhead
CH41 1LT
CARLISLE
Unit 7
James Street Workshops
James Street
Carlisle
Cumbria
CA2 5AH
ISLE OF MAN
South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
NORTHERN IRELAND
Wellington Road
Bishopriggs
Glasgow G64 2SA
INVERNESS
NORTH EAST
KELSO
SCOTLAND
ABERDEEN
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
WALES
CARDIFF
Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS
BOLTON
Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR
CLYWD
Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG
PRESTON
Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL
DYFED
Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW
STOCKPORT
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
OSWESTRY
Plas Ffynnon Warehouse
Middleton Road
Oswestry
SY11 2PP
To contact your local Service Force Centre telephone 08705 929 929
LONDON & EAST ANGLIA
MIDLANDS
BIRMINGHAM
66 Birch Road East
Wyrley Trading Estate
Witton
Birmingham
B6 7DB
BOURNE
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH
68 St. Mary’s Street
Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER
HEREFORD
HIGHAM FERRERS
101 Rycroft Street
Gloucester
GL1 4NB
Units 3 & 4
Bank Buildings
Cattle market
Hereford
HE4 9HX
30 High Street
Higham Ferrers
Northants
NN10 8PL
ILKESTON
Unit 2
Furnace Road
Ilkeston DE7 5EP
LEICESTER
Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF
LINCOLN
Unit 8
Clifton Street
Stone Field Park
Lincoln
LN5 8LQ
NEWCASTLE
UNDER LYME
REDDITCH
TAMWORTH
WORCESTER
18-21 Croft Road
Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
BECKENHAM
11a Gardner Ind. Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
CHELMSFORD
Hanbury Road
Widford Ind. Estate
Chelmsford
Essex
CM12 3AE
COLINDALE
Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
ELTHAM
194 Court Road
Mottingham
Eltham
London SE9 4EW
ENFIELD
284 Alma Road
Enfield
London
EN3 7BB
GRAVESEND
Unit B4
Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL
IPSWICH
Unit 6C
Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD
LETCHWORTH
16-17 Woodside Ind. Park
Works Road
Letchworth
Herts
SG6 1LA
LONDON
2 - 4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD
Reform Road
Maidenhead
Berkshire
SL6 8BY
MOLESEY
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DQ
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
NEWBURY
Units 1 & 2
Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP
9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 4ER
NORWICH
2b Trafalgar Street
Norwich
NR1 3HN
SUNBURY
Unit 1a
The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB
SOUTH EAST
ASHFORD
Unit 2
Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB
FLEET
Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD
HAYWARDS
HEATH
21-25 Bridge Road
Haywards Heath
Sussex RH16 1UA
TONBRIDGE
Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA
SOUTH WEST
BARNSTAPLE
Main Road
Fremington
Barnstaple
North Devon EX31 2NT
BOURNEMOUTH
63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
BRIDGEWATER
6 Herswell Business Park
Salmon Parade
Bridgwater
Somerset TA6 5PY
BRISTOL
11 Eldon Way
Eldonwall Trading Estate
Bristol
BS4 3QQ
EMSWORTH
266 Main Road
Southbourne
Emsworth
PO10 8JL
ISLE OF WIGHT
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB
NEWTON ABBOT
Unit 2
Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD
REDRUTH
Unit 7D
Pool Ind. Estate
Druids Road
Redruth
Cornwall TR15 3RH
9
Instructions for the Installer
Engineers technical data
Overall dimensions
Heating elements Ratings
Normal front left Hotplate
Normal back left Hotplate
Rapid front right Hotplate
Rapid back right Hotplate
Total rating
Ø 180 mm
Ø 145 mm
Ø 145 mm
Ø 180 mm
1570 W
1040 W
1570 W
2090 W
6270 W
Width:
Depth:
580 mm.
500 mm.
Cut out dimensions
Width:
Depth:
550 mm.
470 mm.
INSTALLATION GUIDANCE INSTRUCTIONS
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITHOUT A COOKER HOOD ABOVE
Important safety requirements
This hob must be installed in accordance with the IEE
Wiring Regulations (Current Edition).
Detailed recommendations are contained in the following
British Standards Codes Of Practice: B.S. 6172/ B.S.
5440, Par. 2 and B.S. 6891 Current Editions.
700 mm
400 mm
Location
This hob has been registered as a "Class X" appliance
according to Fire Risk Regulations. Minimum distances
detailed below must be observed. The hob may be located
in a kitchen, a kitchen/diner or bed sitting room, but not
in a bathroom or shower room.
Before making the cut out in the worktop ensure that
there is a minimum distance of 55 mm. between the rear
edge of the hob and the wall. A minimum distance of 100
mm. must be left between the side edges of the hob and
any adjacent cabinets or walls.
The minimum distance combustible material can be fitted
above the hob in line with the edges of the hob is 400
mm. If it is fitted below 400 mm. a space of 50 mm. must
be allowed from the edges of the hob.
The minimum distance combustible material can be fitted
directly above the hob is 700 mm.
55
50 m
mm
m
100
400 mm
mm
50 m
m
FO 0812
INSTALLATION GUIDANCE INSTRUCTIONS
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
600 mm
650 mm
400 mm
55
50 m
mm
m
100
400 mm
mm
50 m
m
FO 0813
10
Installation
The hob must be installed according to the
instructions supplied.
The hob must be installed by qualified personnel
to the relevant British Standards.
Please, ensure that, once the hob is installed, it
is easily accessible for the engineer in the event
of a breakdown.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important
to remove any protective materials, which were
put on in the factory.
The manufacturer will not accept liability, should
the above instructions or any of the other safety
instructions incorporated in this book be ignored.
Rectangular cut-out size for hob
55 m
in.
Cut Out Size
The dimensions of the cut-out are given in the diagram.
30
This hob is designed to be connected to 230-240 V
(50Hz) electricity supply.
470
Supply connections
The hob has a terminal block which is marked as follows:
L
N
- Live terminal
- Neutral terminal
or E
- Earth terminal
The cable used to connect the hob to the electrical supply
must be 6mm, PVC twin and earth, and fused to 30amp.
It is necessary that you install a double pole swith
between the hob and the electricity supply (mains), with
a minimum gap of 3mm between the swith contacts and
of a type suitable for the required load in compliance
with the current rules.
The switch must not break the yellow and green earth
cable at any point.
550
FO 2098
Dimensions are given in mm.
1
ON/OFF SWITCH
FLEX
OUTLET
Building In
Building over a cupboard or
drawer
FO 0763
2
ON/OFF SWITCH
If the hob is to be installed above a cupboard or drawer it
will be necessary to fit a heat resistant board below the
base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and 2.
FLEX
OUTLET
FO 0764
11
Building over a kitchen unit
with door
20 min
Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the bottom
of the hob which can be hot when in operation. The
recommended solution is shown in diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.
30
3
a
60
b
FO 1013
Dimensions are given in mm.
Fitting the Hob into the worktop
Carry out the building in of the hob as follows:
• put the seals supplied with the hob, on the
edges of the cut out: place them exactly on
the front and rear edge and at 50 mm. from the
side edges, taking care that the seals meet
without overlapping;
• place the hob in the cut out, taking care that it
is centred;
• fix the hob with the relevant fixing clamps and
screws, as shown in the diagram. When the
screws have been tightened, the excess seal
can be removed.
F
The edge of the hob forms a double seal which prevents
the ingress of liquids.
12
a
FO 0199
a) Sealing gasket
Electrical connections
Any electrical work required to install this hob
should be carried out by a qualified electrician or
competent person, in accordance with the current
regulations.
THIS HOB MUST BE EARTHED.
The manufacturer declines any liability should these
safety measures not be observed.
This hob is designed to be connected to a 230-240V 50Hz
AC electrical supply.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the hob rating
plate. The rating plate is located on the bottom of the
hob. A copy is attached on the back cover of this book.
The hob is supplied without supply cord. A 3 core flexible
supply cord must be fitted, in accordance with the
specification given in the relevant tables.
F
1) Remove the mains terminal cover plate from
the underside of the hob, to expose the mains
terminal block.
2) Loosen the two cable clamp screws and lift
the top section of the clamp enough to allow
the cable to be passed through.
3) Connect the red (live) wire to the terminal which
is marked with the letter "L".
The hob should be connected to a double pole switch
with a minimum gap of 3 mm. between the switch
contacts and of a type suitable for the required load in
compliance with the current electric regulations. The
switch should be sited within 2m of the hob and be easily
accessible upon completion of the installation.
The switch must not break the yellow and green earth
cable at any point.
Ensure that the hob supply cord does not come
into contact with surfaces with temperatures
higher than 50 deg. C.
Supply Cable Specifications
For Uk use only
Connection
via
Min. size
Cable/flex
Cable / flex Fuse
type
• Cooker
Control
Circuit
6 mm2
PVC/PVC
twin and
earth
30 A
For Europe use only
Min. size Cable/flex
Cable / flex type
2.5 mm
H05 RR-F / H05 BB-F 20 A
H05 V2V2-F (T90)
2
4) Connect the black (neutral) wire to the terminal
which is marked with the letter "N".
Fuse
5) After fitting a green or yellow/green sleeve over
the bare copper wire (earth wire), connect the
exposed end to the terminal which is marked
with the earth symbol
or with the letter
"E"coloured green and yellow.
L
NOTE:
The earth wire should be about 2 cm. longer
than the live and neutral wires.
N
6) Secure the cable by means of the clamp
screws and refit the terminal block cover.
FO 0306
13
Wiring diagram
N
Ø 145
Ø 180
Ø 145
Ø 180
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
1
2
3
4
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
PLATE
L
14
15
Grafiche MDM - Forlì
CUSTOMER CARE
Electrolux
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel: 08705-950950
© Electrolux Household Appliances Limited 2000
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than
55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and
lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
03/01
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
