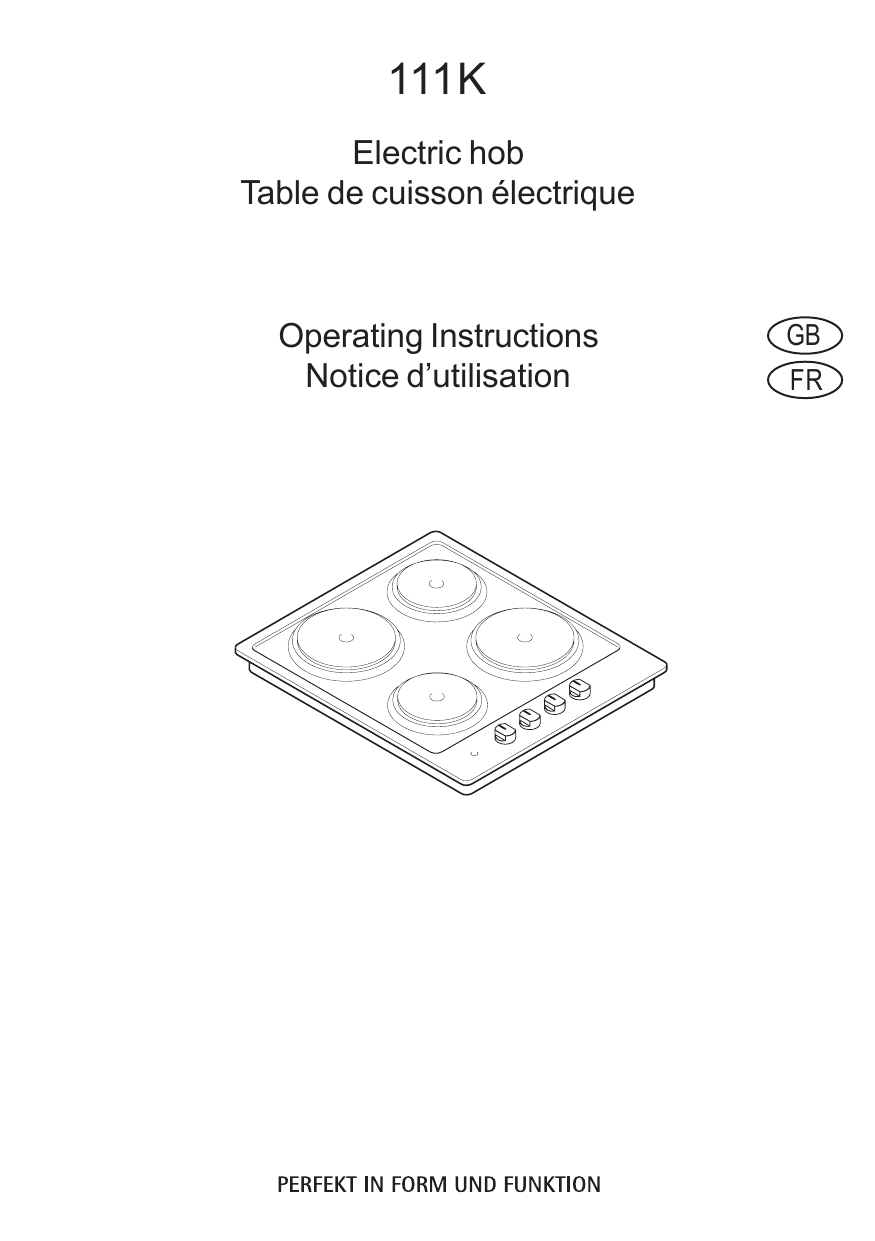

Aeg-Electrolux 111K-W User Manual

111K
Electric hob
Table de cuisson électrique
Operating Instructions
Notice d’utilisation
GB
FR
ENGLISH
Important Safety Information
You MUST read these warnings carefully before installing or using the hob. If you need
assistance, contact our Customer Care Department on 08705 350350
Installation
z
z
z
z
This hob must be installed by qualified personnel, according to the manufacturer’s
instructions and to the relevant British Standards.
Remove all packaging before using the hob.
Ensure that the electrical supply complies with the type stated on the rating plate.
Do not attempt to modify the hob in any way.
Child Safety
z
z
z
This hob is designed to be operated by adults. Do not allow children to play near or with
the hob.
The hob gets hot when it is in use. Children should be kept away until it has cooled.
Children can also injure themselves by pulling pans or pots off the hob.
During Use
z
z
z
z
z
z
z
z
2
This hob is intended for domestic cooking only. It is not designed for commercial or
industrial purposes.
Do not use this hob if it is in contact with water. Do not operate the hob with wet hands.
Ensure the control knobs are in the ‘OFF’ position when not in use.
When using other electrical appliances, ensure the cable does not come into contact
with the hot surfaces of the cooking appliance.
Unstable or misshapen pans should not be used on the hob as unstable pans can
cause an accident by tipping or spillage.
Never leave the hob unattended when cooking with oil and fats.
Never use plastic or aluminium foil dishes on the hob.
Perishable food, plastic items and areosols may be affected by heat and should not be
stored above or below the hob unit.
Service
z
This hob should only be repaired or serviced by an authorised Service Engineer and
only genuine approved spare parts should be used.
U Environmental Information
z
After installation, please dispose of the packaging with due regard to safety and the
environment.
When disposing of an old appliance, make it unusable, by cutting off the cable.
•
The symbol
z
on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent potential negative consequences
for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling
of this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product.
Guide to Use the instructions
The following symbols will be found in the text to guide you throughout the Instructions:
Safety Instructions
)
Step by step instructions for an operation
Hints and Tips
U
Environmental information
This appliance is manufactured according to the following EEC directives:
73/23 EEC - 90/683 EEC - 93/68 EEC 89/336 EEC - 90/396 EEC,
current edition.
Keep this instruction book for future reference and ensure it is passed on to any
new owner.
3
Contents
For the user
Important Safety Information
2
Description of the Hob
5
Operation
6
Hints and Tips
7
Maintenance and Cleaning
8
Something Not Working?
9
Service and Spare Parts
10
Customer Care
10
Guarantee Conditions
11
For the installer
4
Instructions for the Installer
12
Important safety requirements
12
Installation
13
Cut Out Size
13
Electrical connections
15
Wiring diagram
16
Description of the Hob
Back Left
Hotplate
Front Left
Hotplate
Back Right
Hotplate
Back Left Hotplate
Control Knob
Front Right
Hotplate
Back Right Hotplate
Control Knob
Operating Pilot Lamp
Front Right Hotplate
Control Knob
Front Left Hotplate
Control Knob
INSTALLATION
The hob must be installed according to the instructions supplied.
The hob must be installed by qualified personnel to the relevant British Standards.
Please, ensure that, once the hob is installed, it is easily accessible for the engineer in the
event of a breakdown.
WHEN THE HOB IS FIRST INSTALLED
Once the hob has been installed, it is important to remove any protective materials, which
were put on in the factory.
5
Operation
Electric Hotplates
To switch on a hotplate, turn the relevant control knob anticlockwise to the required heat
setting.
The control knob is numbered 1 - 3
0 - OFF
1 - Minimum
3 - Maximum.
The hob has four rapid hotplates. The rapid hotplates are indicated by a red dot, and will
heat up more quickly than a normal plate. As the red dots are painted on the plate, they may
deteriorate during use and even disappear completely after a period of time. This will not
affect the performance of the hob.
It is important to note that the plate may smoke and produce a slightly unpleasant odour
when used for the first time. This is quite normal and will disappear after a short while.
Suggestions for the correct setting of the plates are given in the following table.
6
OFF
0
Very Gentle
•
To keep food warm - To melt butter and
chocolate
Gentle
1
To prepare cream-sauces, stews and milk
puddings or to fry eggs
Slow
•
Dried vegetables, frozen food, fruit, boiling
water or milk
Medium
2
Boiled potatoes, fresh vegetables, pâtés, soups,
broths, pancakes or fish
High
•
Larger stews, meat roll, fish,
omelettes, steaks
Fast
3
Steaks, escalopes and frying.
Hints and Tips
Saucepans for use on solid plates should have several
characteristics:
z
z
z
They should be fairly heavy duty
They should fit the heat area exactly, or
be slightly larger for efficient use, NEVER
smaller.
They should have a flat base to ensure
good contact with the plate.
This is particularly important when using
pans for high temperature frying or
pressure cooking.
As soon as liquid starts boiling, turn down the
plate control knob so that it will barely keep the
liquid simmering.
You can switch off the plate a short while before
you finish cooking, and the final stage will be
completed on the accumulated heat. Similarly,
stews etc. cooked in well covered saucepans
cook at lower temperature which is more
economical.
Ensure pans are large enough to avoid liquids
being split onto the plates.
Never leave the plates on without a pan on
them or with an empty pan on them.
Take care never to lean or reach over a hot electric plate. Always point pan handles inward
or over the work surface next to the hob to avoid accidentally knocking over a pan as you
pass by.
Take care when frying food in hot oil or fat, as the overheated splashes could easily ignite.
If the control knobs become difficult to turn, please contact your local Service Centre.
7
Maintenance and Cleaning
Before any maintenance or cleaning can be carried out, you must DISCONNECT the hob
from the electricity supply.
The hob is best cleaned whilst it is still warm, as spillage can be removed more easily than
if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well wrung out in warm water to which a
little washing up liquid has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
Should the hob top become heavily soiled, it is recommended that a cleaning product such
as Hob Brite or Bar Keepers Friend is used.
The Hotplates
Spills onto the actual plate should be removed using warm water and a soft brush, nylon or
plastic scourer. To keep the plates looking as new, hotplate conditioner can be purchased
from most hardware stores, e.g. "4 Hob" by HomeCare Products (follow the manufacturer's
instruction for use).
Alternatively, wipe the plates with a drop of olive oil on a kitchen towel to avoid rust. It is
important to note that the plate will smoke a little and produce a slightly unpleasant odour
when next used.
Failure to clean and condition hotplates may lead to rust and corrosion forming on the
surface.
Stainless steel parts: the stainless steel spill rings may become straw coloured with use.
Use a proprietary stainless steel cleaner to remove this straw discolouration. This also
applies to the area around the hotplates on stainless steel hobs.
8
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting your local
Service Force Centre.
SYMPTOM
„
The plate does not heat up.
SOLUTION
‹
‹
‹
‹
„
The plate is not giving satisfactory results
‹
‹
‹
‹
Check that the unit is plugged in and the
electrical supply is switched on
Check that the RCCB has not tripped (if
fitted)
Check the mains fuse has not blown
Check the correct control knob has been
turned.
Check the plate is clean and dry
Check the cooking pan is the correct size
for the plate.
Check the cooking pan has a flat bottom
Check the setting is correct for the type of
cooking.
If after all these checks, your hob still does not operate correctly, contact your local Service Force
Centre.
Please note that it will be necessary to provide proof of purchase for any in-guarantee
service calls.
In-guarantee customers should ensure that the above checks have been made as the
engineer will make a charge if the fault is not a mechanical or electrical breakdown.
9
Service and Spare Parts
If you require spare parts or an engineer contact your local Service Force Centre by telephoning:
0870 5 929 929
Your call will be routed to your local Service Force Centre.
When you contact the Service Centre, they will need the following information:
1. Your name, address and post code.
2. Your telephone number
3. Clear and concise details of the fault
4. The model and the serial number (see rating label on the back of this instruction booklet)
5. Date of purchase
Customer Care
For general enquires concerning your AEG-Electrolux appliance or for further information on AEGElectrolux products, please contact our Customer Care Department at the address below or visit our
website at www.aeghome.co.uk
Customer Care Department
AEG-Electrolux Domestic Appliances
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel : 08705 350350
10
Guarantee Conditions
AEG-Electrolux offers the following guarantee to the first purchaser of this appliance.
1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first
retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
2. The guarantee covers all parts or components which fail due to faulty workmanship or faulty
materials. The guarantee does not cover appliances where defects or poor performance are
due to misuse, accidental damage, neglect, faulty installation, unauthorised modification or
attempted repair, commercial use or failure to observe requirements and recommendations set
out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware or plastic.
3. Should guarantee repairs be necessary the purchaser must inform the nearest AEG-Electrolux
Service Force Centre (manufacturer’s service or authorised agent). AEG-Electrolux reserves
the right to stipulate the place of the repair (i.e. the customer’s home, place of installation or AEGElectrolux workshop).
4. The guarantee or free replacement includes both labour and material.
5. Repairs carried out under guarantee do not extend the guarantee period for the appliance.
Parts removed during guarantee repairs become property of AEG-Electrolux.
6. The purchaser’s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your
new home subject to the following qualifications:
* The guarantee starts from the date you first purchased your product.
* The guarantee is for the same period and to the same extent for labour and parts as exist in the
new country of use for this brand or range of products.
* This guarantee relates to you and cannot be transferred to another user.
* Your new home is within the European Community (EC) or European Free Trade Area.
* The product is installed and used in accordance with our instructions and is only used domestically,
i.e. a normal household
* The electrical supply complies with the specification given in the rating label.
* The product is installed taking into account regulations in your new country.
Before you move, please contact your nearest Customer Care centre, listed below, to give them
details of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.
France
Senlis
+33 (0)3 44 62 29 29
Germany
Nürnberg
+49 (0) 800 234 7378
Italy
Pordenone
+39 (0) 800 117511
Sweden
Stockholm
+46 (0) 8 672 5360
UK
Slough
+44 (0)1753 219899
11
Instructions for the Installer
Engineers technical data
OVERALL DIMENSIONS
Width:
Depth:
Height:
580 mm.
500 mm.
88 mm.
CUT OUT DIMENSIONS
Width:
Depth:
550 mm.
470 mm.
SUPPLY CONNECTIONS
Electric:
230 V 50 Hz supply
HEATING ELEMENTS RATING
Rapid Front Left Hotplate
Rapid Back Left Hotplate
Rapid Back Right Hotplate
Rapid Front Right Hotplate
Total Rating
Ø 180 mm.
Ø 145 mm.
Ø 180 mm.
Ø 145 mm.
2000 W
1500 W
2000 W
1500 W
7000 W
Important safety requirements
This hob must be installed in accordance with the IEE Wiring Regulations (Current Edition).
Detailed recommendations are contained in the following British Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Par. 2 and B.S. 6891 Current Editions.
Location
This hob has been registered as a "Class Y" appliance according to Fire Risk Regulations.
Minimum distances detailed below must be observed.
The hob may be located in a kitchen, a kitchen/diner or bed sitting room, but not in a bathroom
or shower room.
Before making the cut out in the worktop ensure that there is a minimum distance of 55 mm.
between the rear edge of the hob and the wall. A minimum distance of 100 mm. must be left
between the side edges of the hob and any adjacent cabinets or walls.
The minimum distance combustible material can be fitted above the hob in line with the
edges of the hob is 400 mm. If it is fitted below 400 mm. a space of 50 mm. must be allowed
from the edges of the hob. The minimum distance combustible material can be fitted directly
above the hob is 700 mm.
12
CLEARANCES REQUIRED WHEN FITTING THE HOB
WITHOUT A COOKER HOOD ABOVE
CLEARANCES REQUIRED WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
600 mm
700 mm
700650
mmmm
400 mm
55
50 m
mm
400 mm
m
100
400 mm
55
50 m
mm
m
mm
50 m
m
100
400 mm
mm
50 m
m
FO 0813
FO 0812
Installation
IMPORTANT
This hob must be installed by qualified personnel to the relevant British Standards.
The manufacturer will not accept liability, should the above instructions or any of the other
safety instructions incorporated in this book be ignored.
Cut Out Size
The dimensions of the cut-out are given in
the diagram.
0
58
50
0
47
0
55
0
FO 2225
13
Building over a cupboard or drawer
If the hob is to be installed above a cupboard or drawer it will be necessary to fit a heat
resistant board below the base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical connection to the hob as shown in diagrams
1 and 2.
1
ON/OFF SWITCH
2
ON/OFF SWITCH
FLEX
OUTLET
FLEX
OUTLET
FO 0764
FO 0763
Building over a kitchen unit with door
3
b
FO 1013
20 min
a
60
The panel fitted under the hob ("a") should
be easily removable to allow easy access if
technical assistance is needed. The space
behind the kitchen unit ("b") can be used for
connections.
14
30
Proper arrangements must be taken in
designing the furniture unit, in order to avoid
any contact with the bottom of the hob which
can be heated when it is operated. The
recommended solution is shown in diagram
3.
Fitting the hob to the worktop
Before fitting the hob into the cut out, a sealing gasket
supplied with the hob must be fitted to the edge of the cut
out. It is essential that no gaps are left in this seal in order
to prevent spillage near the hob seeping into the cabinet
below.
1) Place the sealing gasket all around the edge
of the cut out.
2) Place the hob into the cut out and secure it by
means of the relevant fixing clamps and
screws, as shown in the diagram.
3) Remove the excess seal
The edge of the hob forms a double seal which prevents the ingress of liquids.
)
Seal
a
FO 0199
Electrical connections
Any electrical work required to install this hob should be carried out by a qualified electrician
or competent person, in accordance with the current regulations.
THIS HOB MUST BE EARTHED.
The manufacturer declines any liability should these safety measures not be observed.
This hob is designed to be connected to a 230 V 50 Hz AC electrical supply.
Before switching on, make sure the electricity supply voltage is the same as that indicated on the hob
rating plate. The rating plate is located on the bottom of the hob. A copy is attached on the back cover
of this book.
The hob is supplied without supply cord. A 3 core flexible supply cord must be fitted, in accordance
with the specification given in the relevant tables.
1) Remove the mains terminal cover plate from the underside of the hob, to expose the mains
terminal block.
2) Loosen the two cable clamp screws and lift the top section of the clamp enough to allow the cable
to be passed through.
3) Connect the red (live) wire to the terminal which is
marked with the number 1.
4) Connect the black (neutral) wire to the terminal which
is marked with the number 4.
5) After fitting a green or yellow/green sleeve over the
bare copper wire (earth wire), connect the exposed
end to the terminal which is marked with the earth
symbol
or with the number 5.
NOTE: The earth wire should be about 2 cm. longer
than the live and neutral wires.
6) Secure the cable by means of the clamp screws and
FO 0488
refit the terminal block cover.
15
Permanent Connection
In the case of a permanent connection, it is necessary that you install a double pole switch
between the hob and the electricity supply (mains), with a minimum gap of 3 mm. between
the switch contacts and of a type suitable for the required load in compliance with the current
electric regulations.
The switch must not break the yellow and green earth cable at any point.
Ensure that the hob supply cord does not come into contact with surfaces with temperatures
higher than 50 deg. C.
Supply Cable Specifications
For Uk use only
Connection
via
Min. size
Cable/flex
Cable / flex
type
Fuse
• Cooker
Control
Circuit
6 mm2
PVC/PVC
twin and
earth
30 A
For Europe use only
Min. size Cable/flex
Cable / flex type
Fuse
2.5 mm2
H05 RR-F
30 A
Wiring diagram
1
3
4
L
L
N
Ø 180
Ø 180 R
Ø 145 R
Ø 145
4 3 2 1
4 3 2 1
4 3 2 1
4 3 2 1
1
2
3
4
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
P2 4
3
P1
1
2
P3
5
PLATE
16

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
