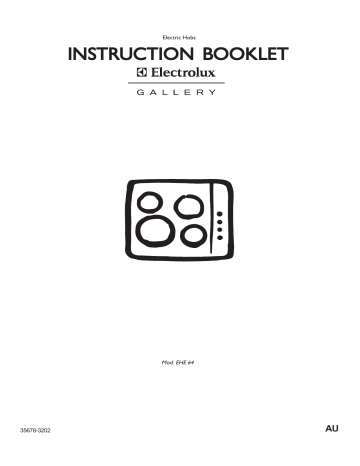

Electric Hobs
INSTR
UCTION BOOKLET
INSTRUCTION
Mod. EHE 64
35678-3202
AU
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future reference.
Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order
that the new owner can get to know the functions of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
Installation
z
z
z
z
This hob must be installed by qualified personnel,
according to the manufacturer’s instructions and to
the relevant Australian Standards.
Service
z
Remove all packaging before using the hob.
Ensure that the electrical supply complies with the
type stated on the rating plate, located on the bottom
of the hob.
Do not attempt to modify the hob in any way.
Environmental Information
z
z
Child Safety
z
z
The appliance is not intended for use by young
children or infirm persons without supervision.
This hob is designed to be operated by adults. Do
not allow children to play near or with the hob.
z
The hob gets hot when it is in use.
z
Children should be kept away until it has cooled.
z
Children can also injure themselves by pulling pans
or pots off the hob.
During Use
z
z
z
z
z
z
z
z
2
This hob should only be repaired or serviced by an
authorised Service Engineer and only genuine
approved spare parts should be used.
This hob is intended for domestic cooking only. It is
not designed for commercial or industrial purposes.
Do not use this hob if it is in contact with water.
Do not operate the hob with wet hands.
z
After installation, please dispose of the packaging
with due regard to safety and the environment.
When disposing of an old appliance, make it
unusable, by cutting off the cable.
The symbol
on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.
Guide to Use the instructions
The following symbols will be found in the text to guide
you throughout the Instructions:
Ensure the control knobs are in the ‘OFF’ position
when not in use.
When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the hob.
Unstable or misshapen pans should not be used on
the hob as unstable pans can cause an accident by
tipping or spillage.
Never leave the hob unattended when cooking with
oil and fats.
Safety Instructions
)
Step by step instructions for an operation
Hints and Tips
Environmental Information
Never use plastic or aluminium foil dishes on the
hob.
Perishable food, plastic items and areosols may be
affected by heat and should not be stored above or
below the hob unit.
Keep this instruction book for future reference
and ensure it is passed on to any new owner.
Contents
For the User
For the Installer
Important Safety Information
2
Instructions for the Installer
6
Description of the Hob
3
Installation
7
Operation
4
Building In
7
Maintenance and Cleaning
5
Electrical connections
9
Something Not Working?
5
Wiring diagram
9
Description of the Hob
3
2
1
5
4
6
7
1.
2.
3.
4.
5.
6.
7.
Hob Top
Rapid Hotplate - 2090 W/180 mm dia.
Normal Hotplate - 1045 W/145 mm dia.
Rapid Hotplate - 1570 W/145 mm dia.
Normal Hotplate - 1570 W/180 mm dia.
Control knob for the hotplates
Electric Hotplates Control Light
3
Operation
Electric hotplates
To switch on a hotplate, turn the relevant control knob
anticlockwise to the required heat setting.
The control knob is numbered 1 - 6
0 - OFF
1 - Minimum
6 - Maximum.
The hob has four hotplates:
Normal Hotplates
We recommend the plates are switched to maximum
(6) for a short while to boost the plate, and then adjusted
to the required setting.
Rapid Hotplates
The rapid hotplates are indicated by a red dot, and will
heat up more quickly than a normal plate. As the red
dots are painted on the plate, they may deteriorate
during use and even disappear completely after a
period of time. This will not affect the performance of
the hob.
It is important to note that the plate may smoke
a little and produce a slightly unpleasant odour
when used for the first time. This is quite normal
and will disappear after a few minutes.
Electric Hotplates Control Light
The Hotplates Control Light will come on each time a
cooking zone is switched on.
Suggestions for the correct setting of the plates are given
in the following table.
4
OFF
0
Very Gentle
1
To keep food warm
To melt butter and chocolate
Gentle
2
To prepare cream-sauces,
stews and milk puddings
or to fry eggs
Slow
3
Dried vegetables, frozen
food, fruit, boiling water
or milk
Medium
4
Boiled potatoes, fresh
vegetables, pâtés, soups,
broths, pancakes or fish
High
5
Larger stews, meat roll, fish,
omelettes, steaks
Fast
6
Steaks, escalopes and frying.
Hints and Tips
Saucepans for use on solid plates should have several
characteristics:
They should be fairly heavy duty
z
They should fit the heat area exactly, or be slightly
larger for efficient use, NEVER smaller.
z
They should have a flat base to ensure good contact
with the plate.
This is particularly important when using pans for high
temperature frying or pressure cooking.
As soon as liquid starts boiling, turn down the plate control
knob so that it will barely keep the liquid simmering.
You can switch off the plate a short while before you
finish cooking, and the final stage will be completed on
the accumulated heat. Similarly, stews etc. cooked in
well covered saucepans cook at lower temperature which
is more economical.
Ensure pans are large enough to avoid liquids
being spilt onto the plates.
Never leave the plates on without a pan on them
or with an empty pan on them.
Take care never to lean or reach over a hot electric
plate. Always point pan handles inward or over the
work surface next to the hob to avoid accidentally
knocking over a pan as you pass by.
Take care when frying food in hot oil or fat, as the
overheated splashes could easily ignite.
If the control knobs become difficult to turn, please
contact your local Service Centre.
z
Maintenance and Cleaning
Before any maintenance or cleaning can be carried
out, you must DISCONNECT the hob from the
electricity supply.
The hob is best cleaned whilst it is still warm, as spillage
can be removed more easily than if it is left to cool.
The Hob Top
Regularly wipe over the hob top using a soft cloth well
wrung out in warm water to which a little washing up liquid
has been added. Avoid the use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
The control knobs may be removed by carefully pulling
them upward for easier cleaning.
The Hotplates
Spills onto the actual plate should be removed using
warm water and a soft brush, nylon or plastic scourer.
To keep the plates looking as new, hotplate conditioner
can be purchased from most hardware stores (follow
the manufacturer's instruction for use).
Alternatively, wipe the plates with a drop of olive oil on
a kitchen towel to avoid rust. It is important to note that
the plate will smoke a little and produce a slightly
unpleasant odour when next used.
Failure to clean and condition hotplates may lead
to rust and corrosion forming on the surface.
Something Not Working?
If the hob is not working correctly, please carry out the following checks before contacting your local Service Force
Centre.
SYMPTOM
„ The plate does not heat up.
SOLUTION
‹ Check that the unit is plugged in and the electrical
supply is switched on
„ The plate is not giving satisfactory results
‹
‹
‹
‹
‹
‹
‹
Check that the RCCB has not tripped (if fitted)
Check the mains fuse has not blown
Check the correct control knob has been turned.
Check the plate is clean and dry
Check the cooking pan is the correct size for the plate.
Check the cooking pan has a flat bottom
Check the setting is correct for the type of cooking.
5
Instructions for the Installer
Engineers technical data
Important safety requirements
Overall dimensions
This hob must be installed by qualified personnel,
according to the manufacturer’s instructions and to the
relevant Australian Standards.
Width:
Depth:
580 mm.
500 mm.
Location
Cut out dimensions
Width:
Depth:
550 mm.
470 mm.
Supply connections
Electric:
230-240V 50Hz AC electrical supply
Heating elements Ratings
Normal back left Hotplate Ø 145 mm
1045 W
Normal back right Hotplate Ø 180 mm
1570 W
Rapid front right Hotplate Ø 145 mm
1570 W
Rapid front left Hotplate Ø 180 mm
2090 W
Total rating
This hob has been registered as a "Class X" appliance
according to Fire Risk Regulations. Minimum distances
detailed below must be observed.
The hob may be located in a kitchen, a kitchen/diner or
bed sitting room, but not in a bathroom or shower room.
Before making the cut out in the worktop ensure that
there is a minimum distance of 55 mm. between the
rear edge of the hob and the wall. A minimum distance
of 100 mm. must be left between the side edges of the
hob and any adjacent cabinets or walls.
The minimum distance combustible material can be
fitted above the hob in line with the edges of the hob is
400 mm. If it is fitted below 400 mm. a space of 50
mm. must be allowed from the edges of the hob.
The minimum distance combustible material can be
fitted directly above the hob is 700 mm.
6.7 kW
INSTALLATION GUIDANCE INSTRUCTIONS
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITHOUT A COOKER HOOD ABOVE
INSTALLATION GUIDANCE INSTRUCTIONS
CLEARANCES REQUIRED
WHEN FITTING THE HOB
WITH A COOKER HOOD ABOVE
600 mm
700 mm
700650
mmmm
400 mm
50 m
55
400 mm
mm
m
100
400 mm
mm
mm
m
100
50 m
55
50 m
400 mm
mm
m
50 m
m
FO 0812
6
FO 0813
Installation
Cut Out Size
The dimensions of the cut-out are given in the diagram.
55 m
in.
Rectangular cut-out size for hob
117
20
R 60
30
470
The hob must be installed according to the
instructions supplied.
The hob must be installed by qualified personnel
to the relevant Australian Standards.
The manufacturer will not accept liability, should
the above instructions or any of the other safety
instructions incorporated in this book be ignored.
Please, ensure that, once the hob is installed, it
is easily accessible for the engineer in the event
of a breakdown.
CAUTION: The surface temperature exceeds
95 deg C. To avoid a hazard, underbench
access must be restricted.
When the hob is first installed
550
Once the hob has been installed, it is important
to remove any protective materials, which were
put on in the factory.
Building In
1
ON/OFF SWITCH
Building over a cupboard or
drawer
If the hob is to be installed above a cupboard or drawer it
will be necessary to fit a heat resistant board below the
base of the hob on the underside of the work surface.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and 2.
FLEX
OUTLET
FO 0763
2
ON/OFF SWITCH
FLEX
OUTLET
FO 0764
7
30
3
Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the bottom
of the hob which can be hot when in operation. The
recommended solution is shown in diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.
a
60
20 min
Building over a kitchen unit with
door
b
FO 1013
Dimensions are given in mm.
Fitting the hob to the worktop
Before fitting the hob into the cut out, a sealing gasket
supplied with the hob must be fitted to the edge of the
cut out. It is essential that no gaps are left in this seal in
order to prevent spillage near the hob seeping into the
cabinet below.
)
1) Place the sealing gasket all around the edge
of the cut out.
a
Seal
2) Place the hob into the cut out and secure it by
means of the relevant fixing clamps and screws,
as shown in the diagram.
3) Remove the excess seal
The edge of the hob forms a double seal which prevents
the ingress of liquids.
8
FO 0199
Electrical connections
Any electrical work required to install this hob
should be carried out by a qualified electrician or
competent person, in accordance with the current
regulations.
THIS HOB MUST BE EARTHED
NOTE:
The earth wire should be about 2 cm. longer than
the live and neutral wires.
6) Secure the cable by means of the clamp screws
and refit the terminal block cover.
The manufacturer declines any liability should these
safety measures not be observed.
The hob should be conncted to a double pole switch
with a minimum gap of 3 mm. between the switch
contacts and of a type suitable for the required load in
compliance with the current electric regulations. The
switch should be sited within 2m of the hob and be
easily accessible upon completion of the installation.
This hob is designed to be connected to a 230-240V
50Hz AC electrical supply.
The cable used (of the types: H05 V2V2-F T90, H05 BBF T90) must have a min. cross section of 1.5 mm².
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the hob rating
plate. The rating plate is located on the bottom of the
hob. A copy is attached on the back cover of this book.
The hob is supplied without supply cord. A 3 core
flexible supply cord must be fitted.
1) Remove the mains terminal cover plate from
the underside of the hob, to expose the mains
terminal block.
2) Loosen the two cable clamp screws and lift
the top section of the clamp enough to allow
the cable to be passed through.
3) Connect the red (live) wire to the terminal
which is marked with the number 1.
4) Connect the black (neutral) wire to the
terminal which is marked with the number 4.
5) After fitting a green or yellow/green sleeve
over the bare copper wire (earth wire),
connect the exposed end to the terminal which
is marked with the earth symbol
or with
the number 5.
The switch must not break the yellow and green earth
cable at any point.
Ensure that the hob supply cord does not
come into contact with surfaces with
temperatures higher than 50 deg. C.
)
FO 0488
Wiring diagram
9
ELECTROLUX WARRANTY AUSTRALIA
Nothing in this warranty, limits any rights you may have under the Trade Practices Act or any other Commonwealth
or State legislation. Such rights cannot be changed by the conditions in this warranty.
Subject to the conditions below, this appliance is warranted by Electrolux Home Products Pty. Ltd. A.B.N. 51 004
762 341, (the “Company”), to be free from defects in materials and workmanship for a period of 24 months
following the date of purchase (the “Warranty Period”).
Conditions of the warranty:
1 During the Warranty Period the Company, or its service agent, will only pay the cost of repairing or replacing all
Company parts on your appliance which the Company finds to be defective.
2 The Company will decide if there are any defects in material and/or workmanship.
3 Light globes, batteries and filters are replaceable parts and are not covered under this warranty.
4 This warranty applies only for mainland Australia and Tasmania.
5 The appliance must be installed and operated in accordance with the Company’s instructions.
6 This warranty does not apply to normal wear and tear, or any service, which is needed after an accident, alteration,
negligence, misuse, fire or flood.
7 This warranty does not apply to damage caused if your appliance has been dismantled, repaired or serviced by
any person other than someone authorised by the Company.
8 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the
cost of transport of the appliance for service nor the service agent’s travelling costs to and from your home.
9 If you are required to transport the appliance to the Company or its service agent, you must ensure it is securely
packed and insured. The Company does not accept any responsibility for loss or damage of the appliance prior
to it being received by the Company or its service agent.
10 This warranty does not cover loss, damage or expense to this appliance caused directly or indirectly by power
surges, electrical storm damage or incorrect power current.
11 The Company (and any company related to the Company) will not be liable for any special, incidental or
consequential damages or for loss, damage or expense or for personal injury or loss or destruction of property
arising directly or indirectly from the use or inability to use this appliance or any of its parts.
12 This warranty applies only to the original buyer.
13 This warranty is the only express warranty given by the Company.
14 If you are the original buyer, please keep your proof of purchase, which will be required, if you request service
under this warranty.
15 The Warranty Period is only applicable when your appliance is used at home by you and your family as consumers.
16 Use of this appliance for commercial purposes is covered by this warranty for a period of 3 months from the date
of purchase.
FOR SERVICE IN AUSTRALIA
PLEASE CALL
13 13 49
10
FOR SPARE PARTS IN AUSTRALIA
PLEASE CALL
13 13 50
ELECTROLUX APPLIANCE WARRANTY – NEW ZEALAND
This appliance is warranted by Electrolux Home Products (NZ) Ltd (“the Company”) from the date of purchase. The
following terms and conditions apply:
1 The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance
which the Company or its Authorised Service Centre find defective for a period of 24 months following the date
of purchase (the “Warranty Period”).
2 During the Warranty Period the Company or its Authorised Service Centre, will pay the cost of repairing or
replacing all parts, which they find are defective.
3 Light globes, batteries and filters are replaceable parts and are not covered under this warranty.
4 The appliance must be installed and operated in accordance with the Company’s instructions.
5 This Warranty does not apply to normal wear and tear, or any service, which is needed after an accident,
negligence, alteration or misuse.
6 This Warranty also does not apply to damage caused if your appliance has been dismantled, repaired or serviced
by any person other than someone authorised by the Company.
7 If you live outside the service area of the Company or its Authorised Service Centre, this warranty does not cover
the cost of transport of the appliance for service nor the Authorised Service Centre’s travelling costs to and from
your home.
8 If you are required to transport the appliance to the Company or its Authorised Service Centre, it must be
securely packed and insured. The Company does not accept any responsibility for loss or damage prior to it
being received by the Company or its Authorised Service Centre.
9 This warranty is the only express warranty given by the Company.
10 This Warranty does not cover loss, damage or expense to this appliance caused directly or indirectly by power
surges, electrical storm damage or incorrect power current.
11 The Company (and any company related to the Company) will not be liable for any special incidental or
consequential damages or for loss, damage or expense directly or indirectly arising from the use or inability to
use this appliance, or for personal injury or loss or destruction of other property.
12 Nothing in this warranty is intended to limit the rights you may have under the Consumer Guarantees Act 1993,
except to the extent permitted by that Act, and all provisions of this warranty shall be read as modified to the
extent necessary to give effect to that intention.
13 The Consumer Guarantees Act 1993 does not apply if your appliance is acquired for the purposes of a “business”
(as defined in that Act).
14 This warranty is limited to 90 days from date of purchase if the appliance is used for commercial use.
IMPORTANT NOTICE
Before calling a service technician please carefully check the warranty terms and conditions, the operating instructions
and service booklet if applicable. If the product fails for any of the customer responsibility reasons detailed therein,
a service fee will be charged. Please present proof of purchase to any Authorised Service Centre should warranty
service be required.
SERVICE CENTRES
PLEASE PHONE
0800 10 66 10
For your nearest Authorised
Service Centre please look in
The Yellow Pages under
Home Appliance Servicing
OR
Call 0800 10 66 10
11
Grafiche MDM - Forlì
The Electrolux Group. The world’s No.1 choice.
The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More
than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain
saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the
world.
03/06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
