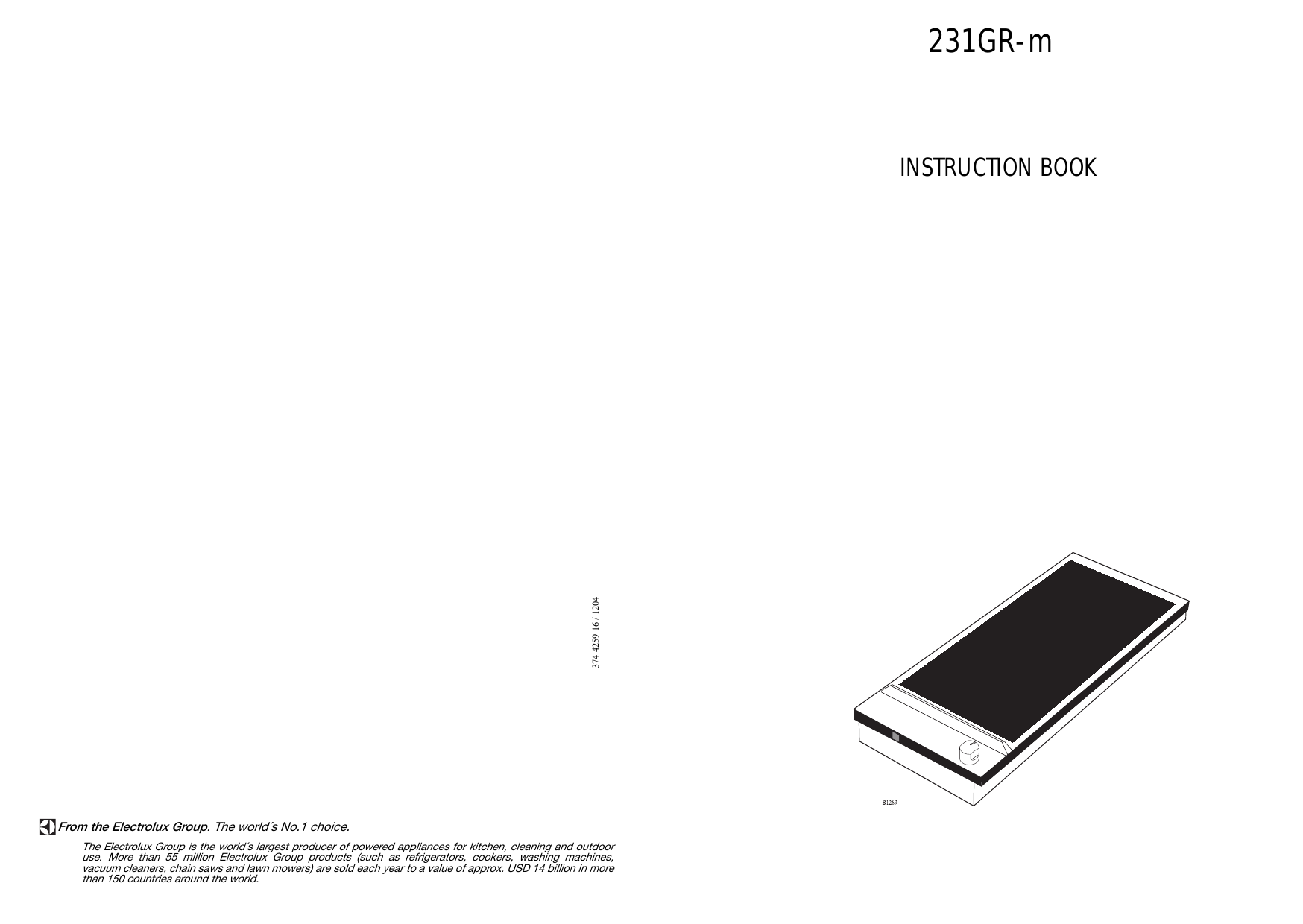

Aeg-Electrolux 231GR-M User Manual

231GR-m
374 4259 16 / 1204
INSTRUCTION BOOK
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
16
1
Congratulations from AEG
Dear Customer,
Congratulations with your new Hob.
It is important that you become familiar with the functions and features of
the Hob. You should therefore read these operating instructions as they will
help you get the most out of your new Hob.
Pay extra attention to sections marked
. These are warning texts to help
you avoid accidents.
on the product or on its packaging indicates that this
The symbol
product may not be treated as household waste. Instead it shall be handed
over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for the environment and
human health, which could otherwise be caused by inappropriate waste
handling of this product. For more detailed information about recycling of
this product, please contact your local city office, your household waste
disposal service or the shop where you purchased the product.
Keep the operating instructions. They will come in handy if there is
something you are not sure about, and should accompany the Hob if it is
transferred to a new owner.
The structure of the operating instructions enables you to use them as a
reference manual. The first part of the operating instructions contains a
general description of your new product. Then follows a short introduction
of the things to do before you use the Hob for the first time. The section
“How to use” describes how the Hob is used in everyday life. Use this
section until you are familiar with your new Hob. The section “Cleaning
and Maintenance” provides information on both daily and more thorough
cleaning of the individual components of the Hob. Should problems arise
when you use the Hob, you can look in the section “Before calling service”,
where there are instructions on how to remedy some practical and technical
problems yourself.
Enjoy!
Regards,
2
15
Service
Table of contents
Before calling service - Technical advice
Contents
Problems
Redmedy
For the user
Grill not working?
Check earth leak circuit breaker and
fuses.
Fuses constantly blowing?
Too many electric bulbs may be in use
at the same time.
Page no
Congratulations from AEG ......................................................................... 2
Safety information ........................................................................................ 4
Description of the product ......................................................................... 5
Operating instructions ................................................................................ 6
Operating grill ....................................................................................... 6
Hints for using the glass ceramic grill ................................................... 7
Cleaning and maintenance of ..................................................................... 8
Panel .................................................................................................... 8
Stainless steel surfaces ......................................................................... 9
The ceramic glass grill .......................................................................... 9
Service
.................................................................................................. 14
Before calling service – technical advice ........................................... 14
For the installer
Mounting .................................................................................................. 10
Installation .................................................................................................. 12
Technical specifications ............................................................................ 13
Unpacking .................................................................................................. 13
How to read the operating instructions:
1... 2...Step by step
Hint and tips
Safety information
14
Environmental information
3
Safety information
Never leave the hob unattended while
deep fat frying, or heating fats and oils.
These warnings are provided in the
interests of your safety. Ensure you
fully understand them before installing
or using the appliance. Your safety is of
paramount importance. If you are
unsure about the meaning of these
warnings contact the Customer Care
Department for assistance.
The appliance is not intended for use
by young children or infirm persons
without supervision.
Child Safety
Young children should be supervised
to ensure that they do not play
with the appliance
Installing
Do not install the hob if the ceramic
glass is damaged or cracked.
Cell Voltage 230 V
Electrical connection
230V - 50Hz
Total wattage 1400W
This unit is labelled to indicate
conformity with the lowvoltage directive
(73/23/EEC) and the EMC directive
(89/336/EEC).
The hob gets hot when it is in use.
Children should be kept away until the
hob has cooled.
This hob must be installed according to
the instructions supplied. Any
installation work must be undertaken
by a qualified competent person.
Maintenance and Cleaning
Only clean this hob in accordance
with the instructions given in this
book.
Do not alter the specifications or
attempt to modify the appliance in any
way.
Unpacking
Service
During Use
Repairs carried out by inexperienced
persons may cause injury or serious
malfunction of the appliance. Repairs
must only be carried out by a
qualified/competent person. Contact
your local AEG Service Centre.
The hob is intended for domestic
cooking only. It is not designed for
commercial/industrial purposes.
Ensure that all the control knobs are in
the OFF position when not in use.
Disposal
Do not use the hob if it is damaged in
any way, contact your local AEG
Service Centre.
Make the hob unusable by cutting off
the cable.
hobs the nameplate.
Write the serial number on the cover
of these operating instructions to make
it easy to find in case of service.
Check that the hobs has no faults and
is undamaged on delivery.
Transport damage
Any damage from transport which
you have not carried out yourself must
be reported to the retailer within one
week of receipt.
You will find the serial number of the
Dispose of any packaging material and
old appliances at an authorised
disposal site.
Never use plastic or aluminium dishes
on the hob.
4
13
Installation
Description of the product
The electrical connection may only be
performed by a qualified electrician/
competent person. The electrical
connection must be carried out in
accordance with prevailing regulations
for appliances using heavy current.
The connection must comply with any
specific requirements specified by the
local electricity supply authority.
There must be no interference with
any of the unit’s electrical parts.
Pilot light
The cable is mounted in the pegs as
shown.
Unscrew the cover while connecting
the cables.
A unit led directly to the power point
or the outlet rose.
More units may be connected via one
or more junction boxes.
The cable must be connected via an
external switch with a contact
separation of at least 3 mm in each
pole.
Ceramic glass grill
Control botton
Cover
Pilot light
Kontrolleuchte für die Kombi-Grill
Please observe these instructions,
otherwise the warranty will not
cover any damage that may occur.
Grill control knob
Single-phase zero-earth
Cable type 1,5 mm² HO5VV-F.
The cable outside diameter must be
between 7,5 and 10,5 mm.
12
5
Operating instrutions
Operating instructions griddle
Griddle control knob
Variable griddle temperature
Control light
"1" - low heat
"9" - high heat
"0" - off
It is not necessary to attach the
reinforcement beam to the work top
surface, as it is held in place by a
specially designed moulding, which is
incorporated in the hob units flanges.
The units externally measured
length
145 mm:
Cooker hood
290 mm:
Two-zone ceramic-top electric hob
Two-burner gas hob
Grill
Fryer
Wok
580 mm:
Four-zone ceramic-top electric hob
Four-burner gas hob
725 mm:
Four-zone ceramic-top electric hob
Installation of a single unit
When mounting a single unit, be it a
half-or full size unit, in a
worktopsurface which is thicker than
30 mm, it is necessary to make a
special notch in both sides of the cutout hole, as shown in the adjacent
drawing.
The purpose of these notches is to
create space for the electrical cables.
6
11
Mounting
Hints on the glass ceramic grill
Ceramic glass is insensitive to
temperature shock and very robust,
however it is not unbreakable. Hard
and sharp objects, in particular, can
damage the cooking surface if they fall
on it.
Caution: In order to avoid a hazard this
appliance must be installed according to
these instructions for installation
Min. 47 mm
The appliance unit can be mounted in
any type of kitchen with a work top
whose thickness is between 28 mm and
40 mm.
Clearance
The distance between the top side of the
work top and the carpentry underneath
must be at least 47 mm.
Fixing
Screw the fixing brackets out to such an
extent that they can be turned in under
the work top. Tighten the brackets on to
the work top with an ordinary
screwdriver.
Cut-out measurements
One rectangular hole is sawn out for the
appliance combination chosen.
The depth of the cut-out for any unit is:
490 mm
Length of hole = sum of all units`
externally measured length, less 20 mm.
Mounting of Reinforcement
Beams
Minimum distance
to wall:
150 mm
Reinforcement
beams
A reinforcement Beam, with supporting
flanges at each end, is included with
each two-burner unit. For unit
combinations, a reinforcement beam
must be used between each unit.
Minimum distance
to wall (nonflammable material):
150 mm
Warning
If visible cracks appear in the surface,
the appliance must be disconnected
from the mains immediately.
Spillages of plastics and other meltable
materials such as sugar and food
containing sugar (also applies to food
with a natural sugar content to which
no extra sugar has been added), such
as marmalade, jam, fruit juice, etc.
must be wiped off the ceramic surface
while still hot.
Failure to do this could cause the
griddle to peel and crack.
Use the enclosed glass scraper and
polish with a ceramic glass cream
cleaner afterwards.
Any cooking utensils which have been
into contact with the above mentioned
materials must be cleaned thoroughly
before being placed on the ceramic
surface.
The warranty does not cover
damage to the glass ceramic griddle
which can be attributed to any of the
above events.
10
7
Cleaning and maintenance of
5. Heat the glass griddle until the
water boils, brushing with a stiff
brush as you do so.
6. Switch off the glass griddle when
the water boils. Continue cleaning
with the stiff brush.
7. Allow the glass griddle to cool
(only cool enough so you can
touch it).
8. Remove the dirty water with
kitchen roll.
9. Wipe the surface with a clean, wet
cloth.
10. Wipe the surface with a dry cloth.
11. Apply a thin coat of cooking oil to
the glass griddle and rub in.
Stainless steel surfaces
For reasons of hygiene and
safety, the griddle must be
kept clean.
Grease stains and spilled
food generate smoke when
heated, and can even cause
fire.
Perform daily cleaning with a slightly
damp cloth. For more severe soiling,
use a liquid scouring cream. Always
clean the steel in the direction of the
steel finish. To ensure that the steel
retains its shine, it is recommended
that you use a polishing agent for
stainless steel on a regular basis.
Splashguard
The splashguard can be removed to
make it easier to clean the surface.
Always polish in the direction of the
steel finish (cross-wise).
What to do:
1. Hold the splashguard as shown
in the diagram
2. Lift the splashguard straight up
3. Clean the top surface as
described in “cleaning the steel
surface”
Be aware of the two retaining
pegs, which are sharp.
4. Replace the splashguard in
position ENSURE that it is
fitted the correct way round.
Never use steel wool, metal sponges or
other abrasive cleaning agents.
The ceramic glass griddle
The glass griddle must be cleaned each
time it has been used.
1. Pour water onto the glass griddle,
add a little washing-up liquid, and
scrape off as much as possible using
the scraper. Remove the dirty water
with kitchen roll.
2. Use the rough side of a scouring
sponge to apply more water and
detergent (washing-up liquid or
liquid scouring agent) to the glass
surface. Scour thoroughly.
3. Remove the dirty water with kitchen
roll.
4. Apply more water and washing-up
liquid, using the rough side of a
scouring sponge. Scour thoroughly.
Never use hard or sharp
implements to lift off the
splashguard.
Do not wash the splashguard
in a dishwasher.
The hob must not be used
with the splashguard off.
8
9

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
