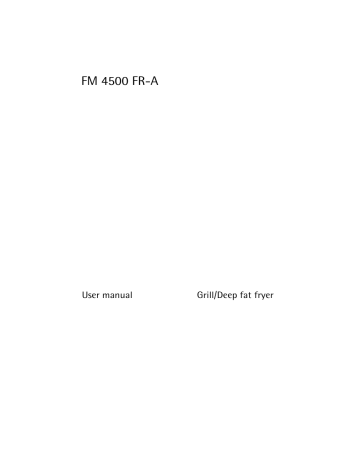

FM 4500 FR-A
User manual
Grill/Deep fat fryer
2
Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.
In addition to this you find environmental and energy saving aspects as an integral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
3
The following symbols are used in this user information:
Warning! This must be read! Important advice for the safety of persons and
information on avoiding damage to the appliance
General information and advice
2
Information on environmental protection
1
z
Dangerous voltage
Contents
3
Contents
Operating Instructions
4
Safety instructions
4
Description of the Appliance
Grill/Deep fat fryer layout
Control panel layout
Touch Control sensor fields
Displays
Residual heat indicator
Preparation of the appliance
Using grilling
Using deep fat fryer
Operating the appliance
Switching the appliance on and off
Setting grill setting / temperature for the deep fat fryer
Using the child safety device
Using the timer
Automatic switch off
Tips on Cooking and Frying
Frying frozen food
Grill and deep fat fryer in combination
Cleaning and Care
Glass ceramic
Grill
Deep fat fryer
What to do if …
6
6
7
7
8
8
9
9
10
11
11
11
13
14
16
17
17
18
19
19
20
21
22
Disposal
23
Installation Instructions
Safety instructions
Assembly
24
24
26
Installing more than one Frontline hob
Rating Plate
Guarantee/Customer Service
30
34
35
Service
38
4
Operating Instructions
Operating Instructions
1 Safety instructions
Please comply with these instructions. If you do not, any damage resulting is not
covered by the warranty.
Correct use
• This appliance is not intended for use by children or other persons whose
physical, sensory or mental capabilities or lack of experience and knowledge
prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for the normal domestic grilling and frying
of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.
Children’s safety
• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.
General safety
• The appliance may only be installed and connected by trained, registered
service engineers.
• Built-in appliances may only be used after they have built in to suitable builtin units and work surfaces that meet standards.
• In the event of faults with the appliance or damage to the glass ceramic
(cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric
shock.
• Repairs to the appliance must only be carried out by trained registered service
engineers.
Safety instructions
5
Safety during use
• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the appliance.
• Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
• Smother fire using a cover, never use water to put out.
• In the case of fire, set all switches to zero and switch off any extractor.
• Switch off the appliance after each use.
Safety when cleaning
• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
• The glass ceramic can be damaged by objects falling onto it.
6
Description of the Appliance
Description of the Appliance
Grill/Deep fat fryer layout
Grill shelf
Heating element
Grill insert
with lava stones
Oil cavity
Frontline strip
Socket
Control panel
Drain filter
Safety catch
for drain tap
Fryer basket
Deep fat fryer plug
Description of the Appliance
7
Control panel layout
Child lock pilot
light
Deep fat fryer
power indicator
Temperature
indicator
Child lock
Grill power indicator
Grill indicator
timer function
Deep fat fryer
indicator
timer function
Temperature
setting
Deep fat fryer
Grill setting
indicator
Timer indicator
Timer selection
Timer
On/Off pilot light
Grill setting
selection
Grill
On/Off
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals.
Touch the sensor fields from above, without covering other sensor fields.
Sensor field
On / Off
Increase settings
Reduce settings
Timer
Increase settings
Reduce settings
Child lock
Function
To switch the appliance on and off
To increase grill setting / temperature
To reduce grill setting / temperature
Timer selection
To increase Timer time
To reduce Timer time
Locking control panel for children
8
Description of the Appliance
Displays
Display
120190
Grill settings
Temperature in °C
Fault
Residual heat
Child safety device
Automatic switch off
Description
No grill setting / temperature
set
Grill setting is set
Temperature for the deep fat fryer is
set.
Malfunction has occurred
Appliance is still hot
Child safety device is engaged
Switch off is active.
Residual heat indicator
1
3
Warning! Risk of burns from residual heat. After being switched off, the appliance needs some time to cool down. Look at the residual heat indicator .
When the grill is operated, the deep fat fryer heats up. The residual heat
the deep fat fryer is displayed.
of
Preparation of the appliance
Preparation of the appliance
Using grilling
1
3
z
The grill may only be used with the grill insert inserted.
1. Insert grill insert with lava stones in the grill.
The lava stones absorb fat that comes out of the food when grilling.
2. Take hold of grill shelf firmly with both
hands and tilt it backwards until it is in the
fixture (A).
B
A
3. Lower grill shelf and insert the plug in the
socket (B).
With very fatty foods the lava stones can
be replaced with water.
A sufficient amount of water is important.
Socket has live parts and must be protected
from moisture.
Only fill up with water when deep fat fryer
plug is inserted in the socket.
9
10
Preparation of the appliance
Using deep fat fryer
3
3
1. Remove grill shelf and grill insert.
2. Close drain tap and replace safety catch.
The deep fat fryer’s oil cavity must be filled
with oil between the marks MIN (1.5 litres)
and MAX (3 litres).
3. Insert deep fat fryer plug in the socket.
4. Fill deep fat fryer oil cavity with oil.
Frying fat can also be used instead of oil.
Operating the appliance
11
Operating the appliance
Switching the appliance on and off
Switch on
Switch off
z
3
Control panel
Touch for 2 seconds
Touch for 1 second
Display
/
/ none
Pilot light
lights up
goes out
Important: Socket has live parts.
Only operate appliance with dry socket.
After switching on, within approx. 10 seconds a function must be set, otherwise
the appliance automatically switches itself off.
Setting grill setting / temperature for the deep fat fryer
Control panel
To increase
To decrease
To switch off
3
3
3
Touch
Touch
Touch and
the same time
Grill setting
indicator
to
to
Temperature
indicator
120 to190
190 to120
at
If a grill setting/temperature is selected, the indicator flashes until the grill setting/temperature is reached. When the grill setting/temperature selected is
reached, an acoustic signal sounds.
If the deep fat fryer plug or grill shelf is not inserted properly, the appliance does
not heat up.
A temperature from 170°C to 180°C is suitable for deep fat frying.
12
Operating the appliance
Deep frying
3
3
1. Fill fryer basket with food to be fried outside of the deep fat fryer and shake.
Ice and small pieces of food to be fried can fall through the fryer basket into the
hot oil.
2. Wait until oil has reached the selected temperature.
Temperature indicator no longer flashes and acoustic signal sounds.
3. Fry food until it has taken on the appropriate colour.
4. After deep frying lift the fryer basket out of the oil.
5. Carefully shake fryer basket to remove excess oil.
6. Hang fryer basket on the hanger to allow further draining.
When dealing with larger quantities of food to be fried, take the fryer basket out
of the oil after 1-2 minutes and heat the oil up again.
When the oil is heated up again, continue deep frying.
If using frying fat, cut this into pieces and melt at 120°C.
Operating the appliance
13
Using the child safety device
The child safety device prevents unintentional use of the appliance.
Activating the child safety device
Step
Control panel
Indicator/Signal
1.
Switch on the appliance
(Do not set a heat setting)
2.
Touch
Appliance switches off. The child safety device is activated.
Deactivating the child safety device
Step
Control panel
Indicator/Signal
1.
Switch on the appliance
2.
Touch
0 lights up
Appliance switches off. The child safety device is deactivated.
Overriding the child safety device
The child safety device can be released in this way for a single cooking session; it
remains activated afterwards.
Step
Control panel
Display/Signal
1.
Switch on the appliance
2.
Touch and at the same time
/ acoustic signal
Until the appliance is next switched off, it can used as normal.
14
Operating the appliance
Using the timer
After the time set has elapsed, an acoustic signal sounds and
display.
Setting the time
Step
Control panel
Indicator
1.
Touch
Power indicator flashes
2.
Touch or
0 to 99 minutes
After a few seconds the power indicator flashes more slowly.
The time is set.
The time counts down.
lights up in the
Operating the appliance
Switching off the timer function
Step
1.
Control panel
Touch
2.
Touch
The power indicator goes out.
The timer function is switched off.
Indicator
Power indicator flashes more quickly.
Remaining time is displayed
The remaining time counts down to 0.
Changing the time
Step
1.
Control panel
Touch
Indicator
Power indicator flashes more quickly.
Remaining time is displayed
2.
Touch or
01 to 99 minutes
After a few seconds the power indicator flashes more slowly.
The time is set.
The time counts down.
Displaying the time remaining
Step
1.
Control panel field
Touch
Indicator
Power indicator flashes more quickly.
Remaining time is displayed
After a few seconds the power indicator flashes more slowly.
Switching off the acoustic signal
Step
Control panel field
1.
Touch
Acoustic signal stops.
Acoustic signal
Acoustic signal to acknowledge.
15
16
Operating the appliance
Automatic switch off
3
• If one or more sensor fields are covered for longer than approx. 10 seconds,
e.g. by a pan cloth lying on it, a signal sounds and the appliance switches off
automatically.
• If the appliance is not switched off after 90minutes or the grill setting or temperature is not altered, the appliance automatically switches itself off. is
displayed.
Control panel
Moisture (e.g. a wet cloth) or liquid boiling over on the control panel immediately switches the appliance off.
17
Tips on Cooking and Frying
Tips on Cooking and Frying
3
Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.
Frying frozen food
3
3
Deep frozen foods for frying absorb a lot of oil and cook more slowly.
Defrost frozen food to room temperature before drying.
Observe the amount and temperature given in the following table or on the
packet.
Examples of deep fat frying
The information given in the following table is for guidance only.
fresh
Temperature
Suitable for
160 °C
170 °C
180 °C
190 °C
deep frozen
Quantity
Duration
Quantity
Duration
Chips, homemade
(first frying)
600 g
4-5 mins.
-
-
Chips, homemade
(second frying)
600 g
3-4 mins.
-
-
Chips, frozen
-
-
550 g
5-6 mins.
Vegetables
(broccoli, mushrooms)
12 pieces
2-3 mins.
-
-
Prawns
10-12 pieces
1-2 mins.
12 pieces
2 mins.
Mussels
15-20 pieces
3-4 mins.
15 pieces
3-4 mins.
Small meatballs
8-10 pieces
2-3 mins.
-
-
Croquettes
5 pieces
4-5 mins.
4-5
6-7 mins.
Wiener Schnitzel
2 pieces
3-4 mins.
-
-
18
Tips on Cooking and Frying
Grill and deep fat fryer in combination
1
1.
2.
3.
4.
5.
6.
7.
8.
Example: steak and chips
Fill deep fat fryer with oil and set temperature.
Fry chips until they are almost ready.
Switch deep fat fryer off.
Insert grill insert and grill shelf, set grill setting.
Grill steaks and keep warm on a plate.
Switch grill off.
Set temperature for the deep fat fryer.
Finish frying chips.
Take care! Risk of burns from hot parts.
When changing between frying and grilling use an oven glove.
Cleaning and Care
19
Cleaning and Care
1
1
1
Take care! During cleaning the appliance must be switched off. Let the appliance cool down until all parts can safely be touched.
Important: Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.
Important: Residues from cleaning agents will damage the appliance. Remove
residues with water and washing up liquid.
Glass ceramic
z
Important: Socket has live parts.
Clean appliance with deep fat fryer plug inserted.
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removable Frontline strip
The aluminium Frontline strip fastens on by means of magnets. It is easy to remove by hand and can be cleaned with detergent. Please do not use any scouring agents or sponges that scratch. Do not clean the strip in the dishwasher.
20
Cleaning and Care
Grill
Grill shelf and grill insert
Clean grill shelf and grill insert after each use.
The heating element can be removed for the cleaning of the grill shelf.
1
Important: The heating element's plug must not be immersed in water.
Hole
Centring pin
1.
2.
3.
4.
3
3
Removing heating element
Remove grill shelf from the appliance.
Undo screws on the bottom on the grill shelf
Remove plate.
Remove heating element.
Cleaning grill shelf and grill insert
Remove residues using a brush.
Soak off stubborn residues in hot washing up water.
If grey discolorations appear, occasionally oil the grill shelf
Inserting heating element
1. Insert centring pin on the heating element in the grill shelf and reposition plate.
2. Replace screws and tighten.
The grill temperature sensor is located in front of the socket. The sensor’s contact surface to the grill shelf is always to be kept clean.
Lava stones
As soon as a lot of fat has collected on the lava stones, the lava stones must be
cleaned.
Clean lava stones in a basket that is dishwasher-safe or in hot washing up water.
Cleaning and Care
Deep fat fryer
Deep fat fryer plug
Clean deep fat fryer plug in hot washing up water.
Deep fat fryer oil cavity
1
When oil is old, drain off oil and clean deep fat fryer oil cavity.
Important: Risk of burns from hot oil.
Only drain off cooled oil.
Draining oil
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
Place sufficiently large container under drain tap.
Remove safety catch in front of drain tap.
Open drain tap and let oil run out.
Close drain tap and replace safety catch.
Take out drain filter and clean in hot washing up water.
Fill deep fat fryer with hot water and clean with washing up liquid.
Place sufficiently large container under drain tap.
Remove safety catch on drain tap.
Open drain tap and let water run into container.
Rinse out deep fat fryer oil cavity with cold water and dry with a cloth.
Close drain tap and replace safety catch.
Place drain filter with the curve upwards over the drain.
Fryer basket
Clean fryer basket in hot washing up water or in the dishwasher.
21
22
What to do if …
What to do if …
Problem
The appliance cannot be
switched on or is not operating
Possible cause
Remedy
More than 10 seconds have
Switch the appliance on again.
passed since the appliance was
switched on
The child safety device is
switched on
Deactivate child safety device
(See the section “Child safety
device”)
Several sensor fields were
touched at the same time
Only touch one sensor field
The sensor fields are partly
covered by a damp cloth or
with liquid
Remove the cloth or the liquid.
Switch the appliance on again.
Automatic Switch off has been Switch the appliance on again
triggered
is displayed or appliance
does not get hot
Grill shelf is not inserted prop- Insert grill shelf in the socket
erly
properly
The deep fat fryer plug is not
inserted properly
Insert deep fat fryer plug in
the socket properly
Deep fat fryer plug pin has
broken off
Replace deep fat fryer plug
Deep fat fryer was heated up
with no oil and has triggered
the overheating cut-out
Call Customer Care Department
Grill is not reacting or temper- Grill temperature sensor or
atures are too high
grill shelf are dirty
and number are displayed
1
3
Electronics fault
Clean sensor and grill shelf
Disconnect the appliance from
the electrical supply for a few
minutes (Take the fuse out of
the house’s wiring system)
If after switching on again,
is displayed again, call the customer service department
If you are unable to remedy the problem by following the above suggestions, please contact your dealer or the Customer Care Department.
Warning! Repairs to the appliance are only to be carried out by qualified service
engineers. Considerable danger to the user may result from improper repairs.
If the appliance has been wrongly operated, the visit from the customer service
technician or dealer may not take place free of charge, even during the warranty
period.
Disposal
23
Disposal
2
Packaging material
The packaging materials are environmentally friendly and can be recycled. The
plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community
waste disposal facilities.
2
Old appliance
W
The symbol
on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. For
more detailed information about recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you
purchased the product.
24
Installation Instructions
Installation Instructions
1
1
z
z
Safety instructions
Warning! This must be read!
The laws, ordinances, directives and standards in force in the country of use are
to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)
Installation may only be carried out by a qualified electrician.
The minimum distances to other appliances and units are to be observed.
Anti-shock protection must be provided by the installation, for example drawers
may only be installed with a protective floor directly underneath the appliance.
The cut surfaces of the worktop are to be protected against moisture using a
suitable sealant.
The sealant seals the appliance to the work top with no gap.
The minimum gap between the underside of the worktop and a shelf installed
under the appliance must be 235 mm plus room for a container able to hold 4 litres.
Risk of injury from electrical current.
• The electrical mains terminal is live.
• Make electrical mains terminal free of voltage.
• Follow connection schematic.
• Observe electrical safety rules.
• Ensure anti-shock protection by installing correctly.
• The appliance must be connected to the electrical supply by a qualified electrician.
Risk of injury from electrical current.
• Loose and inappropriate plug and socket connections can make the terminal
overheat.
• Have the clamping connections correctly installed by a qualified electrician.
• Use strain relief clamp on cable.
• In the event of single-phase or two-phase connection, the appropriate mains
cable of type H05BB-F Tmax 90°C(or higher) must be used.
• If this appliance’s mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90°C; or higher). The latter is available from the Customer Care Department.
Installation Instructions
25
A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening
width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.
26
Assembly
Assembly
Assembly
27
28
Assembly
Assembly
29
30
Installing more than one Frontline hob
Installing more than one Frontline hob
3
Additional parts: cross bar(s), heat resistant silicon, rubber block, shaving blade.
Only use special heat-resistant silicon.
Cut-out section
Distance from the wall: at least 50 mm
Depth:490 mm
Width: The widths of all appliances to be built-in are added together, minus 20
mm (see also “Overview of all appliance widths”)
Example:
Installing more than one appliance
1. Work out the size of the cut-out section and saw it out.
2. Remove Frontline strip from the appliances by hand (magnetic fastening).
3. Lay the appliances one at a time on something soft (for example a blanket) with
the underside facing upwards.
4. Screw / clip fixing plates / retaining grips into the appropriate holes in the protective boxes.
Installing more than one Frontline hob
31
5. Place first appliance in the cut-out. Lay connecting cross bar in the cut-out and
push up halfway against the appliance.
6. Put silicon on the appliance corners that will touch one another. Put silicon on
the end of the cross bar.
7. Loosely screw in fixing plates / retaining grips from below on the worktop and
on the connecting cross bar.
32
Installing more than one Frontline hob
8. Place Frontline strips on the appliances. Check that the Frontline strips are in line
with one another.
9.
10.
11.
12.
Tighten the fixing plate / retaining grip screws.
Inject a line of silicon into the gap between the appliances.
Dampen silicon line with a little soapy water.
Press rubber block hard against the glass ceramic and draw it slowly along the
gap.
13.
14.
15.
16.
Leave silicon until the next day to harden.
Carefully remove projecting silicon with a shaving blade.
Clean glass ceramic thoroughly.
Replace Frontline strips.
Installing more than one Frontline hob
Overview of all appliance widths
180 mm
Worktop-mounted cooker hood
360 mm
Glass ceramic cooking surface with 2 radiation cooking zones
Glass ceramic cooking surface with 2 induction cooking zones
Gas hob with 2 burners
Grill
Grill/Deep fat fryer
Wok
580 mm
Glass ceramic cooking surface with 4 radiation cooking zones
Gas hob with 4 burners
720 mm
Glass ceramic cooking surface with 4 radiation cooking zones
Glass ceramic cooking surface with 4 induction cooking zones
Gas hob with 4 burners
33
34
Rating Plate
941 177 716
AEG-ELECTROLUX
2.3 kW
230 V
50 Hz
59 FED 23 KO
FM4500FR-A
Guarantee/Customer Service
35
Guarantee/Customer Service
European Guarantee
This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for
the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:
• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced
by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in
your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred
to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used
within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of
residence.
The provisions of this European Guarantee do not affect any of the rights granted to you by law.
36
Guarantee/Customer Service
www.electrolux.com
p
t
b
Albania
+35 5 4 261 450
Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien
+32 2 363 04 44
Bergensesteenweg 719, 1502 Lembeek
Èeská republika
+420 2 61 12 61 12
Budìjovická 3, Praha 4, 140 21
Danmark
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
Deutschland
+49 180 32 26 622
Muggenhofer Str. 135, 90429 Nürnberg
Eesti
+37 2 66 50 030
Mustamäe tee 24, 10621 Tallinn
España
+34 902 11 63 88
Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
France
www.electrolux.fr
Great Britain
+44 8705 929 929
Addington Way, Luton, Bedfordshire
LU4 9QQ
Hellas
+30 23 10 56 19 70
4 Limnou Str., 54627 Thessaloniki
Hrvatska
+385 1 63 23 338
Slavonska avenija 3, 10000 Zagreb
Ireland
+353 1 40 90 753
Long Mile Road Dublin 12
Italia
+39 (0) 434 558500
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija
+37 17 84 59 34
Kr. Barona iela 130/2, LV-1012, Riga
Lithuania
+3702780607
Žirmūnų 67, LT-09001 Vilnius
Luxembourg
+352 42 431 301
Rue de Bitbourg, 7, L-1273 Hamm
Magyarország
+36 1 252 1773
H-1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland
+31 17 24 68 300
Vennootsweg 1, 2404 CG Alphen aan den Rijn
Norge
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
Österreich
+43 18 66 400
Herziggasse 9, 1230 Wien
Polska
+48 22 43 47 300
ul. Kolejowa 5/7, Warszawa
Portugal
+35 12 14 40 39 39
Quinta da Fonte - Edificio Gonçalves Zarco - Q 35
2774 - 518 Paço de Arcos
Romania
+40 21 451 20 30
Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera
+41 62 88 99 111
Industriestrasse 10, CH-5506 Mägenwil
Slovenija
+38 61 24 25 731
Electrolux Ljubljana d.o.o.
Gerbièeva 98, 1000 Ljubljana
Slovensko
+421 2 43 33 43 22
Electrolux Slovakia s.r.o., Electrolux Domáce spotrebièe SK, Seberíniho 1, 821 03 Bratislava
Suomi
www.electrolux.fi
Guarantee/Customer Service
p
t
b
Sverige
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye
+90 21 22 93 10 25
Tarlabaþý caddesi no : 35 Taksim
Istanbul
Ðîññèÿ
+7 495 937 7837
129090 Ìîñêâà, Îëèìïèéñêèé
ïðîñïåêò, 16, ÁÖ „Îëèìïèê“
37
38
Service
Service
In the event of technical faults, please first check whether you can remedy the
problem yourself with the help of the operating instructions (section “What to
do if…”).
If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.
In order to be able to assist you quickly, we
require the following information:
– Model description
– Product number (PNC)
– Serial number (S No.)
(for numbers see rating plate)
– Type of fault
– Any error messages displayed by the appliance
– three digit letter-number combination for glass ceramic
So that you have the necessary reference numbers from your appliance at hand,
we recommend that you write them in here:
Model description:
.....................................
PNC:
.....................................
S No:
.....................................
Service
39
374 475 403-M-061107-01
Subject to change without notice
www.electrolux.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
