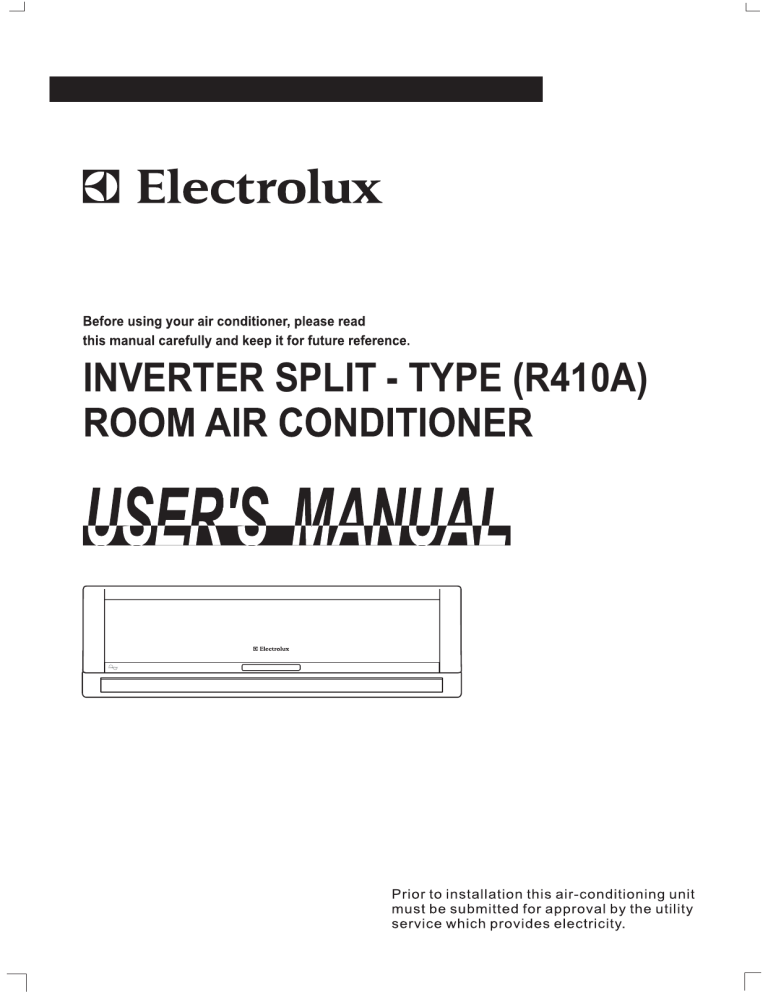

INVERTER SPLIT - TYPE (R410A)
Contact an authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or infirmed persons
without supervision.
Young children should be supervised to ensure that they do not play with the air
conditioner.
This air conditioner should be installed in accordance with AS/NZS 3000:2000
and your electricity suppliers' rules.
There are local council rules regarding maximum allowable noise levels emitted
by air conditioners.
If the power cord is to be replaced, replacement work shall be performed by
authorised personnel only.
Installation work must be performed in accordance with the national wiring standards
by authorised personnel only. Wrong connection can cause over heating or fire.
Take care not to catch fingers on the fan when adjusting vertical louvres.
This air conditioner uses R410A refrigerant.
!
!
!
!
!
Do not use the socket if it is
loose or damaged.
Do not open the unit
during operation.
!
It may cause fire.
It may cause fire and electric
shock.
!
2
It may cause an explosion or fire.
Sharp edges could cause injury.
There is danger of fire or electric shock.
3
Mode
Temperature
Cooling operation
Heating operation
Drying operation
Room temperature
17 C ~ 32 C
17 C ~ 27 C
10 C~ 32 C
Outdoor temperature
18 C ~ 50 C
-15 C ~ 34 C
10 C~ 50 C
CAUTION:
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%, if the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the horizontal
air flow louvre to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
4
AUT
O
COO
DRY L
HEA
T
TEM
MOD
FAN
HIGH
MED
LOW
P
E
ON/O
FF
SWIN
G
ECO
NON
Y
RESE
T LOCK
R
AIR
DIRE
CTIO
N
DIGI
TAL
FAN
TIME
R
CAN
CEL
DISP
LAY
5
AUTO, COOL, DRY, HEAT to
Timer on button
TIMER ON
TIMER OFF
AIR
DIRECTION
Air direction button
Press the AIR DIRECTION
button to adjust the angle
of the horizontal louvre.
Press the AIR DIRECTION
button for more than 2
seconds to activate auto
SWING function. Press
the AIR DIRECTION
button again to stop the auto
SWING function.
TURBO
When you press the recessed
LOCK button, all current
settings are locked-in and the
remote control does not accept
any operation except that of the
LOCK. Use the lock mode when
you want to prevent settings
from being changed accidentally.
Press the LOCK button again
when you want to cancel the
LOCK mode. A lock symbol will
appear on the bottom left hand
side of the remote control display
when the lock function is activated.
6
Press the TIMER ON button to
set the auto-on time sequence.
To cancel the auto-on time
sequence press the TIMER ON
button until the auto-on time is
set to "0:00".
Timer off button
Press the TIMER OFF button to
set the auto-off time sequence.
To cancel the auto-off time
sequence press the TIMER OFF
button until the auto-off time is
set to "0:00".
Turbo button
Press the TURBO button
to activate the fast cooling
operation. Press again
to cancel.
AUTO, COOL, DRY, HEAT and FAN only (Refer to
note below) and back to AUTO.
7
When you set the air conditioner in AUTO mode, it
will automatically select cooling, heating or fan only
operation depending on what temperature you have
selected and the room temperature.
TIMER ON
TIMER OFF
AIR
DIRECTION
TURBO
8
Press to select COOL, HEAT or FAN only.
TIMER ON
TIMER OFF
AIR
DIRECTION
TURBO
TIMER ON
TIMER OFF
AIR
DIRECTION
TURBO
9
1. TIMER ON button
Press this button to initiate the TIMER ON sequence. Each press
will increase the TIMER ON setting in 30 minutes increments. When
the setting time displays 10:00, each press will increase the TIMER
ON setting in 60 minutes increments.
To cancel the TIMER ON program, simply adjust the TIMER ON
time to "0:00".
2. TIMER OFF button
Press this button to initiate the TIMER OFF sequence. Each press
will increase the TIMER OFF setting in 30 minutes increments. When
the setting time displays 10:00, each press will increase the TIMER
OFF setting in 60 minutes increments.
To cancel the TIMER OFF program, simply adjust the TIMER OFF
to "0:00".
TIMER ON
TIMER OFF
AIR
DIRECTION
TURBO
When you select the timer operation, the remote control
automatically transmits the timer signal to the indoor unit
for the specified time. Therefore keep the remote control
in a location where it can transmit the signal to the indoor
unit properly.
The effective operation time set by the remote control for
the timer function is limited to the following settings, 0.5,
1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0,
7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18,
19, 20, 21, 22, 23, 24.
To start the air conditioner in 2 hours
Press the TIMER ON button until you can see 2.0h on the TIMER
ON display of the remote control.
To stop the air conditioner in 10 hours.
Press the TIMER OFF button until you can see 10h on the TIME OFF
display of the remote control.
10
To stop the air conditioner 2 hours after setting and start it again 10
hours after setting.
1. Press the TIMER ON button until you can see 10h on the TIMER ON
display.
2. Press the TIMER OFF button until you can see 2.0h on the TIMER
OFF display.
3. Air conditioner must be on when setting.
To start the air conditioner 2 hours after setting, and stop it 5 hours
after setting.
1. Press the TIMER ON button until you can see 2.0h on the TIMER
ON display.
2. Press the TIMER OFF button until you can see 5.0h on the TIMER
OFF display.
3. Air conditioner must be off when setting.
Set the TIMER ON/OFF to "0:00" to cancel all TIMER settings.
TURBO BUTTON FUNCTION
TIMER OFF
AIR
DIRECTION
TURBO
When you press the TURBO button in cooling mode,
the air conditioner will enter TURBO mode with
ultra-high compressor speed and reach the set
temperature more quickly.
After running 20 minutes in TURBO mode, the indoor
fan will automatically revert to the preset speed.
Alternatively, press the TURBO button again to cancel
the TURBO function.
11
TIMER ON
TIMER OFF
AIR
DIRECTION
TURBO
TIMER OFF
AIR
DIRECTION
TURBO
left hand
12
ADJUSTING AIR FLOW DIRECTION
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
TEMP
MODE
ON/OFF
FAN
SWING
ECONO
NY
RESET
LOCK
R
TIMER
CANCE
L
AIR
DIRECTI
ON
DIGITAL
DISPLA
Y
Lever
Adjust the air flow direction properly otherwise, it might cause
discomfort or cause uneven room temperatures.
Adjust the horizontal louvre using the remote controller.
Adjust the vertical louvre manually.
Adjusting the Vertical Air Flow Direction (up - down)
The air conditioner automatically adjusts the vertical air flow
direction in accordance with the operating mode.
To set the vertical air flow direction
Perform this function while the unit is in operation.
Keep pressing the AIR DIRECTION button on the remote controller to
move the louver to the desired direction.
Adjust the vertical air flow direction to the desired direction.
In subsequent operations, the vertical air flow is automatically set
in the direction to which you adjusted the louvre by pressing the
AIR DIRECTION button.
To set the horizontal air flow direction (left - right)
Adjust the vertical louvre manually using the lever on the left or right
side of the vertical louvre arm (Depending on model). Take care not
to catch fingers on the fan, horizontal louver or to damage vertical
louvres. When the air conditioner is in operation and the horizontal
louvre is in a specific position, move the lever at left (or right,
depending on model) end of the air outlet to the desired position.
To automatically swing the air flow direction (up - down)
Perform this function while the air conditioner is in operation.
Press the SWING button on the remote controller.
To stop the function, press the SWING button again.
Press AIR DIRECTION button to lock louvre in desired position.
! CAUTION
The AIR DIRECTION and SWING buttons will be disabled
when the air conditioner is not in operation (including when the
TIMER ON is set).
Do not operate the air conditioner for long periods with the air
flow direction set downward in cooling or dry mode. Otherwise,
condensation may occur on the surface of the horizontal louvre
causing moisture to drop on to the floor or on furnishings.
Do not move the horizontal louvre manually. Always use the
AIR DIRECTION or SWING button. If you move this louvre
manually, it may malfunction during operation. If the louvre
malfunctions, stop the airconditioner once and restart it.
When the air conditioner is started immediately after it was
stopped, the horizontal louvre might not move for approximately
10 seconds.
Open angle of the horizontal louvre should not be set too small,
as COOLING or HEATING performance may be impaired due
to too restricted air flow area.
Do not operate unit with horizontal louvre in closed position.
When the air conditioner is connected to power (initial power),
the horizontal louvre may generate a sound for 10 seconds,
this is a normal operation.
13
PARTS IDENTIFICATION
Indoor unit
1. Front panel
2. Air inlet
3. Air filter
4. Air outlet
5. Horizontal air flow grille
6. Vertical air flow louvre
7. Display panel
8. Remote controller signal receiver
9. Remote controller
10. Manual control button
Indoor unit
2
3
1
10
8
4
5
6 7
AUT
O
COO
DRY L
HEA
T
9
Outdoor unit
FAN
HIGH
MED
LOW
TEM
P
MOD
E
ON/O
FF
SWIN
G
FAN
ECO
NON
Y
RESE
T LOCK
R
AIR
DIRE
CTIO
N
DIGI
TAL
TIME
R
CAN
CEL
11. Connecting pipe cable and drain hose
12. Air inlet (side and rear)
13. Air outlet
The operation indicator lights flash rapidly
(five times per second) when safety
protection features come into operation.
Note:
DISP
LAY
Outdoor unit
11
12
13
All the pictures in this manual are for explanation
purpose only. They may be slightly different from
the air conditioner you purchased (depends on model).
The actual shape shall prevail.
FUNCTION INDICATORS ON
INDOOR UNIT DISPLAY PANEL
1
2
3
4
5
TEMPERATURE indicator
A) Displays the temperature
settings when illuminate. When changing
the setting temperature, this indicator
begins to flash, and stops 20 seconds later.
B) Displays the room temperature when
the air conditioner is in FAN only operation.
C) When the unit stops operation, it return
to original factory settings.
D) Displays the malfunction code or protection
code.
5 OPERATION indicator
This indicator flashes after power is on and
illuminates when the unit is in operation.
6 FREQUENCY indicator
This indicator appears only when the
compressor is in operation and indicates
the current operating frequency. The more
indicators that are visible the higher the
operating frequency.
4
6
1 AUTO indicator
This indicator illuminates when the air
conditioner is in AUTO operation.
2 TIMER indicator
This indicator illuminates when
TIMER is set ON/OFF.
3 PRE.-DEF. Indicator
This indicator illuminates when the air
conditioner starts defrosting
automatically or when the warm air control
feature is activated in heating operation.
14
Manual operation
Manul operation can be used temporarily in case you can't find the remote controller or
its batteries are exhausted.
1
2
3
Panel
Manual control
button
AUTO/COOL
Open and lift the front panel up to an angle until
it remains fixed with a clicking sound.
One press of the manual control button will lead
to the forced AUTO operation.
Close the panel firmly to its original position.
CAUTION:
Once you push the manual button, the operation
mode is shifted in an order as: AUTO, COOL, OFF.
Push the button twice, the unit will operate in
forced COOL mode. This is used for testing
purposes only .
Third press will stop the operation and turn off
the air conditioner operation.
To restore the remote controller operation, use the
remote controller directly.
Optimal operation
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed on people.
Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to
excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or performance may be reduced.
Use TIMER ON button on the remote controller to select a time you want to start your
air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner
may be reduced and the air conditioner may stop running.
Clean the air filter frequently, otherwise cooling or heating performance may be reduced.
Do not operate unit with horizontal louvre in closed position.
15
Cleaning and maintenance
WARNING
Household
Drain
Cleaner
No
It is necessary to stop the air conditioner and
disconnect the power supply before cleaning.
Cleaning the indoor unit and remote
controller
CAUTIONS
Thinner
Filter Handle
Use a dry cloth to wipe the indoor unit and
remote controller.
A cloth dampened with cold water may be
used on the indoor unit if it is very dirty.
The front panel of the indoor unit can be
removed and cleaned with water. Then wipe
with a dry cloth.
Do not use a chemically treated cloth or
duster to clean the unit.
Do not use benzine, thinner, polishing powder,
or similar solvents for cleaning. These may
cause the plastic surface to crack or deform.
Cleaning the air filter
A clogged air filter reduces the cooling efficiency of this
unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit panel up to an angle until it stops
with a clicking sound.
2. Take hold of the handle of the air filter and lift it up
slightly to take it out from the filter holder, then
pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once every two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it in cool place.
16
17
HOW THE AIR CONDITIONER WORKS
Press ECONOMY button
1
Set
Temperature
1
1 hour
1 hour
Cooling
Press ECONOMY button
Set
Temperature
1
1
1 hour
1 hour
Heating
Cooling
Fan only
Cooling
Room
temperature
Fan only Cooling
Time
AUTOMATIC OPERATION
When you set the air conditioner in AUTO mode,
it will automatically select cooling, heating, or fan
only operation depending on what temperature
you have selected and the room temperature.
The air conditioner will control room temperature
automatically around the temperature point set by
you.
If the AUTO mode is uncomfortable, you can
select desired conditions manually.
ECONOMY OPERATION
When you push SLEEP button during cooling,
heating or AUTO operation, the air conditioner will
automatically increase (cooling) or decrease (heating)
1 C per hour. The set temperature will be steady 2
hours later.
The fan speed will be automatically controlled.
set temperature
DRYING operation
DRYING OPERATION
The dry mode will automatically select the drying
operation based on the difference between the set
temperature and the actual room temperature.
The temperature is regulated while dehumidifying
by repeatedly turning on and off of the cooling
operation or fan only operation. The fan speed is
set on LOW.
18
Operation tips
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3 minutes after it stops.
Anti-cold air
The unit is designed not to blow cold air on HEAT mode, when the indoor heat
exchanger is in one of the following three situations and the set temperature has
not been reached.
A) When heating has just starting.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting.
Defrosting
Frost may be generated on the outdoor unit during heat cycle when outdoor
temperature is low and humidity is high resulting in lower heating efficiency of
the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting
automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor
temperature and the amount of frost buildup on the outdoor unit.
2. A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air inlet
and air outlet on COOL mode in an indoor environment that has a high relative
humidity.
A white mist may generate due to moisture generated from defrosting process
when the air conditioner restarts in HEAT mode operation after defrosting.
3. Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just
stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has
just stopped running. This is caused by heat expansion and cold contraction of
the plastic parts in the unit when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power
is first turned on.
19
4. Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long time
or during first use of the unit.
5. A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building material,
from furniture, or smoke.
6. The air conditioner turns to FAN only mode from COOL or HEAT mode.
When indoor temperature reaches the temperature setting on air conditioner, the
compressor will stop automatically, and the air conditioner turns to FAN only mode.
The compressor will start again when the indoor temperature rises on COOL mode
or falls on HEAT mode to the set point.
7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louvre to
the maximum air outlet position and select HIGH fan speed.
8. Heating mode
The air conditioner draws in heat from the outdoor unit and releases it via the indoor
unit during heating operation. When the outdoor temperature falls, heat drawn in by
the air conditioner decreases accordingly. At the same time, heat loading of the air
conditioner increases due to larger difference between indoor and outdoor temperature.
If a comfortable temperature can't be achieved by the air conditioner, we suggest you
use a supplementary heating device.
9. Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION
indicator on the indoor unit starts flashing. To restart the operation, push the ON/OFF
button on the remote controller. For the unit with Auto-restart feature, when the power
restores, the unit restarts automatically with all the previous settings preserved by the
memory function.
10. Lightning or a car wireless telephone operating nearby may cause the unit to
malfunction. Disconnect the unit with power and then re-connect the unit with power
again. Push the ON/OFF button on the remote controller to restart operation.
20
Troubleshooting tips
Malfunctions and Solutions
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
If the following code appears on the LED window, disconnect the power and contact
the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4.
Trouble
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Other abnormal situations.
Malfunctions
Unit does not
start
Cause
What should be done?
Wait for power to be restored.
Power cut
Unit may have become unplugged.
Check that plug is securely in wall
receptacle.
Fuse may have blown.
Replace the fuse.
Battery in Remote controller may
have been exhausted.
Replace the battery.
The time you have set with timer
is incorrect.
Wait or cancel timer setting.
Unit not cooling
Inappropriate temperature
Set temperature correctly. For
or heating
setting.
detailed method please refer to
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
conditioner
"Using remote control" section.
Air filter is blocked.
Clean the air filter.
Doors or Windows are open.
Close the doors or windows.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Clear obstructions away first, then
restart the unit.
Compressor 3 minutes
protection has been activated.
Wait.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
21
Download PDF

advertising
