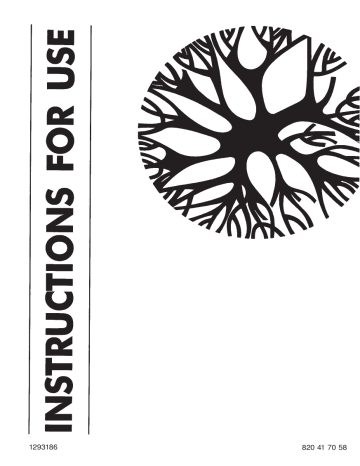

Iceline ICF-105C User manual

Iceline ICF-105C User manual
1293186
820 41 70 58
CONTENTS
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 3
Warnings and Guidelines
INSTALLATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 4-5
Position
Electrical connections
Switching On
HOW TO USE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 6
Temperature Control
Packaging and positioning
Baskets
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 7
Defrosting
How to Clean Your Appliance
When Not in Use
SOMETHING NOT WORKING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 10
Service and Spare Parts
this appliance complies with the following EC Directives:
- 73/23/EEC of 19. 02. 1973 - Low-Voltage Directive
- 89/336/EEC of 03. 05. 1989 (including Amendment Directive 92/31/EEC - EMC Directive.
2
WARNINGS AND GUIDELINES
These warnings are provided to improve
safety, and should be read carefully
before installing or using your appliance.
IMPORTANT
It is vital that these instructions are
kept with the appliance for future
use. If the appliance is sold or given
to another user, or if you move and
leave the appliance behind, you
must ensure that the instructions
accompany the appliance to enable
the next user to use the appliance
correctly and read the relevant
warnings.
This appliance is only intended for the
freezing and storage of foodstuff.
This appliance should only be operated
by adults. Children must not be allowed
to tamper with the control buttons or
play with the appliance.
Changes in the electrical mains system
in connection with the installation of this
appliance should always be carried out
by an authorised electrician or
competent person.
Do not under any circumstances
attempt to repair the appliance yourself.
Repairs carried out by untrained people
may result in personal injury or serious
malfunction of the appliance.
Service of the appliance should be
carried out by an authorised service
company, and only original spare parts
should be used.
It is dangerous to alter the appliance
specifications, or to change the
appliance in any other way.
Make sure that the appliance is not
placed on top of the mains cable.
This appliance includes components
that are heated during
operation.
Consequently, adequate ventilation
must always be provided. If ventilation
is insufficient defects may occur,
resulting in the warming up of the
stored frozen food. See under
“Installation”.
The inside of the appliance contains
pipes through which coolant flows. If
these pipes are punctured the
appliance may be damaged beyond
repair and the frozen food may warm
up. Do not damage inside of the
appliance with sharp implements.
This appliance is heavy. Take care
when moving it.
If the appliance is fitted with a lock to
prevent tampering by children, the key
must always be kept safely out of the
reach of children, and far away from the
appliance.
Before disposing of an old appliance,
make sure that the lock (if present) no
longer works. This is to prevent accidents
and avoid the danger of children getting
locked inside.
IN THE INTERESTS OF THE
ENVIRONMENT:
When disposing of your old appliance:
Check with your local Council or
Environmental Health Officer to see if
there are facilities in your area for
collecting the gas from the appliance for
recycling. This will help reduce the
amount of CFC gas released into the
atmosphere.
Help to keep your country tidy - when
disposing of an old appliance or a CFC
free appliance use an authorised disposal
site.
3
POSITION
Place the freezer horizontally on a firm
surface, resting on all four feet. Use a
wooden block or similar object to
compensate for any bumps/holes in
the surface.
The room should be dry and
adequately ventilated.
If the room temperature is not between
10°C - 32°C, or falls below freezing
point, the freezer will not function as it
should.
Do not place the freezer close to
sources of heat, radiators, chimneys,
cooker etc., and do not place the
freezer in direct sunlight.
If the freezer has been handled
standing on end it should be allowed to
stand in normal position for about 12
hours before switching it on.
Please ensure that when the appliance
is installed it is easily accessible for the
engineer in the event of a breakdown.
ELECTRICAL REQUIREMENTS.
Before switching on, make sure that the
voltage of your electricity supply is the
same as that indicated on the rating plate,
located inside the lid.
Warning:
This appliance must be earthed.
For your convenience, this appliance comes
complete with either a moulded-on or rewireable 13 amp (BS1363) plug, protected
by a 13 amp ASTA approved (BS1362) fuse.
In the event of having to change the fuse
in the plug supplied, a replacement 13
amp ASTA approved (BS1362) fuse must
be used.
In the case of a moulded-on plug, the fuse
cover MUST be refitted after changing
fuse. If the fuse cover is lost or damaged
the plug MUST NOT be used until a
replacement is obtained.
4
Replacement covers are avaliable from
your local electricity shop or nearest
customer service centre. The colour of
the replacement fuse cover must match
the colour insert or emboss on the base
of the plug.
In the case of a re-wireable plug care must
be taken to ensure that the top cover is
refitted without causing damage to either
the top cover or base. In the event of the
plug becoming damaged or cracked, it
must be replaced with an equivalent 13
amp, BS1363 approved plug (ref. fig. 1)
and rewired using the following
procedure:
Fig. 1
IMPORTANT
The wires in the mains lead are
coloured in accordance with the
following code:
Green and Yellow
Earth
Blue
Neutral
Brown
Live
SWITCHING ON
Before switching on, the freezer should
be cleaned inside. See under
“Maintenance”.
Set the thermostat control knob to a
medium setting. Allow the freezer to run
for several hours before placing food
inside.
5
TEMPERATURE CONTROL
CONTROL PANEL
The thermostat ensures that the required
temperature is maintained in the freezer.
Adjust the temperature by turning the
control knob with a coin that fits the
groove. Turning the thermostat control
knob towards. „SUPER” makes the
temperature in the freezer colder, and
turning the control knob towards no. 1
makes the temperature warmer.
The correct setting can be found by
measuring the temperature of the top
package in the middle of the freezer. This
should not have a temperature warmer
than -18°C.
The red signal light remains illuminated to
indicate that the internal temperature of
the appliance is correct for safe storage of
frozen food. If the temperature os too high
in the appliance the light will go out.
The light may go out the following
reasons:
There is a power failure.
The lid has been recently opened.
A large quantity of food has been
added to the appliance.
There is a fault.
Thermostat
control knob
Signal
light
FREEZING
OPENING/CLOSING THE LID
The lid is fitted with a tightly closing sealing
strip to prevent moisture getting inside the
freezer and increasing the amount of frost
formed. When the lid is opened the air
inside the freezer becomes slightly warmer
and expands. As soon as the lid is closed
again the air is cooled immediately. This
may lead to the creation of a vacuum which
makes it hard to open the lid immediately
after it has been closed. This is quite
normal. Wait a few minutes until the
vacuum has disappeared, then open the
lid by pulling gently. Never pull the handle
violently.
6
It is important that fresh food placed in the
freezer is frozen quickly, and that the food
already in the freezer is heated as little as
possible. If more than 3-4 kg of food is to
be frozen:
Turn the thermostat button to the
coldest setting (“SUPER.”). The
freezer will now run continuously,
creating a sufficient reserve of the
temperature required.
Turn the thermostat button 6-24 hours
before placing new food in the freezer,
depending on how much food is to be
frozen.
Place the food in the freezer and leave
the thermostat set at “SUPER.” for
about 24 hours more.
Then turn the thermostat button back
again. The freezer will return to normal
storage temperature. If you forget to
turn the thermostat control knob back,
the freezer will not be damaged but
energy will be wasted.
PACKAGING AND POSITIONING
Food must be cold before freezing (no
warmer than room temperature).
Food must be packed in airtight and
moisture-proof packaging to prevent it
from drying out.
Place fresh food for freezing close to
the cold sides of the freezer, making
sure that it is not in contact with the
frozen food already in the freezer.
Never fill the freezer to more than
5 mm below the top edge.
See under “Helpful hints”.
CAPACITY
The freezing capacity of the freezer is
stated in the data plate (kg/24 hours). Do
not exceed the amount stated - if you do,
the freezing time will be extended. The
data plate is located inside the lid.
IMPORTANT
If you wish you freeze food several
days in a row, please observe a
maximum capacity of 2/3 of that on
the data plate. The quality if the
food is best preserved when it is
frozen right throught to the core as
quickly as possible.
FREEZING
CAPACITY
7
BASKETS
The baskets are designed for the storage
of food which has already been frozen.
The basket(s) can be hung on the edge of
the casing. Extra baskets are available
from Expert Appliance Care.
STORAGE
Frozen food can be stored anywhere
inside the freezer, but should be kept at
least 5 mm below the top edge. Never
exceed the maximum storage time for
purchased frozen food.
When you buy frozen food, make sure that
it has been stored at the correct
temperature. Do not buy products which
have wet or damaged packaging. Place
purchased products in your freezer as
quickly as possible. We recommend using
an insulated bag to bring such products
home with you. Never place bottles, warm
objects, or fizzy drinks in the freezer.
FREEZING
Only use fresh food of the best quality.
Cool hot dishes to room temperature as
quickly as possible before placing them in
the freezer. Wrap food carefully in freezer
foil, or use the special freezer boxes or
bags which are on the market. Divide food
into small portions before freezing - this
ensures that freezing is more rapid, and
means that you only need to defrost the
amount
needed
for
immediate
consumption. Remember that defrosted
food must not be re-frozen. However,
dishes which have been cooked using
defrosted fresh food may be frozen. Mark
the freezer packaging with the date of
freezing. We recommend keeping a
record of the contents of your freezer. If
freezing is too slow, the quality of the food
being frozen deteriorates. Consequently,
do not freeze larger amounts than stated
in the freezer’s data plate. If you wish to
freeze food several days in a row, the
maximum freezing capacity stated per day
8
is reduced by about one-third. As far as
possible, keep the lid closed during
freezing. If you know nothing about home
freezing, we recommend that you
purchase a book containing advice and
guidelines.
DEFROSTING
In general food should not be defrosted at
room temperature, since this increases
the risk of bacteria growth. It is best to
defrost large portions of meat or poultry in
the refrigerator, and this also applies to
food which is to be consumed as it is (e.g.
fruit, butter and sliced meat). Small
portions of food can be cooked straight
from the freezer. A good number of readyto-cook dishes can also be cooked
without defrosting. Always observe the
instructions on product packaging. Bread
tastes good when defrosted in a moderate
oven. Microwave ovens can be used for
the rapid defrosting of most frozen foods.
Observe the instructions for use of the
microwave oven concerned,especially
regarding foil dishes.
EXTERNAL CLEANING
Wash the outer cabinet with warm soapy
water. Do NOT use abrasive products.
WHEN NOT IN USE
Disconnect the appliance from the
electricity supply.
Remove all goods from the freezer.
Clean the freezer as described above.
Leave the lid slightly open.
HOW TO CLEAN YOUR
FREEZER INSIDE
Remove the plug from the mains socket,
and remove all loose accessories before
cleaning the freezer. The best time to
clean your freezer is after defrosting and
before the electricity supply is connected
again. Use a damp cloth to clean your
freezer. Use hot water, and a mild, nonaromatic cleaning agent. After cleaning
the freezer, clean the basket/baskets
before replacing them.
IMPORTANT
Never use strong cleaning agents,
scouring powder or strongly
aromatic cleaning agents to clean
your freezer inside, since this will
damage the inside and leave a
strong smell.
9
SOMETHING NOT WORKING
If the appliance is not working correctly, please carry out the following checks before calling
out an engineer.
Solution
Connect plug to the power
supply.
Replace the fuse if necessary.
Leave the lid closed and wait for
the power supply to be
restored.
The thermostat control knob is Turn the thermostat control knob
set correctly relevant to the to the appropriate setting
(colder).
ambient conditions.
Check that the ambient Relocate the appliance.
conditions.
Check that the ambient
temperature is within the
appliance’s operating limits of
10°C - 32°C.
Fresh food has recently been
placed in the freezer.
The lid has recently been If it has wait a few minutes for the
pressure inside the freezer to
opened.
the equalise and then open the
lid.
Do not put excessive force on
the handle.
The thermostat control knob is Turn the thermostat control knob
set correctly relevant to the to the appropriate setting
(warmer).
ambient conditions.
Rearrange the stored food so
The lid closes correctly.
that the lid can be closed
correctly.
There is a large amount of Ensure that all food placed in the
moisture from the packaging of freezer is wrapped in airlight dry
packaging.
stored food.
Symptom
Check if....
No power to the Plug not connected properly.
appliance .
Faulty fuse in the plug.
There is a power failure.
The temperature in
the freezer is too
warm.(red light off)
The lid will not open.
Excessive frost and
ice has built up.
If you require further information regarding the, terms and conditions of the guarantee, or
wish to call out an engineer please contact Expert Appliance Care by telephoning:
0870 9099100
10
11
Printed by Xerox Hungary Ltd.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
