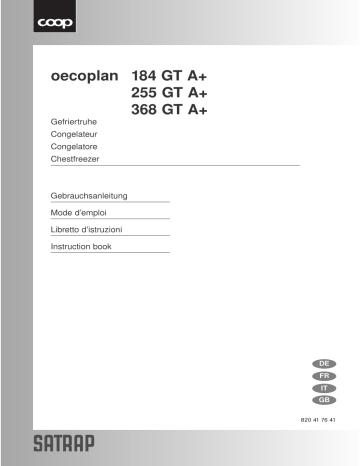

oecoplan 184 GT A+
255 GT A+
368 GT A+
Gefriertruhe
Congelateur
Congelatore
Chestfreezer
Gebrauchsanleitung
Mode d’emploi
Libretto d’istruzioni
Instruction book
DE
FR
IT
GB
820 41 76 41
FREEZING
CAPACITY
5.
1.
6.
2.
7.
3.
8.
4.
2
9.
10.
11.
12.
3
GB
CONTENTS
TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Warnings and Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
In The Interests Of The Environment: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Switching On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
HOW TO USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Temperature Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Opening/Closing the Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Packaging and Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Baskets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
The role of the pressure equalisation valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
LOW FROST SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HELPFUL HINTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Freezing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Defrosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
How to Clean Your Freezer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
external cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
When Not in Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
IF SOMETHING DOES NOT WORK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
In the case of a power failure or breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
How to Change the Bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
GUARANTEE CONDITIONS AND SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Service and spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
TECHNICAL SPECIFICATIONS
Model
Volume (gross)
Volume (net)
Height without/with roller
Width
Depth
Weight
Energy consumpt./24h
Freezing capacity
Hold-over time
Rated power
litres
litres
cm
cm
cm
kg
kWh
kg/24h
hours
W
184 GT
189
184
87,6/88,3
93,5
66,5
45
0,529
23
46
75
255 GT
261
255
87,6/88,3
119
66,5
57
0,641
27
50
100
368 GT
378
368
87,6/88,3
160
66,5
69
0,800
29
55
140
Before installing and using the appliance read this user's instruction book carefully. It contains safety precautions,
hints, information and ideas. If the refrigerator is used in compliance with the instructions written, it will operate
properly and provide you with greatest satisfaction.
The symbols below help you to find things more easily:
Safety precautions
Warnings and information at this symbol serve safety for you and your appliance.
Hints, useful information
Environmental information
23
GB
SAFETY INSTRUCTIONS
WARNINGS AND GUIDELINES
These warnings are provided to improve safety, and should
be read carefully before installing or using your freezer.
IMPORTANT
It is vital that these instructions are kept with the
freezer for future use. If the freezer is sold or given to
another user, or if you move and leave the freezer
behind, you must ensure that the instructions
accompany the freezer to enable the next user to use
the freezer correctly and read the relevant warnings.
This freezer is only intended for the freezing and
storage of food.
This freezer should only be operated by adults.
Children must not be allowed to tamper with the
control buttons or play with the freezer.
Changes in the electrical mains system in connection
with the installation of this freezer should always be
carried out by an authorised electrician or competent
person.
Do not under any circumstances attempt to repair the
freezer yourself. Repairs carried out by untrained
people may result in personal injury or serious
malfunction of the freezer.
Service of the freezer should be carried out by an
authorised service company, and only original spare
parts should be used. See under “Guarantee
Conditions and Service”.
It is dangerous to alter the freezer specifications, or
to change the freezer in any other way.
Make sure that the freezer is not placed on top of the
mains cable.
Do not re-freeze food once it has been defrosted.
Observe the recommendations for storage carefully.
See under “Helpful Hints”.
This freezer includes components that are heated
during operation. Consequently, adequate ventilation
must always be provided. If ventilation is insufficient
defects may occur, resulting in the loss of food. See
under “Installation”.
The inside of the freezer contains pipes through which
coolant flows. If these pipes are punctured the freezer
may be damaged beyond repair, and food may be lost.
Do not use sharp implements to remove frost or ice.
Frost can be removed using the enclosed scraper. Do
not knock ice off the sides of the freezer, but remove it
by defrosting the freezer. See under “Maintenance”.
Do not place drinks in the freezer. Bottles and cans
containing carbonic acid or sparkling drinks are
particularly prone to explosion, which may damage
the freezer.
This freezer is heavy. Take care when moving it.
If the freezer is fitted with a lock to prevent tampering
by children, the key must always be kept safely out of
the reach of children, and far away from the freezer.
Before disposing of an old freezer, make sure that the
lock (if present) no longer works. This is to prevent
24
accidents and avoid the danger of children getting
locked inside.
Ice lollies can cause frostbite if eaten direct from the
freezer.
Make sure that the power plug is not squashed
or damaged by the back of the fridge/freezer.
- A damaged power plug may overheat and cause a
fire.
Do not place heavy articles or the fridge/freezer
itself on the power cord.
- There is a risk of a short circuit and fire.
Do not remove the power cord by pulling on its
lead, particularly when the fridge/freezer is
being pulled out of its niche.
- Damage to the cord may cause a short-circuit, fire
and/or electric shock.
- If the power cord is damaged, it must be replaced
by a certified service agent or qualified service
personnel.
If the power plug socket is loose, do not insert
the power plug.
- There is a risk of electric shock or fire.
IN THE INTERESTS OF THE
ENVIRONMENT:
When disposing of your old fridge, freezer or
fridge/freezer:
Check with your local Council or Environmental Health
Officer to see if there are facilities in your area for
collecting the gas from the appliance for recycling. This
will help reduce the amount of CFC gas released into the
atmosphere. Help to keep your country tidy - when
disposing of an old appliance or a CFC free appliance
use an authorised disposal site.
INSTALLATION
POSITION (1)
Place the freezer horizontally on a firm surface,
resting on all four plastic feet. Use a wooden block or
similar object to compensate for any bumps/holes in
the surface.
The room should be dry and adequately ventilated.
If the room temperature exceeds 43 °C, or falls below
freezing point, the freezer will not function as it should.
Climate
Ambiente temperature
category
from ... to
SN
+10 to + 32 °C
N
+16 to + 32 °C
ST
+18 to + 38 °C
T
+18 to + 43 °C
Do not place the freezer close to sources of heat,
radiators, chimneys, etc., and do not place the
freezer in direct sunlight.
If the freezer has been handled standing on end it
should be allowed to stand in normal position for
about 12 hours before switching it on.
Please ensure that when the appliance is installed it
is easily accessible for the engineer in the event of a
breakdown.
GB
SWITCHING ON (2)
Before switching on, the freezer should be cleaned
inside. See under “Maintenance”.
Set the thermostat button in middle position. Allow the
freezer to run for several hours before placing food inside.
ELECTRICAL REQUIREMENTS
Before switching on, make sure that the voltage of your
electricity supply is the same as that indicated on the
rating plate, located inside the lid.
Warning:
This appliance must be earthed.
this appliance complies with the following EC
Directives:
- 73/23/EEC of 19. 02. 1973 - Low-Voltage Directive
- 89/336/EEC of 03. 05. 1989 (including Amendment
Directive 92/31/EEC - EMC Directive.
Some of the models are not available in all countries.
Testing has been carried out in accordance with ISO
5155 regarding the determination of freezer capacity,
energy consumption and hold-overtime.
Information for test institute: A plan of the positioning of
test packages may be obtained directly from the
manufacturer.
HOW TO USE
TEMPERATURE CONTROL (3)
The thermostat ensures that the required
temperature is maintained in the freezer. Adjust
the temperature by turning the button with a coin that fits
the groove. Turning the thermostat button towards no.
„MAX” makes the temperature in the freezer colder, and
turning the button towards no. „1” makes the
temperature warmer. The correct setting can be found by
measuring the temperature of the top package in the
middle of the freezer. This should not have a temperature
higher than –18°C.
OPENING/CLOSING THE LID
The lid is fitted with a tightly closing sealing strip to
prevent moisture getting inside the freezer and
increasing the amount of frost formed.
When the lid is opened the air inside the freezer
becomes slightly warmer and expands.
As soon as the lid is closed again the air is cooled
immediately.
This may lead to the creation of a vacuum which makes it
hard to open the lid immediately after it has been closed.
This is quite normal.
Wait a few minutes until the vacuum has disappeared,
then open the lid by pulling gently. Never pull the handle
violently.
CONTROL PANEL (4)
The green light is illuminated as long as the freezer
is connected.
The yellow light is illuminated when the “Super” button is
depressed. See under “Freezing”.
The red light is illuminated when the temperature in the
freezer is higher than the thermostat setting (alarm).
1. Red light
2. Yellow light
3. Thermostat button
4. Green light
5. SUPER button
The red alarm light can be due to:
Insertion of a large amount of fresh food. The red
alarm light will go out after a while.
Opening the lid too long. The red alarm light will go
out after a while.
A defect in the system. See under “If something does
not work”.
FREEZING
It is important that fresh food placed in the freezer
is frozen quickly, and that the food already in the
freezer is heated as little as possible in this connection.
If more than 3-4 kg of food is to be frozen:
Press the square “Super” button (yellow light comes
on). The freezer will now run continuously, creating a
sufficient reserve of the temperature required.
Press the “Super” button 6-24 hours before placing
fresh food in the freezer, depending on how much
food is to be frozen.
Place the food in the freezer and leave the “Super”
button on for about 24 hours more.
Then press the “Super” button again (yellow light
goes off). The freezer will return to normal storage
temperature. If you forget to press the “Super” button
again, the freezer will not be damaged by running at
the “Super” setting for some time - but energy will be
wasted.
PACKAGING AND POSITIONING
Food must be cold before freezing (no more than
room temperature).
Food must be packed in airtight and moisture-proof
packaging to prevent it from drying out.
Place fresh food for freezing close to the cold sides
of the freezer, making sure that it is not in contact with
the frozen food already in the freezer.
Never fill the freezer to more than 5 mm below the top
edge.
See under “Helpful hints”.
CAPACITY (5)
The freezing capacity of the freezer is stated in the data
plate (kg/24 hours). Do not exceed the amount stated - if
you do, the freezing time will be extended. The data plate
is located inside the lid.
IMPORTANT
The freezing capacity stated can be utilised to the
full occasionally to freeze large amounts of fresh
25
GB
food. However, if the freezer is filled with large
amounts of food for freezing every day, the capacity
stated is reduced by about one-third.
HELPFUL HINTS
LOCK (6)
Frozen food can be stored anywhere inside the
freezer, but should be kept at least 5 mm below
the top edge. Never exceed the maximum storage time
for purchased frozen food. When you buy frozen food,
make sure that it has been stored at the correct
temperature. Do not buy products which have wet or
damaged packaging. Place purchased products in your
freezer as quickly as possible. We recommend using an
insulated bag to bring such products home with you.
Never place bottles, warm objects, or fizzy drinks in the
freezer.
(Not a standard accessory for all models.) The lock works
as shown in the drawings. Remember to keep the key out
of the reach of children.
BASKETS (7)
The baskets are designed for the storage of food which
has already been frozen. The handles can be placed in
two positions, as shown in the drawings.
The baskets can either be placed inside the freezer or
hung on the edge of the casing.
THE ROLE OF THE PRESSURE
EQUALISATION VALVE (9)
The pressure equalisation valve installed in your freezer
automatically eliminates the pressure difference which
otherwise would make it very difficult or even impossible
to open the lid.
It may be possible to hear the operation of the valve as
the air flows in through the airing outlet in the rear wall of
the cabinet.
For a safe operation, keep the two openings of the valve
clear, do not cover them!
LOW FROST SYSTEM
The patented LOW FROST System reduces the ice-buildup in the chest freezer by up to 80 percent, which results
in up to five times longer periods between the
requirement to defrost. To get the full benefit of the
system, please observe the following points:
The amount of ice-build-up in any freezer is very much
dependent of the moisture of the surrounding air. The ice
will build up quicker in a humid climate than in a dry climate.
Therefore you should avoid installing your freezer in very
humid surroundings. The LOW FROST system minimizes
the amount of ice caused by the natural temperature
cycle of the freezer. However, ice-build-up from other
sources is not reduced. The most important other
sources are poorly wrapped food and warm air
introduced when the lid is opened.
Therefore, it is important to ensure that the lid isn’t
opened unnecessarily, and the lid is not obstructed by
packs of food when closed.
If food stored in the freezer is not wrapped properly,
humidity from the food will settle as ice on the freezer
walls. Food quality will also deteriorate, so ensure that
food put in the freezer is wrapped well.
Maintenance and Cleaning. The LOW FROST system
does not need any maintenance or cleaning during
normal use. If needed the pipe can be wiped with a soft
cloth. Do not use any sharp or piercing tools, as this may
damage the system.
26
STORAGE
FREEZING
Only use fresh food of the best quality. Cool hot
dishes to room temperature as quickly as possible
before placing them in the freezer. Wrap food carefully in
freezer foil, or use the special freezer boxes or bags
which are on the market. Divide food into small portions
before freezing - this ensures that freezing is more rapid,
and means that you only need to defrost the amount
needed for immediate consumption. Remember that
defrosted food must not be re-frozen. However, dishes
which have been made using defrosted food may be
frozen. Mark the freezer packaging with the date of
freezing. We recommend keeping a record of the
contents of your freezer. If freezing is too slow, the quality
of the food being frozen deteriorates. Consequently, do
not freeze larger amounts than stated in the freezer’s data
plate. If you wish to freeze food several days in a row, the
maximum freezing capacity stated per day is reduced by
about one-third. As far as possible, keep the lid closed
during freezing. If you know nothing about home
freezing, we recommend that you purchase a book
containing advice and guidelines.
DEFROSTING
In general food should not be defrosted at room
temperature, since this increases the risk of
bacteria growth. It is best to defrost large portions of
meat or poultry in the refrigerator, and this also applies to
food which is to be consumed as it is (e.g. fruit, butter
and sliced meat). Small portions of food can be cooked
straight from the freezer. A good number of ready-tocook dishes can also be cooked without defrosting.
Always observe the instructions on product packaging.
Bread tastes good when defrosted in a moderate oven.
Microwave ovens can be used for the rapid defrosting of
most frozen foods. Observe the instructions for use of
the microwave oven concerned.
ACCESSORIES (10)
Spare baskets can be obtained from Coop. The
illustrations on this page show how many baskets
can be placed in the various freezer models. Measure the
length of your freezer and find the appropriate illustration.
The number above each illustration indicates its length in
millimetres.
GB
MAINTENANCE
HOW TO CLEAN YOUR FREEZER INSIDE
DEFROSTING (8)
The formation of frost on the inside of freezers cannot be
avoided. Frost is formed when moisture contained in the
air comes into contact with the cold surfaces of the
freezer.
Consequently, the lid should only be opened when
necessary, and it should never be left open.
A thin layer of ice or frost does not affect the function of
the freezer adversely, and can be removed carefully
using the scraper provided.
IMPORTANT
Never use a knife or any other sharp implement to
remove frost.
When the frost or ice layer is 10-15 mm thick, the freezer
should be defrosted. We suggest that you defrost your
freezer when there is little or no food inside.
Switch off the current. Remove the contents of the
freezer, wrap them in newspapers, and leave them in a
cold place.
The speed of defrosting can be increased by placing one
or more bowls of hot (not boiling) water inside the freezer
and closing the lid. Open the lid after a while, and remove
the layer of ice carefully.
The defrost water can be collected in a bowl as shown in
the drawing.
Do not try to speed up defrosting by using anything other
than hot water, since this may damage the freezer. After
defrosting, clean the inside of the freezer.
IMPORTANT
Remember to replace the plug in the drip water
drain.
Defect:
Check if:
Freezer not
cold enough
Green light not on
Freezer too
cold
Too much frost
formed
Remove the plug from the mains socket, and remove all
loose accessories before cleaning the freezer.
The best time to clean your freezer is after defrosting and
before the electricity supply is connected again.
Use a damp cloth to clean your freezer. Use hot water,
and a mild, non-aromatic cleaning agent.
After cleaning the freezer, clean the basket/baskets
before replacing them.
IMPORTANT
Never use strong cleaning agents, scouring powder
or strongly aromatic cleaning agents to clean your
freezer inside, since this will damage the inside and
leave a strong smell.
EXTERNAL CLEANING
Wash the outer cabinet with warm soapy water. Do NOT
use abrasive products.
WHEN NOT IN USE
Disconnect the appliance from the electricity supply.
Remove all goods from the freezer.
Clean the freezer as described above.
Leave the lid slightly open.
IF SOMETHING DOES NOT
WORK
IF YOUR FREEZER DOES NOT
FUNCTION SATISFACTORILY
Check the following before calling for service staff:
Possible cause:
Plug not connected correctly
Defect in switch or fuse
Power failure
Green and red light on Fresh food recently placed in freezer
Lid open too long
Green light on, red light Thermostat set too warm
Lot of frost and ice formed
not on
“Super” function active
Yellow light on
Thermostat set too cold
Yellow light not on
Lid in contact with goods in freezer
Lid does not close
completely
Moisture from washing machine,
Lot of moisture in the
tumble-dryer, etc.
room
Lot of moisture from goods
Goods packed poorly
The pressure
equalisation valve does
not close appropriately.
Some pollution has got into the
valve.
Action:
Check plug and socket
Check fuse, call electrician
Wait until current returns
Wait a couple of hours
Wait a couple of hours
Set thermostat colder
Defrost freezer
Press “Super” button out
Set thermostat warmer
Re-arrange goods, check that lid
closes correctly
Move freezer to a room with less
moisture, or air regularly
Re-pack goods, see under
“How to use”
The valve must be blown through from
the airing outlet in the rear wall.
27
GB
If you are still unable to solve the problem, summon the
assistance of authorised service staff.
Do not take any other steps. Incorrect procedure may
cause personal injury or lead to additional defects.
It is quite normal for the freezer to seem warm on the
outside occasionally, owing to the heat generated by the
freezing process. This heat also helps to prevent the
formation of moisture on the outside of the appliance
which could cause rust.
If the freezer has been switched off briefly, the
compressor may not start immediately when the current
is re-connected. This is quite normal.
IN THE CASE OF A POWER FAILURE OR
BREAKDOWN
The hold-over period mentioned in the "Technical
Specification" section of this book refers to an estimated
time the freezer temperature will take to rise to an
unacceptable level for keeping frozen foods.
Providing the period of power failure or breakdown does
not exceed the hold-over period there will be no risk of
damage to the frozen food, providing you do not open the
lid during this period.
If the freezer is only half full or the lid is opened this will
reduce the hold-over time.
After the breakdown period you are recommended to
check the condition of food to ensure it has not started to
thaw. Frozen food must NOT be re-frozen once it has
thawed out. The following guidelines should assist you.
Ice cream:
Once thawed should be
discarded.
Fruits & Vegetables: If soft should be cooked and
used up.
Breads & Cakes:
Can be re-frozen without
danger.
Shellfish:
Should be refrigerated and
used up quickly.
Cooked Dishes:
ie. casseroles should be
refrigerated and used up.
Large Pieces of Meat: Can be re-frozen providing
there are still ice crystals
remaining within them.
Small Joints:
Should be cooked and can then
be re-frozen as cooked dishes.
Chicken:
Should also be cooked and refrozen as a cooked dish.
HOW TO CHANGE THE BULB (11)
Before changing the bulb, isolate the appliance from the
electricity supply.
Unscrew the bulb, and replace it with a new bulb (max.
15W). Then reconnect the electricity supply.
28
GUARANTEE CONDITIONS AND
SERVICE (12)
GUARANTEE CONDITIONS
SERVICE AND SPARE PARTS
If calling the service is unavoidable, announce the trouble
at a brand-mark service nearest to your place.
When announcing the appliance has to be identified
according to its data label.
The data label of the appliance is stuck to the wall of the
interior beside the vegetable box in the fresh food
compartment in the bottom on the left side. All necessary
data are there which are needed to the service
announcement (type, model, serial number, etc.). Note
here the data from the data label of your appliance:
Model
Product No.
Serial No.
Date of purchase:
29
30
31
Printed by Xerox Hungary Ltd.
Service-Hotline 0848 811 222
Service après-vente
Ch. Veyre-d’en-Haut
1806 St-Légier
Fax 021 652 37 88
2004. 03. 16.
Servicestelle Wangen
Postfach
4612, 4002 Wangen bei Olten
Telefon 062 206 33 55
Fax 062 206 33 12
*Tarif interurbain/Fernbereich/Area discosta
Info Service
Postfach 2550, 4002 Basel
Info - Tel. 0848 888 444*
www.coop.ch
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
