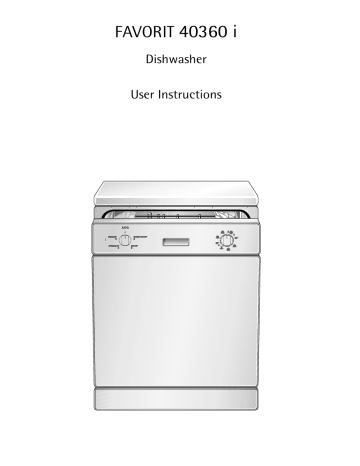

FAVORIT 40360 i
Dishwasher
User Instructions
Dear customer,
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
ofthese user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step for step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your nearest customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time (you will find
addresses and telephone numbers in the "Customer Service Centres"
section).
In this respect please read the "Service" note on the rear of these user
instructions.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
Contents
CONTENTS
Operating Instructions
....................................
5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Special Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . .
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
10
11
12
13
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Use of "3 in 1"/ Combi Detergent Tablets . . . . . . . . . . . . . . . . . . . . . . . .
Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Starting the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing/Interrupting the Wash Programme . . . . . . . . . . . . . . . . . . . .
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
14
15
16
18
19
20
21
22
23
23
24
24
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
What to do, when ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
...there are problems with the operation of the dishwasher. . . . . . . . . . . . 26
...the wash result is unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
Contents
Installation and Connection Instructions . . . . . . . . . . . . . . . .
30
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
32
32
32
34
35
35
36
Service Departments
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Belgium . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Guarantee Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Belgium . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Service
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your supplier.
• Prior to placing the appliance in operation, ensure that the nominal
voltage and type of supply on the rating plate match that of the supply where the appliance is to be installed. The fuse rating is also to be
found on the rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the „Installation“ section. Multiway plugs / connectors and extension cables must not be used. This could constitute
a safety hazard.
Child Safety
• Children often do not recognise the hazards associated with the use
of electrical appliances. It is therefore important that you ensure
children are adequately supervised and that you do not allow children to play with the dishwasher – there is a risk that children can
shut themselves inside the appliance (risk of suffocation!).
• Packaging materials (e.g. films, styrofoam) can be dangerous for children. Risk of suffocation! Keep packaging away from children.
• Detergents can cause burns to the eyes, mouth, and throat, or even
cause choking! Please observe the manufacturer's safety instructions
for cleaners and detergents.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of the dishwasher: unplug from the mains, cut off
and dispose of the mains cable. Break the door lock so that the door
no longer shuts.
5
Operating Instructions
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact customer
service or your dealer.
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG customer service) must be replaced
by a service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Sharp knives and other item of cutlery with sharp edges must be laid
in the upper rack or placed in the cutlery rack with the point facing
downwards.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Prior to use, ensure that the manufacturers of the special salt, detergent, and rinse aid employed specifically permit the usage of their
products in household dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
6
Operating Instructions
• Do not sit or stand on the open door, the appliance may tip over.
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: switch off the fuse(s) or unscrew them.
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of old appliances
As and when you cease to use your dishwasher, please take it to a recycling centre or to your dealer who will, for a small contribution to the
costs, dispose of it for you.
2
Economical and Ecological Dishwashing
• Only connect the dishwasher to the hot water supply if your hot
water is not electrically heated.
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the manufacturer of
the respective product.
7
Operating Instructions
Appliance Features and Control Panel
Rubber Seal for
Connecting the
Water Feed to the
Upper Spray Arm
Spray Arms
Water Hardness Switch
Container for
Special Salt
Container
for Rinse Aid
Container for
Detergent
Rating Plate
8
Filters
Operating Instructions
Control Panel
Power Indicator Light
Door Handle
Programme Selector
Programme Switch
Set the point at which the wash programme is to start using the programme switch. The programme switch rotates during the wash programme and indicates the position that has been reached in the
programme.
Switch on the dishwasher and start a wash programme using the programme selector.
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Special Salt for the Water Softener
3. Fill with Rinse Aid
3
Special salt and rinse aid must not be added if you use 3-in-1 detergent
tablets.
9
Operating Instructions
Adjusting the Water Softener
To prevent the build up of scale on dishes and in the dishwasher, the
dishes must be washed with soft, i.e. low lime content water. For this
reason the dishwasher is fitted with a water softener in which tap
water from a hardness of 4 °d (German degrees) is softened with the
aid of special salt.
3
Your local water authority can advise you on the hardness of the water
in your area.
The water softener has 4 settings.
Water Hardness
in °d1)
in ppm
2)
Turn the arrow on the
water hardness switch to number
36-50
22-35
640 - 900
390 - 630
4
3
15-21
260 - 380
2*
4-14
70 - 250
1
under 4
under 70
1
no salt necessary
1)(°d) German degree, measure of water hardness
2)(ppm) parts per million (CaCO3)
*Factory setting
0
10
Adjust the water softener in accordance with the table to suit your area:
1. Open the door on the dishwasher.
2. Remove the lower rack from the
dishwasher.
3. Turn the water hardness switch to 1,
2, 3 or 4.
4. Replace the lower rack and close the
door of the dishwasher.
Operating Instructions
Filling with Special Salt for the Water Softener
1
Use only special salt for dishwashers. Never fill the salt container with
any another type of salt (e.g. culinary salt) or dishwasher detergent.
This would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of special salt in your hand.
Fill with special salt:
– Prior to using the dishwasher for the first time
– If a green mark can be seen under the lid of the special salt container,
then there is sufficient special salt. If the green mark cannot be seen,
you must refill the container with special salt.
3
If the water hardness in your area is less than 4 °d, you do not need to
use special salt. The green mark will then not be visible. The function of
the appliance is not impaired.
0 1. Open the door, remove the lower
rack.
2. Undo the lid on the salt container by
turning it anticlockwise.
3. Only when using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the container opening.
Fill the container with special salt
through the funnel; the capacity of
the container is approx. 1.0-1.5 kg
depending on the grain size. Do not
overfill the salt container with special salt.
3
LE
SA ALT Z
S AL
S EL
S
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into
the wash water, this could lead to poor wash results. To avoid this run a
rinse programme after filling the salt container with special salt. This
will wash away salt water and any salt crystals that have been spilt.
11
Operating Instructions
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and the green mark to become visible
again. The setting of the water softener and thus the consumption of
salt are dependent on the hardness of the local water.
3
Filling with Rinse Aid
Rinse aid ensures that your dishes gleam and are free from spots, and
that you glasses are clear.
1
Use only branded rinse aid for dishwashers. Never fill the rinse aid container with any another substance (e.g. concentrated vinegar). This
would damage the appliance.
Fill with rinse aid:
– Prior to using the dishwasher for the first time
– When a dark point surrounded by a light ring is to be seen in the
indicator window on the container. If there is rinse aid in the container, the indicator window is uniformly dark.
The rinse aid compartment is on the inside of the dishwasher door.
0 1. Open the door.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
12
Operating Instructions
4. Fill with rinse aid exactly up to the
level marked “max”; this corresponds
to a quantity of approx. 140 ml.
5. Close the lid and press until it locks
into place.
6. Wipe up any spilt rinse aid with a
cloth. Otherwise too much foam will
be formed during the wash.
Adjusting Rinse Aid Dosing
3
As the dishes are washed rinse aid is released from the dispenser into
the wash water. The dose is factory set at 4, and can be adjusted from
1 to 6. Only change the setting if streaks, milky spots or dried on water
marks are visible on glasses or crockery.
0 1. Open the door of the dishwasher.
2. Press the rinse aid compartment
release button with your finger.
3. Fully open the rinse aid compartment
lid.
4. Set the dose level.
5. Close the lid and press until it locks
into place.
6. If rinse aid has run out, wipe up with
a cloth.
13
Operating Instructions
In Daily Use
• Is it necessary to refill with special salt or rinse aid?
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
Loading cutlery and dishes
1
Sponges, household cloths and any object that can absorb water may
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with cement that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
14
Operating Instructions
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
Loading Cutlery
Long, pointed items of cutlery in the
cutlery rack are a hazard, particularly
to children (see Safety Instructions).
They should therefore be placed in
the upper rack.
To ensure that all items of cutlery are
completely washed, you should
1. Place the grid insert on the cutlery
rack
2. Place short knives, forks and spoons
in the grid insert with their handles
pointing downwards.
1
15
Operating Instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower rack (Plates up to 29cm
in diameter).
Your dishwasher has one of the following four types of lower rack:
Type 1: None of the plate inserts in the lower rack can be removed
Type 2: The right-hand plate inserts in the lower rack can be
folded over to the left
To ease the loading of large items,
the two right-hand plate inserts in
the lower rack can be folded over to
the left:
0 1. Slightly lift the right plate insert.
3
2. Fold the plate insert to the left.
16
Operating Instructions
Type 3: The right-hand plate inserts in the lower rack can be
folded across one another
3
To ease the loading of large items,
the two right-hand plate inserts in
the lower rack can be folded across
one another.
Type 4: The two rear plate inserts in the lower rack can be folded
across one another
3
To ease the loading of large items,
the two rear plate inserts in the lower
rack can be folded across one
another.
17
Operating Instructions
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
18
Operating Instructions
Filling with Detergent
1
Only use dishwasher detergent.
Fill with detergent:
– Prior to the start of a wash programme (not for the pre wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.
The detergent compartment is on the
inside of the dishwasher door.
0 1. If the lid is closed:
press release button (1).
The lid springs open.
2
2. Fill the detergent dispenser with
detergent. The markings indicate the
dosing levels:
“20” corresponds to approx. 20 ml of
detergent,
“30” corresponds to approx. 30 ml of
detergent.
3. Close the lid and press until it locks
into place.
3
If the dishes are very heavily soiled
put additional detergent into the
adjacent chamber (2). This detergent
will take effect during the pre wash.
19
Operating Instructions
Use of "3 in 1"/ Combi Detergent Tablets
General Advice
These products are tablets with combined detergent/rinse-aid and salt
functions.
0 1. Before using these products you should first check that the water hardness in your supply is compatible with the use of these products as per
the detergent manufacturers instructions (on the product packaging).
2. These products should be strictly used according to the detergent manufacturers instructions.
Do not place the tablets in the tub or the cutlery basket as this will
result in poorer wash results. The tablets should be placed in the
detergent doser.
3. If you encounter problems when using "3 in1" products for the first
time then please contact the detergent manufacturers care line (the
telephone number is given on the product packaging).
1
Special Advice
When using combination products, the rinse-aid and salt lights are no
longer useful. It may be helpful therefore to switch the rinse aid off please note that only some dishwashers have this facility - and selecting the lowest possible setting for water hardness.
For more information please refer to your instruction manual.
If you decide to switch to the use of a standard detergent system we
advise that you:
• Refill both the salt and rinse aid compartments.
• Switch the waterhardness setting to the highest possible position
and run for three normal cycles without a load.
• Readjust the waterhardness setting again according to the conditions
for your region (as per the instruction manual).
20
Operating Instructions
Bio Wash Programmes and Concentrated Detergents
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– Conventional, alkaline detergents with caustic components
– Weak alkaline concentrated detergents with natural enzymes.
2
The use of BIO wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; the BIO wash
programmes are specially matched to the soil dissolving properties of
the enzymes in the concentrated detergent. It is for this reason that
BIO wash programmes can achieve the same results at 50 °C that can
otherwise only be achieved using 65 °C programmes.
3
Detergent tablets from different manufacturers dissolve at different
rates. For this reason some detergent tablets cannot develop their full
cleaning power during short programmes. Therefore please use normal
programmes with pre wash when using detergent tablets.
21
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of Dishes
Dinner Service and Cooking Utensils
In Addition
Type of Soiling
-
with nontemperature
resistant dishes
-
• heavily soiled • normally
soiled
• dried leftovers
• normally to
lightly soiled
Coffee Service
and Dessert
Dishes
with delicate
glasses
• lightly soiled
particularly suited to the use
of concentrated detergents
NORMAL
NORMAL BIO
ECO
QUICK
Turn programme
switch to
A
A
B
C
Turn programme
selector to
NORMAL
65°
ECO 50°
QUICK 50°
Suitable Wash
Programme:
Programme Sequence 1) Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
Consumption Figures: 1)
22
NORMAL
BIO 50°
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
2)
Main Wash
Rinsing
Final Rinse
Drying
Main Wash
Rinsing
Final Rinse
-
Duration
94 minutes
90 minutes
84 minutes
34 minutes
Energy
1.45 kWh
1.24 kWh
1.24 kWh
0.8 kWh
Water
18 litres
18 litres
14 litres
14 litres
1)
The consumption figures were measured under standard conditions. They are dependent on the
loading of the racks. Variations from these figures are therefore possible in practice.
2)
Test Programme
Operating Instructions
Starting the Wash Programme
0 1. Check that the dishes and cutlery are loaded into the dishwasher in
such a manner that the spray arms are free to rotate.
2. Open the tap fully.
3. Close dishwasher door.
4. Turn the programme switch clockwise to A, or B or C (see „ Programme
Table“).
For interference suppression reasons, only operate the programme
switch with the dishwasher switched off. It is also possible that the
automated addition of detergent will be triggered.
5. Turn the programme selector to the required programme (see „ Programme Table“).
Power indicator light illuminates. The selected wash programme starts.
The programme switch rotates during the wash programme and indicates the position that has been reached in the programme.
1
1
If a wash programme has been started even though the tap was closed,
turn the programme selector to the I position, open the tap and start
the programme again.
Changing/Interrupting the Wash Programme
Only change or interrupt a wash programme in progress if it is absolutely necessary. When the appliance is closed again, the air that has
entered is heated rapidly and expands. This can cause water to escape
onto the floor and possibly trigger the anti-flood system.
3
Changing the wash programme
0 1. Turn the programme selector to the I position. Power indicator light
goes out, wash programme stops.
Hot steam can escape when the door is opened. There is a risk of scolding! Open the door carefully.
2. Open dishwasher door and check whether there is still detergent in the
container. Refill the container if necessary.
3. Close dishwasher door.
4. Turn the programme switch clockwise to A, or B or C (see „ Programme
Table“).
5. Turn the programme selector to the required programme (see „ Programme Table“). Power indicator light illuminates, wash programme
starts.
1
23
Operating Instructions
Interrupting the wash programme by opening the door of the dishwasher
Hot steam can escape when the door is opened. There is a risk of scolding! Open the door carefully.
0 1. Open the door of the dishwasher. The wash programme stops.
2. Shut the door. The wash programme continues.
1
Switching Off the Dishwasher
When the wash programme is finished:
0 1. Turn the programme selector to the I position. Power indicator light
goes out.
Hot steam may escape if the door is opened immediately after the end
of the programme. Therefore:
2. Open the door carefully.
1
Emptying the Dishwasher
3
• Hot dishes are sensitive to knocks. The dishes should therefore be
allowed to cool down before removing them from the appliance.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• Empty the lower rack first, then the upper rack. In this way you will
avoid any water left on the upper rack dripping onto the dishes in the
lower rack and causing water spots.
Care and Cleaning
1
24
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Operating Instructions
Cleaning the Filter
The filters in the base of the washing compartment are to a large
extent self-cleaning.
Nevertheless the filters should be
checked and cleaned from time to
time. Dirty filters will degrade the
washing result.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1)
by the handle with the hole and
remove from the microfilter (2)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (3) from the
base of the washing compartment
and clean both faces thoroughly
3
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
Under no circumstances may the
dishwasher be used without filters.
25
Operating Instructions
What to do, when ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call in customer service to resolve one of
the malfunctions listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit is not free of
charge, even during the period of guarantee.
...there are problems with the operation of the dishwasher.
Malfunction
Possible Cause
The drain pump in the
dishwasher runs conThe anti-flood system has
tinuously - even with
been triggered.
the appliance switched
off.
Remedy
Close the tap, then unplug
from the mains and
contact customer service.
The door of the dishwasher is
Shut the door.
not closed properly.
Mains plug is not plugged in. Insert mains plug.
The programme does
not start.
26
House fuse in defective.
Replace fuse.
In the case of dishwasher
models with start delay
timer:
A start delay is selected.
If dishes are to be washed
immediately cancel delay
start timer.
The washing compartment is
made of corrosion-resistant
stainless steel. Rust spots in
the washing compartment
Rust spots are visible in are from particles from outthe washing compart- side the appliance (rust particles from the water pipe,
ment.
from pans, cutlery, etc.).
Remove such spots with a
commercially available stainless steel cleaner.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the lid of the special
salt container securely.
Operating Instructions
...the wash result is unsatisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were arranged in such a manner that water has not
reached all parts. The dish racks must not be overloaded.
– The filter in the base of the washing compartment is dirty or incorrectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: the special salt container
is empty or the water softener is incorrectly adjusted.
– The drain hose is incorrectly laid.
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Decrease rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.
27
Operating Instructions
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x W x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated, Built-In Dishwashers
Dimensions:
820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight:
50 Kg
Dishwashers that Can Be Fully Integrated
Dimensions:
820 – 880 x 596 x 546 - 550 (H x W x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
28
Operating Instructions
Notes for Test Institutes
Testing in accordance with EN 60704 must be carried out with the
appliance fully loaded and using the test programme (see Programme
Table).
Tests in accordance with EN 50242 must be carried out when the salt
dispenser and rinse aid container have been filled with salt and rinse
aid respectively and using the test programme (see Programme Table).
Full Load:
12 place settings
incl. serving dishes
Half Load:
6 place settings incl. serving, leaving
alternate positions free
Detergent Dosing:
5g + 25g (Type B)
20g (Type B)
Rinse Aid Setting:
4 (Type III)
4 (Type III)
Sample loading arrangements:
Upper basket *
* If necessary, move the cup rest from right to left. When doing this, ensure that the
cup rest is at the same height.
Lower basket with cutlery basket
Cutlery basket
29
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted to
ensure that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing:
– use a screwdriver.
• For built-in, integrated and fully integrated dishwashers, the rear feet
should be adjusted from the front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must not be kinked or
crushed when the dishwasher is in position.
• The dishwasher must also be screwed on tightly to the work surface
or to the adjoining units. This is essential to ensure the dishwasher
does not tip.
30
Installation and Connection Instructions
Dishwashers That Can Be Integrated
(see installation template supplied)
3
The door of the appliance can be fitted with a wooden furniture door
with the following dimensions:
Width:
591 – 594 mm
Thickness:
16 – 24 mm
Height:
(variable)
dependent on
– Recess height
– Plinth height
– The adjustment so that the unit matches the height of
the adjoining units
The exact height of the adjoining units must be
measured at the place of installation.
Weight:
max. 8 kg
31
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the wash
water returning into the drinking water system and comply with the
applicable plumbing regulations.
• The dishwasher can be connected to cold and hot water supplies up
to max. 60 °C.
• The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10 N/cm2 =100 kPa)
Consult your installer if the water pressure is less than 1 bar.
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
32
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (ISO 228-1:2000) on the water inlet
hose to a tap with an external thread (¾ inch). The inlet hose is
equipped either with a plastic or with a metal connection nut:
– Tighten plastic hose connection nuts by hand only.
– Metal hose connection nuts must be tightened using an
appropriate tool. Finally, visually check that it is water-tight (ensure
that the tap is not dripping).
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose than that supplied, VDE
approved complete hose sets are to be used. These are available from
your local Service Force Centre.
Installation and Connection Instructions
3
The following section is only applicable to dishwashers that have a
safety valve on the threaded hose fitting for the tap:
Water inlet hose with safety valve
After connecting the double-walled water inlet hose, the safety valve is
next to the tap. Therefore the water inlet hose is only under pressure
while the water is running. If the water inlet hose starts to leak during
this operation, the safety valve cuts off the running water and the
draining pump in the dishwasher is switched on.
1
Please take care when installing the water inlet hose:
– The distance between the bottom
edge of the safety value and the
floor on which the dishwasher is
standing must be at least 30 cm:
– The electrical cable for the safety
valve is in the double-walled water
inlet hose. Do not immerse the
water inlet hose or the safety valve
in water.
– If the water inlet hose or the safety
valve is damaged, remove the
mains plug immediately.
– A water inlet hose with safety valve
must only be replaced by a
specialist or Customer Services.
– Place the water inlet hose in such a way that it is never higher than
the bottom edge of the safety valve.
33
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 40 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
your dealer or customer service.
The internal diameter of the extension hoses must be 19 mm to
ensure that the function of the
appliance is not impeded.
• Extension hoses may be laid a maximum of 3 metres horizontally; the
maximum permitted height for the
connection for the drain hose is
then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
If the dishwasher is fitted at a high position
If the dishwasher is installed at a high level, and the drainhose connection is less than 30 cm from the bottom of the appliance, adapter kit
ET 111099520 must be fitted. This is available from Customer Service.
Water drain into wash basins (only possible with free-standing
appliances)
In the case that you wish to hang the drain hose in a wash basin, use a
detachable hose elbow. You can obtain this from AEG customer service
under spare part number ET 646 069 190.
0 1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge of the wash basin.
Pass a piece of cord through the hose elbow and fix it to the wall or the
tap.
34
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the safety valve in the appliance immediately
interrupts the inflow of water and the drain pump is activated. By this
means water can neither escape nor overflow. The remaining water in
the appliance is automatically pumped out.
1
The leak prevention system also works when the appliance is switched
off.
Electrical connection
1
In compliance with electric company technical requirements for mains
connections, hard-wired connections to the mains may only be made
by approved electri-cians.
When connecting the appliance, observe the German VDE regulations
and, if applicable, any additional conditions required by your local electricity supplier. Following installation, live parts and live insulated wiring must not be accessible using a finger test in accordance with EN
60335/DIN VDE 0700.
Information on the electrical connection can be found on the rating
plate on the right side of the inner edge of the dishwasher door. If the
appliance has a change-over switch, the additional instructions on the
change-over diagram in the mains connector box must be observed.
Prior to connecting ensure that the mains voltage and current rating at
the site of installation match the nominal voltage and current rating
given on the rating plate. The required fuse protection is also to be
found on the rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
If the appliance is hard-wired to the mains supply, then it must be
safely isolated from the mains within the electrical installation with
switches intended to ensure all-pole(N,L1) disconnection, shall be
directly connected to the supply terminals and shall have a contact
separation (fuses, cut outs, current trips or similar) of at least 3mm in
each pole.
35
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation; the actual situation where the dishwasher is to be installed will define the exact installation (available
connections, local electricity and water board regulations for connecting up appliances, etc.).
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
36
Mains
cable
Water
drain
Mains socket
Double tap
Water drain
Mains
cable
Water inlet
Service Departments
SERVICE DEPARTMENTS
Belgium
Tel.:
Electrolux Home Products Belgium
ELECTROLUX SERVICE
Bergensesteenweg 719
1502 Lembeek
Fax.:
Consumer services 02/363.04.44 02/363.04.00
02/363.04.60
Province de Liège:
S.D.E.
Rue Gaucet 26
4020 Liege
04/343.11.60 04/343.47.68
GUARANTEE CONDITIONS
Belgium
DECLARATION OF GUARANTEE TERMS.
Our appliances are produced with the greatest of care. However, a defect may still
occur. Our consumer services department will repair this upon request, either during or
after the guarantee period. The service life of the appliance will not, however, be
reduced as a result.
This declaration of guarantee terms is based on European Union Directive 99/44/EC and
the provisions of the Civil Code. The statutory rights that the consumer has under this
legislation are not affected by this declaration of guarantee terms.
This declaration does not affect the vendor's statutory warranty to the end user. The
appliance is guaranteed within the context of and in adherence with the following
terms:
1. In accordance with provisions laid down in paragraphs 2 to 15, we will remedy free of
charge any defect that occurs within 24 months from the date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of use for professional or equivalent
purposes.
2. Performing the guarantee means that the appliance is returned to the condition it was
in before the defect occurred. Defective parts are replaced or repaired. Parts replaced
free of charge become our property.
3. So as to avoid more severe damage, the defect must be brought to our attention immediately.
4. Applying the guarantee is subject to the consumer providing proof of purchase showing the purchase and/or delivery date.
37
Guarantee Conditions
5. The guarantee will not apply if damage caused to delicate parts, such as glass (vitreous
ceramic), synthetic materials and rubber, is the result of inappropriate use.
6. The guarantee cannot be called on for minor faults that do not affect the value or the
overall reliability of the appliance.
7. The statutory warranty does not apply when defects are caused by:
• a chemical or electrochemical reaction caused by water,
• abnormal environmental conditions in general,
• unsuitable operating conditions,
• contact with harsh substances.
8. The guarantee does not apply to defects due to transport which have occurred outside
of our responsibility. Nor will the guarantee cover those caused by inadequate installation or assembly, lack of maintenance or failure to respect the assembly instructions or
directions for use.
9. Defects that result from repairs or measures carried out by people who are not qualified or expert or defects that result from the addition of non-original accessories or
spare parts are not covered by the guarantee.
10. Appliances that are easy to transport may be delivered or sent to the consumer services
department. Home repairs are only anticipated for bulky appliances or built-in appliances.
11. If the appliances are built-in, built-under, fixed or suspended in such a way that
removing and replacing them in the place where they are fitted takes more than half
an hour, the costs that result therefrom will be charged for. Connected damage caused
by these removal and replacement operations will be the responsibility of the user.
12. If, during the guarantee period, repairing the same defect repeatedly is not conclusive,
or if the repair costs are considered disproportionate, in agreement with the consumer,
the defective appliance may be replaced with another appliance of the same value.
In this event, we reserve the right to ask for a financial contribution calculated according to the length of time it has been used.
13. A repair under guarantee does not mean that the normal guarantee period will be
extended nor that a new guarantee period begins.
14. We give a twelve month guarantee for repairs, limited to the same defect.
15. Except in the event where liability is legally imposed, this declaration of guarantee
terms excludes any compensation for damage outside the appliance for which the consumer wishes to assert his rights. In the event of legally admitted liability, compensation will not exceed the purchase price paid for the appliance.
These guarantee terms are only valid for appliances purchased and used in Belgium. For
exported appliances, the user must first make sure that they satisfy the technical conditions (e.g.: voltage, frequency, installation instructions, type of gas, etc.) for the
country concerned and that they can withstand the local climatic and environmental
conditions. For appliances purchased abroad, the user must first ensure that they meet
the qualifications required in Belgium. Non-essential or requested adjustments are not
covered by the guarantee and are not possible in all cases.
Our consumer services department is always at your disposal, even after the guarantee
period has expired.
Address for our consumer services department:
ELECTROLUX HOME PRODUCTS BELGIUM
Bergensesteenweg, 719 - 1502 LEMBEEK
Tel.: 02.363.04.44
38
Service
SERVICE
In the section "What to do, if..." the most important sources of faults
that you can rectify yourself are summarised.
If, nevertheless, you call in customer service to resolve a problem listed
in these instruction, or because of an error made in operating the
appliance, the customer service engineer’s visit is not free of charge,
even during the warranty period.
If you can not find any information on a specific malfunction in these
operating instructions, please contact customer service.
Please provide customer service the PNC number and the S No. (serial
number), you can find these on the rating plate. The plate is on the
inner edge of the door on the right.
So that you always have these numbers at hand, we recommend you to
make a note of them here:
PNC :...............................................................................................................................
S-No. :.............................................................................................................................
39
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 946 786 -00- 0603
Subject to change without notice
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
