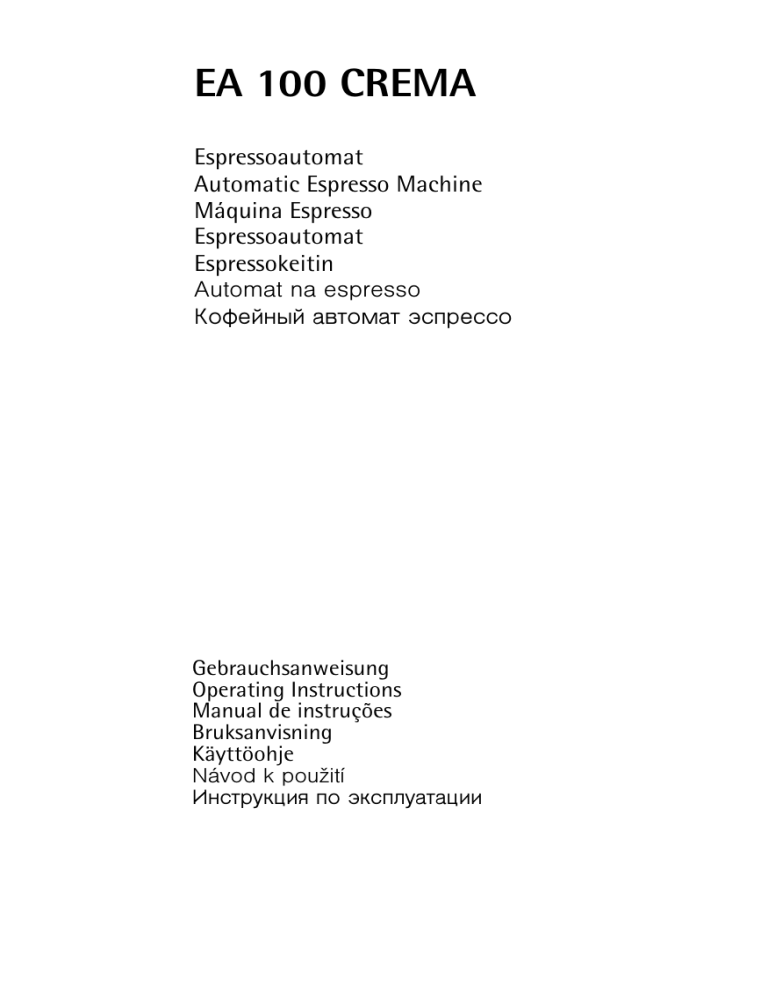

EA 100 CREMA
Espressoautomat
Automatic Espresso Machine
Máquina Espresso
Espressoautomat
Espressokeitin
Automat na espresso
Êîôåéíûé àâòîìàò ýñïðåññî
Gebrauchsanweisung
Operating Instructions
Manual de instruções
Bruksanvisning
Käyttöohje
Návod k použití
Èíñòðóêöèÿ ïî ýêñïëóàòàöèè
1
C
D
A
B
E
F
G
H
I
K
M
N
O
P
2
L
2
3
4
5
6
7
1
2
3
4
8
3 12/A
11
9
12/B
4
10/A
10/B
5
13
3
4
14
8
9
15
17
18
10 A
1016
B
19
g
g Dear Customer,
Please read these operating instructions through carefully.
Above all please observe the safety
instructions on the first few pages of
these operating instructions! Please
keep these operating instructions for
later reference. Pass them on to any
subsequent owner of the appliance.
Features (Fig. 1)
A
B
C
D
E
F
G
H
I
K
L
M
N
O
P
Control panel
Steam lever
Cup tray (removable)
Fresh water tank (removable)
Fill-level indicator
Foam nozzle (swivelling)
Cable storage (underside)
Drip grill (removable)
Drip tray (removable)
Rating plate (on the underside)
Sieve carrier
1-cup Crema Plus sieve
2-cup Crema Plus sieve
Problem-solving sieve
Measuring spoon
1 Safety instructions
• The appliance must only ever be connected to a mains supply with the
same voltage, type of current and frequency as those shown on the rating
plate (see underside of appliance).
• Never allow the lead to come into contact with the hot parts of the appliance.
• Never pull the plug out of the socket
by tugging on the lead.
• Never operate the appliance if:
– the lead is damaged, or
– there is visible damage to the housing.
• The foam nozzle, steam pipe, boiling
head, sieve, and sieve carrier inevitably
become very hot during operation.
Keep children well away!
• Follow the instructions for de-scaling.
• Make sure the appliance is switched off
and the plug has been taken out of the
socket before doing any cleaning work.
• Do not immerse the appliance in water.
• Only ever fill the appliance with water,
and never with milk or any other liquid.
• Do not operate the appliance unless
the fresh water tank is full.
• Do not take the sieve carrier off during
the boiling process because the appliance is pressurised. Someone could
suffer burns.
• Do not operate the appliance without
the drip tray and drip grill.
If any repair is necessary, including the
replacement of the lead, the appliance
must be handed in to the electrical
dealer from which it was purchased or
to an AEG Service Centre (see list on
last page).
Repairs to electrical appliances must
only ever be carried out by a qualified
electrician.
No legal liability can be accepted for
damage resulting from the appliance
being used wrongly or for the wrong
purpose.
;
This appliance complies with the following EC directives:
• 73/23/EWG dated 19.2.1973
– Low Voltage Directive
• 89/336/EWG dated 3.5.1989
(including Directive Amendment
92/31/EWG) – EMC Directive.
Cable storage (Fig. 2)
Your espresso machine has a cable
store. If the lead is longer than it needs
to be to reach the socket, you can store
the surplus length in the cable store.
All according to the position of the
socket, you can let the cable out on the
right-hand or the left-hand side of the
base of the appliance.
11
g
Before using for the first time
2. Filling espresso ground coffee
(Figs. 4 and 5)
Before you make your first cup of
espresso, rinse the heating system
through with a tankful of fresh water
but without espresso coffee, and boil
it. Proceed exactly as described below
under „Making espresso coffee“ or
„Making steam“ but without any
espresso ground coffee in the sieve.
Place as large a container as possible in
the middle of the drip grill (Fig. 1/H)
and underneath the foam nozzle (Fig.
1/F), after swivelling this outwards.
Making espresso coffee
We recommend that you rinse the system through every day, before the first
and after the last cup of espresso coffee, for about 10 seconds without any
espresso ground coffee in it, to prevent
any particles of coffee from accumulating anywhere. Proceed as described
under points 1 to 6 below, but without
any espresso ground coffee in the
machine.
1. Fill water (Fig. 3)
0 First open the lid of the fresh water
tank and pull the tank upwards by its
handle out of the appliance.
0 Fill the tank only with cold tap water.
0 Then place the tank back in the appliance and press it downwards so that it
sits firmly.
0 Now close the lid again.
Make sure the water is above the
„MIN“ level on the filling indicator
(Fig. 1/E).
3
12
In order to make an aromatic espresso,
please note the following points:
• Change the water every day!
• Do not use mineral water or distilled
water.
• Clean the fresh water tank at least
once a week with ordinary washingup water, not in the dish-washing
machine.
All according to whether you wish to
make one cup of espresso or two, place
either the 1-cup Crema Plus sieve (Fig.
1/M) or the 2-cup Crema Plus sieve
(Fig. 1/N) into the sieve carrier
(Fig. 1/L).
Fill the espresso ground coffee with the
aid of the measuring spoon (Fig. 1/P).
Fill the sieve up to the rim and then
level the espresso coffee grounds with
one stroke of the measuring spoon (Fig.
5). Clean the edge of the sieve of
ground coffee.
3
If you would like freshly ground
espresso coffee every time, we recommend the AEG coffee grinder (medium
grade). Ask your dealer!
Caution: Just a few of the brands of
espresso coffee sold in the trade contain a particularly high proportion of
coffee dust. This dust can block the
sieve, so that the espresso coffee only
runs out very slowly or perhaps not at
all. If this happens, we recommend that
you use the enclosed problem-solving
sieve (identifiable by its brown inner
ring and the fine, elongated hole structure, Fig. 1/O).
3. Insert sieve (Fig. 6)
Rotate the sieve carrier from left to
right in its holder until the handle
passes the „min“ position (i. e. with the
handle pointing forwards, Fig. 6). The
sieve carrier is fitted with a plastic
insert to keep he temperature loss to a
minimum even when a minimum
quantity of espresso is being made, as
the most descriminating espresso-lover
requires.
4. Place cup(s) in position (Fig. 7)
If you only wish to make one cup, place
it in the middle of the drip grill so
that the espresso coffee can flow into
it from both openings in the sieve
holder. However, if you wish to make
two cups, place one cup under each
opening of the sieve holder.
g
The cup shelf (Fig. 8) is a convenient
place for some more cups.
5. Switch on the main switch
Your espresso machine will reach its
operating temperature in a very short
time. This is a major advantage in comparison with conventional espresso
machines.
You switch the appliance on by flicking
the main switch (Fig. 9/1) upwards. The
pilot light (Fig. 9/2) comes on, as does
the temperature indicator at the same
time (Fig. 9/4), to show that the system
ist warming up. It goes out as soon as
the operating temperature is reached.
Note: The temperature indicator can
come on during operation, to show
that the appliance is warming up
again.
6. Start boiling–
switch on pump switch
When you start the boiling cycle, the
heated water is forced through the
espresso ground coffee at a high internal pressure. This pressure, together
with the special construction of the
Crema Plus sieve and fresh espresso
ground coffee, produces the crown of
foam which makes espresso coffee
from an AEG machine so incomparable.
You can make your Espresso crema as
follows:
0 When the temperature indicator (Fig.
9/4) has gone out you can start the
boiling process by flipping the pump
switch (Fig. 9/3) upwards.
0 Once the required quantity of espresso
has been boiled up, you flip the pump
switch (Fig. 9/3) downwards again and
this stops the brewing process.
Making steam with the
foam nozzle (Fig. 9-13)
The hot steam can be used to foam up
milk for cappuccino, to pre-heat the
espresso cups, and to heat up liquids
generally.
0 To generate steam, first switch the
appliance on with the main switch (Fig.
9/1) and wait until operating temperature has been reached. The temperature indicator (Fig. 9/4) must have
gone out.
0 Then immerse the foam nozzle into the
milk or other liquid you wish to foam
up or heat up, or the espresso or cappuccino cups you wish to warm, and
start generating steam by rotating the
steam lever (Fig. 1/B) anti-clockwise
as far as it will go (Fig. 10/A). For technical reasons, a little water will first
escape from the nozzle; it can be
removed before the actual steam generation starts but it does not harm the
good result, e.g. from foaming up milk,
in any way at all.
3
Important: Immerse the foam nozzle
only about half way into the liquid, so
that the flow of air is not hindered. The
foam nozzle should not be allowed to
touch the base of the container as this
might restrict the outflow of steam
(Fig. 11).
1
Caution: Take care you do not scald
yourself.
Frothing up milk,
symbol (Fig.
10/A):
You should then slide down the moving tube (Fig. 12/A) to its fullest extent.
Heating liquids (e.g. milk),
symbol (Fig. 10/A):
You should then slide up the moving
tube (Fig. 12/B).
To stop the flow of steam, turn the
steam lever clockwise back to the Off
position (Fig. 10/B). It is advisible, especially after foaming up milk, to activate the steam flow once again briefly
in order to blow the foam nozzle free.
13
g
Afterwards, turn the foam nozzle as far
as it will go to the left so that the inevitable last few drops can fall into the
drip grill provided for the purpose (Fig.
13).
After steam has been generated the
system has to be topped up, to do this,
switch the pump switch (Fig. 9/3) on,
and as soon as water starts to come
out of the brewing head switch the
pump switch off again.
Preparing cappuccino:
Proceed as for espresso, but for cappuccino you will need a larger coffee
cup, half or threequarters full of
espresso, which you then fill up with
foaming milk.
After making espresso/Cleaning
If you wish to make another cup of
espresso, leave the appliance switched
on, remove the sieve holder (see below,
Point 2), clean the sieve and the holder
(see below, Point 3), and then proceed
as described under „Making espresso“.
1. Switch appliance off
If the appliance will not be used for
some time it should be steamed out, so
that fresh water is always available
next time it is used. Place a container
under the foam nozzle and proceed as
follows:
0 Open the steam lever (Fig. 10/A) and let
the system steam out. If no more steam
comes out, close the steam lever again
(Fig. 10/B).
0 To switch the appliance off, flip the
main switch (Fig. 9/1) downwards. The
pilot light (Fig. 9/2) goes out.
2. Remove sieve carrier (Fig. 14)
You remove the sieve carrier by rotating it to the left and taking it out of its
holding ring. If you are not going to
use the appliance again for some time,
do not re-insert the sieve carrier; this
will lengthen the service life of the
sieve seal.
14
3. Cleaning sieve and sieve
carrier (Fig. 15)
Knock the used espresso ground coffee
out of the sieve, holding the sieve
firmly to the sieve carrier by the finger
protector. Then clean the sieve and the
carrier under running water or with
ordinary washing-up water.
Note: Do not wash the sieve carrier in
a dishwashing machine.
4. Remove the remaining water
from the fresh water tank
5. Cleaning the foam nozzle
(Fig. 16)
Clean the foam nozzle – especially
after frothing up milk – with a damp
cloth. If the foam nozzle is clogged, it
can be unscrewed with a coin. Pull off
the lower part of the nozzle downwards and clean the foam nozzle, make
sure it is seated properly.
6. Cleaning the drip grill and
drip tray (Fig. 17)
The drip grill can be taken out for
cleaning very easily with the aid of the
finger-shaped depression at the front
right-hand edge of the drip tray. The
drip tray can be taken out for cleaning
by simply lifting it forwards out of the
appliance base. The drip grill and the
drip tray can be cleaned in ordinary
washing-up water.
7. Cleaning the cup shelf (Fig. 18)
The best way to clean the cup shelf is
with a damp cloth. To remove it, press
it down at the rear end and pull it
upwards and forwards out of its retaining rim.
8. Cleaning the boiling head
(Fig. 19)
After it has been in use for some time,
the boiling head should be cleaned
with a damp cloth. If the boiling sieve
is particularly dirty it can be unscrewed
from the boiling head with the aid of a
coin and cleaned under running water.
g
De-scaling
0
0
0
0
0
0
The service life of your automatic
espresso machine will be lengthened if
you de-scale it regularly. To do this,
please use an environmentally friendly
de-scaling agent, and use it as stated
in the manufacturer’s instructions.
When de-scaling, it is essential first
to unscrew the boiling sieve from
the boiling head with the aid of a
coin (Fig. 19).
First fill about half a litre of water
into the fresh water tank and then add
the de-scaling agent – never the
other way round!
Place a sufficiently large container in
the middle of the drip grill.
Allow about one-third of the de-scaling agent and water to run through
the system by operating the appliance
as if you were making espresso (see
Section „Making espresso coffee“).
Switch the appliance off again, and
leave the de-scaling agent to work in
for 10 or 15 minutes.
Then run the rest of it through the system. It may be necessary to repeat the
de-scaling if the lime deposits are
heavy.
After the last cycle, run one or two
tankfuls of clear, fresh water through
the system to prevent the de-scaling
agent from having any affect on the
flavour of the espresso.
Then fit the boiling sieve back into the
boiling head.
Remark: Please do not use any powdered de-scaling product!
What do I do if...
• the espresso temperature is too low?
– Run a boiling cycle but without any
espresso ground coffee before actually making espresso, and with the
sieve and carrier in position, in order
to pre-heat them.
– Tamp the espresso ground coffee
down a little more firmly.
– Pre-warm the cups.
– De-scale the appliance.
• the through-flow speed falls off
noticeably?
– Do not tamp the espresso ground
coffee down so firmly.
– De-scale the appliance.
– If the espresso ground coffee is too
finely ground it can block the
Crema-Plus sieve. If so, we recommend the use of the problem-solving
sieve (Fig. 1/O).
• the espresso runs out at the side of the
sieve carrier?
– Make sure the sieve carrier is fitted
into the holding ring properly.
– Tighten the sieve carrier a little more
firmly into the holding ring.
– Clean the espresso ground coffee of
the edge of the sieve carrier.
– Clean the seal.
• no espresso comes out?
– Ensure that the fresh water tank is
full.
– Ensure that the fresh water tank is
properly fitted into position.
– Ensure that the sieve carrier is properly fitted into the holding ring.
– Do not tamp the espresso ground
coffee down so firmly.
– Move the steam lever to the „OFF“
setting.
– Clean the boiling sieve.
– De-scale the appliance.
15
g
• the appliance runs relative noisily?
– Ensure that the fresh water tank is
full.
– Ensure that the fresh water tank is
properly fitted into position.
– Always use fresh espresso ground
coffee.
• the crema does not form so well as it
used to?
– Always use fresh espresso ground
coffee.
– Ensure there is sufficient espresso
ground coffee in the sieve.
– Tamp the espresso ground coffee
down lightly.
• not enough foam is generated when
foaming up milk?
– Always use cool, fresh (low-fat) milk.
– Use a suitable container (such as a
small jug).
– Clean the foam nozzle.
• no steam comes out?
– Top the system up (see last paragraph of Section „Making steam
with the foam nozzle“).
2 For the sake of the
environment
Do not simply throw the packaging
away.
• Cardboard packaging material can
be handed in as salvage at your local
waste-paper collection point.
If the following packaging materials
have been used...
• Plastic bags made of polythene (PE)
can be handed in to your local PE
collection point.
• Padding made of expanded polystyrol (PS) are free of CFC’s.
Please ask your local authority for the
adress of your nearest recycling depot.
Used espresso coffee „grouts“ are marvellous for composting.
16
After-sales service
We demand the highest quality of ourselves and our products.
Should you nevertheless have any
problem in using this appliance, please
write to us. It is only with your help
that we will be able to develop appliances which exactly match your
requirements.
17
Garantiebedingungen
AEG Kundendienst in Deutschland
AEG Kundendienst in Europa
Sollte dieses AEG Gerät wider Erwarten nicht
funktionieren, wenden Sie sich bitte an unseren
Service. Wir werden die Abholung und
Instandsetzung durch unsere Werkstatt veranlassen.
In diesen Ländern gelten die Garantiebedingungen der örtlichen
Vertriebsorganisationen. Diese können dort eingesehen werden.
In these countries our AEG sales organisations own guarantee
conditions are applicable. Please obtain further details direct.
Österreich, 4010 Linz, 0732 / 770101 - 30
Belgique/België, 1502 Lembeek, 02/363.04.44
Czech Republic, Hanusova ul., Praha 4, 02/6112 6112
Danmark, 7000 Fredericia, 70 11 74 00
España, Madrid, 1-885-2700
France, 60307 Senlis, 03-44 62 24 24
Great Britain, Service Force 08705 929 929
Hellas, 18346 MOÓXATO, 01/4822646
Island, Reykjavik (Bræóurnir Ormsson hf), 91-3 88 20
Italia, 33080 Porcia (PN), 0434 39 41
Kroatien, 10000 Zagreb, 385 1 6323 333
Luxembourg, 1273 Luxembourg-Hamm, 4 24 31-443
Magyarország, 1142 Budapest, 36-1-252-1773
Nederland, 2400 AC Alphen aan den Rijn, 0172-468 300
Norge, 0516 Oslo, 22 72 58 00
Poland, 02-034 Warszawa, 022 874 33 33
Portugal, 2635-445 Rio de Mouro, (21) 926 75 75
Romania, Bucuresti, B-dul Timisoara 90, 01-444-25-81
Russia, 129090 Moscow, +7 095 956 2917, 937 7893
Slovakia, 81105 Bratislava, 07/4333 9757
Slovenija, Tražaška 132, 1000 Ljubljana, 01 24 25 730
Schweiz/Svizzera, 5506 Mägenwil, 062/889 93 00
Suomi, Porissa, puh. (02) 622 3300
Sverige, 10545 Stockholm, 08-672 53 60
Turkey, Tarlabasi cad no:35 Taksim/Istanbul-0, 262-7249420
AEG Kleingeräte-Zentralwerkstatt
Firma Trepesch GmbH
Steinstraße 500
90419 Nürnberg
In Deutschland stehen wir Ihnen für Fragen,
Anregungen oder bei Problemen rund um unsere
Kleingeräte und Raumpflegegeräte
montags bis freitags von 8 bis 18 Uhr
zur Verfügung.
AEG-Serviceline: 01805-30 60 80
(Deutsche Telekom 0,12 Euro/Min.)
Fax:
0911/ 3 23-49 19 30
E-Mail: [email protected]
Der Endabnehmer dieses Geräts (Verbraucher) hat bei einem
Kauf dieses Geräts von einem Unternehmer (Händler) in
Deutschland im Rahmen der Vorschriften über den Verbrauchsgüterkauf gesetzliche Rechte, die durch diese Garantie
nicht eingeschränkt werden. Diese Garantie räumt dem Verbraucher also zusätzliche Rechte ein. Dies vorausgeschickt, leisten wir, AEG Hausgeräte GmbH, gegenüber dem Verbraucher
Garantie für dieses Gerät für den Zeitraum von 24 Monaten ab Übergabe zu den folgenden Bedingungen:
3.
4.
1. Mit dieser Garantie haften wir dafür, dass dieses neu hergestellte Gerät im Zeitpunkt der Übergabe vom Händler an
den Verbraucher die in unserer Produktbeschreibung für
dieses Gerät aufgeführten Eigenschaften aufweist. Ein
Mangel liegt nur dann vor, wenn der Wert oder die Gebrauchstauglichkeit dieses Geräts erheblich gemindert ist.
Zeigt sich der Mangel nach Ablauf von sechs (6) Monaten
ab dem Übergabezeitpunkt, so hat der Verbraucher nachzuweisen, dass das Gerät bereits im Übergabezeitpunkt
mangelhaft war. Nicht unter diese Garantie fallen Schäden
oder Mängel aus nicht vorschriftsmäßiger Handhabung sowie Nichtbeachtung der Gebrauchsanweisungen.
2. Dieses Gerät fällt nur dann unter diese Garantie, wenn es
in einem der Mitgliedsstaaten der Europäischen Union gekauft wurde, es bei Auftreten des Mangels in Deutschland
betrieben wird und Garantieleistungen auch in Deutschland erbracht werden können. Mängel müssen uns inner-
5.
6.
halb von zwei (2) Monaten nach dessen Kenntnis angezeigt
werden.
Mängel dieses Geräts werden wir innerhalb angemessener
Frist nach Mitteilung des Mangels unentgeltlich beseitigen; die zu diesem Zweck erforderlichen Aufwendungen,
insbesondere Arbeits- und Materialkosten werden von uns
getragen. Über diese Nachbesserung hinausgehende Ansprüche werden durch diese Garantie dem Verbraucher
nicht eingeräumt.
Im Garantiefall ist das Gerät vom Verbraucher an die für
seinen Wohnort zuständige AEG-Zentralwerkstatt zu versenden, wobei das Gerät gut zu verpacken ist und die vollständige Anschrift des Verbrauchers zusammen mit einer
kurzen Fehlerbeschreibung in das Paket zu legen ist. Zum
Nachweis des Garantie-Anspruchs ist der Sendung der Original-Kaufbeleg (Kassenzettel, Rechnung) beizufügen.
Garantieleistungen bewirken weder eine Verlängerung
noch einen Neubeginn der Garantiezeit für dieses Gerät;
ausgewechselte Teile gehen in unser Eigentum über.
Mängelansprüche aus dieser Garantie verjähren in zwei (2)
Jahren ab dem Zeitpunkt der Übergabe des Geräts vom
Händler an den Verbraucher, der durch den Original-Kaufbeleg (Kassenzettel, Rechnung) zu belegen ist; wenn dieses
Gerät gewerblich genutzt wird, beträgt die Verjährungsfrist sechs (6) Monate.
AEG Hausgeräte GmbH, D-90429 Nürnberg, Muggenhofer Straße 135
Änderungen vorbehalten
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 949 046 - 0403
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
