D
i
s
h
w
a
s
h
e
r

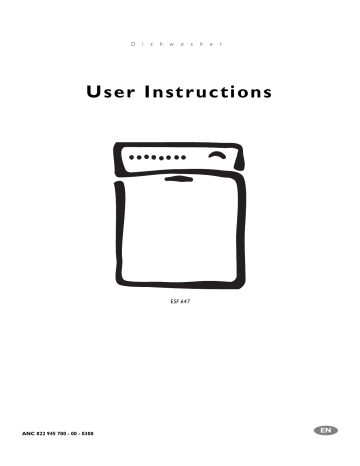

User Instructions
ESF 647
ANC 822 945 700 - 00 - 0300
EN
Dear customer,
Please read these user instructions carefully.
Above all please observe the safety instructions on
the first few pages ofthese user instructions! Please
keep these user instructions for later reference. Pass
them on to any subsequent owner of the appliance.
1
The warning triangle and/or specific words
(Warning!, Caution!, Important!) are used
to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that these instructions
are observed.
This symbol or numbered instruction steps
lead you step for step through the operation
of the appliance.
3
Next to this symbol you receive additional
information and practical tips on using the
appliance.
2
Tips and instructions for the economical and
environmentally conscious use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section.
If these instructions are insufficient, please contact
your nearest customer service centre.
In the case of technical problems, our customer service organisation is available to provide you with
assistance at any time (you will find addresses and
telephone numbers in the "Customer Service Centres" section).
In this respect please read the "Service" note on the
rear of these user instructions.
2
Contents
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Securing the door of the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Filling with Special Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the Height of the Upper Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the dishwashing programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Changing/Interrupting the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
What to do, when ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
...There Are Problems with the Operation of the Dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
...The Wash Result is Unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Installation and Connection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Water connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
3
1 Safety Instructions
The safety aspects of ELECTROLUX electrical appliances comply with accepted technical standards and
the German Appliance Safety Law. Nevertheless, as
a manufacturer we consider it our obligation to make
you aware of the following safety information:
Installation, Connection and Placing into Operation
•
•
•
•
The dishwasher may only be transported upright.
Check the dishwasher for transport damage. Do
not in any circumstances connect an appliance
that is damaged. In the case of damage, please
contact your supplier.
Prior to placing the appliance in operation, ensure
that the nominal voltage and type of supply on the
rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also
to be found on the rating plate.
For information on how to correctly install and
connect up your dishwasher, please read the
“Installation“ section. Multiway plugs / connectors
and extension cables must not be used. This
could constitute a safety hazard.
•
•
•
•
•
•
Correct Use
•
Child Safety
•
•
•
•
•
Children often do not recognise the hazards associated with the use of electrical appliances. It is
therefore important that you ensure children are
adequately supervised and that you do not allow
children to play with the dishwasher – there is a
risk that children can shut themselves inside the
appliance (risk of suffocation!).
Packaging materials (e.g. films, styrofoam) can be
dangerous for children. Risk of suffocation! Keep
packaging away from children.
Detergents can cause burns to the eyes, mouth,
and throat, or even cause choking! Please
observe the manufacturer's safety instructions for
cleaners and detergents.
The water in your dishwasher is not suitable for
drinking. If there are still remnants of detergent in
the appliance, there is a risk of burns!
When disposing of the dishwasher: unplug from
the mains, cut off and dispose of the mains cable.
Break the door lock so that the door no longer
shuts.
General Safety
•
4
Repairs to the dishwasher are only to be carried
out by qualified service engineers. Improper
repairs can give rise to significant hazards for the
user. If your appliance needs repairing, please
contact customer service or your dealer.
Never place the dishwasher in operation if the
mains cable, water inlet or drain hose is damaged;
or the control panel, work top or plinth area is
damaged such that the inside of the appliance is
freely accessible.
If the mains lead is damaged, or is to be replaced
for a longer lead, the cable (obtainable from
ELECTROLUX customer service) must be
changed by a service engineer authorised by
ELECTROLUX.
Never unplug the appliance by pulling on the
cable, always pull the plug.
Additions or modifications to the dishwasher are
not permitted for safety reasons.
Ensure that the door of the dishwasher is always
closed when it is not being loaded or unloaded. In
this way you will avoid anybody tripping over the
open door and hurting themselves.
Sharp knives and items of cutlery with sharp
edges must be placed in the cutlery tray or in the
upper rack.
•
•
•
•
•
Only wash household dishes using the dishwasher. If the appliance is used for other purposes, or is used incorrectly, the manufacturer
cannot accept any liability for any damage
caused.
Prior to use, ensure that the manufacturers of the
special salt, detergent, and rinse aid employed
specifically permit the usage of their products in
household dishwashers.
Do not put any solvents in the dishwasher. There
is a risk of an explosion!
The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the
mains even when it is switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap
when the dishwasher is not to be used for
longer periods, e.g. when you are away on holiday.
Do not sit or stand on the open door, the appliance may tip over.
In the event of a fault, first close the tap, then
switch off the appliance and unplug it from the
mains. If the appliance is permanently wired to the
mains: switch off the fuse(s) or unscrew them.
Securing the door of the dishwasher
This way you can ensure that children cannot open
the door of the dishwasher:
1. There is a lever (1) on the left side of the door handle. You can secure the door against being
opened unintentionally by pressing this lever to
the back using a small screwdriver or the handle
of a spoon.
2. Once the lever has been pushed back, you must
first push the door handle to the left (2) and then
push it upwards (3) in order to open the door.
3. You can remove the safety lock from the door
again by pulling the lever forwards again using a
small screwdriver or the handle of a spoon.
2 Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless
to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping
material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic
clips
• Cardboard packaging is manufactured from recycled paper and should be deposited in the waste
paper collection for recycling.
Disposal of old appliances
As and when you cease to use your dishwasher,
please take it to a recycling centre or to your dealer
who will, for a small contribution to the costs, dispose
of it for you.
2 Economical and Ecological Dishwashing
•
•
•
•
Only connect the dishwasher to the hot water supply if your hot water is not electrically heated.
Ensure that the water softener is correctly
adjusted.
Do not pre-rinse dishes under running water.
Select the wash programme to suit the nature and
degree of the soiling on the dishes.
•
Do not use more detergent, special salt or rinse
aid than is recommended in these operating
instructions and by the manufacturer of the
respective product.
5
Appliance Features and Control Panel
Rubber Seal for Connecting the Water
Feed to the Upper
Spray Arm
Spray Arms
Water Hardness Switch
Container for Special
Salt
Container
for Rinse Aid
Container for
Detergent
Rating Plate
6
Filters
Control panel
Programme cycle indicator
ON/OFF button
a
Programme buttons
Door release handle
Programme switch
Programme switch
ON/OFF button
Set the point at which the wash programme is to
start using the programme switch.
Programme buttons
b
é
è
ã
Programme cycle indicator
Pre Wash
While the programme is running, the indicator
disc rotates to show you the respective programme step.
Normal 65 °C
Normal 50 °C
Eco 50 °C
b
x
Ö
u
z
Pre Wash
Main Wash
Intermediate Rinse
Final Rinse
Drying
7
Prior to using for the first time
Prior to using for the first time, remove all the clips
with which the dish racks are secured for transport.
Then perform the following steps:
1. Adjust the water softener
2. Filling with Special Salt for the Water Softener
3. Filling with Rinse Aid
Adjusting the Water Softener
To prevent the build up of scale on dishes and in the
dishwasher, the dishes must be washed with soft, i.e.
low lime content water. For this reason the dishwasher is fitted with a water softener in which tap
water from a hardness of 4 °d (German degrees) is
softened with the aid of special salt.
3
Your local water authority can advise you on
the hardness of the water in your area.
The water softener has 4 settings.
Water Hardness
Turn the arrow on the water
in °d1)
in ppm2) hardness switch to number
29-50
22-28
510 - 900
390 - 500
4
3
15-21
260 - 380
2*
4-14
70 - 250
1
under 4
under 70
1
no salt necessary
1)(°d) German degree, measure of water hardness
2)(ppm) parts per million (CaCO3)
*Factory setting
Adjust the water softener in accordance with the table
to suit your area:
1. Open the door on the dishwasher.
2. Remove the lower rack from the dishwasher.
3. Adjust the water hardness switch with, e.g. a coin.
4. Replace the lower rack and close the door of the
dishwasher.
8
Filling with Special Salt for the Water Softener
1
Use only special salt for dishwashers. Never
fill the salt container with any another type of
salt (e.g. culinary salt) or dishwasher detergent. This would irreparably damage the
water softener.
Prior to filling with salt, please check each
time that you really do have a packet of special salt in your hand.
Fill with special salt:
•
•
Prior to using the dishwasher for the first time
If a green mark can be seen under the lid of the
special salt container, then there is sufficient special salt. If the green mark cannot be seen, you
must refill the container with special salt.
3
If the water hardness in your area is less
than 4 °d, you do not need to use special
salt. The green mark will then not be visible.
The function of the appliance is not impaired.
1. Open the door, remove the lower rack.
2. Undo the lid on the salt container by turning it anticlockwise.
3. Only when using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the container opening.
Fill the container with special salt through the funnel; the capacity of the container is approx. 1.01.5 kg depending on the grain size. Do not overfill
the salt container with special salt.
LE
SA ALT Z
S AL
S EL
S
The water expelled by filling the salt container with special salt runs out of the salt
container onto the base of the washing compartment. This is not a cause for concern,
the water will be pumped out at the start of
the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into the wash water. Dull glasses
may result.
7. If you are not going to wash your dishes immediately, you should run the Pre Wash programme
3
b. This will wash away salt water that has run out
of the container and any grains of salt that have
been spilt.
3
Depending on the size of the salt grains, it
can take several hours for the salt to dissolve
in the water and the green mark to become
visible again.
The setting of the water softener and thus
the consumption of salt are dependent on
the hardness of the local water.
9
Filling with Rinse Aid
Rinse aid ensures that your dishes gleam and are
free from spots, and that you glasses are clear.
1
Use only branded rinse aid for dishwashers.
Never fill the rinse aid container with any
another substance (e.g. concentrated vinegar). This would damage the appliance.
Fill with rinse aid:
•
•
Prior to using the dishwasher for the first time.
When a dark point surrounded by a light ring is to
be seen in the indicator window on the container.
If there is sufficient rinse aid in the container, the
indicator window is uniformly dark.
The rinse aid container is on the inside of the dishwasher door.
1. Open the door .
2. Turn the lid of the container ¼ of a turn anticlockwise and remove.
Adjusting Rinse Aid Dosing
Rinse aid is added to the wash water from
the container when the dishes are rinsed.
The dose can be adjusted from 1-6, corresponding to 1-6 cm3 rinse aid. The dose is
set to "4" in the factory. Only change the
dose when streaks, milky spots or dried
water drops are to be seen on glasses and
dishes. (see under "What to do, if...").
Turn the lid of the container ¼ of a turn anticlockwise and remove.
Adjust the dose setting with a tea spoon.
Replace the lid and tighten by turning clockwise.
If rinse aid has run out, wipe up with a cloth.
3
1.
2.
3.
4.
10
ax
6 5 4
1
32
m
3. Fill with rinse aid, up to the broken line as a maximum; this line corresponds to a quantity of
approx. 150 ml .
4. Replace the lid and tighten by turning clockwise.
5. If rinse aid has been spilt, wipe up with a cloth.
Otherwise there will be too much foam during
washing.
In Daily Use
•
•
•
•
•
Is it necessary to refill with special salt or rinse
aid?
Load cutlery and dishes into the dishwasher
Fill with dishwasher detergent
Select a wash programme suitable for the cutlery
and dishes
Start the wash programme
Loading cutlery and dishes
1
Sponges, household cloths and any object
that can absorb water may not be washed in
the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
– Cutlery with wooden, horn,
china or mother of pearl handles
– Plastic items that are not heat resistant
– Older cutlery with cement that is not temperature resistant
– Bonded cutlery items or dishes
– Pewter or copper items
– Lead crystal glass
– Steel items subject to rusting
– Wooden platters
– Items made from synthetic fibres
•
•
are of limited suitability:
– Only wash stoneware in the dishwasher if it is specifically marked as being dishwasher-safe by the
manufacturer.
– Glazed patterns may fade if machine washed frequently.
– Silver and aluminium parts have a tendency to discolour during washing. Left-overs, e.g. egg white,
egg yolk and mustard often cause discolouring and
staining on silver. Therefore always clean left-overs
from silver immediately, if it is not to be washed
straight after use.
– Some types of glass can become dull after a large
number of washes.
Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.
When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses,
pans, etc. with the opening downwards so that
water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside
one another, or cover each other
– To avoid damage to glasses, they must not
touch
– Do not lay small objects (e.g. lids) in the cutlery
rack
11
Loading Cutlery
1
Long bladed knives stored in an upright position are a potential hazard.
1
Long and/or sharp items of cutlery such as
carving knives must be positioned horizontally in the upper basket.
1
Take care when loading or unloading sharp
items such as knives.
To ensure that all items of cutlery are completely
washed, you should
1. Place the grid insert on the cutlery rack
2. Place short knives, forks and spoons in the grid
insert with their handles pointing downwards.
Some models of dishwasher have cutlery baskets
without a cutlery grid.
Loading Pans, Frying Pans and
Large Plates
Load large and heavily soiled dishes in the lower
rack.
3
12
To make it easier to load large dishes, it is
possible
- to remove the plate inserts from the lower
rack.
- to move the cutlery basket sideways.
Loading Cups, Glasses and Coffee
Services
Load small, delicate items and long pointed cutlery in
the upper rack.
• Arrange plates and dishes offset on and under the
folding cup racks so that washing water can reach
all items.
• The cup racks can be folded up out of the way for
tall items.
• Lay or hang wine, champagne, and brandy
glasses in the cut outs on the cup racks.
• Glasses, beakers, etc. can also be placed on the
two rows of prongs on the left of the upper rack.
Adjusting the Height of the Upper Rack
Maximum Height of the Dishes in the
Upper Rack
Lower Rack
With Raised Upper Rack
22 cm
31 cm
With Lowered Upper Rack
24 cm
29 cm
3
The height of the rack can also be adjusted
when the rack is laden.
Lowering the Upper Rack:
1. Pull out the upper rack to the stop.
2. Lift and lower the upper rack using the handle at
the rear of the right hand cup rack.
Raising the Upper Rack:
1. Pull out the upper rack to the stop.
2. Lift the upper rack by the handle, pull gently forwards and allow to latch into the upper position.
13
Filling with Detergent
1
Use only dishwasher detergent.
Fill with Detergent:
Prior to the start of a wash programme (not for the
Pre Wash programme). The detergent is released
into the wash water during the programme.
2
Please observe the manufacturer’s dosing
and storage recommendations given on the
detergent packaging.
The detergent dispenser is on the inside of the door.
1. If the lid is closed: Press the latching lever (1) forwards. The lid springs open.
2
1
2. Fill the detergent dispenser with detergent. The
markings are an aid to correct dosing:
"MIN" corresponds to approx. 30 ml detergent,
"MAX" corresponds to approx. 40 ml detergent.
3. Close the lid, press it down until the latch
engages.
3
14
In the case of heavily soiled dishes, add
additional detergent in the cavity in the lid
(2). This detergent is effective during the pre
wash.
X:
MA
N:
MI
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of
Dishes:
Dinner Service and Cooking Utensils
In Addition:
Type of
Soiling:
normally
soiled
dried left-overs
Coffee Service and
Dessert Dishes
All
Dish Types
with non-temperature resistant dishes
normally
soiled
normally to lightly
soiled
particularly suited
to the use of concentrated detergents.
Used dishes that are
collected in the dishwasher and are to be
washed at a later
point in time.
NORMAL
65 °C
NORMAL
50 °C 2)
ECO
50 °C
PRE WASH
Turn
programme
switch to:
B
B
C
A
Press
Programme
Button:
é
è
ã
b
Suitable
Programme:
Programme
Sequence:
Pre Wash
Main Wash
Intermediate Rinse
Final Rinse
Drying
Consumption
Figures: 1)
Pre Wash
Main Wash
Intermediate Rinse
Final Rinse
Drying
Main Wash
Intermediate Rinse
Final Rinse
Drying
Pre Wash
-
Duration:
90 minutes
86 minutes
75 minutes
10 minutes
Energy:
1,45 kWh
1,4 kWh
1,2 kWh
< 0.1 kWh
Water:
18 litres
18 litres
14 litres
6 litres
1)
The consumption figures were recorded under standard conditions. They are dependent on the loading of the
dish racks. Variations are therefore possible in practice.
2)
Test programme
15
Setting the dishwashing programme
1. Check that the dishes and cutlery are loaded into
the dishwasher in such a manner that the spray
arms are free to rotate.
2. Open the tap fully.
3. Close dishwasher door.
4. Turn the programme switch clockwise to A, or B or
C (see „ Programme Table“).
For interference suppression reasons, only
operate the programme switch with the dishwasher switched off. It is also possible that
the automated addition of detergent will be
triggered.
5. Press the button for the programme required
(see „ Programme Table“).
1
a. Power indicator
light illuminates. The selected wash programme starts.
The programme switch rotates during the
wash programme and indicates the position
that has been reached in the programme.
6. Press ON/OFF button
1
If a wash programme has been started even
though the tap was closed, switch off the
dishwasher with the ON/OFF button a,
open the tap and start the wash programme
again.
Changing/Interrupting the Wash
Programme
3
Only change or interrupt a wash programme
in progress if it is absolutely necessary.
When the appliance is closed again, the air
that has entered is heated rapidly and
expands. This can cause water to escape
onto the floor and possibly trigger the antiflood system.
Changing the wash programme
1. Press ON/OFF button a. Power indicator light
goes out, wash programme stops.
Hot steam can escape when the door is
opened. There is a risk of scolding! Open the
door carefully.
Open dishwasher door and check whether there is
still detergent in the container. Refill the container
if necessary.
Close dishwasher door.
Turn the programme switch clockwise to A, or B or
C (see „ Programme Table“).
Press the button for the programme required
(see „ Programme Table“).
1
2.
3.
4.
5.
6. Press ON/OFF button a. ON/OFF button a
indicator illuminates. The selected wash programme starts.
16
Interrupting the wash programme by
opening the door of the dishwasher
Hot steam can escape when the door is
opened. There is a risk of scolding! Open the
door carefully.
1. Open the door of the dishwasher. The wash programme stops.
2. Shut the door. The wash programme continues.
1
Switching Off the Dishwasher
When the wash programme is finished:
1. Press the ON/OFF button
a . Power indicator
light goes out.
Hot steam may escape if the door is opened
immediately after the end of the programme.
Therefore:
2. Open the door carefully.
1
Emptying the Dishwasher
Hot dishes are sensitive to knocks. The
dishes should therefore be allowed to cool
down before removing them from the appliance.
The dishes will dry quicker if, when the programme has finished, you briefly open the door
fully and then leave it slightly ajar.
Leave the dishes in the dishwasher for approx. 15
minutes after the end of the programme so that
they dry better and can cool down.
Empty the lower rack first, then the upper rack. In
this way you will avoid any water left on the upper
rack dripping onto the dishes in the lower rack and
causing water spots.
3
•
•
•
1
Please note, that if your dishwasher is
installed under a kitchen worktop, escaping
steam may damage the worktop. Its underside must be protectad against rising steam
with aluminium foil as prescribed.
17
Care and Cleaning
Do not under any circumstances use furniture care products or aggressive cleaners.
If necessary, clean the controls only with a soft
cloth and pure warm water.
The spray arms do not need cleaning.
Occasionally check the internal containers, door
seal, and water inlet for soiling, clean if necessary.
1
•
•
•
Cleaning the Filter
3
The filters in the base of the washing compartment are to a large extent self-cleaning.
Nevertheless the filters should be checked
and cleaned from time to time. Dirty filters
will degrade the washing result.
1. Open the door, remove the lower rack.
2. The dishwasher filter system comprises a coarse/
fine filter, microfilter and a flat filter. Unlock the filter system using the handle on the microfilter, and
remove.
3. Turn the handle about ¼ a turn anticlockwise and
remove.
4. Take hold of the coarse/fine filter (1) by the handle
with the hole and remove from the microfilter (2).
5. Clean all filters thoroughly under running water.
6. Remove the flat filter (3) from the base of the
washing compartment and clean both faces thoroughly.
7. Put the flat filter back in the base of the washing
compartment.
8. Place the coarse/fine filter in the microfilter and
press together.
9. Put the filter combination in place and lock by
turning the handle clockwise to the stop. During
this process ensure that the flat filter does not protrude .above the base of the washing compartment.
1
18
Under no circumstances may the dishwasher
be used without filters.
What to do, when ...
Try to rectify minor faults on the dishwasher with the
aid of the instructions given here. If you call in customer service to resolve one of the malfunctions
listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit
is not free of charge, even during the period of guarantee.
...There Are Problems with the Operation of the Dishwasher.
Malfunction
Possible Cause
Rectification
The drain pump in the
dishwasher runs continThe anti-flood system has been triggered.
uously - even with the
appliance switched off.
The programme does
not start.
Close the tap,
then unplug from the mains and
contact customer service.
The door of the dishwasher is not closed
properly.
Shut the door.
Mains plug is not plugged in.
Insert mains plug.
House fuse in defective.
Replace fuse.
In the case of dishwasher models with start
If the dishes are to be washed immedidelay timer:
ately, set the start delay to 0 hours
A start delay is selected.
The washing compartment is made of corrosion-resistant stainless steel. Rust spots
Rust spots are visible in in the washing compartment are from partithe washing compartcles from outside the appliance (rust partiment.
cles from the water pipe, from pans, cutlery,
etc.). Remove such spots with a commercially available stainless steel cleaner.
There is a whistling
noise during washing.
The whistling is not a cause for concern.
Only wash cutlery and dishes that are
suitable for dishwasher use.
Close the lid of the special salt container
securely.
Use a different brand of detergent.
...The Wash Result is Unsatisfactory.
The dishes are still dirty.
The dishes are wet and dull.
•
•
•
•
•
•
•
•
The wrong wash programme was selected.
The dishes were arranged in such a manner that
water has not reached all parts. The dish racks
must not be overloaded.
The filter in the base of the washing compartment
is dirty or incorrectly positioned.
Detergent was not used or too little was used.
In the case of scale deposits on the dishes: the
special salt container is empty or the water softener is incorrectly adjusted.
The drain hose is incorrectly laid.
Rinse aid was not used.
The rinse aid container is empty.
There are streaks, milky spots or a bluish
coating on glasses and dishes.
•
Decrease rinse aid dosing.
There are dried water drops on the
glasses and dishes.
•
•
Increase rinse aid dosing.
The detergent may be the cause. Contact the
detergent manufacturer's consumer advisor.
19
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the rating plate on the inner edge
of the dishwasher door on the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x B x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated or Fully Integrated, Built-In Dishwashers That Can Be Fitted With
Decor Panels
Dimensions:
820 – 880 x 595 x 570 (H x B x D in mm)
Max. Weight:
50 Kg
appliance conforms with the following
; This
EU Directives:
•
•
20
73/23/EWG dated 19. 02. 1973 – Low
Voltage Directive
89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/
EWG) – EMC Directive
Notes for Test Institutes
The salt container for the water softener and the rinse aid container must be completely full prior to the test.
Test Standard:
EN 50 242
Comparative Program:
see "Program table: Test programme" for full and half load
Full Load:
12 place settings incl. serving dishes
Detergent Dosing:
30g (Type B) in the detergent container
Half Load:
6 place settings including serving dishes
Every second place is left empty in the case of a half load.
Detergent Dosing:
20g (Type B) in the detergent container
Rinse Aid Setting:
4 (Type III) for full and half load
Example Loading Arrangements: Top rack
Example Loading Arrangements: Top rack
21
Example Loading Arrangements:
Bottom rack
Example Loading Arrangements:
Cutlery basket
22
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
•
•
•
•
The dishwasher must be installed on a firm floor
and adjusted such that it is stable and level.
Using the spanner supplied, extend the threaded
feet to compensate for unevenness in the floor
and to adjust the height of the appliance to suit the
surrounding units. The rear feet of the unit are to
be adjusted with a screwdriver from the front of
the unit for built-in and integrated dishwashers.
The drain hose, inlet hose and mains cable must
be laid such that they are free to move in the rear
of the plinth recess, so that they cannot be kinked
or crushed.
The dishwasher must also be screwed on tightly to
the work surface or to the adjoining units. This is
absolutely necessary so that its stability is guaranteed according to VDE regulations.
Depending on type, the dishwasher is to be installed
as follows:
Dishwashers That Can Be
Integrated
(see installation template supplied)
3
The door of the appliance can be fitted with a
wooden/facing panel with the following
dimensions
Width:
591 – 594 mm
Thickness:
16 – 24 mm
Height:
(variable)
dependent on
Weight:
max. 8 kg
1
- Aperture height
- Plinth height
- The adjustment so that the unit matches the height
of the adjoining units
The exact height of the adjoining units must be
measured at the place of installation.
If the facing panel is longer than 600 mm, the
door of the appliance cannot be opened
completely (the facing panel bumps against
the plinth).
If this is the case, the plinth must be cut out
(see installation template) or the brace
adapter for the extra long door BLT 60 must
be used. You can obtain this with the E No.
911 239 008.
23
Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
1
can be set up as stand-alone without additional installation.
If the dishwasher is set up next to a gas or
coal cooker, a heat-insulating, non-flammable plate must be mounted between the dishwasher and the cooker, flush to the top edge
of the work surface (depth 57.5 cm). The
plate should have aluminium foil on the side
facing the cooker.
If the dishwasher is installed underneath a kitchen
work surface, the original work surface of the dishwasher is to be removed as follows:
1. Unscrew the screws (1) from the elbows on the
back side.
2. Slide the work surface approx. 1 cm to the rear (2),
lift at the front (3) and remove.
3. Press the work surface retaining brackets at the
position (4) shown in the diagram and remove the
bracket at an angle to the rear (5).
1
If the dishwasher is later used as a freestanding appliance, the original work surface
must be re-mounted.
3
The plinth on free-standing appliances is not
adjustable.
•
•
•
•
24
Free-standing appliances can be outfitted with a
décor panel to match the facings of other kitchen
equipment. The décor panels must be obtained
from the kitchen manufacturer. A décor frame is
necessary for installation, and can be obtained as
an accessory from the dealer if not included in the
scope of delivery.
Decor panel dimensions:
– Height 597mm
– Width 587mm
– Clamp thickness: max. 4mm
The corners of the décor panels must be chamfered at 5 mm x 45°.
To ensure that thin decor panels do not flex or distort, attach them to the door of the appliance using
double sided adhesive tape.
4
5
Connecting the Dishwasher
Water connection
The dishwasher is fitted with safety devices that prevent the return of wash water into the drinking water
system and comply with the applicable plumbing regulations.
• The dishwasher can be connected to cold and hot
water supplies up to max. 60 °C.
• The dishwasher must not be connected to open
hot water appliances or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10N/cm2 =100 kPa)
For a water pressure of less than 1 bar please seek advice from customer service.
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
In the case of a water pressure greater than 10 bar, a pressure reduction valve must be used (available from your dealer).
Connect the inlet hose
1
The water inlet hose must not be kinked,
crushed or entangled when it is being connected up.
Connect the threaded hose fitting (DIN 259)
on the water inlet hose to a tap with an external thread (¾ inch). Tighten the threaded
hose fitting only by hand.
3
•
In order that access to the tap in the kitchen
is not limited by the use of the dishwasher,
we recommend the installation of an additional tap, or the fitting a two way adapter to
the existing tap.
If you need a longer water inlet hose than that
supplied, the following VDE approved complete
hose sets are to be used, these are available from
your dealer:
– Hose set "WRflex 100" (E No.: 911 239 034)
– Hose set "WRflex 200" (E No.: 911 239 035)
25
Water drain
Drain hose
The drain hose must not be kinked, crushed
or entangled.
Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the
lower edge of the machine.
1
•
Extension hoses
•
•
Extension hoses are available from your dealer or
customer service. The internal diameter of the
extension hoses must be 19 mm to ensure that
the function of the appliance is not impeded.
Extension hoses may be laid a maximum of 3
metres horizontally; the maximum permitted
height for the connection for the drain hose is then
85 cm.
Siphon connection
•
•
The outlet of the drain hose (ø 19 mm) fits all commonly available siphon types. The outer diameter
of the siphon connection must be at least 15 mm.
The drain hose must be fixed to the siphon connection using the hose clamp supplied.
Water drain into wash basins (only possible with free-standing appliances)
In the case that you wish to hang the drain hose in a
wash basin, use a detachable hose elbow. You can
obtain this from customer service under spare part
number ET 646 069 190.
1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge
of the wash basin.
Pass a piece of cord through the hose elbow and
fix it to the wall or the tap.
Leak Prevention System
For protection from damage due to water leaks, the
dishwasher is equipped with a leak prevention system.
In the event of a fault, the drain pump switches on. By
this means water can neither escape nor overflow.
The remaining water in the appliance is automatically
pumped out.
1
26
The leak prevention system also works when
the appliance is switched off – the appliance
must however not be disconnected from the
mains.
Electrical connection
1
In accordance with the conditions of the electricity supply companies in respect of the
technical aspects of making connections to
the mains, fixed connections to the mains
may only be made by approved electricians.
When connecting up the appliance, observe the VDE
regulations and, if necessary, any additional conditions from your local electricity supplier.
Following installation, live parts and wiring insulated
during operation must not be accessible using a test
finger in accordance with EN 60335/DIN VDE 0700.
Information on the electrical connection can be found
on the rating plate on the inner edge of the dishwasher door on the right. If the appliance has a
change-over switch, the additional instructions on the
change-over diagram in the mains socket must be
observed.
Prior to connecting up ensure that the mains voltage
and type of supply match the nominal voltage and
type of supply given on the rating plate. The required
level of protection is also to be found on the rating
plate.
To isolate the dishwasher from the mains, pull the
mains plug. If the appliance is permanently connected to the mains, then it must be isolated from the
mains using measures provided in the electrical
installation (fuses – unscrew screw-type fuses, cutouts, current trips or similar that have a contact separation of > 3 mm when open).
27
Connections
The water inlet and drain hoses, as well as the mains
cable must be connected beside the dishwasher
because there is no space for them behind the appliance.
The example plumbing and electrical installation
given below can only be regarded as a recommendation; the actual situation where the dishwasher is to
be installed will define the exact installation (available
connections, local electricity and water board regulations for connecting up appliances, etc.).
Two 45° or Straight Connections,Outer ø 19 mm, Length 30 mm
Water inlet Mains cable Water
drain
28
Mains
socket
Double Water
tap
drain
Mains cable
Water
inlet
29
30
SERVICE
In the section "What to do, if..." the most important
sources of faults that you can rectify yourself are
summarised.
If, nevertheless, you call in customer service to
resolve a problem listed in these instruction, or
because of an error made in operating the appliance,
the customer service engineer’s visit is not free of
charge, even during the warranty period.
If you can not find any information on a specific malfunction in these operating instructions, please contact customer service.
Please provide customer service the PNC number
and the S No. (serial number), you can find these on
the rating plate. The plate is on the inner edge of the
door on the right.
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Model:
............................................................
PNC :
............................................................
S-No :
............................................................
Date of
purchase:
............................................................
31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
