Electrolux CS160DV User manual

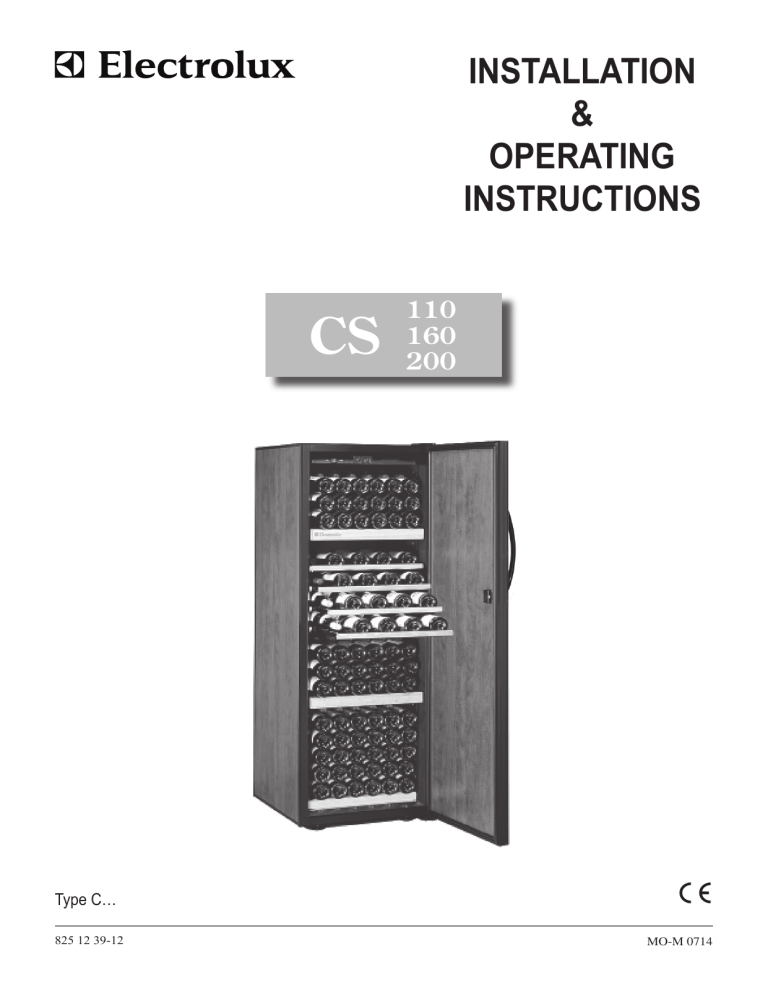

Installation & Operating Instructions CS 110 160 200 Type C… 825 12 39-12 MO-M 0714 Introduction Thank you for choosing the Electrolux Wine Cellar. Please read the following instructions carefully before installing your new wine cellar. We trust you will be completely satisfied with your purchase. The wine cellar must be installed and used according to these instructions in order for it to operate correctly and economically. Transit damage Data plate Check the data plate, inside the wine cellar at the top left, to ensure you have received the right model. The data plate shows details that you will need to quote if you have to contact service personnel. Inspect the wine cellar for transit damage. You must report any damage the company responsible for the delivery within the legal or stated time for this type of product. If there is no such established report time, the damage must be reported within seven days of delivery. It is a good idea to make a note of them here: Accessories Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Please check that the following accessories are attached to the Wine Cellar or in the separate cardboard box inside the wine cellar. Model designation. . . . . . . . . . . . . . . . . . . . . . . . . Product number. . . . . . . . . . . . . . . . . . . . . . . . . . . Serial number . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation Please follow these instructions: Cardboard box: • Handle • Storage shelves • Drip tray • Support (floor) • Shelf supports • Screws • Washers (wooden door) • Keys • CD • Instruction manual • For best performance, air needs to circulate freely over the cooling unit behind the wine cellar. • The free-standing design of the cellar means that it should stand at least 25 mm from the rear and side walls. • Allow a clearance of at least 100 mm above the wine cellar. Wall 25 mm Rear Necessary additional tools not included: • Screwdriver (star quad) • Adjustable spanner or fixed spanner (21 mm) 25 mm 30 mm Wall • Note that it must be possible to open the wine cellar door at least 90° to allow the sliding shelves to be pulled out. -- 1. Remove the transport pallet on which your wine cellar rests. 2. Adjust the feet to allow a 30 mm clearance under the wine cellar and verify that it stands in a vertical position in both directions. If necessary, use a spirit level. Electrical connection The electrical installation must be carried out correctly, taking into account all relevant regulations and codes of practice. The wine cellar operates on a single-phased alternating current. Please check that the voltage shown on the data plate corresponds to your power supply. ! WARNING The wine cellar must be earthed. 3. For optimum performance, please place your wine cellar far away from any source of heat, e.g. radiator, cooker or intense sunlight. . Check that the charcoal filter is in place at the top left corner inside the wine cellar. 5. Fit the door handle to the door, see “Appendix A”. 6. Attach the drip tray on the back. The screws are already attached at the back. The wine cellar is fitted with a plug intended for an earthed socket. Electrolux and its subsidiaries will not be held responsible for any incident due to nonexistent or defective earth wires. Electrical leads must be routed and secured so that they cannot come into contact with hot or sharp parts of the wine cellar. Temperature setting Plug in the wine cellar and turn it on with the ON/ OFF switch. The wine cellar is equipped with an electronic control. This allows you to programme the temperature inside the wine cellar. The wine will be stored between 10°C and 15°C according to expert advice. and 15°C according to expert advice. The temperature, pre-set at 12°C in the factory, is shown on the display. The temperature can be changed on demand between 8°C and 18°C depending on the wine stored. 1. Press and hold the UP ( ▲ ) or DOWN ( ▼ ) arrow button for a few seconds until the display starts blinking. 2. Release the button. Press the UP/DOWN arrow buttons to set the temperature. The new value is saved automatically after 6 seconds. -- Maintenance We recommend that you keep your wine cellar as clean as possible. Unplug the cellar before cleaning. Do not use any abrasive or strong scented substances. Use a smooth cloth or sponge and light detergent. It is very important to check regularly that the air circulation underneath and behind the cellar is not blocked. Condensation collects in a small cup placed at the back of the wine cellar. The cup has a sponge which helps the condensation to evaporate. Check that the plastic pipe routing the water from the inside to the cup is not blocked by dust or dirt. You should replace the inside ventilation charcoal filter every second year. The filter is fitted in the upper left corner inside the wine cellar. Installation of guides and shelf supports Sliding shelves Place the rear hook of the guide in front of the desired hole in the rear row and push in direction of arrow 1. Then, do the same with the front hook (arrow 2). 2 1 Shelf support for storage shelf Place the support hooks in the holes at desired level, press in as arrow 1 indicates and push down as arrow 2 indicates. 2 1 If the wine cellar fails to work, check the following points before calling a service technician: • Is the fuse of power supply intact? • Is the plug properly inserted in its socket? • Is the wine cellar switched on? Reinforcement bar The reinforcement bar is a shelf support and must not be removed for safety reasons. If the cause of failure is not to be found among the points listed above, contact an authorised service technician. The wine cellar is equipped with an overheating protection. An authorised service technician can check whether this has been triggered or not. Reinforcement bar Kits Each kit contains two shelves and shelf supports. Sliding shelf kit number: 921 17 81-99 Storage shelf kit number: 921 17 81-98 -- Model Max. no. of sliding shelves CS 110 CS 160 CS 200 8 (wooden door) / 9 (glass door) 12 16 Storing the wine Example of how to store mixed bottle types Bottles should be stored in your wine cellar according to their size (diameters and heights.) Take these differences into account when storing your wine and avoid mixing the bottles. It is important to store bottles on their side in order for the cork to remain in contact with the wine. The maximum number of “Bordeaux tradition” bottles that can be stored in a wine cellar that is fitted with storage shelves and one sliding shelf: Model CS 110 CS 160 CS 200 No. of storage shelves 1+1 1+2 1+3 No. of bottles 116 170 206 Place bottles top to bottom in the cellar for optimum volume use. The sliding shelves and the storage shelves can be placed in several positions depending on the size of your wine cellar. Use the sliding shelf when storing specially shaped bottles. CAUTION Note that you should store no more than one layer of bottles on the shelves. Storing Bordeaux tradition Storing Burgundy tradition -- Appendix a - Instruction for mounting the handle stainless steel doors 1) Remove the door gasket behind the two holes adapted for the handle. Start in the upper corner and gently pull out the gasket from the slot. Continue down and pass the two holes. 2) From the inside of the door, put the two attached screws (M4x60) first through the door frame (1), then through the distance bar (2) and then tap the screw into the threads in the vertical handle bar (3). Screw 2 1 3 3) Remount the door gasket by pressing it back in its slot by hand. Make sure that the gasket is all the way back in place of origin. CAUTION Do not use any sharp tools to force the gasket back. This can damage the gasket and the wine cellar will loose performance. -- Appendix a - Instruction for mounting the handle GLASS DOORS wooden doors 1) See step 1, “Stainless steel doors”. 1) 2) 2) 3) See step 3, “Stainless steel doors”. -- appendix b - Electric diagram --
