IKEA OV33 User Manual

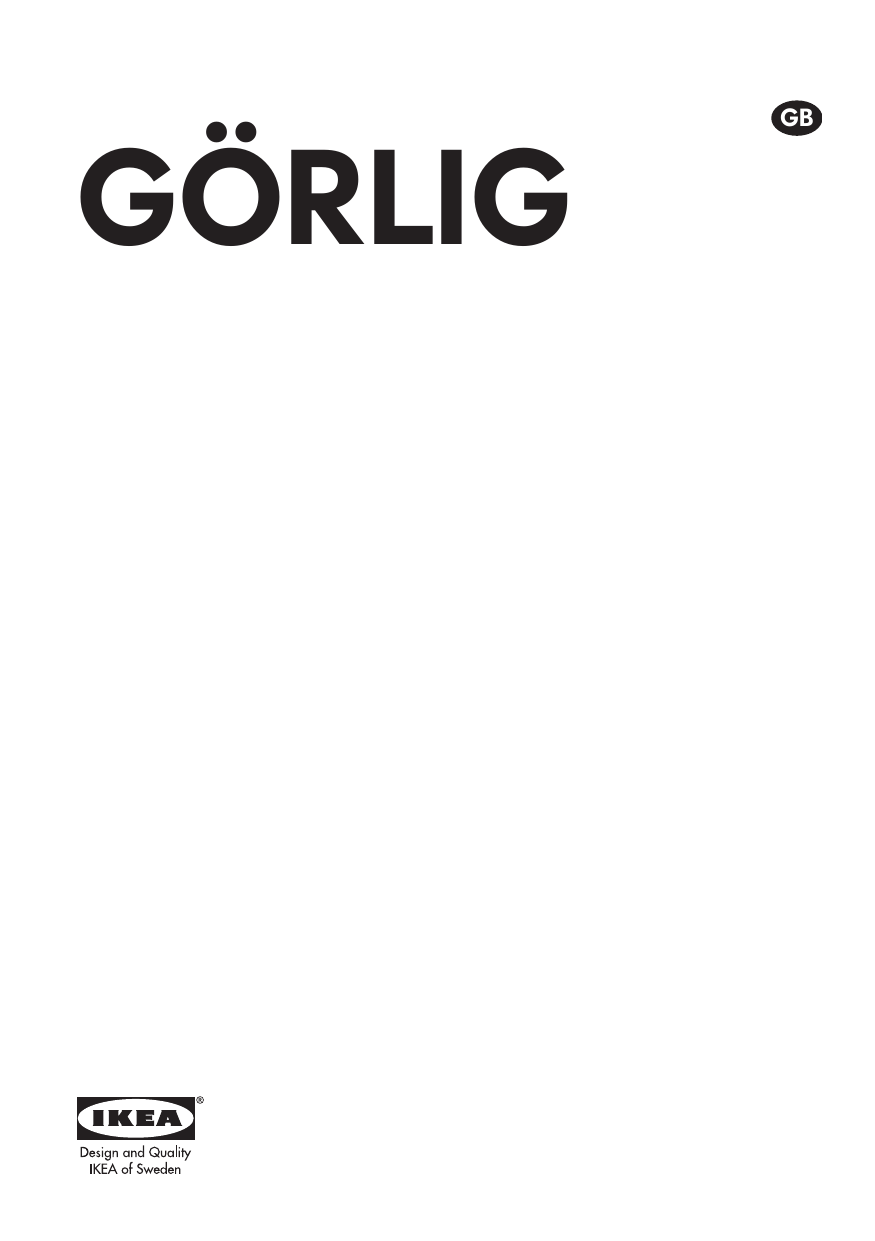

GÖRLIG
GB
ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.
ENGLISH
4
4
ENGLISH
Contents
Safety information
Safety instructions
Installation
Product description
Before first use
Daily use
Additional functions
4
5
7
8
8
9
10
Hints and tips
Care and cleaning
Troubleshooting
Technical information
Energy efficiency
ENVIRONMENTAL CONCERNS
IKEA GUARANTEE
10
11
14
15
15
16
16
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Do not let children play with the appliance.
Keep all packaging away from children.
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, we recommend you
activate it.
Cleaning and user maintenance shall not be made by
children without supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
ENGLISH
5
General Safety
•
•
•
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
Internally the appliance becomes hot when in operation. Do
not touch the heating elements that are in the appliance.
Always use oven gloves to remove or put in accessories or
ovenware.
Before maintenance cut the power supply.
Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
ENGLISH
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Use
Warning! Risk of injury, burns
and electrical shock or explosion.
• Use this appliance in a household only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
6
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
• Always cook with the oven door closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
ENGLISH
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Care and Cleaning
Warning! Risk of injury, fire, or
damage to the appliance.
7
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
Warning! Risk of injury or
suffocation.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
a risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
• If you use an oven spray, obey the safety
instructions on the packaging.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children and
pets to get closed in the appliance.
• Packaging material:
The packaging material is
environmentally-friendly and recyclable.
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging
material in the containers provided for
this purpose at your local waste
management facility.
Internal light
Service
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Installation
Warning! Refer to Safety
chapters.
Assembly
Refer to the Assembly Instructions
for the installation.
Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
This appliance is only supplied with a main
cable.
ENGLISH
8
Product description
General overview
2
3
4
1
5
6
4
9
8
3
7
2
1
Accessories
• Wire shelf x 1
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
1
2
3
4
5
6
7
8
9
Control panel
Knob for the oven functions
Knob for the temperature
Temperature indicator
Air vents for the cooling fan
Grill
Lamp
Rating plate
Shelf positions
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
Before first use
Warning! Refer to Safety
chapters.
Initial Cleaning
Remove all accessories from the appliance.
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories back to their initial
position.
Preheating
Preheat the empty appliance to burn off the
remaining grease.
1. Set the function
and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function
and the maximum
temperature.
4. Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
Using the Mechanical child lock
The appliance has the child lock installed
and activated. It is below the control panel
on the right side.
ENGLISH
9
To open the oven door with the child lock
installed, pull the child lock handle up as
shown in the picture.
Screw back the screw into the hole after
removing the child lock.
Close the oven door without pulling the
child lock.
To remove the child lock, open the oven
door and remove the child lock with the torx
key. The torx key is in the oven fitting bag.
Daily use
Warning! Refer to Safety
chapters.
Activating and deactivating the appliance
1. Turn the knob for the oven functions to
an oven function.
2. Turn the knob for the temperature to a
temperature.
The temperature indicator comes on while
the temperature in the appliance increases.
3. To deactivate the appliance, turn the
knob for the oven functions and the
knob for the temperature to the Off
position.
Oven functions
Oven function
Application
Off position
The appliance is off.
Light
To activate the lamp without a cooking function.
Bottom Heat
To bake cakes with crispy or crusty bottom. Only the
bottom heating element operates.
Conventional
(Top and Bottom
Heat)
To bake and roast on one oven level. The top and bottom heating elements operate at the same time.
ENGLISH
10
Oven function
Grilling
Application
To grill flat food in the middle of the shelf. To make
toasts.
Additional functions
Cooling fan
Safety thermostat
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
can continue to operate until the appliance
cools down.
Incorrect operation of the appliance or
defective components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the
power supply. The oven activates again
automatically when the temperature drops.
Hints and tips
General information
• Whenever preheating, remove the wire
shelves and trays from the cavity to have
the fastest performance.
• The appliance has four shelf positions.
Count the shelf positions from the bottom
of the appliance floor.
• Moisture can condense in the appliance
or on the door glass panels. This is
normal. Always stand back from the
appliance when you open the appliance
door while cooking. If you notice
moisture inside of the oven, keep the
door open for a couple of minutes.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components when
you cook. This can change the baking
results and cause damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
ENGLISH
11
Cooking table
Quantity
(kg)
Food
Function Shelf position
Temperature
(°C)
Time (min)
1
Pork / Lamb
2
180
110 - 130
1
Veal / Beef
2
190
70 - 100
1.2
Chicken / Rabbit
2
190
70 - 80
1.5
Duck
1
160
120 - 150
3
Goose
1
160
150 - 200
4
Turkey
1
180
210 - 240
1
Fish
2
190
30 - 40
1
Stuffed pepperoni tomatoes / Roasted potatoes
2
190
50 - 70
-
Instant cakes
2
160
45 - 55
1
Pies
2
160
80 - 100
-
Biscuits
3
140
25 - 35
2
Lasagne
2
180
45 - 60
1
White bread
2
190
50 - 60
1
Pizza
1
190
25 - 35
Care and cleaning
Warning! Refer to Safety
chapters.
Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent.
ENGLISH
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
12
1
2
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft
cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean
the oven control panel with the
same precautions.
Open the door fully Lift and turn the
levers on the two
and hold the two
hinges.
door hinges.
3
4
Cleaning the door gasket
• Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the
appliance if the door gasket is
damaged. Contact the Service.
• To clean the door gasket, use a soft cloth
with warm water and a cleaning agent.
Cleaning the oven door
The oven door has two glass panels. You
can remove the oven door and the internal
glass panel to clean it.
Close the oven door
halfway to the first
opening position.
Then pull forward
and remove the
door from its seat.
5
The oven door can close if you
try to remove the internal glass
panel before you remove the
oven door.
Caution! Do not use the
appliance without the internal
glass panel.
Put the door on a
soft cloth on a
stable surface.
6
90°
Release the locking
system to remove
the internal glass
panel.
Turn the two
fasteners by 90°
and remove them
from their seats.
ENGLISH
13
Replacing the lamp
7
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
1
2
First lift carefully
and then remove
the glass panel.
Clean the glass panel with water and soap.
Dry the glass panel carefully.
When the cleaning is completed, install the
glass panel and the oven door. Do the
above steps in the opposite sequence.
The screen-printing zone must face the
inner side of the door. Make sure that after
the installation the surface of the glass
panel frame on the screen-printing zones is
not rough when you touch it.
Make sure that you install the internal glass
panel in the seats correctly.
Warning! Danger of
electrocution! Disconnect the fuse
before you replace the lamp.
The lamp and the lamp glass
cover can be hot.
1. Deactivate the appliance.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
3. Turn the lamp glass cover
counterclockwise to remove it.
4. Clean the glass cover.
5. Replace the oven light bulb with a 25
W, 230 V (50 Hz), 300 °C heat resistant
oven light bulb (connection type: E14).
6. Install the glass cover.
ENGLISH
14
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem
Possible cause
Remedy
The oven does not heat up.
The oven is deactivated.
Activate the oven.
The oven does not heat up.
The fuse is released.
Make sure that the fuse is
the cause of the malfunction.
If the fuse releases again
and again, contact a qualified electrician.
The lamp does not operate.
The lamp is defective.
Replace the lamp.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 20 minutes after the cooking
process ends.
Service data
If you cannot find a solution to the problem
yourself, contact an Authorised Service
Centre.
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
The necessary data for the service centre is
on the rating plate. The rating plate is on
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
ENGLISH
15
Technical information
Technical data
Dimensions (internal)
Width
Height
Depth
Area of baking tray
1140 cm²
Top heating element
800 W
Bottom heating element
1000 W
Grill
1650 W
Total rating
1850 W
Voltage
220 - 240 V
Frequency
50 Hz
Number of functions
3
408 mm
329 mm
416 mm
Energy efficiency
Product information according to EU 66/2014
Model identification
GÖRLIG 903.007.92
Energy Efficiency Index
106.4
Energy consumption with a standard load, conventional mode
0.83 kWh/cycle
Number of cavities
1
Heat source
Electricity
Volume
55 l
Type of oven
Built-In Oven
Mass
26.3 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
Energy saving
The appliance contains features which help
you save energy during everyday cooking.
• General hints
ENGLISH
– Make sure that the oven door is
closed properly when the appliance
operates and keep it closed as much
as possible during the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum, 3 - 10
minutes before the end of the
16
cooking time, depending on the
duration of the cooking. The residual
heat inside the oven will continue to
cook.
– Use the residual heat to warm up
other foods.
• Keep food warm - if you want to use the
residual heat to keep the meal warm,
choose the lowest possible temperature
setting.
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply. The original sales
receipt is required as proof of purchase. If
service work is carried out under guarantee,
this will not extend the guarantee period for
the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN
and all appliances purchased in IKEA
before 1st of August 2007
Who will execute the service?
IKEA service provider will provide the
service through its own service operations
or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the
appliance, which have been caused by
faulty construction or material faults from
the date of purchase from IKEA. This
guarantee applies to domestic use only. The
exceptions are specified under the headline
“What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure. On
these conditions the EU guidelines (Nr.
99/44/EG) and the respective local
17
ENGLISH
regulations are applicable. Replaced parts
become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will
examine the product and decide, at its sole
discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service operations,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage,
damage caused by failure to observe
operating instructions, incorrect
installation or by connection to the
wrong voltage, damage caused by
chemical or electro-chemical reaction,
rust, corrosion or water damage
including but not limited to damage
caused by excessive lime in the water
supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible color differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found
during a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a nondomestic environment i.e. professional
use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety
specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local
demands. However these conditions do not
limit in any way consumer rights described
in the local legislation
Area of validity
For appliances which are purchased in one
EU country and taken to another EU
country, the services will be provided in the
framework of the guarantee conditions
normal in the new country. An obligation to
carry out services in the framework of the
18
ENGLISH
guarantee exists only if the appliance
complies and is installed in accordance
with:
• the technical specifications of the country
in which the guarantee claim is made;
• the Assembly Instructions and User
Manual Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this
guarantee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t
provide clarifications related to:
• the overall IKEA kitchen installation;
• connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized
service engineer.
3. ask for clarification on user manual
contents and specifications of the IKEA
appliance.
To ensure that we provide you with the best
assistance, please read carefully the
Assembly Instructions and/or the User
Manual section of this booklet before
contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
In order to provide You with a
quicker service, we recommend
that You use the specific phone
numbers listed at the end of this
manual. Always refer to the
numbers listed in the booklet of
the specific appliance You need
an assistance for. Before calling
us, assure that You have to hand
the IKEA article number (8 digit
code) for the appliance of which
you need our assistance.
SAVE THE SALES RECEIPT! It is
Your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please
contact our nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting
us.
19
Country
België
Belgique
Phone number
070 246016
Call Fee
Opening time
Binnenlandse gesprekskosten
8 tot 20 Weekdagen
Tarif des appels nationaux
8 à 20. En semaine
България
00359888164080
0035924274080
Такса за повикване от страната
От 9 до 18 ч в работни дни
Česká republika
246 019721
Cena za místní hovor
Danmark
70 15 09 09
Landstakst
8 až 20 v pracovních dnech
man. - fre. 09.00 - 20.00
lør. 09.00 - 16.00
1 søndag pr. måned, normalt første
søndag i måneden
Deutschland
+49 1806 33 45
32*
* 0,20 €/Verbindung aus dem Festnetz
max. 0,60 €/Verbindung
aus dem Mobilfunknetz
Werktags von 8.00 bis 20.00
Ελλάδα
211 176 8276
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
España
91 1875537
Tarifa de llamadas nacionales
De 8 a 20 en días laborables
France
0170 36 02 05
Tarif des appels nationaux
9 à 21. En semaine
Trošak poziva 27 lipa po minuti
radnim danom od ponedjeljka
do petka od 08:00 do 16:00
Hrvatska
00385 1 6323 339
Ireland
0 14845915
National call rate
8 till 20 Weekdays
Ísland
5880503
Innanlandsgjald fyrir síma
9 til 18. Virka daga
Italia
02 00620818
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
Κυπρος
22 030 529
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
Lietuva
5 230 06 99
Nacionalinių pokalbių tarifai
Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00
Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország
061 998 0549
Belföldi díjszabás
Hétköznap 8 és 10 óra között
Nederland
0900 235 45 32
en/of
0900 BEL IKEA
15 cent/min., starttarief 4.54 cent
en gebruikelijke belkosten
ma - vr 08.00 - 20.00,
zat 09.00 - 20.00
(zondag gesloten)
Norge
815 22052
Takst innland
8 til 20 ukedager
Österreich
0810 300486
max. 10 Cent/min.
Mo - Fr 8.00 - 20.00 Uhr
Polska
012 297 8787
Stawka wg taryfy krajowej
Od 8 do 20 w dni robocze
Portugal
211557985
Chamada Nacional
9 às 21. Dias de Semana
*excepto feriados
România
021 211 08 88
Tarif apel naţional
8 - 20 în zilele lucrătoare
Действующие телефонные тарифы
с 8 до 20 по рабочим дням
Время московское
Россия
8 495 6662929
Schweiz
Tarif für Anrufe im Bundesgebiet
8 bis 20 Werktage
Suisse
Tarif des appels nationaux
8 à 20. En semaine
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
(02) 3300 2554
Cena vnútroštátneho hovoru
8 až 20 v pracovných dňoch
Suomi
030 6005203
Lankapuhelinverkosta
0,0835 €/puhelu + 0,032 €/min
Matkapuhelinverkosta 0,192 €/min
arkipäivisin 8.00 - 20.00
Sverige
0775 700 500
lokalsamtal (lokal taxa)
mån-fre 8.30 - 20.00
lör-sön 9.30 - 18.00
031 5500 324
Svizzera
Slovensko
Türkiye
212 244 0769
Ulusal arama ücreti
Hafta içi saat 09:00’dan 18:00’a kadar
Україна
044 586 2078
Міжміськи дзвінки платні
9 - 21 В робочі дні
United Kingdom
020 3347 0044
National call rate
9 till 21. Weekdays
Slovenija
www.ikea.com
Србија
www.ikea.com
*
867318006-D-362016
© Inter IKEA Systems B.V. 2016
21552
AA-1414684-3

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
