Aeg BEB231011M User Manual

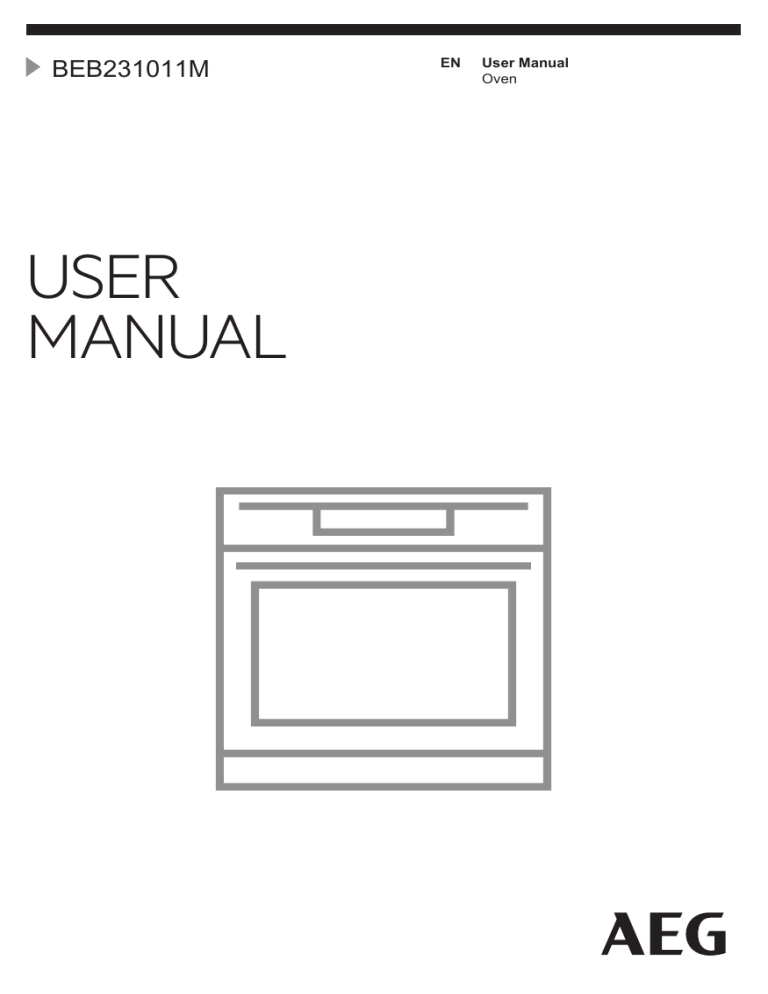

BEB231011M
USER
MANUAL
EN
User Manual
Oven
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 2
2. CONDITIONS OF USE................................................................................................ 4
3. SAFETY INSTRUCTIONS.............................................................................................4
4. PRODUCT DESCRIPTION...........................................................................................7
5. BEFORE FIRST USE..................................................................................................... 7
6. DAILY USE.................................................................................................................... 8
7. CLOCK FUNCTIONS...................................................................................................9
8. USING THE ACCESSORIES...................................................................................... 10
9. ADDITIONAL FUNCTIONS...................................................................................... 12
10. HINTS AND TIPS..................................................................................................... 12
11. CARE AND CLEANING.......................................................................................... 21
12. TROUBLESHOOTING............................................................................................. 24
13. INSTALLATION........................................................................................................25
14. ENERGY EFFICIENCY............................................................................................. 26
15. WARRANTY .............................................................................................................27
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.aeg.com/webselfservice
Register your product for better service:
www.registeraeg.com
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
ENGLISH
3
damages that are the result of incorrect installation or
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
Children of less than 3 years of age should be kept
away unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of
it appropriately.
Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to
avoid touching heating elements.
Always use oven gloves to remove or put in
accessories or ovenware.
Before carrying out any maintenance, disconnect the
appliance from the power supply.
4
www.aeg.com
•
•
•
•
•
•
Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the
side walls. Install the shelf supports in the opposite
sequence.
The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
2. CONDITIONS OF USE
This appliance is intended to be used in
household and similar applications such
as:
• By clients in serviced apartments,
holiday apartments and other
residential type environments.
• Farm houses
3. SAFETY INSTRUCTIONS
3.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the
handle.
• Keep the minimum distance from
other appliances and units.
• Install the appliance in a safe and
suitable place that meets installation
requirements.
• The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
3.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
ENGLISH
•
•
•
•
•
•
•
•
•
•
•
electrical ratings of the mains power
supply.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need
to be replaced, this must be carried
out by our Authorised Service Centre.
Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
If the mains socket is loose, do not
connect the mains plug.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
This appliance complies with the
E.E.C. Directives.
3.3 Use
WARNING!
Risk of injury, burns and
electric shock or explosion.
• Do not change the specification of
this appliance.
• Make sure that the ventilation
openings are not blocked.
• Do not let the appliance stay
unattended during operation.
• Deactivate the appliance after each
use.
5
• Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
• Do not operate the appliance with
wet hands or when it has contact with
water.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• To prevent damage or discoloration
to the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
• Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
• This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
• Always cook with the oven door
closed.
• If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a
closed furniture panel and cause
6
www.aeg.com
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
3.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage
to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• Make sure the appliance is cold.
There is the risk that the glass panels
can break.
• Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
• Be careful when you remove the door
from the appliance. The door is
heavy!
• Clean regularly the appliance to
prevent the deterioration of the
surface material.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
• If you use an oven spray, follow the
safety instruction on it's packaging.
• Do not clean the catalytic enamel (if
applicable) with any kind of
detergent.
3.5 Internal lighting
WARNING!
Risk of electric shock.
• The type of light bulb or halogen
lamp used for this appliance is for
household appliances only. Do not
use it for house lighting.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
3.6 Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
3.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains electrical cable
close to the appliance and dispose of
it.
• Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
ENGLISH
4. PRODUCT DESCRIPTION
4.1 General overview
1 2 3
4
5 6
7
5
8
4
11
3
9
2
1
10
4.2 Accessories
• Wire shelf
For cookware, cake tins, roasts.
• Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
1
2
3
4
5
6
7
8
9
10
11
Control panel
Knob for the heating functions
Power lamp / symbol
Display
Control knob (for the temperature)
Temperature indicator / symbol
Heating element
Lamp
Fan
Shelf support, removable
Shelf positions
• Trivet
For roasting and grilling.
Use the trivet only with
the Grill- / roasting pan.
5. BEFORE FIRST USE
5.2 Preheating
WARNING!
Refer to Safety chapters.
Preheat the empty oven before first use.
To set the Time of day refer
to "Clock functions"
chapter.
1. Set the function
and the
maximum temperature.
2. Let the oven operate for 1 hour.
5.1 Initial Cleaning
Remove all accessories and removable
shelf supports from the oven.
Refer to "Care and
cleaning" chapter.
Clean the oven and the accessories
before first use.
Put the accessories and the removable
shelf supports back to their initial
position.
3. Set the function
and set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
7
8
www.aeg.com
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knobs
to the off position.
6.2 Heating functions
Oven function Application
The oven is off.
Off position
To turn on the lamp without a cooking function.
Light
True Fan
Cooking
To bake on up to three
shelf positions at the
same time and to dry
food.
Oven function Application
This function is designed
to save energy during
Moist Fan Bak- cooking. For the cooking
instructions refer to
ing
"Hints and tips" chapter,
Moist Fan Baking. The
oven door should be
closed during cooking so
that the function is not interrupted and to ensure
that the oven operates
with the highest energy
efficiency possible. When
you use this function, the
temperature in the cavity
may differ from the set
temperature. The heating
power may be reduced.
For general energy saving recommendations refer to "Energy Efficiency"
chapter, Energy Saving.This function was
used to comply with the
energy efficiency class
according to EN 60350-1.
Defrost
To defrost food (vegetables and fruit). The defrosting time depends on
the amount and size of
the frozen food.
To grill flat food and to
toast bread.
Grilling
Fast Grilling
To grill flat food in large
quantities and to toast
bread.
To roast larger meat
joints or poultry with
Turbo Grilling bones on one shelf position. To make gratins and
to brown.
ENGLISH
9
6.3 Display
A
B
C
A. Clock functions
B. Timer
C. Clock function
6.4 Buttons
Sensor field / Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock function
Application
TIME OF DAY
To set, change or check the time of day.
DURATION
To set how long the appliance operates.
END
To set when the appliance deactivates.
TIME DELAY
To combine DURATION and END function.
MINUTE MINDER
To set countdown time. This function has no effect on the
operation of the appliance. You can set the MINUTE MINDER at any time, also when the appliance is off.
7.2 Setting the time. Changing
the time
You must set the time before you
operate the oven.
The
flashes when you connect the
appliance to the electrical supply, when
there was a power cut or when the timer
is not set.
Press the
time.
or
to set the correct
After approximately five seconds, the
flashing stops and the display shows the
time of day you set.
To change the time of day press
again and again until
starts to flash.
7.3 Setting the DURATION
1. Set an oven function and
temperature.
2. Press
again and again until
starts to flash.
10
www.aeg.com
3. Press
time.
or
The display shows
to set the DURATION
.
4. When the time ends,
flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the acoustic
signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
7.4 Setting the END
1. Set an oven function and
temperature.
again and again until
2. Press
starts to flash.
3. Press
or
The display shows
to set the time.
.
4. When the time ends,
flashes and
an acoustic signal sounds. The
appliance deactivates automatically.
5. Press any button to stop the signal.
6. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
7.5 Setting the TIME DELAY
1. Set an oven function and
temperature.
2. Press
again and again until
starts to flash.
or
3. Press
DURATION.
4. Press
.
5. Press
END.
or
to set the time for
to set the time for
8. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
8.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
6. Press
to confirm.
Appliance turns on automatically later
on, works for the set DURATION time
and stops at the set END time. At the set
time an acoustic signal sounds.
7. The appliance deactivates
automatically. Press any button to
stop the signal.
8. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
7.6 Setting the MINUTE
MINDER
1. Press
again and again until
starts to flash.
2. Press
or
to set the necessary
time.
The Minute Minder starts automatically
after 5 seconds.
3. When the set time ends, an acoustic
signal sounds. Press any button to
stop the acoustic signal.
4. Turn the knob for the oven functions
and the knob for the temperature to
the off position.
7.7 Cancelling the clock
functions
1. Press the
again and again until
the necessary function indicator
starts to flash.
2. Press and hold .
The clock function goes out after some
seconds.
ENGLISH
11
8.2 Trivet and Grill- / Roasting
pan
WARNING!
Be careful when you remove
the accessories from a hot
oven. There is a risk of burns.
You can use the trivet to roast larger
pieces of meat or poultry on one shelf
position.
Deep pan:
Push the deep pan between the guide
bars of the shelf support.
Wire shelf and deep pan together:
Push the deep pan between the guide
bars of the shelf support and the wire
shelf on the guide bars above.
Small indentation at the top
increase safety. The
indentations are also anti-tip
devices. The high rim
around the shelf prevents
cookware from slipping of
the shelf.
1. Put the trivet into the deep pan so
that the supports of the wire shelf
point up.
2. Put the deep pan into the oven on
the necessary shelf position.
You can use the trivet to grill flat dishes
in large quantities and to toast.
1. Put the trivet into the deep pan so
that the supports of the wire shelf
point down.
2. Put the deep pan into the oven on
the necessary shelf position.
12
www.aeg.com
9. ADDITIONAL FUNCTIONS
9.1 Cooling fan
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continue to
operate until the oven cools down.
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
9.2 Safety thermostat
Incorrect operation of the oven or
defective components can cause
10. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
10.1 Cooking
recommendations
The oven has five shelf positions.
Count the shelf positions from the
bottom of the oven floor.
Your oven may bake or roast differently
to the oven you had before. The below
tables provide you with the standard
settings for temperature, cooking time
and shelf position.
If you cannot find the settings for a
special recipe, look for the similar one.
The oven has a special system which
circulates the air and constantly recycles
the steam. With this system you can cook
in a steamy environment and keep the
food soft inside and crusty outside. It
decreases the cooking time and energy
consumption.
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
10.2 Inner side of the door
On the inner side of the door you can
find:
• the numbers of the shelf positions.
• information about the oven functions,
recommended shelf positions and
temperatures for dishes.
ENGLISH
13
10.3 Baking and roasting table
Cakes
Food
True Fan Cooking
Temperature
(°C)
Time (min)
Comments
Shelf position
Whisked recipes 160
3 (2 and 4)
45 - 60
In a cake mould
Shortbread
dough
160
3 (2 and 4)
20 - 30
In a cake mould
Buttermilk
cheesecake
165
2
60 - 80
In a 26 cm cake
mould
Apple cake (Ap-
160
2 (left and right)
80 - 100
In two 20 cm
cake moulds on
a wire shelf
Strudel
150
2
60 - 80
In a baking tray
Jam-tart
165
2 (left and right)
30 - 40
In a 26 cm cake
mould
Sponge cake
160
2
50 - 60
In a 26 cm cake
mould
Christmas cake / 150
2
90 - 120
In a 20 cm cake
mould
ple pie)1)
Rich fruit cake1)
Plum cake1)
160
2
50 - 60
In a bread tin
Small cakes one level
140 - 150
3
20 - 30
In a baking tray
Small cakes two levels
140 - 150
2 and 4
25 - 35
In a baking tray
Small cakes three levels
140 - 150
1, 3 and 5
30 - 45
In a baking tray
Biscuits / pastry 140 - 150
stripes - one level
3
30 - 35
In a baking tray
Biscuits / pastry 140 - 150
stripes - two levels
2 and 4
35 - 40
In a baking tray
Biscuits / pastry
stripes - three
levels
1, 3 and 5
35 - 45
In a baking tray
3
80 - 100
In a baking tray
140 - 150
Meringues - one 120
level
14
www.aeg.com
Food
True Fan Cooking
Time (min)
Comments
Temperature
(°C)
Shelf position
120
2 and 4
80 - 100
In a baking tray
190
3
12 - 20
In a baking tray
Eclairs - one lev- 170
el
3
25 - 35
In a baking tray
Eclairs - two lev- 170
els
2 and 4
35 - 45
In a baking tray
Plate tarts
170
2
45 - 70
In a 20 cm cake
mould
Rich fruit cake
150
2
110 - 120
In a 24 cm cake
mould
Victoria sandwich
160
2 (left and right)
50 - 60
In a 20 cm cake
mould
Time (min)
Comments
Meringues- two
levels1)
Buns1)
1) Preheat the oven for 10 minutes.
Bread and pizza
Food
True Fan Cooking
Temperature
(°C)
Shelf position
White bread1)
190
1
60 - 70
1 - 2 pieces, 500
gr per piece
Rye bread
180
1
30 - 45
In a bread tin
Bread rolls1)
180
2 (2 and 4)
25 - 40
6 - 8 rolls in a
baking tray
Pizza1)
230 - 250
1
10 - 20
In a baking tray
or a deep pan
Scones1)
190
3
10 - 20
In a baking tray
Time (min)
Comments
1) Preheat the oven for 10 minutes.
Flans
Food
True Fan Cooking
Temperature
(°C)
Shelf position
Pasta flan
180
2
40 - 50
In a mould
Vegetable flan
175
2
45 - 60
In a mould
ENGLISH
Food
True Fan Cooking
Time (min)
Comments
Temperature
(°C)
Shelf position
Quiches1)
180
1
50 - 60
In a mould
Lasagne1)
180 - 190
2
25 - 40
In a mould
Cannelloni1)
180 - 190
2
25 - 40
In a mould
Time (min)
Comments
1) Preheat the oven for 10 minutes.
Meat
Food
True Fan Cooking
Temperature
(°C)
Shelf position
Beef
190
2
50 - 70
On a wire shelf
Pork
180
2
90 - 120
On a wire shelf
Veal
175
2
90 - 120
On a wire shelf
English roast
beef, rare
200
2
50 - 60
On a wire shelf
English roast
beef, medium
200
2
60 - 70
On a wire shelf
English roast
beef, well done
200
2
70 - 75
On a wire shelf
Shoulder of pork 170
2
120 - 150
With rind
Shin of pork
160
2
100 - 120
2 pieces
Lamb
175
2
110 - 130
Leg
Chicken
200
2
70 - 85
Whole
Turkey
160
2
210 - 240
Whole
Duck
220
2
120 - 150
Whole
Goose
160
1
150 - 200
Whole
Rabbit
175
2
60 - 80
Cut in pieces
Hare
175
2
150 - 200
Cut in pieces
Pheasant
175
2
90 - 120
Whole
15
16
www.aeg.com
Fish
Food
True Fan Cooking
Time (min)
Comments
Temperature
(°C)
Shelf position
Trout / Sea
bream
175
2
40 - 55
3 - 4 fish
Tuna fish / Salmon
175
2
35 - 60
4 - 6 fillets
10.4 Grilling
Set the maximum temperature.
Preheat the oven for 3 minutes.
Use the fourth shelf position.
Food
Quantity
Time (min)
Pieces
Quantity (kg) 1st side
2nd side
Fillet steaks
4
0.8
12 - 15
12 - 14
Beef steaks
4
0.6
10 - 12
6-8
Sausages
8
-
12 - 15
10 - 12
Pork chops
4
0.6
12 - 16
12 - 14
Chicken (cut in 2)
2
1
30 - 35
25 - 30
Kebabs
4
-
10 - 15
10 - 12
Breast of chicken
4
0.4
12 - 15
12 - 14
Hamburger
6
0.6
20 - 30
-
Fish fillet
4
0.4
12 - 14
10 - 12
Toasted sandwiches
4-6
-
5-7
-
Toast
4-6
-
2-4
2-3
10.5 Turbo Grilling
Use the first or the second shelf position.
Beef
Preheat the oven.
To calculate the roasting time multiple
the time given in the table below by the
centimetres of thickness of the fillet.
Food
Temperature (°C)
Time (min)
Roast beef or 190 - 200
fillet, rare
5-6
Roast beef or 180 - 190
fillet, medium
6-8
ENGLISH
Food
Temperature (°C)
Roast beef or 170 - 180
fillet, well
done
Time (min)
Food
Temperature (°C)
Time (min)
8 - 10
Saddle of
lamb, 1 - 1.5
kg
160 - 180
40 - 60
Pork
Poultry
Food
Temperature (°C)
Time (min)
Food
Temperature (°C)
Time (min)
Shoulder,
neck, ham
joint, 1 - 1.5
kg
160 - 180
90 - 120
Poultry portions, 0.2 0.25 kg each
200 - 220
30 - 50
170 - 180
60 - 90
Chicken, half, 190 - 210
0.4 - 0.5 kg
each
35 - 50
Chop, spare
rib, 1 - 1.5 kg
Meat loaf,
0.75 - 1 kg
160 - 170
50 - 60
Chicken,
poulard, 1 1.5 kg
190 - 210
50 - 70
Duck, 1.5 - 2
kg
180 - 200
80 - 100
Goose, 3.5 5 kg
160 - 180
120 - 180
Turkey, 2.5 3.5 kg
160 - 180
120 - 150
Turkey, 4 - 6
kg
140 - 160
150 - 240
Temperature (°C)
Time (min)
Pork knuckle 150 - 170
(pre-cooked),
0.75 - 1 kg
90 - 120
Veal
Food
Temperature (°C)
Time (min)
Roast veal, 1
kg
160 - 180
90 - 120
Knuckle of
veal, 1.5 - 2
kg
160 - 180
120 - 150
Fish (steamed)
Food
Lamb
Food
Temperature (°C)
Time (min)
Leg of lamb,
roast lamb, 1
- 1.5 kg
150 - 170
100 - 120
Whole fish, 1 210 - 220
- 1.5 kg
40 - 60
10.6 Moist Fan Baking
For best results follow
suggestions listed in the
table below.
17
18
www.aeg.com
Food
Accessories
Temperature
(°C)
Shelf position
Time (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
175
3
40 - 50
Rolls, 9 pieces
baking tray or dripping
pan
180
2
35 - 45
Pizza, frozen,
0.35 kg
wire shelf
180
2
45 - 55
Swiss roll
baking tray or dripping
pan
170
2
30 - 40
Brownie
baking tray or dripping
pan
170
2
45 - 50
Soufflè, 6 pieces ceramic ramekins on wire
shelf
190
3
45 - 55
Sponge flan
base
flan base tin on wire shelf
180
2
35 - 45
Victoria Sandwich
baking dish on wire shelf
170
2
35 - 50
Poached fish,
0.3 kg
baking tray or dripping
pan
180
2
35 - 45
Whole fish, 0.2
kg
baking tray or dripping
pan
180
3
25 - 35
Fish fillet, 0.3 kg pizza pan on wire shelf
170
3
30 - 40
Pouched meat,
0.25 kg
baking tray or dripping
pan
180
3
35 - 45
Shashlik, 0.5 kg
baking tray or dripping
pan
180
3
40 - 50
Cookies, 16
pieces
baking tray or dripping
pan
150
2
30 - 45
Macaroons, 20
pieces
baking tray or dripping
pan
180
2
45 - 55
Muffins, 12
pieces
baking tray or dripping
pan
170
2
30 - 40
Savory pastry,
16 pieces
baking tray or dripping
pan
170
2
35 - 45
Short crust biscuits, 20 pieces
baking tray or dripping
pan
150
2
40 - 50
Tartlets, 8
pieces
baking tray or dripping
pan
170
2
30 - 40
ENGLISH
Food
Accessories
Temperature
(°C)
Shelf position
Time (min)
Poached vegetables, 0.4 kg
baking tray or dripping
pan
180
2
35 - 45
Vegetarian
omelette
pizza pan on wire shelf
180
3
35 - 45
Vegetables,
mediterrean 0.7
kg
baking tray or dripping
pan
180
4
35 - 45
19
10.7 Defrost
Food
Quantity
(kg)
Defrosting
time (min)
Further defrosting time (min)
Comments
Chicken
1.0
100 - 140
20 - 30
Place the chicken on an
upturned saucer placed
on a large plate. Turn
halfway through.
Meat
1.0
100 - 140
20 - 30
Turn halfway through.
Meat
0.5
90 - 120
20 - 30
Turn halfway through.
Trout
1.50
25 - 35
10 - 15
-
Strawberries
3.0
30 - 40
10 - 20
-
Butter
2.5
30 - 40
10 - 15
-
Cream
2 x 2.0
80 - 100
10 - 15
Cream can also be whipped when still slightly frozen in places.
Gateau
1.4
60
60
-
10.8 Drying - True Fan
Cooking
Cover trays with grease proof paper or
baking parchment.
For a better result, stop the oven halfway
through the drying time, open the door
and let it cool down for one night to
complete the drying.
Vegetables
For one tray use the third shelf position.
For 2 trays use the first and fourth shelf position.
Food
Temperature (°C)
Time (h)
Beans
60 - 70
6-8
Peppers
60 - 70
5-6
20
www.aeg.com
Food
Temperature (°C)
Time (h)
Vegetables for sour
60 - 70
5-6
Mushrooms
50 - 60
6-8
Herbs
40 - 50
2-3
Fruit
Food
Temperature
(°C)
Time (h)
Plums
60 - 70
Apricots
Shelf position
1 position
2 positions
8 - 10
3
1/4
60 - 70
8 - 10
3
1/4
Apple slices
60 - 70
6-8
3
1/4
Pears
60 - 70
6-9
3
1/4
10.9 Information for test
institutes
Tests according to IEC 60350-1.
Food
Function
Small
cake
Accessories
Shelf
position
Temperature
(°C)
Time (min)
Comments
Convention- Baking
al Cooking
tray
3
170
20 - 30
Put 20 small cakes
per one baking
tray.
Small
cake
True Fan
Cooking
Baking
tray
3
150 160
20 - 35
Put 20 small cakes
per one baking
tray.
Small
cake
True Fan
Cooking
Baking
tray
2 and
4
150 160
20 - 35
Put 20 small cakes
per one baking
tray.
Apple pie Convention- Wire shelf 2
al Cooking
180
70 - 90
Use 2 tins (20 cm
diameter), diagonally shifted.
Apple pie True Fan
Cooking
160
70 - 90
Use 2 tins (20 cm
diameter), diagonally shifted.
Wire shelf 2
ENGLISH
Food
Function
Fatlessponge
cake
Accessories
Shelf
position
21
Temperature
(°C)
Time (min)
Comments
Convention- Wire shelf 2
al Cooking
170
40 - 50
Use a cake mould
(26 cm diameter).
Preheat the oven
for 10 minutes.
Fatlessponge
cake
True Fan
Cooking
Wire shelf 2
160
40 - 50
Use a cake mould
(26 cm diameter).
Preheat the oven
for 10 minutes.
Fatlessponge
cake
True Fan
Cooking
Wire shelf 2 and
4
160
40 - 60
Use a cake mould
(26 cm diameter).
Diagonally shifted.
Preheat the oven
for 10 minutes.
Short
bread
True Fan
Cooking
Baking
tray
3
140 150
20 - 40
-
Short
bread
True Fan
Cooking
Baking
tray
2 and
4
140 150
25 - 45
-
Short
bread
Convention- Baking
al Cooking
tray
3
140 150
25 - 45
-
Toast
4-6
pieces
Grilling
Wire shelf 4
max.
2 - 3 minutes
first side; 2 - 3
minutes second side
Preheat the oven
for 3 minutes.
Beef burger
6 pieces,
0.6 kg
Grilling
Wire shelf 4
and dripping pan
max.
20 - 30
Put the wire shelf
on the fourth level
and the dripping
pan on the third
level of the oven.
Turn the food
halfway through
the cooking time.
Preheat the oven
for 3 minutes.
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
Clean the front of the oven with a soft
cloth with warm water and a mild
cleaning agent.
22
www.aeg.com
To clean metal surfaces, use a dedicated
cleaning agent.
1. Pull the front of the shelf support
away from the side wall.
Clean the oven interior after each use.
Fat accumulation or other food remains
may result in a fire. The risk is higher for
the grill pan.
Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent. Do not clean
the accessories in the dishwasher.
Clean stubborn dirt with a special oven
cleaner.
If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Moisture can condense in the oven or on
the door glass panels. To decrease the
condensation, operate the oven for 10
minutes before cooking. Clean the
moisture from the cavity after each use.
11.2 Stainless steel or
aluminium ovens
Clean the oven door with a damp cloth
or sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials as they can damage the oven
surface. Clean the oven control panel
with the same precautions.
11.3 Cleaning the door gasket
Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the oven if
the door gasket is damaged. Contact an
Authorised Service Centre.
To clean the door gasket, refer to the
general information about cleaning.
11.4 Removing the shelf
supports
To clean the oven, remove the shelf
supports.
CAUTION!
Be careful when you remove
the shelf supports.
2. Pull the rear end of the shelf support
away from the side wall and remove
it.
1
2
Install the removed accessories in the
opposite sequence.
11.5 Removing and installing
door
The oven door has two glass panels. You
can remove the oven door and the
internal glass panel to clean it. Read the
whole "Removing and installing door"
instruction before you remove the glass
panels.
The oven door may close if
you try to remove the
internal glass panel before
you remove the oven door.
CAUTION!
Do not use the oven without
the internal glass panel.
1. Open the door fully and hold both
hinges.
ENGLISH
23
5. Hold the door trim (B) on the top
edge of the door at the two sides
and push inwards to release the clip
seal.
2
B
1
2. Lift and turn the levers fully on both
hinges.
3. Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door
from its seat.
6. Pull the door trim to the front to
remove it.
7. Hold the door glass panel by its top
edge and carefully pull it out. Make
sure the glass slides out of the
supports completely.
8. Clean the glass panels with water
and soap. Dry the glass panels
carefully. Do not clean the glass
panels in the dishwasher.
When the cleaning is completed, install
the glass panel and the oven door.
The screen-printing zone must face the
inner side of the door. Make sure that
after the installation the surface of the
glass panel frame on the screen-printing
zones is not rough when you touch it.
When installed correctly the door trim
clicks.
Make sure that you install the internal
glass panel in the seats correctly.
A
B
4. Put the door on a soft cloth on a
stable surface.
24
www.aeg.com
11.6 Replacing the lamp
WARNING!
Risk of electric shock.
The lamp can be hot.
1. Turn off the oven.
Wait until the oven is cooled down.
2. Disconnect the oven from the mains.
3. Put a cloth on the bottom of the
cavity.
The back lamp
1. Turn the lamp glass cover to remove
it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
CAUTION!
Always hold the halogen
lamp with a cloth to prevent
grease residue from burning
on the lamp.
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
Problem
Possible cause
Remedy
The oven does not heat up.
The oven is deactivated.
Activate the oven.
The oven does not heat up.
The clock is not set.
Set the clock.
The oven does not heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up.
The fuse is blown.
Make sure that the fuse is
the cause of the malfunction.
If the fuse is blown again
and again, contact a qualified electrician.
The lamp does not operate.
The lamp is defective.
Replace the lamp.
Steam and condensation
You left the dish in the oven
settle on the food and in the for too long.
cavity of the oven.
Do not leave the dishes in
the oven for longer than 15 20 minutes after the cooking
process ends.
The display shows "12.00".
Reset the clock.
There was a power cut.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
The necessary data for the service centre
is on the rating plate. The rating plate is
on the front frame of the oven cavity. Do
not remove the rating plate from the
oven cavity.
ENGLISH
25
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
13. INSTALLATION
WARNING!
Refer to Safety chapters.
13.1 Building In
548
21
min. 550
80
60
520
600
114
18
20
589
594
min. 560
595+-1
198
60
5
3
523
20
548
70
60
21
min. 550
20
520
18
590
114
min. 560
589
594
198
60
595+-1
5
3
20
523
26
www.aeg.com
13.2 Securing the appliance to
the cabinet
A
B
13.4 Cable
Cable types applicable for installation or
replacement:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F,
H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
13.3 Electrical installation
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
Total power (W)
Section of the cable (mm²)
maximum 1380
3 x 0.75
maximum 2300
3x1
maximum 3680
3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
This appliance is supplied without a main
plug and a main cable.
14. ENERGY EFFICIENCY
14.1 Product Fiche and information according to EU 65-66/2014
Supplier's name
AEG
Model identification
BEB231011M
Energy Efficiency Index
95.3
Energy efficiency class
A
Energy consumption with a standard load, fan-forced 0.81 kWh/cycle
mode
Number of cavities
1
Heat source
Electricity
Volume
72 l
Type of oven
Built-In Oven
Mass
27.6 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
14.2 Energy saving
The oven contains features
which help you save energy
during everyday cooking.
ENGLISH
General hints
Make sure that the oven door is closed
properly when the oven operates. Do not
open the door too often during cooking.
Keep the door gasket clean and make
sure it is well fixed in its position.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum 3 - 10 minutes
before the end of the cooking time,
depending on the duration of the
cooking. The residual heat inside the
oven will continue to cook.
27
Use the residual heat to warm up other
dishes.
Keep breaks between baking as short as
possible when you prepare few dishes at
one time.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm.
Moist Fan Baking
Function designed to save energy during
cooking.
15. WARRANTY
FOR SALES IN AUSTRALIA AND NEW
ZEALAND
ALL AEG BRANDED APPLIANCES
This document sets out the terms and
conditions of the product warranties
for AEG Appliances. It is an important
document. Please keep it with your
proof of purchase documents in a safe
place for future reference should there
be a manufacturing defect in your
Appliance. This warranty is in addition
to other rights you may have under
the Australian Consumer Law.
1. In this warranty:
a) ‘ACL’ or ‘Australian Consumer
Law’ means Schedule 2 to the
Competition and Consumer Act
2010;
b) ‘Appliance’ means any Electrolux
product purchased by you and
accompanied by this document;
c) ‘ASC’ means Electrolux’s
authorised serviced centres;
d) ‘AEG’ is the brand controlled by
Electrolux Home Products Pty
Ltd of 163 O’Riordan Street,
Mascot NSW 2020, ABN 51 004
762 341 in respect of Appliances
purchased in Australia and
Electrolux (NZ) Limited
(collectively “Electrolux”) of 3-5
Niall Burgess Road, Mount
Wellington, in respect of
Appliances purchased in New
Zealand;
e) ‘Warranty Period’ means the
period specified in clause 3 of
this warranty;
f) ‘you’ means the purchaser of the
Appliance not having purchased
the Appliance for re-sale, and
‘your’ has a corresponding
meaning.
2. Application: This warranty only
applies to new Appliances,
purchased and used in Australia or
New Zealand and is in addition to
(and does not exclude, restrict, or
modify in any way) other rights and
remedies under a law to which the
Appliances or services relate,
including any non-excludable
statutory guarantees in Australia and
New Zealand.
3. Warranty Period: Subject to these
terms and conditions, this warranty
continues for in Australia for a period
of 60 months and in New Zealand for
a period of 60 months, following the
date of original purchase of the
Appliance.
4. Repair or replace warranty: During
the Warranty Period, Electrolux or its
ASC will, at no extra charge if your
Appliance is readily accessible for
service, without special equipment
and subject to these terms and
28
www.aeg.com
conditions, repair or replace any
parts which it considers to be
defective. Electrolux may, in its
absolute discretion, choose whether
the remedy offered for a valid
warranty claim is repair or
replacement. Electrolux or its ASC
may use refurbished parts to repair
your Appliance. You agree that any
replaced Appliances or parts
become the property of Electrolux.
5. Travel and transportation costs:
Subject to clause 7, Electrolux will
bear the reasonable cost of
transportation, travel and delivery of
the Appliance to and from Electrolux
or its ASC. Travel and transportation
will be arranged by Electrolux as part
of any valid warranty claim.
6. Proof of purchase is required before
you can make a claim under this
warranty.
7. Exclusions: You may not make a
claim under this warranty unless the
defect claimed is due to faulty or
defective parts or workmanship. This
warranty does not cover:
a) light globes, batteries, filters or
similar perishable parts;
b) parts and Appliances not
supplied by Electrolux;
c) cosmetic damage which does
not affect the operation of the
Appliance;
d) damage to the Appliance caused
by:
– negligence or accident;
– misuse or abuse, including
failure to properly maintain or
service;
– improper, negligent or faulty
servicing or repair works done
by anyone other than an
Electrolux authorised repairer
or ASC;
– normal wear and tear;
– power surges, electrical storm
damage or incorrect power
supply;
– incomplete or improper
installation;
– incorrect, improper or
inappropriate operation;
– insect or vermin infestation;
– failure to comply with any
additional instructions
supplied with the Appliance;
In addition, Electrolux is not
liable under this warranty if:
– the Appliance has been, or
Electrolux reasonably believes
that the Appliance has been,
used for purposes other than
those for which the Appliance
was intended, including
where the Appliance has
been used for any nondomestic purpose;
– the Appliance is modified
without authority from
Electrolux in writing;
– the Appliance’s serial number
or warranty seal has been
removed or defaced.
8. How to claim under this warranty:
To enquire about claiming under this
warranty, please follow these steps:
a. carefully check the operating
instructions, user manual and the
terms of this warranty;
b. have the model and serial
number of the Appliance
available;
c. have the proof of purchase (e.g.
an invoice) available;
d. telephone the numbers shown
below.
9. Australia: For Appliances and
services provided by Electrolux in
Australia: Electrolux goods come
with guarantees that cannot be
excluded under the Australian
Consumer Law. You are entitled to a
replacement or refund for a major
failure and for compensation for any
other reasonably foreseeable loss or
damage. You are also entitled to
have the Appliance repaired or
replaced if the Appliance fails to be
of acceptable quality and the failure
does not amount to a major failure.
‘Acceptable quality’ and ‘major
failure’ have the same meaning as
referred to in the ACL.
10. New Zealand: For Appliances and
services provided by Electrolux in
New Zealand, the Appliances come
with a guarantee by Electrolux
pursuant to the provisions of the
Consumer Guarantees Act, the Sale
ENGLISH
of Goods Act and the Fair Trading
Act. Where the Appliance was
purchased in New Zealand for
commercial purposes the Consumer
Guarantee Act does not apply.
11. Confidentiality: You accept that if
you make a warranty claim, Electrolux
29
and its agents including ASC may
exchange information in relation to
you to enable Electrolux to meet its
obligations under this warranty.
Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been
followed.
SERVICE AUSTRALIA
aegaustralia.com.au
FOR SERVICE
or to find the address of your nearest state
service centre in Australia
PLEASE CALL 1300 363 664
OR EMAIL
customercare@aegaustralia.com.au
FOR SPARE PARTS
or to find the address of your nearest spare
parts centre in Australia
PLEASE CALL 13 13 50
OR EMAIL
customercare@aegaustralia.com.au
For the cost of a local call (Australia only)
For the cost of a local call (Australia only)
SERVICE NEW ZEALAND
aegnewzealand.co.nz
FOR SERVICE
or to find the address of your nearest authorised service centre in New Zealand
FREE CALL 0800 436 245
OR EMAIL
customercare@aegnewzealand.co.nz
FOR SPARE PARTS
or to find the address of your nearest spare
parts centre in New Zealand
PLEASE 0800 436 245
OR EMAIL
customercare@aegnewzealand.co.nz
(New Zealand only)
(New Zealand only)
