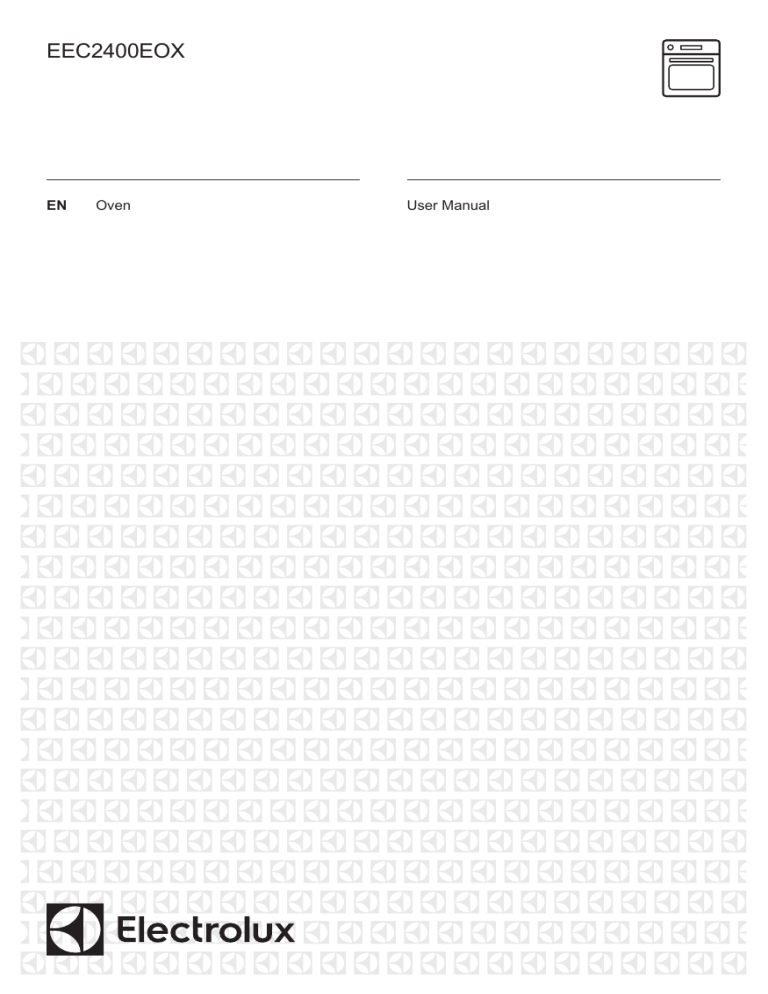

EEC2400EOX
EN
Oven
User Manual
2
www.electrolux.com
CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................4
3. PRODUCT DESCRIPTION................................................................................ 7
4. CONTROL PANEL............................................................................................. 7
5. BEFORE FIRST USE......................................................................................... 8
6. DAILY USE......................................................................................................... 8
7. CLOCK FUNCTIONS....................................................................................... 10
8. USING THE ACCESSORIES........................................................................... 11
9. ADDITIONAL FUNCTIONS.............................................................................. 12
10. HINTS AND TIPS........................................................................................... 13
11. CARE AND CLEANING..................................................................................21
12. TROUBLESHOOTING....................................................................................24
13. INSTALLATION.............................................................................................. 26
14. ENERGY EFFICIENCY.................................................................................. 28
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com/webselfservice
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
ENGLISH
1.
3
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damages that are the
result of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children between 3 and 8 years of age and persons
with very extensive and complex disabilities shall be
kept away unless continuously supervised.
Children of less than 3 years of age should be kept
away unless continuously supervised.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of
it appropriately.
Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
If the appliance has a child safety device, it should be
activated.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
1.2 General Safety
•
•
Only a qualified person must install this appliance and
replace the cable.
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching heating elements.
4
www.electrolux.com
•
•
•
•
•
•
•
Always use oven gloves to remove or put in
accessories or ovenware.
Before carrying out any maintenance, disconnect the
appliance from the power supply.
Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric
shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can
scratch the surface, which may result in shattering of
the glass.
If the mains power supply cable is damaged, it must
be replaced by the manufacturer, its Authorised
Service Centre or similarly qualified persons to avoid
an electrical hazard.
Excessive spillage must be removed before the
pyrolytic cleaning. Remove all parts from the oven.
2. SAFETY INSTRUCTIONS
2.1 Installation
2.2 Electrical connection
WARNING!
Only a qualified person must
install this appliance.
•
•
•
•
•
•
•
•
Remove all the packaging.
Do not install or use a damaged
appliance.
Follow the installation instructions
supplied with the appliance.
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Do not pull the appliance by the
handle.
Keep the minimum distance from
other appliances and units.
Install the appliance in a safe and
suitable place that meets installation
requirements.
The appliance is equipped with an
electric cooling system. It must be
operated with the electric power
supply.
WARNING!
Risk of fire and electric
shock.
•
•
•
•
•
•
•
All electrical connections should be
made by a qualified electrician.
The appliance must be earthed.
Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters and
extension cables.
Make sure not to cause damage to
the mains plug and to the mains
cable. Should the mains cable need to
be replaced, this must be carried out
by our Authorised Service Centre.
Do not let mains cables touch or
come near the appliance door,
especially when the door is hot.
ENGLISH
•
•
•
•
•
•
•
•
The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
If the mains socket is loose, do not
connect the mains plug.
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
The electrical installation must have
an isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation
device must have a contact opening
width of minimum 3 mm.
Fully close the appliance door, before
you connect the mains plug to the
mains socket.
This appliance complies with the
E.E.C. Directives.
2.3 Use
•
•
•
•
•
•
•
•
•
•
•
•
5
Open the appliance door carefully.
The use of ingredients with alcohol
can cause a mixture of alcohol and
air.
Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
•
•
WARNING!
Risk of injury, burns and
electric shock or explosion.
•
This appliance is for household use
only.
Do not change the specification of this
appliance.
Make sure that the ventilation
openings are not blocked.
Do not let the appliance stay
unattended during operation.
Deactivate the appliance after each
use.
Be careful when you open the
appliance door while the appliance is
in operation. Hot air can release.
Do not operate the appliance with wet
hands or when it has contact with
water.
Do not apply pressure on the open
door.
Do not use the appliance as a work
surface or as a storage surface.
•
•
•
To prevent damage or discoloration to
the enamel:
– do not put ovenware or other
objects in the appliance directly
on the bottom.
– do not put aluminium foil directly
on the bottom of cavity of the
appliance.
– do not put water directly into the
hot appliance.
– do not keep moist dishes and
food in the appliance after you
finish the cooking.
– be careful when you remove or
install the accessories.
Discoloration of the enamel or
stainless steel has no effect on the
performance of the appliance.
Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
This appliance is for cooking
purposes only. It must not be used for
other purposes, for example room
heating.
Always cook with the oven door
closed.
If the appliance is installed behind a
furniture panel (e.g. a door) make
sure the door is never closed when
the appliance is in operation. Heat
and moisture can build up behind a
closed furniture panel and cause
subsequent damage to the appliance,
the housing unit or the floor. Do not
close the furniture panel until the
appliance has cooled down
completely after use.
6
www.electrolux.com
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or
damage to the appliance.
•
•
•
•
•
•
•
•
Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
Make sure the appliance is cold.
There is the risk that the glass panels
can break.
Replace immediately the door glass
panels when they are damaged.
Contact the Authorised Service
Centre.
Be careful when you remove the door
from the appliance. The door is
heavy!
Clean regularly the appliance to
prevent the deterioration of the
surface material.
Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use any abrasive products,
abrasive cleaning pads, solvents or
metal objects.
If you use an oven spray, follow the
safety instruction on it's packaging.
Do not clean the catalytic enamel (if
applicable) with any kind of detergent.
•
•
•
•
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires /
Chemical Emissions
(Fumes) in Pyrolytic Mode.
•
•
•
•
Before carrying out a Pyrolitic selfcleaning function or the First Use
please remove from the oven cavity:
– any excess food residues, oil or
grease spills / deposits.
Read carefully all the instructions for
Pyrolytic cleaning.
Keep children away from the
appliance while the Pyrolytic cleaning
is in operation.
The appliance becomes very hot and
hot air is released from the front
cooling vents.
Pyrolytic cleaning is a high
temperature operation that can
release fumes from cooking residues
and construction materials, as such
consumers are strongly advised to:
– provide good ventilation during
and after each Pyrolytic cleaning.
– provide good ventilation during
and after the first use at maximum
temperature operation.
Unlike all humans, some birds and
reptiles can be extremely sensitive to
potential fumes emitted during the
cleaning process of all Pyrolytic
Ovens.
– Remove any pets (especially
birds) from the vicinity of the
appliance location during and
after the Pyrolytic cleaning and
first use maximum temperature
operation to a well ventilated
area.
Small pets can also be highly
sensitive to the localized temperature
changes in the vicinity of all Pyrolytic
Ovens when the Pyrolytic self
cleaning program is in operation.
Non-stick surfaces on pots, pans,
trays, utensils etc., can be damaged
by the high temperature Pyrolytic
cleaning operation of all Pyrolytic
Ovens and can be also a source for
low level harmful fumes.
Fumes released from all Pyrolytic
Ovens / Cooking Residues as
described are not harmful to humans,
including infants or persons with
medical conditions.
2.6 Internal lighting
WARNING!
Risk of electric shock.
•
•
•
The type of light bulb or halogen lamp
used for this appliance is for
household appliances only. Do not
use it for house lighting.
Before replacing the lamp, disconnect
the appliance from the power supply.
Only use lamps with the same
specifications.
2.7 Service
•
•
To repair the appliance contact an
Authorised Service Centre.
Use original spare parts only.
ENGLISH
2.8 Disposal
•
WARNING!
Risk of injury or suffocation.
•
7
Cut off the mains electrical cable
close to the appliance and dispose of
it.
Remove the door catch to prevent
children or pets from becoming
trapped in the appliance.
•
Disconnect the appliance from the
mains supply.
3. PRODUCT DESCRIPTION
3.1 General overview
2
3
4
1
9
5
6
7
4
3
2
1
8
3.2 Accessories
•
•
Wire shelf
For cookware, cake tins, roasts.
Baking tray
1
2
3
4
5
6
7
8
9
•
Control panel
Knob for the heating functions
Display
Control knob (for the temperature)
Air vents for the cooling fan
Heating element
Lamp
Fan
Shelf positions
For cakes and biscuits.
Grill- / Roasting pan
To bake and roast or as pan to collect
fat.
4. CONTROL PANEL
4.1 Buttons
Sensor field / Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
8
www.electrolux.com
4.2 Display
A
G
F
E
B
D
C
A. Timer / Temperature
B. Heat-up and residual heat indicator
C. Core temperature sensor (selected
models only)
D. Door lock (selected models only)
E. Hours / minutes
F. Demo mode (selected models only)
G. Clock functions
5. BEFORE FIRST USE
WARNING!
Refer to Safety chapters.
To set the Time of day refer
to "Clock functions" chapter.
5.1 Initial Cleaning
Remove all accessories from the oven.
Refer to "Care and cleaning"
chapter.
Clean the oven and the accessories
before first use.
Put the accessories back to their initial
position.
5.2 Preheating
Preheat the empty oven before first use.
1. Set the function .Set the maximum
temperature.
2. Let the oven operate for 1 hour.
3. Set the function . Set the
maximum temperature.
4. Let the oven operate for 15 minutes.
5. Turn off the oven and let it cool
down.
Accessories can become hotter than
usual. The oven can emit an odour and
smoke. Make sure that the airflow in the
room is sufficient.
6. DAILY USE
WARNING!
Refer to Safety chapters.
6.1 Oven Functions
Oven
function
Application
The oven is off.
Off posi‐
tion
Oven
function
Application
To roast or roast and bake
food with the same cook‐
Fan Cook‐ ing temperature on more
than one shelf position,
ing
without flavour transfer‐
ence.
To bake and roast food on
one shelf position.
Conven‐
tional
Cooking
(Top / Bot‐
tom Heat)
ENGLISH
Oven
function
Application
Oven
function
To grill flat food and to
toast bread.
Grilling
Defrost
To grill flat food in large
quantities and to toast
Fast Grill‐ bread.
ing
Turbo
Grilling
Bottom
Heat
To roast larger meat joints
or poultry with bones on
one shelf position. To
make gratins and to brown.
To bake cakes with crispy
bottom and to preserve
food.
To prepare very tender
and juicy roasts.
Meat
This function is designed
to save energy during
Moist Fan cooking. For the cooking
instructions refer to "Hints
Baking
and tips" chapter, Moist
Fan Baking. The oven door
should be closed during
cooking so that the func‐
tion is not interrupted and
to ensure that the oven op‐
erates with the highest en‐
ergy efficiency possible.
When you use this func‐
tion, the temperature in the
cavity may differ from the
set temperature. The resid‐
ual heat is used.The heat‐
ing power may be reduced.
For general energy saving
recommendations refer to
"Energy Efficiency" chap‐
ter, Energy Saving.This
function was used to com‐
ply with the energy effi‐
ciency class according to
EN 60350-1. When you
use this function the lamp
automatically turns off after
30 seconds.
Pyrolysis
9
Application
To defrost food (vegeta‐
bles and fruit). The defrost‐
ing time depends on the
amount and size of the fro‐
zen food.
To turn on the pyrolytic
cleaning of the oven. This
function burns off residual
dirt in the oven.
6.2 Setting a heating function
1. Turn the knob for the heating
functions to select a heating function.
2. Turn the control knob to select the
temperature.
The lamp turns on when the oven
operates.
3. To turn off the oven, turn the knob for
the heating functions to the off
position.
6.3 Heat-up indicator
When the oven function operates, the
appear one by one
bars in the display
when the temperature in the oven
increases, and disappear when it
decreases.
10
www.electrolux.com
7. CLOCK FUNCTIONS
7.1 Clock functions table
Clock func‐
tion
2. Press
to confirm and set the
minutes.
Application
The display shows
hour. "00" flashes.
TIME OF
DAY
To show or change the
time of day. You can
change the time of day
only when the oven is
off.
3. Press
or
minutes.
DURATION
To set how long the
oven works. Use only
when a heating function
is set.
END
To set when the oven
turns off. Use only when
a heating function is set.
Combination of DURA‐
TIME DELAY TION and END function.
Use to set a countdown
time. This function has
no effect on the opera‐
tion of the oven. You
can set the MINUTE
MINDER at any time, al‐
so if the oven is off.
MINUTE
MINDER
00:00
COUNT UP
TIMER
If you do not set any
other clock function the
COUNT UP TIMER au‐
tomatically monitor how
long the oven works.
It is on immediately
when the oven starts to
heat.
The Count Up Timer
cannot be used with the
functions: DURATION,
END.
7.2 Setting and changing the
time
After the first connection to the mains,
wait until the display shows
"12:00". "12" flashes.
1. Press
or
and
to set the hours.
and the set
to set the current
to confirm or the set time of
4. Press
day will be saved automatically after
5 seconds.
The display shows the new time.
To change the time of day press
again and again until the indicator for the
time of day
flashes in the display.
7.3 Setting the DURATION
function
1. Set a heating function.
2. Press
again and again until
starts to flash.
3. Press
or
to set the minutes
and then the hours. Press
to
confirm.
When the set Duration time ends the
and
signal sounds for 2 minutes.
time setting flash in the display. The
oven turns off automatically.
4. Press any button or open the oven
door to stop the signal.
5. Turn the knob for the heating
functions to the off position.
7.4 Setting the END function
1. Set a heating function.
again and again until
2. Press
starts to flash.
3. Press
or
to set the hours and
to
then the minutes. Press
confirm.
At the set End time the signal sounds for
and time setting flash in
2 minutes.
the display. The oven turns off
automatically.
4. Press any button or open the oven
door to stop the signal.
5. Turn the knob for the heating
functions to the off position.
ENGLISH
7.5 Setting the TIME DELAY
function
1. Set a heating function.
again and again until
2. Press
starts to flash.
3. Press
or
to set the minutes
and then the hours for DURATION
time. Press
to confirm.
The display shows flashing
.
4. Press
or
to set the hours and
then the minutes for END time. Press
to confirm. The display shows
and the set temperature.
Oven turns on automatically later on,
works for the set DURATION time and
stops at the set END time.
At the set END time the signal sounds for
and time setting flash in
2 minutes.
the display. The oven turns off.
5. Press any button or open the oven
door to stop the signal.
6. Turn the knob for the heating
functions to the off position.
11
again and again until
1. Press
starts to flash.
2. Press
or
to set the seconds
and than the minutes.
When the time you set is longer than
flash in the display.
60 minutes,
3. Set the hours.
4. The MINUTE MINDER starts
automatically after 5 seconds.
After 90% of the set time the signal
sounds.
5. When the set time ends the signal
sounds for 2 minutes. "00:00" and
flash in the display. Press any button
to stop the signal.
7.7 COUNT UP TIMER
To reset the Count Up Timer, press and
hold
and
up again.
. The timer starts to count
7.6 Setting the MINUTE
MINDER
Minute minder can be both set when the
oven is turned on and off.
8. USING THE ACCESSORIES
WARNING!
Refer to Safety chapters.
8.1 Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Baking tray/ Deep pan:
Push the baking tray / deep pan between
the guide bars of the shelf support.
12
www.electrolux.com
9. ADDITIONAL FUNCTIONS
9.1 Using the Child Lock
When the Child Lock is on the oven
cannot be turned on accidentally.
1. Ensure the knob for the oven
functions is in the off position.
and
at the
2. Press and hold
same time for 2 seconds.
The signal sounds. SAFE and
appear
on the display. The door is locked.
The symbol
appear on
the display also when
Pyrolysis function operates.
To turn off the Child Lock, repeat step 2.
Temperature (°C)
Switch-off time
(h)
120 - 195
8.5
200 - 245
5.5
250
1.5
After an automatic switch-off, press any
button to operate the oven again.
The Automatic switch-off
does not work with the
functions: Light, Duration,
End.
9.2 Residual heat indicator
9.4 Cooling fan
When you turn off the oven, the display
When the oven operates, the cooling fan
turns on automatically to keep the
surfaces of the oven cool. If you turn off
the oven, the cooling fan can continues
to operate until the oven cools down.
shows the residual heat indicator
if
the temperature in the oven is more than
40 °C.Turn the knob for the temperature
left or right to check the oven
temperature.
9.3 Automatic Switch-off
For safety reasons the oven turns off
automatically after some time if a heating
function operates and you do not change
the oven temperature.
Temperature (°C)
Switch-off time
(h)
30 - 115
12.5
9.5 Safety thermostat
Incorrect operation of the oven or
defective components can cause
dangerous overheating. To prevent this,
the oven has a safety thermostat which
interrupts the power supply. The oven
turns on again automatically when the
temperature drops.
ENGLISH
13
10. HINTS AND TIPS
Baking cakes
Do not open the oven door before 3/4 of
the set cooking time is up.
WARNING!
Refer to Safety chapters.
If you use two baking trays at the same
time, keep one empty level between
them.
The temperature and baking
times in the tables are
guidelines only. They
depend on the recipes and
the quality and quantity of
the ingredients used.
10.1 Cooking recommendations
The oven has four shelf positions.
Count the shelf positions from the bottom
of the oven floor.
Your oven may bake or roast differently
to the oven you had before. The below
tables provide you with the standard
settings for temperature, cooking time
and shelf position.
If you cannot find the settings for a
special recipe, look for the similar one.
The oven has a special system which
circulates the air and constantly recycles
the steam. With this system you can
cook in a steamy environment and keep
the food soft inside and crusty outside. It
decreases the cooking time and energy
consumption.
Cooking meat and fish
Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
Cooking times
Cooking times depend on the type of
food, its consistency, and volume.
Initially, monitor the performance when
you cook. Find the best settings (heat
setting, cooking time, etc.) for your
cookware, recipes and quantities when
you use this appliance.
10.2 Baking and roasting table
Cakes
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Time
(min)
Com‐
ments
Whisked
recipes
170
2
165
2 (1 and
3)
45 - 60
In a cake
mould
Short‐
bread
dough
170
2
160
2 (1 and
3)
20 - 30
In a cake
mould
Butter-milk 170
cheese
cake
1
165
2
70 - 80
In a 26 cm
cake
mould
14
www.electrolux.com
Food
Top / Bottom Heat
Fan Cooking
Time
(min)
Com‐
ments
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Apple
cake (Ap‐
ple pie)
170
1
160
2 (1 and
3)
80 - 100
In two 20
cm cake
moulds on
a wire
shelf
Strudel
175
2
150
2
60 - 80
In a bak‐
ing tray
Jam-tart
170
2
160
2 (1 and
3)
30 - 40
In a 26 cm
cake
mould
Fruit cake
170
2
155
2
50 - 60
In a 26 cm
cake
mould
Sponge
170
cake (Fat‐
less
sponge
cake)
2
160
2
90 - 120
In a 26 cm
cake
mould
Christmas 170
cake /
Rich fruit
cake
2
160
2
50 - 60
In a 20 cm
cake
mould
Plum
cake1)
170
2
165
2
20 - 30
In a bread
tin
Small
cakes
170
3
166
3 (1 and
3)
25 - 35
In a bak‐
ing tray
Biscuits1)
150
3
140
3 (1 and
3)
30 - 35
In a bak‐
ing tray
Meringues 100
3
115
3
35 - 40
In a bak‐
ing tray
Buns1)
190
3
180
3
80 - 100
In a bak‐
ing tray
Choux1)
190
3
180
3 (1 and
3)
15 - 20
In a bak‐
ing tray
Plate tarts 180
3
170
2
25 - 35
In a 20 cm
cake
mould
ENGLISH
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Victoria
sandwich
180
1 or 2
170
Rich fruit
cake
160
1
Victoria
sand‐
wich1)
170
1
15
Time
(min)
Com‐
ments
2
45 - 70
Left + right
in a 20 cm
cake
mould
150
2
110 - 120
In a 24 cm
cake
mould
160
1
50 - 60
In a 20 cm
cake
mould
Time
(min)
Com‐
ments
1) Preheat the oven for 10 minutes.
Bread and pizza
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
190
1
195
1
60 - 70
1-2
pieces,
500 gr per
piece
Rye bread 190
1
190
1
30 - 45
In a bread
tin
Bread
rolls1)
190
2
180
2 (1 and
3)
25 - 40
6 - 8 rolls
in a bak‐
ing tray
Pizza1)
190
1
190
1
20 - 30
On a deep
pan
Scones1)
200
3
190
2
10 – 20
In a bak‐
ing tray
Time
(min)
Com‐
ments
White
bread1)
1) Preheat the oven for 10 minutes.
Flans
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
180
2
180
2
40 - 50
In a mould
Vegetable 200
flan
2
200
2
45 - 60
In a mould
Pasta flan
16
www.electrolux.com
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Quiches
190
1
190
Lasagne
200
2
Cannelloni 200
Yorkshire
pudding1)
220
Time
(min)
Com‐
ments
1
40 - 50
In a mould
200
2
25 - 40
In a mould
2
200
2
25 - 40
In a mould
2
210
2
20 - 30
6 pudding
mould
Time
(min)
Com‐
ments
1) Preheat the oven for 10 minutes.
Meat
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Beef
200
2
190
2
50 - 70
On a wire
shelf and
a deep
pan
Pork
180
2
180
2
90 - 120
On a wire
shelf and
a deep
pan
Veal
190
2
175
2
90 - 120
On a wire
shelf and
a deep
pan
English
roast beef
rare
210
2
200
2
44 - 50
On a wire
shelf and
a deep
pan
English
roast beef
medium
210
2
200
2
51 - 55
On a wire
shelf and
a deep
pan
English
roast beef
well done
210
2
200
2
55 - 60
On a wire
shelf and
a deep
pan
Shoulder
of pork
180
2
170
2
120 - 150
On a deep
pan
ENGLISH
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
Shin of
pork
180
2
160
Lamb
190
2
Chicken
200
Turkey
17
Time
(min)
Com‐
ments
2
100 - 120
2 pieces
on a deep
pan
190
2
110 - 130
Leg
2
200
2
70 - 85
Whole
180
1
160
1
210 - 240
Whole
Duck
175
2
160
2
120 - 150
Whole
Goose
175
1
160
1
150 - 200
Whole
Rabbit
190
2
175
2
60 - 80
Cut in
pieces
Hare
190
2
175
2
150 - 200
Cut in
pieces
Pheasant
190
2
175
2
90 - 120
Whole
Time
(min)
Com‐
ments
Fish
Food
Top / Bottom Heat
Fan Cooking
Tempera‐ Shelf po‐
ture (°C)
sition
Tempera‐ Shelf po‐
ture (°C)
sition
190
2
175
2 (1 and
3)
40 - 55
3-4
fishes
Tuna fish / 190
Salmon
2
175
2 (1 and
3)
35 - 60
4 - 6 fillets
Trout /
Sea
bream
10.3 Grilling
Set the temperature to 250 °C.
Preheat the oven for 10 minutes.
Use the third position.
Food
Quantity
Time (min)
Pieces
Quantity
(kg)
1st side
2nd side
Fillet steaks
4
0.8
12 - 15
12 - 14
Beef steaks
4
0.6
10 - 12
6-8
Sausages
8
-
12 - 15
10 - 12
Pork chops
4
0.6
12 - 16
12 - 14
18
www.electrolux.com
Food
Quantity
Time (min)
Pieces
Quantity
(kg)
1st side
2nd side
Chicken (cut in 2)
2
1
30 - 35
25 - 30
Kebabs
4
-
10 - 15
10 - 12
Breast of chicken
4
0.4
12 - 15
12 - 14
Hamburger
6
0.6
20 - 30
-
Fish fillet
4
0.4
12 - 14
10 - 12
Toasted sandwiches
4-6
-
5-7
-
Toast
4-6
-
2-4
2-3
10.4 Turbo Grilling
Use the third shelf position.
Set the maximum temperature of 200 °C.
Food
Quantity
Time (min)
Pieces
(kg)
1st side
2nd side
Rolled joints
(turkey)
1
1
30 - 40
20 - 30
Chicken (cut in
two)
2
1
25 - 30
20 - 30
Chicken drum‐
sticks
6
-
15 - 20
15 - 18
Quail
4
0.5
25 - 30
20 - 25
Vegetable gra‐
tin
-
-
20 - 25
-
Scallops
-
-
15 - 20
-
Mackerel
2-4
-
15 - 20
10 - 15
Fish slices
4-6
0.8
12 - 15
8 - 10
10.5 Moist Fan Baking
For best results follow
suggestions listed in the
table below.
ENGLISH
Food
Accessories
Temperature Shelf po‐
(°C)
sition
Time (min)
Sweet rolls, 12
pieces
baking tray or dripping
pan
180
2
35 - 40
Rolls, 9 pieces
baking tray or dripping
pan
180
2
35 - 40
Pizza, frozen,
0.35 kg
wire shelf
220
2
35 - 40
Swiss roll
baking tray or dripping
pan
170
2
30 - 40
Brownie
baking tray or dripping
pan
180
2
30 - 40
Soufflè, 6
pieces
ceramic ramekins on
wire shelf
200
3
30 - 40
Sponge flan
base
flan base tin on wire
shelf
170
2
20 - 30
Victoria Sand‐
wich
baking dish on wire
shelf
170
2
35 - 45
Poached fish,
0.3 kg
baking tray or dripping
pan
180
3
35 - 45
Whole fish, 0.2 baking tray or dripping
kg
pan
180
3
35 - 45
Fish fillet, 0.3
kg
pizza pan on wire shelf
180
3
35 - 45
Pouched meat, baking tray or dripping
0.25 kg
pan
200
3
40 - 50
Shashlik, 0.5
kg
baking tray or dripping
pan
200
3
25 - 35
Cookies, 16
pieces
baking tray or dripping
pan
180
2
20 - 30
Macaroons, 20 baking tray or dripping
pieces
pan
180
2
40 - 45
Muffins, 12
pieces
baking tray or dripping
pan
170
2
30 - 40
Savory pastry,
16 pieces
baking tray or dripping
pan
170
2
35 - 45
Short crust bis‐ baking tray or dripping
cuits, 20 pieces pan
150
2
40 - 50
Tartlets, 8
pieces
170
2
20 - 30
baking tray or dripping
pan
19
20
www.electrolux.com
Food
Accessories
Temperature Shelf po‐
(°C)
sition
Time (min)
Poached vege‐ baking tray or dripping
tables, 0.4 kg
pan
180
3
35 - 40
Vegetarian
omelette
pizza pan on wire shelf
200
3
30 - 45
Vegetables,
mediterrean
0.7 kg
baking tray or dripping
pan
180
4
35 - 40
10.6 Defrost
Food
Quantity
(kg)
Defrosting
time (min)
Further defrost‐ Comments
ing time (min)
Chicken
1.0
100 - 140
20 - 30
Place the chicken on an
upturned saucer placed
on a large plate. Turn
halfway through.
Meat
1.0
100 - 140
20 - 30
Turn halfway through.
Meat
0.5
90 - 120
20 - 30
Turn halfway through.
Trout
0.15
25 - 35
10 - 15
-
Strawberries
0.3
30 - 40
10 - 20
-
Butter
0.25
30 - 40
10 - 15
-
Cream
2 x 0.2
80 - 100
10 - 15
Cream can also be
whipped when still
slightly frozen in places.
Gateau
1.4
60
60
-
10.7 Information for test
institutes
Tests according to IEC 60350-1.
Food
Function
Acces‐
sories
Shelf
posi‐
tion
Tem‐
pera‐
ture
(°C)
Time (min)
Comments
Small
cake
Conven‐
tional
Cooking
Baking
tray
3
170
20 - 30
Put 20 small
cakes per one
baking tray.
ENGLISH
Food
Function
21
Acces‐
sories
Shelf
posi‐
tion
Tem‐
pera‐
ture
(°C)
Time (min)
Comments
Apple pie Conven‐
tional
Cooking
Wire
shelf
1
170
80 - 120
Use 2 tins (20
cm diameter), di‐
agonally shifted.
Sponge
cake
Conven‐
tional
Cooking
Wire
shelf
2
170
35 - 45
Use a cake
mould (26 cm di‐
ameter).
Short
bread
Conven‐
tional
Cooking
Baking
tray
3
150
20 - 35
Preheat the
oven for 10 mi‐
nutes.
Toast
4-6
pieces
Grilling
Wire
shelf
3
max.
2 - 4 minutes Preheat the
first side; 2 - 3 oven for 3 mi‐
minutes sec‐ nutes.
ond side
Wire
3
shelf and
dripping
pan
max.
20 - 30
Beef bur‐ Grilling
ger
6 pieces,
0.6 kg
Put the wire
shelf on the third
level and the
dripping pan on
the second level
of the oven. Turn
the food halfway
through the
cooking time.
Preheat the
oven for 3 mi‐
nutes.
11. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
11.1 Notes on cleaning
Clean the front of the oven with a soft
cloth with warm water and a mild
cleaning agent.
To clean metal surfaces, use a dedicated
cleaning agent.
Clean the oven interior after each use.
Fat accumulation or other food remains
may result in a fire. The risk is higher for
the grill pan.
Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent. Do not clean
the accessories in the dishwasher.
Clean stubborn dirt with a special oven
cleaner.
If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Moisture can condense in the oven or on
the door glass panels. To decrease the
condensation, operate the oven for 10
minutes before cooking. Clean the
moisture from the cavity after each use.
22
www.electrolux.com
11.2 Stainless steel or
aluminium ovens
Clean the oven door with a damp cloth or
sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials as they can damage the oven
surface. Clean the oven control panel
with the same precautions.
11.3 Pyrolysis
CAUTION!
Remove all accessories.
Do not start the Pyrolysis if
you did not fully close the
oven door. In some models,
the display shows "C3" when
this error occurs.
WARNING!
The appliance becomes very
hot. There is a risk of burns.
CAUTION!
If there are other appliances
installed in the same
cabinet, do not use them at
the same time as the
Pyrolysis function. It can
cause damage to the
appliance.
1. Remove the worst dirt manually.
2. Clean the inner side of the door with
hot water, so that the residues do not
burn from the hot air.
3. Set the Pyrolysis function. Refer to
"Oven functions".
11.4 Cleaning reminder
To remind you that the pyrolysis is
necessary, PYR flashes in the display for
10 seconds after each activation and
deactivation of the oven.
The cleaning reminder
goes out:
• after the end of the
pyrolysis.
•
if you press
and
at
the same time while PYR
flashes in the display.
11.5 Removing and installing
door
The oven door has four glass panels.
You can remove the oven door and the
internal glass panels to clean them.
Read the whole "Removing and installing
door" instruction before you remove the
glass panels.
The oven door may close if
you try to remove the glass
panels before you remove
the oven door.
CAUTION!
Do not use the oven without
the glass panels.
1. Open the door fully and hold both
hinges.
flashes.
4. You can use the End function to
delay the start of the cleaning
procedure.
5. Press
or turn the knob for the
temperature clockwise to start the
cleaning procedure.
Time of the procedure: 2 h.
During the Pyrolysis the oven lamp is
off.
When the oven is at its set temperature,
the door locks. The display shows the
symbol
and the bars of the heat
indicator until the door unlocks.
2. Lift and turn the levers fully on both
hinges.
ENGLISH
23
6. Turn the two fasteners by 90° and
remove them from their seats.
3. Close the oven door halfway to the
first opening position. Then lift and
pull forward and remove the door
from its seat.
90°
7. First lift carefully and then remove
the glass panels one by one. Start
from the top panel.
4. Put the door on a soft cloth on a
stable surface.
1
2
8. Clean the glass panels with water
and soap. Dry the glass panels
carefully. Do not clean the glass
panels in the dishwasher.
When the cleaning is completed, install
the glass panels and the oven door.
5. Release the locking system to
remove the glass panels.
Make sure that you put the glass panels
(A, B and C) back in the correct
sequence. Check for the symbol /
printing on the side of the glass panel,
each of the glass panels looks different
to make the disassembly and assembly
easier.
When installed correctly the door trim
clicks.
24
www.electrolux.com
A
B
11.6 Replacing the lamp
C
WARNING!
Risk of electric shock.
The lamp can be hot.
1. Turn off the oven.
Wait until the oven is cooled down.
2. Disconnect the oven from the mains.
3. Put a cloth on the bottom of the
cavity.
The back lamp
Make sure that you install the middle
panel of glass in the seats correctly.
A
1. Turn the lamp glass cover to remove
it.
2. Clean the glass cover.
3. Replace the lamp with a suitable 300
°C heat-resistant lamp.
4. Install the glass cover.
B
C
12. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
12.1 What to do if...
Problem
Possible cause
Remedy
You cannot activate or op‐
erate the oven.
The oven is not connected
to an electrical supply or it
is connected incorrectly.
Check if the oven is cor‐
rectly connected to the
electrical supply (refer to
the connection diagram if
available).
The oven does not heat
up.
The oven is deactivated.
Activate the oven.
The oven does not heat
up.
The clock is not set.
Set the clock.
The oven does not heat
up.
The necessary settings are Make sure that the settings
not set.
are correct.
The oven does not heat
up.
The automatic switch-off is Refer to "Automatic switchactivated.
off".
The oven does not heat
up.
The Child Lock is on.
Refer to "Using the Child
Lock".
ENGLISH
25
Problem
Possible cause
Remedy
The oven does not heat
up.
The fuse is blown.
Make sure that the fuse is
the cause of the malfunc‐
tion. If the fuse is blown
again and again, contact a
qualified electrician.
The lamp does not oper‐
ate.
The lamp is defective.
Replace the lamp.
It takes too long to cook
The temperature is too low Adjust the temperature if
the dishes or they cook too or too high.
necessary. Follow the ad‐
quickly.
vice in the user manual.
Steam and condensation
settle on the food and in
the cavity of the oven.
You left the dish in the
oven for too long.
The display shows "C3".
The cleaning function does Fully close the door.
not operate. You did not
fully close the door, or the
door lock is defective.
The display shows "F102".
•
•
You did not fully close
the door.
The door lock is defec‐
tive.
Do not leave the dishes in
the oven for longer than 15
- 20 minutes after the
cooking process ends.
•
•
•
The display shows an error There is an electrical fault.
code that is not in this ta‐
ble.
•
•
Fully close the door.
Deactivate the oven
with the house fuse or
the safety switch in the
fuse box and activate it
again.
If the display shows
"F102" again, contact
the Customer Care De‐
partment.
Deactivate the oven
with the house fuse or
the safety switch in the
fuse box and activate it
again.
If the display shows the
error code again, con‐
tact the Customer Care
Department.
26
www.electrolux.com
Problem
Possible cause
Remedy
The appliance is activated
and does not heat up. The
fan does not operate. The
display shows "Demo".
The demo mode is activa‐
ted.
1. Deactivate the oven.
2. Press and hold the but‐
ton .
3. The first digit on the
display and Demo indi‐
cator start to blink.
4. Enter the code 2468 by
pressing the buttons
or
to change the
to
values and press
confirm.
5. The next digit starts to
blink.
6. Demo mode deacti‐
vates when you con‐
firm the last digit and
the code is correct.
12.2 Service data
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre.
plate is on the front frame of the oven
cavity. Do not remove the rating plate
from the oven cavity.
The necessary data for the service
centre is on the rating plate. The rating
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
13. INSTALLATION
WARNING!
Refer to Safety chapters.
ENGLISH
13.1 Building In
13.3 Electrical installation
540 21
min. 550
20
600
27
558
19
114
min. 560
589
598
570
The manufacturer is not
responsible if you do not
follow the safety precautions
from the Safety chapters.
This appliance is supplied only with a
main cable.
13.4 Cable
594
Cable types applicable for installation or
replacement:
9
H07 RN-F, H05 RN-F, H05 RRF, H05
VV-F, H05 V2V2-F (T90), H05 BB-F
3
For the section of the cable refer to the
total power on the rating plate. You can
also refer to the table:
540 21
min. 550
20
590
558
19
114
min. 560
589
598
570
594
9
3
13.2 Securing the appliance to
the cabinet
A
B
Total power (W)
Section of the ca‐
ble (mm²)
maximum 1380
3 x 0.75
maximum 2300
3x1
maximum 3680
3 x 1.5
The earth cord (green / yellow cable)
must be 2 cm longer than phase and
neutral cables (blue and brown cables).
28
www.electrolux.com
14. ENERGY EFFICIENCY
14.1 Product Fiche and information according to EU 65-66/2014
Supplier's name
Electrolux
Model identification
EEC2400EOX
Energy Efficiency Index
81.8
Energy efficiency class
A+
Energy consumption with a standard load, con‐
ventional mode
0.85 kWh/cycle
Energy consumption with a standard load, fanforced mode
0.63 kWh/cycle
Number of cavities
1
Heat source
Electricity
Volume
53 l
Type of oven
Built-In Oven
Mass
33.6 kg
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens,
steam ovens and grills - Methods for
measuring performance.
14.2 Energy saving
The oven contains features
which help you save energy
during everyday cooking.
General hints
Make sure that the oven door is closed
properly when the oven operates. Do not
open the door too often during cooking.
Keep the door gasket clean and make
sure it is well fixed in its position.
Use metal dishes to improve energy
saving.
When possible, do not preheat the oven
before you put the food inside.
When the cooking duration is longer than
30 minutes, reduce the oven temperature
to minimum 3 - 10 minutes before the
end of the cooking time, depending on
the duration of the cooking. The residual
heat inside the oven will continue to
cook.
Use the residual heat to warm up other
dishes.
Keep breaks between baking as short as
possible when you prepare few dishes at
one time.
Cooking with fan
When possible, use the cooking
functions with fan to save energy.
Residual heat
If a programme with the Duration or End
Time selection is activated and the
cooking time is longer than 30 minutes,
the heating elements automatically
deactivate earlier in some oven
functions.
The fan and lamp continue to operate.
Keep food warm
Choose the lowest possible temperature
setting to use residual heat and keep a
meal warm. The residual heat indicator
or temperature appears on the display.
Moist Fan Baking
Function designed to save energy during
cooking.
When you use this function the lamp
automatically turns off after 30 seconds.
ENGLISH
29
15. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
30
www.electrolux.com
ENGLISH
31
