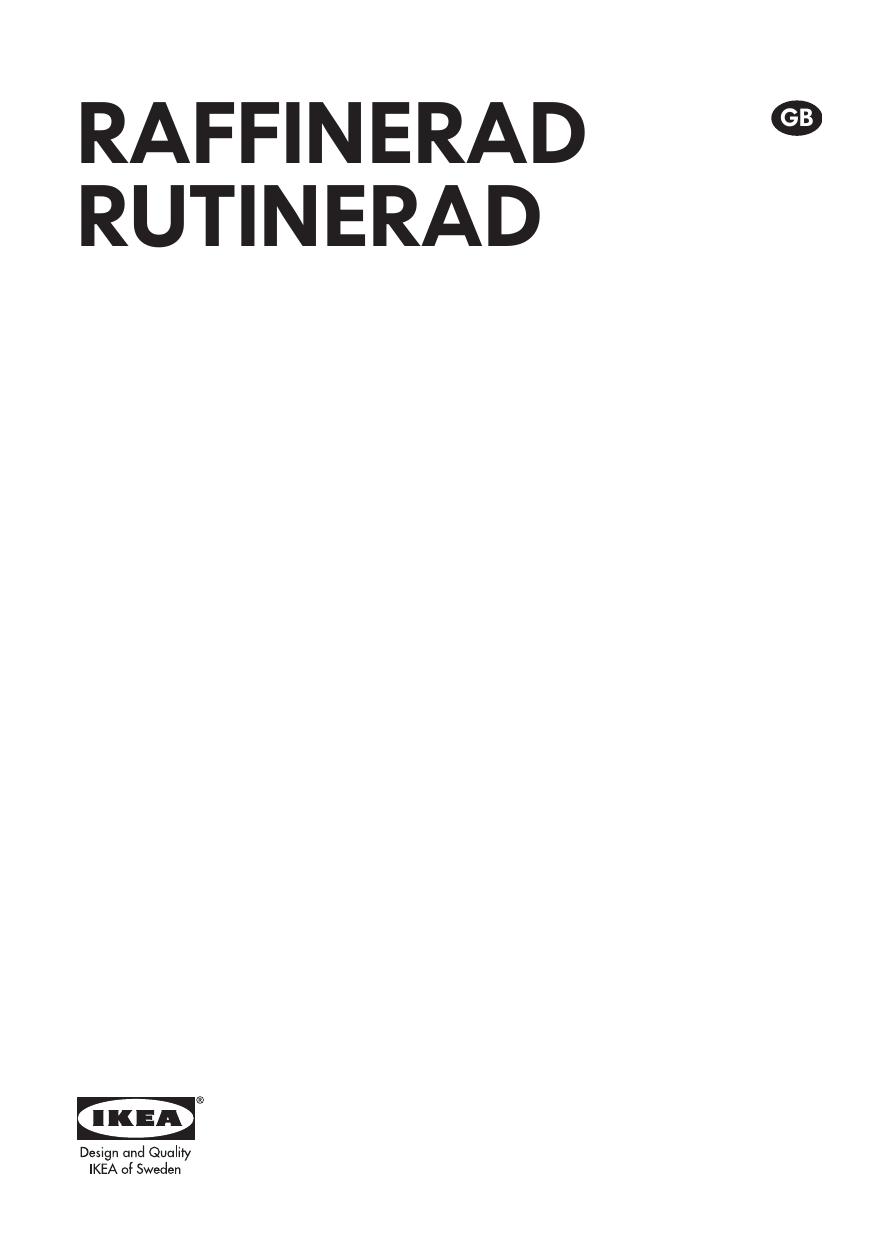

IKEA OV18 User Manual

RAFFINERAD
RUTINERAD
GB
ENGLISH
Please refer to the last page of this manual for the full list of IKEA
appointed After Sales Service Provider and relative national phone
numbers.
ENGLISH
4
4
ENGLISH
Contents
Safety information
Safety instructions
Installation
Product description
Before first use
Daily use
Clock functions
Using the accessories
4
5
8
8
9
10
12
13
Additional functions
Hints and tips
Care and cleaning
Troubleshooting
Technical information
Energy efficiency
ENVIRONMENTAL CONCERNS
IKEA GUARANTEE
14
15
16
19
20
21
23
23
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future
reference.
Children and vulnerable people safety
•
•
•
•
•
•
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
Do not let children play with the appliance.
Keep all packaging away from children and dispose of it
appropriately.
Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are hot.
If the appliance has a child safety device, this should be
activated.
Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
ENGLISH
•
5
Children aged 3 years and under must be kept away from
this appliance when it is in operation at all times.
General Safety
•
•
•
•
•
•
•
•
•
Only a qualified person must install this appliance and
replace the cable.
WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be
kept away unless continuously supervised.
Always use oven gloves to remove or put in accessories or
ovenware.
Before maintenance cut the power supply.
Ensure that the appliance is switched off before replacing the
lamp to avoid the possibility of electric shock.
Do not use a steam cleaner to clean the appliance.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Follow the installation instruction
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the
other appliances and units.
6
ENGLISH
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance complies with the E.E.C.
Directives.
Electrical connection
Use
Warning! Risk of fire and
electrical shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the
power supply. If not, contact an
electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Do not let mains cables touch or come
near the appliance door, especially
when the door is hot.
• The shock protection of live and
insulated parts must be fastened in such
a way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
Warning! Risk of injury, burns
and electrical shock or explosion.
• This appliance is for household use only.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work
surface or as a storage surface.
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
• Do not use microwave function to
preheat the oven.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the
bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
7
ENGLISH
•
•
•
•
•
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the
cooking.
– be careful when you remove or
install the accessories.
Discoloration of the enamel has no effect
on the performance of the appliance.
Use a deep pan for moist cakes. Fruit
juices cause stains that can be
permanent.
This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
Always cook with the oven door closed.
If the appliance is installed behind a
furniture panel (e.g. a door) make sure
the door is never closed when the
appliance is in operation. Heat and
moisture can build up behind a closed
furniture panel and cause subsequent
damage to the appliance, the housing
unit or the floor. Do not close the
furniture panel until the appliance has
cooled down completely after use.
Care and Cleaning
Warning! Risk of injury, fire, or
damage to the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
a risk that the glass panels can break.
• Replace immediately the door glass
panels when they are damaged. Contact
the Authorised Service Centre.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Fat and food remaining in the appliance
can cause fire and electric arcing when
the microwave function operates.
• If you use an oven spray, obey the safety
instructions on the packaging.
Internal light
• The type of light bulb or halogen lamp
used for this appliance is only for
household appliances. Do not use it for
house lighting.
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same
specifications.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains electrical cable close to
the appliance and dispose of it.
• Remove the door to prevent children and
pets to get closed in the appliance.
• Packaging material:
The packaging material is
environmentally-friendly and recyclable.
Plastic parts are marked with
international abbreviations such as PE,
PS, etc. Dispose of the packaging
material in the containers provided for
this purpose at your local waste
management facility.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
ENGLISH
8
Installation
Warning! Refer to Safety
chapters.
The manufacturer is not
responsible if you do not follow
the safety precautions from the
Safety chapters.
Assembly
Refer to the Assembly Instructions
for the installation.
This appliance is only supplied with a main
cable.
Electrical installation
Warning! Only a qualified
person must do the electrical
installation.
Product description
General overview
1
2
3
4
5
6
7
4
3
8
11
2
10
1
9
Accessories
• Wire shelf x 1
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
1
2
3
4
5
6
7
8
9
10
11
Control panel
Knob for the oven functions
Electronic programmer
Knob for the temperature
Air vents for the cooling fan
Grill
Lamp
Fan
Shelf support, removable
Rating plate
Shelf positions
To bake and roast or as pan to collect
fat.
• Telescopic runners x 2 sets
For shelves and trays.
9
ENGLISH
Before first use
Warning! Refer to Safety
chapters.
Initial Cleaning
Press
again and again until the symbol
flashes in the display.
To set a new time, refer to "Setting the
time".
Remove all accessories and removable shelf
supports from the appliance.
Preheating
Refer to "Care and cleaning"
chapter.
Clean the appliance before first use.
Put the accessories and the removable shelf
supports back to their initial position.
Setting the time
After the first connection to the mains, all
symbols in the display are on for some
seconds. For the subsequent few seconds
the display shows the software version.
After the software version goes off, the
display shows
flashes.
and "12:00". "12"
or
to set the current hour.
1. Press
2. Press
to confirm. This is necessary
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
and the set hour.
The display shows
"00" flashes.
or
to set the current minutes.
3. Press
to confirm. This is necessary
4. Press
only when you set the time for the first
time. Later the new time will be saved
automatically after 5 seconds.
The display shows the new time.
Changing the time
You can change the time of day only when
the oven is in standby mode.
Preheat the empty appliance to burn off the
remaining grease.
1. Set the function
and the maximum
temperature.
2. Let the appliance operate for 1 hour.
3. Set the function
and the maximum
temperature.
4. Let the appliance operate for 15
minutes.
5. Set the function
and the maximum
temperature.
6. Let the appliance operate for 15
minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow in the room is sufficient.
Using the Mechanical child lock
The appliance has the child lock installed
and activated. It is below the control panel
on the right side.
To open the oven door with the child lock
installed, pull the child lock handle up as
shown in the picture.
ENGLISH
10
Close the oven door without pulling the
child lock.
To remove the child lock, open the oven
door and remove the child lock with the torx
key. The torx key is in the oven fitting bag.
Daily use
Warning! Refer to Safety
chapters.
Activating and deactivating the appliance
1. Turn the knob for the oven functions
clockwise to an oven function.
2. Turn the knob for the temperature to set
the temperature.
The display shows the set temperature.
3. To deactivate the appliance, turn the
knob for the oven functions to the off
position.
Oven functions
Oven function
Off position
Application
The appliance is off.
Forced Air Cook- To bake on up to 2 shelf positions at the same time and
ing
to dry food. When you use this function, decrease the
oven temperature by 20 - 40 °C from the standard
temperatures you use for cooking with the function
Conventional (Top and Bottom Heat).
Conventional
(Top and Bottom
Heat)
To bake and roast food on 1 shelf position.
Grilling
To grill flat food in the middle of the shelf. To make
toasts.
Bottom Heat
To bake cakes with crispy bottom and to preserve food.
Grilling with Fan
To roast larger meat joints or poultry with bones on 1
shelf position. Also to make gratins and to brown.
ENGLISH
11
Oven function
Application
Bread and Pizza
Baking
To bake food on 1 shelf position for a more intensive
browning and a crispy bottom. When you use this function, decrease the oven temperature by 20 - 40 °C
from the standard temperatures you use for cooking
with the function Conventional (Top and Bottom Heat).
Defrost
To defrost frozen food.
The knob for the temperature must be in the off position.
Top Heat
To brown bread, cakes and pastries. To finish cooked
dishes.
Fast Grilling
To grill flat food in large quantities and to toast bread.
Light
To activate the lamp without a cooking function.
It can be used with residual heat in final cooking phase
to save energy.
Display
G
A
G
F
B
E
C
A.
B.
C.
D.
Time and temperature
Heat-up and residual heat indicator
Water tank (selected models only)
Core temperature sensor (selected
models only)
E. Door lock (selected models only)
F. Hours / minutes
G. Clock functions
D
Buttons
Button
Function
Description
MINUS
To set the time.
CLOCK
To set a clock function.
PLUS
To set the time.
ENGLISH
12
Heat-up indicator
When you activate an oven function, the
bars in the display
The bars show that the oven temperature
increases or decreases.
come on one by one.
Clock functions
Clock functions table
Clock function
Application
TIME OF DAY
To set, change or check the time of day. Refer to "Setting the time".
MINUTE MINDER
Use to set a countdown time (maximum 23 h 59 min).
This function has no effect on the operation of the appliance. You can set the MINUTE MINDER at any time,
also if the appliance is off.
DURATION
To set how long the appliance operates. Use only when
an oven function is set.
END
To set when the appliance must deactivate. Use only
when an oven function is set. You can use Duration and
End at the same time (time delay), if the appliance is to
be activate and deactivate automatically later.
Press
again and again to
switch between the clock
functions.
To confirm the settings of the
clock functions, press
or wait 5
seconds for an automatic
confirmation.
Setting the DURATION or END function
during cooking function
1. Press
again and again until the
display shows
or
.
or
flashes in the display.
or
to the set the values and
2. Press
to confirm.
press
For Duration
first you set the minutes
and then the hours, for End
first you set
the hours and then the minutes.
An acoustic signal sounds for 2 minutes
or
symbol and
after the time ends.
time setting flash in the display. The oven
stops.
3. Press any button to stop the acoustic
signal.
If you press
when you set the
hours for DURATION
, the
appliance goes to setting of the
END
function.
Setting the MINUTE MINDER
1. Press
again and again until
"00" flash in the display.
and
ENGLISH
2. Press
or
to set the MINUTE
MINDER.
First you set the seconds, then the
minutes and then the hours.
At first, the time is calculated in minutes
and seconds. When the time you set is
longer than 60 minutes, the symbol
comes on in the display.
The appliance now calculates the time in
hours and minutes.
3. The MINUTE MINDER starts
automatically after five seconds.
After 90% of the set time, an acoustic
signal sounds.
4. When the set time ends, an acoustic
signal sounds for two minutes. "00:00"
and flash in the display. Press any
button to stop the acoustic signal.
13
If you set the MINUTE MINDER
when the DURATION
or END
function operates, the symbol
comes on in the display.
Count Up Timer
Use the Count Up Timer to monitor how
long the oven operates.
Press
again and again until the display
shows time without clock symbols.
You cannot use the Count Up
Timer when the Duration
End
or
function operates.
Using the accessories
Warning! Refer to Safety
chapters.
Inserting the accessories
Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Wire shelf and the deep pan together:
Push the deep pan between the guide bars
of the shelf support and the wire shelf on
the guide bars above and make sure that
the feet point down.
Deep pan:
Push the deep pan between the guide bars
of the shelf support.
ENGLISH
14
Caution! Do not clean the
telescopic runners in the
dishwasher. Do not lubricate the
telescopic runners.
Small indentation at the top
increase safety. The indentations
are also anti-tip devices. The
high rim around the shelf
prevents cookware from slipping.
1
2
Installing the telescopic runners
°C
You can put the telescopic runners on each
level.
°C
Remove the protection film from the
telescopic runners before you install them.
Make sure that the two telescopic runners
are on the same level.
The stop element (A) which is at one end of
the telescopic runner must point up.
1
2
A
Using the telescopic runners
With telescopic runners you can put in and
remove the shelves more easily.
Pull out the right
and left hand
telescopic runners.
Put the wire shelf on
the telescopic
runners and
carefully push them
into the appliance.
Make sure you push back the telescopic
runners fully in the appliance before you
close the oven door.
You can also use the telescopic
runners with the trays or pans
supplied with the appliance.
Warning! Refer to
"Product description"
chapter.
Additional functions
Using the Child Lock
Automatic switch-off
The Child Lock prevents an accidental
operation of the appliance.
For safety reasons the appliance
deactivates automatically after some time if
an oven function operates and you do not
change any settings.
1. Do not set an oven function.
2. Press and hold
and
at the same
time for 2 seconds.
An acoustic signal sounds. SAFE comes on in
the display.
To deactivate the Child Lock, repeat step 2.
Temperature (°C)
30 - 115
Switch-off time (h)
12.5
ENGLISH
15
120 - 195
8.5
if the temperature in the oven is more than
40 °C. Turn the knob for the temperature
left or right to show the oven temperature.
200 - 245
5.5
Cooling fan
250
1.5
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you
deactivate the appliance, the cooling fan
stops.
Temperature (°C)
Switch-off time (h)
After an automatic switch-off, deactivate
the appliance fully. Then you can activate it
again.
The Automatic switch-off does
not work with the functions:
Duration, End.
Residual heat indicator
When you deactivate the appliance, the
display shows the residual heat indicator
Safety thermostat
Incorrect operation of the appliance or
defective components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the
power supply. The oven activates again
automatically when the temperature drops.
Hints and tips
General information
• The appliance has four shelf positions.
Count the shelf positions from the bottom
of the appliance floor.
• The appliance has a special system
which circulates the air and constantly
recycles the steam. With this system you
can cook in a steamy environment and
keep the food soft inside and crusty
outside. It decreases the cooking time
and energy consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is
normal. Always stand back from the
appliance when you open the appliance
door while cooking. To decrease the
condensation, operate the appliance for
10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the
appliance floor and do not put
aluminium foil on the components when
you cook. This can change the baking
results and cause damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15
minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke
condensation, add water each time after
it dries up.
ENGLISH
16
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
cooking time, etc.) for your cookware,
recipes and quantities when you use this
appliance.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
Cooking table
Quantity
(kg)
Food
Function Shelf position
Temperature
(°C)
Time (min)
1
Pork / Lamb
2
180
100 - 110
1
Veal / Beef
2
190
70 - 100
1.2
Chicken / Rabbit
2
210 - 220
70 - 80
1.5
Duck
1
160
120 - 150
3
Goose
1
160
150 - 200
4
Turkey
1
180
210 - 240
1
Fish
2
190
30 - 40
1
Stuffed pepperoni tomatoes / Roasted potatoes
2
190
50 - 70
-
Instant cakes
2
160
45 - 55
1
Pies
2
160
80 - 100
-
Biscuits
3
150
25 - 35
2
Lasagne
2
180
45 - 60
1
White bread
2
190
50 - 60
1
Pizza
1
210 - 220
20 - 30
Care and cleaning
Warning! Refer to Safety
chapters.
ENGLISH
Notes on cleaning
• Clean the front of the appliance with a
soft cloth with warm water and a
cleaning agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the appliance interior after each
use. Fat accumulation or other food
remains may result in a fire. The risk is
higher for the grill pan.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all accessories after each use and
let them dry. Use a soft cloth with warm
water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can cause damage to the nonstick
coating.
Stainless steel or aluminium appliances
Clean the oven door with a wet
sponge only. Dry it with a soft
cloth.
Do not use steel wool, acids or
abrasive materials as they can
damage the oven surface. Clean
the oven control panel with the
same precautions.
17
2
1
Pull the rear end of
the shelf support
away from the side
wall and remove it.
Install the shelf supports in the opposite
sequence.
Pull the front of the
shelf support away
from the side wall.
The rounded ends of the shelf
supports must point to the front.
Cleaning the oven door
The oven door has three glass panels.You
can remove the oven door and the internal
glass panels to clean them.
The oven door can close if you
try to remove the glass panels
before you remove the oven
door.
Caution! Do not use the
appliance without the glass
panels.
Cleaning the door gasket
• Regularly do a check of the door gasket.
The door gasket is around the frame of
the oven cavity. Do not use the
appliance if the door gasket is
damaged. Contact the Service.
• To clean the door gasket, use a soft cloth
with warm water and a cleaning agent.
2
1
1
2
Removing the shelf supports
To clean the oven, remove the shelf
supports.
Open the door fully
and hold the two
door hinges.
Lift and turn the
levers on the two
hinges.
18
ENGLISH
When the cleaning is completed, install the
glass panels and the oven door. Do the
above steps in the opposite sequence.
4
3
Close the oven door
halfway to the first
opening position.
Then pull forward
and remove the
door from its seat.
5
Put the door on a
soft cloth on a
stable surface.
Make sure that you put the glass panels (A
and B) back in the correct sequence. The
first panel (A) has a decorative frame. The
screen-printing zone must face the inner
side of the door. Make sure that after the
installation the surface of the glass panel
frame on the screen-printing zones is not
rough when you touch it.
A
B
6
90°
Release the locking
system to remove
the glass panels.
Turn the two
fasteners by 90°
and remove them
from their seats.
7
1
2
First lift carefully
and then remove
the glass panels one
by one. Start from
the top panel.
Clean the glass panels with water and
soap. Dry the glass panels carefully.
Make sure that you install the middle panel
of glass in the seats correctly.
ENGLISH
19
Replacing the lamp
Put a cloth on the bottom of the interior of
the appliance. It prevents damage to the
lamp glass cover and the cavity.
Warning! Danger of
electrocution! Disconnect the fuse
before you replace the lamp.
The lamp and the lamp glass
cover can be hot.
2. Remove the fuses from the fuse box or
deactivate the circuit breaker.
The back lamp
1. Turn the lamp glass cover
counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with a 25
W, 230 V (50 Hz), 300 °C heat resistant
oven light bulb (connection type: E14).
4. Install the glass cover.
1. Deactivate the appliance.
Troubleshooting
Warning! Refer to Safety
chapters.
What to do if...
Problem
Possible cause
Remedy
The oven does not heat up.
The oven is deactivated.
Activate the oven.
The oven does not heat up.
The clock is not set.
Set the clock.
The oven does not heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up.
The automatic switch-off is
activated.
Refer to "Automatic switchoff".
The oven does not heat up.
The Child Lock is on.
Refer to "Using the Child
Lock".
The oven does not heat up.
The fuse is released.
Make sure that the fuse is
the cause of the malfunction.
If the fuse releases again
and again, contact a qualified electrician.
The lamp does not operate.
The lamp is defective.
Replace the lamp.
Steam and condensation
settle on the food and in the
cavity of the oven.
You left the dish in the oven
for too long.
Do not leave the dishes in
the oven for longer than 15 20 minutes after the cooking
process ends.
ENGLISH
20
Problem
Possible cause
The display shows an error
code that is not in this table.
Remedy
There is an electrical fault.
Service data
If you cannot find a solution to the problem
yourself, contact an Authorised Service
Centre.
• Deactivate the oven with
the house fuse or the
safety switch in the fuse
box and activate it again.
• If the display shows the
error code again, contact
the service centre.
the front frame of the appliance cavity. Do
not remove the rating plate from the
appliance cavity.
The necessary data for the service centre is
on the rating plate. The rating plate is on
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
Technical information
Technical data
Dimensions (internal)
Width
Height
Depth
Area of baking tray
1140 cm²
Top heating element
800 W
Bottom heating element
1000 W
Grill
1650 W
Fan
2000 W
Total rating
2500 W
Voltage
240 V
437 mm
328 mm
401 mm
ENGLISH
21
Frequency
50 Hz
Number of functions
9
Energy efficiency
Product information according to EU 66/2014
Model identification
RAFFINERAD 002.451.68
RAFFINERAD 202.451.72
RAFFINERAD 402.451.71
RAFFINERAD 902.451.78
RUTINERAD 202.451.91
RUTINERAD 702.451.84
RUTINERAD 802.451.88
Energy Efficiency Index
105.1
Energy consumption with a standard load, conventional mode
0.87 kWh/cycle
Energy consumption with a standard load, fan-forced 0.83 kWh/cycle
mode
Number of cavities
1
Heat source
Electricity
Volume
57 l
Type of oven
Built-In Oven
ENGLISH
Mass
EN 60350-1 - Household electric cooking
appliances - Part 1: Ranges, ovens, steam
ovens and grills - Methods for measuring
performance.
Energy saving
The appliance contains features which help
you save energy during everyday cooking.
• General hints
– Make sure that the oven door is
closed properly when the appliance
operates and keep it closed as much
as possible during the cooking.
– Use metal dishes to improve the
energy saving.
– When possible, put the food inside
the oven without heating it up.
– When the cooking duration is longer
than 30 minutes, reduce the oven
temperature to minimum, 3 - 10
minutes before the end of the
cooking time, depending on the
22
RAFFINERAD
002.451.68
34.2 kg
RAFFINERAD
202.451.72
34.2 kg
RAFFINERAD
402.451.71
34.2 kg
RAFFINERAD
902.451.78
34.2 kg
RUTINERAD
202.451.91
35.4 kg
RUTINERAD
702.451.84
35.4 kg
RUTINERAD
802.451.88
35.4 kg
duration of the cooking. The residual
heat inside the oven will continue to
cook.
– Use the residual heat to warm up
other foods.
• Cooking with fan - when possible, use
the cooking functions with fan to save
energy.
• Residual heat
– In some oven functions if a
programme with time selection
(Duration, End) is activated and the
cooking time is longer than 30
minutes, the heating elements
deactivate automatically 10%
earlier. The fan and lamp continue to
operate.
• Keep food warm - if you want to use the
residual heat to keep the meal warm,
choose the lowest possible temperature
setting. The display shows the residual
heat temperature.
23
ENGLISH
ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do not
dispose appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply. The original sales
receipt is required as proof of purchase. If
service work is carried out under guarantee,
this will not extend the guarantee period for
the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN
and all appliances purchased in IKEA
before 1st of August 2007
Who will execute the service?
IKEA service provider will provide the
service through its own service operations
or authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the
appliance, which have been caused by
faulty construction or material faults from
the date of purchase from IKEA. This
guarantee applies to domestic use only. The
exceptions are specified under the headline
“What is not covered under this
guarantee?” Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure. On
these conditions the EU guidelines (Nr.
99/44/EG) and the respective local
regulations are applicable. Replaced parts
become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will
examine the product and decide, at its sole
discretion, if it is covered under this
guarantee. If considered covered, IKEA
service provider or its authorized service
partner through its own service operations,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage,
damage caused by failure to observe
operating instructions, incorrect
installation or by connection to the
wrong voltage, damage caused by
chemical or electro-chemical reaction,
rust, corrosion or water damage
including but not limited to damage
caused by excessive lime in the water
supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
24
ENGLISH
• Non-functional and decorative parts
which do not affect normal use of the
appliance, including any scratches and
possible color differences.
• Accidental damage caused by foreign
objects or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found
during a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a nondomestic environment i.e. professional
use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety
specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local
demands. However these conditions do not
limit in any way consumer rights described
in the local legislation
Area of validity
For appliances which are purchased in one
EU country and taken to another EU
country, the services will be provided in the
framework of the guarantee conditions
normal in the new country. An obligation to
carry out services in the framework of the
guarantee exists only if the appliance
complies and is installed in accordance
with:
• the technical specifications of the country
in which the guarantee claim is made;
• the Assembly Instructions and User
Manual Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this
guarantee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t
provide clarifications related to:
• the overall IKEA kitchen installation;
• connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized
service engineer.
3. ask for clarification on user manual
contents and specifications of the IKEA
appliance.
To ensure that we provide you with the best
assistance, please read carefully the
ENGLISH
Assembly Instructions and/or the User
Manual section of this booklet before
contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
In order to provide You with a
quicker service, we recommend
that You use the specific phone
numbers listed at the end of this
manual. Always refer to the
numbers listed in the booklet of
the specific appliance You need
an assistance for. Before calling
us, assure that You have to hand
the IKEA article number (8 digit
code) for the appliance of which
you need our assistance.
SAVE THE SALES RECEIPT! It is
Your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please
contact our nearest IKEA store call centre.
We recommend you read the appliance
documentation carefully before contacting
us.
25
26
Country
België
Belgique
Phone number
070 246016
Call Fee
Opening time
Binnenlandse gesprekskosten
8 tot 20 Weekdagen
Tarif des appels nationaux
8 à 20. En semaine
България
00359888164080
0035924274080
Такса за повикване от страната
От 9 до 18 ч в работни дни
Česká republika
246 019721
Cena za místní hovor
Danmark
70 15 09 09
Landstakst
8 až 20 v pracovních dnech
man. - fre. 09.00 - 20.00
lør. 09.00 - 16.00
1 søndag pr. måned, normalt første
søndag i måneden
Deutschland
+49 1806 33 45
32*
* 0,20 €/Verbindung aus dem Festnetz
max. 0,60 €/Verbindung
aus dem Mobilfunknetz
Werktags von 8.00 bis 20.00
Ελλάδα
211 176 8276
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
España
91 1875537
Tarifa de llamadas nacionales
De 8 a 20 en días laborables
France
0170 36 02 05
Tarif des appels nationaux
9 à 21. En semaine
Trošak poziva 27 lipa po minuti
radnim danom od ponedjeljka
do petka od 08:00 do 16:00
Hrvatska
00385 1 6323 339
Ireland
0 14845915
National call rate
8 till 20 Weekdays
Ísland
5880503
Innanlandsgjald fyrir síma
9 til 18. Virka daga
Italia
02 00620818
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
Κυπρος
22 030 529
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
Lietuva
5 230 06 99
Nacionalinių pokalbių tarifai
Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00
Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország
061 998 0549
Belföldi díjszabás
Hétköznap 8 és 10 óra között
Nederland
0900 235 45 32
en/of
0900 BEL IKEA
15 cent/min., starttarief 4.54 cent
en gebruikelijke belkosten
ma - vr 08.00 - 20.00,
zat 09.00 - 20.00
(zondag gesloten)
Norge
815 22052
Takst innland
8 til 20 ukedager
Österreich
0810 300486
max. 10 Cent/min.
Mo - Fr 8.00 - 20.00 Uhr
Polska
012 297 8787
Stawka wg taryfy krajowej
Od 8 do 20 w dni robocze
Portugal
211557985
Chamada Nacional
9 às 21. Dias de Semana
*excepto feriados
România
021 211 08 88
Tarif apel naţional
8 - 20 în zilele lucrătoare
Действующие телефонные тарифы
с 8 до 20 по рабочим дням
Время московское
Россия
8 495 6662929
Schweiz
Tarif für Anrufe im Bundesgebiet
8 bis 20 Werktage
Suisse
Tarif des appels nationaux
8 à 20. En semaine
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
(02) 3300 2554
Cena vnútroštátneho hovoru
8 až 20 v pracovných dňoch
Suomi
030 6005203
Lankapuhelinverkosta
0,0835 €/puhelu + 0,032 €/min
Matkapuhelinverkosta 0,192 €/min
arkipäivisin 8.00 - 20.00
Sverige
0775 700 500
lokalsamtal (lokal taxa)
mån-fre 8.30 - 20.00
lör-sön 9.30 - 18.00
031 5500 324
Svizzera
Slovensko
Türkiye
212 244 0769
Ulusal arama ücreti
Hafta içi saat 09:00’dan 18:00’a kadar
Україна
044 586 2078
Міжміськи дзвінки платні
9 - 21 В робочі дні
United Kingdom
020 3347 0044
National call rate
9 till 21. Weekdays
Slovenija
www.ikea.com
Србија
www.ikea.com
*
27
867304254-B-182016
© Inter IKEA Systems B.V. 2016
21552
AA-720121-4

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
