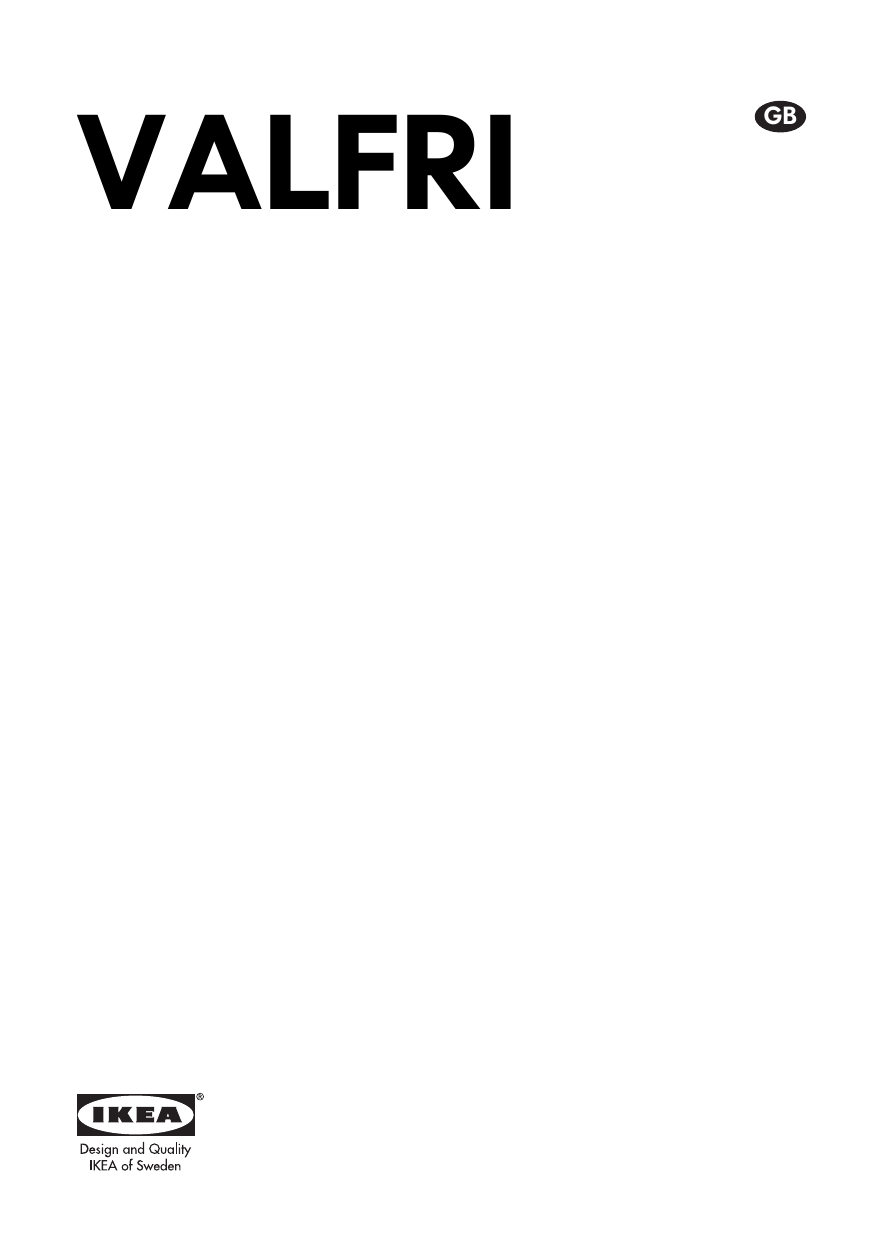

VALFRI
GB
ENGLISH
4
ENGLISH
4
Contents
Safety information
Safety instructions
Installation
Product description
Before first use
Daily use
Clock functions
Using the accessories
4
5
7
8
8
9
11
12
Additional functions
Helpful hints and tips
Care and cleaning
What to do if…
Technical data
Environment concerns
IKEA GUARANTEE
13
13
15
16
17
18
19
Subject to change without notice.
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible if
an incorrect installation and use causes injuries and damages.
Always keep the instructions with the appliance for future reference.
Children and vulnerable people safety
Warning! Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, we recommend
that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.
ENGLISH
5
General Safety
• Internally the appliance becomes hot when in operation. Do
not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or
ovenware.
• Do not use a steam cleaner to clean the appliance.
• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
• Excess spillage must be removed before the pyrolytic cleaning. Remove all parts from the oven.
• Only use the core temperature sensor recommended for this
appliance.
• To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.
Safety instructions
Installation
Warning! Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied
with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• Make sure that the appliance is installed
below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the
same height.
Electrical connection
Warning! Risk of fire and electrical
shock.
• All electrical connections should be made
by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable. Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in touch
with the appliance door, specially when
the door is hot.
ENGLISH
• The shock protection of live and insulated
parts must be fastened in such a way that
it cannot be removed without tools.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you disconnect
the appliance from the mains at all poles.
The isolation device must have a contact
opening width of minimum 3 mm.
• This appliance complies with the E.E.C.
Directives
• Fully close the appliance door, before
you connect the mains plug to the mains
socket.
Use
Warning! Risk of injury, burns or
electric shock or explosion.
• Use this appliance in a household environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unattended
during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance
door while the appliance is in operation.
Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
6
• Open the appliance door carefully. The
use of ingredients with alcohol can cause
a mixture of alcohol and air.
• Do not let sparks or open flames to come
in contact with the appliance when you
open the door.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Warning! Risk of damage to the
appliance.
• To prevent damage or discoloration to
the enamel:
– Do not put ovenware or other objects in
the appliance directly on the bottom.
– Do not put aluminium foil directly on the
bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cooking.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no effect
on the performance of the appliance. It is
not a defect in the sense of the warranty
law.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
Care and Cleaning
Warning! Risk of injury, fire or damage
to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There is
the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the
Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
• Remaining fat or food in the appliance
can cause fire.
ENGLISH
7
• If you use an oven spray, obey the safety
instructions on the packaging.
• Only use lamps with the same specifications.
Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for household appliances. Do not use it for house
lighting.
Disposal
Warning! Risk of electrical shock.
• Before replacing the lamp, disconnect the
appliance from the power supply.
Warning! Risk of injury or suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
Installation
Warning! Refer to the Safety chapters.
Refer to the Assembly Instructions for
the installation.
Electrical installation
Warning! Only a qualified person must
do the electrical installation.
The manufacturer is not responsible if
you do not follow the safety precautions from the chapter "Safety Information".
This appliance is only supplied with a main
cable.
Cable
Cable types applicable for installation or
replacement: H07 RN-F, H05 RN-F, H05
RRF, H05 VV-F, H05 V2V2-F (T90), H05 BBF.
For the section of the cable refer to the total
power (on the rating plate) and to the table:
Total power
Section of the cable
maximum 1380
W
3 x 0.75 mm²
maximum 2300
W
3 x 1 mm²
maximum 3680
W
3 x 1.5 mm²
The earth cord (green / yellow cable) must
be 2 cm longer than phase and neutral cables (blue and brown cables).
ENGLISH
8
Product description
General overview
1
2
3
4
5
6 7
8
14
13
9
12
14
13
10
11
12
1
2
3
4
Knob for the oven functions (top oven)
Temperature indicator (top oven)
Knob for the temperature (top oven)
Electronic programmer
5
6
7
8
9
10
11
12
13
14
Knob for the oven functions (main oven)
Knob for the temperature (main oven)
Temperature indicator (main oven)
Ventilation openings
Rating plate
Socket for the core temperature sensor
Fan
Shelf positions
Lamp
Grill
Oven accessories
• Wire shelf x 2
For cookware, cake tins, roasts.
• Baking tray x 1
For cakes and biscuits.
• Grill- / Roasting pan x 1
To bake and roast or as pan to collect
fat.
• Core temperature sensor x 1
To measure how far the food is cooked.
• Panel shield x 1
It prevents control panel damage because of heat, while grilling with the oven
door opened.
Before first use
Warning! Refer to the Safety chapters.
Initial cleaning
• Remove all accessories and removable
shelf supports (if applicable).
• Clean the appliance before first use.
Important! Refer to the chapter "Care and
cleaning".
Setting the time
You must set the time before you operate the oven.
When you connect the appliance to the
electrical supply or after a power cut, the
indicator for the Time of Day function flashes.
Press the + or - button to set the correct
time.
After approximately five seconds, the flashing stops and the display shows the time of
day you set.
To change the current time, press +
and - at the same time until the Time
indicator flashes. You must not set the Minute Minder function at the same time.
ENGLISH
9
Preheating
Preheat the empty appliance to burn off the
remaining grease.
1. Set the function
and the maximum
temperature.
2. Let the appliance operate for one hour.
3. Set the function
and the maximum
temperature.
4. Let the appliance operate for ten minutes.
5. Set the function
and the maximum
temperature.
6. Let the appliance operate for ten minutes.
Accessories can become hotter than usual.
The appliance can emit an odour and
smoke. This is normal. Make sure that the
airflow is sufficient.
To open the oven
door with the child
lock installed, pull
the child lock handle up as shown in
the picture.
Close the oven door
without pulling the
child lock.
To remove the child
lock, open the oven
door and remove
the child lock with
the torx key. The
torx key is in the
oven fitting bag.
Mechanical child lock
The appliance has the child lock installed
and activated. It is below the control panel
on the right side.
Daily use
Warning! Refer to the Safety chapters.
Activating and deactivating the appliance
1. Turn the knob for the oven functions to
an oven function.
The power indicator comes on while the
appliance operates.
2. Turn the knob for the temperature to a
temperature.
3.
The temperature indicator comes on
while the temperature in the appliance
increases.
To deactivate the appliance, turn the
knob for the oven functions and the
knob for the temperature to the Off position.
Top Oven functions
Oven function
OFF position
Application
The appliance is off.
Oven light
To activate the oven lamp without a
cooking function.
Conventional
To bake and roast food on one shelf
position.
ENGLISH
10
Oven function
Fast grilling
Application
To grill flat food in large quantities.
To make toast.
Main Oven functions
Oven function
OFF position
Oven light
Application
The appliance is off.
To activate the oven lamp without a
cooking function.
Forced air cooking
To bake on more than one shelf positions at the same time. To dry food. Set
the temperature 20 - 40 °C lower than
for Conventional.
Bread and pizza baking
To bake food on one shelf position for
a more intensive browning and a
crispy bottom.
Conventional
To bake and roast food on one shelf
position.
Bottom heat
To bake cakes with crispy bottoms and
to preserve food.
Defrost
To defrost food. The temperature control knob must be in the off position.
Grilling
To grill flat food in small quantities. To
make toast.
Fast grilling
To grill flat food in large quantities. To
make toast.
Grilling with fan
To roast larger meat joints or poultry
with bones on one shelf position. Also
to make gratins and to brown.
ENGLISH
11
Clock functions
Electronic programmer
1
2
3 4
hr min
7
Symbol
6
Function indicators
Time and temperature display
Time of day
Core Temperature Sensor
1
2
3
4
5
6
7
Button
Selector button
Button
5
Function
Description
Duration
To set how long the oven is to be in use
End
To set when the oven is to switch off
Minute Minder
To set a countdown time.
Time of day
To set the time of the day
Core Temperature Sensor
Measures the core temperature while roasting
larger pieces of meat
You can use Duration
and End
at the same time if you want the appliance to activate and deactivate automatiand then the
cally: first set the Duration
End
.
Setting the clock functions
1. For Duration
and End
, set an
oven function and temperature. This is
not necessary for the Minute Minder
.
2. Press the Selection button again and
again until the indicator for the necessary clock function flashes.
hr min
3.
Press + or - to set the time for the necessary clock function.
The display shows the indicator for the
clock function you set. When the set
time ends, the indicator flashes and an
acoustic signal sounds for two minutes.
ENGLISH
With the Duration
and End
functions, the appliance deactivates automatically.
4. Press a button to stop the signal.
5. Turn the knob for the oven functions
and the knob for the temperature to the
off position.
12
Cancelling the clock functions
1. Press the Selection button again and
again until the necessary function indicator flashes.
2. Press and hold the button -.
The clock function goes out after some
seconds.
Using the accessories
Warning! Refer to the Safety chapters.
Using the panel shield while grilling with
open oven door
Important! When you use the grilling
function with open oven door it is necessary
to attach the panel shield below the control
panel. It prevents control panel damage
because of heat.
Warning! The shield will be very hot
when you use it while grilling.
Warning! Before you remove the
shield wait until it is cold. If not you can
get burned.
Using the panel shield
1. Open top oven door.
2. Position the shield horizontally.
3. Make sure the text “For grilling use only” is on top and you can read it.
4. The shield has magnets which let you
attach it below the control panel.
Only use the core temperature sensor
supplied with the appliance, or genuine replacement parts.
Warning! Be careful when you remove
the tip and plug of the core
temperature sensor. The core temperature
sensor is hot. There is a risk of burns.
1.
2.
3.
4.
5.
6.
7.
8.
Put the tip of the core temperature sensor into the centre of the meat.
Put the core temperature sensor plug
into the socket on the side wall of the
appliance.
again and again
Push the button
until core temperature sensor indicator
flashes in the display.
Press the button + or — to set the core
temperature. You can set a temperature between 30 °C and 99 °C.
Refer to the table.
Set the oven function and the oven temperature.
When the meat is at the set core temperature, an acoustic signal sounds.
Press a button to stop the signal.
Deactivate the appliance.
Remove the core temperature sensor
plug from the socket . Remove the meat
from the appliance.
Suggested core temperatures
50 °C
Core temperature sensor
The core temperature sensor measures the
core temperature of the meat.
There are two temperatures to be set:
• The oven temperature
• The core temperature
Rare
60 °C
Medium
70 °C
Well done
If the meat is not cooked to your satisfaction, do the above steps again and set a
higher core temperature.
ENGLISH
13
Additional functions
Automatic switch-off
For safety reasons the appliance deactivates after some time:
• If an oven function operates.
• If you do not change the oven temperature.
Oven temperature
Switch-off time
30 - 115 °C
12,5 h
120 - 195 °C
8.5 h
200 - 245 °C
5.5 h
250 °C
3.0 h
After an automatic switch-off, press a button to activate the appliance again.
Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan continues to operate until the temperature in the
appliance cools down.
Safety thermostat
Incorrect operation of the appliance or defective components can cause dangerous
overheating. To prevent this, the oven has a
safety thermostat which interrupts the power supply. The oven activates again automatically when the temperature drops.
Important! The automatic switch-off works
with all oven functions, except Duration, End
and Core Temperature Sensor.
Helpful hints and tips
• In each cavity there are six self levels.
Count the shelf levels from the bottom of
the appliance floor.
• The appliance has a special system which
circulates the air and constantly recycles
the steam. With this system you can cook
in a steamy environment and keep the
food soft inside and crusty outside. It decreases the cooking time and energy
consumption to a minimum.
• Moisture can condense in the appliance
or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance door
while cooking. To decrease the condensation, operate the appliance for 10 minutes before cooking.
• Clean the moisture after each use of the
appliance.
• Do not put the objects directly on the appliance floor and do not put aluminium
foil on the components when you cook.
This can change the baking results and
cause damage to the enamel.
Baking cakes
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one empty level between
them.
Cooking meat and fish
• Use a deep pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
deep pan. To prevent the smoke condensation, add water each time after it dries
up.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
ENGLISH
14
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recTop oven
ipes and quantities when you use this appliance.
Level
Oven temperature
(°C)
Cooking
time (min)
Biscuits
2
170 - 190
10 - 20
0,5
Instant Cake
2
150 - 170
50 - 70
1
White Bread
2
170 - 180
40 - 50
1
Fish
2
160 - 180
20 - 30
1,5
Fruit Pies, Crumbles
2
170 - 190
30 - 50
1,5
Pasta Lasagne
etc.
2
160 - 180
40 - 60
1
Quiche, Tarts,
Flans
2
170 - 190
25 - 50
1
Vegetables:
Baked Jacket/
Roast Potatoes
2
180 - 190
66 - 90
Level
Oven temperature
(°C)
Cooking
time (min)
Weight (kg)
Food
0,25
Oven function
Main oven
Weight (kg)
Food
Oven function
1
Beef/Beef boned
3
170 - 190
50 - 70
1
Mutton/Lamb
3
170 - 190
50 - 70
1
Pork/Veal/Ham
3
170 - 190
50 - 90
1
Chicken
3
180 - 200
50 - 60
3
Turkey/Goose
1
170 - 190
120 - 150
1,5
Duck
2
180 - 200
70 - 100
1
Pheasant
3
170 - 190
70 - 80
1,5
Rabbit
3
170 - 190
50 - 70
1
Pizza
1
200 - 230
20 - 30
ENGLISH
15
Care and cleaning
Warning! Refer to the Safety chapters.
• Clean the front of the appliance with a
soft cloth with warm water and a cleaning agent.
• To clean metal surfaces use a usual
cleaning agent.
• Clean the oven interior after each use.
Then you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories after each use
and let them dry. Use a soft cloth with
warm water and a cleaning agent.
• If you have nonstick accessories, do not
clean them using aggressive agents,
sharp-edged objects or a dishwasher. It
can destroy nonstick coating.
Installing the shelf supports
Install the shelf supports in the opposite sequence.
The rounded ends of the shelf supports
must point to the front.
Oven lamp
Warning! Be careful when you change
the oven lamp. There is a risk of
electrical shock.
Before you change the oven lamp:
• Deactivate the oven.
• Remove the fuses in the fuse box or deactivate the circuit breaker.
Put a cloth on the bottom of the oven
to prevent damage to the oven light
and glass cover.
Stainless steel or aluminium appliances:
Clean the oven door with a wet sponge only. Dry it with a soft cloth.
Do not use steel wool, acids or abrasive
materials, as they can cause damage to the
oven surface. Clean the oven control panel
with the same precautions.
1.
Shelf supports
You can remove the shelf supports to clean
the side walls.
Removing the shelf supports
Cleaning the oven door
The oven door consists of two panels of
glass mounted one behind the other. To
make the cleaning easier remove the oven
door and the internal panel.
1
2
2
1
Pull the front of the
shelf support away
from the side wall.
Pull the rear end of
the shelf support
away from the side
wall and remove it.
2.
3.
4.
Turn the glass cover counterclockwise to
remove it.
Clean the glass cover.
Replace the oven light bulb with a 25
watt, 230V (50Hz), 300 °C heat resistant oven light bulb (Connection type:
E14).
Install the glass cover.
Warning! The oven door can close if
you try to remove the internal panel of
glass when the door is still assembled.
Removing the oven door
Important! Pay attention what is the order
of the glasses.
ENGLISH
16
2
1
5
Open the door fully. Lift and turn the levers on the two hinges.
3
4
Clean the glass panel with water and soap.
Dry the glass panel carefully.
Installing the glass panel and the door
When the cleaning is completed, install the
glass panel and the oven door.
45°
Close the oven door
to the first open position (approx. 45°).
Then pull forward
and remove it from
its seat.
Hold the glass panel on their upper
side and it up and
out of its retainer.
Hold the door strip
on the upper side of
the oven door on
both sides and
press this inwards in
order to loosen the
seal. Then pull the
door strip upwards
and off.
Inserting the panel and the door:
1. Slide the glass door panel into the retainer from above at an angle and then
lower the panel.
The screen-printing zone must face the
inner side of the door. Make sure that
after the installation the surface of the
glass panel frame on the screen-printing
zones is not rough when you touch it.
2. Hold the door strip on both sides, align
it with the inner edge of the door and
press the door strip into the upper edge
of the door.
3. Open the door as far as it will go.
4. Fold the clamp levers on both door
hinges down into their original position.
5. Close the oven door.
What to do if…
Warning! Refer to the Safety chapters.
Problem
Possible cause
Remedy
The oven does not heat up.
The appliance is deactivated.
Activate the appliance.
The oven does not heat up.
The clock is not set.
Set the clock.
ENGLISH
17
Problem
Possible cause
Remedy
The oven does not heat up.
The necessary settings are
not set.
Make sure that the settings
are correct.
The oven does not heat up.
The fuse in the fuse box is
released.
Do a check of the fuse. If the
fuse is released more than
one time, contact a qualified
electrician.
The oven lamp does not operate.
The oven lamp is defective.
Replace the oven lamp.
The display shows F11.
The core temperature sensor
has a short-circuit or the
core temperature sensor
plug is not tightly in position
in the socket.
Insert the core temperature
sensor plug as far as it goes
into the socket on the front
of the appliance.
The display shows 12.00.
There was a power cut.
Set the clock.
Steam and condensation
settle on the food and in the
oven.
You left the dish in the oven
for too long.
Do not keep the dishes in
the oven for longer than 15
- 20 minutes after the cooking ends.
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the appliance cavity. Do
not remove the rating plate from the appliance cavity.
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
Technical data
Dimensions (internal)
Usable volumes (top oven)
Height
top: 212 mm/ main: 368 mm
Width
top: 440 mm/ main: 435 mm
Depth
top: 448 mm/ main: 409 mm
42 l
Usable volumes (main oven)
61 l
Area of baking tray
1175 cm²
Top heating element (top oven)
1200 W
Top heating element (main oven)
1000 W
ENGLISH
18
Bottom heating element (top oven)
1000 W
Bottom heating element (main oven)
1000 W
Grill element (top oven)
1100 W
Grill element (main oven)
1900 W
Conventional (top oven)
2200 W
Conventional (main oven)
2000 W
Bottom heat
1100 W
Grill
1800 W
Grilling (top oven)
2100 W
Grilling (main oven)
2700 W
Forced air cooking
1900 W
Grilling with fan
2700 W
Bread and pizza setting
2900 W
Defrost
50 W
Total rating
5100 W
Oven lamp
25 W
Cooling fan
22 W
Voltage
220 - 240 V
Frequency
50 Hz
Number of functions
8+2
Energy consumption
0,79 kWh
Energy Consumption with a standard load,
Conventional
0,79 kWh
Energy Consumption with a standard load,
Forced air cooking
0,79 kWh
Environment concerns
The symbol on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
ENGLISH
Packaging material
19
The packaging material is environmentallyfriendly and recyclable. Plastic parts are
marked with international abbreviations
such as PE, PS, etc. Dispose of the packaging material in the containers provided for
this purpose at your local waste management facility.
IKEA GUARANTEE
How long is the IKEA guarantee valid?
This guarantee is valid for five (5) years
from the original date of purchase of Your
appliance at IKEA, unless the appliance is
named LAGAN in which case two (2) years
of guarantee apply. The original sales receipt is required as proof of purchase. If
service work is carried out under guarantee,
this will not extend the guarantee period for
the appliance,
Which appliances are not covered by the
IKEA five (5) years guarantee?
The range of appliances named LAGAN
and all appliances purchased in IKEA before 1st of August 2007
Who will execute the service?
IKEA service provider will provide the service through its own service operations or
authorized service partner network.
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been caused by faulty
construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use only. The exceptions
are specified under the headline “What is
not covered under this guarantee?” Within
the guarantee period, the costs to remedy
the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special
expenditure. On these conditions the EU
guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee.
If considered covered, IKEA service provider
or its authorized service partner through its
own service operations, will then, at its sole
discretion, either repair the defective product or replace it with the same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by
connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal
environmental conditions.
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the appliance, including any scratches and possible color differences.
• Accidental damage caused by foreign
objects or substances and cleaning or unblocking of filters, drainage systems or
soap drawers.
ENGLISH
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found during a technician’s visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where nonoriginal parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs during
this delivery will be covered by this guarantee.
• Cost for carrying out the initial installation
of the IKEA appliance. However, if an
IKEA service provider or its authorized
service partner repairs or replaces the
appliance under the terms of this guarantee, the service provider or its authorized
service partner will re-install the repaired
appliance or install the replacement, if
necessary.
This restriction do not apply to fault-free
work carried out by a qualified specialist
using our original parts in order to adapt
the appliance to the technical safety specifications of another EU country.
How country law applies
The IKEA guarantee gives You specific legal
rights, which covers or exceed local demands. However these conditions do not
limit in any way consumer rights described
in the local legislation
20
Area of validity
For appliances which are purchased in one
EU country and taken to another EU country, the services will be provided in the
framework of the guarantee conditions normal in the new country. An obligation to
carry out services in the framework of the
guarantee exists only if the appliance complies and is installed in accordance with:
• the technical specifications of the country
in which the guarantee claim is made;
• the Assembly Instructions and User Manual Safety Information;
The dedicated After Sales Service for
IKEA appliances:
Please do not hesitate to contact IKEA After
Sales Service to:
1. make a service request under this guarantee;
2. ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture. The service won’t provide clarifications related to:
– the overall IKEA kitchen installation;
– connections to electricity (if machine
comes without plug and cable), to
water and to gas since they have to
be executed by an authorized service engineer.
3. ask for clarification on user manual contents and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if You need our service
Please refer to the last page of this manual
for the full list of IKEA appointed contacts
and relative national phone numbers.
ENGLISH
Important! In order to provide You with a
quicker service, we recommend that You
use the specific phone numbers listed at the
end of this manual. Always refer to the
numbers listed in the booklet of the specific
appliance You need an assistance for.
Before calling us, assure that You have to
hand the IKEA article number (8 digit code)
for the appliance of which you need our
assistance.
Important! SAVE THE SALES RECEIPT! It is
Your proof of purchase and required for the
21
guarantee to apply. Note that the receipt
reports also the IKEA article name and
number (8 digit code) for each of the
appliances you have purchased.
Do You need extra help?
For any additional questions not related to
After Sales of your appliances, please contact our nearest IKEA store call centre. We
recommend you read the appliance documentation carefully before contacting us.
22
Country
België
Belgique
Phone number
070 246016
Call Fee
Opening time
Binnenlandse gesprekskosten
8 tot 20 Weekdagen
Tarif des appels nationaux
8 à 20. En semaine
България
0700 10 218
Такса за повикване от страната
От 9 до 18 ч в работни дни
Česká republika
246 019721
Cena za místní hovor
8 až 20 v pracovních dnech
Danmark
70 15 09 09
Landstakst
man.-fre. 09.00-20.00
lør. 09.00-16.00
1 søndag pr. måned, normalt første
søndag i måneden
Deutschland
01803-334532
(0,09 € / Min.*)
* aus dem Festnetzder DTAG;
Mobilfunkpreise abweichend
8 bis 20 Werktage
Ελλάδα
211 176 8276
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
España
91 1875537
Tarifa de llamadas nacionales
De 8 a 20 en días laborables
France
0170 36 02 05
Tarif des appels nationaux
9 à 21. En semaine
Hrvatska
01 63 23 338
Lokalna cijena poziva
pon. - pet. 8:00 - 16:00
Ireland
0 14845915
National call rate
8 till 20 Weekdays
Ísland
5880503
Innanlandsgjald fyrir síma
9 til 18. Virka daga
Italia
02 00620818
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
Κυπρος
22 030 529
Υπεραστική κλήση
8 έως 20 κατά τις εργάσιμες ημέρες
5 278 06 03
Nacionalinių pokalbių tarifai
Pr. - Ketv.: 8:00 - 12:00, 12:45 - 17:00
Pnkt.: 8:00 - 12:00, 12:45 - 15:45
Magyarország
061 998 0549
Belföldi díjszabás
Hétköznap 8 és 10 óra között
Nederland
0900 235 45 32
and/or
0900 BEL IKEA
0,10 EUR/min (niet lokaal)Incl. BTW
ma-vr 9.00-21.00
zat 9.00-20.00
zon 9.00-18.00
Lietuva
Norge
815 22052
Takst innland
8 til 20 ukedager
Österreich
0810 300486
zum Ortstarif
8 bis 20 Werktage
Polska
012 297 8787
Stawka wg taryfy krajowej
Od 8 do 20 w dni robocze
Portugal
211557985
Chamada Nacional
9 às 21. Dias de Semana
*excepto feriados
România
021 211 08 88
Tarif apel naţional
8 - 20 în zilele lucrătoare
Россия
8 495 6662929
Действующие телефонные тарифы
с 8 до 20 по рабочим дням
Время московское
Schweiz
Tarif für Anrufe im Bundesgebiet
8 bis 20 Werktage
Suisse
Tarif des appels nationaux
8 à 20. En semaine
Tariffa applicata
alle chiamate nazionali
dalle 8 alle 20 nei giorni feriali
(02) 3300 2554
Cena vnútroštátneho hovoru
8 až 20 v pracovných dňoch
Suomi
030 600 5203
Lankapuhelinverkosta
0,0828€/puhelu+0,032€/min
Matkapuhelinverkosta 0,192€/min
arkipäivisin 8.00-20.00
Sverige
0775 700 500
lokalsamtal (lokal taxa)
mån-fre 8.30-20.00
lör-sön 9.30-18.00
031 5500 324
Svizzera
Slovensko
Türkiye
212 244 0769
Ulusal arama ücreti
Hafta içi saat 09:00’dan 18:00’a kadar
Україна
044 586 2078
Міжміськи дзвінки платні
9 - 21 В робочі дні
United Kingdom
020 3347 0044
National call rate
9 till 21. Weekdays
23
892957001-D-432012
© Inter IKEA Systems B.V. 2008
AA-720176-1

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
