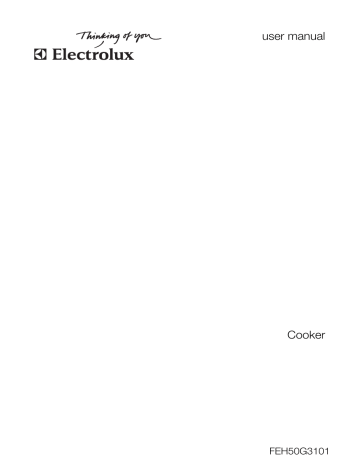

user manual
Cooker
FEH50G3101
2 electrolux
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com
CONTENTS
Safety information
Product description
Before first use
Hob - Daily Use
Hob - Helpful hints and tips
Hob - Care and Cleaning
2
5
5
6
7
7
Oven - Daily Use
7
Oven - Helpful hints and tips
9
Oven - Care and Cleaning
12
What to do if…
15
Installation
15
Environment concerns
16
Subject to change without notice
SAFETY INFORMATION
Before the installation and use, read this
manual carefully:
• For your own safety and the safety of
your property
• For the protection of the environment
• For the correct operation of the appliance.
Always keep these instructions with the appliance also if you move or sell it.
The manufacturer is not responsible if incorrect installation or use results in damage.
• Do not let the appliance stay unattended
during operation.
• Switch off the appliance after each use.
Children and vulnerable people safety
• This appliance can be used by children
aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in safe way and understand the hazards involved. Children shall
not play with the appliance.
• Keep all packaging away from children.
There is the risk of suffocation or physical
injury.
• Keep children and animals away from the
appliance when the door is open or the
appliance is in operation. There is the risk
of injury or other permanent disability.
• If the appliance has Child lock or Key
lock function, use it. It prevents children
and animals from accidental operation of
the appliance.
Installation
• Only an approved technician can install
and connect the appliance. Contact an
approved service centre. This is to prevent the risks of structural damage or
physical injury.
• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary,
contact the supplier.
• Remove all packaging, stickers and layers from the appliance before first use.
Do not remove the rating plate. It can invalidate the guarantee.
• Fully obey the laws, ordinances, directives and standards in force in the country where you use the appliance (safety
regulations, recycling regulations, electrical or gas safety rules etc.).
• Be careful when you move the appliance.
The appliance is heavy. Always use safety gloves. Do not pull the appliance by
the handle.
• Make sure that the appliance is disconnected from the power supply during the
installation (if applicable).
• Keep the minimum distances to the other
appliances and units.
• Do not put the appliance on a base.
General safety
• Do not change the specifications of this
appliance. There is the risk of injury and
damage to the appliance.
Electrical connection
• Only an approved electrician can install
and connect the appliance. Contact an
approved service centre. This is to pre-
electrolux 3
•
•
•
•
•
•
•
•
•
•
•
•
•
vent the risks of structural damage or
physical injury.
The appliance must be earthed.
Make sure that the electrical data on the
rating plate agree with your domestic
power supply.
Information on the voltage is on the rating
plate.
You must have the correct isolation devices: line protecting cut-outs, fuses
(screw type fuses removed from the
holder), earth leakage trips and contactors.
The electrical installation must have an
isolation device which lets you disconnect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
The shock protection parts must be fixed
in such a way that they cannot be undone without tools.
Always use a correctly installed shockproof socket.
When you connect electrical appliances
to mains sockets, do not let cables touch
or come near the hot appliance door.
Do not use multi-way plugs, connectors
and extension cables. There is a risk of
fire.
Make sure not to squash or cause damage to the mains plug (if applicable) and
cable behind the appliance.
Make sure that the mains connection is
accessible after the installation.
Do not pull the mains cable to disconnect
the appliance. Always pull the mains plug
(if applicable).
Do not replace or change the mains cable. Contact the service centre.
Use
• Only use the appliance for domestic
cooking tasks. Do not use the appliance
for commercial and industrial use. This is
to prevent physical injury to persons or
prevent damage to property.
• Always monitor the appliance during operation.
• Always stay away from the appliance
when you open the door while the appliance is in operation. Hot steam can release. There is a risk of burns.
• Do not use this appliance if it is in contact
with water. Do not operate the appliance
with wet hands.
• Do not use the appliance as a work surface or storage surface.
• The cooking surface of the appliance becomes hot during use. There is a risk of
burns. Do not put metallic objects, for example cutlery or saucepans lids, on the
surface, as they can become hot.
• The interior of the appliance becomes hot
during use. There is a risk of burns. Use
gloves when you insert or remove the accessories or pots.
• Open the door carefully. The use of ingredients with alcohol can cause a mixture
of alcohol and air. There is the risk of fire.
• Do not let sparks or open flames come
near the appliance when you open the
door.
• Do not put flammable products or items
that are wet with flammable products,
and/or fusible objects (made of plastic or
aluminium) in, near or on the appliance.
There is a risk of explosion or fire.
• Do not use the cooking zones with empty
cookware or without cookware
• Do not let cookware boil dry. This can
cause damage to the cookware and hob
surface.
• If an object or cookware falls on the hob
surface, the surface can be damaged.
• Do not put hot cookware near to the
control panel because the heat can
cause a damage to the appliance.
• Be careful when you remove or install the
accessories to prevent damage to the
appliance enamel.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can
scratch the hob surface if you move them
on the surface.
• Discoloration of the enamel has no effect
on the performance of the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put any objects directly on the
appliance floor and do not cover it with
aluminium foil;
– do not put hot water directly into the
appliance;
4 electrolux
•
•
•
•
•
•
– do not keep moist dishes and food in
the appliance after you finish the cooking.
Do not apply pressure on the open door.
Do not put flammable materials in the
compartment below the oven. Keep
there only heat-resistant accessories (if
applicable).
Do not cover oven steam outlets. They
are at the rear side of the top surface (if
applicable).
If there is a crack on the surface, disconnect the power supply. There is a risk of
electric shock.
Do not put heat-conducting materials
(e.g. thin metal mesh or metal-plated
heat conductors) under the cookware.
Excessive heat reflection can damage the
cooking surface.
Do not use the appliance during a power
cut.
Care and cleaning
• Before maintenance, make sure that the
appliance is cold. There is a risk of burns.
There is a risk that the glass panels can
break.
• Keep the appliance clean at all times. A
build-up of fats or other foodstuff can result in a fire.
• Regular cleaning prevents the surface
material from deteriorating.
• For your personal safety and the safety of
your property, only clean the appliance
with water and soap. Do not use flammable products or products that can cause
corrosion.
• Do not clean the appliance with steam
cleaners, high-pressure cleaners, sharp
objects, abrasive cleaning agents, abrasive sponges and stain removers.
• If you use an oven spray, follow the instructions from the manufacturer. Do not
•
•
•
•
•
•
spray anything on the heating elements
and the thermostat sensor (if applicable).
Do not clean the glass door with abrasive
cleaning agents or metal scraper. Heat
resistant surface of the inner glass can
break and shatter.
When the door glass panels are damaged they become weak and can break.
You must replace them. Contact the
service centre.
Be careful when you remove the door
from the appliance. The door is heavy.
Bulb lamps used in this appliance are
special lamps selected for household appliances use only. They cannot be used
for the full or partial illumination of a
household room.
If it becomes necessary to replace the
lamp use one of the same power and
specifically designed for household appliances only.
Disconnect the appliance from the power
supply before the replacement of the
oven lamp. There is the risk of electrical
shock. Cool down the appliance. There is
a risk of burns.
Service centre
• Only an approved engineer can repair or
work on the appliance. Contact an approved service centre.
• Use only original spare parts.
Disposal of the appliance
• To prevent the risk of physical injury or
damage:
– Disconnect the appliance from the
power supply.
– Cut off the mains cable and discard it.
– Discard the door catch. This prevents
children or small animals from being
closed inside of the appliance. There is
a risk of suffocation.
electrolux 5
PRODUCT DESCRIPTION
General overview
2
3
4 5
6
1
7
8
4
12
3
9
2
10
1
11
1
2
3
4
5
6
7
8
9
10
11
12
Control panel
Hob control knobs
Electronic programmer
Control knob for temperature
Temperature indicator
Power indicator
Control knob for oven functions
Grill
Oven lamp
Fan
Rating plate
Shelf runner
1
2
3
4
5
Single cooking zone 1200 W
Single cooking zone 1800W
Single cooking zone 1200 W
Residual heat indicator (4 lamps)
Double cooking zone 1700/700W
Cooking surface layout
1
2
140
180
mm
mm
120/180
140
mm
5
mm
4
3
Accessories
• Oven shelf
For cookware, cake tins, roasts.
• Flat baking tray
For cakes and biscuits.
• Storage drawer
Below the oven cavity is the storage
drawer.
Warning! The storage drawer can
become hot when the appliance
operates.
BEFORE FIRST USE
Warning! Refer to "Safety information"
chapter.
Remove all packaging, both inside and
outside the oven, before using the appliance. Do not remove the rating plate.
6 electrolux
Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
After approximately 5 seconds, the flashing
stops and the display shows the time of
day set.
Important! Refer to chapter "Care and
Cleaning".
For time change you must not set an
or End
automatic function (Duration
) at the same time.
Setting the time
The oven only operates after time set.
When you connect the appliance to the
electrical supply or in case of a power cut,
"AUTO" and "00:00" flash in the display.
1. Press the Selection
button.
2. To set the current time use the "+" or
"-" buttons.
Preheating
Set
and maximum temperature and run
an empty oven for 45 minutes, to burn off
any residue from the cavity surface. Accessories can become hotter than in normal
use. During this period an odour can be
emitted. This is normal. Make sure the
room is well ventilated.
HOB - DAILY USE
Warning! Refer to "Safety information"
chapter.
Heat settings
Control knob
Function
Double zone switch
1-9
Heat settings
(1 = lowest heat setting; 9 = highest heat setting)
Half-way settings are available between 1 and 9.
1. Turn the control knob to a necessary
heat setting.
2. To complete the cooking process, turn
the control knob to the “0” position.
Use the residual heat to decrease energy consumption. Switch off the cooking zone for approximately 5-10 minutes before the cooking process is
completed.
Use of the double zone
Warning! To set double zone on turn
the control knob with the double zone
to the right (do not turn it through the
stop position).
1. Turn the control knob to the right to position 9 and on the double zone symbol. Then you can feel a small resistance.
2. Turn backwards to the necessary setting.
3. After cooking turn back to the OFF position.
To use the double zone again afterwards set the larger ring on.
Residual heat indicator
The residual heat indicator comes on when
a cooking zone is hot.
Warning! Risk of burns from residual
heat!
When a cooking zone operates, it
hums for a short time. This is typical of
all ceramic glass cooking zones and
does not show that the appliance operates incorrectly.
electrolux 7
HOB - HELPFUL HINTS AND TIPS
Cookware
• The bottom of the cookware must
be as thick and flat as possible.
• Cookware made of enamelled steel
and with aluminium or copper bottoms can cause discoloration on
glass ceramic surface.
• Put cookware on a cooking zone before you start it.
• Stop the cooking zones before the
end of the cooking time to use residual heat.
• The bottom of pans and cooking
zones must have the same dimension.
Energy saving
• If possible, always put the lids on the
cookware.
HOB - CARE AND CLEANING
Warning! Refer to "Safety information"
chapter.
Clean the appliance after each use.
Always use cookware with clean bottom.
Scratches or dark stains on the glass
ceramic have no effect on how the appliance operates.
To remove the dirt:
1. – Remove immediately:melted plastic, plastic foil, and food with sugar. If
not, the dirt can cause damage to
the appliance. Use a special scraper
for the glass . Put the scraper on the
glass surface at an acute angle and
move the blade on the surface .
– Remove after the appliance is
sufficiently cool:limescale rings ,
water rings, fat stains, shiny metallic
discolorations. Use a special cleaning
agent for glass ceramic or stainless
steel.
2. Clean the appliance with a moist cloth
and some detergent.
3. At the end rub the appliance dry
with a clean cloth.
• Clean the front of the appliance with a
soft cloth and a solution of hot water and
some detergent.
• For metal fronts use some detergent for
stainless steel.
• Do not use scouring agents and abrasive
sponges.
OVEN - DAILY USE
Warning! Refer to "Safety information"
chapter.
Switching the Oven On and Off
1. Turn the oven functions control knob to
an oven function.
2. Turn the temperature control knob to a
temperature.
The temperature indicator comes on
while the oven temperature increases.
3. To switch off the oven, turn the oven
functions control knob and the temperature control knob to the Off position.
Safety thermostat
To prevent dangerous overheating (due to
incorrect use of the appliance or defective
components), the oven has a safety thermostat, which interrupts the power supply.
The oven switches back on again automatically, when the temperature drops.
8 electrolux
Oven functions
Oven function
Application
OFF position
The appliance is OFF.
Conventional cooking
Heats both from the top and bottom element. To bake and roast
on one oven level.
Bottom heating element
Heats only from the bottom of the oven. To bake cakes with crispy
or crusty bases.
Top heating element
Heats only from the top of the oven. To finish cooked dishes.
Grill
To grill flat food items in small quantities in the middle of the shelf.
To make toasts. Maximum temperature for this function is 210
°C
Fan cooking
To roast or roast and bake the food that requires the same cooking
temperature, using more than one shelf, without flavour transference.
Defrost
Thaws frozen food. The temperature control knob must be on off
position.
Electronic programmer
1
4
1
2
3
4
5
2
5
6
7
3
8
9
10
End/Duration function indicator
Oven operation indicator
Time display
Minute Minder button
Duration button
Clock function
Selection / Time of
day
Minute minder
Duration
6
7
8
9
10
End button
Minute Minder function indicator
Selection button
Button "-"
Button "+"
Setting the clock functions
1. Push the function button for the function you want to set.
2. To set the time for Minute minder
,
or End
, use the "+" or
Duration
"-" buttons.
The related function indicator comes
on.
When the time period is completed, the
function indicator flashes and an
acoustic signal sounds.
With the functions Duration
and End
the oven switches off automatically.
3. Push the Selection
button to stop
the signal.
Application
To set, change or check the time.
To set a countdown time.
A signal sounds, after the time period is completed.
This function has no effect on the operation of the oven.
To set how long the oven has to be in operation.
electrolux 9
Clock function
End
Application
To set the switch-off time for an oven function.
Duration
and End
can be used at
the same time, if the oven is to be
switched on and off automatically later.
, then
In this case first set Duration
End
.
Inserting the oven shelf and deep
roasting pan together
Interrupting the clock functions
button. The display
Press the Selection
shows the remaining time.
When the set time expires, the function
ends automatically.
Changing the acoustic signal
There are three different acoustic signals.
To change the sound of the signal, press
the "-" button without selecting any other
function, until you hear the appropriate
sound.
Inserting the oven accessories
Put in the slide-in accessories so that the
double side edges are at the back of the
oven and point down to the bottom. Push
the slide-in accessories between the guidebars of one of the oven levels.
Put the oven shelf on the deep roasting
pan. Push the deep roasting pan between
the guide-bars of one of the oven levels.
OVEN - HELPFUL HINTS AND TIPS
• The appliance has four shelf levels. Count
the shelf levels from the bottom of the
appliance floor.
• You can cook different dishes on two levels at the same time. Place the shelves
on level 1 and 3.
• Moisture can condense in the appliance
or on the glass doors. This is normal. Always stand back form the appliance
when you open the appliance door while
cooking. To decrease the condensation,
run the appliance for 10 minutes before
cooking.
10 electrolux
• Wipe away moisture after every use of
the appliance.
• Do not put the objects directly on the appliance floor and do not cover the components with aluminium foil when you
cook. This can change the baking results
and damage the enamel coating.
• For white meat, poultry and fish set the
temperature between 150°C-175°C.
• Use a dripping pan for very fatty food to
prevent the oven from stains that can be
permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice
does not seep out.
• To prevent too much smoke in the oven
during roasting, add some water into the
dripping pan. To prevent the smoke condensation, add water each time after it
dries up.
Baking cakes
• The best temperature for baking cakes is
between 150°C and 200°C.
• Preheat the oven for approximately 10
minutes before baking.
• Do not open the oven door before 3/4 of
the set cooking time is up.
• If you use two baking trays at the same
time, keep one level empty between
them.
Cooking times
Cooking times depend on the type of food,
its consistency, and volume.
Initially, monitor the performance when you
cook. Find the best settings (heat setting,
cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.
Cooking meat and fish
• Do not cook meat with weight below 1
kg. Cooking too small quantities makes
the meat too dry.
• To keep the red meat well cooked outside and juicy inside set the temperature
between 200°C-250°C.
Cooking table
Food
Weight (g)
Tray type
Shelf level
Preheating
time (minutes)
Temperature (°C)
Cooking /
baking
time (minutes)
Pastry
stripes
250
enamelled
3
10
150-160
20-30
Pastry
stripes
250 + 250
enamelled
1/3
10
140-150
25-30
Pastry
stripes
250 + 250
+ 250
enamelled
1/2/4
10
150-160
30-35
Flat cake
1000
enamelled
2
10
150-160
30-40
Flat cake
1000 +
1000
enamelled
1/3
10
140-150
45-55
Flat cake
1000 +
1000 +
1000
enamelled
1 /2/ 4
10
140-150
55-65
2000
enamelled
3
10
170-180
40-50
2/3
10
170-180
50-60
Yeast cake
with apples
Apple pie
1200 +
1200
2 round aluminized
trays (diameter: 20 cm)
Small cakes
500
enamelled
3
10
140-150
30-35
Small cakes
500 + 500
enamelled
1/3
10
140-150
25-30
electrolux 11
Food
Weight (g)
Small cakes
500 + 500
+ 500
Tray type
enamelled
Shelf level
Preheating
time (minutes)
Temperature (°C)
Cooking /
baking
time (minutes)
1/2/4
10
150-160
25-30
Fatless
sponge
cake
350
1 round aluminized tray
(diameter:
26 cm)
3
10
150-160
30-40
Drip pan
cake
1200
enamelled
3
-
150-160
40-501)
Chicken,
whole
1400
oven shelf
at level 2,
roasting
tray at level
1
2
-
170-190
50-60
Pork roast
cutlet
600
oven shelf
at level 3,
roasting
tray at level
1
3
-
180-200
30-40
Flan bread
800
enamelled
2
15
230-250
10-15
Stuffed
yeast cake
1200
enamelled
3
20-30
160-170
20-30
1000 +
1000
enamelled
1/3
-
180-200
50-60
Cheese
cake
2600
enamelled
2
-
150-170
60-70
Swiss apple
flan
1900
enamelled
3
15
180-200
30-40
Christmas
cake
2400
enamelled
3
10
150-170
50-602)
Quiche Lorraine
1000
1 round tray
(diameter:
26 cm)
2
15
210-230
35-45
Peasant
bread
750+750
2 round aluminized
trays (diameter: 20 cm)
3
153)
180-190
50-60
Romanian
sponge
cake
600+600
2 round aluminized
trays (diameter: 25 cm)
2/2
10
150-170
40-50
Romanian
sponge
cake - traditional
600+600
2 round aluminized
trays (diameter: 20 cm)
2/2
-
160-170
30-40
Pizza
Yeast buns
800
enamelled
3
10
180-200
10-15
Yeast buns
800 + 800
enamelled
1/3
10
180-200
15-20
12 electrolux
Food
Weight (g)
Tray type
Shelf level
Preheating
time (minutes)
Temperature (°C)
Cooking /
baking
time (minutes)
Swiss roll
500
enamelled
3
10
150-170
10-15
Meringue
400
enamelled
2
-
100-120
50-60
Meringue
400 + 400
enamelled
1/3
-
100-120
55-65
Meringue
400 + 400
+ 400
enamelled
1/2/4
-
115-125
65-75
Crumble
cake
1500
enamelled
2
10
170-180
20-30
Sponge
cake
600
enamelled
2
10
150-170
20-30
Buttered
cake
600 + 600
enamelled
1/3
10
150-170
20-30
1) After you switch off the appliance, leave the cake in the oven for 7 minutes.
2) After you switch off the appliance, leave the cake in the oven for 10 minutes.
3) Set the temperature to 230 °C for preheating.
OVEN - CARE AND CLEANING
Warning! Refer to "Safety information"
chapter.
• Clean the front of the appliance with a
soft cloth with warm water and cleaning
agent.
• To clean metal surfaces use a usual
cleaning agent
• Clean the oven interior after each use.
Thus you can remove dirt more easily
and it does not burn on.
• Clean stubborn dirt with a special oven
cleaner.
• Clean all oven accessories (with a soft
cloth with warm water and cleaning
agent) after each use and let them dry.
• If you have nonstick accessories, do not
clean them using an aggressive agents,
sharp edged objects or dishwasher. It
can destroy nonstick coating!
Shelf Support Rails
Removing the shelf support rails
1. Pull the front of the shelf support rail
away from the side wall.
2. Pull the rear shelf support rail away
from the side wall and remove it.
electrolux 13
Installing the shelf support rails
Install the shelf support rails in opposite sequence.
2. Lift and turn the levers on the two hinges.
The rounded ends of the shelf support
rails must point to the front!
Cleaning the oven door
The oven door has two panels of glass installed one behind the other. To make the
cleaning easier remove the oven door and
the internal panel of glass.
Warning! The oven door can close if
you try to remove the internal panel of
glass when the door is still assembled.
Warning! Make sure that the glass
panels are cool, before you clean the
glass door. There is risk that the glass
breaks.
3. Close the oven door to the first opening
position (halfway). Then pull forward
and remove it from its seat.
Warning! When the door glass panels
are damaged or have scratches, the
glass becomes weak and can break.
To prevent this you must replace them.
For more instructions, contact your
local Service Centre.
Removing the oven door and the glass
panel
1. Open the door fully and hold the two
door hinges.
4. Place the door on a stable surface protected by a soft cloth.
Use a screwdriver to remove 2 screws
from bottom edge of door
1
1
Important! Do not loose the screws
14 electrolux
5. Use a spatula made of wood or plastic
or equivalent to open the inner door
Hold the outer door, and push the inner
door against the top edge of the door
Do not use steel wool, acids or abrasive materials as they can damage the
oven surface. Clean the oven control
panel with the same precautions
Removing the drawer
The drawer below the oven can be removed for cleaning.
3
2
2
Removing the drawer
1. Pull the drawer out until it stops.
6. Lift the inner door
7. Clean inner side of the door
Clean the glass panel with water and soap.
Dry it carefully.
Warning! Only clean the glass panel
with water and a soap. Abrasive
cleaning agents, stain removers and
sharp objects (e.g. knives or scrapers)
can cause damage to the glass.
Inserting the door and the glass panel
When the cleaning procedure is completed,
insert the oven door. To do so, do the
steps in opposite way.
4
4
6
2. Slowly lift the drawer.
3. Pull the drawer out fully.
Installing the drawer
To install the drawer, do the above steps in
the opposite sequence.
Warning! Do not keep flammable
items (such as cleaning materials,
plastic bags, oven gloves, paper or
cleaning sprays) in the drawer. When
you use the oven, the drawer can
become hot. There is a risk of fire.
Oven lamp
5
Warning! There is a danger of
electrical shock!
5
Stainless steel or aluminium appliances:
Clean the oven door with a wet sponge
only. Dry it with a soft cloth.
Before you change the oven lamp:
• Switch off the oven.
• Remove the fuses in the fuse box or
switch off the circuit breaker.
Put a cloth on the bottom of the oven
for protection of the oven light and
glass cover.
electrolux 15
Replacing the oven light bulb/cleaning the
glass cover
1. Turn the glass cover anti-clockwise to
remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with applicable 300°C heat-resistant oven light
bulb.
4. Install the glass cover.
WHAT TO DO IF…
Problem
Possible cause
Remedy
The hob does not operate
The heat setting is not set
Set the heat setting
The oven does not heat up
The oven is not switched on
Switch on the oven
The oven does not heat up
The clock is not set
Set the clock
The oven does not heat up
The necessary settings are not
set
Control the settings
The oven does not heat up
The fuse in the fuse box is released
Control the fuse. If the fuse is
released more than one time,
refer to a qualified electrician.
The oven lamp does not operate
The oven lamp is defective
Replace the oven lamp
Steam and condensation settle
on the food and in the oven
cavity
You left the dish in the oven for
too long
Do not leave the dishes in the
oven for longer than 15-20 minutes after the cooking process
ends
The display shows “12.00”
A power cut
Reset the clock
The residual heat indicator
does not come on
The cooking zone is not hot
because it operated only for a
short time.
If the cooking zone must be
hot, speak to the Service Centre.
If you cannot find a solution to the problem
yourself, contact your dealer or the service
centre.
The necessary data for the service centre is
on the rating plate. The rating plate is on
the front frame of the oven cavity.
We recommend that you write the data here:
Model (MOD.)
.........................................
Product number (PNC)
.........................................
Serial number (S.N.)
.........................................
INSTALLATION
Warning! Refer to "Safety information"
chapter.
Location of the appliance
You can install your freestanding appliance
with cabinets on one or two sides and in
the corner.
16 electrolux
B
A
Electrical installation
Warning! Refer to "Safety information"
chapter.
The manufacturer is not responsible if
you do not follow safety precautions
from chapter "Safety".
Minimum distances
Dimension
mm
A
690
B
150
Technical Data
Appliance class 2, sub class 1 and class 1.
This appliance is supplied without a main
plug and a main cable.
Applicable cable type: H05 RR-F.
The power cable must not touch the
part of the appliance shown in the illustration.
Dimensions
Height
858 mm
Width
500 mm
Depth
600 mm
Total electricity power
8055 W
Warning! Do not set the appliance on
a base
Levelling
Use small feet on the bottom of appliance
to set same level of cooker top surface with
other surfaces
ENVIRONMENT CONCERNS
The symbol
on the product or on its
packaging indicates that this product may
not be treated as household waste. Instead
it should be taken to the appropriate
collection point for the recycling of electrical
and electronic equipment. By ensuring this
product is disposed of correctly, you will
help prevent potential negative
consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of
this product. For more detailed information
about recycling of this product, please
contact your local council, your household
waste disposal service or the shop where
you purchased the product.
electrolux 17
Packaging material
The packaging material is environmentally-friendly and recyclable. Plastic
parts are marked with international ab-
breviations such as PE, PS, etc. Dispose of the packaging material in the
containers provided for this purpose at
your local waste management facility.
18 electrolux
electrolux 19
www.electrolux.com/shop
892933439-C-122011
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
