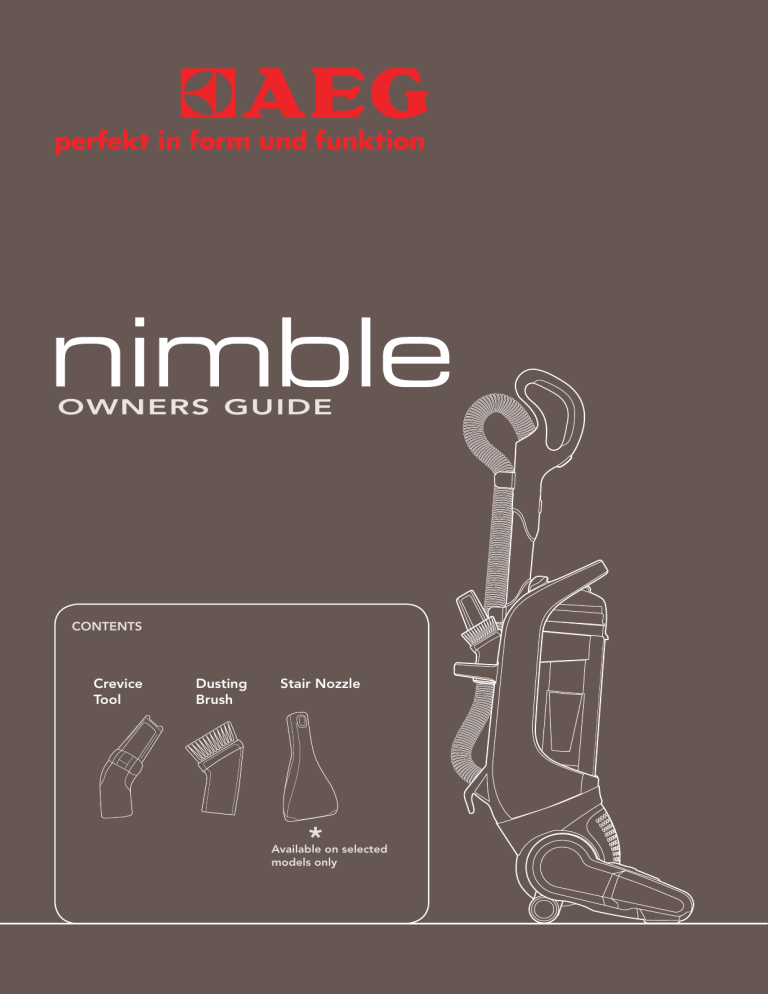

OWNERS GUIDE
CONTENTS
Crevice
Tool
Dusting
Brush
Stair Nozzle
*
Available on selected
models only
Congratulations on your purchase of an AEG vacuum cleaner – designed to help you care for
your home environment. This Owner’s Guide will help you make the best possible use of your new
vacuum cleaner. Please begin by reading it, and keep it for future reference.
IMPORTANT: If you have questions about using your vacuum cleaner, call Electrolux Group
Customer Care Helpline on 08445 614 614. Your vacuum cleaner was thoroughly inspected
and tested before it left the factory. If you note any transport damage, call the Helpline immediately.
Register your purchase
Please register your purchase at www.aeg.co.uk or by mailing the enclosed product registration
card.
For AEG service
Authorized AEG Service Centers provide maintenance, parts and repair. To find the Service Center
nearest you, go to www.aeg.co.uk or call 08445 614 614.
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
WARNING
To reduce the risk of fire, electric shock, or injury:
• Do not use outdoors or on wet surfaces.
• Do not leave vacuum cleaner when plugged in. Turn off the switch and unplug the electrical cord when not in use
and before servicing.
• This appliance is not intended for use by any persons (including children) with reduced physical, sensory or mental
capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children. Should not be used by
children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has been dropped, damaged,
left outdoors, or dropped into water, return it to a service centre before using.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Turn off all controls before parking and unplugging.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and
anything that may reduce airflow.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings
and moving parts.
• Do not place vacuum on furniture or stairs as the brush roll may cause damage.
• Use extra care when cleaning on stairs. Do not place vacuum at top of stairs. Do not put on stair treads.
• Use extra care when cleaning area rugs as the brush roll may cause damage.
• Unplug before connecting turbo nozzle (if supplied) or other attachments. Place vacuum on floor with the handle in
upright position while using attachments.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dustbin or filter(s) in place.
• Do not use to pick up flammable or combustible liquids such as petrol, or use in areas where they may be present.
• Store your vacuum indoors in a cool, dry area.
• Keep your work area well lighted.
• Unplug electrical appliances before vacuuming them.
• Brush roll could suddenly restart. Unplug before servicing.
• Care should be taken not to over stretch the hose when using tools.
SAVE THESE INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
Thermal Cut Off
This vacuum cleaner has a special thermostat that protects the cleaner in case of motor overheating. If the cleaner
suddenly shuts off, push the on/off switch off (0) and unplug the cleaner. Check the cleaner for a possible source of
overheating such as a full dustbin, a blocked hose or clogged filter. If these conditions are found, fix them and wait at
least 30 minutes before attempting to use the cleaner. After the 30 minute period, plug the cleaner back in and push
the on/off switch on (l). If the cleaner still does not run, then take it to an Electrolux Group Authorized Service Center
for repair.
Follow caution information whenever you see this symbol.
Electrolux Group Customer Care 08445 614 614
WARNING
The brush roll in the cleaning head rotates at high speed and can cause damage to the mains supply cable if
the cleaner passes over it during cleaning operations.
Care should be taken to ensure that this does not happen. If the cleaning head has accidentally passed over the
mains supply cable the following action should be taken:
1.Switch off and remove the plug from the socket outlet.
2.Examine the mains supply cable for damage (only after removing the plug from the socket outlet).
3.If the supply cord is damaged it must be replaced by a AEG Service Agent or similar qualified person in order to
avoid a hazard.
4.NEVER use the machine with a damaged mains supply cable.
BEFORE USING THIS VACUUM CLEANER
CHECK THE VOLTAGE
Before connecting the cleaner to an electrical supply, ensure that the voltage shown on the rating plate located
beneath the cleaner is of the correct voltage for your electricity supply. If it is not, do not use the cleaner but refer
back to your dealer.
CONNECTING TO YOUR ELECTRICITY SUPPLY
• Permanently connected to the cleaner is a mains supply (2-core) cable fitted with a non-rewirable plug incorporating
a 13A fuse.
• In the event of the fuse requiring replacement the fuse cover should be removed using a small screwdriver.
The old fuse MUST be replaced by a 13A ASTA approved BS1362 fuse or a BSI approved fuse. The cover
must be replaced before the plug is used again. In the event of loss of the fuse cover, replacements can be
obtained from your AEG Retailers and must be of the same colour as indicated by the coloured insert on the
base of the plug.
• If difficulty is experienced in obtaining a replacement, contact AEG Customer Services on 08445 614 614.
Calls to this number will be charged at 5p per minute at all times from a BT Landline.
• In no circumstances must the plug be used without a correct fuse cover fitted.
• If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the
appropriate plug fitted.
• Remove the fuse from the cut off plug.
• The cut off plug should then be disposed of to prevent the hazard of shocks in case it should be plugged
into a 13 amp socket in another part of your home.
• The wires in the mains cable of this appliance are coloured in accordance with the following code: Blue: Neutral.
Brown: Live.
• As the colours of the wires in the mains cable of this appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
• The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
• The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
• Do not make any connection to the terminal marked with the letter E or by the earth symbol or coloured
green or green-and-yellow. This cleaner is double insulated and no earth connection is necessary.
• It is in your interest to ensure that the plug is correctly attached to the mains cable. In case of doubt, consult
a qualified electrician, as AEG cannot regard the repair of faults on the plug connection as a service that can
be given free of charge under the terms of the guarantee.
13 Amp Fuse
13 Amp
Fuse
Cover
Fuse
Blue
Brown
Cord
Clamp
SERVICE
Should you require service on your AEG cleaner, please telephone AEG Customer Services on 08445 614 614. Calls
to this number will be charged at 5p per minute at all times from a BT Landline. Before requesting service, please
check whether your problem is covered under Service Checklist (see below). AEG will arrange the uplift of the product
for repair should no local service agent be available.
New filter pads, brush rolls and drive belts can be obtained from AEG Retailers. If difficulty is experienced in obtaining
spares, please contact AEG on 08445 614 614. Calls to this number will be charged at 5p per minute at all times
from a BT Landline.
Service Checklist
• If your cleaner will not operate, check the plug connection, plug fuse and mains fuse.
• Never allow the dustbin to become so full that it impedes the airflow, thus reducing the cleaning efficiency of the
machine. The character of household dust and its effect on the airflow through the machine may vary considerably.
Fluffy dust allows air to pass through readily whereas fine powdery dust or proprietary cleaning powders, pack
tightly in the dust cup, offering greater resistance to air flow and will reduce cleaning efficiency if the cup becomes
overloaded.
• Always store your cleaner and spare dust filters in a dry place.
• Renew the filter pads three or four times a year. This is essential to ensure continued high filtration of dust particles.
• Sucking up such items as stockings, clippings of cloth, sizeable pieces of paper, wrappings from cigarette packets
or sweets etc., may block the hose. AEG regrets that the clearing of blocked hoses cannot be regarded as service
that can be given free of charge, under the guarantee. Should a blockage occur, first disconnect the cleaner from
the electricity supply, refer to section headed “Blockages.” If these operations are not successful, contact AEG on
08445 614 614. Calls to this number will be charged at 5p per minute at all times from a BT Landline.
• Never pick up hot cinders or lighted cigarette ends.
• Make certain that your cleaner does not come into contact with water or any other liquid. It is not designed
as a wet pick up cleaner, and must never be used on damp carpets or wet floors.
Important - If the supply cord is damaged it must be replaced by a AEG Service Agent or similar qualified person
in order
Spares
New filters, brush rolls and drive belts can be obtained from Authorized AEG Dealers and electrical retailers. If difficulty
is experienced in obtaining spares please call us on 08445 614 614 (Calls to this number will be charged at 5p per minute
at all times from a BT Landline) or visit our website at www.aeg.co.uk/Shop1/
Electrolux Group Customer Care 08445 614 614
IN THIS PACKAGE
Selected
models only
Carrying Handle
*
Dustbin Filter
Lights
The symbol
on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local council office,
your household waste disposal service or the shop where you purchased the product.
Dustbin Release
Suction Control
On/Off
Handle Release Button
Indicator
Panel
Wand Extension Button
Easy Release
Cord Wrap
Handle Release Pedal
Brush Roll (Underneath)
KEEP THIS INFORMATION
Write the model, type and serial number here:
Date of purchase (keep your receipt) _____________
Model number and type ________________________
Serial number _________________________________
Find these numbers on a label on the lower back side
of the vacuum cleaner. Refer to these numbers when
ordering parts and accessories or if service is needed.
HOW TO USE
HANDLE RELEASE PEDAL
On/Off
Carpet
Bare
Floor
Filter Check
Brushroll Check
ASSEMBLY
SUCTION CONTROL
(wand use only)
WAND QUICK RELEASE
1
2
3
POWER CORD WRAP/UNWRAP
4
ACCESSORIES
Crevice
Tool
WAND QUICK
RELEASE BUTTON
DUSTBIN
RELEASE BUTTON
CARRYING HANDLE
5
Dusting
Brush
Stair Nozzle
*
Available on selected
models only
DUSTBIN AND WASHABLE FILTER
Valve Clean Out Area #1
BRUSH ROLL
WARNING: Risk of personal injury. Brush roll may unexpectedly restart. Unplug the vacuum cleaner before cleaning or servicing.
WASHABLE HEPA FILTER
Carbon
Filter
*
Valve Clean Out Area #2
Available on
selected models
only
TROUBLESHOOTING
For your safety, turn vacuum cleaner off and unplug power cord
before attempting to resolve problems.
PROBLEM
Motor will not start or suddenly
stops
POSSIBLE CAUSES
SOLUTION
Unit not connected to power source
•Push plug securely into outlet
•Try another outlet or check circuit breaker
•Check plug and cord for damage
Switch not turned on
•Press power switch to ‘carpet’ or ‘hard-floor’ setting
Themal cut-off has operated
•Correct the cause of motor overheating. See thermal cut-off
information
Blockage in air path
•Remove any obstructions that restrict airflow through hose
and/or valve clean out area
Dustbin full
•Empty dustbin
•Check valve clean out areas 1 and 2.
Dustbin filter clogged
•Remove and clean filter.
Fine dust can block the airflow through the filter and reduce
suction even if dust cup does not look full
Hepa filter clogged
•Remove and clean filter
Dustbin filter not in place
•Filter must be in filter frame for correct performance
•Make sure filter frame is installed properly in filter cover for
dust cup assembly to fit back into place
Switch not on proper setting
•Use ‘carpet’ setting for carpetted floors
•Use ‘hard floor’ setting for hard-surfaced floors and when
using accessories
* Turbo nozzle clogged (selected models
only)
•Remove and clean debris from turbo nozzle
Dust cup will not lock into vacuum
cleaner
Dustbin filter not in place
•Locate dustbin filter and insert into dustbin
Quick Release handle will not lock
into vacuum cleaner
Telescopic wand is extended
•Place end of wand into opening at back of vacuum and align
ribs into grooves
Brush roll will not turn
Object caught in brush roll
•Remove the obstruction (such as carpet fringe, string or sock)
•Turn the unit off and unplug it, clear the stall condition, then
plug it back in and press ON
•Use ‘hard floor’ setting when vacuuming fringe of rugs
•Check brush roll for threads and debris. Clean if needed
Brush roll not positioned properly
•Make sure both ends of brush roll are free of debris and
secured properly so roll can rotate freely
Brush roll not operating properly or filter
is clogged
•Turn the unit off and unplug it, clear the stall condition, then
plug it back in and press ON
•Remove and clean filters
No suction. Vacuum cleaner does
not pick up lint or dirt
Red “check brush roll” or “check filter
indicator light is on
Note: Any servicing of the vacuum other than described in this manual shall only be performed by an authorized service representative.
THE ELECTROLUX GROUP LIMITED WARRANTY
Your AEG cleaner is warranted to be free from all defects in material and workmanship in normal household use for a period of
two years. The warranty is granted only to the original purchaser and members of his or her immediate household. The warranty
is subject to the following provisions.
This warranty does not cover parts of the cleaner that require replacement under normal use, such as disposable dust bags,
fans, filters, light bulbs, brush roll bristles, impellers and cleaning. Any damages or malfunctions caused by negligence, abuse,
or use not in accordance with the Owner’s Guide are not covered by this warranty. Likewise, any defects or damages caused by
unauthorized service or the use of other than Genuine Electrolux Group parts is not covered.
The Electrolux Group will, at its option, repair or replace a defective cleaner or cleaner part that is covered by this warranty. As a
matter of warranty policy, the Electrolux Group will not refund the consumer’s purchase price.
To register your warranty, please visit www.aeg.co.uk (UK) or fill out and return the a ttached warranty registration card.
To obtain warranty service you should call the Electrolux Group Helpline on 08445 614 614 (Calls to this number will be charged
at 5p per minute at all times from a BT Landline).
08445 614 614
You may also visit us online at
www.aeg.co.uk
REGISTRATION
Please register your new AEG home care product electronically by visiting www.aeg.co.uk or use the attached postage-paid card.
Registering your new AEG product entitles you to the most up-to-date AEG product warranty and promotion information.
Addington Way
Luton
Bedfordshire
LU4 9QQ
Features of the AEG vacuum and accessories with it are protected in Great Britain and abroad by Patents or Registered Designs.
This appliance conforms with the requirements of the amended E.E.C. directive No. 2004/108/EC relating to electromagnetic compatatibility
(EMC) CE.
AEG, may introduce modifications to their product from time to time, and consequently the details given in this booklet are subject to alteration
without notice.
PN 84499
© 2010 Electrolux Group PLC
Printed in China
www.aeg.co.uk
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
