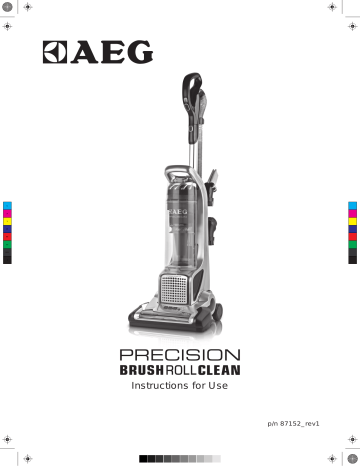

Instructions for Use
p/n 87152_rev1
IMPORTANT SAFEGUARDS
When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.
Safety requirement and warning
This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities
or lack of experience and knowledge if the have been given supervision or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
WARNING: Turbo nozzles* have a rotating brush in which parts may become entrapped.
Please use them with caution and only on intended surfaces. Please turn the vacuum cleaner off before
removing entrapped parts or cleaning the brush.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and maintenance shall not be made by children without supervision.
Always disconnect the plug from the mains before cleaning or maintaining the appliance.
Never use the vacuum cleaner without its filters.
Caution
This appliance contains electrical connections:
•
Never vacuum any liquid
•
Do not immerse in any liquid for cleaning
•
The hose should be checked regularly and must not be used if damaged.
The above can cause serious damage to the motor, which is not covered by the warranty.
This vacuum cleaner is for domestic use only.
C
M
Y
CM
MY
CY
CMY
K
Never use vacuum cleaner
•
Close to flammable gases, etc.
•
On sharp objects
•
On hot or cold cinders, lit cigarette butts, etc.
•
On fine dust, for instance plaster, concrete, flour.
Power cord precautions
•
Regularly check that the plug and cord are not damaged.
Never use the vacuum cleaner if the cord is damaged.
•
If the cord is damaged, it must be replaced only by an authorized AEG service centre in order
to avoid a hazard. Damage to the vacuum cleaner’s cord is not covered by the warranty.
•
Never pull or lift the vacuum cleaner by the cord.
All servicing and repairs must be performed by an authorized AEG service centre. Store the vacuum cleaner in a dry place.
Consumer information and sustainability policy
AEG declines all responsibility for all damages arising from any improper use of the appliance or in cases of tampering
with the appliance. For more details of warranty and consumers’ contacts see the Warranty section in this leaflet.
Sustainability policy
This product is designed with the environment in mind. All plastic parts are marked for recycling purposes.
For details see our website: www.aeg.com
The packaging material is chosen to be environmentally friendly and can be recycled.
Recycle the materials with the symbol
. Put the packaging in applicable containers to recycle it.
Help protect the environment and human health and to recycle waste of electrical and electronic appliances.
Do not dispose appliances marked with the symbol
with the household waste.
Return the product to your local recycling facility or contact your municipal office.
*certain models only
IN THIS PACKAGE
Carrying Handle
Quick Release
Wand Button
Dust Cup Filter
C
M
Y
CM
Brushroll Clean™ Pedal
MY
CY
CMY
K
Indicator Panel
Dust Cup Release
On/Off
Suction Control
Handle Release Button
Carpet and
Bare Floors
Setting Button
Tool Caddy
C
Wand Extension Button
Easy Release
Cord Wrap
M
Y
CM
Handle Release Pedal
MY
CY
CMY
Reset Button
K
Brushroll (Underneath)
Height Adjust
Pedal
HEIGHT ADJUST PEDAL
ONE TOUCH QUICK
RELEASE WAND BUTTON
DUST CUP RELEASE BUTTON
Med/Hi setting for carpet.
4
5
CARRY HANDLE
C
M
Y
CM
MY
CY
CMY
K
ACCESSORIES
EASY RELEASE CORD WRAP/UNWRAP
TROUBLESHOOTING
For your safety, turn vacuum cleaner off and unplug power cord before
attempting to resolve problems.
PROBLEM
Motor will not start or suddenly stops
No suction.
Vacuum cleaner does not pick up lint or dirt
POSSIBLE CAUSES
SOLUTION
Unit not connected to power source
• Push plug securely into outlet
• Try another outlet or check circuit breaker
• Check plug and cord for damage
Switch not turned on
•
Themal cut-off has operated
• Correct the cause of motor overheating. See thermal cut-off information
Blockage in air path
•
Dust cup full
• Empty dust cup
Dust Cup Filter clogged
•
Hepa Filter clogged
•
Dust Cup Filter not in place
•
•
clean out areas #1 & #2
if dust cup does not look full
Switch not on proper setting
•
•
-
sories
-
* Turbo nozzle clogged (selected models only)
• Remove and clean debris from turbo nozzle
Dust cup will not lock into vacuum cleaner
Dust Cup Filter not in place
•
Quick Release handle will not lock into
vacuum cleaner
Telescopic wand is extended
M
• Place end of wand into opening at back of vacuum and align ribs into
grooves
Y
Red “check brush roll” indicator light is on
Object caught in brush roll
• Unplug vacuum, remove debris and threads from brush roll. Depress
brush roll reset button, plug in unit, and continue.
•
• Check brush roll for threads and debris. Clean if needed
Brush roll not positioned properly
• Make sure both ends of brush roll are free of debris and secured properly
so roll can rotate freely
C
CM
MY
CY
CMY
Brush roll not operating properly
Note: ”Check brush roll” indicator light turns
on when brush roll is not turning. Brush roll
motor will shut off to prevent damage to motor.
K
Brushroll will not turn
Using brushroll clean pedal on high pile rug/carpet
•
Note: Any servicing of the vacuum other than described in this manual shall only be performed by an authorized service representative.
Activate your FREE
2 year guarantee now
Call
08444 810 507*
R.O.I. 0818 543000**
Register online at
www.aeg.co.uk
Or complete and cut out
the section opposite,
affix a stamp and return it
within 30 days of purchase
* Lines open 24 hours. Calls cost up to 5 pence per minute from a BT landline.
Mobile and other providers' charges may vary
C
**Calls cost up to 9 cents per minute from a standard Eire Com landline.
Mobile and other providers’ charges may vary.
AEG GUARANTEE CONDITIONS
We, AEG, undertake that if within 2 years of the
date of purchase this AEG appliance or any part
thereof is proved to be defective by reason only
of faulty workmanship or materials, we will at our
discretion repair or replace the same free of any
charge for labour, materials or carriage on
condition that:
– The appliance has been used for normal
domestic purposes only, and in accordance
with the manufacturer’s operating and
maintenance instructions.
– The appliance has not been serviced,
maintained, repaired, taken apart or tampered
with by any person not authorised by us.
– All service work under this guarantee must
beundertaken by an authorised Electrolux
Group Service Agent.
– Any appliance or defective part replaced
shallbecome the Company’s property.
– This guarantee is in addition to your statutory
and other legal rights.
EXCLUSIONS
Electrolux Group does not accept liability for all
defects arising from neglect, misuse or accident.
This guarantee excludes such normal wearing
parts as drive belts, brushes and filters as the life
of these depends upon the amount and nature
of use.
IMPORTANT
DATA PROTECTION INFORMATION
If you provide us with information about another
person, you confirm that they have appointed
you to act for them, to consent to the
processing of their personal data including
sensitive personal data and that you have
informed them of our identity and the purposes
(as set out in the Important Data Protection
Information displayed when you register your
appliance) for which their personal data will be
processed.
You are entitled to ask for a copy of the
information we hold about you (for which we
may charge a small fee) and to have any
inaccuracies in your information corrected.
For quality control and training purposes, we
may monitor or record your communications
with us. If your personal details change, if you
change your mind about any of your marketing
preferences or if you have any queries about
how we use your information, please let us know
by contacting our Mailing Exclusion Team,
Domestic & General, Leicester House,
17 Leicester Street, Bedworth, Nuneaton,
Warwickshire, CV12 8JP.
IF YOU REGISTER BY TELEPHONE
We may record your telephone call with our
representatives to monitor and improve the
quality of the service we provide.
Key contact
telephone
numbers
UK
Republic of Ireland
Registration
08444 810 507*
Service & Spares
08445 611 611*
0818 543 000**
M
Y
CM
MY
CY
PLEASE
AFFIX
STAMP
CMY
K
AEG GUARANTEE DEPARTMENT
PO Box 29,
Bedworth,
Warwickshire CV12 8ZY
United Kingdom
P/N 84500
