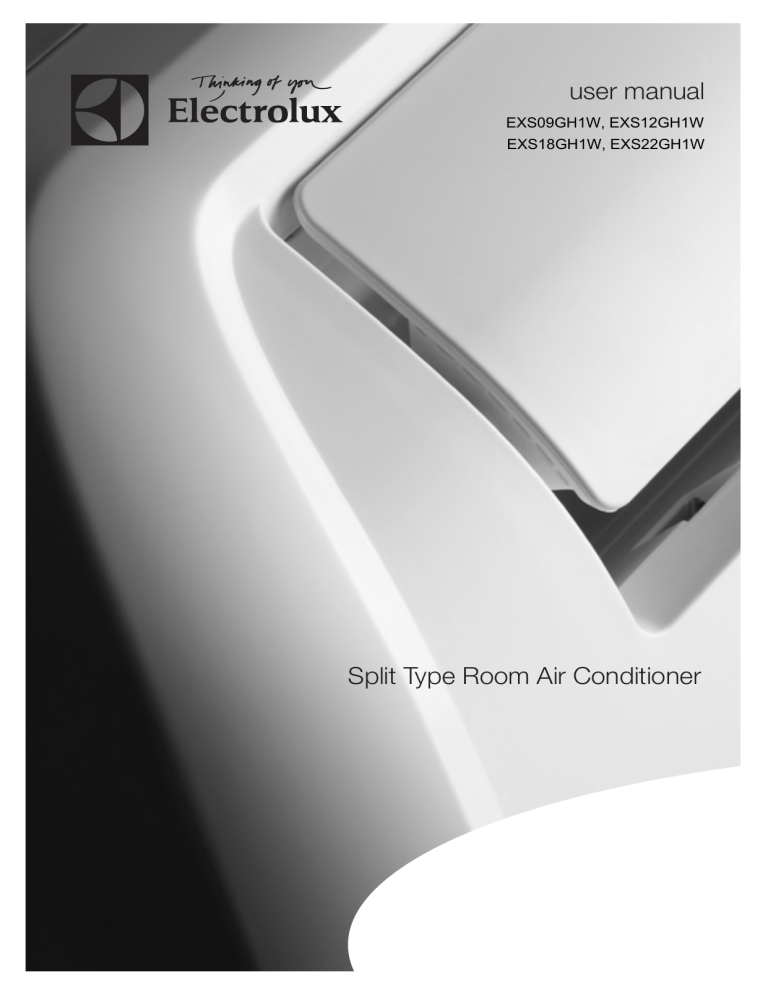

user manual
EXS09GH1W, EXS12GH1W
EXS18GH1W, EXS22GH1W
Split Type Room Air Conditioner
Table of Contents
Congratulations ....................................................................2
Safety Precautions ...............................................................3
Product´s Description ...........................................................5
Indoor Unit Display ...............................................................6
Remote Control.....................................................................6
Remote Control Description .................................................7
Remote Control Display Indicators .......................................9
First Use ...............................................................................10
How to use the Remote Control............................................10
How to use the Indoor Unit ...................................................15
Emergency Operation ..........................................................16
Optimal Operation ................................................................16
Cleaning and Maintenance . .................................................17
Operation Tips ......................................................................19
Troubleshooting . ..................................................................20
Important Reminder
• Keep the remote control where its signal can reach the
receiver of the indoor unit.
• When operate the air conditioner, make sure the remote
control is pointing to the signal receiver of the indoor
unit.
• When the remote control sends out a signal, the symbol
will blink for about 1 second on the display of the
remote control.
• The indoor unit will acknowledge the signal with a beep
when it receives the signal from the remote control.
• Please press the button of the remote control and
resend the signal if you did not hear a beep from the
indoor unit.
1
Congratulations
Congratulations and thank you for choosing
Electrolux split-type air conditioner. We are sure
you will find your new air conditioner a pleasure to
use.
Before you use the air conditioner, we recommend
that you read through the entire user manual, which
provides the description of the air conditioner and
its functions.
To avoid the risks that are always present when
you use an electrical appliance, it is important that
the air conditioner is installed correctly and that
you read the safety instructions carefully to avoid
misuse and hazards.
We recommend that you keep this instruction
booklet for future reference and pass it on to any
future owners.
After unpacking the air conditioner please check
it is not damaged. If in doubt, do not use the
air conditioner but contact your local Electrolux
authrised service centre.
Conditions of use
This appliance is intended to be used in
household and similar applications such as:
• Staff kitchen areas in shops, offices and other
working environments.
• Farm houses.
• By clients in hotels, motels, and other
residential type environments.
• Bed and breakfast type environments.
Important notes
Contact an authorised installer for installation of
this unit.
Contact an authorised service technician for
repair or maintenance of this unit.
• The socket oultet required to supply power
must be connected and commissioned by a
licenced contractor.
• Most of the packing materials are recyclable.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Please dispose of those materials through
your local recycling depot or by placing them in
appropriate collection containers.
• Young children should be supervised to
ensure that they do not play with the air
conditioner.
• If you wish to discard this air conditioner, please
contact your local authorities and ask for the
correct method of disposal.
• If the power cord is to be replaced,
replacement work shall be performed by
authorised personnel only.
environmental tip
Information on disposal for users
caution
• The air conditioner is not intended for use by
young children or infirmed persons without
supervision.
• Young children should be supervised to ensure
that they do not play with the air conditioner.
• Contact an authorised installer for installation
of this air conditioner.
• Contact an authorised service technician for
repair or maintenance of this unit.
• If the power cord is to be replaced,
replacement work shall be performed by
authorised personnel only.
• Installation work must be performed in
accordance with the national wiring Standards
by authorised personnel only.
• Installation work must be performed
in accordance with the national wiring
standards and the electricity suppliers service
rules by authorised personnel only.
• If the unit is to be moved to another location
or disposed of, only a suitably qualified
person is permitted to undertake such work.
• Take care not to catch fingers on the fan
blade when adjusting vertical louvers.
• This air conditioner uses R22 or R410a
refrigerant (Confirm before installation).
FOR MODEL:EXS22GH1W
To be in compliance EN 61000-3-11, the
product shall be connected only to a supply
of the system impedance : ┃Zsys┃=0.29562
ohms or less. Before connect the product to
public power net work , please consult your
local power supply authority to ensure the
power network meet above requirement.
2
Safety precautions
Inside this manual you will find many helpful hints
on how to use and maintain your air conditioner
properly. Just a little preventive care on your part
can save you a great deal of time and money over
the life of your air conditioner. You’ll find many
answers to common problems in the chart of
troubleshooting tips on page 20-21. If you review the
chart of troubleshooting tips first, you may not need
to call for service.
Meanings of symbols used in this manual are shown
below:
caution
This indicates information concerning your personal
safetyand how to avoid damaging the appliance.
tips and information
This symbol indicates tips and information about use
of the appliance.
environmental tip
This symbol indicates tips and information about
economical and ecological use of the appliance.
This symbol indicates never to do this.
Always do this.
Important notes:
1 Do not operate unit with horizontal louvre inclosed
position.
2 Do not operate unit without the air filter.
warning
If you notice an unusal situation, such
as a burning smell, please switch off
the power to the air conditioner and
contact an Electrolux service agent. If
this abnormal status continues the air
conditioner may be damaged or even
cause electric shock or fire.
Do not operate the air conditioner with
wet hands. This may cause electric
shock.
Do not damage or cut off the power cord
or other wires. If this occurs, please have
it repaired or replaced by an accredited
technician
Do not connect this air conditioner to a
multi outlet powerboard.
Please switch off the power supply to
the air conditioner if it is not to be used
for an extended period. Otherwise, it will
accumulate dust and may cause a fire.
Before cleaning the air conditioner,
please disconnect the power supply in
order to eliminate the possibility of electric
shock.
The power supply should be matched
with the air conditioner according to
the installation manual. Air conditioners
provided with a supply cord should be
connected directly to a power outlet with
a suitable safety switch. Air conditioners
that are hard wired must be connected to
a suitable safety circuit breaker according
to the installation manual.
Please ensure that the power supply to
the air conditioner is stable and meets the
requirements set out in the installation
manual.
Always ensure the product is installed
with appropriate earthing.
For safety, be sure to turn off the
circuit breaker before performing any
maintenance or cleaning or when the
product is not used for an extended
period of time. Accumulated dust may
cause fire or electric shock.
3
Safety precautions
caution
Select the most appropriate temperature.
It can save electricity.
Do not keep windows and doors open for
a long time during operation. It will result
in insufficient performance.
Do not block the air inlet or outlet.
It will result in insufficient performance
and cause malfunctions.
Keep combustible materials away from
the units at least 1m. It may cause fire.
Do not step on the top of the outdoor unit
or place heavy things on it.
It may cause damage or injury.
Do not attempt to repair the air
conditioner by yourself. Incorrect repairs
may cause electric shock or fire. Please
contact your local authorised service
centre.
Usage
Exposure to direct airflow from the air
conditioner for an extended period of time could
be hazardous to your health.
Do not expose people, pets or plants to the
direct airflow for an extended period.
Cleaning and maintenance
1 When cleaning the unit, first make sure that
the power and circuit breaker are turned off.
2 Do not touch the metal parts of the unit
when removing the filters. Injuries can occur
when handling sharp metal edges.
3 Do not use water to clean inside the air
conditioner. Exposure to water may lead to
possible electric shock.
Service
For repair and maintenance, contact your
authorised service dealer.
Do not insert your hands or objects into
the air inlet or outlet. It may cause injury.
Do not expose animals or plants directly
to the air flow.
Do not use the unit for any other purpose,
such as preserving food or drying clothes.
Do not splash water on the air
conditioner. It may cause electric shock
or malfunction.
Prior to Operation
1 Contact an installation qualified for
installation.
2 Plug in the power plug properly.
3 Do not use a damaged or non-standard
power cord.
4 Do not share the same outlet with other
appliances.
5 Do not use an extension cord.
6 Do not start/stop operation by plugging /
unplugging the power cord.
4
Product Description
Air inlet
2
Indoor Unit
1
13
3
4
5
Air Outlet
6
7
8
Outdoor Unit
9
12
11
Air inlet (rear)
Fan
Mode
Light
Turbo
Healthy
Temp
Timer-On
Timer-Off
Swing
Clock
I feel
Eco
Air inlet
(side)
10
Air Outlet
15
Front panel
Remote control
Digital display
Remote control holder
Healthy air filter (behind the dust filter)
Refrigerant pipe (if applicable)
Pre-dust filter
Drain hose (if applicable)
Horizontal air louvers
Power cable (if applicable)
Vertical air louvers
Mounting plate
Cold plasma generator (if applicable)
Connecting cable (if applicable)
Manual control button
Note: The above drawings are for explanation purpose only.
Your air conditioner may be slightly different.
The actual shape shall prevail.
5
14
Indoor Unit Display
• If you keep the remote control in a position that
hinders proper signal transmission, a time lag of
up to 15 minutes may occur.
Signal
receiver
I Feel indicator
It lights when I Feel function is activated.
Turbo indicator
Illuminates during Turbo operation.
Eco (Economy) indicator
Illuminates when ECO function is in operation.
Temperature indicator
Displays the temperature settings when the air
conditioner is in operation.
Timer indicator
The indicator illuminates when Timer is set ON
and/or OFF.
Swing indicator
It lights when the Swing function is activated.
Remote Control
• When the remote control sends out a signal, the
symbol
will blink for about 1 second on the
display. The indoor unit will acknowledge the
signal with a beep when it receives an effective
signal.
caution
• The air conditioner will not operate if curtains,
doors or other materials block the signals from
the remote control to the indoor unit.
• Prevent any liquid from falling into the remote
control. Do not expose the remote control to
direct sunlight or heat.
• If the infrared signal receiver on the indoor
unit is exposed to direct sunlight, the air
conditioner may not function properly. Use
curtains to prevent the sunlight from falling on
the receiver.
• If other electrical appliances react to the
remote control, either move these appliances
or consult your local dealer.
How to use the Remote Control
• Point the remote control to the signal receiver of
indoor unit.
• Make sure there is no obstacle that may interfere
with the signal.
Location of the remote control
Battery installation/replacement
• Slide the battery compartment cover off and
insert two new alkaline dry batteries
(2x AAA1.5Volt). Make sure that the polarity of
(+) or (-) is installed correctly.
• Slide the battery compartment cover back on
tips and information
• When changing batteries, do not use old
or varied ones, otherwise, it may cause
problems with the remote control.
8m
Fan
Mode
Light
Turbo
Healthy
Temp
Timer-On
Timer-Off
Swing
Clock
I feel
Eco
• Keep the remote control where its signal
can reach the receiver of the indoor unit (a
maximum distance of 8m is allowed).
• When you select the timer operation, the
remote control automatically transmits a signal
to the indoor unit at the specified time.
• If the remote control is not used for a long
time, remove the batteries as old batteries
may leak or corrode and damage the remote
control.
• The battery life during normal use is about six
months.
• If the remote control does not operate
normally, please remove and refit the
batteries. If abnormal operation continues,
replace with new batteries.
6
Remote Control Description
Models with Cold-Plasma function
Turbo Button
Press this button in COOL or HEAT mode to put
the fan into the high speed Turbo mode and the air
conditoner will work at maximum power.
Press again to cancel this function.
Healthy Button
Press this button to turn the Cold-Plasma function
ON or OFF.
2
1
4
5
7
8
9
Fan
)DQ
Light
/LJKW
Turbo
7XUER
Healthy
+HDOWK\
TimerOn
7LPHU2Q
Temp
7HPS
TimerOff
7LPHU2II
Clock
&ORFN
Swing
6ZLQJ
3
Mode
0RGH
I ,IHHO
feel
6
13
11
Timer On Button
Press this button to set the start time.
12
Timer Off Button
Press this button to set the stop time.
Eco
(FR
14
10
ON/OFF Button
Press this button to turn the air conditioner
ON or OFF.
Mode Button
By pressing this button, AUTO, DEHUMIDIFY,
FAN, COOL, and HEAT (COOL only model
has no HEAT feature) mode can be selected
progressively.
AUTO mode is default while power on.
Under AUTO mode, the initial value is 23°C;
Under HEAT mode, the initial value is 28°C;
Under other modes, the initial value is 25°C.
AUTO
DEHUMIDIFY
FAN COOL
HEAT
Light Button
Press this button to switch the indicating lights
of the indoor unit ON or OFF.
The normal condition at start up is ON.
Fan Button
By pressing this button, Auto, Low, Medium and
High speed can be progressively selected.
When the unit is turned on, Auto fan speed is
the default.
In DEHUMIDIFY mode, the fan speed is fixed at
Low speed.
7
+
X-Fan Buttons
Press the Turbo button and Healthy button at the
same time (for 3 seconds), the X-FAN function will
be activated. After the unit is turned off the indoor
fan will continue operation for 10 minutes to dry
the indoor unit prevent from bacteria and mildew
growing.
Swing Button:
Press this button, the louver will swing up and
down automatically. Press again to cancel it and
the louver will stay at its last position.
I Feel Button:
Press this button, the remote control will send the
temperature information to the indoor unit every
2 minutes. The unit will operate to reach the set
temperature at the location of remote control.
Presss again to cancel this function.
Control Button:
Forward
Backward
Press the
setting.
button to increase the temperature
Press the
setting.
button to decrease the temperature
In Timer On/Off or Clock functions, use these
buttons to set the clock or timer adjustment.
Clock Button:
Press this button and the Clock symbol will
blink. You can press Control buttons and to
set the time you want.
Temp (Temperature) Button
Press this button to change the remote control
display of the set temperature to the room
temperature.
Eco (Economy) Button
Press this button to start the Eco operation.
This is ideal for the users to use while sleeping.
Press again to cancel the function.
Remote Control Description
Models without Cold-Plasma function
Turbo Button
Press this button in COOL or HEAT mode to put
the fan into the high speed Turbo mode and the
air conditoner will work at maximum power.
Press again to cancel this function.
X-Fan Button
Press the X-Fan button to active the
Self-Cleaning. After the unit is turned off the
indoor fan will continue operation for 10 minutes
to dry the indoor unit prevent from bacteria and
mildew growing.
0RGH
/LJKW
)DQ
7XUER
;)DQ
7LPHU2Q
7HPS
7LPHU2II
&ORFN
6ZLQJ
,)HHO
(FR
ON/OFF Button
Press this button to turn the air conditioner
ON or OFF.
Mode Button
By pressing this button, AUTO, DEHUMIDIFY,
FAN, COOL, and HEAT (COOL only model
has no HEAT feature) mode can be selected
progressively.
AUTO mode is default while power on.
Under AUTO mode, the initial value is 23°C;
Under HEAT mode, the initial value is 28°C;
Under other modes, the initial value is 25°C.
AUTO
DEHUMIDIFY
FAN COOL
HEAT
Light Button
Press this button to switch the indicating lights
of the indoor unit ON or OFF.
The normal condition at start up is ON.
Fan Button
By pressing this button, Auto, Low, Medium and
High speed can be progressively selected.
Timer On Button
Press this button to set the start time.
Timer Off Button
Press this button to set the stop time.
Swing Button:
Press this button, the louver will swing up and
down automatically. Press again to cancel it and
the louver will stay at its last position.
I Feel Button:
Press this button, the remote control will send
the temperature information to the indoor unit
every 2 minutes. The unit will operate to reach
the set temperature at the location of remote
control. Presss again to cancel this function.
Control Button:
Forward
Backward
Press the
setting.
button to increase the temperature
Press the
setting.
button to decrease the temperature
In Timer On/Off or Clock functions, use these
buttons to set the clock or timer adjustment.
Clock Button:
Press this button and the Clock symbol will
blink. You can press Control buttons and to
set the time you want.
Temp (Temperature) Button
Press this button to change the remote control
display of the set temperature to the room
temperature.
Eco (Economy) Button
Press this button to start the Eco operation.
This is ideal for the users to use while sleeping.
Press again to cancel the function.
When the unit is turned on, Auto fan speed is
the default.
In DEHUMIDIFY mode, the fan speed is fixed
at Low speed.
8
Remote Control Display
Indicator
Transmission Indicator:
Displays when the remote control transmits
signals to the indoor unit.
Fan Speed Display
Displays the selected fan speed in the following
sequence:
Turbo Display
Displays when Turbo function is selected.
“ ” (Low), “
Auto.
I Feel Display
Displays when I Feel function is activated.
In Auto speed, only “ ” symbol displays.
Eco Display
Displays when Eco function is selected.
Healthy Display
Displayed by pressing the Healthy button.
Press the Healthy button again to remove.
NOTE: there is no such indicator for the
models without Cold-Plasma function.
Room Temperature Display
Displays when the temperature shown on the
LCD screen is room temperature. It can be
switched on/off by pressing the Temp button.
Programmed Temperature Display
Lights when the remote control displays the
set temperature. It can be switched on/off by
pressing the Temp button.
Timer On/Off Display
Displays when the Timer On/Off function is
activated.
9
” (Medium), “
” (High) and
Swing Display
Displays when the Swing function is selected.
X-Fan Display
Displays when the X-Fan function is activated by
pressing Turbo and Healthy buttons at the same
time (for models with Cold-plasma function) or by
pressing X-Fan button (for models without Coldplasma function)
Temperature Display
Displays the room or set temperature in °C or F.
No display in Fan mode.
Time Display
Displays the Clock time (must be set) and/or the
on/off time of the timer.
Mode Display
Displays the current operation mode, including
Auto (
), Dehumidify ( ), Fan ( ), Cool (
and Heat ( ).
)
NOTE: The Cool model does not offer a Heating
option.
First Use
1 Ensure the unit is plugged in and power is
available.
2 Be sure the batteries are inserted correctly in the
remote control (the lights on the remote control
will be on).
3 Set the time by Control buttons and confirm by
pressing the Clock button.
4 Point the remote control to the indoor unit and
press ON/OFF button to turn the unit on.
The default operating mode is AUTO. Once you
select the operating mode with remote control,
the operating conditions will be saved in the
indoor unit’s microcomputer memory. The next
time the air conditioner will start operating under
the same conditions when you simply push the
ON/OFF button of the remote control.
)DQ
0RGH
/LJKW
7XUER
+HDOWK\
7LPHU2Q
7HPS
7LPHU2II
&ORFN
6ZLQJ
,)HHO
(FR
tips and information
In case of energy cut off or product shut
down when removing the power cord, or
even when changing the remote control
batteries the microprocessor will return
back to the AUTO mode.
How to Use the Remote Control
If the AUTO mode is uncomfortable, you
can select the desired conditions manually.
tips and information
When the AUTO operating mode
is selected, the fan speed will be
automatically controlled and can not be set.
Automatic Operation
When the AUTO mode is selected, the air
conditioner will automatically select COOL, HEAT
(if applicable), or FAN only operation, depending on
the programmed and/or the room temperature.
Start
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit
display lights on.
Dehumidifying Operation
The DEHUMIDIFY mode works based on the
difference between the set temperature and the
actual room temperature.
The temperature is regulated while dehumidifying
through repeatedly turning on/off of the COOLING
operation or FAN only operation.
2 Mode Button Press to select AUTO.
ng
Co
oli
n
Fa
Co
oli
n
Fa
Set the desired temperature.
ng
3 Control Buttons
Normally, set between 21ºC to 28ºC.
The air conditioner starts functioning after approx
3 minutes.
Stop
1 ON/OFF Button
Press this button again to turn the air conditioner
off. The horizontal louver returns back to the
position upon shut down.
Programmed temp.
Time
Dehumidifying Operation
10
Start
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit
display lights on.
2 Mode Button
Press to select DEHUMIDIFY.
2 Mode Button
Press to select FAN.
3 Fan Button
Press to select the desired fan speed at: Auto,
Low, Medium and High.
The default fan speed is Auto.
3 Control Buttons
Set the desired temperature.
Normally, set between 21ºC to 28ºC.
0RGH
)DQ
7XUER
+HDOWK\
7HPS
7LPHU2II
&ORFN
,)HHO
)DQ
0RGH
/LJKW
7XUER
+HDOWK\
7LPHU2Q
7HPS
7LPHU2II
&ORFN
/LJKW
7LPHU2Q
6ZLQJ
(FR
Stop
1 ON/OFF Button
Press this button again to turn the air
conditioner off. The horizontal louver returns
back to the position upon shut down.
tips and information
In DEHUMIDIFY mode the fan speed is fixed
at Low, and Turbo function can’t be used.
Fan Operation
When you select the FAN operating mode the air
conditioner will just vent the indoor air.
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit
display lights on.
11
6ZLQJ
,IHHO
(FR
Stop
1 ON/OFF Button
Press this button again to turn the air
conditioner off. The horizontal louver returns
back to the position upon shut down.
tips and information
• The temperature can not be set through the
remote control in FAN operating mode.
• No fan speed indication disaplys on the
remote control if Auto fan speed is selected.
Cooling and Heating Operation
Start
1 ON/OFF Button
Press this button to turn the air conditioner on.
The temperature indicator on the indoor unit
display lights on.
2 Mode Button
Press to select COOL or HEAT (if applicable)
mode.
3 Control Buttons
Set the desired temperature.
Normally, set between 21ºC to 28ºC.
4 Fan Button
Press to select the desired fan speed at: Auto,
Low, Medium and High.
The defaul fan speed is Auto.
tips and information
No fan speed indication disaplys on the
remote control if Auto fan speed is selected.
3 Point the remote control to the indoor unit, confirm
the set time by pressing the Timer-On button.
symbol will stay on the remote control’s display.
Check that the Timer indicator on the display panel
of indoor unit is illuminated.
Canceling the Settings
Point the remote control to the indoor unit and press
again the Timer-On button. Make sure the symbol
on the remote control is turned off.
Timer Off Operation
1 Press the Timer-Off button,
will flash on the display of the remote
control in case of the first use of Timer-Off
operation. Otherwise, the last set time will flash.
2 Set the desired time by pressing the Control
buttons:
Forward Backward
Each time you press the buttons, the time will
moves forward or backward by 1 minute.
Holding the button down will scroll more rapidly
through the time display.
)DQ
0RGH
/LJKW
7XUER
+HDOWK\
7LPHU2Q
7HPS
7LPHU2II
&ORFN
6ZLQJ
,IHHO
(FR
Stop
1 ON/OFF Button
Press this button again to turn the air
conditioner off. The horizontal louver returns
back to the position upon shut down.
Timer Settings
Timer On Operation
1 Press the Timer-On button,
will flash on the display of the remote
control in case of the first use of Timer-On
operation. Otherwise, the last set time will
flash.
2 Set the desired time by pressing the Control
buttons:
Forward
Backward
Each time you press the buttons, the time will
moves forward or backward by 1 minute.
Holding the button down will scroll more
rapidly through the time display.
3 Point the remote control to the indoor unit, confirm
the set time by pressing the Timer-Off button.
symbol will stay on the remote control’s display.
Check that the Timer indicator on the display panel
of indoor unit is illuminated.
Canceling the Settings
Point the remote control to the indoor unit and press
again the Timer-Off button. Make sure the symbol
on the remote control is turned off.
tips and information
• The working time of the timer function set by
the remote control depends on the Clock time.
Check that the Clock on the remote control is
set correctly in order to prevent malfunctioning.
• The effective operation time set by the remote
control is limited in 24 hours.
Examples of Timer Settings
Timer On Operation (Timer Start Operation)
This function is recommended when you want the
unit to be turned on automatically before returning
home. The air conditioner will automatically start
operating at the set time.
Example: It is 8:00 AM and you want the air
conditioner to start working at 6:00 PM.
12
1 Press the Timer-On button.
2 Set the desired time by pressing repeatedly or
holding down the Control buttons until 18:00
shows in the display of the remote control.
3 Confirm the set time by pointing the remote
control to the indoor unit and pressing again the
Timer-On button.
4 Press the Timer-Off button.
3 Confirm the set time by pointing the remote
control to the indoor unit and pressing again
the Timer-On button.
5 Set the desired time by pressing repeatedly or
holding down the Control buttons until 09:30
shows in the display of the remote control.
symbol will stay on the remote control’s
display.
The Timer indicator on the display panel of
indoor unit is illuminated.
Timer Off Operation (Timer Stop Operation)
This function is recommended when you want
the unit to be turned off automatically for bed
time.
The air conditioner will automatically stop
operating at the set time.
Example: It is 6:00 PM and you want the Air
Conditioner to turn off at 11:55 AM.
1 Press the Timer-Off button.
6 6 Confirm the set time by pointing the remote
control to the indoor unit and pressing again the
Timer-Off button.
symbol is displayed on the remote control and
the function is activated.
Timer Off
Timer On
(On-Stop-Start operation)
This function is recommended when you want to
turn the air conditioner off after going to bed and
start it again before waking up in the morning or
returning back home.
Example:It is 8:00 AM and you want to stop the
air conditioner at 9:30AM and restart at 6:00PM
1 Press the Timer-Off button.
2 Set the desired time by pressing repeatedly or
holding down the Control buttons until 23:55
shows in the display of the remote control.
2 Set the desired time by pressing repeatedly or
holding down the Control buttons until 09:30
shows in the display of the remote control.
3 Confirm the set time by pointing the remote
control to the indoor unit and pressing again
the Timer-Off button.
symbol will stay on the remote control’s
display.
The Timer indicator on the display panel of
indoor unit is illuminated.
Combined Timer
Timer On
Timer Off
(Off-Start-Stop operation)
3 Confirm the set time by pointing the remote
control to the indoor unit and pressing again the
Timer-Off button.
4 Press the Timer-On button.
5 Set the desired time by pressing repeatedly or
holding down the Control buttons until 18:00
shows in the display of the remote control.
This function is recommended when you want to
turn the air conditioner on before waking up and
turn it off after leaving the house.
Example: It is 10:00 PM and you want to start
the air conditioner at 6:30 AM and stop it at
9:30 AM.
1 Press the Timer On button.
2 Set the desired time by pressing repeatedly or
holding down the Control buttons until 06:30
shows in the display of the remote control.
13
6 Confirm the set time by pointing the remote
control to the indoor unit and pressing again the
Timer-On button.
symbol is displayed on the remote control and
the function is activated.
Setting the Clock
Economy (Eco) Operation
Press Eco button in COOL or HEAT (if applicable)
mode, the air conditioner will automatically increase (in
COOL mode) or decrease (in HEAT mode) 1 C per hour
over a 2 hour period. The set temperature will be steady
for the next 5 hours then the unit will stop.
This function permits more comfort and saves energy.
This operation is recommended for bed time.
1
0RGH
)DQ
7XUER
/LJKW
7HPS
7LPHU2II
&ORFN
,IHHO
1
+HDOWK\
7LPHU2Q
6ZLQJ
Set
Temperature
1 hour
1 hour
Cooling
Set
Temperature
(FR
1
1
Before you start operating the air conditioner,
set the clock of the remote control using the
procedure given in this section. The clock panel
on the remote control will display the time
regardless of whether the air conditioner is in
operation or not.
After batteries are inserted in the remote control,
will display and begin to flash.
1 Control Buttons
Press the Control buttons to set the desired
time.
Forward Backward
Each time you press the buttons the time will
moves forward or backward by 1 minute.
Holding the button down will scroll more rapidly
through the time display.
2 Clock Button
When the desired time is achieved, press the
Clock button again or after 5 seconds with no
operation, the clock time stops flashing and the
clock is set.
3 Re-set the Clock
Press the Clock button and the clock display
will start to flash.
Follow step 1 and 2 to set the new time.
tips and information
• The clock timer uses a 24 hour clock mode.
• The default time for remote control is
12:00PM and it will revert to this when the
batteries are changed.
1 hour
1 hour
Heating
I Feel Operation
The remote control works as a remote thermostat,
providing an accurate temperature control and
maximum comfort.
Point the remote control to the indoor unit and press I
Feel button, a beep from the indoor unit is to confirm
that this function is activated.
The I Feel symbol
will stay on the display of the
remote control until I Feel button is pressed again.
The air conditioner will operate to reach the set
temperature at the location of the remote control.
The remote control sends the temperature information
at its location to the indoor unit every two (2) minutes.
The air conditioner will quit I Feel operation if no
temperature information is received from the remote
control for successive ten (10) minutes.
Healthy Operation (Models with cold-plasma)
Press the Healthy button to active the Cold Plasma
function. The symbol
will stay on the display of the
remote control until the Healthy button is pressed.
The Cold Plasma generator releases plasma which
can eliminate bacteria, viruses, dusts and other
harmful agents in the air.
This function is recommended when the indoor air
quality is in bad condition.
14
How to Use the Indoor Unit
Additional Options
1 Smart Restart Function
The air conditioner resumes automatically with
the previous settings after a possible power
failure.
• When the louver moves to the desired direction,
press the Swing button again and the louver will
stay at where it is.
• Press the Swing button again and the louver will
start swing up and down automatically.
2 Removable Panel
The front panel of indoor unit can be easily
removed for cleaning and maintenance.
3 Self Diagnose and Auto Protection
This air conditioner can detect the malfunctions,
showing the diagnosis on the display of the
indoor unit by means of an error code.
The air conditioner will change operation
automatically for self-protection.
Range
Up and down airflow
To adjust the horizontal (left/right) airflow
direction manually
Airflow Direction Control
• Adjust the vertical louvers manually by means of
the Left/Right lever of the vertical louver arm.
• Adjust the airflow direction properly, otherwise,
it might cause discomfort or uneven room
temperatures.
• Perform these adjustments before you start the
unit because once it has been started, there is a
risk of your fingers getting caught on the fan.
• Adjust the horizontal louvers with the remote
control.
• Adjust the vertical louvers manually.
Vertical
louver
)DQ
0RGH
/LJKW
7XUER
+HDOWK\
7LPHU2Q
7HPS
7LPHU2II
&ORFN
6ZLQJ
,)HHO
(FR
To set the vertical (up/down) airflow direction
automatically
• Perform this function while the unit is in
operation.
• Press the Swing button on the remote control,
the horizontal louver will swing up and down
automatically.
15
Range
Left/ and right airflow
caution
• The Swing button will be disabled when the
air conditioner is not in operation (even if the
Timer On is set).
• Do not operate the air conditioner for long
time with the airflow direction set downward
in COOL or DEHUMIDIFY mode. Otherwise,
condensate may occur on the surface of the
horizontal louver and drop onto the floor or
furnishings.
• Do not move the horizontal louver
manually. Always use the Swing button.
Moving the louver manually may
cause malfunction during operation.
If the louver malfunctions, stop the air
conditioner and restart it.
• Open angle of the horizontal louver
should not be set too small, as cooling
or heating performance may be impaired
due to too restricted airflow area.
• Do not operate the air conditioner with
horizontal louver in closed position.
• When the air conditioner is connected to
power (initial operation), the horizontal
louver may generate a sound for
10 seconds, this is a normal operation.
Emergency Operation
When the remote control is lost or fails to operate,
please use the manual switch on the indoor unit.
The air conditioner will operate in AUTO mode and
the temperature setting or fan speed can not be
changed.
• Press the Manual Control button again to turn the
air conditioner off.
The operation mode is seen in the following table.
Mode
Model
Temperature setting
Airflow
AUTO
COOLING
25°C (COOL, FAN)
AUTO
AUTO
HEAT PUMP
25°C (COOL, FAN)
AUTO
AUTO
HEAT PUMP
20°C (HEAT)
AUTO
Operating Temperature
Operating temperature ranges
Indoor Side
DB/WB(°C)
Outdoor Side
DB/WB(°C)
Maximum Cooling
32/23
43/26
Minimum Cooling
21/15
21/-
Maximum Heating
27/-
24/18
Minimum Heating
20/-
-5/-6
The operation temperature range (outdoor
temperature) for cooling only model is 21ºC~43ºC,
for heat pump model is -5ºC~43ºC.
If the air conditioner is used outside of the above
conditions, certain safety protection features may
come into operation and cause the unit to function
abnormally.
Optimal Operation
To achieve optimal performance, please note:
• Adjust the airflow direction correctly so that it is
not directed on people.
• Adjust the temperature to achieve the highest
comfort level. Do not adjust the unit to excessive
temperature levels.
Manual control
button
• Close doors and windows in the operation
of COOL or HEAT mode, otherwise, product
performance will be impaired.
• Use the Timer On and Timer Off buttons on the
remote control to select the desired time for
startup and shut-down.
Manual control button
• Press the Manual Control button to enter
AUTO mode. The air conditioner will select the
mode of COOL, HEAT (heat pump model only)
and FAN automatically according to the room
temperature for reaching the best comfort.
• Do not place any object close to the air inlets
or outlets, as the product efficiency may be
reduced and the air conditioner may stop
running.
• Clean the air filters frequently, otherwise cooling
or heating performance may be reduced.
16
Cleaning and Maintenance
Maintenance
The following maintenance operations must be performed regularly.
Maintenance
operations
Items
Recommended frequency
Dust filter
Clean
Every month or more often if necessary
Healthy air filters
Replace/clean
Every 3 months or more often if necessary
Unit casing
Clean
Every month or more often if necessary
Water tray and
evacuation piping
Clean and check for
obstructions
Each season before start up*
Indoor and outdoor
coils
Clean
Each season before start up*
* The operation must be performed by qualified personnel only.
warning
• Stop the air conditioner and disconnect the
power supply before cleaning.
Indoor Unit and Remote
Control Cleaning
• Use a dry cloth to wipe the indoor unit and
remote control.
• A cloth dampened with cold water may be used
on the indoor unit if it is too dirty.
Panel
bracket
1 Lift the indoor unit front panel up to an angle until
it stops with a full support from the bracket.
• The front panel of the indoor unit cant be
removed and cleaned with water. Then wipe
with a dry cloth.
• Do not use brushes, emery paper or burnishes
to clean the unit because it may cause
damages.
• Do not use a chemically treated cloth or duster
to clean the unit.
• Do not use benzine, thinner, polishing powder
or similar solvents for cleaning. These may
cause the plastic surface to crack or deform.
Dust filter handle
2 Hold the dust filter handle and lift it up slightly to
take it out from the filter holder.
• Never use warm water over 40 C to clean
the front panel, it may cause deformation or
discoloration.
Cleaning the Filters
Note: Supply power must be disconnected before
cleaning.
A clogged dust filter reduces the cooling/heating
efficiency of this unit. Please clean the filter every
month or more often if necessary.
17
3 Then pull the dust filter downwards out of the
indoor unit.
Dust filter
warning
Do not touch or try to clean the cold
plasma generator (if applicable). It
may cause an electric shock.
General maintenance
Clean the Dust filter with a vacuum cleaner or
water, then dry it up in cool place.
If the air conditioner is not going to be used for a
long period of time:
• Operate in FAN only mode for 3~4 hours to allow
the unit to completely dry out.
Dust filter
• Switch off the unit and pull out the power plug.
Remove the batteries from the remote control.
Healthy filter
• The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or service technician.
4 The healthy air freshening filters (if applicable)
like Active carbon filter / BIO filter / Vitamin C filter
/ Silver ion filter are fixed on the dust filter.
Remove the healthy filters from the support frame
of the dust filter.
Checks before operation
• Check that the wiring is not broken or
disconnected
• Check that the dust filter is installed.
• Check if the air outlet or inlet is blocked if the air
conditioner has not been used for a long time.
Clean the healthy filters at least every three (3)
months and replace every 6 months.
Clean with vacuum cleaner if possible.
warning
• Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
5 Install the healthy air freshening filters back
in position.
• Do not use water to clean inside the air
conditioner. Exposure to water can destroy
the insulation, leading to possible electric
shock.
• When cleaning the unit, first make sure that
the power and circuit breaker are turned off.
6 Install the upper portion of dust filers back
into the unit, taking care that the left and right
edges line up correctly and place dust filters
into position.
18
• Defrosting
Frost may form on the outdoor unit in heating
operation when the outdoor temperature
is low but humidity is high, resulting in low
heating efficiency.
environment that has a high relative humidity.
• A white mist may generate due to moisture
generated from defrosting process when the air
conditioner restarts in HEAT mode operation after
defrosting.
4.Low noise of the air conditioner
• You may hear a low hissing sound when the
compressor is running or has just stop running.
This is the sound of the refrigerant flowing or
coming to a stop.
• You also may hear a low “squeak” sound when
the compressor is running or just stopped
running. This is caused by heat expansion and
cold contraction of the plastic parts in the unit
when the temperature is changing.
• A noise may be heard due to louver restoring to
its original position when power is furst turned on.
5.Dust is blown out from the indoor unit
This is a normal condition when the air conditioner
has not been used for a long time or during first use
of the unit.
During this condition the air conditioner will
stop heating operation and start defrosting
automatically. The time to defrost may vary
from 3 to 12 minutes.
6.A peculiar smell comes out from the indoor unit
This is caused by the indoor unit giving off smells
permeated from building material, furniture or
smoke.
During defrosting, the fan motors of indoor
unit and outdoor unit will stop, the indoor
indicator flashes “H1 ”and the outdoor unit
may emit vapor. This is not malfunction. After
defrosting is finished, the heating operation
will recover automatically.
7.The air conditioner turnes to FAN only mode
from COOL or HEAT mode
When the indoor temperature reaches the setting
value, the compressor will stop automatically, and
the air conditioner turns to FAN mode.
• Anti-cold air
In HEAT mode, the indoor fan will not operate
in order to prevent cold air being blown into
the room (within 5 minutes), if the indoor
heat exchanger does not reach a minimum
temperature under the following states:
The compressor will start again when the indoor
temperature rises in COOL mode or falls in HEAT
mode to the set point.
Operation Tips
The following events may occur during normal
operation:
1.Protection of the air conditioner.
• Compressor protection
The compressor can’t restart for 3 minutes
after it stops
• Anti-freezing
If the unit is operating in COOL mode and
in low ambient temperature, frost may be
formed on the heat exchanger. When indoor
heat exchanger temperature decreases
below 0 C, the compressor will stop operation
to protect the unit.
(1) Heating operation just start.
(2) After auto defrosting is just finished.
(3) Heating at low temperature.
2.Gentle breeze
The indoor unit may blow gentle breeze and the
louver rotate to a certain position in the following
situation:
(1) In HEAT mode, the unit is turned on, the
compressor does not reach the starting
condition.
(2) In HEAT mode, the temperature reaches the
set value and the compressor stops running
for about 1 minute.
3.A white mist coming out from the indoor unit
• A white mist may generate due to a large
temperature difference between air inlet
and air outlet in COOL mode in an indoor
19
8.Condensation
Condensate water is likely to form at the air outlet
if cooling or drying for a long time when the relative
humidity is more than 80% (with doors and windows
open).
Set the vertical louver to its maximum angle (to
the floor) and High fan speed. Close the doors and
windows.
9.Lighting or a car wireless telephone operating
nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect
the unit with power again. Push ON/OFF button on
the remote control to restart operation.
10. X-Fan function
The indoor unit may keep running after you switch
off the unit by pressing ON/OFF button.
Please check whether the X-Fan function is
switched off.
Trouble Shooting
The air conditioner is not user serviceable. Incorrect repair may cause electric shock or fire.
Please contact an authorised service center for professional repair.
warning
If one of the following situations occur, immediately stop the air conditioner,
disconnect the power, and contact the authorised service center.
• If error code appear on the display window of
indoor unit.
• Power indicator or other indicator flash rapidly
and this flashing can not be stopped by
disconnecting the power and then connecting
it again.
• Fuse blows frequently or circuit breaker often
trips.
• Water or other liquid is splashed into the unit.
• Water is leaking from the unit.
• There is a harsh sound during operation.
• Strong odours are emmited during operation.
• Power cord and power plug are overheating.
• Other abnormal situations.
The pressure in the refrigeration system is low and could result in the unit breaking down.
Ask a certified installer to control it.
Malfunctions
The unit does not
start
The unit does not
cool or heat (if
applicable) the room
very well while air
flows out from the air
conditioner
Cause
What should be done
Power cut
Wait for power to be restored.
The unit may have become unplugged.
Check that plug is securely in wall
receptacle.
Fuse may have blown.
Replace the fuse.
Voltage is too high or too low.
Test the voltage by professionals.
Batteries in remote control may have
been exhausted.
Replace the batteries.
The time you have set with timer is
incorrect.
Wait or cancel timer setting.
Inappropriate temperature setting.
Set the temperature correctly.
For details please refer to “Using
Remote Control” section
Air filter is blocked.
Clean the air filter.
Doors or windows are open.
Close the doors or windows.
Air inlet or outlet of indoor or outdoor
unit has been blocked.
Clear the obstructions away first,
then restart the unit.
Compressor 3 minutes protection has
been activated.
Wait for 3 minutes.
If the trouble has not been corrected, please contact a local dealer or the nearest customer service
center. Be sure to inform them of the detailed malfunctions and unit model.
20
The following checks prior to contact may save you time and money.
Malfunctions
Cause
Malfunctions
The unit does
not operate
The unit does not operate if it is
turned on immediately after it is
turned off. This is to protect the
unit. Please wait about 3 minutes.
Water leakage
of indoor unit
•The humidity is high.
•Condensing water overflows.
•Drain hose is loose or
obstructed.
Odours are
emitted
•Some odours may be emmited
from the indoor unit. This is the
result of room smells (such as
furniture, tobacco, etc.) which
have been taken into the unit.
•Consult authorised service
center for cleaning if the odours
persist.
Water leakage
of outdoor unit
•During cooling operation, water
condensates around the pipes
and connection joints.
•During defrosting operation,
thawed water flows out.
•During heating operation, water
on the heat exchanger drips out.
“Water flowing”
noise
The swishing noise like water
flowing is the refrigerant flowing
inside the unit.
Noise from
indoor unit
Mist is
emmited in
COOL mode
During cooling operation, a thin
mist may be seen emmited from
the indoor unit due to high room
temperature and humidity.
After a period of time, the mist
will disappear as the decrease of
room temperature and humidity.
•The noise emmited when the fan
or compressor relay is switched
on or off.
•When the defrosting operation
is started or stopped, there is a
sound of refrigerant flowing in
the reverse direction.
Cracking noise
This is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.
Indoor unit can
not blow air
The unit can
not be started
up
•Is the power cut off?
•Is the power plug loose?
(if applicable)
•Is the circuit protection device
tripped off?
•Is voltage higher or lower?
(tested by professionals)
•Is the TIMER correctly used?
•Are the batteries exhausted?
Cooling
/Heating effect
is poor
•Is the temperature setting
appropriate?
•Is the air inlet/outlet blocked?
•Is the filter dirty?
•Is the door or window open?
•Is low fan speed set?
•Are there heat sources in the
room?
•In HEAT mode, when the
temperature of indoor heat
exchanger is very low, airflow is
stopped in order to prevent cold
air. (within 2 minutes)
•In HEAT mode, when the
outdoor temperature is low or
humidity is high, frost will be
formed on the outdoor heat
exchanger. The unit will defrost
automatically and indoor unit will
stop blowing air for 2-3 mintues.
•During defrosting operation,
water or vapour may be
emmited.
•In DEHUMIDIFY mode, the
indoor fan will stop blowing air
for 3-12 minutes in order to
avoid condensing water being
vaporised again.
Moisture on air
outlet
If the unit operates at high
humidity for a long time, moisture
may be generated on air outlet
grill and then drip off.
H1 error code:
defrosting
It is normal. The unit is in
defrosting operation and heating
will recommence soon.
21
Cause
22
66129911096
072012
Download PDF

advertising
