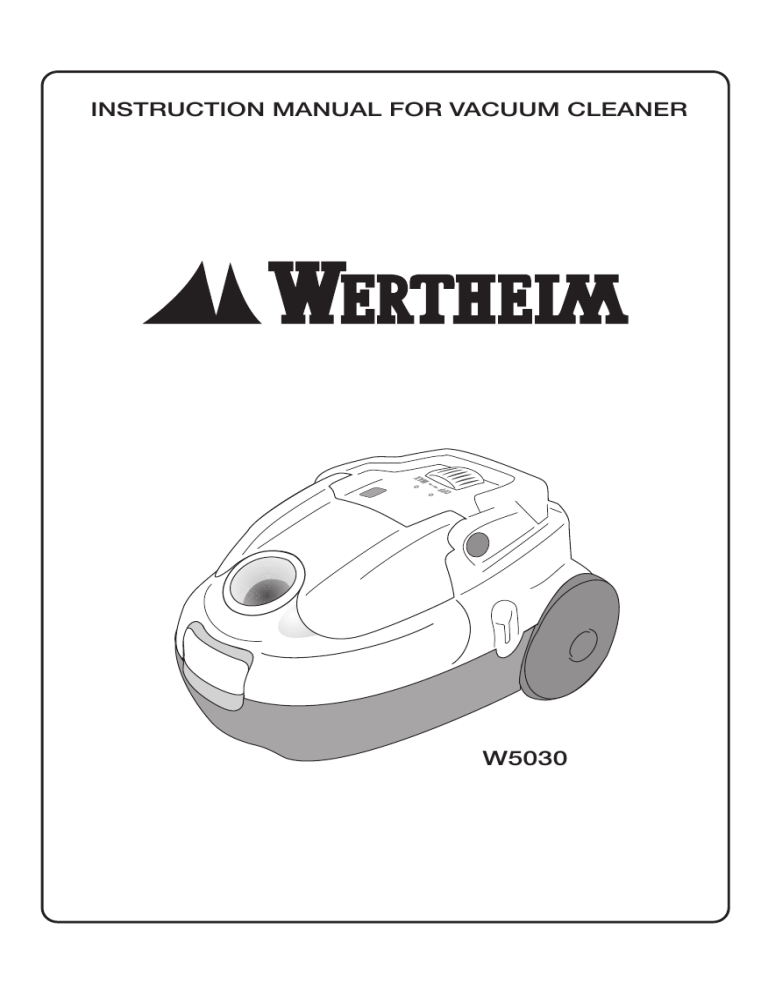

INSTRUCTION MANUAL FOR VACUUM CLEANER
W5030
4
5
1
6
2
OF F
MAX
7
8
10
3
9
13a
11
13
11a
13b
11b
11c
12
14
15
16
A
B
C
F IL
TE
R
D
E
F
OFF
G
H
MAX
I
Congratulations on choosing the Wertheim system
Complett. It has been designed to give you many
years of reliable service. Your Wertheim System
Complett includes a comprehensive range of
cleaning tools to effectively clean carpets, hard
floors, upholstery, drapes and do your household
dusting. A very important feature is the Whirlwind
motorised powerbrush used for cleaning carpet.
Carpets are a costly investment, and they usually
harbour damaging grit, dust mites and microscopic
particles which can cause allergies and breathing
difficulties. Your Wertheim removes this dust and
grit by combining the suction of the cleaner with
the agitator action of the powerbrush.
We strongly recommend you to use the powerbrush attachment for all carpet cleaning. There is
a separate floor tool supplied for cleaning hard
floors.
Your Wertheim also features a four stage air filter
system comprising a double wall filter bag plus
a motor protection filter and final exhaust micro
filter.
1. Start/stop
2. Handle with cord reel
3. Suction control
4. Bag-full indicator
5. O2 HEPA filter indicator
6. Power outlet for the use of power driven
tools
7. Release button, exhaust vent
8. Accessory compartment
9. Cover
10. Parking position
Check when unpacking that the vacuum
cleaner is undamaged and that all parts are
there.
The vacuum cleaner is accompanied by:
11. In the accessory compartment:
a) Dusting brush
b) Crevice nozzle
c) Upholstery nozzle
12. Floor nozzle
13. Hose with connecting piece (13a)
and hose handle (13b)
14. Telescopic tube
15. Dust bag
16. Power brush
When moving the vacuum cleaner (e.g. in
stairs), lift it by the handle (2).
A Lift the lid of the bag compartment and
check that the dust bag is in place. Snap the
hose into the vacuum cleaner as shown in the
picture. When removing the hose, press the
catch at the coupling and withdraw.
B Attach the extension tubes to the hose
handle and the floor nozzle. When disconnecting, twist slightly and pull apart.
C Extend the cord and connect to the mains.
D The vacuum cleaner is switched on and off
using the rolling wheel on the top of the vacuum
cleaner.
E The suction effect can be set using the
rolling wheel on the top of the vacuum cleaner.
F Use the floor nozzle when cleaning floors.
The nozzle can easily be adapted to hard floors
or carpets with the aid of a pedal on its top.
To maintain the suction effect, the floor nozzle
should be regularly cleaned. The simplest way
to do this is to use the hose handle.
G The powerbrush comes with its own motor
and should be used to increase the efficiency
of the cleaner on carpet. Push tube into
powerbrush and fix it by using the press button
lock. Plug powerbrush lead into outlet located
at the front of rod handle.
H Plug powerbrush lead into power socket
on cleaner. To operate the powerbrush when
cleaner is switched on, use the on/off switch
on the handle of rod.
I Tube and nozzle can be attached in a
horizontal ”parking” position.
J After use, the cord is disconnected by
pulling the plug, never the cord. The vacuum
cleaner is equipped with an automatic cord
reel. The cord is rewound by pressing on the
handle. Keep a gentle grip on the plug when
the cord is being reeled in to avoid damage.
K Open the accessory compartment by lifting
the lid. The dusting brush is used for e.g. lamps,
bookshelves and pictures (A). The upholstery
nozzle is used for cushions, curtains etc. (B).
The crevice nozzle is useful in cramped areas,
e.g. crevices, corners and radiators (C).
R When storing the vacuum cleaner, it is to
be switched off and the cable disconnected
from the mains. The vacuum cleaner is to be
stored in a dry place at room temperature.
The hose and tube can be attached as shown
in the picture.
L The bag-full indicator on the machine
indicates that the dust bag is blocked and the
machine has therefore lost so much suction
effect that it risks overheating on continued
use. The bag should therefore be changed
even if it is not full. When changing a dust
bag: open the lid of the bag compartment.
The vacuum cleaner is for domestic use only
and has been designed to ensure maximum
safety and performance. Please follow these
simple precautions:
• The vacuum cleaner is double-insulated so
it must not be earthed.
• The vacuum cleaner is only to be used by
adults.
• Avoid tugging on the mains cable and check
cable regularly for damage. Note: Do not use
your cleaner with a damaged cable. If
damaged, the cable should be replaced at
an authorised Service Centre.
• The plug must be removed from the socketoutlet before cleaning or maintaining the
appliance.
• All service and repairs must be carried out
by authorised service staff.
M Pull the bag closer closed, grasp the cardboard disc and lift out the full bag. The dust
bag can be thrown away with everyday rubbish.
The bag compartment can be cleaned with a
soft cloth.
N Put in the new dust bag by slotting the
cardboard disc into the holder. The lid cannot
be closed over an unfitted bag. Use only original
dust bags.
When vacuuming finely ground dust, flour
etc., the pores of the dust bag are quickly
blocked, especially if you start with an empty
bag. This can be prevented by first vacuuming
in a fist-sized piece of cotton wool.
O The safety filter in the bag compartment
should be changed at about every 5th dust
bag. Open the cover, lift out the dust bag and
remove the filter. Put in a new filter.
P The HEPA filter should be cleaned when
the indicator lamp light is on or at every 5th
dust bag. Press the release button to open the
filter hatch and remove filter unit.
Q Rinse the inside (dirty side) of the filter unit
under warm tap water only. Do not use cleaning
agents and avoid touching the delicate filter
surface. Tap the filter frame to remove excess
water. Repeat cleaning procedure four times
and allow the filter to air dry. The original filtering
performance is now restored. Replace the unit
back into the cleaner and close cover ensuring
it is properly fastened.
K
J
L
a
b
2
F IL
TE
R
c
1
M
N
O
P
Q
R
F IL
F IL T E R
TER
1
F IL
TE
R
2
Important Notice
1. Do not attempt to vacuum up liquids.
The appliance is only to be used on dry surfaces.
Do not vacuum up ashes, burning cigarette ends
or matches.
2. Avoid subjecting the cord to violent jerking or
repeated mechanical stresses. Avoid damaging
the insulating sheath of the cord. If you do notice
the sheath appears damaged, have the electric
cord examined immediately by an Authorised
Service Centre.
3. For best performance replace the dust bag and air filter on the motor regularly. If the vacuum
cleaner stops when it is being used, check the electrical connection and fuses. If you find anything
wrong, put it right. If the vacuum cleaner still does not start, it may have overheated.
The motor has a thermal cutout switch which operates if the temperature is abnormally high.
Overheating can be caused by e.g. blockages in the tube, hose or by a
blocked filter.
This is what to do:
• Pull out the plug.
• Change the dust bag and check that the safety
filter and high grade filter are not blocked.
• Check that there is nothing obstructing the airflow in e.g. the nozzle, hose or tube.
• The vacuum cleaner needs to cool down and may not be used for 30 minutes.
• The vacuum cleaner can now be used again.
• If the vacuum cleaner does not re-start after the above measures, contact your service centre.
This model features a safety valve. The valve feeds cool air to the machine in case the hose or
tube is blocked. The valve may also trigger, e.g. when vacuumcleaning carpets or other soft
materials. When the nozzle is lifted, the valve is reset. If the safety valve triggers repeatedly during
normal use, check and remedy any blockage in the hose, tubes, nozzle or filters.
4. Before you carry out any maintenance operation, unplug the appliance so that it is solated from
the power source.
AUTHORISED SERVICE CENTRES
New South Wales
Sydney:
Godfreys, 169 Paramatta Road, Auburn, NSW 2144. Phone 1800 047 718
Victoria
Melbourne: Godfreys, Cnr. Dandenong & Blackburn Rds., Clayton, Vic 3168. Phone 1800 815 270
Queensland
Brisbane:
Godfreys, 386 Wickham Street, Fortitude Valley Qld 4006. Phone 1800 819 809
South Australia
Adelaide:
Ausvac, 92 Burbridge Road, Hilton SA 5033. Phone 1800 060 404
Western Australia
Perth:
Action Cleaner Parts, Unit 1/6 Stockdale Road, O´Connor WA 6163
/Offset-Tryck
822 82 66-02/021025
