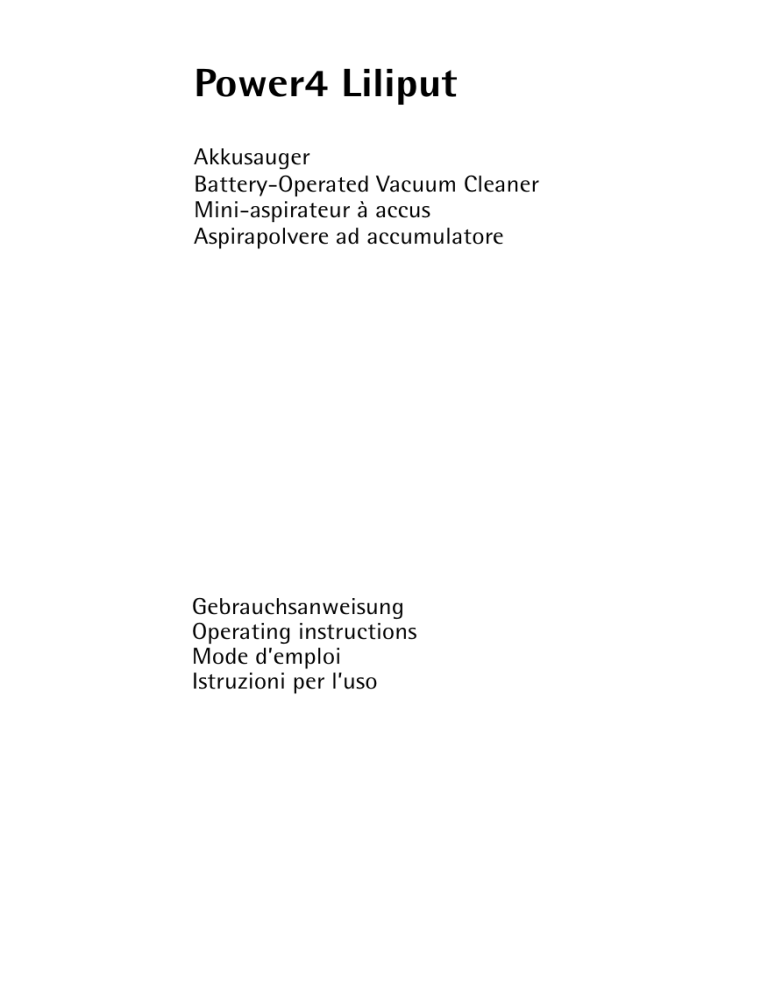

Power4 Liliput
Akkusauger
Battery-Operated Vacuum Cleaner
Mini-aspirateur à accus
Aspirapolvere ad accumulatore
Gebrauchsanweisung
Operating instructions
Mode d’emploi
Istruzioni per l’uso
3 5 4
2
6
1
7
9
10
8
Gerätebeschreibung
1
2
3
4
5
6
7
Staubbehälter
Staubfilter
Auslösetaste
Ein/Ausschalter
Ladekontrollanzeige
Ladesteckdose
Wandhalterung
und Ladegerät
8 Netzstecker
9 Klinkenstecker
10 Ausklappbare Fugendüse
A
2
B
C
D
E
F
G
3
g
g Dear Customer,
;
Please read these operating instructions carefully. Above all please
observe the safety information on the
first pages of these operating instructions! Please keep these operating
instructions for later reference. Pass
them on to any subsequent owner of
the appliance.
Description of the Appliance
1
2
3
4
5
6
7
8
9
10
Dust container
Dust filter
Release button
On/off switch
Charge control display
Charge socket
Wall mounting and charger
Mains plug
Jack plug
Fold-down crevice nozzle
1 Safety instructions
• Do not vacuum wet surfaces.
• Do not use the vacuum cleaner on surfaces that have been treated with
flammable solvents until they are completely dry.
• Do not use your vacuum cleaner to
vacuum hot items such as a glowing
cigarette end.
• Never use the vacuum cleaner to pick
up combustible dust.
• Under no circumstances should you oil
or grease the motor.
• Do not expose the vacuum cleaner to
direct sunlight or any source of heat.
• For maintenance and repair please
contact your local dealer or authorised
service personnel. Never attempt to
carry out repairs to the vacuum cleaner
yourself.
• Only use the appropriate original
charging devices for this model.
This appliance complies with the following EC directives:
– 73/23/EWG dated 19.02.1973 “Low
Voltage Directive“, including Directive Amendment 93/68/EWG
– 89/336/EWG dated 03.05.1989 “EMC
Directive“, including Amendment
Directive 92/31/EWG
Before using for the first time
Before using your vacuum cleaner
for the first time you should charge
the battery for approx. 16-18 hours.
With a fully charged battery you can
vacuum for approx. 9 minutes.
Attaching the wall mounting
(Fig. A)
0
0
0
0
3
Select a position near a room socket to
attach the wall mounting.
Hold the mounting against the wall
and mark the points for the fastening
screws.
Use a drill to drill the holes for the
screws and push in the plastic plugs
provided.
Position the wall mounting and then
insert the screws so that they project
by at least 7 mm.
Then lower the wall mounting and
tighten the screws.
The appliance can equally well be
stored standing on a table, the floor or
any other horizontal surface.
Charging (Fig. B)
The charger (7) may only be connected
to a power source of 230V, 50Hz.
0 Insert the vacuum cleaner into the wall
mounting (7) and check that the jack
plug (9) on the wall mounting fits correctly into the charge socket (6) on the
vacuum cleaner.
7
g
3
The charge control display (5) will
come on and charging will begin. It will
also come on if the battery is already
fully charged. Always leave your vacuum cleaner in the wall mounting
when not in use in order to guarantee
optimal suction power.
To return to full suction capacity once
a battery has been completely discharged requires a charging period of
18 hours.
If a fully charged battery works for less
than 8 minutes it might be the result
of a build up of resistance to charging
which occurs if the vacuum cleaner is
always used only for short periods. If
this happens you should charge the
battery fully and use the vacuum
cleaner until the battery is empty.
After this recharge the battery. Repeat
this procedure if necessary.
Information: The battery should not be
charged in room temperatures below
0 °C or above 40 °C.
The charger can heat up during charging.
Using the vacuum cleaner
(Fig. C)
0 Remove your vacuum cleaner from the
wall mounting by pushing it straight
upwards.
0 To switch on the appliance push the
on/off switch (4) forwards.
To switch the appliance off, push the
on/off switch backwards.
Recharge your vacuum cleaner after
use.
Using the crevice nozzle
0 Pull out the crevice nozzle (10) and
fold upwards (E).
0 To lock in place push the crevice nozzle
in.
8
Maintenance and care (Fig. D)
Cleaning the dust filter and dust
container
0
0
0
0
Ensure that the vacuum cleaner is
switched off.
Press the release button (3) downwards
and slowly pull the dust container (1)
forwards.
Remove the dust filter (2).
Empty the dust container into the rubbish bin.
To clean the dust filter (2) you can use
your normal household vacuum
cleaner. If neceessary wash the dust filter in lukewarm soapy water and rinse
it out thoroughly.
Important: Do not wash synthetic
parts of the vacuum cleaner in a
machine.
Ensure that the filter is fully dry before
you insert it again. After cleaning do
not forget to put the dust filter back
into the vacuum cleaner before using it
again.
Damaged or excessively dirty dust filters should be replaced. Filters can be
obtained as spare parts.
2 Disposal (Figs. F and G)
Your vacuum cleaner contains a rechargable NiCd battery.
The vacuum cleaner can be re-charged
many times and has a long life-span if
the suction power is repeatedly topped
up.
Should it nonetheless be necessary one
day to replace your battery-powered
vacuum, please dispose of it with due
consideration for the environment.
0 Switch the vacuum cleaner on and let
it run until the battery has run down
commpletely.
0 Open the battery vacuum casing.
g
0 Ensure that the battery has not shortcircuited. Remove the batteries and
pull the connection leads off the battery connections.
0 Do not put the removed battery into
the dustbin but hand it in at a repair
workshop or at a public battery collecting point.
Customer Service
Our products are of the highest quality.
Should you nevertheless have questions concerning the use of this appliance, please write to us. Only with your
support can we be sure to develop
appliances to suit your needs.
9
AEG Kundendienst in Europa
Deutschland
Europa
Sollte dieses AEG Kleingerät wider Erwarten nicht
funktionieren, senden Sie es bitte an folgende Adresse:
Beginnt die Postleitzahl Ihres Wohnortes
mit 2 - 3 - 4 - 5
AEG Kleingeräte-Zentralwerkstatt
Firma Elektro Stefan Irsen
Sachtlebenstraße 1
41541 Dormagen
Beginnt die Postleitzahl Ihres Wohnortes
mit 0 - 1 - 6 - 7 - 8 - 9
AEG Kleingeräte-Zentralwerkstatt
Firma Trepesch GmbH
Steinstraße 500
90419 Nürnberg
In Deutschland steht Ihnen für Fragen , Anregungen
oder bei Problemen rund um unsere Kleingeräte und
Raumpflegegeräte montags bis freitags von 8 bis 18 Uhr
unsere AEG Serviceline unter 01805-30 60 80* zur
Verfügung.
Österreich, 1230 Wien, 01/8 66 43-333
Belgique/België, 1502 Lembeek, 02/363.04.44
Danmark, 7000 Fredericia, 70 11 74 00
España, Madrid, 1-885-2700
France, 60307 Senlis, 03-44 62 24 24
Great Britain, Service Force 09 90 92 99 29
Hellas, 18346 MO”XATO, 01/4822646
Island, Reykjavik (Bræóurnir Ormsson hf), 91-3 88 20
Italia, 20394 Agrate Brianza (Milano), 39 / 68 99-8 39
Luxembourg, 1273 Luxembourg-Hamm, 4 24 31-433
Nederland, 2400 AC Alphen aan den Rijn, 0172-468 300
Norge, 0516 Oslo, 22 72 58 00
Portugal, 2635-445 Rio de Mouro, (01) 926 75 75
Schweiz/Svizzera, 5506 Mägenwil, 0848 848 348
Suomi, Porissa, puh. (02) 622 3300
Sverige, 10545 Stockholm, 08-738 60 00
*(Deutsche Telekom 24 Pf/Min.)
Garantiebedingungen
Für dieses Gerät leisten wir - zusätzlich zu
der gesetzlichen Gewährleistung des
Händlers aus Kaufvertrag - dem Endabnehmer gegenüber zu den nachstehenden Bedingungen Garantie:
1. Die Garantiezeit beträgt 12 Monate und
beginnt mit dem Zeitpunkt der Übergabe
des Geräts, der durch Rechnung oder
andere Unterlagen zu belegen ist. Die
Garantiezeit ist auf 6 Monate beschränkt,
wenn das Gerät gewerblich genutzt wird.
2. Die Garantie umfaßt die Behebung aller
innerhalb der Garantiezeit auftretenden
Schäden oder Mängel des Geräts, die
nachweislich auf Material- oder Fertigungsfehlern beruhen. Nicht unter die
Garantie fallen Schäden oder Mängel aus
nicht vorschriftsmäßiger Handhabung
sowie Nichtbeachtung der Gebrauchsanweisungen.
3. Im Garantiefall senden Sie das Gerät an
die für Ihren Wohnort zuständige AEG
Kleingeräte-Zentralwerkstatt oder übergeben es Ihrem Fachhändler.
Bei Einsendung achten Sie bitte auf gute
Verpackung, Ihre vollständige AbsenderAnschrift und eine kurze Fehlerbeschreibung. Fügen Sie zum Nachweis Ihres
Garantieanspruchs den Kaufbeleg bei.
4. Die Garantieleistungen werden ohne jede
Berechnung durchgeführt; sie bewirken
weder eine Verlängerung noch einen
Neubeginn der Garantiezeit. Ausgewechselte Teile gehen in unser Eigentum über.
Guarantee
This appliance is covered by the following
guarantee and is in addition to your statutory and other legal rights. All components
wich fail due to defective manufacture will
be repaired or replaced free of charge for a
period of 12 months from the date of
purchase. We will not accept claims if unauthorised modification is made or if nonstandard components are used. The appliance must be used in accordance with the
operating instructions and the guarantee
does not cover any damage caused during
transit or through misuse. In order to establish the date of purchase, advice note or similar document must be produced whenever
the guarantee is claimed.
Garantie
Pour toute mise en œvre de garantie ou de
service après vente, vous devez yous adresser
à votre vendeur.
AEG assure au vendeur le remplacement gratuit des pièces détachées nécessaires à la réparation pendant 1 an, à partir de la date de
votre facture, sauf en cas de non respect des
prescriptions d’utilisation ou lorsqu’une cause étrangère à l’appareil est responsable de la
défaillance.
Les dispositions stipulées ci-dessus ne sont
pas exclusives du bénéfice au profit de
l’acheteur de la garantie légale pour défaut
et vice cachés qui s’applique, en tout état de
cause, dans les conditions des articles 1641 et
suivants, du code civil.
Garantie
AEG Huishoudelijke Apparaten neemt voor
reparaties binnen de garantietermijn - voor
zover de defecten zijn terug te voeren op
materiaal - en/of constructiefouten - de kosten op zich voor materiaal en arbeidsloon.
De garantie bedraagt 12 maanden en gaat in
AEG Hausgeräte GmbH, Muggenhofer Straße 135, D-90429 Nürnberg
op de dag van aankoop. Wanneer garantie
wordt verlangd, dient de faktuur can aankoop te worden overlegd. De garantietermijn
wordt door reparaties niet verlengd. Buiten
elke garantieverplichting vallen losse onderdelen van glas en/of kunststof. Alle overige
kosten, zoals voorrijdkosten, kosten van opzending en administratie, zijn voor rekening
van de eigenaar.
Garanzia
Duranti i primi 12 mesi d’esercizio, vengono
fornite gratuitamente dall’AEG le parti di ricambio riconosciute difettose. La garanzia ha
inizio con il giorno dell’acquisto che deve venir comprovato a mezzo della fattura o boletta di consegna. Per il resto valgono le
condizioni generali di fornitura della rispettiva rappresentanza nazionale.
Garantia
Durante los primeros 12 meses, la AEG se
hace cargo de cuantos costes de material y
horas de trabajos invertidas se produzcan en
la subsanación de defectos. La garantia empieza a regir a partir de la fecha de la entrega, la que deberá justificarse mediante
presentación de la factura o de la nota de depacho. Por lo demás serán de aplicación las
condiciones generales de venta se gun rigen
en el respectivo pais de nuestra representación.
Garantie
In Belgien ist nur die durch belge AEG ausgegebene Garantiekarte gültig.
En Belgique, seule la carte de garantie émise
par la belge AEG est valable.
In België is slechts de door de belge AEG uitgegeven waarborgkaart geldig.
ANC 822.949.115 - 0800
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
