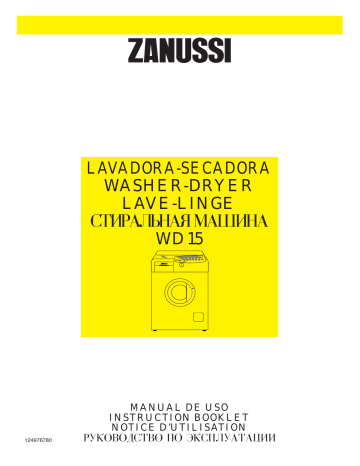

LAVADORA-SECADORA
WASHER-DRYER
LAVE-LINGE
STIRALWNAÅ MAfiINA
WD 15
124976780
MANUAL DE USO
INSTRUCTION BOOKLET
NOTICE D’UTILISATION
RUKOVODSTVO PO ÈKSPLUATACII
YOUR NEW WASHER-DRYER
Your new washer-dryer, fitted with the Zanussi
ÒJET SYSTEMÓ, meets all modern needs for
effective treatment of laundry with low water,
energy and detergent consumption.
Even small loads are washed ÒeconomicallyÓ
because the amount of water used is regulated
automatically according to the load and type of
fabric.
■ The ÒMemoryÓ buttons make it possible to
store the wash programmes most used,
which are then easy to recall when needed.
■ The possibility of selecting the temperature,
spin speed and all the options offered by this
machine gives you truly ÒcustomisedÓ
washing.
■ The DELAY START option allows you to
delay starting of the wash or drying
programme to any time of day, so allowing
you- for instance- to make use of overnight
economy electricity tariffs.
■ Fuzzy Logic technology enables the
washing time in the White cotton and
Coloured cotton programmes to be calculated
automatically according to the weight of the
laundry.
■ Automatic cooling of the wash water to
60¡C before draining, with the 95¡C
programme, prevents distortion of plastic
pipes in the domestic water system due to
the high temperature of the water.
■ The special wool programme with its new
delicate wash system treats your woollen with
extreme gentleness.
■ The drying programmes will enable you to
have dry and soft laundry in a short time.
■ The anti-unbalance device ensures that the
machine remains stable when spinning.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow
these hints:
■ Whenever possible, wash the maximum load
for the selected programme, without
overloading the drum.
■
■
■
Adjust the quantity of detergent according to
the hardness of your water supply, the
amount of laundry and the degree of soiling.
Select an ÒeconomyÓ programme for normally
soiled laundry and a ÒquickÓ programme for
lightly soiled laundry.
A programme without prewash is sufficient for
normally soiled laundry.
In the interest
of the environment
■
Packaging recycling
Materials marked with the
symbol are
recyclable. To enable them to be recycled, they
must be placed in the appropriate collection areas
(or containers). Check with your local authorities.
>PE<= polyethylene
>PS<= polystyrene
>PP<= polypropylene
■
Washing machine scrapping
When the appliance is to be scrapped, cut off
the power supply cable and make the door
closing device inoperative to avoid it becoming a
death trap for a child.
For correct disposal of the machine, contact
your local authority department which provides
for collection of urban solid refuse.
The symbols you will see on some paragraphs of this booklet have the following meaning:
Important information concerning the
safety in the use of your machine.
Disregarding this information might
lead to damages.
i
Information for correct use of your
machine and to obtain the best
performance.
Important information concerning
environment protection.
Our contribution to the protection of the
environment: we use recycled paper.
32
CONTENTS
34
Maintenance
■
Description of the appliance
■
■
Door locked pilot light
Detergent dispenser drawer
Installation
■
■
■
■
■
Transit devices
Positioning
Water inlet
Water drainage
Electrical connection
35
35
35
36
36
36
37
37
37
Technical specifications
38
Use
39
■
■
■
■
■
■
■
■
■
■
■
■
■
Control panel
Description of the controls
Modification of a programme which
is running
Opening the door after the wash
programme has started
Washing and Drying hints
Sorting the laundry
Temperatures
Before loading the laundry
Maximum loads
Laundry weights
Removing stains
Detergents and additives
Quantity of detergent to be used
Preparing the drying cicle
Load
Garments not suitable for drying
Drying symbols on garment labels
Duration of the drying cycle
Additional drying
Fibre residue
International wash code symbols
Programme selection/Washing
Operating sequence: washing
Programme selection/Drying
Operating sequence: drying only
Washing programmes
Drying programmes
■
■
■
■
■
Bodywork
Detergent dispenser drawer
Drain filter
Water inlet filter
Emergency emptying out
Frost precautions
Something not working?
57
57
57
57
58
58
58
59-61
39
39-43
43
43
44
44
44
44
44
44
44
45
45
46
46
46
46
46
46
46
47
48
49-51
52
53
54-55
56
33
ENGLISH
Warnings
WARNINGS
It is important that this instruction book be kept with the appliance for future reference. If you sell or
give the appliance away, make sure that the book is passed to the new owners so that they can
familiarise themselves with its operation and relevant warnings.
The following warnings are provided in the interests of overall safety. You must read them carefully
before installing or using the appliance.
General warnings
■
■
■
■
When unpacking the appliance, check that it
is not damaged. If in doubt, do not use it and
contact the Service Centre.
This appliance is designed to be used by
adults. Children must not be allowed to touch
the controls or play with the product.
During high temperature wash cycles and
during drying the glass door becomes very
hot. Do not touch it.
Pets sometimes climb into washing
machines. Check the drum before each use.
Installation
■
■
■
■
■
All internal packing must be removed before
using the appliance. Serious damage may be
caused to the machine or adjacent furniture if
the protective transit devices are not removed
or are not completely removed. Refer to the
relevant paragraph in the instruction book.
Any electrical work required to install this
appliance must be carried out by a qualified
electrician.
Any plumbing work required to install this
appliance must be carried out by a qualified
plumber.
After having installed the machine, check that
it is not standing on its electrical supply cable.
If the appliance is placed on a carpeted floor,
ensure that air can circulate freely between
the adjustable feet and the floor.
Use
■
■
■
34
This appliance is designed for domestic use.
It must not be used for purposes other than
those for which it was designed.
Only wash and dry fabrics which are
designed to be machine washed and dried.
Follow the instructions on each garment
label.
Do not overload the appliance. Follow the
instructions in the instruction book.
■
■
■
■
■
■
■
■
■
Make sure that all pockets are empty. Objects
such as coins, safety pins, pins and screws
can cause extensive damage.
Do not machine wash garments saturated
with petroleum, methylated spirits,
trichlorethylene, etc. If such fluids have been
used to remove stains prior to washing, wait
until they have completely evaporated from
the fabric before placing garments in the
appliance.
Place small items such as socks, belts, etc. in
a cloth bag or pillowcase to prevent them
getting trapped between the drum and the
tub.
Only dry items which have been washed in
water.
Use only the recommended quantities of fabric
softener. An excessive amount could damage
the laundry.
Plastic detergent dispensers should not remain
in the drum during the drying cycle, as the
plastic used is not designed to withstand the
heat. If you wish to wash and dry automatically
(NON-STOP operation) you should use the
conventional detergent dispenser drawer.
Leave the porthole door slightly ajar when the
appliance is not in use. This preserves the
door seal and prevents the formation of
musty smells.
Always check that water has emptied out
before opening the door. If not, drain the
water following the instructions in the
instruction book.
Always unplug the appliance and shut the
water tap after use.
Service/repair
■
■
In the event of a fault, do not attempt to repair
the appliance yourself. Repairs carried out by
inexperienced persons may cause damage.
If repairs are needed, contact an authorised
service centre and ask for genuine spare
parts.
DESCRIPTION OF THE APPLIANCE
1 Detergent dispenser drawer
2 ÒMemoryÓ buttons
3 ÒON/OFF-CancelÓ button
4 ÒFabricsÓ button
5 ÒTemperatureÓ button
6 ÒSpin speedÓ button
7 ÒOptionsÓ/Special Programmes button
8 ÒAuto dryÓ button
9 ÒDrying timeÓ button
10 ÒTime to finishÓ display
11 ÒDelay startÓ button
12 ÒSTART/PAUSEÓ button
13 ÒDoor lockedÓ pilot light
14 Door opening handle
15 Filter
16 Adjustable feet
2
10
1
ENGLISH
11
3 45678 9 12
13
14
15
16
Door locked pilot light
The door stays locked throughout the wash and
drying cycle. Locking is indicated by a pilot light
located next to the door handle. The door
cannot be opened until the pilot light has gone
out.
Detergent dispenser drawer
Prewash
Wash
Fabric softener
P0260
35
INSTALLATION
Transit devices
All transit bolts and packing must be
removed before using the appliance.
You are advised to keep all transit devices so
that they can be refitted if the machine ever has
to be transported again.
1. Using a spanner, unscrew and remove the
rear right-hand bolt.
2. Lay the machine on its back, taking care not
to squash the hoses. This can be avoided by
placing one of the corner packing pieces
between the machine and the floor.
P0255
3. Remove the polystyrene block from the
underside of the machine.
4. Release the two plastic bags by removing the
adhesive strip.
Carefully remove the right-hand bag (1) then
the left-hand bag (2) by pulling them towards
the centre of the machine.
2
P0234
P0233
P0256
P0020
5. Set the machine upright and remove the two
remaining bolts from the back.
6. Pull out the three plastic pegs from the holes
into which the bolts were fitted.
7. Plug the open holes with the plugs which you
will find in the plastic bag containing the
instruction booklet.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the
machine is not impeded by carpets, rugs etc.
Check that the machine does not touch the wall
or other kitchen units.
Carefully level by screwing the adjustable feet in
or out. Never place cardboard, wood or similar
materials under the machine to compensate for
any unevenness in the floor.
36
P1051
1
Water inlet
A
P0003
ENGLISH
Connect the water inlet hose to a tap with a 3/4"
thread after having inserted the small filter ÒAÓ
supplied with the machine.
The other end of the inlet hose which connects
to the machine can be turned in any direction.
Simply loosen the fitting, rotate the hose and
retighten the fitting, making sure there are no
water leaks.
The inlet hose must not be lengthened. If it is
too short and you do not wish to move the tap,
you will have to purchase a new, longer hose
specially designed for this type of use.
P0021
Water drainage
The end of the drain hose can be positioned in
three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine is
emptying.
This could be done by tying it to the tap with a
piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must
be above the trap so that the bend is at least 60
cm above the ground.
Directly into a drain pipe at a height of not
less than 60 cm and not more than 90 cm.
The end of the drain hose must always be
ventilated, i.e. the inside diameter of the drain
pipe must be larger than the outside diameter of
the drain hose.
The drain hose must not be kinked. Run it along
the floor; only the part near the drainage point
must be raised.
P0022
P0023
Electrical connection
This machine is designed to operate on a 220230 V, single-phase, 50 Hz supply.
Check that your domestic electrical installation
can take the maximum load required (2.2 kW),
also taking into account any other appliances in
use.
Connect the machine to an earthed socket,
in accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
37
TECHNICAL SPECIFICATIONS
DIMENSIONS
Height
Width
Depth
85 cm
60 cm
60 cm
MAXIMUM LOAD
Washing
Cotton
Synthetics, delicate fabrics
Woollens
5 kg
2 kg
1 kg
Drying
Cotton, linen
Synthetics
2.5 kg
2 kg
SPIN SPEED
1500 rpm max.
POWER SUPPLY VOLTAGE/FREQUENCY
TOTAL POWER ABSORBED
MINIMUM FUSE PROTECTION
220-230V/50 Hz
2200 W
10 A
WATER PRESSURE
Minimum
Maximum
This appliance complies with the following EEC Directives:
73/23/EEC of 19/02/73 relating to low voltage
89/336/EEC of 03/05/89 relating to electromagnetic compatibility
38
05 N/cm2
80 N/cm2
USE
The Control Panel
3
4
60°C
900
40°C
WOOL
TE
S
F A B RI C
M P E R AT U
SP
STORE DRY
ECONOMY
IRON DRY
I N SP E E
Drain
D
O
Sp P TI O N S es
ec ia
m
l Pr ogr a m
SYNTHETIC
STORE DRY
D ELAY START
AU
TO DR
Y
COTTO
N
RT/ PAUSE
STA
SYNTH
ETIC
DR
MEMORY
RINSE
HOLD
COLD
QUICK / Mini
TO FIN IS H
Rinses
700
30°C
E
TI M
EXTRA DRY
Y IN
E
2
1200
RE
1
COTTON
WHITE
ON
ED COTT
COLOUR
ETIC
SYNTH
TE
DELICA
95°C
PREWASH/Soak
G TI M
WD
15
ON-OFF
CANCEL
1
2
3
4
1 ÒMemoryÓ buttons and
corresponding pilot lights
A previously selected wash or drying
programme can be stored or recalled by
pressing these buttons.
To store: select the required programme using
the various buttons available (see section
ÒOperating sequenceÓ), then start the machine
by pressing the START/PAUSE button. Only
then can the programme be stored by pressing
one of the ÒMemoryÓ buttons until the
corresponding pilot light comes on.
If the ÒMemoryÓ button pressed does not yet
have a programme stored, the pilot light flashes
for two seconds.
A stored programme can be modified by
pressing the required buttons before starting the
machine with the START/PAUSE button.
To recall a programme: press the required
ÒMemoryÓ button; the pilot lights corresponding
to the stored programme come on. Press the
START/PAUSE button to start the machine.
Warning! Your machine may already have a
programme stored. This means that it has been
carefully tested before leaving the factory.
Note: It is advisable to make a note of the
programme stored for each ÒMemoryÓ button.
5
6
7
8 9 10 11 12
2 ON/OFF-Cancel button
This button has two functions:
- switch the machine on/off
- cancel a programme which is running
Press the button to switch the machine on,
press it again to switch the machine off or to
cancel a programme which is running.
3 ÒFabricsÓ button
Press this button to select the type of wash
required: White cotton, Synthetic, etc. The pilot
light corresponding to the type of wash selected
comes on and the washing time flashes on the
display (9); time is calculated on the basis of a
maximum load of 5 kg for cotton, 2 kg for
delicates and synthetics and 1 kg for wool.
After about 20 minutes (the time it takes the
machine to calculate the weight of the laundry)
the washing time is updated (only for cottons).
The machine automatically selects the
maximum temperature and spin speed based on
the type of wash selected: the corresponding
pilot lights come on.
These values can be modified by pressing the
TEMPERATURE and SPIN SPEED buttons.
The ÒFabricsÓ button cannot be used when the
following programmes are selected:
- Soak
- Mini
- Rinses
- Drain
- Spin
39
ENGLISH
COTTON
1500
4 ÒTEMPERATUREÓ button
Press this button if you wish to set a different
temperature from that suggested by the
machine for the type of wash selected (see
programme chart): the corresponding pilot light
comes on.
The COLD position is for a wash with cold water.
5 SPIN SPEED button
This button has two functions:
- selection of the spin speed or of the Rinse
Hold option
- separate spin programme.
Selection of the spin speed:
- for cottons (White cottons, Coloured cottons)
the maximum spin speed is 1500 rpm;
- for synthetics and wool the maximum spin
speed is 900 rpm;
- for delicate fabrics the maximum spin speed
is 700 rpm.
Selection of the RINSE HOLD option:
When this option is selected, the last rinse water
is not emptied out, so as to avoid creasing of the
fabrics: the corresponding pilot light flashes at
the end of the programme to indicate that the
water must be emptied out.
This can be done in three ways:
- select a spin speed and press the
START/PAUSE button
- just press the START/PAUSE button; after
emptying, the machine performs the spin
cycle for the type of wash selected
- select the DRAIN programme to empty out
the water without spinning.
The RINSE HOLD option can also be
selected for the wool programme: the last
rinse water is emptied out but the machine
does not spin.
If the water is not emptied out, the machine
automatically empties itself after 18 hours.
Separate spin programme
To be used to spin hand washed laundry:
- switch the machine on by depressing the ONOFF button
- select the desired spin speed
- depress START/PAUSE button
40
6 ÒOPTIONSÓ (Special
Programmes) button
By depressing this button you can select two
different functions:
- additional options for the selected washing
programme
- separate special programmes
Important!
The first and second light have a double
meaning:
- Prewash/ Soak
- Quick/ Mini
Additional options
After selecting the wash programme you can
add one of the following functions:
■ PREWASH: the machine performs a prewash
cycle at 40¡C max. The prewash cycle ends
with a short spin for the White cotton,
Coloured cotton and Synthetic programmes,
and with emptying of the water for the
Delicate programme.
This option is not available with the wool
programme.
■ QUICK WASH: by selecting this option the
washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool
programme.
■ ECONOMY: this option is only available with
the White cotton 95¡C, Coloured cotton 60¡C
and Synthetic 60¡C programmes: the 95¡C
wash is carried out at about 67¡C, whilst the
60¡C wash is carried out at about 45¡C for
cotton and 40¡C for synthetics: the 60¡C or
40¡C pilot lights flash.
The washing time is slightly longer to
compensate for the reduction in temperature.
For use when washing normally soiled
laundry, in order to save energy.
Important: the PREWASH, QUICK WASH and
ECONOMY options cannot be selected
together: one automatically disables the others.
Separate special programmes
Attention!
When selecting these programmes the
ÒFABRICSÓ button has not to be depressed.
- switch the machine on
- select the desired special programme
- depress START/PAUSE button to start the
programme.
SOAK: for heavily soiled laundry, not for
wool. The machine performs a soak at 40¡C
and stops with the water in the drum. The
water can be emptied out in 2 ways:
- empty only by pressing the
START/PAUSE button;
- empty and spin using the SPIN SPEED
and START/PAUSE buttons.
If the water is not emptied out within 18
hours, the machine empties automatically.
The drum turns from time to time during
soaking.
At the end of the soak, and after having
emptied out the water (the three zeros on the
display flash), select the required wash
programme or call one up using the
ÒmemoryÓ buttons, then start the machine by
pressing the START/PAUSE button.
■ MINI-PROGRAMME
This is a complete programme in its own
right, that is not compatible with any of the
other options, except DELAY START. For use
with laundry which is lightly soiled or which
needs freshening up (max. 2 kg). The
machine performs a 30 minute wash cycle at
30¡C, with a final spin at 700 rpm.
■ RINSES: with this programme, it is possible
to rinse and spin garments which have been
washed by hand, such as synthetics or
delicates and types of wool which are not
machine washable.
The machine performs 3 delicate rinses with
a high water level, followed by a final spin at
700 rpm. It is of course also possible to select
a higher spin speed using the appropriate
button.
Important: if you wash cotton fabrics by
hand and select a spin speed of 1500 or
1200 rpm, the machine will perform 3 rinses
with a low water level, a number of
intermediate spins and a final spin at 1500 or
1200 rpm, particularly recommended for
cottons.
■ DRAIN: this programme can be selected to
empty out the water (e.g. for programmes
with which the RINSE HOLD option has been
selected).
7 AUTO DRY button
By depressing this button you can select the
following drying programmes:
■ Cotton
- Extra dry
- Store dry
- Iron dry
■ Synthetics
- Store dry
ENGLISH
■
8 DRYING TIME button
By depressing this button you can select the
desired drying time according to the fabrics
(cotton or synthetics) you have to dry.
■ If you select COTTON, the appliance will dry
at full heating power.
■ If you choose SYNTHETICS drying will be
performed at a reduced heating power.
If you select SYNTHETICS and then you wish to
change into COTTON, depress the AUTO DRY
button for about 2 seconds until the COTTON
light turns on.
To select the drying time you have to push the
button until the drying time you want appears on
the display.
For COTTON you can select a drying time from
15 minutes to 2 hours and 10 minutes (2.10)
For SYNTHETICS you can select a time from 10
minutes to 1 hour and 40 minutes (1.40).
41
9 TIME TO FINISH display
10 START/PAUSE button
This display provides the following information:
- Three flashing dashes
appear immediately after pressing the
ON/OFF button and indicate that the machine
is ready to receive instructions for the
required programme;
- Duration of the selected wash programme,
calculated automatically on the basis of the
maximum recommended load for each type
of fabric. The figures on the display flash until
the machine is started with the START
button.
After the programme has started, the time
remaining is updated every 10 minutes, and
every 5 minutes during the last 20 minutes.
About 20 minutes after the programme has
started, the time remaining is updated on the
basis of the actual load size being washed
(cottons only).
When the programme has finished, after the
door lock has released, three flashing zeros
are displayed.
- Delayed start, programmed using the special
button (11).
The selected delay (19 hours max.) is
indicated in the display. The countdown is
updated every hour, and every 5 minutes
during the last hour.
- PAUSE: when the START/PAUSE is pressed
while a wash programme is running, the
figures in the display, which indicate the
time remaining, start to flash.
- Machine heating phase. A dot to the right of
the figures in the display indicates that the
machine is heating the water.
- Incorrect option selection. If an option
which is not compatible with the set wash
programme is selected, the message Err is
displayed.
- Alarm codes. In the event of operating
problems, a specific code appears on the
display (see ÒSomething not workingÓ).
This button has three functions:
42
a) Start
After having selected the required
programme, press this button to start the
machine; the display stops flashing.
b) Pause
To interrupt a wash programme which is
running, press the START/PAUSE button: the
figures displayed will start to flash.
The drying programme cannot be
interrupted.
To restart the programme from the point at
which it was interrupted, press the
START/PAUSE button again.
c) Empty out water
At the end of a programme which stops with
water in the drum (RINSE HOLD option), or
after the soak programme, press the
START/PAUSE button to empty out the
water: after a soak programme, the machine
will empty only; after RINSE HOLD
programmes, the machine will empty and
spin.
This button allows starting of the machine to be
delayed by a maximum of 19 hours.
The button must be pressed after selecting
the programme and before pressing the
START/PAUSE button.
The figures indicating the required delay appear
in the display next to the button. After one
minute, the machine starts its countdown (every
hour).
During the last hour, the remaining time is
displayed every 5 minutes.
The delayed start function cannot be used with
the SPIN and DRAIN programmes.
To modify or cancel the preset delay, press the
START/PAUSE button, then press the DELAY
START button until the required value is
displayed or, if you wish to cancel the delay, until
the symbol
h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows
the duration of the wash programme previously
selected.
12 Operating pilot lights
The pilot lights come on individually, or in
groups, according to the options selected.
The pilot lights flash for about three seconds if
wash options are incorrectly selected. The
message Err is displayed.
Modification of a programme which
is running
To modify a programme, first set the machine to
PAUSE by pressing the START/PAUSE button.
Before the machine starts the heating phase, i.e.
within the first 15 minutes for cotton
programmes, 10 minutes for synthetic and
delicate programmes and 5 minutes for the wool
programme, the following parameters can be
modified:
- Fabrics
- Temperature
- ECONOMY or QUICK WASH.
The PREWASH option can be cancelled, but
cannot be added, once the programme has
started.
The SPIN SPEED option can be modified before
the final spin.
To restart the wash programme, press the
START/PAUSE button again.
Opening the door after the wash
programme has started
The door can only be opened before the
machine starts the heating phase (within the first
15, 10 or 5 minutes, depending on the
programme selected - see paragraph above).
Set the machine to PAUSE (by pressing the
START/PAUSE button).
If the door does not open, this means that the
machine is already heating, or that the water
level is above the bottom edge of the door.
This prevents large quantities of water from
gushing out when the door is opened.
The door can only be opened when the pilot
light next to the handle goes out.
43
ENGLISH
11 DELAY START button
i
Washing and Drying hints
Sorting the laundry
Follow the wash code symbols on each garment
label and the manufacturerÕs washing instructions.
Sort the laundry as follows:
whites, coloureds, synthetics, delicates, woollens.
Temperatures
90¡-95¡
for normally soiled white cottons
and linen (e.g. tea cloths, towels,
tablecloths, sheets...)
60¡
for normally soiled, colour fast
garments (e.g. shirts, night dresses,
pyjamas....) in linen, cotton or
synthetic fibres and for lightly soiled
white cotton (e.g. underwear).
(cold)
30¡-40¡
for delicate items (e.g. net curtains),
mixed laundry including synthetic
fibres and woollens bearing the
label Çpure new wool, machine
washable, non-shrinkÈ.
Before loading the laundry
Never wash whites and coloureds together.
Whites may lose their ÒwhitenessÓ in the wash.
New coloured items may run in the first wash;
they should therefore be washed separately the
first time.
Make sure that no metal objects are left in
the laundry (e.g. hair clips, safety pins, pins).
Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub
particularly soiled areas with a special detergent
or detergent paste.
Treat curtains with special care. Remove hooks
or tie them up in a bag or net.
Maximum loads
Recommended loads are indicated in the
programme charts.
General rules:
Cotton, linen: drum full but not too tightly
packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum no more
than one third full.
44
Washing a maximum load makes the most
efficient use of water and energy.
For heavily soiled laundry, reduce the load size.
Laundry weights
The following weights are indicative:
bathrobe
napkin
quilt cover
sheet
pillow case
tablecloth
towelling towel
tea cloth
night dress
ladiesÕ briefs
manÕs work shirt
manÕs shirt
manÕs pyjamas
blouse
menÕs underpants
1200 g
100 g
700 g
500 g
200 g
250 g
200 g
100 g
200 g
100 g
600 g
200 g
500 g
100 g
100 g
Removing stains
Stubborn stains may not be removed by just
water and detergent. It is therefore advisable to
treat them prior to washing.
Blood: treat fresh stains with cold water. For
dried stains, soak overnight in water with a
special detergent then rub in the soap and
water.
Oil based paint: moisten with benzine stain
remover, lay the garment on a soft cloth and dab
the stain; treat several times.
Dried grease stains: moisten with turpentine,
lay the garment on a soft surface and dab the
stain with the fingertips and a cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust
removing product used cold. Be careful with rust
stains which are not recent since the cellulose
structure will already have been damaged and
the fabric tends to hole.
Mould stains: treat with bleach, rinse well
(whites and fast coloureds only).
Grass: soap lightly and treat with bleach (whites
and fast coloureds only).
Ball point pen and glue: moisten with acetone (*),
lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then
Detergents and additives
Good washing results also depend on the
choice of detergent and use of the correct
quantities to avoid waste and protect the
environment. Although biodegradable,
detergents contain substances which, in large
quantities, can upset the delicate balance of
nature.
The choice of detergent will depend on the type
of fabric (delicates, woollens, cottons, etc.), the
colour, washing temperature and degree of
soiling.
All commonly available washing machine
detergents may be used in this appliance:
Ð powder detergents for all types of fabric,
Ð powder detergents for delicate fabrics (60¡C
max) and woollens,
Ð liquid detergents, preferably for low
temperature wash programmes (60¡C max)
for all types of fabric, or special for woollens
only.
The detergent and any additives must be placed
in the appropriate compartments of the
dispenser drawer before starting the wash
programme.
If using concentrated powder or liquid
detergents, a programme without prewash
must be selected.
The washing machine incorporates a
recirculation system which allows an optimal use
of the concentrated detergent.
Pour liquid detergent into the dispenser drawer
compartment marked
just before starting
the programme.
Any fabric softener or starching additives must
be poured into the compartment marked
before starting the wash programme.
Follow the product manufacturerÕs
recommendations on quantities to use and do
not exceed the ÇMAXÈ mark in the detergent
dispenser drawer.
Quantity of detergent to be used
The type and quantity of detergent will depend
on the type of fabric, load size, degree of soiling
and hardness of the water used.
Water hardness is classified in so-called
ÒdegreesÓ of hardness. Information on hardness
of the water in your area can be obtained from
the relevant water supply company, or from your
local authority.
Follow the product manufacturersÕ instructions
on quantities to use.
Use less detergent if:
Ð you are washing a small load
Ð the laundry is lightly soiled
Ð large amounts of foam form during washing.
Degrees of water hardness
Degrees
Level
Characteristic
1
2
3
4
soft
medium
hard
very hard
German
¡dH
French
¡T.H.
00-15
00-07
16-25
08-14
26-37
15-21
more than 21 more than 37
45
ENGLISH
treat stains with methylated spirits. Remove any
residual marks from white fabrics with bleach.
Red wine: soak in water and detergent, rinse
and treat with acetic or citric acid, then rinse.
Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the
fabric first with acetone (*), then with acetic acid;
treat any residual marks on white fabrics with
bleach and then rinse thoroughly.
Tar stains: first treat with stain remover,
methylated spirits or benzine, then rub with
detergent paste.
(*) do not use acetone on artificial silk
i Preparing the drying cycle
As a dryer, the machine works on the
condensation principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
Load
Sort of laundry
Linen and cotton
Synthetics
Max load
(dry weight)
2.5 kg
2 kg
Warning:
Loads of washed laundry exceeding these
values must be divided before being dried,
otherwise poor results will be obtained.
Garments not suitable for drying
¥ Particularly delicate items such as synthetic
curtains, woollen and silk, garments with
metal inserts, nylon stockings, bulky
garments such as anoraks, bedcovers, quilts,
sleeping bags and duvets must not be
machine dried.
¥ Garments padded with foam-rubber or
materials similar to foam-rubber must not be
machine dried; they represent a fire hazard.
¥ Also, fabrics containing residues of setting
lotions or hair sprays, nail solvents or similar
solutions must not be machine dried in order
to avoid the formation of harmful vapours.
Drying symbols on garment labels
Always look at the garment label to check
whether garments can be machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
46
Duration of the drying cycle
The drying time can vary according to
¥ the final spin speed,
¥ the required degree of drying,
¥ the type of laundry
¥ the size of load.
The usual drying times for the time controlled
drying are indicated in the programme chart. As
you become more familiar with the appliance,
you will discover the drying times that best suit
your needs according to the various type of
fabric. It is a good idea to make a note of these
times.
The following are the degrees of final drying
which can be selected with the automatic drying:
¥ Cotton
- Extra dry
- Store dry
- Iron dry
¥ Synthetics
- Store dry
To finish off drying or to dry small loads you can
choose a time controlled drying.
When selecting the drying time you should
remember that it includes a 10 minute cooling
phase.
This phase cannot be shortened, stopped or
avoided, as this could cause skin burns or
damage the laundry.
Additional drying
Should the laundry still be too wet at the end of
the programme, set another short drying time.
Warning! To prevent the formation of creases
or shrinking of fabrics, avoid excessive
drying.
Fibre residue
After drying fluffy fabrics, such as new towels, it
is advisable to perform the rinse programme to
be sure that any residue that may remain in the
tub is completely removed and does not stick to
garments dried afterwards.
After each drying cycle the filter should be
checked and cleaned if necessary.
International wash code symbols
These symbols appear on fabric labels, in order to help you choose the best way to treat your laundry.
Energetic wash
95
60
40
30
Max. wash
temperature
95¡C
Max. wash
temperature
60¡C
Max. wash
temperature
40¡C
Max. wash
temperature
30¡C
Delicate wash
60
Bleaching
Bleach in cold water
Ironing
Dry cleaning
Hot iron
max 200¡C
40
30
40
Do not
wash
at all
Hand wash
Do not bleach
Warm iron
max 150¡C
Lukewarm iron
max 110¡C
A
P
F
Dry cleaning
in all solvents
Dry cleaning in
perchlorethylene,
petrol, pure alcohol,
R 111 & R 113
Dry cleaning
in petrol,
pure alcohol
and R 113
Do not iron
Do not
dry clean
high
temperature
low
temperature
Drying
Flat
On the line
On clothes
hanger
Tumble dry
Do not
tumble dry
47
ENGLISH
i
PROGRAMME SELECTION/WASHING
There are 3 possibilities for choosing the wash
programme:
- Selection by means of the different pushbuttons
- Selection using the MEMORY buttons
- Selection of the special programmes.
■
Selection by means of the different
push-buttons
1. Depress ON/OFF button to switch the
machine on.
2. Depress FABRICS button to select the
type of fabric.
3. Depress the TEMPERATURE button if you
wish to choose a different temperature
from that proposed by the appliance.
4. Depress the SPIN SPEED button if you
wish to change the spin speed proposed
by the machine.
5. Select the desired option (PREWASH,
QUICK or ECONOMY).
6. Select the desired delayed start, if
required.
7. Start the appliance by depressing the
START/PAUSE button.
■
Selection using the MEMORY buttons
1. Depress ON/OFF button to switch the
machine on.
2. Depress one of the MEMORY buttons.
3. Depress DELAY START button if required.
4. Start the appliance by means of the
START/PAUSE button.
■
Selection of the special programmes
Attention! By selecting the SPECIAL
PROGRAMMES the FABRICS button must
not be depressed.
1. Switch the machine on by depressing the
ON/OFF button.
2. Select the desired programme (SOAK,
MINI, RINSES or DRAIN) by depressing
the SPECIAL PROGRAMMES button.
The spin programme can be selected by
means of the SPIN SPEED button.
3. Depress START/PAUSE button.
48
i Operating Sequence
WASHING
ENGLISH
Before your first wash, we recommend that you
run a cotton cycle at 60¡C, without any laundry
in the machine, to remove any manufacturing
residue from the drum and tub.
Pour 1/2 a measure of detergent into the
dispenser drawer and start the machine.
1. Load the laundry
Open the door.
Place the laundry in the drum, one item at a
time, shaking them out as much as possible.
Close the door.
P0404
2. Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent
recommended by the manufacturer in a
graduated cup and pour it into the main wash
compartment .
If you wish to carry out a prewash, pour
detergent into the appropriate compartment
marked .
P0223
3. Measure out the additive
If required, pour fabric softener into the
compartment marked
(the amount used must
not exceed the ÇMAXÈ mark in the drawer).
Push the detergent drawer back in.
P0226
4. Switch the machine on
Press the ON/OFF button to switch the machine
on; three flashing dashes are displayed.
ON - OFF
CANCEL
TIME TO FINISH
49
5. Select the required programme
95°C
COTTON
ON
ED COTT
COLOUR
TIC
SYNTHE
TE
DELI CA
WHITE
60°C
40°C
30°C
WOOL
S
6. Select the temperature
COLD
F A B RI
C
TE
MP
Press the TEMPERATURE button to select the
required temperature; the corresponding pilot
light comes on.
7. Select spin speed or Rinse Hold
option
Press the SPIN button to select the spin speed
or the RINSE HOLD option; the corresponding
pilot light comes on.
PREWASH/Soak
1500
QUICK / Mini
1200
ECONOMY
900
Rinses
700
Drain
RINSE
HOLD
SP
8. Select the PREWASH or QUICK
WASH or ECONOMY option, if
required, according to the degree of soil or
IN SP E E
D
type of fabric.
The corresponding pilot light comes on.
9. Select the DELAY START option,
if required
Before starting the programme, if you wish to
delay starting, press the DELAY START button
to set the required delay, which appears in the
display.
Then press the START/PAUSE button: the
machine starts its countdown.
50
E TO FIN IS H
TI M
D ELAY START
O
Sp P TI O N S es
ec ia
m
l Pr ogr a m
E
Press the FABRICS button to select the required
programme; the corresponding pilot light comes
on.
ERATU
R
10. Start the programme
To start the selected programme, press the
START/PAUSE button; the display stops
flashing and the door pilot light comes on to
indicate that the door locking device is engaged.
The programme starts after about 30 seconds.
ENGLISH
RT/ PAUSE
STA
11. Store the programme
The wash programme selected can now be
stored by pressing one of the MEMORY buttons
until the corresponding pilot light comes on.
1
2
3
4
MEMORY
12. At the end of the programme
The machine stops automatically and three
flashing zeros are displayed.
The programme which has just been completed
is still in the memory and the corresponding pilot
lights stay on.
If the RINSE HOLD option has been selected,
the corresponding pilot light flashes to indicate
that the water must be emptied out before
opening the door.
The machine is fitted with a safety device that
prevents opening of the door for about 2-3
minutes after the end of the programme. The
door can only be opened after the door locked
light has gone out.
Release of the lock is indicated by an audible
signal as well as the pilot light going out.
Switch the machine off by pressing the ON/OFF
button.
Remove the laundry from the drum and carefully
check that the drum is empty so as to avoid any
forgotten items being damaged in a subsequent
wash (e.g. shrinking) or their colour running into
a load of whites.
If you do not intend to carry out another wash,
close the water tap.
Leave the door open to prevent the formation of
mildew and unpleasant smells.
51
PROGRAMME SELECTION/DRYING
There are 3 possibilities for carrying out the
drying programme:
■ Automatic washing and drying (NONSTOP operation)
■ Washing and subsequent drying
■ Drying only
■
Automatic washing and drying
Max. load: cotton 2.5 kg
synthetics 2 kg
1. Switch the machine on by depressing
ON/OFF button.
2. Depress FABRICS button to select the
required programme.
3. Select the temperature.
4. If possible, do not select a spin speed
lower than that proposed by the appliance
to avoid a too long drying time so saving
energy.
5. In case select the required option by
means of the OPTIONS button.
6. Select the desired drying programme or
time by means of the AUTO DRY or
DRYING TIME button.
7. Start the appliance by depressing
START/PAUSE button.
■
Washing and subsequent drying
Washing
Max load: cotton 5 kg
synthetics 2 kg
1. Switch the machine on.
2. Depress FABRICS button to select the
desired washing programme.
3. Select the temperature.
4. Select the spin speed or the RINSE HOLD
option.
5. Select the required option.
6. Depress the START/PAUSE button.
Attention! If you have selected the RINSE
HOLD option the water of the last rinse must
be emptied out and the laundry must be spun
before opening the door and before drying.
52
■
Drying
Max load: cotton 2.5 kg
synthetics 2 kg
The cotton load has to be dried in two steps.
For the synthetics, you can dry the complete
load, unless you wish to remove some items
that do not need to be dried.
1. Depress the ON/OFF button to switch the
machine off thus cancelling the previously
selected washing programme.
2. Switch the machine ON by depressing
ON/OFF button again.
3. Select the desired drying programme or
time.
4. Start the appliance.
i Operating Sequence
Drying only
ENGLISH
If you wish to carry out only a drying cycle, for
example to dry hand washed items, you can
choose between automatic drying or time
controlled drying. In both cases you have to
keep the following maximum loads:
- cotton 2.5 kg
- synthetics 2 kg
1. Load the laundry
ON - OFF
CANCEL
2. Switch the machine on
Press the ON/OFF button to switch the machine
on.
3. Select drying
E TO FIN IS H
TIM
COTTON
EXTRA DRY
STORE DRY
IRON DRY
COTTO
SYNTHETIC
STORE DRY
TO DR
Y
Y IN
E
AU
N
SYNTH
ETIC
DR
Depress the AUTO DRY button to choose the
required degree of final drying if you wish to dry
automatically.
If you want to perform a time controlled drying,
depress the DRYING TIME button to select first
the type of fabrics (cotton or synthetics) and
then continue to depress until the time you want
appears in the display: from 15 mins to 2 hours
and 10 mins for cotton, from 10 mins to 1 hour
and 40 mins for synthetics.
G TI M
4. Start the programme
Depress the START/PAUSE button to start the
programme.
RT/ PAUSE
STA
5. At the end of the programme
The machine stops automatically and three
flashing zeros are displayed.
Depress the ON/OFF button again to switch the
machine off.
Remove the laundry.
53
PROGRAMME TABLE
Washing Programmes
Fabrics
White cotton
White cotton
ECONOMY
Coloured
cotton
Coloured cotton
ECONOMY
Synthetics
Synthetics
ECONOMY
Delicate
Wool
54
Temperature
Wash programme
95¡-60¡
White cotton, for
example normally
soiled work garments,
sheets, household
linen, underwear,
towels.
Additional functions
Max. load
PREWASH
QUICK WASH
SPIN SPEED
RINSE HOLD
5 kg
White cotton
economy, for example SPIN SPEED
lightly soiled sheets
RINSE HOLD
and household linen.
5 kg
PREWASH
QUICK WASH
SPIN SPEED
RINSE HOLD
5 kg
Coloured garments
economy, for example
SPIN SPEED
delicate coloureds,
RINSE HOLD
menÕs shirts, blouses,
underwear.
5 kg
60¡-40¡-30¡
Synthetic fabrics,
underwear, coloured
garments, non-shrink
shirts, blouses.
PREWASH
QUICK WASH
SPIN SPEED
RINSE HOLD
2 kg
60¡
(40¡)
Synthetics economy,
for example lightly
soiled synthetic
garments, shirts,
blouses
SPIN SPEED
RINSE HOLD
2 kg
40¡-30¡COLD
Delicate fabrics, for
example curtains
PREWASH
QUICK WASH
SPIN SPEED
RINSE HOLD
2 kg
40¡-30¡COLD
Specially tested
programme for wool
garments bearing the
ÒPure new wool, nonshrink, machine
washableÓ label.
SPIN SPEED
RINSE HOLD
1 kg
95¡
(60¡)
60¡-40¡-30¡
60¡
(40¡)
Coloured cotton or
linen fabric, shirts,
underwear, towels.
PROGRAMME TABLE
Special Programmes
Type of laundry
Additional functions
Max. load
Soak
Heavily soiled
fabrics, except wool
5 kg
Mini
Lightly soiled fabrics,
except wool
2 kg
Rinses
This programme can be
SPIN SPEED
used for rinsing hand
RINSE HOLD
washed garments.
5 kg
Drain
For emptying out the
last rinse water in
programmes with the
Rinse Hold option.
5 kg
Spin
Separate spin for all
fabrics
SPIN SPEED
ENGLISH
Programme
5 kg
55
PROGRAMME TABLE
Time Controlled Drying Programmes
Cotton: max. load 2.5 kg
Degree of drying
Type of laundry
Drying time in minutes for laundry spun at
1500 rpm
1200 rpm
Extra dry
Towelling materials
(bathrobes, bath towels, etc.)
75-85
80-90
Store dry
Items which you want to put
away without ironing:
terry towels, knitwear,
babywear
65-75
70-80
Iron Dry
For items which need ironing:
sheets, tablecloths, table
napkins, etc.
45-55
50-60
Synthetics: max. load 2 kg
Degree of drying
Store dry
56
Type of laundry
Synthetics or mixed fabrics
which do not require ironing:
shirts, blouses, outerwear
Drying time in minutes for laundry spun at
900 rpm
700 rpm
85-95
90-100
MAINTENANCE
1. Bodywork
ENGLISH
Clean the outside of the machine with warm
water and a neutral, non-abrasive household
detergent. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits,
solvents or similar products to clean the
bodywork.
2. Detergent dispenser drawer
After a while, detergents and fabric softeners
leave deposits in the drawer.
Clean the drawer from time to time by rinsing it
under a running tap. To remove the drawer from
the machine, press the button in the rear lefthand corner.
To facilitate cleaning, the top part of the additive
compartments can be removed.
P0224
P0225
Detergent can also accumulate inside the
drawer recess: clean it with an old toothbrush.
Refit the drawer after cleaning.
P0038
3. Drain filter
The drain filter collects threads and small
objects inadvertently left in the laundry. Check
regularly that the filter is clean.
Open the filter door.
Place a container under the filter and unscrew it.
P0011
P0132
Pull out the filter.
Clean the filter under a running tap, then refit it,
screwing it fully in.
P0133
P0040
57
4. Water inlet filter
If you notice that the machine is taking longer to
fill, check that the filter in the water inlet hose is
not blocked.
Turn off the water tap.
Unscrew the hose from the tap and remove the
filter.
Clean it with a stiff brush.
Refit the filter and screw the hose back onto the
tap.
5. Emergency emptying out
If the water is not discharged (outlet pump is
blocked, filter or outlet hose are clogged),
proceed as follows to empty out the machine:
■ pull out the plug from the power socket;
■ close the water tap;
■ if necessary, wait until the water has cooled
down;
■ place a bowl on the floor;
■ put the outlet hose end into the bowl and let
the water come out.
Should it not be possible to have access to the
outlet hose because, for example, the appliance
is built in the kitchen furniture, slightly loosen the
outlet filter after placing a bowl on the floor, to let
the water come out slowly.
At the end screw the filter again.
6. Frost precautions
If the machine is installed in a place where the
temperature could drop below 0¡C, proceed as
follows:
■ Close the water tap and unscrew the water
inlet hose from the tap.
■ Place the end of the outlet hose and that of
the inlet hose in a bowl placed on the floor.
■ Select draining programme and run it until the
machine stops.
■ Remove the plug from the socket.
■ Screw the water inlet hose back on and put
the outlet hose back in its place.
By doing this, any water remaining in the
machine is removed, avoiding the formation of
ice and, consequently, breakage of the affected
parts.
When you use the machine again, make sure
that the ambient temperature is above 0¡C.
58
P0041
In the event of operating problems, you are advised to read the following chart carefully before calling
the service centre.
The following alarm codes may be displayed:
- E00: problem with the water supply
- E10: problem with water draining
- E20: door open
Once the problem has been eliminated, press the START/PAUSE button to restart the programme.
Symptom
■
The machine does not start
Possible causes
■
■
■
■
■
■
■
The machine does not fill
■
■
■
■
■
The machine fills then empties
immediately
■
■
■
■
The machine does not empty
and/or does not spin
■
■
■
■
■
■
There is water on the floor
■
■
■
■
■
The door has not been closed. (E20)
The plug is not properly inserted in the power
socket.
There is no current at the socket
The main fuse has blown.
The START/PAUSE button has not been
pressed.
The DELAY START option has been
selected.
Ensure the water tap is open. (E00)
The filter in the inlet hose is blocked. (E00)
The inlet hose may be squashed or kinked.
(E00)
The door has not been closed. (E20)
The end of the drain hose is too low.
The end of the drain hose is submerged in
water.
There is no vent in the end of the drain hose.
The drain hose may be squashed or
kinked.(E10)
The RINSE HOLD option has been selected.
The drain filter may be blocked.(E10)
The drain hose extension is not correct.
Follow the instructions for connecting to the
waste.
The drainage system pipes are blocked.
Too much detergent or unsuitable detergent
has been used (creates too much foam).
Check whether there are any leaks from one
of the inlet hose fittings. It is not always easy
to see this as the water runs down the hose;
check to see if it is damp.
The drain hose may be damaged or not
securely positioned.
The detergent dispenser drawer or recess is
clogged.
The drainage system pipes are blocked.
59
ENGLISH
SOMETHING NOT WORKING
■
Unsatisfactory washing results
■
■
■
■
■
The machine vibrates when
spinning
■
■
■
■
■
■
The door will not open
■
■
■
Too little detergent or unsuitable detergent
has been used. An insufficient amount of
detergent leaves the laundry looking grey and
causes lime scale to form.
Stubborn stains have not been treated prior
to washing
The correct temperature to suit the wash
programme has not been selected.
Too much laundry has been placed in the
drum.
The internal packing has not been removed.
The machine is in contact with the wall or
furniture.
The machine is not level.
The washing load is badly distributed in the
drum.
Maybe there is very little laundry in the drum.
The programme is still running.
The door lock has not yet released (door pilot
light on).
The water level in the drum is too high or the
machine is heating.
■
Spinning starts late or the
machine does not spin
■
The electronic unbalance detection device
has cut in because the laundry is not evenly
distributed in the drum. The laundry is
redistributed by reverse rotation of the drum.
This may happen several times before the
unbalance disappears and normal spinning
can resume eventually at a lower speed, if
the wash load is not perfectly distributed in
the drum. If, after 15 minutes, the laundry is
still not evenly distributed in the drum, the
machine will not spin. In this case,
redistribute the load manually and reselect
the spin programme.
■
The machine will not dry or the
laundry is not dry enough
■
The water tap is closed. (E00)
The drain filter is clogged. (E10)
The correct drying programme or time has
not been selected.
There is too much laundry in the appliance.
The laundry has not been spun enough
before drying.
■
■
■
■
60
Water is not
visible in the machine. The machine,
which is the result of modern technology, runs
in a very economical way with low water
consumption. Performance is
nevertheless excellent.
P1034UK
P1035UK
ENGLISH
The machine makes an unusual
noise. The machine is fitted with a commutator
motor which improves machine
performance.
If you are unable to identify or solve the
problem, contact our service centre. Before
telephoning, make a note of the model, serial
number and purchase date of your machine: the
Service Centre will require this information.
Mod.
..........
Ser.
Mod. ..........
Prod. No. ...........
P0042
Ser. No. .........
61
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
