124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 1

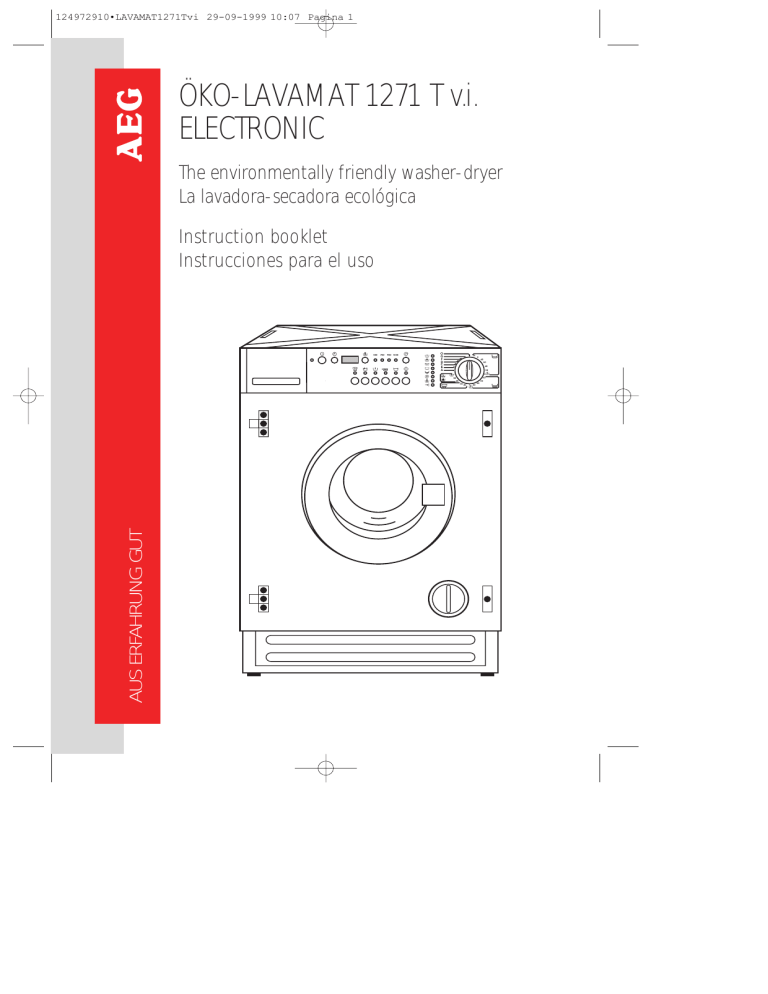

ÖKO-LAVAMAT 1271 T v.i.
ELECTRONIC
The environmentally friendly washer-dryer
La lavadora-secadora ecológica
Instruction booklet
Instrucciones para el uso
500
700
+
900 1200
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
AUS ERFAHRUNG GUT
30
40
30
40
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 2
Dear customer,
Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct
functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the
machine are marked with the clover symbol.
Should any problems arise, this booklet provides instructions on how to
solve them by yourself; see section “Something not working?”.
If this information is not sufficient, please contact our nearest SERVICE
CENTRE (address and telephone numbers are indicated on the enclosed
leaflet).
Printed on recycled paper.
People who think ecologically, act accordingly…
2
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 3
Contents
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tips for environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Main features of your washer-dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Description of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Programme selector dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mains-on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DELAY START button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
DRYING TIME button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
STAIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
EXTRA RINSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
SPIN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programme progress display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Altering a programme which is running . . . . . . . . . . . . . . . . . . . . . . . . . 16
Opening the door after the programme has started . . . . . . . . . . . . . . . . 16
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Before the first wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Sorting out and preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Detergents and additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Which detergent and additive? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
How much detergent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Liquid detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Adding a water softener (descaling product) . . . . . . . . . . . . . . . . . . . . . . . . 21
Information on water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 4
Contents
Preparing the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Garments not suitable for drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Drying symbols on garment labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Duration of the drying cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Modification of the drying time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Fibre residue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . . . . 24
How to wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Add detergent and additive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Switching the machine on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selection of the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selection of the STAIN, PREWASH or QUICK WASH option . . . . . . . . . . . . . 26
Selection of the EXTRA RINSE and/or RINSE HOLD option. . . . . . . . . . . . . . 26
Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
At the end of the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
How to dry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Drying only. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Automatic washing and drying (NON-STOP programme). . . . . . . . . . . . . . . 29
Programme charts: wash and special programmes . . . . . . . . . . . . . . 30-31
Programme chart: drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Consumption data for drying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
After each wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Periodical cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Something not working? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37-40
Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 5
Contents
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Instructions for installation and electrical connection . . . . . . . . . . . . . . 44
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Dimensions of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Front view and side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Building-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-51
5
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 6
Safety instructions
The safety of AEG appliances complies with the industry standards and
with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes.
General safety
• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious
danger. Contact your local AEG Service Force Centre.
• Never start the machine if the electrical supply cable is damaged or
the control panel is so damaged that inner components can be
reached.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never spray the machine with a jet of water. Danger of electric shock!
• During high temperature wash programmes and during the drying
cycle the door glass may get hot. Do not touch it!
• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.
• Small animals can gnaw electric wires and water hoses causing electrocution hazard and damage due to water leaks.
Positioning, connection, starting up
• Follow the instructions for positioning and connection.
• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.
• Should the machine be purchased in winter, when temperatures can
be below 0°, leave the appliance for 24 hours at ambient temperature
before starting it.
6
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 7
Safety instructions
Child safety
• Children are often not aware of how dangerous electrical appliances
can be. When the machine is working, children should be carefully
supervised and not be allowed to play with the appliance - there is a
risk that they could become trapped inside.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply
cable and destroy the plug with the remaining cable. Disable the door
catch in order to prevent children from becoming trapped inside
while playing.
Proper use
• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any damage that might occur.
• For safety reasons, the appliance must not be modified.
• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.
• Garments which have been in contact with flammable solvents
should not be machine washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held responsible for any damage.
• Always unplug the appliance and turn off the water tap after use.
7
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 8
Disposal
Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in
appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance. Help to keep your
country tidy!
Tips for environmental protection
To save water, energy and to help protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is protected too!).
• Use the energy saving programme when washing normally soiled garments.
• The machine works more economically if it is fully loaded (for both
washing and drying cycles).
• When small loads are washed, use only half to two thirds of the recommended amount of detergent.
• The machine will consume less energy if the laundry is adequately
spun before being dried.
• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.
• If the water has a medium or high degree of hardness (starting from
hardness degree II, see “Detergents and additives”) water softeners
must be added.
The amount of detergent can then be adjusted to hardness degree I (= soft).
8
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 9
Main features of your washer-dryer
• Programme and temperature setting using the programme selector.
• Stain programme for effectively treating stained washing.
• Energy saving programme for normally soiled cotton items.
• Speed for the final spin can be reduced to 900, 700 or 500 rpm.
• RINSE HOLD: the laundry is left immersed in the final rinse water to
prevent creasing.
• Delay timer: programme start can be delayed by 1 to 19 hours (e.g.
to times with a more economical power rate).
• Programme progress display showing the programme steps selected
and the programme phase which is running.
• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care.
• The drying programmes will enable you to have dry and soft laundry in a short time.
• 4-compartment drawer for detergent, fabric softener and bleaching
agent.
• Unbalance detection device: to prevent vibration during spinning.
9
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 10
Description of the appliance
Front view
Detergent drawer
Control panel
500
700
900 1200
+
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
Door
Drain filter
Adjustable feet
10
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 11
Description of the appliance
Control panel
E
500
700
O
G
F
D
C
B
A
900 1200
+
95
E
60
50
40
30
60
50
30
40
30
A B C D
A
B
C
D
E
F
G
H
J
K
=
=
=
=
=
=
=
=
=
=
F
GH
J
30
40
40
K
Mains-on light
ON/OFF button
Delay start button
Display
Drying time button
Option buttons
START/PAUSE button
Spin speed button
Programme progress display
Programme selector dial
Programme selector dial
The programme selector determines
the type of washing cycle (e.g. water
level, drum movement, number of
rinses), the washing temperature and
enables the required drying programme to be selected according to
the type of laundry.
The selector is divided into 5 sections:
• Cottons
• Synthetics
• Delicates
• Woollens
(hand washing)
• Special programmes A to G
• Reset programme O
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
11
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 12
Description of the appliance
The selector dial can be turned either clockwise or anticlockwise.
Position E corresponds to the ENERGY SAVING programme at approx.
67°C for normally soiled laundry, extended washing time (cannot be
combined with STAIN
and QUICK ).
ON/OFF button
Press this button to switch the machine on. Press it again to switch the
machine off.
Mains-on light
This light comes on when the ON/OFF button is pressed, and goes out
when it is pressed again.
START/PAUSE button
This button has three functions:
a) Start
After having selected the required programme, press this button to start
the machine; the corresponding pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the START/PAUSE
button: the corresponding pilot light and the light of the programme
phase which is running will start to flash.
To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.
c) Empty out water
At the end of a programme which ends with water in the drum (RINSE
HOLD
option), or after the “soak” programme A, press the
START/PAUSE button to empty out the water: after the soak programme,
the machine will empty only; after RINSE HOLD programmes, the
machine will empty and spin.
DELAY START button
The wash programme can be delayed from 1 hour up to a maximum of
19 hours.
The button must be pressed after selecting the programme and
before pressing the START/PAUSE button.
The figures indicating the delay appear for about 2 seconds in the display next to the button. The duration of the selected wash programme
is then displayed. One minute after depressing the START/PAUSE button, the machine starts its hourly countdown.
12
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 13
Description of the appliance
During the last hour, the remaining time is displayed every 5 minutes.
The delayed start function cannot be used with the SPIN F - G or PUMP
OUT D programmes.
To alter or cancel the preset delay, press the START/PAUSE button, then
press the DELAY START button until the required time is displayed or, if
you wish to cancel the delay, until the symbol 0 h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash
programme previously selected.
DRYING TIME button
By depressing this button you can select the desired drying time
according to the fabrics (cotton or synthetics) you have to dry.
To select the drying time you have to push the button until the drying
time you want appears in the display.
For COTTON you can select a drying time from 10 minutes to 2 hours
and 10 minutes (2.10).
For SYNTHETICS you can select a time from 10 minutes to 1 hour and
40 minutes (1.40).
Programme Option buttons
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.
When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
If an incorrect option is selected, the pilot lights flash for about 3 seconds
and the message Err is displayed.
STAIN
To treat heavily soiled washing or stained washing with stain remover
(extended main wash with time optimised stain action phase, not selectable for wool or programmes with temperatures lower than 40°C).
QUICK
By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool programme.
13
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 14
Description of the appliance
PREWASH
The machine performs a prewash cycle at 40°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Synthetics, and
with emptying of the water only for Delicates.
This option is not available with the wool programme.
For use when washing heavily soiled laundry.
Important: the STAIN, PREWASH and QUICK WASH options cannot be
selected together: one automatically disables the others.
EXTRA RINSE
Can be used with all programmes except the wool programme. The
machine performs 4 rinses instead of 3.
This option is recommended for people who are allergic to detergents
and in areas where the water is very soft.
RINSE HOLD
When this button is pressed, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the programme has finished,
the corresponding pilot light on the programme progress display flashes
to indicate that the water must be emptied out.
To empty out water:
• press the START/PAUSE button: after emptying, the machine performs
the spin cycle required for the type of wash selected;
• select the PUMP OUT programme D to empty out the water without
spinning.
Warning! The programme selector dial must be turned first to RESET O
and then to programme “PUMP OUT” D.
This option can also be selected for the wool programme: the last
rinse water is emptied out but the machine does not spin.
If the water is not emptied out, the machine automatically empties
itself after 18 hours.
The RINSE HOLD option cannot be selected for the automatic WASHING &
DRYING programme.
SPIN SPEED
Press this button to reduce the maximum speed of the final speed proposed
by the machine for the selected programme.
The maximum spin speed for cotton is 1200 rpm, for synthetics and
wool 900 rpm and for delicates 700 rpm.
14
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 15
Description of the appliance
Display
The display shows the following information:
• if the programme selector dial is on the RESET O position, three flashing
dashes appear immediately after pressing the ON/OFF button to indicate
that the machine is ready to receive instructions for the required wash
programme.
• Duration of the selected wash programme, calculated automatically
on the basis of the maximum recommended load for each type of fabric.
• Selected drying time (max. 2 hours and 10 minutes for cotton, 1 hour
and 40 minutes for synthetics).
After the programme has started, the time remaining is updated every
10 minutes, and every 5 minutes during the last 20 minutes.
• When the programme has finished, three flashing zeros are displayed.
• Delayed start, programmed using the special button .
The selected delay (19 hours max.) is indicated in the display. The
countdown is updated every hour, and every 5 minutes during the last
hour.
• Heating phase. A dot to the right of the figures in the display indicates that the machine is heating the water.
• Incorrect option selection. If an option which is not compatible with
the set wash programme is selected, the message Err is displayed.
Programme progress display
By selecting the wash programme, the pilot lights
corresponding to the various phases making up
the programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme
has finished, the END
pilot light comes on.
Prewash
Wash
Rinses
Rinse hold
Pump out
Spin
Dry
End
15
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 16
Description of the appliance
Cancelling a programme
To cancel a programme which is running, turn the programme selector
dial to the RESET O position: three flashing dashes will be displayed.
Warning! After a programme which ends with water in the drum
(RINSE HOLD
option), turn the selector dial first to RESET O and
then to the PUMP OUT programme D.
Altering a programme which is running
To alter a programme, first set the machine to PAUSE by pressing the
START/PAUSE button .
Before the machine starts the heating phase, i.e. within the first 15
minutes for cotton programmes, 10 minutes for synthetic and delicate
programmes and 5 minutes for the wool programme, the selected wash
cycle can be modified.
Warning! If the programme selector dial is turned first to RESET O and
then to the new programme, the programme which is running is cancelled, the water is emptied out and the machine re-starts from water
filling. To simply modify the programme which is running, turn the programme selector dial to the desired position (avoiding the RESET position):
when the START/PAUSE button is pressed again, the machine restarts with
the newly selected programme from the point at which it was interrupted.
Opening the door after the programme has started
The door can only be opened before the machine starts the heating
phase (within the first 15, 10 or 5 minutes, depending on the programme selected - see paragraph above) and during the rinse phase.
Set the machine to PAUSE (by pressing the START/PAUSE button).
If the door does not open, this means that the machine is already heating, or that the water level is above the bottom edge of the door.
This prevents water from spilling out when the door is opened.
16
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 17
Description of the appliance
Detergent dispenser drawer
Cl
Programme chart
Compartment for prewash detergent and stain remover. The prewash
detergent is added at the beginning of the wash programme, the stain
remover during the STAIN-Action phase in the main wash at the optimal
time.
Compartment for powder or liquid detergent used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric softener, starch).
It is emptied at the last rinse.
Compartment for bleaching agent.
It is emptied at the first rinse.
The quantity of additives and bleaching product must not exceed
the «MAX» mark in the drawer.
Before the first wash
Before your first wash, we recommend that you run a cotton cycle at
60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.
Pour 1/2 a measure of detergent into the dispenser drawer and start the
machine.
17
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 18
Preparing the wash cycle
Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and care labels (see
“Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and forming bundles,
it is advisable to close zips, button up pillowcases and quilt covers and
tie up loose straps such as those of aprons.
• Turn double faced items inside out (sleeping bags, anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with trim inside
out.
• Wash small and delicate items (baby socks, tights) inside a laundry net
or in a pillow case closed with a zip, or in larger socks.
• Treat curtains with special care. Remove all metal or plastic hooks or
put them in a net or a bag. We take no responsibility for any damage.
• Whites and coloureds must be washed separately: white items can
loose their whiteness.
• New coloured fabrics often have excess dyes; it is advisable to wash
them separately for the first time.
• Wash small and large items together; this improves the washing result
and the laundry is better distributed during spinning.
• Shake out garments before putting them into the machine.
• Insert each garment separately.
18
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 19
Preparing the wash cycle
Weight of laundry
Sort of laundry
Approximate
dry weights
Bathrobes
1200 g
Work shirts
300-600 g
Quilt covers
700 g
Sheets
500 g
Blouses
100 g
Hand towels
200 g
Tea towels
100 g
Shirts
200 g
Pillowcases
200 g
Night-gowns/Pyjamas
200-250 g
Tablecloths
200-300 g
Underwear
250 g
Types of fabric and care labels
The labels on garments help you to select the most suitable wash programme. The laundry should be sorted out according to the type of fabric and the instructions indicated on care labels.
Temperatures indicated on labels are always maximum temperatures.
Cotton 95
Linen and cottons marked with this symbol can be washed at high temperatures.
Cotton 60
Linen and cottons marked with this symbol are colourfast and can be
washed at 60°C.
Cotton 40 30
Garments marked with these symbols have delicate colours, therefore
the washing temperature must not exceed these values.
Synthetics 40 60
Mixed and synthetic fabrics marked with these symbols require a gentle
wash programme and they must therefore be washed using the specific
programme.
19
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 20
Preparing the wash cycle
Delicates 40 30
Microfibres, synthetics or curtains marked with these symbols require a
very gentle treatment.
The DELICATES programme is suitable for this type of fabric.
40
30
Woollens and particularly delicate items
Fabrics such as wool, wool mix or silk marked with this symbol are particularly sensitive to machine washing.
The WOOLLENS programme is suitable for this type of fabric.
If the label has the symbol
(do not wash), the garments must not
be machine washed!
20
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 21
Preparing the wash cycle
Detergents and additives
Which detergent and additive?
Use only detergents and additives for washing machines. Follow the
manufacturer’s instructions.
How much detergent?
The quantity depends on:
• the load:
if the manufacturer does not provide any indications on the amount of
detergent for small loads, use about one third less than the suggested
amount for half loads and half the amount for very small loads;
• the degree of soil:
use a small amount of detergent for lightly soiled garments. Judge
the amount according to the detergent manufacturer’s instructions
and size of the load;
• the water hardness:
the harder the water, the more detergent required. Instructions
according to water hardness are given on the detergent pack.
Liquid detergent
Liquid detergent can be poured directly into the main wash compartment
of the dispenser drawer immediately before starting the programme, or
a special dispenser can be used that is placed directly in the drum. Measure the detergent according to the manufacturer’s instructions.
Adding a water softener (descaling product)
A water softener must be added when water has a medium-high degree
of hardness (from degree of hardness II). Follow the manufacturer’s
instructions. The quantity of detergent can then always be adjusted to
degree of hardness I (= soft). Information on water hardness can be
obtained from your local water supply authority.
Information on water hardness
Degree of hardness
German degrees °dH French degrees °TH
I=Soft
0-7
0-15
II=Medium
7-14
16-25
III=Hard
IV=Very hard
14-21
26-37
more than 21
more than 37
21
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 22
Preparing the drying cycle
As a dryer, the machine works on the condensation principle.
Therefore, the water tap must be open and the drain hose must
drain water into a sink or into the drain pipe, even during the drying cycle.
Load
Sort of laundry
max. load
(dry weight)
Linen and cottons
2.25 kg
Synthetics
1.5 kg
Warning:
Loads of washed laundry exceeding these values must be divided
before being dried, otherwise poor results will be obtained.
Garments not suitable for drying
• Particularly delicate items such as synthetic curtains, woollen and silk,
garments with metal inserts, nylon stockings, bulky garments such as
anoraks, bedcovers, quilts, sleeping bags and duvets must not be
machine dried.
• Garments padded with foam-rubber or materials similar to foamrubber must not be machine dried; they represent a fire hazard.
• Also, fabrics containing residues of setting lotions or hair sprays, nail
solvents or similar solutions must not be machine dried in order to
avoid the formation of harmful vapours.
22
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 23
Preparing the drying cycle
Drying symbols on garment labels
Always look at the garment label to check whether garments can be
machine dried.
The following symbols refer to drying:
Machine drying is usually possible
Normal drying (normal temperature)
Gentle drying (reduced temperature)
Do not machine dry
Garments marked with the symbol
should not be machine dried.
Duration of the drying cycle
The drying time can vary according to
• the final spin speed;
• the required degree of drying (extra dry, only for cottons, store dry or
iron dry);
• the type of laundry;
• the size of load.
The usual drying times are indicated in the programme chart. As you
become more familiar with the appliance, you will discover the drying
times that best suit your needs according to the various type of fabric.
It is a good idea to make a note of these times.
Modification of the drying time
If you wish to modify the drying time when a drying programme is running,
first depress START/PAUSE button to set the machine to PAUSE. After modifying the time, depress START/PAUSE again to continue the programme.
Fibre residue
After drying fluffy fabrics, such as new towels, it is advisable to perform
a gentle rinse (progr. B) to be sure that any residue that may remain in
the tub is completely removed and does not stick to garments dried
afterwards.
After each drying cycle the filter should be checked and cleaned.
23
124972910•LAVAMAT1271Tvi 29-09-1999 10:07 Pagina 24
Preparing the drying cycle
Additional drying
Should the laundry still be too wet at the end of the programme, set
another short drying cycle.
Warning! To prevent the formation of creases or shrinking of fabrics, avoid excessive drying.
Automatic washing and drying (NON-STOP programme)
The NON-STOP programme can be used with
• cottons, linen
• synthetics
It cannot be used for delicate fabrics and woollens.
Warning: the maximum load sizes for NON-STOP operation - washing
plus drying - are as follows:
- cottons and linen
max 2.25 kg
- synthetics
max 1.50 kg
The drying time has to be selected after choosing the wash programme.
24
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 25
How to wash
Load the laundry
Open the door.
Place the laundry in the drum, one item at a time. Distribute laundry as
evenly as possible. Close the door.
Add detergent and additive
Cl
Pull the drawer
out till it stops.
Pour the main
wash detergent
into compartment .
If you wish to
perform a prewash, or a STAINAction programme, pour detergent or stain remover into compartment .
Important!
Do not use normal detergent for the STAIN-Action programme,
always use a STAIN remover.
Cl
Pour the fabric softener into compartment
and the bleaching
agent into compartment
without exceeding the “MAX” mark.
Close the drawer, pushing it fully in.
Switching the machine on
To switch the machine on,
press the ON/OFF
button: if the programme
selector dial is on the
RESET O position, three
flashing dashes will be displayed. If the programme
selector dial is positioned
on a wash programme, the
duration of that programme will be displayed.
25
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 26
How to wash
Selection of the desired wash programme
Turn the programme selector dial
to the desired position: the lights
corresponding to the different
phases making up the selected
programme light on.
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
Selection of the spin speed
To select the desired spin speed, press
the SPIN SPEED
button: the corresponding light comes on.
500
700
900 1200
Selection of the STAIN, PREWASH or QUICK
WASH option, depending on the degree of soil of the
laundry and on the type of fabric.
The corresponding light comes on.
Selection of the EXTRA RINSE and/or RINSE HOLD
option
The corresponding light(s) come on.
26
+
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 27
How to wash
Selection of the DELAY START option
To delay starting of a programme, press the
DELAY START button before starting the
machine. The figures corresponding to the
selected delay will be displayed for about 2
seconds, after which the duration of the
selected programme will appear on the display.
When the START/PAUSE button is pressed, the selected delay will
again appear on the display and the machine starts its countdown.
Starting the programme
To start the selected programme, press the START/PAUSE
button; the corresponding light stops flashing.
The pilot light corresponding to the wash phase which is
running is on.
After about 30 seconds the programme starts.
27
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 28
How to wash
At the end of the programme
The machine stops automatically and three flashing zeros are displayed.
The END
and spin speed pilot lights, as well as the pilot light(s) corresponding to the selected option(s), stay on.
If the RINSE HOLD
option has been selected, the corresponding
pilot light on the programme progress display flashes to indicate that
the water must be emptied out before opening the door.
The pilot light of the START button flashes and tree flashing zeros are
displayed.
Release of the lock is indicated by an audible signal.
Turn the programme selector dial to RESET O.
Switch the machine off by pressing the ON/OFF button .
Remove the laundry from the drum.
Check that the drum is empty so as to avoid a subsequent wash being
damaged by any forgotten items.
Close the water tap.
Leave the door open to prevent the formation of mildew and unpleasant smells.
28
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 29
How to dry
Drying only
Warning! Do not exceed the maximum laundry loads:
- 2.25 kg for linen and cottons
- 1.50 kg for synthetics.
The water tap must be open and the drain hose must be positioned in
the sink or connected to the drain pipe.
Depress the ON/OFF button
to switch the machine on.
Select the drying programme
(for cotton or synthetics).
Depress the DRYING TIME button
until
the time you want appears in the display.
Press the START/PAUSE
button to start
the programme.
At the end of the cycle, turn the programme selector dial to RESET O
and press the ON/OFF button again to switch the appliance off.
Remove the laundry.
Automatic washing and drying
(NON-STOP programme)
Warning! For NON-STOP programmes, it is also essential not to exceed
the maximum load sizes of 2.25 kg for cotton and 1.5 kg for synthetics.
If you use a dosing device in a washer-dryer, please ensure the dosing
device/ball is removed before carrying out a drying programme.
Load the laundry.
Add detergent and additives.
Switch the machine on by depressing the ON/OFF button.
Select the wash programme.
Select eventually the required options by means of the relevant buttons.
If possible, do not select a spin speed lower than that proposed by the
appliance to avoid a too long drying time so saving energy.
Select the drying time.
Start the programme by depressing the START/PAUSE button.
At the end of the programme, turn the selector dial to RESET and press
the ON/OFF button again to switch the machine off.
Remove the laundry.
29
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 30
Programme chart
Wash programmes
Wash
Temp.
programme
Fabrics
Additional
functions
Consumption*
Max.
Energy
Water Duration
load
Kwh
lt.
min.
Cotton and linen,
for example norWhite
Cottons 95°-60° mally soiled work
garments, sheets,
household linen,
underwear, towels.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
4.5 kg
2.0
44
155
Cotton and linen, for
example normally to
lightly soiled sheets
and household linen.
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
4.5 kg
1.5
41
155
Coloured
Coloured cotton or
cottons 60°-50° linen fabric, shirts,
40°-30°
underwear, towels.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
4.5 kg
1.1
41
130
Synthetic fabrics,
Synthetics 60°-50° underwear,
coloured garments,
40°-30°
non-shrink shirts,
blouses.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
2 kg
1.0
59
85
STAIN
QUICK
Delicate fabrics, for PREWASH
40°-30°
example curtains. RINSE PLUS
RINSE HOLD
SPIN SPEED
2 kg
0.5
52
60
40°-30
COLD Wool, wool mixture, RINSE HOLD
silk.
SPIN SPEED
1 kg
0.4
42
55
E
Whites
ECONOMY
Delicates
Wool
60°
ECONOMY
Select the economy programme “E” instead of the 95°C programme when washing normally soiled whites; the wash is carried out at about 67°C, with consequent energy saving. The washing phase will be slightly longer.
In compliance with EC directive 92/75, the consumption figures indicated on the
energy label refer to the 60°C wash programme for cotton.
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet
water temperature and on the ambient temperature. It corresponds to the highest temperature for each wash programme.
30
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 31
Programme chart
Special programmes
Programme
Type of
laundry
Programme phases
Soak
A
Soak at 40°C.
Stop with water in drum.
To empty only: press the
START/PAUSE button .
Heavily soiled To empty and spin:
select the desired spin
fabrics,
except wool. speed and press the
START/PAUSE button.
The machine automatically empties itself after
18 hours.
Gentle
rinses
B
This programme can
be used for
rinsing hand
washed garments.
3 rinses with liquid
additive.
Short spin.
(700 rpm max)
Softeners
C
Hand washed
1 rinse with liquid addigarments to
tive.
be starched
Spin.
or softened.
Pump out
D
For emptying
out the last
rinse water in The water is emptied
programmes out.
with the Rinse
Hold option.
Spin
F
Separate spin
Spin.
for all fabrics.
Separate spin
Short spin for synthetics
and delicate
G
fabrics.
Reset
Cancel.
O
Short spin.
(700 rpm max)
Consumption*
Additional Max.
Energy
Water Duration
functions load
Kwh
lt.
min.
4.5 kg
0.6
17
25
RINSE
PLUS
RINSE
HOLD
SPIN
SPEED
4.5 kg 0.02
40
20
RINSE
HOLD
SPIN
SPEED
4.5 kg 0.04
18
20
/
2.5
/
10
/
SPIN SPEED
SPIN SPEED
4.5 kg 0.03
2 kg
5
For cancelling the wash programme which is running.
* The consumption data shown on this chart is to be considered purely
indicative, as it may vary depending on the quantity and type of laundry,
on the inlet water temperature and on the ambient temperature.
31
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 32
Programme chart
Drying
Degree of drying
Extra dry
Ideal for towelling
materials
Type of fabric
Cotton and
linen
(bathrobes,
bath towels,
etc.)
Cotton and
linen (towels,
T-shirts,
bathrobes)
Store dry (*)
Suitable for items to
Synthetics and
put away without
mixed fabrics
ironing
(jumpers,
blouses,
underwear,
household
linen)
Cotton and
linen (sheets,
tablecloths,
shirts, etc.)
Iron dry
Suitable for ironing
Synthetics and
mixed fabrics
(shirts, blouses,
household
linen)
Max. load
Spin speed
Drying time
mins
2.25 kg
900
1200
110-120
95-105
1 kg
900
1200
65-75
55-65
2.25 kg
900
1200
100-110
85-95
1 kg
900
1200
55-65
45-55
1.5 kg
900
90-100
1 kg
900
55-65
2.25 kg
900
1200
70-80
60-70
1 kg
900
1200
50-55
35-40
1.5 kg
900
70-80
1 kg
900
40-45
(*) The STORE DRY drying programme for cotton is the reference programme
for the Energy Label data, in compliance with standard EEC 92/75.
32
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 33
Consumption data for drying
The values shown in the chart have been obtained in laboratory tests.
They may vary when the appliance is used at home, but they can be
used as indicative values.
Spin speed
Max
load
Water
litres
Energy
kWh
Duration
minutes
Cotton
Extra dry
1200
2.25 kg
29
1.9
95-105
Cotton
Store dry
1200
2.25 kg
26
1.7
85-95
Cotton
Iron dry
1200
2.25 kg
19
1.25
60-70
Synthetics
Store dry
900
1.5 kg
31
1.25
100-110
Synthetics
Iron dry
900
1.5 kg
22
0.9
70-80
Degree of drying
33
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 34
Cleaning and maintenance
After each wash
At the end of the wash programme, pull the dispenser drawer out a little to let it dry.
Leave the door ajar to allow air to circulate.
If the machine is not used for a prolonged period:
Close the water tap and unplug the appliance.
Periodical cleaning
Exterior
Clean the outside of the cabinet with soap and water only. Rinse with
clean water and dry.
Important: do not use methylated spirits, solvents or similar products
to clean the cabinet.
Detergent dispenser drawer
After a while,
detergents and
fabric softeners
leave deposits in
the drawer.
Clean the drawer,
from time to
time, by rinsing it
under a running
tap. To remove the drawer from the machine, press the button in the
rear left-hand corner.
To facilitate cleaning, the top part of the additive compartment can be
removed.
Detergent can also accumulate inside the
drawer recess: clean it with an old toothbrush.
Refit the drawer after cleaning.
Cl
34
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 35
Cleaning and maintenance
Drain filter
The drain filter
collects threads
and small objects
inadvertently left
in the laundry.
Check regularly
that the filter is
clean.
Place a container
under the filter and unscrew it; some water will come out of the filter.
Pull out the filter.
Clean the filter under a running tap, then refit
it, screwing it fully in.
Water inlet filter
If you notice that the machine is taking longer to fill, check that the
filter in the water inlet hose is not blocked.
Turn off the water tap.
Unscrew the hose from the tap and remove
the filter.
Clean it with a stiff brush.
Refit the filter and screw the hose back onto
the tap.
35
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 36
Cleaning and maintenance
Emergency emptying out
If the water is not discharged (pump is blocked, filter or drain hose are
clogged), proceed as follows to empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled;
• place a bowl on the floor;
• put the drain hose end into the bowl and let the water out.
Should it not be possible to have access to the drain hose because, for
example the appliance is built in the kitchen furniture, slightly loosen
the drain filter after placing a bowl on the floor to let the water come
out slowly.
At the end screw the filter again.
Frost precautions
If the machine is installed in a place where the temperature could drop
below 0°C, proceed as follows:
• Close the water tap and unscrew the water inlet hose from the tap.
• Place the end of the drain hose and the inlet hose in a bowl placed
on the floor.
• Select the “PUMP OUT” programme D and run it until the machine
stops.
• Turn the programme selector dial to RESET O.
• Press the ON/OFF button
to switch the machine off.
• Remove the plug from the power socket.
• Screw the water inlet hose back on and put the drain hose back in its
place.
By doing this, any water remaining in the machine is removed, avoiding
ice forming and consequently damage to the appliance.
When you use the machine again, make sure that the ambient temperature is above 0°C.
36
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 37
Something not working?
If during the spin cycle the machine makes an unusual
whistling noise, different from the noise made by traditional washing machines, this is due to a new type of
motor.
If water is not visible in the drum, this is due to
the modern technology of new washing
machines that use less water than traditional
machines.
Troubleshooting
If a problem arises, you can try to solve it yourself following the
instructions below.
If you call out an engineer when one of the following problems arises,
or to repair a fault due to incorrect use, the call-out will be charged
even if requested within the guarantee period.
During machine operation the following alarm codes may be displayed:
- E00: problem with the water supply
- E10: problem with water draining
- E20: door open
Once the problem has been eliminated, press the START/PAUSE
button to restart the programme. If after all checks, the problem persists,
contact your local AEG Service Force Centre.
Problem
Possible cause
The ON/OFF button
has not been depressed.
The main electrical fuse
has blown.
The door is not properly
The machine does not work closed (E20).
The plug is not connected.
The START button has not
been pressed.
The DELAY START
option has been selected.
Solution
Depress the button.
Replace the fuse.
Close the door; the click
of the lock should be heard.
Insert the plug.
Press the button.
Check the selected delay on
the display.
37
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 38
Something not working?
Problem
Possible cause
Solution
The water tap is closed (E00). Open the water tap.
The water inlet hose is
squashed or kinked (E00).
The machine does not fill
The machine fills then
empties immediately
Check the whole length of the
hose and remove the kink.
The small filter of the water Clean the filter.
inlet hose is clogged (E00).
The door is not properly
closed (E20).
Close the door.
The end of the drain hose
is too low.
Place the hose at the right
height (see Installation
section).
The drain hose is
squashed or kinked (E10).
Check the whole length of
the hose and remove the
kink.
The drain filter or the
Clean the filter or check
drain hose are clogged (E10). the hose.
The machine does not
empty and/or does not spin The RINSE HOLD option
(stop with water in drum)
has been selected.
Empty out the water by
pressing the START button
or selecting the PUMP OUT
programme.
The laundry is not evenly
Redistribute the laundry
distributed inside the drum. manually in the drum.
There is water on the floor
38
Too much detergent has
been used.
Measure detergent
according to the
manufacturer’s instructions.
An unsuitable detergent
has been used that
creates too much foam.
Use a suitable washing
machine detergent.
One of the connectors on
the water inlet hose is
leaking.
Check that the hose is
firmly screwed on at both
ends.
The drain filter has not
been properly screwed on
after cleaning.
Fully screw the filter into
place.
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 39
Something not working?
Problem
The machine vibrates or is
noisy
The door will not open
Possible cause
Solution
The transit bolts have
not been removed.
Check that the machine
has been unpacked as
described in the Installation
section.
The feet have not been
adjusted.
Carefully level the machine.
There is little laundry in
the drum.
Correct operation of the
machine is not affected.
The programme is still
running.
Wait until the end of the
programme before opening
the door.
The door lock has not yet
released.
Wait about 2 minutes for
the door lock to release.
The water level is above the
bottom edge of the door.
Before opening the door,
the water must be emptied
out.
The machine is heating the Wait until the end of the
water.
heating phase.
39
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 40
Something not working?
Problem
Possible cause
Solution
The unbalance detection
device that prevents
excessive vibration during
spinning has cut in.
If the laundry is not evenly
distributed inside the drum
at the beginning of the
spin cycle, the machine
detects this and tries to
redistribute it more evenly
by means of a few drum
rotations.
Only when the laundry is
more evenly distributed
will the spin cycle be
performed, at a lower speed,
if the laundry is not evenly
distributed.
If, after about 15 minutes,
the laundry is still tangled,
the machine will not spin.
Therefore, if the laundry is
still wet at the end of the
cycle, it is advisable to
redistribute it manually
inside the drum and to
select the spin programme
again.
The water tap is not open
(E00).
Open the water tap.
The drain filter is clogged.
Clean the filter.
The drying time has not
been selected.
Select the drying time.
Spinning starts late or the
machine does not spin
The machine will not dry or
An appropriate drying time
the laundry is not dry
has not been chosen.
enough
There is too much laundry
inside the appliance.
40
Select the appropriate
drying time suitable for the
required degree of drying,
according to the type of
fabric (cottons or synthetics).
Reduce the load.
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 41
Something not working?
Unsatisfactory washing results
If the laundry looks grey and lime scale is found in the drum
• Too little detergent has been used.
• An unsuitable detergent has been used.
• Stubborn stains have not been treated prior to washing.
• The programme/temperature has not been correctly selected.
If grey stains remain on the laundry
• Laundry stained with ointments, grease or oil has been washed with
an insufficient amount of detergent.
• The temperature selected for the wash programme was too low.
• Fabric softener - especially the concentrated type - has come into
direct contact with the laundry. Wash these stains immediately and
pour fabric softener carefully.
Foam is still visible even after the last rinse
• Modern detergents often produce foam, even in the last rinse. However the laundry has been completely rinsed.
White residue is left on the laundry
• This is due to insoluble components in modern detergents and is
therefore not the result of insufficient rinsing. Shake or brush the
laundry. In future, it may be better to turn garments inside out before
washing them. Check the choice of detergent; try using liquid detergents.
41
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 42
Technical data
Height x Width x Depth
Depth with door opened
Height adjustment
Net weight
Load (depending on programme)
Use
Drum speed during washing
Drum speed during spinning
Water pressure
82x60x54.5 cm
91 cm
± 13 mm approx.
76 kg approx.
4.5 kg max.
domestic
max. 55 rpm
1200/900/700/500 rpm
1 - 10 bar
(=10-100N/cm2 = 0.1-1.0Mpa)
This appliance complies with the following EC directives:
- 73/23/EEC of 19.2.1973 “Low voltage directive”, including directive
93 / 68 / EEC
- 89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.
42
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 43
Service
In the section “Something not working?” some problems that can be
solved by yourself are listed. Read this section in the event of problems.
If you are not able to find a solution, contact the Service centre.
(Addresses and telephone numbers are given on the enclosed leaflet).
In all cases, explain your problem carefully, in order to facilitate troubleshooting: the engineer will be able to decide whether a service call
is necessary.
Take note of the serial number (Ser.-No.) and the product number (Prod.
No.) indicated on the rating plate.
Ser. No. . . . . . . . . . . . . . . . . . . . . . .
Prod. No. . . . . . . . . . . . . . . . . . . . . .
Mod. ÖKO LAVAMAT 1271Tv.i. Type P6417650
Prod. No 914676006 00
10 A
220-230V~ 50Hz 2200 W
Ser. No.
Furthermore, try to specify, as precisely as possible:
- The symptoms of the fault
- When the fault occurs
When can a service visit be charged during the guarantee period?
- when it should have been possible to solve the problem by yourself,
with the help of the troubleshooting chart (see section “Something
not working?”)
- when the engineer has to come out several times because he has
not been given all the relevant information he needs and so, for
example, has to fetch spare parts. Repeated trips can be avoided if
you prepare your call to the Service centre as described above.
43
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 44
Instructions for installation and electrical connection
Safety instructions for the installer
• This appliance is heavy, care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in
doubt, do not use it and contact the retailer.
• All internal packing must be removed before using the appliance.
Serious damage may be caused to the machine or adjacent furniture
if the protective transit devices are not completely removed. Refer to
the relevant paragraph.
• Any electrical work required to install this appliance must be carried
out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried
out by a qualified plumber.
• After having installed the machine, check that it is not standing on
its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the adjustable feet and the floor.
• The installation should comply with local water authority and building regulations requirements.
• Should the appliance power supply cable need to be replaced, this
should be carried out by our Service Force Centre.
44
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 45
Dimensions of the appliance
Front view and side view
600
500
700
+
910
900 1200
525
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
10
160
810
90
540
Rear view
340
170
15
25
Cold water
Power cable
Drain
45
85
45
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 46
Installation
Unpacking
All transit bolts and packing must be removed before using the appliance.
Using a spanner, unscrew and remove the
rear right-hand bolt and lay the machine on
its back, taking care not to squash the hoses.
This can be avoided by placing one of the
corner packing pieces between the machine
and the floor.
Remove the polystyrene base and
take off the bottom panel by
unscrewing the
central screw.
Carefully slide out
the right polythene bag.
Repeat the operation for the left
and central polythene bags.
Re-fit the bottom
panel using the 4
screws supplied
with the door
hinges (in the plastic bag) and the previously removed screw.
46
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 47
Installation
Set the machine
upright and
remove the two
remaining bolts
from the back.
Pull out the three
plastic spacers
from the holes
into which the bolts were fitted.
Plug the open holes with the plugs which you will find on the back of the
appliance.
You are advised to keep all transit devices so that they can be refitted if the
machine ever has to be transported again.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not impeded by
carpets, rugs etc.
• Before placing it on small tiles, apply a rubber coating.
• Never try to correct any unevenness in the floor by putting pieces of
wood, cardboard or similar materials under the machine.
• If it is impossible to avoid positioning the machine next to a gas
cooker or coal-burning stove, an insulating panel (85x57 cm) covered
with aluminium foil on the side facing the cooker or stove, must be
inserted between the two appliances;
• The machine must not be installed in rooms where the temperature
can drop below 0.
• The water inlet hose and the drain hose must not be kinked.
• Please ensure that when the appliance is installed, it is easily accessible for the engineer in the event of a breakdown.
Levelling
Carefully level by screwing the adjustable
feet in or out. Never place cardboard, wood
or similar materials under the machine to
compensate for any unevenness in the
floor.
47
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 48
Installation
Water inlet
Connect the
water inlet hose
to a separate tap
with a 3/4"
thread after havA
ing inserted the
small filter “A”
supplied with the
machine.
The other end of
the inlet hose which connects to the machine can be turned in any
direction. Simply loosen the fitting, rotate the hose and retighten the
fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too short and you do not
wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.
Water drainage
The end of the drain hose can be positioned
in three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine
is emptying.
This could be done by tying it to the tap
with a piece of string or attaching it to the wall.
In a sink drain pipe branch. This branch must be above the trap so that
the bend is at least 60 cm above the ground.
Directly into a
drain pipe at a
height of not less
than 60 cm and
not more than
90 cm.
The end of the
drain hose must always be ventilated, i.e. the inside diameter of the
drain pipe must be larger than the outside diameter of the drain hose.
The drain hose must not be kinked. Run it along the floor; only the part
near the drainage point must be raised.
48
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 49
Installation
Electrical connection
This machine is designed to operate on a 220-230 V, single-phase,
50 Hz supply.
Check that your domestic electrical installation can take the maximum
load required (2.2 kW), also taking into account any other appliances in
use.
Connect the machine to an earthed socket.
The manufacturer does not accept any responsibility for damage or
injury through failure to comply with the above safety precaution.
Permanent connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This operation must be performed by a qualified electrician.
49
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 50
Building-in
This appliance has been designed to
be built into the kitchen furniture.
The recess should have the dimensions shown in picture A.
600
600
120
416 176, 5
818
in.
570 m
820 min
596
515
541
195
160
8
90
0
49
165
A
Preparation and assembly of the door
The machine is originally prearranged for the assembly of a
door opening from right to left.
In this case it is sufficient to screw
in the hinges (1) and the countermagnet (6) provided with the appliance, at the right level (Fig. B).
6
1
1
4
2
7
5
3
a) Door
The dimensions of the door should
23 8
B
be:
- width
595-598 mm
- thickness 16-22 mm
The height (C-Fig. C) depends on the height of the adjacent furniture's base.
416
C
B
35 Ø 12.5-14 depth
b) Hinges
16
-22
To mount the hinges it is necessary
to drill two holes (dia. 35 mm, depth
14 mm) on the inner side of the
door. The distance between the holes
hobs fixing centres must be 416 mm.
The distance (B) from upper edge
,5
of the door to the centre of the
22+1
hole depends on the adjacent fur8
9
595-5
C
niture's dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of screws for wood (2-Fig. B).
50
124972910•LAVAMAT1271Tvi 29-09-1999 10:08 Pagina 51
c) Mounting the door
Fix the hinges (1) to the machine by means of the M5x8 screws (3-Fig. B).
The hinges can be adjusted to compensate for possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the screw (3-Fig. B),
adjust the door and tighten the screw again.
d) Counter-magnet (6)
The appliance is pre-arranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary
to screw the counter-magnet (6) (steel disk
+ rubber ring) into the inner side of the
door.
Its position must correspond to the magnet
(4) on the appliance (see picture D).
6
4
8
D
If the door has to be opened from
left to right, invert the position of
the plates (7), the magnet (4) and
the plate (5) (Fig. B and E). Mount
the countermagnet (6) and the
hinges (1) as previously described.
Important: the plastic screw (8)
should never be loosened (Fig. B
and E).
6
4
5
7
1
3
8
E
2
Attention!
When the appliance is installed the power supply cable must be easily
accessible.
51
