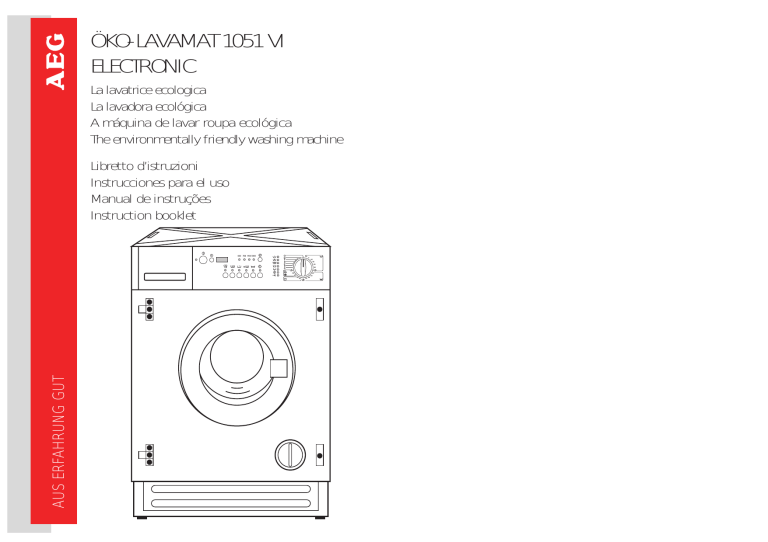

ÖKO-LAVAMAT 1051 VI
ELECTRONIC
La lavatrice ecologica
La lavadora ecológica
A máquina de lavar roupa ecológica
The environmentally friendly washing machine
Libretto d’istruzioni
Instrucciones para el uso
Manual de instruções
Instruction booklet
500 700 900 1000
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
AUS ERFAHRUNG GUT
30
40
30
40
Contents
Dear customer,
Please read these operating instructions carefully and pay particular
attention to the safety notes indicated in the first pages. We recommend that you keep this instruction booklet for future reference and
pass it on to any future owners.
The warning triangle and/or the key words (Warning!, Caution!) emphasize information that is particularly important for your safety or correct
functioning of the appliance.
This symbol guides you, step by step, in the operation of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of the appliance.
Tips and information about economical and ecological use of the
machine are marked with the clover symbol.
Should any problems arise, this booklet provides instructions on how to
solve them by yourself; see section “Something not working?”.
If this information is not sufficient, please contact our nearest SERVICE
CENTRE (address and telephone numbers are indicated on the enclosed
leaflet).
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Discarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Tips for environmental protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Main features of your washing machine . . . . . . . . . . . . . . . . . . . . . . . . 141
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Programme selector dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
ON/OFF button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Mains-on light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
START/PAUSE button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
DELAY START button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Programme Option buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
STAIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
QUICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
PREWASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
RINSE PLUS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
RINSE HOLD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
SPIN SPEED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Programme progress display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Cancelling a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Modification of a programme which is running . . . . . . . . . . . . . . . . . . 148
Opening the door after the programme has started . . . . . . . . . . . . . . . 148
Detergent dispenser drawer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Preparing the wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Sorting out and preparing the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Weight of laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Types of fabric and care labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Detergents and additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Which detergent and additive? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
How much detergent? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Liquid detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Adding a water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Information on water hardness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Printed on recycled paper.
People who think ecologically, act accordingly…
134
135
Contents
How to wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Load the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Add detergent and additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Switching the machine on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Selection of the desired wash programme . . . . . . . . . . . . . . . . . . . . . . . . . 155
Selection of the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Selection of the STAIN, PREWASH or QUICK WASH option . . . . . . . . . . . . 155
Selection of the RINSE PLUS and/or RINSE HOLD option. . . . . . . . . . . . . . 155
Selection of the DELAY START option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Starting the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
At the end of the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Programme charts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158-159
Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
After each wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Periodical cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Bodywork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Detergent dispenser drawer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Drain filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Water inlet filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Emergency emptying out. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Frost precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Something not working?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Unsatisfactory washing results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Instructions for installation and electrical connection . . . . . . . . . . . . . 170
Safety instructions for the installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Dimensions of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Front view and side view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Levelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Water drainage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Permanent connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Bulding-in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
136
Safety instructions
The safety of AEG appliances complies with the industry standards and
with legal requirements on the safety of appliances. However, as manufacturers, we feel it is our duty to provide the following safety notes.
General safety
• Repairs to the machine must be carried out only by qualified personnel. Repairs carried out by inexperienced persons could cause serious
danger. Contact your local AEG Service Force Centre.
• Never start the machine if the electrical supply cable is damaged or
the control panel or worktop are so damaged that inner components
can be reached.
• Unplug the appliance before carrying out any cleaning or maintenance operations.
• Never pull the power supply cable to remove the plug from the socket; always take hold of the plug itself.
• Never spray the machine with a jet of water. Danger of electric shock!
• During high temperature wash programmes the door glass may get
hot. Do not touch it!
• Let the water cool down before carrying out emergency emptying or
before opening the door in an emergency.
• Small animals can gnaw electric wires and water hoses causing electrocution hazard and damage due to water leaks.
Positioning, connection, starting up
• Follow the instructions for positioning and connection.
• Carry out a first wash without laundry (COTTONS 60, with half the
amount of detergent) in order to remove any manufacturing residue
from the tub and the drum.
• Should the machine be purchased in winter, when temperatures can
be below 0°, leave the appliance for 24 hours at ambient temperature
before starting it.
137
Safety instructions
Child safety
• Children are often not aware of how dangerous electrical appliances
can be. When the machine is working, they should be carefully supervised and not be allowed to play with the appliance - there is a risk
that they could become trapped inside.
• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children - danger of suffocation! Keep them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
• Make sure that children or pets do not climb into the drum.
• When the appliance is to be scrapped, cut off the electrical supply
cable and destroy the plug with the remaining cable. Disable the door
catch in order to prevent children from becoming trapped inside
while playing.
Discarding
Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by disposing of them properly in
appropriate collection containers.
Machine
Use authorised disposal sites for your old appliance. Help to keep your
country tidy!
Proper use
• This appliance is designed for domestic use only. If the machine is
used for any other purposes or is not used correctly, the manufacturer accepts no responsibility for any possible damage that might occur.
• For safety reasons, the appliance must not be modified.
• Use only detergents suitable for washing machines and follow the
manufacturer’s instructions.
• Garments which have been in contact with flammable solvents
should not be machine washed.
• Do not use your machine for dry cleaning.
• Dyes and bleaching agents may only be used if specifically permitted
by the manufacturer of these products. We cannot be held responsible for any damage.
• Always unplug the appliance and turn off the water tap after use.
138
139
Tips for environmental protection
To save water, energy and to help protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order
to save detergent, water and time (the environment is protected too!).
• Use the energy saving programme when washing normally soiled cotton
garments.
• The machine works more economically if it is fully loaded.
• When small loads are washed, use only half to two thirds of the recommended amount of detergent.
• With adequate pre-treatment, stains and limited soiling can be
removed; the laundry can then be washed at a lower temperature.
• If the water has a medium or high degree of hardness (starting from
degree of hardness II, see “Detergents and additives”) water softeners
must be added.
The amount of detergent can then be adjusted to degree of hardness
I (= soft).
140
Main features of your washing machine
• Programme and temperature setting using the programme selector.
• Stain programme for effectively treating stained washing.
• Energy saving programme for normally soiled cotton items.
• Speed for the final spin can be reduced to 900-700 or 500 rpm.
• RINSE HOLD can be added: the laundry is left immersed in the final
rinse water to avoid the formation of creases.
• The possibility of selecting all the other options offered by this
machine gives you truly “customised washing”.
• Delay timer: programme start can be delayed by 1 to max. 19 hours
(e.g. to times with a more economical power rate).
• Programme progress display showing the programme steps selected
and the programme phase which is running.
• Because of its gentle washing action, the special wool cycle washes
your garments with extreme care, without felting them.
• 4-compartment drawer for detergent, fabric softener and bleaching
agent.
• Unbalance detection device: secure position and silent operation of
the appliance.
141
Description of the appliance
Description of the appliance
Control panel
Front view
O
G
F
D
C
B
A
500 700 900 1000
Detergent drawer
95
E
60
50
40
30
60
50
30
40
30
Control panel
A B C D
500 700 900 1000
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
Door
A
B
C
D
E
F
G
H
J
=
=
=
=
=
=
=
=
=
E
FG
H
30
40
40
J
Mains-on light
ON/OFF button
Delay start button
Display
Option buttons
START/PAUSE button
Spin speed button
Programme progress display
Programme selector dial
Programme selector dial
RESET
Drain filter
Adjustable feet
142
The programme selector determines ODELICATE SPIN
95
E
Cotton
the type of washing cycle (e.g. water GFSPIN
60
DRAIN
50
D
SOFTENERS
level, drum movement, number of C DEL.RINSES
40
rinses) and the washing temperature, B SOAK
30
A
according to the type of laundry.
60 Synthetics
30
The selector is divided into 5 sectors:
Wool
40
50
40
30
30
40
• Cotton
Delicates
• Synthetics
• Delicates
• Wool
• Special programmes A-G and
• RESET programme O.
The selector dial can be turned either clockwise or anticlockwise.
143
Description of the appliance
Position E corresponds to the ENERGY SAVING programme at approx.
67°C for normally soiled laundry, extended washing time (cannot be
combined with STAIN
and QUICK ).
Position
corresponds to COLD WASH. To be used for extremely delicate
items.
ON/OFF button
Press this button to switch the machine on. Press it again to switch the
machine off.
Mains-on light
This light comes on when the ON/OFF button is pressed, and goes out
when it is pressed again.
START/PAUSE button
This button has three functions:
a) Start
After having selected the required programme, press this button to start
the machine; the corresponding pilot light stops flashing.
b) Pause
To interrupt a programme which is running, press the START/PAUSE
button: the corresponding pilot light and the light of the programme
phase which is running will start to flash.
To restart the programme from the point at which it was interrupted,
press the START/PAUSE button again.
c) Empty out water
At the end of a programme which ends with water in the drum (RINSE
HOLD
option), or after the “soak” programme A, press the START/PAUSE
button
to empty out the water: after the soak programme, the machine
will empty only; after RINSE HOLD programmes, the machine will empty and
spin.
DELAY START button
This button allows starting of the machine to be delayed from 1 hour
up to a maximum of 19 hours.
The button must be pressed after selecting the programme and
before pressing the START/PAUSE button
.
The figures indicating the required delay appear for about 2 seconds in
the display next to the button. The duration of the selected wash programme is then displayed. One minute after depressing the
144
Description of the appliance
START/PAUSE button, the machine starts its countdown (every hour).
During the last hour, the remaining time is displayed every 5 minutes.
The delayed start function cannot be used with the SPIN F-G and
DRAIN programme D.
To modify or cancel the preset delay, press the START/PAUSE button,
then press the DELAY START button until the required value is displayed
or, if you wish to cancel the delay, until the symbol 0 h is displayed.
Then press the START/PAUSE button again.
When the delay is cancelled, the display shows the duration of the wash
programme previously selected.
Programme Option buttons
Depending on the programme, different functions can be combined.
These must be selected after choosing the desired programme and
before depressing the START/PAUSE button.
When these buttons are pressed, the corresponding pilot lights come on.
When they are pressed again, the pilot lights go out.
If an incorrect option is selected, the pilot lights flash for about 3 seconds
and the message Err is displayed.
STAIN
To treat heavily soiled washing or stained washing with stain remover
(extended main wash with time optimised stain action phase, not selectable for wool and with temperatures lower than 40°C).
QUICK
By pressing this button the washing time is reduced. For use when
washing lightly soiled laundry.
This option is not available with the wool programme.
PREWASH
The machine performs a prewash cycle at 40°C max. The prewash cycle
ends with a short spin in programmes for Cotton and Synthetics, and
with emptying of the water only for Delicates.
This option is not available with the wool programme.
For use when washing heavily soiled laundry.
Important: the STAIN, PREWASH and QUICK WASH options cannot be
selected together: one automatically disables the others.
145
Description of the appliance
RINSE PLUS
Can be used with all programmes except the wool programme. The
machine performs 4 rinses instead of 3.
This option is recommended for people who are allergic to detergents
and in areas where the water is very soft.
RINSE HOLD
When this button is pressed, the last rinse water is not emptied out, to
prevent the fabrics from creasing. When the programme has finished, the
corresponding pilot light on the programme progress display flashes to
indicate that the water must be emptied out.
To empty out water:
• press the START/PAUSE button : after emptying, the machine performs the spin cycle required for the type of wash selected;
• select the DRAIN programme D to empty out the water without spinning.
Warning! The programme selector dial must be turned first to RESET O
and then to programme “DRAIN” D.
This option can also be selected for the wool programme: the last
rinse water is emptied out but the machine does not spin.
If the water is not emptied out, the machine automatically empties
itself after 18 hours.
SPIN SPEED
Press this button to reduce the maximum speed of the final speed proposed
by the machine for the selected programme.
The maximum spin speed for cotton is 1000 rpm, for synthetics and
wool 900 rpm and for delicates 700 rpm.
Description of the appliance
• delayed start, programmed using the special button (C).
The selected delay (19 hours max.) is indicated in the display. The
countdown is updated every hour, and every 5 minutes during the last
hour.
• Machine heating phase. A dot to the right of the figures in the display indicates that the machine is heating the water. During this
phase the user can therefore decide whether to use other electrical
appliances simultaneously.
• Incorrect option selection. If an option which is not compatible with
the set wash programme is selected, the message Err is displayed.
Programme progress display
By selecting the wash programme, the pilot
lights corresponding to the various phases making up the programme come on.
After the machine has started, only the running
phase pilot light stays on. When the programme
has finished, the END
pilot light comes on.
PREWASH
WASH
RINSES
RINSE HOLD
DRAIN
SPIN
END
Cancelling a programme
To cancel a programme which is running, turn the programme selector
dial to the RESET O position: three flashing dashes will be displayed.
Warning! After a programme which ends with water in the drum
(RINSE HOLD option
), turn the selector dial first to RESET O and
then to the DRAIN programme D.
Display
The display shows the following information:
• if the programme selector dial is on the RESET O position, three flashing
dashes appear immediately after pressing the ON/OFF button to indicate
that the machine is ready to receive instructions for the required wash
programme;
• duration of the selected wash programme, calculated automatically on
the basis of the maximum recommended load for each type of fabric.
• When the programme has finished, three flashing zeros are displayed;
146
147
Description of the appliance
Modification of a programme which is running
Description of the appliance
Detergent dispenser drawer
To modify a programme, first set the machine to PAUSE by pressing the
START/PAUSE button .
Before the machine starts the heating phase, i.e. within the first 15
minutes for cotton programmes, 10 minutes for synthetic and delicate
programmes and 5 minutes for the wool programme, the selected wash
cycle can be modified.
Warning! If the programme selector dial is turned first to RESET O and
then to the new programme, the programme which is running is cancelled, the water is emptied out and the machine re-starts from water
filling. To simply modify the programme which is running, turn the programme selector dial to the desired position (avoiding the RESET position):
when the START/PAUSE button is pressed again, the machine restarts with
the newly selected programme from the point at which it was interrupted.
Opening the door after the programme has started
The door can only be opened before the machine starts the heating
phase (within the first 15, 10 or 5 minutes, depending on the programme selected - see paragraph above) and during the rinse phase.
Set the machine to PAUSE (by pressing the START/PAUSE button).
If the door does not open, this means that the machine is already heating, or that the water level is above the bottom edge of the door.
This prevents large quantities of water from spilling out when the door
is opened.
Cl
Programme chart
Compartment for prewash detergent and stain remover. The prewash
detergent is added at the beginning of the wash programme, the stain
remover during the STAIN-Action phase in the main wash at the optimal
time.
Compartment for powder or liquid detergent used for main wash.
It is emptied at the beginning of the wash cycle.
Compartment for liquid additives (fabric softener, starch).
It is emptied at the last rinse.
Compartment for bleaching agent.
It is emptied at the first rinse.
The quantity of additives and bleaching product must not exceed
the «MAX» mark in the drawer.
Before the first wash
Before your first wash, we recommend that you run a cotton cycle at
60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub.
Pour 1/2 a measure of detergent into the dispenser drawer and start the
machine.
148
149
Preparing the wash cycle
Preparing the wash cycle
Weight of laundry
Sort of laundry
Sorting out and preparing the laundry
• Sort out the laundry according to type of fabrics and care labels (see
“Types of fabric and care labels”).
• Empty pockets.
• Remove any metal parts (safety pins, clips, etc.).
• To prevent the laundry from getting damaged and forming bundles,
it is advisable to close zips, button up pillowcases and quilt covers and
tie up loose straps such as those of aprons.
• Turn double faced items inside out (sleeping bags, anoraks, etc.)
• Turn coloured knitted fabrics, woollens and fabrics with trim inside
out.
• Wash small and delicate items (baby socks, tights) inside a laundry net
or in a pillow case closed with a zip, or in larger socks.
• Treat curtains with special care. Remove all metal or plastic hooks or
put them in a net or a bag. We decline any responsibility in case of
damage.
• Whites and coloureds must be washed separately: white items can
loose their whiteness.
• New coloured fabrics often have excess dyes; it is advisable to wash
them separately for the first time.
• Wash small and large items together; this improves the washing result
and the laundry is better distributed during spinning.
• Shake out garments before putting them into the machine.
• Insert each garment separately.
150
Approximate
dry weights
Bathrobes
1200 g
Work shirts
300-600 g
Quilt covers
700 g
Sheets
500 g
Blouses
100 g
Hand towels
200 g
Tea towels
100 g
Shirts
200 g
Pillowcases
200 g
Night-gowns/Pyjamas
200-250 g
Tablecloths
200-300 g
Underwear
250 g
Types of fabric and care labels
The labels on garments help you to select the most suitable wash programme. The laundry should be sorted out according to the type of fabric and the instructions indicated on care labels.
Temperatures indicated on labels are always maximum temperatures.
Cotton 95
Linen and cottons marked with this symbol can be washed at high temperatures.
Cotton 60
Linen and cottons marked with this symbol are colourfast and can be
washed at 60°C.
Cotton 40 30
Garments marked with these symbols have delicate colours, therefore
the washing temperature must not exceed these values.
Synthetics 40 60
Mixed and synthetic fabrics marked with these symbols require a gentle
wash programme and they must therefore be washed using the specific
programme.
151
Preparing the wash cycle
Preparing the wash cycle
Delicates 40 30
Microfibres, synthetics or curtains marked with these symbols require a
very gentle treatment.
The DELICATES programme is suitable for this type of fabric.
Detergents and additives
Which detergent and additive?
Use only detergents and additives for washing machines. Follow the
manufacturer’s instructions.
30
40
Woollens and particularly delicate items
Fabrics such as wool, wool mix or silk marked with this symbol are particularly sensitive to machine washing.
The WOOLLENS programme is suitable for this type of fabric.
If the label has the symbol
(do not wash), garments must not be
machine washed!
How much detergent?
The quantity depends on:
• the load:
if the manufacturer does not provide any indications on the amount of
detergent for small loads, use about one third less than the suggested
amount for half loads and half the amount for very small loads;
• the degree of soil:
use a small amount of detergent for lightly soiled garments. Judge
the amount according to the detergent manufacturer’s instructions
and size of the load;
• the water hardness:
the harder the water, the more detergent required. Instructions
according to water hardness are given on the detergent pack.
Liquid detergent
Liquid detergent can be poured directly into the main wash compartment
of the dispenser drawer immediately before starting the programme, or
a special dispenser can be used that is placed directly in the drum. Measure the detergent according to the manufacturer’s instructions.
Adding a water softener (descaling product)
A water softener must be added when water has a medium-high degree
of hardness (from degree of hardness II). Follow the manufacturer’s
instructions. The quantity of detergent can then always be adjusted to
degree of hardness I (= soft). Information on water hardness can be
obtained from your local water supply authority.
Information on water hardness
Degree of hardness
.
I=Soft
0-7
0-15
II=Medium
7-14
16-25
III=Hard
14-21
26-37
more than 21
more than 37
IV=Very hard
152
German degrees °dH French degrees °TH
153
How to wash
Selection of the desired wash programme
How to wash
Load the laundry
Open the door.
Place the laundry in the drum, one item at a time. Distribute laundry as
evenly as possible. Close the door.
Turn the programme selector dial
to the desired position: the lights
corresponding to the different
phases making up the selected programme light on.
O
G
F
D
C
B
A
95
E
60
50
40
30
60
50
30
40
30
40
30
40
Add detergent and additives
Cl
Pull the drawer
out till it stops.
Pour the main
wash detergent
into compartment .
If you wish to
perform a prewash, or a STAINAction programme, pour detergent or stain remover into compartment .
Attention! Do not use the normal powder detergent for the STAINAction programme. There are special products (stain remover) for this
type of washing.
Pour the fabric softener into compartment
and the bleaching
agent into compartment
without exceeding the “MAX” mark.
Close the drawer, pushing it fully in.
Selection of the spin speed
Cl
To select the desired spin speed, press
the SPIN SPEED button : the corresponding light comes on.
500 700 900 1000
Selection of the STAIN, PREWASH or QUICK
WASH option, depending on the degree of soil of the
laundry and on the type of fabric.
The corresponding light comes on.
Switching the machine on
To switch the
machine on, press
the ON/OFF button : if the
programme selector dial is on the
RESET O position,
three flashing
dashes will be
displayed. If the
programme selector dial is positioned on a wash programme, the duration of that programme will be displayed.
154
Selection of the RINSE PLUS and/or RINSE HOLD
option
The corresponding light(s) come on.
155
How to wash
Selection of the DELAY START option
To delay starting of a programme, press the
DELAY START button before starting the
machine. The figures corresponding to the
selected delay will be displayed for about 2
seconds, after which the duration of the
selected programme will appear on the display.
When the START/PAUSE button is pressed, the selected delay will
again appear on the display and the machine starts its countdown.
Starting the programme
To start the selected programme, press the START/PAUSE
button; the corresponding light stops flashing.
The pilot light corresponding to the wash phase which is
running is on.
After about 30 seconds the programme starts.
156
How to wash
At the end of the programme
The machine stops automatically and three flashing zeros are displayed.
The END
and spin speed pilot lights, as well as the pilot light(s) corresponding to the selected option(s), stay on.
If the RINSE HOLD
option has been selected, the corresponding
pilot light on the programme progress display flashes to indicate that
the water must be emptied out before opening the door.
The pilot light of the START button
flashes and tree flashing zeros
are displayed.
Release of the lock is indicated by an audible signal.
Switch the machine off by pressing the ON/OFF button .
Turn the programme selector dial to RESET O.
Remove the laundry from the drum.
Check that the drum is empty so as to avoid a subsequent wash being
damaged by any forgotten items.
Close the water tap.
Leave the door open to prevent the formation of mildew and unpleasant smells.
157
Programme chart
Programme chart
Special programmes
Wash programmes
Wash
Temp.
programme
Fabrics
Additional
functions
Consumption*
Max.
Energy
Water Duration
load
kWh
lt.
min.
Cotton and linen,
for example norWhites
mally soiled work
95°-60°
garments, sheets,
household linen,
underwear, towels.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
4.5 kg
Cotton and linen, for
example normally to
lightly soiled sheets
and household linen.
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
4.5 kg
60°-50°
Coloured
40°-30° Coloured cotton or
cottons
COLD linen fabric, shirts,
underwear, towels.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
60°-50° Synthetic fabrics,
Synthetics 40°-30° underwear,
COLD coloured garments,
non-shrink shirts,
blouses.
STAIN
QUICK
PREWASH
RINSE PLUS
RINSE HOLD
SPIN SPEED
E
Whites
ECONOMY
60°
STAIN
QUICK
Delicates
Delicate fabrics, for PREWASH
40°-30°
example curtains. RINSE PLUS
RINSE HOLD
SPIN SPEED
Wool
40°-30
COLD Wool, wool mix, silk.
RINSE HOLD
SPIN SPEED
2.1
47
155
Soak
A
1.5
4.5 kg 0.85
2 kg
2 kg
1 kg
0.8
0.5
0.35
44
44
48
45
42
155
125
85
60
Type of
laundry
Programme phases
Consumption*
Additional Max.
Energy
Water Duration
functions load
kWh
lt.
min.
Soak at 40°C.
Stop with water in drum.
To empty only: press the
START/PAUSE button .
Heavily soiled To empty and spin:
select the desired spin
fabrics,
except wool. speed and press the
START/PAUSE button.
The machine automatically empties itself after
18 hours.
Delicate
rinses
B
This programme can
be used for
rinsing hand
washed garments.
Softeners
C
Hand washed
1 rinse with liquid addigarments to
tive.
be starched
Spin.
or softened.
3 rinses with liquid
additive.
Short spin.
(700 rpm max)
Drain
D
For emptying
out the last
rinse water in The water is emptied
programmes out.
with the Rinse
Hold option.
Spin
F
Separate spin
Spin.
for all fabrics.
4.5 kg
0.6
17
25
RINSE
PLUS
RINSE
HOLD
SPIN
SPEED
4.5 kg 0.02
42
20
RINSE
HOLD
SPIN
SPEED
4.5 kg 0.04
18
20
-
2.5
-
10
-
5
/
-
60
ECONOMY
Select the economy programme “E” instead of the 95°C programme when washing normally soiled whites; the wash is carried out at about 67°C, with consequent energy saving. The washing phase will be slightly longer.
In compliance with EC directive 92/75, the consumption figures indicated on the
energy label refer to the 60°C wash programme for cotton.
* The consumption data shown on this chart is to be considered purely indicative, as it may vary depending on the quantity and type of laundry, on the inlet
water temperature and on the ambient temperature. It corresponds to the highest temperature for each wash programme.
158
Programme
Separate spin
Delicate spin for synthetics
and delicate
G
fabrics.
Reset
Cancel.
O
Short spin.
(700 rpm max)
SPIN SPEED
SPIN SPEED
4.5 kg 0.03
2 kg
-
For cancelling the wash programme which is running.
* The consumption data shown on this chart is to be considered purely
indicative, as it may vary depending on the quantity and type of laundry,
on the inlet water temperature and on the ambient temperature.
159
Cleaning and maintenance
Cleaning and maintenance
After each wash
At the end of the wash programme, pull the dispenser drawer out a little to let it dry.
Leave the door ajar to allow air to circulate.
If the machine is not used for a prolonged period:
Close the water tap and unplug the appliance.
Periodical cleaning
Bodywork
Clean the outside of the machine with warm water and a neutral, nonabrasive household detergent. Rinse with clean water and dry with a
soft cloth.
Important: do not use methylated spirits, solvents or similar products
to clean the bodywork.
The drain filter
collects threads
and small objects
inadvertently left
in the laundry.
Check regularly
that the filter is
clean.
Place a container
under the filter and unscrew it; some water will come out of the filter.
Pull out the filter.
Clean the filter under a running tap, then refit
it, screwing it fully in.
Detergent dispenser drawer
Water inlet filter
After a while,
detergents and
fabric softeners
leave deposits in
the drawer.
Clean the drawer,
from time to
time, by rinsing it
under a running
tap. To remove the drawer from the
machine, press the button in the rear left-hand corner.
To facilitate cleaning, the top part of the additive compartment can be
removed.
Detergent can also accumulate inside the
drawer recess: clean it with an old toothbrush.
Refit the drawer after cleaning.
If you notice that the machine is taking
longer to fill, check that the filter in the
water inlet hose is not blocked.
Turn off the water tap.
Unscrew the hose from the tap and remove
the filter.
Clean it with a stiff brush.
Refit the filter and screw the hose back onto
the tap.
Cl
160
Drain filter
161
Cleaning and maintenance
Emergency emptying out
If the water is not discharged (pump is blocked, filter or drain hose are
clogged), proceed as follows to empty out the machine:
• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled;
• place a bowl on the floor;
• put the drain hose end into the bowl and let the water come out.
Should it not be possible to have access to the drain hose because, for
example the appliance is built in the kitchen furniture, slightly loosen
the drain filter after placing a bowl on the floor to let the water come
out slowly.
At the end screw the filter again.
Frost precautions
If the machine is installed in a place where the temperature could drop
below 0°C, proceed as follows:
• Close the water tap and unscrew the water inlet hose from the tap.
• Place the end of the drain hose and the inlet hose in a bowl placed
on the floor.
• Select the “drain” programme D and run it until the machine stops.
• Turn the programme selector dial to RESET O.
• Press the ON/OFF button
to switch the machine off.
• Remove the plug from the power socket.
• Screw the water inlet hose back on and put the drain hose back in its
place.
By doing this, any water remaining in the machine is removed, avoiding the formation of ice and, consequently, breakage of the parts
involved.
When you use the machine again, make sure that the ambient temperature is above 0°C.
162
Something not working?
If, during the spin cycle, the machine makes an unusual
whistling noise, different from the noise made by traditional washing machines, this is due to a new type of
motor.
If water is not visible in the drum, this is due to
the modern technology of new washing
machines that use less water than traditional
machines.
Troubleshooting
If a problem arises, you can try to solve it yourself following the
instructions below. If you call out an engineer when one of the following problems arises, or to repair a fault due to incorrect use, the callout will be charged even if requested within the guarantee period.
During machine operation the following alarm codes may be displayed:
- E00: problem with the water supply
- E10: problem with water draining
- E20: door open
Once the problem has been eliminated, press the START/PAUSE button
to restart the programme. If after all checks, the problem persists, contact
your local AEG Service Force Centre.
Problem
Possible cause
The ON/OFF button
has not been depressed.
The main electrical fuse
has blown.
The door is not properly
The machine does not work closed (E20).
The plug is not connected.
The START button has not
been pressed.
The DELAY START
option has been selected.
Solution
Depress the button.
Replace the fuse.
Close the door; the click
of the lock should be heard.
Insert the plug.
Press the button.
Check the selected delay on
the display.
163
Something not working?
Problem
Something not working?
Possible cause
Solution
Problem
The water tap is closed (E00). Open the water tap.
The water inlet hose is
squashed or kinked (E00).
The machine does not fill
The machine fills then
empties immediately
Check the whole length of the
hose and remove the kink.
The small filter of the water Clean the filter.
inlet hose is clogged (E00).
The door is not properly
closed (E20).
Close the door.
The end of the drain hose
is too low.
Place the hose at the right
height (see Installation
section).
The drain hose is
squashed or kinked (E10).
Check the whole length of
the hose and remove the
kink.
The drain filter or the
Clean the filter or check
drain hose are clogged (E10). the hose.
The machine does not
empty and/or does not spin The RINSE HOLD option
(stop with water in drum)
has been selected.
There is water on the floor
164
Empty out the water by
pressing the START button
or selecting the DRAIN
programme.
The laundry is not evenly
distributed inside the drum.
Too much detergent has
been used.
Redistribute the laundry
manually in the drum.
Measure detergent
according to the
manufacturer’s instructions.
An unsuitable detergent
has been used that
creates too much foam.
Use a suitable washing
machine detergent.
One of the connectors on
the water inlet hose is
leaking.
Check that the hose is
firmly screwed on at both
ends.
The drain filter has not
been properly screwed on
after cleaning.
Fully screw the filter into
place.
The machine vibrates or is
noisy
The door will not open
Possible cause
Solution
The transit bolts have
not been removed.
Check that the machine
has been unpacked as
described in the Installation
section.
The feet have not been
adjusted.
Carefully level the machine.
There is little laundry in
the drum.
Correct operation of the
machine is not affected.
The programme is still
running.
Wait until the end of the
programme before opening
the door.
The door lock has not yet
released.
Wait about 2 minutes for
the door lock to release.
The water level is above the
bottom edge of the door.
Before opening the door,
the water must be emptied
out.
The machine is heating the Wait until the end of the
water.
heating phase.
165
Something not working?
Problem
Something not working?
Possible cause
The unbalance detection
device that prevents
excessive vibration during
spinning and ensures a
stable position has cut in.
Spinning starts late or the
machine does not spin
166
Solution
If the laundry is not evenly
distributed inside the drum
at the beginning of the
spin cycle, the machine
detects this and tries to
redistribute it more evenly
by means of a few drum
rotations.
Only when the laundry is
more evenly distributed
will the spin cycle be
performed, eventually at a
lower speed, if the laundry is
not yet evenly distributed.
If, after about 15 minutes,
the laundry is still tangled,
the machine will not spin.
Therefore, if the laundry is
still wet at the end of the
cycle, it is advisable to
redistribute it manually
inside the drum and to
select the spin programme
again.
Unsatisfactory washing results
If the laundry looks grey and lime scale is found in the drum
• Too little detergent has been used.
• An unsuitable detergent has been used.
• Stubborn stains have not been treated prior to washing.
• The programme/temperature has not been correctly selected.
If grey stains remain on the laundry
• Laundry stained with ointments, grease or oil has been washed with
an insufficient amount of detergent.
• The temperature selected for the wash programme was too low.
• Fabric softener - especially the concentrated type - has come into
direct contact with the laundry. Wash these stains immediately and
pour fabric softener carefully.
Foam is still visible even after the last rinse
• Modern detergents often produce foam, even in the last rinse. However the laundry has been completely rinsed.
White residue is left on the laundry
• This is due to insoluble components in modern detergents and is
therefore not the result of insufficient rinsing. Shake or brush the
laundry. In future, it may be better to turn garments inside out before
washing them. Check the choice of detergent; try using liquid detergents.
167
Technical data
Height x Width x Depth
Depth with door opened
Height adjustment
Net weight
Load (depending on programme)
Use
Drum speed during washing
Drum speed during spinning
Water pressure
Service
82x60x54.5 cm
91 cm
± 13 mm approx.
71 kg approx.
4.5 kg max.
domestic
max. 55 rpm
1000/900/700/500 rpm
1 - 10 bar
2
(=10-100N/cm = 0.1-1.0Mpa)
In the section “Something not working?” some problems that can be
solved by yourself are listed. Read this section in the event of problems.
If you are not able to find a solution, contact the Service centre.
(Addresses and telephone numbers are given on the enclosed leaflet).
In all cases, set your speech before calling, in order to facilitate troubleshooting: the engineer will be able to decide whether a service call
is necessary.
Take note of the serial number (F-Nr.) and the product number (Prod.
No.) indicated on the rating plate.
F-Nr. . . . . . . . . . . . . . . . . . . . . . . . .
Prod. No. . . . . . . . . . . . . . . . . . . . . .
This appliance complies with the following EC directives:
- 73/23/EEC of 19.2.1973 “Low voltage directive”, including directive
93 / 68 / EEC
- 89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”.
Mod. 1051 VIT ELECTRONIC
Prod. No. 914879009 00
220-230V~ 50Hz 2200 W
Type P6416609
10 A
F-Nr.
Furthermore, try to specify, as precisely as possible:
- The symptoms of the fault
- When the fault occurs
When can a service visit be charged during the guarantee period?
- when it should have been possible to solve the problem by yourself,
with the help of the troubleshooting chart (see section “Something
not working?”)
- when the engineer has to come out several times because he has
not been given all the relevant information he needs and so, for
example, has to fetch spare parts. Repeated trips can be avoided if
you prepare your call to the Service centre as described above.
168
169
Service & Spare Parts
600
910
525
O
G
F
D
C
B
A
500 700 900 1000
95
E
60
50
40
30
60
50
30
40
30
40
30
40
810
• This appliance is heavy, care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in
doubt, do not use it and contact the retailer.
• All internal packing must be removed before using the appliance.
Serious damage may be caused to the machine or adjacent furniture
if the protective transit devices are not removed or are not completely
removed. Refer to the relevant paragraph.
• Any electrical work required to install this appliance must be carried
out by a qualified electrician.
• Any plumbing work required to install this appliance must be carried
out by a qualified plumber.
• After having installed the machine, check that it is not standing on
its electrical supply cable.
• If the appliance is placed on a carpeted floor, ensure that air can circulate freely between the adjustable feet and the floor.
• The installation should comply with local water authority and building regulations requirements.
• Should the appliance power supply cable need to be replaced, this
should be carried out by our Service Force Centre.
Front view and side view
160
Safety instructions for the installer
Dimensions of the appliance
10
Instructions for installation and electrical connection
90
540
Rear view
340
170
15
25
Cold water
Power cable
Drain
45
85
170
171
Installation
Installation
Unpacking
All transit bolts and packing must be removed before using the appliance.
Using a spanner, unscrew and remove the
rear right-hand bolt and lay the machine on
its back, taking care not to squash the hoses.
This can be avoided by placing one of the
corner packing pieces between the machine
and the floor.
Set the machine
upright and
remove the two
remaining bolts
from the back.
Pull out the three
plastic spacers from
the holes into
which the bolts were fitted.
Plug the open holes with the plugs which you will find on the back of the
appliance.
You are advised to keep all transit devices so that they can be refitted if the
machine ever has to be transported again.
Positioning
Remove the polystyrene base and
take off the bottom panel by
unscrewing the
central screw.
Carefully slide out
the right polythene bag.
Repeat the operation for the left
and central polythene bags.
Re-fit the bottom
panel using the 4
screws supplied
with the door
hinges (in the plastic bag) and the previously removed screw.
172
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not impeded by
carpets, rugs etc.
• Before placing it on small tiles, apply a rubber coating.
• Never try to correct any unevenness in the floor by putting pieces of
wood, cardboard or similar materials under the machine.
• If it is impossible to avoid positioning the machine next to a gas
cooker or coal-burning stove, an insulating panel (85x57 cm) covered
with aluminium foil on the side facing the cooker or stove, must be
inserted between the two appliances;
• The machine must not be installed in rooms where the temperature
can drop below 0.
• The water inlet hose and the drain hose must not be kinked.
• Please ensure that when the appliance is installed, it is easily accessible for the engineer in the event of a breakdown.
Levelling
Carefully level by
screwing the
adjustable feet in
or out. Never
place cardboard,
wood or similar
materials under
the machine to
compensate for
any unevenness in the floor.
After having levelled the machine, tighten the lock nuts.
173
Installation
Water inlet
Connect the
water inlet hose
to a separate tap
with a 3/4"
thread after havA
ing inserted the
small filter “A”
supplied with the
machine.
The other end of the inlet hose which connects to the machine can be
turned in any direction. Simply loosen the fitting, rotate the hose and
retighten the fitting, making sure there are no water leaks.
The inlet hose must not be lengthened. If it is too short and you do not
wish to move the tap, you will have to purchase a new, longer hose specially designed for this type of use.
Water drainage
The end of the drain hose can be positioned
in three ways:
Hooked over the edge of a sink using the
plastic hose guide supplied with the
machine. In this case, make sure the end
cannot come unhooked when the machine
is emptying.
This could be done by tying it to the tap
with a piece of string or attaching it to the
wall.
In a sink drain pipe branch. This branch must be above the trap so that
the bend is at least 60 cm above the ground.
Directly into a
drain pipe at a
height of not less
than 60 cm and
not more than
90 cm.
The end of the
drain hose must always be ventilated, i.e. the inside diameter of the
drain pipe must be larger than the outside diameter of the drain hose.
The drain hose must not be kinked. Run it along the floor; only the part
near the drainage point must be raised.
174
Installation
Electrical connection
This machine is designed to operate on a 220-230 V, single-phase,
50 Hz supply.
Check that your domestic electrical installation can take the maximum
load required (2.2 kW), also taking into account any other appliances in
use.
Connect the machine to an earthed socket.
The manufacturer declines any responsibility for damage or injury
through failure to comply with the above safety precaution.
Permanent connection
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3 mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This operation has only to be performed by a qualified electrician.
175
Building-in
c) Mounting the door
Fix the hinges (1) to the machine by means of the M5x8 screws (3-Fig. B).
The hinges can be adjusted to compensate for possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the screw (3-Fig. B),
adjust the door and tighten the screw again.
Building-in
This appliance has been designed to
be built into the kitchen furniture.
The recess should have the dimensions shown in picture A.
600
in.
600 m
120
416
818
176, 5
820 min
596
515
54
d) Counter-magnet (6)
The appliance is pre-arranged for a magnetic closure of the door. To enable a correct operation of this device, it is necessary
to screw the counter-magnet (6) (steel disk
+ rubber ring) into the inner side of the
door.
Its position must correspond to the magnet
(4) on the appliance (see picture D).
1
195
160
8
90
0
49
165
A
Preparation and assembly of the door
The machine is originally prearranged for the assembly of a
door opening from right to left.
In this case it is sufficient to screw
in the hinges (1) and the countermagnet (6) provided with the appliance, at the right level (Fig. B).
6
1
1
6
4
4
2
7
5
3
a) Door
The dimensions of the door should
23 8
B
be:
- width
595-598 mm
- thickness 16-22 mm
The height (C-Fig. C) depends on the height of the adjacent furniture's base.
8
D
If the door has to be opened from
left to right, invert the position of
the plates (7), the magnet (4) and
the plate (5) (Fig. B and E). Mount
the countermagnet (6) and the
hinges (1) as previously described.
Important: the plastic screw (8)
should never be loosened (Fig. B
and E).
6
4
5
7
1
3
8
E
2
416
C
B
35 Ø 14 depth
b) Hinges
16
-22
To mount the hinges it is necessary
to drill two holes (dia. 35 mm, depth
14 mm) on the inner side of the
door. The distance between the holes
hobs fixing centres must be 416 mm.
The distance (B) from upper edge
,5
of the door to the centre of the
22+1
hole depends on the adjacent fur98
595-5
C
niture's dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of screws for wood (2-Fig. B).
176
177
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
124.974.080-01-0398
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
