125985630 gb.qxp
Page 1

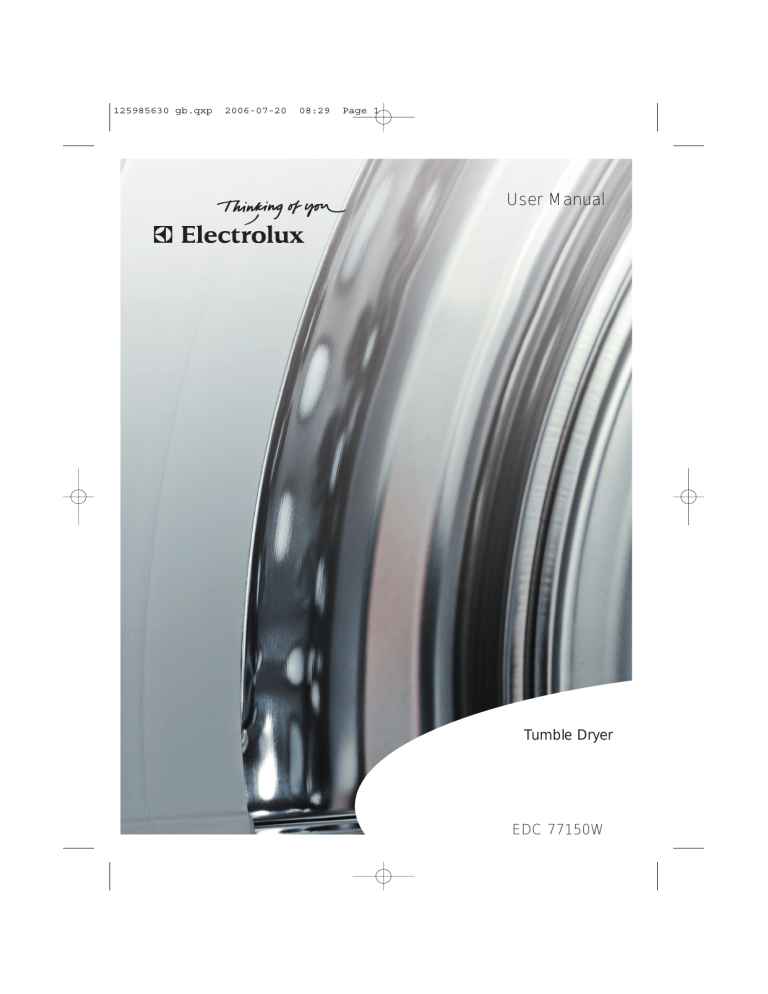

User Manual
Tumble Dryer
EDC 77150W
125985630 gb.qxp
Page 2
125985630 gb.qxp
Page 3
electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which
hopefully will provide you with lots of pleasure in the future. The
Electrolux ambition is to offer a wide variety of quality products that
make your life more comfortable. You find some examples on the
cover in this manual. Please take a few minutes to study this manual
so that you can take advantage of the benefits of your new machine.
We promise that it will provide a superior User Experience delivering
Ease-of-Mind. Good luck!
125985630 gb.qxp
Page 4
4 contents electrolux
Safety information..............................5
Product description ...........................7
Control panel .....................................7
Drying hints .....................................12
Drying programme .....................14-15
Programme information ...................16
Care and cleaning ...........................17
Something not working....................18
Technical data .................................23
Consumption values ........................24
Installation .......................................25
Environment concerns .....................27
Guarantee conditions ......................28
Customer service centres ................29
The following symbols are used in this manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
125985630 gb.qxp
Page 5
safety information electrolux 5
Safety Information
In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and
General safety
● It is dangerous to alter the
specifications or attempt to modify
this product in any way.
● Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
● Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
● Clean fluff filters after using tumble
dryer. To prevent fire risks, do not
use the appliance if the fluff filters are
● As some bulky items such as
duvets and eiderdowns should be
dried in large commercial machines
because of their bulk, check with
the manufacturer of the item if it is
suitable for drying in a domestic
machine, even if the dry weight of
the item is within the limit advised.
● In order to avoid danger of fires
caused by excessive drying, do not
use appliance to dry the following
items: Cushions, quilts and the like
(these items accumulate heat).
Items containing rubber foam or
materials similar to rubber foam.
● Always unplug the appliance after
use, clean and maintenance.
● Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
● Danger of explosion: Never tumble
dry items that have been in contact
with inflammable solvents (petrol,
methylated spirits, dry cleaning fluid
and the like). As these substance are
volatile, they could cause an
explosion. Only tumble dry items
washed with water.
● Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard
and should not be placed in the
tumble dryer.
● If you have washed your laundry with
stain remover you must execute an
extra rinse cycle before loading your
tumble dryer.
● Please make sure that no gas lighters
or matches have accidentally been left
in pockets of garments to be loaded
into appliance
This appliance is heavy. Care should
be taken when moving it.
● When unpacking the appliance,
125985630 gb.qxp
Page 6
6 electrolux safety information
check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.
All packing and transit bolts must be
removed before use. Serious
damage can occur to the product
and to property if this is not adhered
to. See relevant section in the user
Any electrical work required to install
this appliance should be carried out
by a qualified electrician or
competent person.
Care must be taken to ensure that
the appliance does not stand on the
electrical supply cable.
If the machine is situated on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely
After having installed the appliance,
check that it is not pressing or
standing on its electrical supply
cable, inlet hose and drain hose.
If the tumble dryer is placed on top
of a washing machine, it is
compulsory to use the stacking kit
(optional accessory).
This appliance is designed for
domestic use. It must not be used
for purposes other than those for
which it was designed.
● Only wash fabrics which are
designed to be machine dried.
Follow the instructions on each
garment label.
● Do not overload the appliance. See
the relevant section in the user
● Clothes which are dripping wet
should not be placed in the dryer.
● Garments which have been in
contact with volatile petroleum
products should not be machine
dried. If volatile cleaning fluids are
used, care should be taken to
ensure that the fluid is removed from
the garment before placing in the
Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
Never use the tumble dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the tumble dryer is accessible.
Child safety
● This machine is not intended for use
by young children or infirm persons
without supervision.
● Young children should be supervised
to ensure that they do not play with
the appliance.
● The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach
● Keep all detergents in a safe place
out of children’s reach.
● Make sure that children or pets do
not climb into the drum.
● When the appliance is to be
scrapped, cut off the electrical
supply cable and destroy the plug
with the remaining cable. Disable the
door catch in order to prevent
children from becoming trapped
inside while playing
125985630 gb.qxp
Page 7
product description/Control panel electrolux 7
Product description
Control panel
Fluff filters
Rating Plate
Condenser unit
Water reservoir
Adjustable feet
Control panel
2 3 4 5
6 8
Programme selector dial
Start/Pause button
Delicate button
Delay button
Dryness button
Indicator lights
Buzzer button
Long Anti Crease button
125985630 gb.qxp
Page 8
8 electrolux use
First Use
Ensure that the electrical connections
comply with the installation
Remove the polystryrene block and
any material from the drum.
Before using your tumble dryer for
the first time, werecommend that you
to place a few damp clothsinside the
appliance and dry for 30 minutes.
There may be dust inside a brand
new tumble dryer.
Select the required programme
Turn the programme selector dial to the
required programme.
The light Start/Pause starts to flash.
Daily Use
Load the laundry
Connect the appliance.
Open the door (see picture).
Place the laundry in the drum, one item
at a time, shaking them out as much as
possible. Close the door. Please check
the laundry does not get
caught between the door and filter.
The selector dial is divided into following
Allows you to select electronically
controlled or time controlled drying.
Turn the dial to the required programme
or time.
Electronically controlled drying (automatic)
The appliance runs these programmes
with the help of probes which detect the
degree of dampness of the laundry.
Simply select the programme according
to the type of laundry and degree of
drying required.
The selector dial can be turned either
clockwise or anticlockwise. The lights Drying,
Cooling and End/Anticrease come on.
125985630 gb.qxp
Page 9
use electrolux 9
At the end of the programme the
selector dial must be turned to
position O, to switch the machine off.
If you turn the programme selector dial
to another programme when the machine is
working, the lights of the programme progress
display start to flash. The machine will
not perform the new selected programme.
Programme Option buttons
Depending on the programme, different
functions can be combined. These must
be selected after choosing the desired
programme and before depressing the
Start/Pause button.
When these buttons are pressed, the
corresponding pilot lights come on.
When they are pressed again, the pilot
lights go out.
Select Delicate
Pressing this button allows drying to be
performed at a lower temperature, for
delicate items.
The corresponding pilot light comes
on. This option can also be used for
time controlled drying.
DELICATE is only suitable for use with
loads of up to 3kg!
By depressing button
the acoustic
signal is switched off in the following cases:
• when selecting the programme
• when depressing the buttons
• when the programme selector dial is
turned to another position during the
programme or when you depress an
option button during the cycle
• at the end of the programme.
The corresponding light comes on
Select the Dryness
Press the Dryness button repeatedly, to
select the desired option. The relevant
light will light up. Laundry becomes
dryer from MIN to MAX.
When the programme has finished the
pilot lights End is on.
Select the Long Anti Crease button
Select the Buzzer
When the drying cycle has finished, an
intermittent audible signal will sound.
If the Long Anti Crease programme has
been selected, programme duration
125985630 gb.qxp
Page 10
10 electrolux use
time of 10 minutes up to 180 minutes
can be set by intervals of 10 minutes. If
no programme duration time has been
selected, a programme duration time
of 30 min. is automatically adjusted.
Select the Delay Start
Select the Start/Pause
With the DELAY button, you can delay the start of
a programme by between 30 minutes (30' and a
maximum of 20 hours (20H).
1.Select the programme
Press this button to start the dryer after
having selected the programme and
the options.
The relevant light will stop flashing.
If the programme selector dial is turned
to another position, when the machine is
running, the buzzer will sound and the
programme phase indicator lights will flash.
The drum turns alternately in both directions during drying.
All drying programmes end with a 10 minute
cooling phase (light Cooling is on).
You may remove the laundry after this
The display t will show the symbol
End/Anticrease, and
illuminate and the buzzer sounds
If the door of the appliance or the small
door at the bottom is opened while the
programme is running, this button must
be pressed again after closing the door
in order to restart the programme from
the point at which it was interrupted.
This button must be depressed also
after a power failure and after having reinserted the water reservoir, if it has
been emptied in the middle of a programme after lighting up of light
In both cases the light of the Start/Pause
button flashes to remind you that the
start button needs to be pressed again.
2.Press the DELAY button as many times as necessary until the required start delay appears on
the multi display, e.g. 12H if the programme is to
be started in 12 hours.
3 If 20H is displayed and you press the button
again, the time delay will be cancelled. The display
will show 0' and then the duration of the selected
3.To activate the delay timer, press the
START/PAUSE button. The amount of time
remaining until the programme is set to start is
continuously displayed (e.g. 12H, 11H, 10H, …
30' etc).
If you wish to add some laundry while the
machine is performing the countdown, after
having done so and having closed the door,
press START/PAUSE again, in order to allow
the machine to complete the remaining
countdown time.
Current Time
Drying Cooling Level of
The display shows the following information:
• duration of selected programme
• delayed start
125985630 gb.qxp
Page 11
use electrolux 11
• end of programme
• incorrect option selection
• alarm code
Interrupting a programme
Depress the “start pause” button to
interrupt a programme which is running,
the corresponding light starts to flash.
Depress the button again to restart the
Cancelling a programme
Turn the selector dial to “O” to cancel
a programme which is running. Now
you can select a new programme.
At the end of the programme
If the laundry is not removed at the end
of the cycle, the dryer performs an
anti-creasing phase (duration: 30
minutes maximum).
If you do not remove the laundry, the
dryer will stop automatically at the
end of the anti-creasing phase.
remain lit and the
buzzer sounds for 2 minutes.
Turn the programme selector dial to “O”
to switch the machine off. Remove the
laundry from the drum and carefully
check that the drum is empty.
If you do not intend to carry out another
wash, close the water tap. Leave the
door open to prevent the formation of
mildew and unpleasant smells.
Turn the programme selector dial to “O
all the lights go out. The appliance is
switched off.
Remove the laundry.
If you open and then close the door
before turning the selector dial to “O”
all the lights corresponding to the
phases making up the performed
programme come on.
After each use
• Clean the filters.
• Empty the water reservoir.
If the drying programme has to be
stopped before it reaches the end, we
recommend that you turn the programme selector dial to position Cooling
and wait until the end of this cooling
phase before removing the laundry. This
will avoid a build-up of heat inside the
appliance.To do this first turn the dial to
Off” and then to Cooling
depress Start button.
Modifying the programme
To change a programme which is running, first cancel it by turning the proO”. Select the
gramme selector dial to “O
new programme and press the Start
button .
The programme can no longer be
changed directly once the programme
has started. If nevertheless there is an
attempt to change the programme on
the programme knob, the programme
progress display and the maintenance
indicators flash. If an option button
(excluding the BUZZER button) is
pressed, Err appears in the multidisplay. The drying programme is not
however affected by this (laundry protection).
125985630 gb.qxp
Page 12
12 electrolux drying hints
Drying hints
Before loading the laundry
Never tumble dry the following:
Particularly delicate items such as
net curtains, woollen, silk, fabrics
with metal trim, nylon tights, bulky
materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather
quilts and any items containing rubber foam or materials similar to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with
fasteners to prevent small laundry
items getting tangled inside them.
Close press studs, zips and hooks
and tie belts and apron strings.
• Sort laundry according to type and
degree of drying required.
• Do not over-dry laundry, this avoids
creasing and saves energy.
• Avoid drying dark clothes with light
coloured fluffy items such as towels
as they could attract the fluff.
• The laundry must be thoroughly spun
before tumble drying.
• Easy-ccare items, too, e.g. shirts,
should be briefly pre-spun before
drying (depending on crease resistance approx. 30 seconds or using
the special brief spin programme of
your washing machine).
• Knitted textiles (knitted underwear)
may shrink a little during drying.
Please do not overdry items of this
type. It is advisable to allow for
shrinkage when choosing the size of
new purchases.
• You can also put starched items into
your dryer. However, to achieve the
desired starched effect, choose the
programme “iron dry”. To remove any
starch residues, wipe out the internal
drum after drying with a moist cloth
and then rub it dry.
• To avoid a static charge when drying
is completed, use either a fabric softener when you are washing the
laundry or a fabric conditioner specifically for tumble dryers.
• Remove the laundry when the dryer
has finished drying.
• If individual items are still damp after
drying, set a brief post-drying time,
but at least 30 minutes. This will be
necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.
Remove persistent stains before
Rub particularly soiled areas with a
special detergent or detergent paste.
Treat curtains with special care. Remove
hooks or tie them up in a bag or net.
125985630 gb.qxp
Page 13
drying hints electrolux 13
Maximum loads
Recommended loads are indicated in
the programme charts.
General rules:
Cotton, linen: drum full but not too
tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum
no more than one third full.
Try to load to the maximum capacity
of the machine as small loads are
Laundry weights
The following weights are indicative:
quilt cover
pillow case
towelling towel
tea cloth
night dress
ladies’ briefs
man’s work shirt
man’s shirt
man’s pyjamas
men’s underpants
1200 g
100 g
700 g
500 g
200 g
250 g
200 g
100 g
200 g
100 g
600 g
200 g
500 g
100 g
100 g
125985630 gb.qxp
Page 14
14 electrolux drying programmes
Drying programmes
Type of
7 kg
Description of programme
Drying thick or multi-layered textiles,
e.g. terry towelling items
7 kg
Drying thick textiles, e.g. terry towelling
items, towels.
7 kg
Drying textiles of even thicknesses,
e.g. terry towelling items, knitted
items, towels.
7 kg
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
3 kg
Drying thick or multi-layered textiles,
e.g. pullovers, bedding, table linen.
3 kg
3 kg
3 kg
For thin textiles which are still to be
ironed, e.g. knitted items, cotton
For thin textiles which are not ironed,
e.g. easy care shirts, table linen,
baby’s clothes, socks, underwear.
Special programme for cotton and
easy care, which can drying together
in the same time.
1 kg
For drying individual items of laundry
or for small volumes of less than 1kg.
125985630 gb.qxp
Page 15
drying programmes electrolux 15
Drying programmes
Type of
1 kg
3 kg
7 kg
Description of programme
Special programme with anti-crease
mechanism for easy care textiles such
shirts and blouses; for minimum
ironing effort. The result depends on
the type and quality of textiles. (The
loading volume corresponds to
approx. 5 to 7 shirts.)
Recommendation: Place textiles in the
dryer straight after spinning. Once
dried, immediately remove textiles and
place on clothes hanger.
Special programme for cotton and
easy care, which can drying together
in the same time.
Special programme for leisure
clothing, such as jeans, sweat-shirts,
etc., of different material thicknesses
(e.g. at the cuffs and seams).
Special programme, lasting around 35
minutes, for refreshing or gently
cleaning textiles with commercially
available dry cleaning sets.
(Only use those products which are
declared as suitable for the drier by
the manufacturer; please observe the
manufacturer’s instructions for use.
125985630 gb.qxp
Page 16
16 electrolux programme information
Programme information
program in the
audible signal
which reminds you
that the programme
is complete.
1. Turn the programme selector to any programme.
2. Press the BUZZER button and hold down for approx. 5
A brief signal sounds several times. The Buzzer display flashes
several times. The setting is permanently programmed. The
setting is cancelled as described under 1 and 2.
Adjust detection of
degree of drying:
If the laundry is
slightly drier or
slightly damper at
the end of the
programme than
with the standard
1. Turn the programme selector to any programme.
2. Press the START and the DRYNESS buttons at the same
time and hold down for approx. 5 seconds.
The current setting is displayed on the programme
progress display:
– C0: Setting for drier laundry
– C1: Standard setting
– C2: Setting for damper laundry
3. Press the START/PAUSE button until the setting
required appears on the programme progress display.
4. Turn the programme selector to “O”.
The setting is permanently programmed.
If the EMPTY
WATER display is
to remain permanently
deactivated when
using an external
condensate drain.
1. Turn the programme selector to any programme.
2. Press the Dryness and DELICATE buttons at the same
time and hold down for approx. 5 seconds.
The EMPTY WATER display flashes briefly. The EMPTY WATER
display is permanently deactivated. Settings may be cancelled as
under 1 and 2, but the EMPTY WATER.
Child Lock
The child lock can be activated or desactivated by pressing the
buttonsTIME and DRYNESS at the same time:
– before starting a program: the appliance can not be used
– after starting a program: the running drying cycle can not be
If the child lock is activated, the display shows the symbol
At the end of a drying cycle the child lock will not be desactivated
If a new program should be selected, first the child lock must be
O = Cancelling/OFF
To reset a programme and to switch off the machine turn the
selector dial to O. Now can a new programme be selected.
125985630 gb.qxp
Page 17
care and cleaning electrolux 17
Care and cleaning
You must DISCONNECT the appliance
from the electricity supply, before you
can carry out any cleaning or
maintenance work.
External cleaning
The filter in the inner door must be
removed for cleaning.
Use only soap and water and then dry
Important: do not use methylated spirit,
diluents or similar products..
Cleaning the door
Clean periodically the interior part of
the door to remove any fluff from the
seals around the filter. Accurate cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are clean.
The filters collect all the fluff which
accumulates during drying and they
must therefore be cleaned at the end
of each programme, before removing
the laundry, with a damp cloth.
The light
is on to remind you this
Do not be alarmed by the amount of fluff. It
is not due to excessive wear caused by the
All fabric loses fluff when drying but it
goes un-noticed in the air. In a tumble
dryer it simply collects in the filter.
After a while, a withish patina due to
detergent residue on laundry forms on
the filters. When this occurs, clean the
filters with warm water using a brush.
Remove the filter in the door opening
as per picture (it can be positioned with
the tooth facing to the left or to the
125985630 gb.qxp
Page 18
18 electrolux care and cleaning
Do not use the appliance without filters.
Clean it with a brush and rinse it under the
shower if necessary.
Also clean the outside, removing all fluff.
Cleaning the condenser unit
Clean the condenser when light
The condenser is situated at the lower part
of the cabinet behind a small door. To open
the door, push the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser insertion.
Clean the rubber seal round the condenser
cabinet and in the inner part of the small
door with a damp cloth.
Important! Do not use pointed objects
or utensils to clean the spaces
between the plates, as this could damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops
upwards and close the door.
To pull out the condenser, first turn the two
red stops downwards and then remove the
condenser unit holding it at the handle.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside the machine and is collected in a
The reservoir must be emptied after each
drying cycle to ensure efficient operation
when the machine is next used. The pilot
reminds you this operation.
125985630 gb.qxp
Page 19
care and cleaning electrolux 19
Proceed as follows:
• Open the small door at the lower part of
the cabinet
• Turn the yellow stop upwards
• Pull out the reservoir
• Open the small cover and let water flow
• Close the small cover and re-insert correctly the reservoir
• Push it until it clicks and turn the yellow
stop downwards to lock firmly it
Handy tip: The condensed water may be
used in a steam iron or to top up a battery,
etc. In this case it must be filtered (e.g.
through a coffee filter)).
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff
from the air intake grille at the back of the
• Close the small door and press the
START/PAUSE button again to allow the
programme to continue.
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it
turns out either too dry or too damp, we
advise you to clean the inside of the drum with
a cloth soaked with vinegar.
The reservoir must be re-iinserted correctly.
If this is not done the pilot light
on during next drying and the programme
stops, leaving the laundry damp. The
buzzer will sound for 1 minute.
After emptying and inserting the reservoir
the START-button
has to be depressed
again to allow the programme to continue.
This will eliminate the slight patina that has
formed in the drum (due to residues of
detergent and softeners used in the washing, and to the lime contained in the water),
which prevents the probes from detecting
the correct degree of dryness.
125985630 gb.qxp
Page 20
20 electrolux something not working
Something not working
Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer. Before contacting your local Service
Centre, please carry out the checks listed below.
During machine operation it is possible that the red Start/Pause pilot light flashes to
indicate that the machine is not working.
Once the problem has been eliminated, press the Start/Pause button to restart the
programme. If after all checks, the problem persists, contact your local Service
Dryer does not work.
Drying results
Possible cause
Mains plug is not plugged in
or fuse is not working
Plug in at mains socket.
Check fuse in fuse box
(domestic installation).
Loading door is open.
Close loading door.
Have you pressed the
START/ PAUSE button?
button again.
Wrong programme selected.
Select a different programme the
next time you dry (see “Overview
of programmes” section).
Lint filter clogged.
Clean lint filter.
Heat exchanger clogged with lint.
Clean heat exchanger.
Incorrect volume of laundry.
Observe recommended
loading volumes.
Ventilation slots in base area
covered up.
Residue on inside surface of
drum or drum ribs.
Uncover ventilation slots in
base area.
Clean inside surface of drum
and drum ribs
Conductance of water at
installation site differs from
standard setting of machine.
Re-programme standard setting
for degree of drying (see
‘Programming options’ section).
Fine strainer not in place
and/or large mesh filter not
locked in place.
Loading door does not
Install fine strainer and/or
snap large mesh filter into
125985630 gb.qxp
Page 21
something not working electrolux 21
Possible cause
When pressing a button,
the corresponding
button flashes several
Drum light does not
Programme selector in OFF
Defective light bulb
When a button is
pressed, Err appears in
the multi-display.
Programme inactive,
Water reservoir full
Washing protection.
After the start of the programme, the option can no longer
be set.
Turn the programme knob to
OFF. Set the programme
Turn programme selector to
LIGHT or to any programme
Replace light bulb (see next
Washing protection. After the ● Turn the programme knob to
OFF. Set the programme again.
start of the programme, the
option can no longer be set.
Condensate tank is full.
light illuminated.
Drying cycle ends
shortly after programme
starts. END
light illuminated.
Drying cycle lasts an
unusually long time.
After around 5 hours
the drying cycle ends
automatically (see
„Drying cycle complete“)
Lint filter clogged.
Heat exchanger clogged with
DELICATE button pressed
and load volume too big.
Load volume too big.
Laundry insufficiently
Not enough washing loaded
or washing loaded is too
dry for selected programme.
Empty condensate tank, then
start programme with
Select time programme or
higher drying level (e.g. EXTRA
DRY instead of STRONG).
Clean lint filter
Clean heat exchanger.
DELICATE is only suitable for
use with loads of up to 3 kg!
Reduce load volume.
Laundry must be adequately
125985630 gb.qxp
Page 22
22 electrolux something not working
If you are unable to identify or solve the
problem, contact our service centre.
Before telephoning, make a note of the
model, serial number and purchase date
of your machine: the Service Centre will
require this information.
Pro d. .....
No .....
. .....
. No
. .....
Mod. ..........
Prod. No. ...........
P0042 BD
Ser. No. .........
IMPORTANT: if you call out an engineer to a fault listed
below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is
under guarantee.
125985630 gb.qxp
Page 23
technical data electrolux 23
Technical data
Electrical connection
Voltage - Overall power Fuse
60 cm
85 cm
58 cm
Information on the electrical connection is given
on the rating plate on the inner edge of the
appliance door
Depth with loading door open
Maximum Load
109 cm
7 kg
3 kg
+ 5°C à + 35°C
This appliance conforms with the following EU Directives:
73/23/EEC dated 19.02.1973 Low Voltage Directive
89/336/EEC dated 03.05.1989 EMC Directive inclusive of
Directive 92/31/EEC
93/68/EEC dated 22.07.1993 CE Marking Directive
125985630 gb.qxp
Page 24
24 electrolux Consumption values
Consumption values
(in minutes)
(in kWh)
Cottons Cupboard1)
Cottons Iron1)
Cottons Cupboard1)
Synthetics Cupboard2)
Max Cottons load:
Max Synthetics load:
7 kg
3 kg
The consumption values have been
established under standard conditions.
They may deviate when the machine is
operated in domestic circumstances.
125985630 gb.qxp
Page 25
installation electrolux 25
All transit bolts and packing must be
removed before using the appliance.
Slide out the polythene bag with the
polystyrene stuffing before using the
appliance Pull off adhesive strips from
inside machine on top of drum.
Should the appliance be moved, it must
be transported vertically.
The appliance must not be installed
behind a lockable door, a sliding door a
door with a hinge on the opposite side
to that of the appliance.
It is recommended that, for your
convenience, the machine is positioned
close to your washing machine.
The tumble dryer must be installed in a
clean place, where dirt does not build up.
Air must be able to circulate freely all
round the appliance. Do not obstruct the
front ventilation grille or the air intake
grilles at the back of the machine.
To keep vibration and noise to a
minimum when the dryer is in use, it
should be placed on a firm, level surface.
Once in its permanent operating position,
check that the dryer is absolutely level
with the aid of a spirit level. If it is not,
raise or lower the feet until it is.
The feet must never be removed. Do not
restrict the floor clearance through
deeppile carpets, strips of wood or
similar. This might cause heat build-up
which would interfere with the operation
of the appliance.
The hot air emitted by the tumble dryer
can reach temperatures of up to 60°C.
The appliance must therefore not be
installed on floors which are not resistant
to high temperatures.
When operating the tumble dryer, the
room temperature must not be lower
than +5°C and higher than +35°C, as it
may affect the performance of the
Stacking kit
A special stacking kit is available through
your dealer, to enable the mounting of
the dyer on top of a front loading
washing machine with cover’s depth
between 48 and 60 cm.
Read carefully the instructions supplied
with the kit.
125985630 gb.qxp
Page 26
26 electrolux installation
Door reversal
Reversing the door is not possible if after
this operation the appliance result
installed behind a door with a hinge on
the opposite side to that of the
To make it easier to load or unload the
laundry the door can be reversed.
This operation must be carried out by
qualified personnel.
Please contact the nearest Service
Electrical connection
This machine is designed to operate on
a 220-230 V,
single-phase, 50 Hz supply. Check that
your domestic electrical installation can
take the maximum load required (2.2
kW), also taking into account any other
appliances in use.
Connect the machine to an earthed
socket, in accordance with current
wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution. Should
the appliance power supply cable
need to be replaced, this must be
carried out by our Service Centre.
The power supply cable must be
accessible after installing the machine.
125985630 gb.qxp
Page 27
environment concerns electrolux 27
Environment concerns
Ecological hints
Packaging materials
The materials marked with the symbol
are recyclable.
This means that they can be recycled by
disposing of them properly in
appropriate collection containers.
Old machine
Use authorised disposal sites for your
old appliance. Help to keep your country
The symbol
on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.
To save water, energy and to help
protect the environment, we recommend
that you follow these tips:
• Normally soiled laundry may be
washed without prewashing in order to
save detergent, water and time (the
environment is protected too!).
• The machine works more
economically if it is fully loaded.
• With adequate pre-treatment, stains
and limited soiling can be removed;
the laundry can then be washed at a
lower temperature.
• Measure out detergent according to
the water hardness, the degree of
soiling and the quantity of laundry
being washed.
125985630 gb.qxp
Page 28
28 electrolux guarantee conditions
European guarantee
This appliance is guaranteed by
Electrolux, in each of the countries listed
in the following page, for the period
specified in the appliance guarantee or
otherwise by law. If you move from one
of these countries to another of these
countries the appliance guarantee will
move with you subject to the following
The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced
by production of a valid purchase
document issued by seller of the
The appliance guarantee is for the
same period and to the same
extent for labour and parts as exists
in your country of residence for this
particular model or range of
The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
The appliance is installed and used
in accordance with instructions
issued by Electrolux and is only
used within the home, i.e. is not
used for commercial purposes.
The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.
The provisions of this European
Guarantee do not affect any of the rights
granted to you by law.
125985630 gb.qxp
Page 29
customer service centres electrolux 29
Customer Service Centres
Should you need further assistance please contact your local Customer Service
+32 2 363 04 44
Bergensesteenweg 719, 1502 Lembeek
ýeská republika
+420 2 61 12 61 12
BudČjovická 3, Praha 4, 140 21
+45 70 11 74 00
Sjællandsgade 2, 7000 Fredericia
+49 180 32 26 622
Muggenhofer Str. 135, 90429 Nürnberg
+37 2 66 50 030
Mustamäe tee 24, 10621 Tallinn
+34 902 11 63 88
Carretera M-300, Km. 29,900 Alcalá de Henares Madrid
Great Britain
+44 8705 929 929
101 Oakley Road LUTON Beds LU4 9RJ
+30 23 10 56 19 70
4, Limnou Str., 54627 Thessaloniki
+38 51 63 23 338
Slavonska avenija 3, 10000 Zagreb
+353 1 40 90 753
Longmile Road Dublin 12
+39 (0) 434 558500
C.so Lino Zanussi, 26 - 33080 Porcia (PN)
+37 17 84 59 34
Kr. Barona iela 130/2, LV-1012, Riga
+370 5 27 80 609
Verkiu 29, 09108 Vilnius, Lithuania
+35 2 42 43 13 01
Rue de Bitbourg, 7, L-1273 Hamm
+36 1 252 1773
H-1142 Budapest XIV, Erzsébet királyné útja 87
+31 17 24 68 300
Vennootsweg 1, 2404 CG - Alphen aan den Rijn
+47 81 5 30 222
Risløkkvn. 2 , 0508 Oslo
+43 18 66 400
Herziggasse 9, 1230 Wien
+48 22 43 47 300
ul. Kolejowa 5/7, Warsaw
+35 12 14 40 39 39
Quinta da Fonte - Edificio Gonçalves Zarco - Q35 -2774-518 Paço de Arcos
+40 21 44 42 581
B-dul Timisoara 90, S6, Bucharest
Schweiz - Suisse - Svizzera
+41 62 88 99 111
Industriestrasse 10, CH-5506 Mägenwil
+38 61 24 25 731
Tr aška 132, 1000 Ljubljana
+421 2 43 33 43 22
Electrolux Slovakia s.r.o., Electrolux Domáce spotrebiþe SK, Seberíniho 1, 821 03 Bratislava
+35 8 26 22 33 00
Konepajanranta 4, 28100 Pori
+46 (0)771 76 76 76
Electrolux Service, S:t Göransgatan 143, S-105 45 Stockholm
+90 21 22 93 10 25
Tarlabaúı caddesi no : 35 Taksim østanbul
+7 095 937 7837
129090 Ɇɨɫɤɜɚ, Ɉɥɢɦɩɢɣɫɤɢɣ ɩɪɨɫɩɟɤɬ, 16, Ȼɐ "Ɉɥɢɦɩɢɤ"
125985630 gb.qxp
Page 30
125985630 gb.qxp
125 985 630 -00-25052006
Page 31
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
