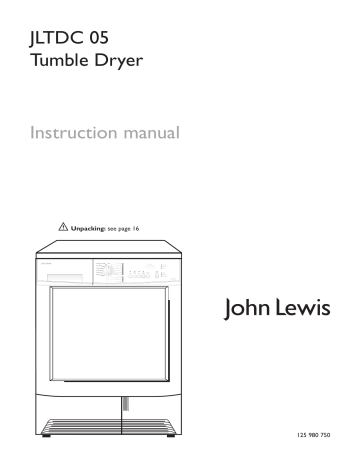

JLTDC 05
Tumble Dryer
Instruction manual
Dry cleaning
Off
Extra dry
Store dry
30 minutes
Cupboard dry
60 minutes
Damp dry
90 minutes
Iron dry
Delicates
Extra dry
Iron dry
Drying
Cooling
Door
Machine iron dry
Cupboard dry
Dry time
End
Alarm
off
Quick
Half
power
Delay
start
Start/
Pause
Filter
Full tank
Condenser
Synthetics
Cooling 10 minutes
Cottons
Unpacking: see page 16
JLTDCO5
125 980 750
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is supplied with the appliance in order that the new
owner can get to know the functioning of the appliance and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully before
installing or using the appliance.
If you are unsure of the meanings of the these warnings contact the John Lewis branch from which you
purchased the appliance.
Installation
●
●
●
●
●
●
●
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
●
●
●
●
Child Safety
●
●
●
●
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
Pets and children have been known to climb into
tumble dryers. Please check your drum before use.
Keep all packaging well away from children.
When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing
●
●
●
Use
●
●
●
●
Do not overload the appliance (see programme
chart).
Clothes which are dripping wet should not be
placed in the dryer.
Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
2
If you have washed your laundry with stain
remover you must execute an extra rinse cycle
before loading your tumble dryer.
As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
Danger of explosion: Never tumble dry items
that have been in contact with inflammable
solvents (petrol, methylated spirits, dry cleaning
fluid and the like). As these substances are volatile,
they could cause an explosion. Only tumble dry
items washed with water.
In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
Clean fluff filters after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged.
Do not allow fluff to accumulate around the dryer.
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre. Always insist on genuine spare parts.
Contents
For the User
Important Safety Information
Installation
Child Safety
Use
Your New Tumble Dryer
Description of the Appliance
The Control Panel
●
●
●
●
●
●
●
●
●
●
Programme Chart
Door Release Button
No Buzzer Button
Quick Dry Button
Low Temperature Button
Delay Start Button
Display
Start/Pause Button
Indicator Lights
Programme/Time Selector Dial
Programme Chart
Operating Sequence
Hints & Tips on Drying
Maintenance and Cleaning
●
●
●
●
●
●
External cleaning
Cleaning the door
Cleaning the filters
Cleaning the condenser unit
Emptying the water reservoir
Cleaning the drum
Something Not Working
Service and Spare Parts
Customer Care
2
2
2
13
13
13
For the Installer
2
Installation Instructions
Technical Specifications
Adjusting the level of conductivity
4
4
5
5
5
5
5
5
5
6
7
7
7
●
●
●
●
●
Unpacking
Positioning
Stacking kit (optional accessory)
Door reversal
Electrical connection
8
9
10
11
11
11
11
11
12
12
Guide to using the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
3
14
14
15
16
16
16
16
17
Your New Tumble Dryer
This tumble dryer will give your wash that soft, relaxed feel whatever the
weather.
Extremely high quality standards both during development and manufacturing
guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through very
economical electricity consumption and short drying times.
In the interest of the
environment
Energy saving tips
To save energy we recommend that you follow these
hints:
● Try to load the maximum capacity of the machine
as small loads are uneconomical.
● Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.
● Do not over-dry laundry, this avoids creasing and
saves energy.
● Clean the filters regularly to avoid excessive
drying times and high electricity consumption.
● Ventilate the room well. The room temperature
should not exceed +35°C during drying.
●
●
●
●
Materials marked with the symbol
are
recyclable.
Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
A cut off plug inserted into a 13amp
socket is a serious safety (shock) hazzard.
Ensure that the cut off plug is disposed of
safely.
Description of the Appliance
1
2
3
4
5
6
7
Control panel
Water reservoir
Drum Light
Fluff filters
Rating Plate
Condenser unit
Adjustable feet
1
4
2
5
4
7
6
4
3
Off
Extra dry
Store dry
30 minutes
Cupboard dry
60 minutes
Damp dry
Extra dry
Cupboard dry
Iron dry
1
Cooling
Door
Machine iron dry
Delicates
Drying
End
Iron dry
90 minutes
Dry time
Alarm
off
Quick
Half
power
Delay
start
Start/
Pause
Filter
Full tank
Condenser
Synthetics
Cooling 10 minutes
Dry cleaning
Cottons
The Control Panel
JLTDCO5
2 3 4 5 6 7 8 9
1 Programme/Time Selector Dial
3 Alarm off Button
Allows you to select electronically controlled or
time controlled drying.
Turn the dial to the required programme or time.
A buzzer sounds
● when selecting the programme
● when depressing the buttons
● when an incorrect option selection is made
● when the programme selector dial is turned to
another position during the programme or when
you depress an option button during the cycle
● at the end of the programme
● when the water reservoir is full
● if the machine is not working correctly
● when the small door at the bottom is open.
By depressing the button the acoustic signal is
switched off.
The corresponding light comes on.
Electronically controlled drying (automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of
the laundry.
Simply select the programme according to the type
of laundry and degree of drying required.
Time controlled drying
This can be used to finish off drying if necessary.
Select the 90 or 60 minute programme for cottons
or the 30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “Off”.
At the end of drying, turn the selector dial to “Off”
to switch the machine off before removing the
laundry.
If the programme selector dial is turned to another
position, when the machine is running, the buzzer
will sound and the programme phase indicator lights
will flash.
4 Quick Dry Button
By depressing this button the drying time is reduced
in the following COTTON programmes:
● EXTRA DRY
● STORE DRY
● CUPBOARD DRY
The corresponding pilot light comes on.
This option cannot be selected with HALF POWER
function.
2 Door Release Button
Press this button to open the door. The light above
the button will illuminate.
Opening the door by means of this button is
possible only if the tumble dryer is on
(programme selector dial set to a programme
or drying time).
If you open the door during a programme, in order
to restart the programme you must press the
START/PAUSE button again after having closed the
door.
5 Half Power Button
Pressing this button allows drying to be performed at
a lower temperature, for delicate items. The
corresponding pilot light comes on. This option can
also be used for time controlled drying.
This option cannot be selected with QUICK and
DELICATES programme.
5
6 DELAY START button
This button allows you to delay the starting of the
programme by 12 hours max.
This option must be selected after having selected
the programme and before pressing START/PAUSE
to start the programme.
Every time the button is pressed, the time is increased
by 30 minutes, until the display shows a delay of “2
hours”. After this, the delay is displayed hour by hour.
The minutes or hours of delay that have been selected
are displayed for 2 seconds, then the display shows
the duration of the previously selected programme.
The countdown begins after you have pressed the
START/PAUSE button.
To cancel the delay time, during the drying phase the
START/PAUSE button to set your appliance to pause
and then press the DELAY START button until the
display indicates 0’. Then press the START/PAUSE
button again.
When the delay is cancelled, the display shows the
duration of the programme.
During the delayed start, it is not possible to change
the programme or the delay time that have been
selected. To do this, you must first switch off the
machine by setting the programme selector dial to
“Off”. Select the new programme, the options and
the delayed start, then press the START/PAUSE
button.
If you wish to add more laundry while the machine is
performing the countdown, simply open the door.
When you close the door, press the START/PAUSE
button again to cause the countdown to be resumed.
1.20
When the programme starts, the remaining time is
displayed every 5 minutes.
● Delayed start
If you have selected a delay time by means of the
relevant button, the display shows it for 2 seconds;
then it shows the duration of the previously
selected programme.
The countdown is displayed every 30 minutes until it
displays 90 minutes and then hour by hour.
3
●
End of programme
A flashing zero indicates the end of the
programme and it is displayed after the “anticreasing” phase.
0
7 DISPLAY
The display shows the following information:
● duration of selected programme
● delayed start
● end of programme
● incorrect option selection
● alarm code
● Duration of selected programme
After you have selected the programme, its
duration (in hours and minutes) appears on the
display. It is calculated automatically on the basis
of the maximum load accepted for each type of
fabric and of the required degree of drying.
●
6
Incorrect option selection
If you select an option that is not compatible with
the programme you have selected, the display
shows err (error).
9 Indicator Lights
This code will reappear during the execution of the
programme if you press one of the option buttons.
● Alarm code
In the case of a functional problem, the display
shows an alarm code (e.g. E21). See page 13 for
more detailed information.
These lights indicate the following functions:
“DRYING” light
This light indicates that the appliance is in the drying
phase.
“COOLING” light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a 10
minute cooling phase to cool the laundry.
E21
“END” light
This light illuminates at the end of the cooling phase,
during the anti-creasing phase and at the end of the
programme.
“FILTER” light
This light illuminates at the end of the programme to
remind you that the filters must be cleaned.
“FULL TANK” light
This light illuminates at the end of the programme to
remind you that the water reservoir must be
emptied out. If this light illuminates during a
programme this means that the water reservoir is
full. The buzzer sounds, the programme stops, the
light of the Start/Pause button flashes.
8 START/PAUSE button
Press this button to start the dryer after having
selected the programme and the options.
The relevant light will stop flashing. If you have chosen
a delayed start, the machine will begin the countdown.
If the door of the appliance or the small door
at the bottom is opened while the programme
is running, this button must be pressed again
after closing the door in order to restart the
programme from the point at which it was
interrupted.
This button must also be depressed after a power
failure and after having re-inserted the water
reservoir, if it has been emptied in the middle of a
programme after the “FULL TANK” light has
illuminated.
In both cases the light of the Start/Pause button
flashes to remind you that the start button needs to
be pressed again.
“CONDENSER” light
It comes on every 80 cycles to remind you that the
condenser must be cleaned.
7
Programme Chart
Automatic drying (electronic programmes)
Degree of drying
required
Type of laundry
Max-load (1)
COTTON
EXTRA DRY
STORE DRY
CUPBOARD DRY
DAMP DRY
IRON DRY
MACHINE IRON DRY
SYNTHETICS
EXTRA DRY
CUPOARD DRY
IRON DRY
2.5 kg
2.5 kg
2.5 kg
Shirts, courtains
DELICATES
2.5 kg
Jackets, trousers,
dresses, skirts.
DRY CLEANING
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
1 - 4 garments
(*) According to IEC 61121 Standards.
● DELICATES cycle is a special programme for shirts and courtains to be dried “STORE DRY”.
● DRY CLEANING is designed to freshen garments labelled “DRY CLEAN ONLY” at home, in your tumble
dryer, using the special products available on the market.
Time controlled drying
Drying time
Max-load (1)
Programme
selector dial position
COTTON
90 min
6,5 kg
90’ minutes
COTTON
60 min
6,5 kg
60’ minutes
SYNTHETICS
30 min
2.5 kg
30’ minutes
Type of laundry
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
● The type of laundry
● The size of the load
● The degree of spinning prior to drying.
● The degree of dryness required
Cooling 10 minutes
This position on the programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
● cotton, linen: drum full but not too tightly packed;
● synthetics: drum no more than half full;
● delicate fabrics: drum no more than one third full.
8
Operating Sequence
9. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
If you do not remove the laundry, the dryer will
stop automatically at the end of the anti-creasing
phase.
The END, FILTER and FULL TANK lights remain
lit and the buzzer sounds every 10 seconds for 2
minutes.
The light of the START/PAUSE button goes off and
a flashing zero appears on the display.
10.Turn the programme selector dial to “Off”; all the
lights go out. The appliance is switched off.
Remove the laundry.
If you open and then close the door before
turning the programme selector dial to
“Off”, all the lights corresponding to the
phases making up the performed
programme come on and the display shows
the duration of the programme.
Before using your tumble dryer for the first time, we
recommend that you place a few damp cloths inside
the appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
Drying
1. Connect the appliance.
2. Open the door (see picture).
P1149
P1108
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does not
get caught between the door and filter.
5. Select the drying programme or time. The lights
DRYING, COOLING and END come on. The
light of the START/PAUSE button flashes and the
display shows the duration of the programme.
6. If required, press the HALF POWER button
and/or the ALARM OFF button or the QUICK
button.
7. Select the DELAY START if required. The selected
delay appears on the display for 2 seconds, then
the duration of the selected programme is
displayed.
8. Press the START/PAUSE button: the
corresponding light stops flashing and drying
starts. Only the DRYING light stays lit. If you have
selected the DELAY START, the machine begins its
countdown.
If the programme selector dial is turned to
another position, when the machine is running, the
buzzer will sound, the programme phase indicator
lights will flash.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (COOLING light illuminates).
You may remove the laundry after this phase.
The lights END, FILTER and FULL TANK
illuminate and the buzzer sounds.
The display shows a static zero.
After each use
●
●
Clean the filters (see page 11).
Empty the water reservoir (see page 12).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position “Cooling” and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance. To do this first turn the dial to “Off” and
then to “Cooling” and depress START/PAUSE
Button.
Modifying the programme
To change a programme which is running, first cancel
it by turning the programme selector dial to “Off”.
Select the new programme and press the
START/PAUSE Button.
9
Hints & Tips on Drying
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
●
●
Care Labels you may find on your laundry
may be tumble dried
●
normal drying (high temperature)
●
delicate drying (low temperature)
●
do not tumble dry
●
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
●
●
Sheet . . . . . . . . . . . . . . . . . . . . . . . . . . .700 to 1000 g
Pillowcase . . . . . . . . . . . . . . . . . . . . . . . .100 to 200 g
Tablecloth . . . . . . . . . . . . . . . . . . . . . . . .400 to 500 g
Table Napkin . . . . . . . . . . . . . . . . . . . . . . .50 to 100 g
Kitchen Towel . . . . . . . . . . . . . . . . . . . . . .70 to 120 g
Linen Hand Towel . . . . . . . . . . . . . . . . . .100 to 150 g
Hand Towel . . . . . . . . . . . . . . . . . . . . . . .150 to 250 g
Bath Towel . . . . . . . . . . . . . . . . . . . . . .700 to 1000 g
Bathrobe . . . . . . . . . . . . . . . . . . . . . . .1000 to 1500 g
Shirt . . . . . . . . . . . . . . . . . . . . . . . . . . . . .200 to 300 g
Apron . . . . . . . . . . . . . . . . . . . . . . . . . . .150 to 200 g
Always load well spun laundry. The higher the spin
speed the lower the electricity consumption and
the shorter the drying time.
DO NOT load dripping wet laundry into the
dryer. Roll the article in a towel or spin to remove
excess water.
Close poppers and zips and fasten any buttons.
Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
Remove the laundry immediately after the
programme has finished.
Use a fabric conditioning sheet to reduce static.
We recommend the sheet is pinned to an article
of laundry (using a safety pin).
Mix the load i.e. large and small articles.
When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the
following:
● Articles contaminated with inflammable substances
e.g. petrol, cleaning solvents, cooking oil, fats or
hair lacquer.
● Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
● Very delicate articles such as silk.
● Very large and bulky items such as duvets or
sleeping bags.
10
Maintenance and Cleaning
You must disconnect the appliance from the electricity
supply, before you can carry out any cleaning or
maintenance work.
After a while, a withish patina due to detergent
residue on laundry forms on the filters. When this
occurs, clean the filters with warm water using a
brush. Remove the filter in the door opening as per
picture (it can be positioned with the tooth facing to
the left or to the right).
External cleaning
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents
or similar products.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Regular cleaning ensures correct drying.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
P1152
Do not use the appliance without filters.
E
R S
V E
R E
T O
A U
Cleaning the condenser unit
Clean the air condenser when CONDENSER light
illuminates.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door, push
the catch as per picture.
P1150
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth. The FILTER light reminds
you to carry out this operation.
650
800 /
kg 5
kg 2,5
P1110
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
P1153
During the drying cycle or at the end, it is
normal for water to be present on the surface
of the condenser insertion .
To pull out the condenser, first turn the two red
stops downwards as shown below and then remove
the condenser unit holding it at the handle.
E
R S
V E
R E
T O
A U
P1151
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
P1154
11
P1155
The reservoir must be re-inserted correctly.
If this is not done the pilot light FULL TANK comes
on during next drying and the programme stops,
leaving the laundry damp. The buzzer will sound.
After inserting the reservoir the START/PAUSE
button has to be depressed again to allow the
programme to continue.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Clean it with a brush and rinse it under the shower
if necessary.
P0639
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
Important! Do not use pointed objects or utensils
to clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops upwards
and close the door.
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it turns out
either too dry or too damp,we advise you to clean
the inside of the drum with a cloth soaked with
vinegar.
This will eliminate the slight patina that has formed in
the drum (due to residues of detergent and softeners
used in the washing, and to the lime contained in the
water), which prevents the probes from detecting the
correct degree of dryness.
Do not use this appliance if the
condenser has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the
machine is next used.
The FULL TANK light reminds you to perform this
operation.
Proceed as follows:
● Pull out the reservoir
● Turn it upside down and let water flow down
● Re-fit the reservoir
P1156
P1157
12
Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if the END light flashes, the buzzer sounds and an alarm code is displayed, switch the machine
off and call the Service Centre.
Symptom
Possible causes
●
The tumble dryer does not start
●
●
●
●
●
●
●
●
Drying takes too long or laundry is not
dry enough.
●
●
●
●
●
●
●
The drum light does not light up:
●
●
The door(s) has (have) not been closed.
The plug is not properly inserted in the power
socket.
There is no current at the socket.
The main fuse or the fuse in the plug has blown.
The selector dial is not set correctly.
The water reservoir is full or not properly inserted
(the FULL TANK light is on ). The programme starts
in any case but it stops after approx. 4 minutes.
The START/PAUSE Button has not been depressed.
The DELAY START option has been selected.
The laundry has not been spun properly.
The filters and/or the condenser are clogged.
The water reservoir is full.
The room temperature is too high.
The selected time or drying cycle was not
suitable for the laundry.
The LOW TEMPERATURE button has been
pressed.
There is too much laundry inside the appliance.
The dryer is not correctly installed.
The Programme/Time selector dial is on position
“OFF”.
The lamp is defective.
If after the above checks, there is still a fault, call your local John Lewis Serviceplan
5. The model and serial number of the appliance
(found on the rating plate - see picture on page 4)
So that you always have these numbers at hand, we
recommend you to make a note of them here:
Mod. : . . . . . . . . . . . . . . . . . . . . .
Prod.No. : . . . . . . . . . . . . . . . . . .
Ser.No. : . . . . . . . . . . . . . . . . . . .
Please note that a valid purchase receipt or
guarantee documentation is required for inguarantee service calls.
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local John Lewis Serviceplan by telephoning:
0870 01 07887
Your telephone call will be automatically routed to
the John Lewis Serviceplan covering your post code
area.
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working”.
When you contact the John Lewis Serviceplan you
will need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The purchase date.
Spare parts
An authorised service engineer should service this product,
and only genuine spare parts should be used. Under no
circumstances should you attempt to repair the machine
yourself. Repairs carried out by inexperienced persons may
cause injury or serious malfunctioning. Contact John Lewis
Serviceplan. Always insist on genuine spare parts.
13
Installation Instructions
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the
appliance does not stand on the electrical
supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Technical Specifications
DIMENSIONS
Height
Width
Depth
POWER SUPPLY VOLTAGE
TOTAL POWER ADSORBED
MAX LOAD CAPACITY
85 cm (33.5”)
60 cm (23.6”)
58 cm (22.8”)
230-240 V/50 Hz
2450 W (13A)
Cotton, linen
Synthetics
6.0.kg (13.2 lbs)
2.5 kg (05.5 lbs)
DRUM VOLUME
CONSUMPTIONS
108 l
Cotton, linen
Cotton, linen
Synthetics
4.37 kWh (6.0 kg cupboard dry)
3.6 kWh (6.0 kg iron dry)
1.40 kWh (2.5 kg cupboard dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
14
Adjusting the level of conductivity
Adjusting the level of
conductivity:
Water contains, a variable quantity of limestone and
mineral salts. Their quantities vary according to
geographical locations thus varying its conductivity
values.
Relevant variations of the conductivity of the water
compared to those prefixed by the factory could
slightly influence the residual humidity of the laundry
at the end of the cycle.
Your dryer allows you to regulate the sensitivity of
the drying sensor based on conductivity values of
the water by using the following procedure.
To establish the hardness of your water to
correspond with the table opposite please contact
your local water authority.
Press the button 5 sequentially: the level of
conductivity is indicated by the lighting of the
horizontal hyphens.
Dry time
Drying
Cooling
End
Delay
start
Start/
Pause
1 2 3 4 5
6
Door
Alarm
off
Quick
Half
power
Filter
Full tank
Condenser
JLTDCO5
Procedure:
Dry cleaning
Off
Extra dry
Store dry
30 minutes
Cupboard dry
60 minutes
Damp dry
90 minutes
Iron dry
Delicates
Machine iron dry
Extra dry
Cupboard dry
Iron dry
Dry time
Door
Alarm
off
Quick
Half
power
Delay
start
1 2 3 4 5
Display
Conductivity
degree
Approximative
value (µS/cm)
C0
Low
< 300
C0
Medium
300 - 600
C0
High
> 600
Drying
1.25
Synthetics
Cooling 10 minutes
Cottons
Turn the programme selector dial to switch on the
appliance
In selection mode press simultaneously the buttons
3 and 6 until «C0» appears on the digits.
Cooling
End
Start/
Pause
6
Filter
Full tank
Condenser
Normally, the appliance is factory-set to the
highest level; however, certain models may be
configured differently.
JLTDCO5
Memorising the new setting:
Simultaneously press down the buttons 3 and 6 until
the previous drying cycle time appears again on the
display and the buzzer sounds.
15
Unpacking
Stacking kit (optional accessory)
Warning !
Slide out the polythene bag containing the
polystyrene block before using the appliance.
Pull off adhesive strips from inside machine on
top of drum. Keep all packaging away from
children.
It should be possible to stack your new dryer on top
of a front loading washing machine with cover’s depth
between 48 and 60 cm.
Read carefully the instructions supplied with the kit.
Please contact your local John Lewis branch for
further advice.
P1148
P1106
Door reversal
Should the appliance be moved, it must
be transported vertically.
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest John Lewis Serviceplan.
This is a chargeable option.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grill
or the air intake grills at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
The feet must never be removed.
Do not restrict the floor clearance through
deep-pile carpets, strips of wood or similar.
This might cause heat build-up which would
interfere with the operation of the appliance.
Electrical connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST
BE EARTHED.
The manufacturer declines any liability
should this safety measure not be
observed.
Should the appliance power supply cable
need to be replaced, this must be carried
out by our John Lewis Serviceplan.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance’s
rating plate. (See picture on page 4).
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved BS 1363/A fuse
must be used.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room
temperature must not be lower than +5°C and higher
than +35°C, as it may affect the performance of the
appliance.
16
Permanent connection
Should the plug need to be replaced for any reason,
proceed as described below. The wires in the mains
lead are coloured in accordance with the following
code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green
earth cable at any point.
GREEN & YELLOW
13 A
E
N
L
BROWN
BLUE
P1041
CORD CLAMP
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol
or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp
socket is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
17
John Lewis partnership
171 Victoria Street
London SW1E 5NN
www.johnlewis.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
