125993251.qxd
10/14/02
8:51 AM
Pagina
1
(Nero/Process Black pellicola)

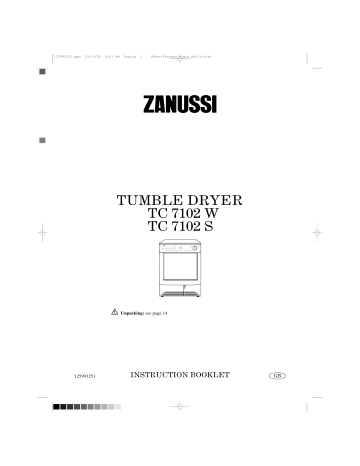

TUMBLE DRYER
TC 7102 W
TC 7102 S
CONDENSER DRYER
D U A L
TC 7102 W
T E M P E R A T U R E
SYNTHETICS
COTTON
IRON DRY
STORE DRY
STORE DRY
Spun at rpm
800 / 900
1000 / 1200
800 / 900
1000 / 1200
Spun at rpm
kg 6
kg 2.5
95' - 115' 85' - 105'
45' - 60' 40' - 55'
120' - 140'
60' - 75'
95' - 115'
55' - 70'
kg 1
kg 2.5
LOW
TEMP.
START
650
65' - 75'
30' - 40'
A U T O R E V E R S E
6
XTRACAPACITY
DRYING TIME
Unpacking: see page 14
125993251
INSTRUCTION BOOKLET
GB
125993251.qxd
10/14/02
8:51 AM
Pagina
2
(Nero/Process Black pellicola)
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
Installation
Use
• This appliance is heavy. Care should be taken when
• Do not overload the appliance (see programme
•
•
•
•
•
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
•
•
•
•
Child Safety
•
• This appliance is designed to be operated by adults.
•
•
Children should not be allowed to tamper with the
controls or play with the product.
Pets and children have been known to climb into
tumble dryers. Please check your drum before use.
Keep all packaging well away for children.
chart).
Clothes which are dripping wet should not be
placed in the dryer.
As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substance are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
• Leave the door slightly ajar when the appliance is
•
not being used. This will allow the seal to be
preserved.
Clean fluff filters after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filters are damaged.
• Do not allow fluff to accumulate around the dryer.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
2
125993251.qxd
10/14/02
8:51 AM
Pagina
3
(Nero/Process Black pellicola)
Contents
For the User
For the Installer
Important Safety Information
2
Installation Instructions
13
• Installation
• Child Safety
• Use
2
2
2
Technical Specifications
13
Your New Tumble Dryer
Description of the Appliance
The Control Panel
4
• Programme Chart
• Mains-on Light
• Low Temperature Button
• Start Button
• Water Full Indicator Light
• Time Selector Dial/On-Off Switch
5
5
5
5
5
5
Programme Chart
Operating Sequence
Hints & Tips on Drying
Maintenance and Cleaning
6
• Unpacking
• Positioning
• Stacking kit (optional accessory)
• Door reversal
• Electrical connection
4
5
7
8
9
• External cleaning
• Cleaning the door
• Cleaning fluff filters
• Cleaning the condenser unit
• Emptying the water reservoir
• Cleaning the air intake grille
9
9
9
9
10
10
Something Not Working
Customer Care
Guarantee Conditions
11
11
12
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
3
14
14
14
14
14-15
125993251.qxd
10/14/02
8:51 AM
Pagina
4
(Nero/Process Black pellicola)
Your New Tumble Dryer
This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.
Energy saving tips
In the interest
of the environment
To save energy we recommend that you follow these
hints:
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Do not over-dry laundry, this avoids creasing and
saves energy.
• Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
• Materials marked with the symbol
•
•
•
are
recyclable.
Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
Description of the Appliance
1
2
3
4
5
6
7
8
3
1
Worktop
Programme chart
Control panel
Fluff filters
Rating Plate
Condenser unit
Water reservoir
Adjustable feet
W
TC 7102
R
SER DRYE
CONDEN
A L
D U
E
U R
A T
E R
M P
T E
COTTON
IRON DRY
Spun at
kg 6
kg 2.5
rpm
/ 900
1000 /
1200
800
85' - 105'
55'
95' - 115'
40' 45' - 60'
LOW
TEMP.
SYNTHET
STORE
STORE
800 / 900
120' - 140'
75'
60' -
DRY
1000 /
1200
95' - 115'
55' - 70'
Spun at
kg 2.5
1
rpm
START
6
DRYING
DRY
XTRACAPACITY
650
65' - 75'
30' - 40'
kg
E
R S
V E
R E
T O
A U
2
4
5
4
8
6 7
4
TIME
ICS
125993251.qxd
10/14/02
8:51 AM
Pagina
5
(Nero/Process Black pellicola)
The Control Panel
CONDENSER DRYER
D U A L
TC 7102 W
T E M P E R A T U R E
SYNTHETICS
COTTON
IRON DRY
STORE DRY
LOW
TEMP.
STORE DRY
Spun at
800 / 900
1000 / 1200
800 / 900
1000 / 1200
Spun at
650
kg 6
kg 2.5
95' - 115' 85' - 105'
45' - 60' 40' - 55'
120' - 140'
60' - 75'
95' - 115'
55' - 70'
kg 2.5
kg 1
65' - 75'
30' - 40'
START
6
XTRACAPACITY
A U T O R E V E R S E
DRYING TIME
1
2
3 4
5
6
5 Water Full
Indicator Light
1 Programme Chart
This will help you to select the correct time for
drying.
This light illuminates when the reservoir is full or
improperly fitted.
2 Mains-On Light
This lights up when the machine starts operating and
goes out when the selector dial is on position “0” and
when you open the door of the appliance or the small
door covering the condenser and the water reservoir.
6 Time Selector Dial /
On Off Switch
The selector dial incorporates two drying cycles, one
of up to 150 minutes at a high temperature for cotton
and linen, and one of up to 100 minutes at a low
temperature for synthetic fabrics. To set the machine
to the selected time, turn the dial clockwise until the
time you want coincides exactly with the pointer.
NEVER attempt to turn the dial in an
anticlockwise direction.
3 Low Temperature
Button
Press this button to reduce the temperature when
drying particularly delicate cotton or linen items.
In this case you should select a longer drying time.
When selecting the drying time you should
remember that it includes a 10 minute cooling phase
(position
on the dial).
This phase should not be shortened, stopped or
avoided, as this could cause skin burns or damages to
the laundry.
4 Start button
Press this button to start the dryer after having
selected the programme.
If the door of the appliance is opened while the
programme is running, this button must be pressed
again after closing the door in order to restart the
programme from the point at which it was
interrupted.
5
125993251.qxd
10/14/02
8:52 AM
Pagina
6
(Nero/Process Black pellicola)
Programme Chart
Cottons
Selector dial up to 150 minutes (high temperature section)
Type of laundry
Cotton
Towelling
Shirts
Sheets
Hand towels
Tablecloths
Table napkins
Amount
of laundry
Degree of drying
Drying time in minutes for
laundry spun at
800/900 rpm
1000/1200 rpm
6 kg
120 - 140
95 - 115
2.5 kg
60 - 75
55 - 70
6 kg
95 - 115
85 - 105
2.5 kg
45 - 60
40 - 55
Store dry
(wardrobe dry)
Iron dry
(not completely dry;
suitable for ironing)
Synthetics
Selector dial up to 100 minutes (low temperature section)
Type of laundry
Synthetics or mixed fabrics
which do not require
ironing.
Degree of drying
Amount of laundry
Drying time in minutes for laundry
spun at a minimum speed of 650 rpm
2.5 kg
65 - 75
1 kg
30 - 40
Store dry
Attention! Please follow the instructions on labels when drying mixed fabrics.
Drying times are given as a guide only and vary according to the size of the load, the type of laundry, the degree
of spinning prior to drying.
Start by selecting a short drying time. If necessary, perform an additional drying cycle afterwards.
Experience will soon enable you to estimate the drying time needed for your usual laundry loads. It is advisable
to take note of them.
Size of load
It is not necessary to weigh the laundry, if these instructions are followed:
• Cottons, linen: full drum, but not overloaded.
• Synthetics: half drum.
For a mixed load (cotton and synthetics, for example) select the drying time suitable for the most delicate
fabrics and then increase it by approx 10 mins.
6
125993251.qxd
10/14/02
8:52 AM
Pagina
7
(Nero/Process Black pellicola)
Operating Sequence
After each use
Before using your tumble dryer for the first time, we
recommend you place a few damp cloths inside the
appliance and dry for 20 minutes.
There may be dust inside a brand new tumble dryer.
• Clean the filters (see page 9).
• Empty the water reservoir (see page 10).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
Time Selector Dial to position
(cooling) and wait
until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance.
Drying
1. Connect the appliance.
2. Open the door.
Modifying the programme
To change a programme which is running, turn the
Time Selector Dial clockwise to the required position.
P1149
P1108
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does not
get caught between the door and filter.
5. Select the drying time by turning the Time
Selector Dial clockwise.
6. If required, press the Low Temperature Button .
7. Press the Start Button : the machine starts
operating. The mains-ON light comes on.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (position
on selector dial).
The machine stops automatically at the end of this
phase. The mains-on light goes out.
8. Immediately remove the laundry.
7
125993251.qxd
10/14/02
8:52 AM
Pagina
8
(Nero/Process Black pellicola)
Hints & Tips on Drying
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
• Always load well spun laundry. The higher the spin
speed the lower the electricity consumption and the
shorter the drying time.
• DO NOT load dripping wet laundry into the dryer.
Roll the article in a towel or spin to remove excess
water.
• Close poppers and zips and fasten any buttons.
• Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
• Remove the laundry immediately after the
programme has finished.
• Use a fabric conditioning sheet to reduce static. We
recommend the sheet is pinned to an article of
laundry (using a safety pin).
• Mix the load i.e. large and small articles.
• When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
Care Labels you may find on your laundry
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet
700 to 1000 g
Pillowcase
100 to 200 g
Tablecloth
400 to 500 g
Table Napkin
50 to 100 g
Kitchen Towel
70 to 120 g
Linen Hand Towel
100 to 150 g
Hand Towel
150 to 250 g
Bath Towel
700 to 1000 g
Bathrobe
1000 to 1500 g
Shirt
200 to 300 g
Apron
150 to 200 g
DO NOT use the tumble dryer to dry the following:
• Articles contaminated with inflammable substances
e.g. petrol, cleaning solvents, cooking oil, fats or
hair lacquer.
• Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
• Very delicate articles such as silk.
• Very large and bulky items such as duvets or
sleeping bags.
8
125993251.qxd
10/14/02
8:52 AM
Pagina
9
(Nero/Process Black pellicola)
Maintenance and Cleaning
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
If necessary the filters can be cleaned with warm
water using a brush. In this case, remove the filter in
the door opening as per picture (it can be positioned
with the tongue facing to the left or to the righ).
External cleaning
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
Use only soap and water and then dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the door
P1152
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Regular cleaning ensures correct drying.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
Do not use the appliance without filters.
E
R S
V E
R E
T O
A U
Cleaning the condenser unit
Clean the air condenser periodically, 3 or 4 times a
year depending on how frequently the dryer is used.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door, push
the catch as per picture.
P1150
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filters collect all the fluff which accumulates
during drying and they must therefore be cleaned at
the end of each programme, before removing the
laundry, with a damp cloth.
650
800 /
kg 5
kg 2,5
P1110
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
P1153
To pull out the condenser, first turn the two red stops
inwards as shown and then remove the condenser
unit holding it at the handle.
E
R S
V E
R E
T O
A U
P1151
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of fluff. It is not
due to excessive wear caused by the dryer. All fabric
looses fluff when drying but it goes un-noticed in the
air. In a tumble dryer it simply collects in the filter.
P1159
9
P1155
125993251.qxd
10/14/02
8:52 AM
Pagina
10
(Nero/Process Black pellicola)
The reservoir must be re-inserted correctly.
After inserting the reservoir the programme will
continue after about 20 seconds.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Clean it with a brush and rinse it under the shower if
necessary.
Cleaning the air intake grille
Using a vacuum cleaner remove the fluff from the
air intake grille at the back of the appliance.
P0639
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops upwards and
close the door.
P1162
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
If this is not done a safety device trips: pilot light
on the control panel comes on and the
programme stops, leaving the laundry damp.
The reservoir can be emptied even in the middle of a
programme.
P1158
10
125993251.qxd
10/14/02
8:52 AM
Pagina
11
(Nero/Process Black pellicola)
Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Symptom
Possible causes
• The door(s) has(have) not been closed.
• The plug is not properly inserted in the power socket.
• There is no current at the socket.
• The main fuse or the fuse in the plug has blown.
• The selector dial is not set correctly.
• The water reservoir is full or not properly inserted
The tumble dryer does not start
(the pilot light
is on ).
• The Start Button has not been depressed.
• The laundry has not been spun properly.
• The filters and/or the condenser are clogged up.
• The water reservoir is full.
• The room temperature is too high.
• The selected time or sector was not suitable for the
Drying takes too long or laundry is not
dry enough.
laundry.
• The low temperature function has been selected.
• There is too much laundry inside the appliance.
• The dryer is not correctly installed.
If after the above checks, there is still a fault, call your local Zanussi Service Force Centre.
Service & Spare Parts
Customer Care
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Zanussi Service Force Centre by telephoning:
For general enquiries concerning your Zanussi
appliance or for further information on Zanussi
products, please contact our Customer Care
Department by letter or telephone as follows:
0870 5 929929
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel 08705 950 950*
or visit our website at www.zanussi.co.uk
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre
and further information about Service Force, please
visit the website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you
have read the details under the heading “Something
Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture on page 4).
5. The purchase date
* calls to this number may be recorded for training
purposes.
11
125993251.qxd
10/14/02
8:52 AM
Pagina
12
(Nero/Process Black pellicola)
Guarantee Conditions
Standard guarantee conditions
European guarantee
We, Zanussi undertake that if, within 12 months of
the date of the purchase, this Zanussi appliance or
any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at
our option, repair or replace the same FREE OF
ANY CHARGE for labour, materials or carriage on
condition that:
• The appliance has been correctly installed and used
only on the electricity supply stated on the rating
plate.
• The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
• The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Zanussi Service Force Centre.
Any appliance or defective part replaced shall
become the Company’s property.
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
• The guarantee starts from the date you first
purchased your product.
• The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
• The guarantee relates to you and cannot be
transferred to another user.
• Your new home is within the European Community
(EC) or European Free Trade Area.
• The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household.
• The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France
Senlis
+33 (0)344 62 20 13
Germany
Nurnberg
+49 (0)800 234 7378
Italy
Pordenone
+39 (0)800 11 75 11
Sweden
Stockholm
+46 (0)20 78 77 50
UK
Slough
+44 (0)1753 219898
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
• Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
• Products of Zanussi manufacture which are NOT
marketed by Zanussi.
12
125993251.qxd
10/14/02
8:52 AM
Pagina
13
(Nero/Process Black pellicola)
Installation Instructions
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Technical Specifications
DIMENSIONS
Height
Width
Depth
POWER SUPPLY VOLTAGE
TOTAL POWER ADSORBED
MAXIMUM RECOMMENDED LOAD
85 cm (33.5”)
60 cm (23.6”)
58 cm (22.8”)
230-240 V/50 Hz
2450 W (13A)
Cotton, linen
Synthetics
6 kg ( 13.2 lbs)
2.5 kg ( 5.5 lbs)
DRUM VOLUME
CONSUMPTIONS
108 l
Cotton, linen
Cotton, linen
Synthetics
4.37 kWh (6 kg store dry)
3.6 kWh (6 kg iron dry)
1.4 kWh (2,5 kg store dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
13
125993251.qxd
10/14/02
8:52 AM
Pagina
14
(Nero/Process Black pellicola)
Unpacking
Stacking kit (optional accessory)
Warning !
It should be possible to stack your new dryer on top
of a front loading washing machine with a worktop
depth of between 48 and 60 cm.
The instructions are supplied with the kit.
Please contact your Local Service Force Centre for
further advice.
Slide out the polythene bag containing the
polystyrene block before using the appliance.
P1148
P1106
Door reversal
Should the appliance be moved, it must be
transported vertically.
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Zanussi Service Force
Centre.
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
The feet must never be removed.
Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Electrical connection
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
Should the appliance power supply cable
need to be replaced, this should be carried
out by our Service Centre.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture on page 4).
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS 1363/A) fuse
must be used.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room temperature
must not be lower than +5°C and higher than +35°C, as
it may affect the performance of the appliance.
14
125993251.qxd
10/14/02
8:52 AM
Pagina
15
(Nero/Process Black pellicola)
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
GREEN & YELLOW
13 A
E
N
L
BROWN
BLUE
P1041
CORD CLAMP
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol
or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green
earth cable at any point.
15
125993251.qxd
10/14/02
8:52 AM
Pagina
16
(Nero/Process Black pellicola)
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
© Electrolux plc 2002
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
