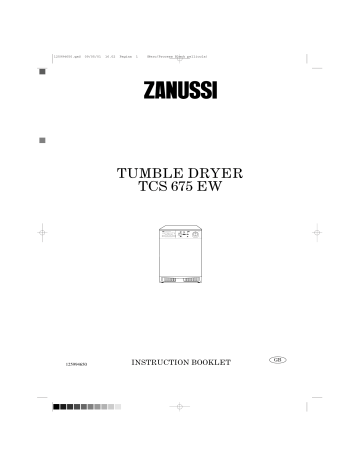

TUMBLE DRYER
TCS 675 EW
CONDENSER DRYER
E L E C T R O N I C
TCS 675 EW
S E N S O R
COTTON
SYNTHETICS
EXTRA
DRY
STORE
DRY
LIGHTLY
DAMP
IRON
DRY
MACHINE
IRON DRY
EXTRA
DRY
STORE
DRY
LIGHTLY
DAMP
A
B
C
D
E
F
G
H
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
125994650
DOOR OPEN
ON-OFF
A U T O R E V E R S E
LOW
TEMP.
BUZZER
OFF
START
XTRACAPACITY
SELECTOR
INSTRUCTION BOOKLET
GB
125994650.qxd
09/05/01
16.02
Pagina
2
(Nero/Process Black pellicola)
Important Safety Information
It is most important that this instruction book should be retained with the appliance for
future reference. Should the appliance be sold or transferred to another owner, or should
you move house and leave the appliance, always ensure that the book is supplied with the
appliance in order that the new owner can get to know the functioning of the appliance
and the relevant warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
Installation
■
■
■
■
■
■
Use
■
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
If the tumble dryer is placed on top of a washing
machine, it is compulsory to use the stacking kit
(optional accessory).
■
■
■
■
■
Child Safety
■
■
■
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
Pets and children have been known to climb into
tumble dryers. Please check your drum before
use.
Keep all packaging well away for children.
■
■
■
■
■
■
2
Do not overload the appliance (see programme
chart).
Clothes which are dripping wet should not be
placed in the dryer.
As some bulky items such as duvets and
eiderdowns should be dried in large commercial
machines because of their bulk, check with the
manufacturer of the item if it is suitable for drying
in a domestic machine, even if the dry weight of
the item is within the limit advised.
Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking the latter.
Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
Danger of explosion: Never tumble dry items
that have been in contact with inflammable
solvents (petrol, methylated spirits, dry cleaning
fluid and the like). As these substance are volatile,
they could cause an explosion. Tumble dry only
items washed with water.
In order to avoid danger of fires caused by
excessive drying, do not use appliance to dry the
following items:
Cushions, quilts and the like (these items
accumulate heat).
Items containing rubber foam or materials similar
to rubber foam.
Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
Clean fluff filter after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filter is damaged or without the filter.
Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Zanussi Service Centre. Always insist on genuine
Zanussi spare parts.
125994650.qxd
09/05/01
16.02
Pagina
3
(Nero/Process Black pellicola)
Contents
For the Installer
For the User
Important Safety Information
■
Installation
■ Child Safety
■ Use
Your New Tumble Dryer
Description of the Appliance
The Control Panel
■
Water reservoir
Mains-on light
■ Buttons
■ Control lights
■ Programme selector dial
■ Electronic Controlled Programmes
■ Timed Programmes
■
Programme Chart
Operating Sequence
2
2
2
2
Installation Instructions
16
Technical Specifications
16
17
17
17
18
■
Positioning
■ Stacking kit (optional accessory)
■ Door reversal
■ Electrical connection
4
4
5
5
5
5
5-6
6
6
6
7
■
Load the laundry
Switch the machine on
■ Select the drying time or programme
■ Select the required options
■ Start the machine
■ When drying is completed
■
Hints & Tips on Drying
Maintenance and Cleaning
■
External cleaning
■ Cleaning fluff filter
■ Cleaning the condenser unit
■ Emptying the water reservoir
Something Not Working
Service and Spare Parts
Customer Care
Guarantee Conditions
Zanussi Service Force
8
8
8
8
8
8
8
10
11
11
11
11
11
12
12
12
13
14-15
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
i Hints and tips
Environmental information
3
125994650.qxd
09/05/01
16.02
Pagina
4
(Nero/Process Black pellicola)
i Your New Tumble Dryer
This tumble dryer will give your wash that soft, relaxed feel whatever
the weather.
Extremely high quality standards both during development and
manufacturing guarantee a long service life for your appliance.
Maximum economy in the operation of your dryer is achieved through
very frugal electricity consumption and short drying times.
Energy saving tips
In the interest
of the environment
To save energy we recommend that you follow these
hints:
■ Try to load the maximum capacity of the machine
as small loads are uneconomical.
■ Always load well spun laundry. The higher the
spin speed, the lower the electricity consumption
and the shorter the drying times.
■ Do not over-dry laundry, this avoids creasing and
saves energy.
■ Clean the filter regularly to avoid excessive
drying times and high electricity consumption.
■ Ventilate the room well. The room temperature
should not exceed +35°C during drying.
■
■
■
■
Materials marked with the symbol
are
recyclable.
Check with your local Council or Environmental
Health Office to see if there are facilities in your
area for re-cycling this appliance.
When the appliance is to be scrapped, cut off the
power supply cable and make the door closing
device unusable to prevent young children from
being trapped inside.
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the
environment? We use recycled paper!
Description of the Appliance
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
24 5 6 7 8
1
Worktop
Door Open Button
«On-Off » Button
Mains-On Light
«Low Temperature» Button
«Buzzer off» Button
«Start» Button
Control lights
Programme Selector Dial
Water reservoir
Fluff Filter
Door Catch
Rating Plate
Ventilation Grille
Condenser Unit
Adjustable Feet
10
CONDEN
SER DRYE
R
E L
E C
T R
O N
I C
EXTRA
DRY
A
9
STORE
DRY
B
COTTON
LIGHTLY
DAMP
C
IRON
DRY
D
S E
N S
O R
MACHINE
IRON DRY
EXTRA
DRY
E
F
SYNTHET
ICS
STORE
DRY
G
LIGHTLY
DAMP
H
DOOR
OPEN
ON-OFF
LOW
TEMP.
IMPORTANT:
PLEASE
READ
THE INSTRUCTION
BOOK
BEFORE
USING
BUZZER
OFF
START
TCS 675
EW
THIS APPLIANCE
A U
T O
R E
V E
R S
E
XTRACAPACITY
3
SELECTOR
11
12
16
13
4
14 15
125994650.qxd
09/05/01
16.02
Pagina
5
(Nero/Process Black pellicola)
The Control Panel
7 9 1112 1314
CONDENSER DRYER
E L E C T R O N I C
TCS 675 EW
S E N S O R
COTTON
SYNTHETICS
EXTRA
DRY
STORE
DRY
LIGHTLY
DAMP
IRON
DRY
MACHINE
IRON DRY
EXTRA
DRY
STORE
DRY
LIGHTLY
DAMP
A
B
C
D
E
F
G
H
DOOR OPEN
LOW
TEMP.
BUZZER
OFF
2
START
XTRACAPACITY
A U T O R E V E R S E
IMPORTANT: PLEASE READ THE INSTRUCTION BOOK BEFORE USING THIS APPLIANCE
1
ON-OFF
3 4 5 6 8
10
SELECTOR
15
1 Water Reservoir
7 Low Temperature Light
When the tumble dryer is being used, the condensed
water is collected in a special container. To empty the
reservoir, please refer to “Maintenance” chapter.
It comes on when the low temperature button is
pressed.
8 Buzzer OFF Button
2 Programme Chart
A buzzer sounds when buttons 6-8 and 10 are pressed
and during the anti-creasing phase.
Press this button when selecting the programme if
you wish to switch the buzzer off.
When the water reservoir is full, the buzzer will
sound for 1 minute even if you have depressed
button
.
This will help you to select the correct programme for
drying.
3 Door open button
Depress this button to open the door.
Should the door be opened while appliance is
working, the tumble dryer will stop functioning.
Depress START button to resume drying after closing
the door.
9 Buzzer Off Light
It comes on when you press the corresponding button.
4 ON-OFF Button
10 Start Button
This button is used to switch the dryer on. At the end
of the programme, release this button by pressing it
again to switch the dryer off.
Press this button for about 1 second to start the dryer
after having selected the drying programme. An
acoustic sound rings.
If the door is opened while the programme is
running, this button must be pressed again after
closing the door in order to re-start the
programme from the point at which it was
interrupted.
This button must also be pressed after a power cut
and after having re-inserted the water reservoir if it
has been emptied in the middle of the programme.
In both cases light
or
(depending on the phase
in progress) flashes to remind you that the start button
needs to be pressed again.
5 Mains-On Light
It comes on when the appliance is switched on (ONOFF button pressed down) and goes out when this
button is released.
6 Low Temperature Button
Pressing this button allows drying to be performed at
a lower temperature, for delicate items.
The corresponding pilot light 7 comes on and an
acoustic sound is heard.
This option can also be used for time controlled
drying.
5
125994650.qxd
09/05/01
16.02
Pagina
6
(Nero/Process Black pellicola)
Electronic Controlled
Programmes
11 “Drying” Light
This light indicates that the machine is performing
the drying phase.
These operate by means of dampness sensors.
All you have to do is to set the selector dial for the
programme required and the laundry will be dried to
the selected degree of dryness.
12 “Cooling” Light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a 10
minute cooling phase to cool the laundry.
If light
or
is flashing, this means that the
Start Button needs to be pressed again for the
programme to resume.
Timed Programmes
They can be used to finish off drying if necessary.
Select the 60 minute programme for cottons or the 30
minute programme for synthetics.
13 “End of Programme” Light
This light flashes at the end of the cooling phase and
during the anti-creasing phase together with light .
14 “Full Tank” Light
This light flashes when the water reservoir is full.
The reservoir can also be emptied during a
programme.
In this case, after having fitted back in place, the start
button
must be pressed again for the programme
to resume.
15 Programme Selector Dial
It allows you to select electronically controlled or
time controlled drying.
Turn the dial to the required programme or time.
To cancel a programme which is running, turn the
programme selector dial to “0” .
At the end of drying, turn the selector dial to “0”
before removing the laundry.
6
125994650.qxd
09/05/01
16.02
Pagina
7
(Nero/Process Black pellicola)
Programme Chart
Electronic Controlled Programmes
Type of laundry:
Cotton & linen
Synthetics
Degree of drying
required
Max. amount of
laundry in kg
Programme
Extra dry
6
A
Store dry
6
B(*)
Lightly damp
6
C
Iron dry
6
D(*)
Machine iron dry
6
E
Extra dry
2.5
F
Store dry
2.5
G(*)
Lightly damp
2.5
H
(*) According to CEI 1121 standards.
Timed Programmes
Drying time
Max. amount of
laundry in kg
Cotton & linen
60 min
6
60’
Synthetics
30 min
2.5
30’
Type of laundry:
Programme selector dial position
Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
■ The type of laundry
■ The size of the load
■ The degree of spinning prior to drying
■ The degree of drying required
Fresh & Cool
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour
of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
■ cotton, linen: drum full but not too tightly packed
■ synthetics: drum no more than half full
7
125994650.qxd
09/05/01
16.02
Pagina
8
(Nero/Process Black pellicola)
Operating Sequence
4. Select the required options
Before using your tumble dryer for the first time, we
recommend you place a few damp cloths inside the
appliance and dry for approximately 30 minutes.
There may be dust inside a brand new tumble dryer.
Depress Buzzer Off and/or Low Temp. Button, if you
have to dry particularly delicate items.
1. Load the laundry
Open the door by pressing the relevant button.
Load the items one at a time, shaking them out
loosely and close the door.
Please check the laundry does not get caught between
the door and filter.
LOW
TEMP.
BUZZER
OFF
5. Start the machine
Depress START button for 1 second, the machine
starts operating and the drying light
comes on.
To change a programme already in progress, turn
the selector dial to “0”, select the new programme
and then depress START button.
P0871
START
2. Switch the machine on
Press the ON-OFF Button
comes on.
: the mains-on light
P0918S
ON-OFF
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position
(cooling)
and wait until the end of this phase before removing
the laundry. This will avoid a build-up of heat inside
the appliance.
P0045S
3. Select the drying time or the
drying programme
6. When drying is completed
Turn the selector dial to the desired programme or
time.
The machine stops automatically. The control lights
and
are flashing.
Turn the selector dial to “0”, the control lights go out.
Release ON-OFF Button (the mains-ON light goes
out) and immediately remove the laundry.
60
M0027S
8
125994650.qxd
09/05/01
16.02
Pagina
9
(Nero/Process Black pellicola)
Anticrease phase
If you do not remove the laundry at the end of the
programme, the machine will automatically carry out
an “anticrease” phase for approx 30 mins. During
this period the drum will rotate at regular intervals to
avoid creasing and the buzzer will sound for 1
second every 10 seconds, unless you have depressed
the BUZZER OFF button. The lights
and
will
flash alternatively.
Empty the water reservoir and clean the filter
after every drying programme.
A clean filter ensures correct functioning of the
appliance.
9
125994650.qxd
09/05/01
16.02
Pagina
10
(Nero/Process Black pellicola)
Hints & Tips on Drying
Before placing articles of laundry in your tumble
dryer, check the care labels to ensure they are
recommended for tumble drying.
■
Care Labels you may find on your laundry
■
normal drying (high temperature)
■
delicate drying (low temperature)
■
do not tumble dry
■
may be tumble dried
■
Do not overload the appliance.
Here is a list of the approximate weight of some
common laundry items.
Sheet
Pillowcase
Tablecloth
Table Napkin
Kitchen Towel
Linen Hand Towel
Hand Towel
Bath Towel
Bathrobe
Shirt
Apron
■
■
700 to 1000 g
100 to 200 g
400 to 500 g
50 to 100 g
70 to 120 g
100 to 150 g
150 to 250 g
700 to 1000 g
1000 to 1500 g
200 to 300 g
150 to 200 g
Always load well spun laundry. The higher the
spin speed the lower the electricity consumption
and the shorter the drying time.
DO NOT load dripping wet laundry into the
dryer. Roll the article in a towel or spin to remove
excess water.
Close poppers and zips and fasten any buttons.
Sort the laundry. Separate synthetics from
cotton/linens, and dry separately.
Remove the laundry immediately after the
programme has finished.
Use a fabric conditioning sheet to reduce static.
We recommend the sheet is pinned to an article of
laundry (using a safety pin).
Mix the load i.e. large and small articles.
When drying large items such as sheets, we
recommend you periodically stop the dryer to
redistribute the load.
DO NOT use the tumble dryer to dry the
following:
■
■
■
■
10
Articles contaminated with inflammable
substances e.g. petrol, cleaning solvents, cooking
oil, fats or hair lacquer.
Woollen and synthetic/wool mixtures unless the
item is labelled as suitable for tumble drying.
Very delicate articles such as silk.
Very large and bulky items such as duvets or
sleeping bags.
125994650.qxd
09/05/01
16.02
Pagina
11
(Nero/Process Black pellicola)
Maintenance and Cleaning
Cleaning the condenser unit
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
Clean the air condenser periodically, 3 or 4 times a
year depending on how frequently the dryer is used.
Pull out the condenser, holding it at the top, and
remove all fluff. Clean it with a brush and rinse it
under the shower if necessary.
External cleaning
Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the filter
The tumble dryer cannot operate efficiently with a
clogged filter. The filter collects all the fluff which
forms during drying and it is therefore essential to
remove and clean this filter after each drying
programme.
P0636
P0639
Also clean the outside, removing all fluff.
Clean the rubber seal round the porthole door and the
seal of the condenser in the inner door with a damp
cloth.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
If this is not done a safety device trips: pilot light
on the control panel comes on and the programme
stops, leaving the laundry damp.
P1026
You should not be alarmed by the amount of fluff
which collects on the filter; this is due to normal
wearing of the fabrics dried and not to incorrect
operation of your machine. Rubbing of the fibres
during normal wear and washing forms fluff. If
laundry is dried on a line, this fluff simply flies away,
whereas inside the tumble dryer it collects together
and swells considerably as a result of the drying
action.
The reservoir can be emptied even in the middle of a
programme. After inserting the reservoir depress
START button to re-start the programme.
C0031
P0827
The reservoir must be re-inserted correctly.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
11
125994650.qxd
09/05/01
16.02
Pagina
12
(Nero/Process Black pellicola)
Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without
calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect
use or installation, a charge will be made even if the appliance is under guarantee.
Symptom
Possible causes
■
The tumble dryer does not start
■
■
■
■
■
■
■
Drying takes too long or laundry is not
■
dry enough.
■
■
■
■
■
The door has not been closed.
The plug is not properly inserted in the power
socket.
There is no current at the socket.
The main fuse or the fuse in the plug has blown.
The ON-OFF button has not been pressed.
A drying time or programme has not been
selected.
The water reservoir is full or not properly
inserted (the pilot light
is on).
The START button has not been depressed.
The laundry has not been spun properly.
The filter and/or air condenser are clogged up.
The room temperature is too high.
The selected programme was not suitable for the
laundry
There is too much laundry inside the appliance.
The dryer is not correctly installed.
Service & Spare Parts
Customer Care
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Zanussi Service Force Centre by telephoning:
For general enquiries concerning your Zanussi
appliance or for further information on Zanussi
products, please contact our Customer Care
Department by letter or telephone as follows:
0870 5 929929
Your telephone call will be automatically routed to
the Service Force Centre covering your post code
area.
The addresses are listed on the following pages.
Before calling out an engineer, please ensure you
have read the details under the heading “Something
Not Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance
(found on the rating plate - see picture, page 4).
5. The purchase date
Customer Care Department
Zanussi
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel 08705 727727*
or visit our website at www.zanussi.co.uk
* calls to this number may be recorded for training
purposes.
12
125994650.qxd
09/05/01
16.02
Pagina
13
(Nero/Process Black pellicola)
Guarantee Conditions
Standard guarantee conditions
Exclusions
We, Zanussi undertake that if, within 12 months of
the date of the purchase, this Zanussi appliance or
any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at
our option, repair or replace the same FREE OF
ANY CHARGE for labour, materials or carriage on
condition that:
■ The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
■ The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
■ The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Zanussi Service Force Centre.
Any appliance or defective part replaced shall
become the Company’s property.
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside
these hours in which case a premium will be
charged.
This guarantee does not cover:
■
■
■
■
Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
Costs incurred for calls to put right an appliance
which is improperly installed or calls to
appliances outside the United Kingdom.
Appliances found to be in use within a
commercial environment, plus those which are
subject to rental agreements.
Products of Zanussi manufacture which are NOT
marketed by Zanussi.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new
home subject to the following qualifications:
■ The guarantee starts from the date you first
purchased your product.
■ The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
■ The guarantee relates to you and cannot be
transferred to another user.
■ Your new home is within the European
Community (EC) or European Free Trade Area.
■ The product is installed and used in accordance
with our instructions and is only used
domestically, i.e. a normal household.
■ The product is installed taking into account
regulations in your new country.
Before you move please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the local Service Organisation is aware of your move
and able to look after you and your appliances.
France
Senlis
+33 (0)344 62 29 99
Germany
Nurnberg
+49 (0)911 323 2600
Italy
Pordenone
+39 (0)1678 47053
Sweden
Stockholm
+46 (0)8 738 79 50
UK
Slough
+44 (0)1753 219897
13
125994650.qxd
09/05/01
16.02
Pagina
14
(Nero/Process Black pellicola)
To contact your local Service Force Centre telephone 08705
CHANNEL ISLANDS
Guernsey Electricity
PO Box 4
Vale, Guernsey
Channel Islands GY1 3AD
GUERNSEY
Jersey Electricity Company
Haut De L’orme
Rue De Haut De L’orme
Trinity
Jersey
Channel Islands JE3 5FG
JERSEY
SCOTLAND
ABERDEEN
AUCHTERMUCHTY
BLANTYRE
DUMFRIES
DUNOON
EDINBURGH
GLASGOW
INVERNESS
ISLE OF ARRAN
ISLE OF BARRA
ISLES OF BUTE
54 Claremont Street
Aberdeen AB10 6RA
33a Burnside
Auchtermuchty
Fife KY14 7AJ
Unit 5
Block 2
Auchenraith Ind. Estate
Rosendale Way
Blantyre G72 0NJ
93 Irish Street
Dumfries
DG1 2 PQ
7 Hill Street
Dunoon
Argyll
PA23 7AL
Unit 12
Dumbryden Ind. Estate
2 Dumbryden Road
Edinburgh
EH14 2AB
Unit 4
Wellington Road
Bishopriggs
Glasgow G64 2SA
Unit 3BI
Smithton Ind. Estate
Smithton
Inverness IV2 7WL
ISLE OF LEWIS
2, 6 & 8 Woodmarket
Kelso
Borders
TD5 7AX
KELSO
7 King Street
Kirkwall
Orkney
KW15 1JF
ORKNEY
PERTH
(OWN SALES)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute PA20 9EH
Scottish Hydro Electric
Central Warehouse
Inveralmond
Perth PH1 3AF
3-4 Carlton Place
Lerwick
Shetland
ZE1 0PW
Bolts Shetland
26 North Road
Lerwick
Shetland ZE1 0PE
BELFAST
Owenmore House
Kilwee Business Park
Dunmurry
Belfast
BT17 0HD
WALES
CARDIFF
CLYWD
DYFED
OSWESTRY
NORTH EAST
Unit 4
Guardian Industrial Estate
Clydesmuir Road
Cardiff
CF2 2QS
Unit 6-7 Coed Parc
Abergele Road
Rhuddlan
Clwyd
LL18 5UG
Unit 9
St. Clears Business Park
Tenby Road
St. Clears
Carmarthen
SA33 4JW
Plas Ffynnon Warehouse
Middleton Road
Oswestry
SY11 2PP
14
Unit 356a
Dukesway Court
Dukesway
Gateshead NE11 0BH
GATESHEAD
15 Hainton Avenue
Grimsby
N. E. Lincs
DN32 9AS
GRIMSBY
Unit 1
Boulevard Industrial Estate
Hull
HU3 4AY
HULL
64-66 Cross Gates Road
Cross Gates
Leeds
LS15 7YS
LEEDS
NEWTON AYCLIFFE
SHEFFIELD
Leask Electrical
Harisdale
Symbister, Whalsay
Shetland ZE2 9AA
NORTHERN IRELAND
R Haggerty
Bruach
Blackwaterfoot
Isle of Arran
J Zerfah
244 Bruernish
Isle of Barra
Western Islands HS9 5QY
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
929 929
Unit 23
Northfield Way
Aycliffe Industrial Park
Newton Aycliffe
DL5 6EJ
Pennine House
Roman Ridge Road
Sheffield
S9 1GB
NORTH WEST
BIRKENHEAD
CARLISLE
ISLE OF MAN
BOLTON
PRESTON
STOCKPORT
1 Kelvin Park
Dock Road
Birkenhead
CH41 1LT
Unit 7
James Street Workshops
James Street
Carlisle
Cumbria CA2 5AH
South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
Unit B
Central Industrial Estate
St Marks Street
Bolton
BL3 6NR
Unit 250
Dawson Place
Bamber Bridge
Preston
Lancashire PR5 8AL
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
125994650.qxd
09/05/01
16.02
Pagina
15
(Nero/Process Black pellicola)
To contact your local Service Force Centre telephone 08705
LONDON & EAST ANGLIA
MIDLANDS
BIRMINGHAM
66 Birch Road East
Wyrley Trading Estate
Witton
Birmingham
B6 7DB
BOURNE
Pinfold Road
Bourne
PE10 9HT
BRIDGNORTH
68 St. Mary’s Street
Bridgnorth
Shropshire
WV16 4DR
GLOUCESTER
101 Rycroft Street
Gloucester
GL1 4NB
HEREFORD
Units 3 & 4
Bank Buildings
Cattle market
Hareford
HE4 9HX
ILKESTON
Unit 2
Furnace Road
Ilkeston DE7 5EP
LEICESTER
Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF
11a Gardner Ind. Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
ASHFORD
CHELMSFORD
Hanbury Road
Widford Ind. Estate
Chelmsford
Essex
CM12 3AE
Unit 2
Bridge Road Business Centre
Bridge Road
Ashford
Kent TN23 1BB
FLEET
Unit 1
Redfields Ind. Estate
Church Crookham
Fleet
Hampshire GU13 0RD
HAYWARDS
HEATH
21-25 Bridge Road
Haywards Heath
Sussex RH16 1UA
TONBRIDGE
Unit 30
Deacon Trading Estate
Morley Road
Tonbridge
TN9 1RA
COLINDALE
ELTHAM
ENFIELD
284 Alma Road
Enfield
London
EN3 7BB
GRAVESEND
Unit B4
Imperial Business Estate
West Mill
Gravesend
Kent
DA11 0DL
BARNSTAPLE
Unit 6C
Elton Park Business Centre
Hadleigh Road
Ipswich
IP2 0DD
BOURNEMOUTH 63-65 Curzon Road
IPSWICH
SOUTH WEST
Main Road
Fremington
Barnstaple
North Devon EX31 2NT
Bournemouth
Dorset
BH1 4PW
LONDON
2 - 4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
MAIDENHEAD
Reform Road
Maidenhead
Berkshire
SL6 8BY
MOLESEY
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DQ
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
NEWBURY
NEWTON ABBOT Unit 2
Units 1 & 2
Northbrooks Close
Gregorys Mill Ind. Estate
Worcester
WR3 8BP
9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 4ER
NORWICH
2b Trafalgar Street
Norwich
NR1 3HN
REDRUTH
SUNBURY
Unit 1a
The Summit
Hanworth Road
Sunbury on Thames
TW16 5DB
NEWCASTLE
UNDER LYME
18-21 Croft Road
Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
WORCESTER
194 Court Road
Mottingham
Eltham
London SE9 4EW
16-17 Woodside Ind. Park
Works Road
Letchworth
Herts
SG6 1LA
Unit 8
Clifton Street
Stone Field Park
Lincoln
LN5 8LQ
TAMWORTH
Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
LETCHWORTH
LINCOLN
REDDITCH
SOUTH EAST
BECKENHAM
HIGHAM FERRERS 30 High Street
Higham Ferrers
Northants
NN10 8PL
929 929
13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
15
BRIDGEWATER
6 Herswell Business Park
Salmon Parade
Bridgwater
Somerset TA6 5PY
BRISTOL
11 Eldon Way
Eldonwall Trading Estate
Bristol
BS4 3QQ
EMSWORTH
266 Main Road
Southbourne
Emsworth
PO10 8JL
ISLE OF WIGHT
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight PO33 1DB
Zealley Ind. Estate
Kingsteignton
Newton Abbot
TQ12 3TD
Unit 7D
Pool Ind. Estate
Druids Road
Redruth
Cornwall TR15 3RH
125994650.qxd
09/05/01
16.02
Pagina
16
(Nero/Process Black pellicola)
Installation Instructions
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Technical Specifications
DIMENSIONS
Height
Width
Depth
POWER SUPPLY VOLTAGE
TOTAL POWER ABSORBED
MAXIMUM RECOMMENDED LOAD
85 cm (33.5”)
60 cm (23.6”)
60 cm (23.6”)
230-240 V/50 Hz
2650 W (13A)
Cotton, linen
Synthetics, delicates
6 kg (13 lbs)
2.5 kg (5.5 lbs)
DRUM VOLUME
CONSUMPTIONS
108 l
Cotton, linen
Cotton, linen
3.64 kWh (5 kg store dry)
3
kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
16
125994650.qxd
09/05/01
16.02
Pagina
17
(Nero/Process Black pellicola)
Positioning
Stacking kit
It is recommended that, for your convenience, the
dryer is positioned close to your washing machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles in the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the four adjustable
feet until it is.
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
P1044
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Zanussi Service Centre.
P0046
The feet must never be removed.
Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
17
125994650.qxd
09/05/01
16.02
Pagina
18
(Nero/Process Black pellicola)
Electrical connection
WARNING:
A cut off plug inserted into a 13 amp socket
is a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability
should this safety measure not be observed.
Permanent connection
In the case of permanent connection it is necessary
that you install a double pole switch between the
appliance and the electricity supply (mains), with a
minimum gap of 3mm between the switch contacts
and of a type suitable for the required load in
compliance with the current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the
appliance’s rating plate. (See picture, page 4).
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in
accordance with the following code:
Green and Yellow
- Earth
Blue
- Neutral
Brown
- Live
GREEN & YELLOW
13 A
E
N
L
BROWN
BLUE
P1041
CORD CLAMP
The wire coloured green and yellow must be
connected to the terminal marked with the letter «E»
or by the earth symbol
or coloured green and
yellow.
The wire coloured blue must be connected to the
terminal «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must be
secure over the outer sheath.
18
125994650.qxd
09/05/01
16.02
Pagina
19
(Nero/Process Black pellicola)
From the Electrolux Group. The world’s No. 1 choice.
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in
more than 150 countries around the world.
© Electrolux Household Appliances Limited 2001
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
