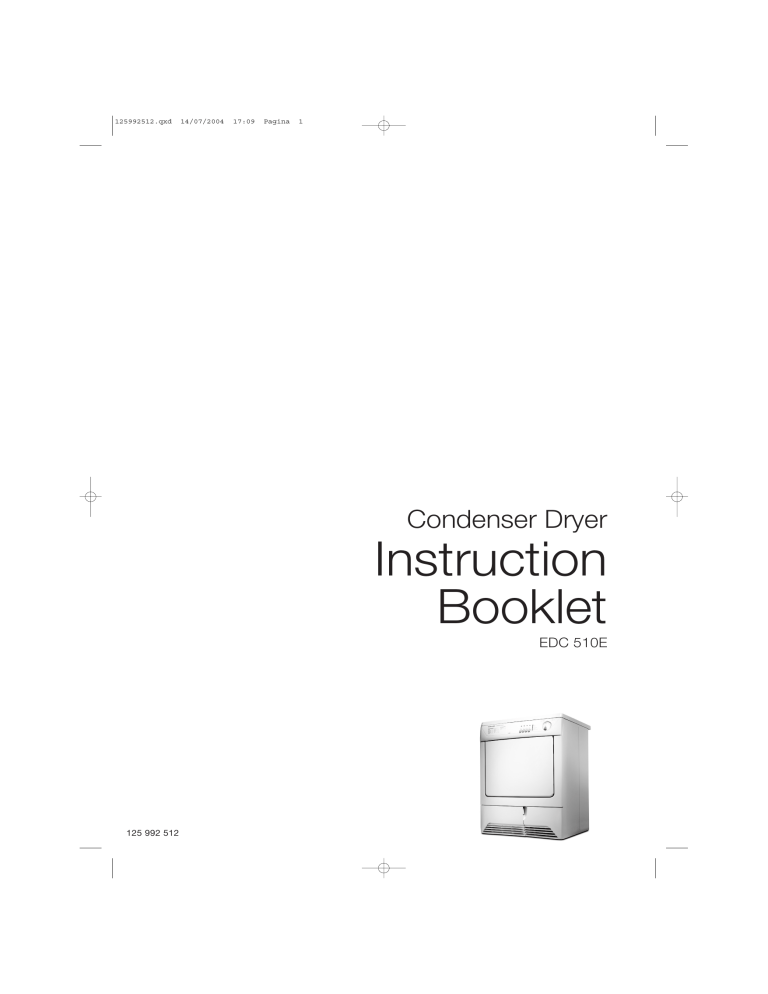

Condenser Dryer
Instruction
Booklet
EDC 510E
125 992 512
125992512.qxd
14/07/2004
17:09
Pagina
2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated on
page 3 and 4.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, contact your local Service Centre.
The symbols you will see in this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
Contents
Use ........................................................................7
Important safety information ......................3
• The control panel ..............................................7-8
Disposal ..............................................................4
• Programme chart ..................................................9
• Operating sequence............................................10
Tips for environmental protection ............4
• Useful hints ........................................................11
Technical specifications ................................5
Maintenance and Cleaning ........................12
• External cleaning ................................................12
Description of the appliance ......................5
• Cleaning the door ..............................................12
Installation ..........................................................6
• Cleaning the filters ..............................................12
• Unpacking ............................................................6
• Emptying the water reservoir ..............................13
• Positioning ............................................................6
• Cleaning the air intake grille................................13
• Electrical connection ............................................6
• Cleaning the drum ..............................................13
• Cleaning the condenser unit..........................12-13
• Stacking kit ..........................................................6
Something not working? ............................14
• Door reversal ........................................................6
2
125992512.qxd
14/07/2004
17:09
Pagina
3
Important safety information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
• Highly flammable substances commonly used in
domestic environments include acetone,
denatured alcohol, petrol/gasoline, kerosene, spot
removers (some brands), turpentine, waxes and
wax removers.
Installation
• Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent tradesman.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• Items containing foam rubber (also known as latex
foam) or a similar textured rubber, should not be
dried in a tumble dryer on a heat setting.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
• Foam rubber materials can, when heated, produce
fire by spontaneous combustion.
• Fabric softeners or similar products should not be
used in a tumble dryer to eliminate static
electricity unless this practice is specifically
recommended by the fabric softener or product
manufacturer.
Use
• This appliance is designed for domestic use only.
If the machine is used for any other purpose or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• Undergarments that contain metal reinforcements
should not be placed in the tumble dryer.
• Tumble dryer is intended only for drying textile
material, washed in water only.
• Damage to the tumble dryer can occur if metal
reinforcements come loose during drying. When
available a drying rack could be used for such
items.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
• Plastic articles such as shower caps or babies’
waterproof napkin covers should not be placed in
the tumble dryer.
• Risk of fire: items that have been spotted or
soaked with vegetable or cooking oil constitute a
fire hazard and should not be placed in the tumble
dryer.
• Rubber backed articles, clothes fitted with foam
rubber pads, pillows, gumboots and rubber
coated tennis shoes should not be placed in the
tumble dryer.
• Oil affected items can ignite spontaneously,
especially when exposed to heat sources such as
in the tumble dryer. Items become warm, causing
an oxidation reaction in the oil. Oxidisation creates
heat. If the heat can not escape garments become
hot and risk catching fire. Piling, stacking or
storing oil affected items can prevent heat from
escaping, creating a fire hazard.
• Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluids etc).
These substances are volatile and can cause an
explosion. Only tumble dry items washed in water.
• Ensure no gas lighters have been accidentally left
in pockets of garments.
• If fabrics that contain vegetable or cooking oil or
have been contaminated by hair care products are
placed in a tumble dryer, they should be washed
first in hot water with extra detergent. This will
reduce, but not eliminate the hazard. The cool
down cycle should be used to reduce the
temperature of the garment. Garments should not
be removed from the tumble dryer, piled or
stacked while hot.
• Do not dry canvas shoes or sport shoes, as they
could get stuck between the door and the drum.
• Leave the door slightly ajar when the tumble dryer
is not in use. This allows the seal to be preserved.
• Clean lint filters after use, to prevent the risk of
fire. Do not use the dryer if the lint filters are
damaged or missing.
• Items that have been previously cleaned, washed,
soaked or spotted with petrol/gasoline, drycleaning solvents or other flammable or explosive
substances should not be placed in the tumble
dryer.
• Do not allow lint to accumulate around the dryer.
3
125992512.qxd
14/07/2004
17:09
Pagina
4
General safety
Child safety
• It is dangerous to alter the specifications or
attempt to modify this product in any way.
• The appliance is not intended for use by young
children or infirm persons without supervision.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or
serious malfunctioning. Contact your local
Electrolux Customer Service on 131349. Always
insist on genuine spare parts.
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can cause suffocation and be
dangerous to children. Keep them out of
children's reach.
• Make sure children and pets do not climb into the
drum.
• When discarding the appliance, cut the electrical
supply cable and destroy the plug with the
remaining cable. Disable to door catch in order to
prevent young children from becoming trapped
inside the machine while playing.
Disposal
• Packaging materials
The materials marked with the symbol
recyclable.
• Machine
Use authorised disposal sites for your old appliance.
Help keep Australia tidy!
are
This means they be recycled properly by disposing
of them in appropriate collection containers.
Tips for environmental protection
• To utilize the maximum load, laundry which is to
be dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the programme for iron-dry, remove the iron-dry
items at the end of the programme and then
finish-dry the rest of the load.
To save energy and to help protect the environment,
we recommend that you follow these hints:
• Try and load the machine to maximum capacity,
small loads are uneconomical.
• Always load well spun garments. The higher the
spin speed, the lower the electricity consumption
and shorter the drying times.
• Clean the filters regularly to avoid excessive drying
times and high electricity consumption.
• Do not over dry garments, this avoids creasing
and saves energy.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
4
125992512.qxd
14/07/2004
17:09
Pagina
5
Technical specifications
DIMENSIONS:
Height
Width
Depth
85 cm
60 cm
58 cm
ELECTRICAL CONNECTION:
MAX. POWER ABSORBED:
MIN. FUSE RATING:
MAX. DRYING CAPACITY:
220/240 V/50 Hz
2200 W
10 A
Cotton, linen
Synthetics
6 kg
2.5 kg
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Description of the appliance
1
01 Control panel
2
3
02 Programme guide
03 Lint Filters
04 Rating Plate
05 Consenser Unit
4
06 Water reservoir
3
07 Adjustable feet
7
5 6
5
125992512.qxd
14/07/2004
17:09
Pagina
6
Installation
Warning!
When operating the tumble dryer, the room
temperature must be no lower the 5°C and no
higher than 35°C. This can affect the performance
of the dryer.
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the
appliance.
Electrical connection
This machine is designed to operate on a 220-240 V,
single-phase, 50 Hz supply.
Check your domestic electrical installation can take
the maximum load required (2.2kW), also take into
account any other appliances in use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
CAUTION: If the appliance is supplied with a cord
extension set of an electrical portable outlet device,
it must be positioned so it is not subjected to
splashing or ingress of moisture.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution.
Should the appliance power supply
cable need to be replaced, this must
be carried out by our Service Centre.
P1106
Should the appliance be moved, it must be
transported vertically.
Positioning
It is recommended for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Important!
The power supply cable must be accessible after
installing the machine.
Stacking kit
Air must be able to circulate freely around the
appliance. Do not obstruct the front ventilation grille
or the air intake grille at the back of the machine.
Stacking kits are available through your dealer. This
enables the mounting of the dryer on top of your
front loading Electrolux washing machine, with
cover's depth between 40 and 60 cm.
Keep the vibration and noise to a minimum. When in
use the dryer should be placed on a firm, level
surface.
Once the dryer is on its permanent operating
positioning, check the dryer is level with the aid of a
spirit level. If it is not, raise or lower the levelling
feet.
The feet must never be removed.
Do not restrict the floor clearance through deep
pile carpets, strips of wood etc. This can cause
heat build up which can interfere with the
operation of the appliance.
P1148
Important
Door reversal
The hot air emitted by the tumble dryer can reach
temperatures up to 60°C. The appliance must not
be installed on floors which are not resistant to high
temperatures.
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Please contact the nearest Service Centre.
6
125992512.qxd
14/07/2004
17:09
Pagina
7
Use
The control panel
CONDENSER DRYER
B
Drying
End
Clogged Filters
Full Tank
O
Clogged Condenser
1
2 3 4 5 6
C
D
Start/
Low
Temperature Pause
E
Quick
F
Cooling
No
Buzzer
G
L
H
RESET
30 - 60 - 90 min
Dry Fresh
Cooling
J
G
H
J
K
60’ 90
’
SYNTHETIC
Extra Dry
Store Dry
Iron Dry
Baby Dry
0
30’
A
B
C
D
E
F
A
L
COTTON
Extra Dry
Ready to Wear
Store Dry
Slightly Damp
Iron Dry
Wring Dry
EDC 510 E
PROGRAMMES
TIMED PROGRAMMES
K
SENSOR PROGRAMMES
7
1 Programme Guide
4 LOW TEMPERATURE button
This will help you to select the correct programme
for drying.
Pressing this button allows the drying of delicate
items at a lower temperature.
The corresponding pilot light comes on.
This option can also be used for time controlled
drying.
This function cannot be used with QUICK.
2 NO BUZZER button
A buzzer sounds
• when selecting the programme
• when depressing the buttons
5 START/PAUSE button
• when an incorrect option selection is made
Press this button to start the dryer after having
selected the programme and the options.
The relevant light will stop flashing.
• when the programme selector dial is turned to
another position during the programme or when
you depress an option button during the cycle
If the door of the appliance or the small door at
the bottom is opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the programme
from the point at which it was interrupted.
This button must be depressed also after a
power failure and after having re-inserted the
water reservoir, if it has been emptied in the
middle of a programme after lighting up of the
FULL TANK light.
In both cases the light of the Start/Pause button
flashes to remind you that the start button needs to
be pressed again.
• at the end of the programme and during the
anticrease phase
• when the water reservoir is full
• if the machine is not working correctly
• when the door of the appliance or the small door at
the bottom are open
By depressing NO BUZZER button the acoustic
signal is switched off in the same cases mentioned
above.
The corresponding light comes on.
3 QUICK button
By depressing this button the drying time is reduced
in the following COTTON programmes:
• EXTRA DRY (Progr A)
• READY TO WEAR (Progr B)
• STORE DRY (Progr C)
The corresponding light illuminates. This option
cannot be selected together with the LOW
TEMPERATURE function.
7
125992512.qxd
14/07/2004
17:09
Pagina
8
6 Indicator lights
7 Programme/Time selector dial
These lights indicate the following functions:
Allows you to select electronically controlled or time
controlled drying.
DRYING light
Turn the dial to the required programme or time.
This light indicates that the appliance is in the drying
phase.
Electronically controlled drying
(automatic)
COOLING light
The dryer runs these programs with the help of
probes, which detects the degree of dampness of
the garments.
Simply select the program according to the type of
garment and the degree of drying required.
This light indicates the appliance is in cooling phase.
At the end of the drying cycle, there is a 10 minute
cooling phase to cool the garments.
END light
Time controlled drying
This light is on at the end of the cooling phase,
during the anti-creasing phase and at the end of the
programme.
Can be used to finish off drying if necessary.
Select the 90 or 60 minute programme for cottons
or the 30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “O”.
CLOGGED FILTERS light
The light illuminates at the end of the program to
remind you the filters must be cleaned.
At the end of drying, turn the selector dial to “O” to
switch the machine off before removing the laundry.
FULL TANK light
The light comes on at the end of the programme to
remind you the water reservoir must be emptied. If
the light illuminates during the program the water
reservoir is full. The buzzer sounds, the program
stops and the Start/Pause button flashes.
CLOGGED CONDENSER light
The clogged condenser light comes on after every
80 cycles to remind you the condenser needs to be
cleaned.
8
125992512.qxd
14/07/2004
17:09
Pagina
9
Programme chart
Automatic drying (electronic programmes)
Type of laundry
Degree of drying /
Programme
Max-load (1)
(A)
(E)
WRING DRY (F)
6 kg
6 kg
6 kg
6 kg
6 kg
6 kg
(G)
(H)
IRON DRY (J)
2.5 kg
2.5 kg
2.5 kg
EXTRA DRY
READY TO WEAR (B)
COTTON
STORE DRY
(C)
SLIGHTLY DAMP
(D)
IRON DRY
EXTRA DRY
SYNTHETICS
STORE DRY
JUMPERS
BABY DRY
Jackets, trousers,
dresses, skirts.
DRY FRESH
(K)
Possible options
- LOW TEMPERATURE
QUICK - LOW TEMPERATURE
QUICK - LOW TEMPERATURE
QUICK
LOW TEMPERATURE
LOW TEMPERATURE
LOW TEMPERATURE
LOW TEMPERATURE
LOW TEMPERATURE
LOW TEMPERATURE
1 kg
(10 baby jumpers)
LOW TEMPERATURE
1 - 4 garments
LOW TEMPERATURE
(L)
(*) According to CEI 1121 Standards.
• BABY DRY cycle is a special programme for jumpers to be dried “ready to wear”.
• DRY FRESH cycle is designed to clean and freshen garments labelled “dry clean only” at home, in your
tumble dryer, using the special product available on the market.
Timed programme
Drying time
Max-load (1)
Programme
selector dial position
Cotton
90 min
6 kg
90’
Cotton
60 min
6 kg
60’
LOW TEMPERATURE
Synthetics
30 min
2.5 kg
30’
LOW TEMPERATURE
Type of laundry
Possible options
LOW TEMPERATURE
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying
• The degree of dryness.
COOLING
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent
odour of moth-balls). Programme duration 10 mins.
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
• cotton, linen: drum full but not too tightly packed;
• synthetics: drum no more than half full;
• delicate fabrics: drum no more than one third full.
9
125992512.qxd
14/07/2004
17:09
Pagina
10
Operating sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
8. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing
phase and an acoustic signal can be heard
(duration: 30 minutes maximum).
If you do not remove the laundry, the dryer will stop
automatically at the end of the anti-creasing phase.
Lights END, CLOGGED FILTERS and FULL
TANK remain lit and the buzzer sounds for 2
minutes.
Drying
1. Connect the appliance.
2. Open the door.
9. Turn the programme selector dial to “O”; all the
lights go out. The appliance is switched off.
Remove the laundry.
If you open and then close the door before
turning the selector dial to “O” all the lights
corresponding to the phases making up the
performed programme come on.
P1149
P1108
After each use
3. Load the items one at a time, shaking them out
loosely.
• Clean the filters (see page 11).
4. Close the door. Check the laundry does not get
caught between the door and filter.
• Empty the water reservoir (see page 12).
5. Select the drying programme or time. The lights
DRYING, COOLING and END come on.
Important!
If the drying program has to be stopped before it
reaches cycle end, we recommend you turn the
program selector dial to the cooling position and
wait till the end of its cooling phase before removing
the garments. This will avoid the build-up of heat
inside the appliance. To do this first turn the dial to
«0» and then to the cooling program, depress
Start/Pause button.
6. If required, press the LOW TEMPERATURE
button and/or the NO BUZZER button or the
QUICK button.
7. Press the START/PAUSE button: the
corresponding light stops flashing and drying
starts. Only the DRYING light remains lit.
If the programme selector dial is turned to
another position, when the machine is running,
the buzzer will sound (if the NO BUZZER option
has not been selected) and the programme
phase indicator lights will flash.
Modifying the programme
To change a programme which is running, first
cancel it by turning the programme selector dial to
“O”. Select the new programme and press the
START/PAUSE button.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (COOLING light is on).
You may remove the laundry after this phase.
The lights END, CLOGGED FILTERS and FULL
TANK illuminate and the buzzer sounds.
10
125992512.qxd
14/07/2004
17:09
Pagina
11
Useful hints
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the
fluff.
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet
700 - 1000 g
Tablecloth
• Easy-care items e.g. shirts, should be briefly prespun before drying (depending on the crease
resistance approx 30 seconds).
400 - 500 g
Kitchen towel
70 - 120 g
Table napkin
50 - 100 g
Towelling hand towel
Bathrobe
• The laundry must be thoroughly spun before
tumble drying.
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• You can also place starched items into your dryer.
However, to achieve the desired starch effect,
choose the program «iron dry».To remove any
starch residue, wipe out the internal drum after
drying with a moist cloth and rub it dry.
150 - 250 g
1000 - 1500 g
Men’s shirt
200 - 300 g
Pillowcase
100 - 200 g
Men’s pyjamas
400 - 500 g
Ladies’ nightdress
200 - 250 g
• To avoid a static charge when drying is
completed, use either a fabric softener when you
are washing the laundry or a fabric conditioner
specifically for tumble dryers.
• Remove the laundry when the dryer has finished
drying.
• If individual items are still damp after drying, set a
30 minute post drying time. This will be necessary
particularly for multilayered items (e.g. collars,
pockets, etc).
• Never tumble dry the following:
Delicate items such as net curtains, woollen, silk,
fabrics with metal trim, nylon tights, bulky
materials such as anoraks, blankets, eiderdowns,
sleeping bags, feather quilts and any items
containing rubber foam or materials similar to
rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
11
125992512.qxd
14/07/2004
17:09
Pagina
12
Maintenance and Cleaning
You must disconnect the dryer from the electricity
supply before carrying out any cleaning or
maintenance work.
After a while a whitish pattern due to detergent
residue forms on the filters. When this occurs, clean
the filter with warm water using a brush.
Remove the filter in the door opening as per picture
(it can be positioned with the tooth facing to the left
or to the right.).
External cleaning
Use soap and water only, dry thoroughly.
Important: do not use methylated spirit, diluents or
similar products.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
E
R S
V E
R E
T O
A U
Cleaning the door
Clean periodically the interior part of the door to
remove any fluff from the seals around the filter.
Accurate cleaning ensures correct drying.
650
800 /
kg 5
kg 2,5
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
P1152
E
R S
V E
R E
T O
A U
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the condenser when the CLOGGED
CONDENSER light comes on.
The condenser is situated at the lower part of the
cabinet behind a small door. To open the door,
push the catch as per picture.
P1150
Cleaning the filters
Your dryer will only function well if the filters are
clean.
The filter collects lint accumulated during drying.
The filter must be cleaned at the end of each
program.
The CLOGGED CONDENSER light is on to remind
you of this operation.
650
800 /
kg 5
kg 2,5
P1110
900
70' - 90'
35' - 50'
1000 /
1200
65' - 85'
30' - 45'
800 /
900
80' - 100'
70'
55' -
1000 /
1200
75' - 95'
50' - 65'
kg 2,5
kg 1
50' - 60'
30' - 35'
P1153
During the drying cycle or at the end, it is normal for
water to be present on the surface of the condenser
insertion.
To pull out the condenser, first turn the two red
stops downwards and then remove the condenser
unit holding the handle.
E
R S
V E
R E
T O
A U
P1151
The filter in the inner door must be removed for
cleaning.
Do not be alarmed by the amount of lint, it is not
due to excessive wear caused by the dryer.
All fabric loses lint when drying but it goes
unnoticed in the air.
In a tumble dryer it collects in the filter.
P1159
12
P1155
125992512.qxd
14/07/2004
17:09
Pagina
13
• Push the reservoir until it clicks and turn the
yellow stop downwards to lock it firmly in.
Clean with a brush, and rinse under a hand shower
if necessary.
• Close the small door and press the
START/PAUSE button again to allow the
programme to continue.
P0639
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser cabinet
and in the inner part of the small door with a damp
cloth.
P1202
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, this could
damage the condenser.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Re-fit the condenser, turn the red stops upwards
and close the door.
Cleaning the drum
Do not use this appliance if the condenser
has not been fitted.
When your garments do not reach the desired
degree of dryness, e.g. It turns out either too dry or
too damp, we advise you clean the inside of the
drum with a cloth soaked in vinegar.
Emptying the water reservoir
This will eliminate the pattern formed in the drum
(due to residues of detergent and softeners used in
the washing and lime contained in the water).
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the dryer is
in use.
If this is not done the safety devise trips: pilot light
full tank on the control panel comes on and the
program stops, leaving the laundry damp.
The reservoir can be emptied even in the middle of
a programme.
Proceed as follows:
• Open the small door at the lower part of the
cabinet
• Turn the yellow stop upwards
• Pull out the reservoir
• Open the small cover and let the water flow down
• Close the small cover and re-insert the reservoir.
13
125992512.qxd
14/07/2004
17:09
Pagina
14
Something not working?
Before contacting your local Service Centre, please make the following checks:
Important!
If during the drying phase the END pilot light starts blinking and the buzzer sounds, please switch your tumble
dryer off and contact your local Service Centre.
Problem
Possible cause
• The dryer does not work:
• The door(s) is(are) open.
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The water reservoir is full or not correctly inserted
(FULL TANK pilot light is on). The programme
starts in any case but it stops after approx. 4
minutes.
• The START/PAUSE button has not been
depressed.
• The filters are clogged.
• The dryer does not dry properly:
• Drum needs cleaning, refer to page 13.
• The condenser is clogged.
• The water reservoir is full.
• The selected cycle is not suitable for the laundry.
• Insufficient drying time.
• The laundry has not been spun properly.
• The low temperature function has been selected.
• Excessive laundry load.
• The dryer is not correctly installed.
Please make sure you give the model and serial
number of the appliance.
If, after the above checks, there is still a fault, call
your local Electrolux Customer Service on
131349.
This information can be found on the rating plate
(see picture of page 5).
14
125992512.qxd
14/07/2004
17:09
Pagina
15
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
