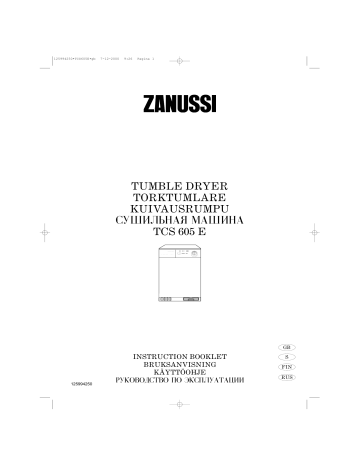

TUMBLE DRYER
TORKTUMLARE
KUIVAUSRUMPU
SUfiILWNAÅ MAfiINA
TCS 605 E
E L E C T R O N I C
A
B
C
D
E
F
S E N S O R
G
H
TCS
665 E
GB
125994250
INSTRUCTION BOOKLET
BRUKSANVISNING
KÄYTTÖOHJE
RUKOVODSTVO PO ÈKSPLUATACII
S
FIN
RUS
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.
2
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 3
Important safety information..........4-5
Maintenance and Cleaning................13
External cleaning ................................................13
Disposal ............................................................5
Cleaning the filter ................................................13
Cleaning the condenser unit ..............................13
Tips for environmental protection 5
Emptying the water reservoir ............................13
Your new tumble dryer ..........................6
Something not working? ....................14
Description of the appliance ..............6
Installation ......................................................7
Positioning ............................................................7
Electrical connection ............................................7
Stacking kit............................................................7
Connecting a drain hose ......................................7
Door reversal ........................................................7
Use ........................................................................8
The control panel ..............................................8-9
Programme chart ................................................10
Operating sequence............................................11
Useful hints ........................................................12
Technical specifications
DIMENSIONS:
Height
Width
Depth
85 cm
60 cm
60 cm
ELECTRICAL CONNECTION:
MAX. POWER ABSORBED:
MIN. FUSE RATING:
220/230 V/50 Hz
2600 W
16 A
DRYING CAPACITY:
Cotton, linen
Synthetics
5 kg
2.5 kg
CONSUMPTION:
Cotton, linen
Cotton, linen
3.64 kWh (5 kg store dry)
3
kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
3
ENGLISH
Contents
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 4
Important safety information
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.
Installation
General safety
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Zanussi Service
Centre. Always insist on genuine Zanussi spare
parts.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
Use
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
• Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substances are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
• Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
• Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking this latter.
• Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
• Clean fluff filter after using tumble dryer. To
prevent fire risks, do not use the appliance if the
fluff filter is damaged or without filter.
4
7-12-2000
9:26
Pagina 5
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Make sure that children or pets do not climb into
the drum.
Disposal
• Packaging materials
The materials marked with the symbol
recyclable.
• Machine
are
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
Tips for environmental protection
To save energy and to help protect the environment,
we recommend that you follow these hints:
• To utilize the maximum load, laundry which is to be
dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the programme for iron-dry, remove the iron-dry
items at the end of the programme and then finishdry the rest of the load.
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Clean the filter and condenser unit regularly to
avoid excessive drying times and high electricity
consumption.
• Do not over-dry laundry, this avoids creasing and
saves energy.
Select the drying programme according to the type
of laundry and the required degree of dryness.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
5
ENGLISH
125994250•TCS605E•gb
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 6
Your new tumble dryer
This tumble dryer will give your wash that soft, relaxed feel whatever the weather.
Extremely high quality standards both during development and manufacturing guarantee a long service life for
your appliance.
Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and
short drying times.
Description of the appliance
1 Control panel
1
2 Fluff filter
3 Rating plate
4 Water reservoir
2
5 Condenser unit
E L E
C T
R O
N I
C
A
6 Adjustable feet
B
C
D
S E
N S
O R
E
F
G
H
TCS
665
E
6
3
6
4
5
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 7
Positioning
Stacking kit
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
P1044
Connecting a drain hose
If there is a sink or drain near the appliance, the
condensed water can be discharged directly through
a hose that is available on the market.
The feet must never be removed.
Do not restrict the floor clearance through deeppile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
In order to connect the hose to the appliance
proceed as follows:
Important
• Remove the clamp (A);
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
• Pull out the plug (B);
• Insert the drain hose (C);
• Fasten the hose (C) to the appliance using the
clamp (A).
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
C
A
Electrical connection
This machine is designed to operate on a 220-230
V, single-phase, 50 Hz supply.
B
A
B
Check that your domestic electrical installation can
take the maximum load required (2.6 kW), also
taking into account any other appliances in use.
C
P1043
P1046
If the appliance is stacked on the washing machine,
the condensed water can be discharged through the
hose as shown in figure, but take into account that
the hose must be pointed downwards.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the above
safety precaution.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Important!
The power supply cable must be accessible after
installing the machine.
Please contact the nearest Zanussi Service Centre.
7
ENGLISH
Installation
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 8
Use
The control panel
5 7
CONDENSER DRYER
E L E C T R O N I C
A
B
C
D
TCS 605E
S E N S O R
E
F
G
H
A U T O R E V E R S E
1 2 3 4 6
8 9
10
1 Door opening button
7 Buzzer OFF light
Press this button to open the door: any programme
which is running stops.
Comes on when you press the corresponding button.
8 Start button
2 ON/OFF button
Press this button for about 2 seconds to start the
dryer after having selected the programme. An
acoustic sound rings.
This button is used to switch the dryer on. At the end
of the programme, release this button by pressing it
again to switch the dryer off.
If the door is opened while the programme is
running, this button must be pressed again after
closing the door in order to restart the programme
from the point at which it was interrupted.
This button must also be pressed after a power cut
and after having re-inserted the water reservoir if it
has been emptied in the middle of a programme.
In both cases light
or
(depending on the
phase in progress) flashes to remind you that the
start button needs to be pressed again.
3 Mains-ON light
Comes on when the appliance is switched on
(ON/OFF button pressed down) and goes out when
this button is released.
4 Low temperature button
Pressing this button allows drying to be performed at
a lower temperature, for delicate items.
Corresponding pilot light 5 comes on and an
acoustic sound rings.
This option can also be used for time controlled
drying.
The dryer heats at 1400 W instead of 2400 W.
If the button is not pressed, drying is performed at
full power (2400 W).
9 Programme phase indicator lights
These lights indicate the various phases of the
programme as they are being performed.
“Drying” light
This light indicates that the appliance is in the drying
phase.
“Cooling” light
5 Low temperature light
This light indicates that the appliance is in the
cooling phase. At the end of drying, there is a 10
minute cooling phase to cool the laundry.
Comes on when the low temperature drying button is
pressed.
If light
or
is flashing, this means that the
Start button needs to be pressed again for the
programme to resume.
6 Buzzer OFF button
A buzzer sounds when buttons 4-6 and 8 are
pressed and during the anti-creasing phase.
Press this button when selecting the programme if
you wish to switch the buzzer off.
8
7-12-2000
9:26
Pagina 9
ENGLISH
125994250•TCS605E•gb
“End of programme” light
This light flashes at the end of the cooling phase and
during the anti-creasing phase.
Water full indicator light
This light flashes when the water reservoir is full.
The reservoir may also be emptied during a
programme.
In this case, after having fitted back in place, the
start button
must be pressed again for the
programme to resume.
This light also flashes at the end of the drying phase
(after cooling) and during the anti-creasing phase.
10 Programme/Time selector dial
Allows you to select electronically controlled or time
controlled drying.
Turn the dial to the required programme or time.
Electronically controlled drying
(automatic)
The appliance runs these programmes with the help
of probes which detect the degree of dampness of
the laundry.
Simply select the programme according to the type
of laundry and degree of drying required.
Time controlled drying
Can be used to finish off drying if necessary.
Select the 60 minute programme for cottons or the
30 minute programme for synthetics.
To cancel a programme which is running, turn the
programme selector dial to “0”.
At the end of drying, turn the selector dial to “0”
before removing the laundry.
9
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 10
Programme chart
Automatic drying (electronic programmes)
Max-load (1)
kg
Programme
5
5
5
5
5
A
B (*)
C
D (*)
E
2.5
2.5
2.5
F
G (*)
H
Drying time
Max-load (1)
kg
Programme
selector dial position
Cotton
60 min
5
60’
Synthetics
30 min
2.5
30’
Degree of drying
required
Type of laundry
Cotton & linen
extra dry
store dry
slightly damp
iron dry
machine iron dry
Synthetics
extra dry
store dry
slightly damp
(*) According to CEI 1121 Standards.
Time controlled drying
Type of laundry
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
Fresh & Cool
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour
of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
• cotton, linen: drum full but not too tightly packed;
• synthetics: drum no more than half full;
• delicate fabrics: drum no more than one third full.
10
7-12-2000
9:26
Pagina 11
After each use
Operating sequence
• Turn the programme selector dial to “0”.
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 30 minutes.
There may be dust inside a brand new tumble dryer.
• Switch the appliance off by releasing the ON/OFF
button
. The mains-ON light goes out.
• Clean the filter and empty the water reservoir (see
page 13).
Important!
Drying
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position
(cooling) and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance.
1. Connect the appliance.
2. Open the door by pressing the relevant button.
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does
not get caught between the door and filter.
5. Press the ON/OFF button
comes on.
Modifying the programme
: the mains-ON light
To change a programme which is running, first
cancel it by turning the programme selector dial to
“0”. Select the new programme and press the Start
button
.
6. Select the drying programme or time.
7. If required, press the low temperature button
and/or the buzzer OFF button
.
8. Press the Start button
for 2 seconds: light
comes on and drying starts.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 10 minute
cooling phase (the
light is on). The buzzer
sounds.
You may remove the laundry after this phase.
9. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
The buzzer sounds every 10 seconds (if the
button has not been pressed).
Lights
and
flash alternately.
If you do not remove the laundry, the dryer will
stop automatically at the end of the anti-creasing
phase.
Lights
and
flash alternately and the
mains-ON light stays on.
Turn the programme selector dial to “0”; lights
and
go out.
Release the ON/OFF button (the mains-ON light
goes out) and immediately remove the laundry.
11
ENGLISH
125994250•TCS605E•gb
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 12
• Easy-care items, too, e.g. shirts, should be briefly
pre-spun before drying (depending on crease
resistance approx. 30 seconds or using the special
brief spin programme of your washing machine).
Useful hints
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet
700 - 1000 g
Tablecloth
• You can also put starched items into your dryer.
However, to achieve the desired starched effect,
choose the programme “iron dry”. To remove any
starch residues, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
400 - 500 g
Kitchen towel
70 - 120 g
Table napkin
50 - 100 g
Towelling hand towel
Bathrobe
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• To avoid a static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.
150 - 250 g
1000 - 1500 g
Man’s shirt
200 - 300 g
Pillowcase
100 - 200 g
Man’s pyjamas
400 - 500 g
Ladies’ nightdress
200 - 250 g
• Remove the laundry when the dryer has finished
drying.
• If individual items are still damp after drying, set a
brief post-drying time, but at least 30 minutes.
This will be necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
• Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar
to rubber foam.
• Always follow the instructions on garment labels:
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the fluff.
• The laundry must be thoroughly spun before
tumble drying.
12
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 13
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
Also clean the outside, removing all fluff.
Clean the rubber seal round the porthole door and
the seal of the condenser in the inner door with a
damp cloth.
External cleaning
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.
Do not use this appliance if the condenser
has not been fitted.
Cleaning the filter
Emptying the water reservoir
The tumble dryer cannot operate efficiently with a
clogged filter. The filter collects all the fluff which
forms during drying and it is therefore essential to
remove and clean this filter after each drying
programme using a damp cloth.
Pull the filter upwards in order to remove it.
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
If this is not done a safety device trips: pilot light
on the control panel comes on and the programme
stops, leaving the laundry damp. The buzzer will
sound for 1 minute.
The reservoir can be emptied even in the middle of a
programme.
P1026
Important: Remove the fluff around the filter too.
Water
reservoir
Do not use the appliance without filter.
You should not be alarmed by the amount of fluff
which collects on the filter; this is due to normal
wearing of the fabrics dried and not to incorrect
operation of your machine. Rubbing of the fibres
during normal wear and washing forms fluff. If
laundry is dried on a line, this fluff simply flies away,
whereas inside the tumble dryer it collects together
and swells considerably as a result of the drying
action.
The reservoir must be re-inserted correctly.
After inserting the reservoir the START-button
has to be depressed again to allow the programme
to continue.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
Cleaning the condenser unit
Clean the air condenser periodically, 3 or 4 times a
year depending on how frequently the dryer is used.
Pull out the condenser, holding it at the top, and
remove all fluff. Clean it with a brush and rinse it
under the shower if necessary.
P0636
P0639
13
ENGLISH
Maintenance and Cleaning
125994250•TCS605E•gb
7-12-2000
9:26
Pagina 14
Something not working?
Before contacting your local Zanussi Service Centre, please make the following checks:
Problem
Possible cause
• The door is open.
• The dryer does not work:
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The water container is full.
• The start button
has not been depressed.
• The filter is clogged.
• The dryer does not dry properly:
• The water reservoir is full.
• The condenser is clogged.
• Insufficient drying time.
• The selected cycle is not suitable for the laundry.
• The laundry has not been spun properly.
• The low temperature function
selected.
has been
• Excessive laundry load.
• The dryer is not correctly installed.
If the programme phase indicator lights and the pilot lights for buttons
and
flash from right to left
at the start of the programme, or during the programme, switch the appliance off by pressing the
button. Press this button again to switch the appliance back on and press the Start button
. If the
fault persists, call the Service Centre.
If, after the above checks, there is still a fault, call
your local Zanussi Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate.
14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
