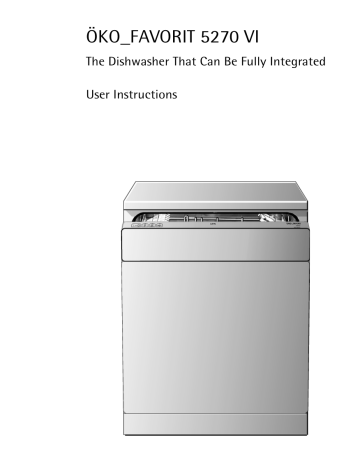

ÖKO_FAVORIT 5270 VI
The Dishwasher That Can Be Fully Integrated
User Instructions
Dear customer,
Please read these user instructions carefully.
Above all please observe the safety instructions on the first few pages
ofthese user instructions! Please keep these user instructions for later
reference. Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step for step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your nearest customer service centre.
In the case of technical problems, our customer service organisation is
available to provide you with assistance at any time (you will find
addresses and telephone numbers in the "Customer Service Centres"
section).
In this respect please read the "Service" note on the rear of these user
instructions.
3
Your dishwasher is fitted with the new "PULSE WASH" wash system.
With this wash system, the motor speed and spray pressure are
varied during the wash programme to improve the cleaning of the
dishes. It is for this reason that the noise level changes during the
wash programme.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
Contents
CONTENTS
Operating instructions
....................................
5
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Appliance Features, Display and Control Fields . . . . . . . . . . . . . . . . . . .
Display and Control Fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust the water softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Special Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . .
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
10
11
12
13
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading cutlery and dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Height of the Upper Basket . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Start the wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Deleting a wash programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupting the wash programme (only in emergencies) . . . . . . . . . . .
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
14
15
16
17
18
19
20
21
22
22
23
23
23
24
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
What to do, when ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...Warning Tones Indicate a Fault in the Dishwasher. . . . . . . . . . . . . . . . . .
...problems occur during use of the dishwasher. . . . . . . . . . . . . . . . . . . . . .
...the wash results are not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26
26
27
27
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
3
Contents
Installation and Connection Instructions . . . . . . . . . . . . . . . .
30
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Installing the Furniture Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service Departments
Guarantee Conditions
Service
4
32
32
32
32
33
34
34
35
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operating instructions
OPERATING INSTRUCTIONS
1
Safety instructions
The safety features of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, connection and initial use
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Under no circumstance
should a damaged appliance be connected up. In the event of damage, please contact your vendor.
• Before starting your appliance please ensure that the nominal voltage and type of current specified on the rating plate are the same as
those used at the place of installation. Please also refer to the type
plate for the type of fuse to be used.
• You will find details on how to correctly install and connect up your
dishwasher in the "Installation" section. Multi-way plugs / connectors
and extension cables must not be used. This could constitute a safety
hazard.
Child Safety
• Often children do not recognise the hazards present in the use of
household appliances. Please therefore ensure that children are adequately supervised and do not let children play with the dishwasher –
there is a danger that children may shut themselves in the appliance
(risk of asphyxiation!).
• Packaging materials (e.g. sheet and Styrofoam) can be dangerous for
children. Danger of asphyxiation! Keep packaging materials at a safe
distance from children.
• Detergents can cause burns to eyes, mouth and throat or even cause
asphyxiation! Please observe the detergent manufacturers safety
instructions.
• The water in the dishwasher is not drinking water. If there are still
remnants of detergent in the appliance, there is risk of burns!
• When disposing of the dishwasher: Pull out the mains plug, cut off
the mains cable and dispose of it. Break the door lock so that the do
no longer shuts.
5
Operating instructions
General safety
• Repairs to the dishwasher may only be performed by qualified service
engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact customer
service or your dealer.
• Never use the dishwasher if the mains cable, inlet / drain hose are
damaged or the control panel, work surface or plinth area are damaged such that internal components of the appliance are openly
accessible.
• If the mains cable for the appliance is damaged, it must be replaced
with special cable (obtainable from AEG customer service) by an AEG
authorised customer service centre.
• Never unplug the appliance by pulling on the cable, always pull on
the plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed, except during loading and emptying. By this means you will avoid anyone tripping over the open door and injuring themselves.
• Sharp knives and other item of cutlery with sharp edges must be laid
in the upper rack or placed in the cutlery rack with the point facing
downwards.
Intended use
• Only wash household dishes with the dishwasher. If the appliance is
used for purposes other than those intended or used incorrectly, no
liability will be accepted by the manufacturer for any damage that
may be caused.
• Prior to use ensure that the manufacturer’s of the special salt, detergent and rinse aid employed specifically permit the usage of their
products in household dishwashers.
• Do not put solvents in the dishwasher. There is a risk of an explosion!
• The leak prevention system provides reliable protection from damage
due to water leaks. For this system to function the following prerequisites must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
6
Operating instructions
• Do not sit or stand on the open door, the appliance may tip over.
• In the event of a fault, shut off the water supply at the tap, then
switch off the appliance and unplug. In the case of a permanent connection: pull or unscrew the fuse(s).
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of old appliances
As and when you cease to use your dishwasher, please take it to a recycling centre or to your dealer who will, for a small contribution to the
costs, dispose of it for you.
2
Economical and Ecological Dishwashing
• Only connect the dishwasher to the hot water supply if your hot
water is not electrically heated.
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• When you wash a small load, the load sensor calculates the amount
of water necessary and shortens the programme. It is more economical to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the manufacturer of
the respective product.
7
Operating instructions
Appliance Features, Display and Control
Fields
Top Spray
Nozzle
Rubber Seal for
Connecting the
Water Feed to
the Upper Spray
Arm
Spray Arms
Container for
Special Salt
Container
for Rinse Aid
Detergent
Dispenser
Display and Control Fields
8
Rating Filters
plate
Operating instructions
Display and Control Fields
Water Softener Button
Control Field
Indicator for the End of
the Wash Programme
Indicator for
Special Salt
The Control Field comprises the On/Off switch 9 and the programme
buttons with LED indicators.
Water Softener Button: In addition to setting the wash programme
indicated on the control field, this button can be used in combination
with the On/Off switch 9 to adjust the water softener.
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Filling with Special Salt for the Water Softener
3. Filling with Rinse Aid
9
Operating instructions
Adjust the water softener
To avoid the scale deposits on the dishes and in the dishwasher, the
dishes must be washed with soft, i.e. low lime content, water. The dishwasher therefore has a built-in water softener, in which tap water from
a hardness of 4 °d (German degree) is softened with the aid of special salt.
3
0
You water supplier will be able to inform you on the hardness and
hardness range of the water in your area.
Adjust the water softener to the setting that corresponds to the hardness of the water in your area. The water softener can be adjusted in
10 steps.
in °d1)
Water Hardness
in mmol/l 2) Range
Adjust
to Hardness Setting
Number of
Flashes
9
8
7
6
5
41-50
35-40
31-34
27-30
23-26
7.3-9.0
6.3-7.2
5.5-6.2
4.8-5.4
4.1-4.7
IV
9
8
7
6
5
19-22
15-18
3.3-4.0
2.6-3.2
III
4
3*
4
3
11-14
1.9-2.5
II
2
2
4-10
0.7-1.8
I/II
1
1
under 4
under 0.7
I
0
no salt necessary
10
1)(°d) German degree, measure of the hardness of water
2)(mmol/l) millimol per litre, international unit for the hardness of water
*factory setting
0 1. Press and hold down the water softener button and press the ON/OFF
switch 9.
– The water softener button indicator starts to flash.
– The number of flashes corresponds to the hardness setting. (Exception: hardness setting 0 is indicated by 10 flashes).
– The sequence of flashes is repeated after a 5 second pause.
2. Pressing the water softener button increases the hardness setting by 1.
(Exception: hardness setting 0 follows hardness setting 9).
3. When the hardness setting is correct, press the ON/OFF switch 9.
The hardness setting is then saved.
10
Operating instructions
Filling with Special Salt for the Water Softener
1
Use only special salt for dishwashers. Never fill the salt container with
any another type of salt (e.g. culinary salt) or dishwasher detergent.
This would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of special salt in your hand.
Fill with special salt:
– Prior to using the dishwasher for the first time
– When the SALT indicator J on the control panel is illuminated.
If the water hardness in your area is less than 4 °d, you do not need to
use special salt.
0 1. Open the door, remove the lower
rack.
LE
SA ALT Z
2. Undo the lid on the salt container by
S AL
S EL
turning it anticlockwise.
S
3. Only when using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the container opening.
Fill the container with special salt
through the funnel; the capacity of
the container is approx. 1.0-1.5 kg
depending on the grain size. Do not
overfill the salt container with special salt.
3
3
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into
the wash water, this could lead to poor wash results. To avoid this run a
rinse program after filling the salt container with special salt. This will
wash away salt water and any salt crystals that have been spilt.
3
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and the special salt indicator J to
extinguish. The setting of the water softener and thus the consumption
of salt are dependent on the hardness of the local water.
11
Operating instructions
Filling with Rinse Aid
Rinse aid ensures that your dishes gleam and are free from spots, and
that you glasses are clear.
1
Use only branded rinse aid for dishwashers. Never fill the rinse aid container with any another substance (e.g. concentrated vinegar). This
would damage the appliance.
Fill with rinse aid:
– Prior to using the dishwasher for the first time
– When a dark point surrounded by a light ring is to be seen in the
indicator window on the container. If there is sufficient rinse aid in
the container, the indicator window is uniformly dark.
12
ax
6 5 4
1
32
3. Fill with rinse aid, up to the broken
line as a maximum; this line corresponds to a quantity of approx.
150 ml
4. Replace the lid and tighten by turning clockwise.
5. If rinse aid has been spilt, wipe up
with a cloth. Otherwise there will be
too much foam during washing.
m
The rinse aid container is on the inside of the dishwasher door.
0 1. Open the door
2. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
Operating instructions
Adjusting Rinse Aid Dosing
Rinse aid is added to the wash water from the container when the
dishes are rinsed. The dose can be adjusted from 1-6, corresponding to
1-6 cm3 rinse aid. The dose is set to "4" in the factory. Only change the
dose when streaks, milky spots or dried water drops are to be seen on
glasses and dishes.
(see under "What to do, if...").
0 1. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
2. Adjust the dose setting with a tea
spoon.
3. Replace the lid and tighten by turning clockwise.
4. If rinse aid has run out, wipe up with
a cloth.
3
In Daily Use
• Is it necessary to refill with special salt or rinse aid?
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
13
Operating instructions
Loading cutlery and dishes
1
Sponges, household cloths and any object that can absorb water may
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with cement that is
not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove large left-overs.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
14
Operating instructions
Loading Cutlery
Long, pointed items of cutlery in the
cutlery rack are a hazard, particularly
to children (see Safety Instructions).
To ensure that all items of cutlery are
completely washed, you should
1. Place the grid insert on the cutlery
rack
2. Place short knives, forks and spoons
in the grid insert with their handles
pointing downwards.
1
To make the removal of cutlery easier, on some dishwasher models it
is possible to open the cutlery rack.
If you use the grid insert then the
cutlery rack cannot be opened.
To ensure that the cutlery rack cannot open on removal from the appliance, you should always hold both
parts of the two part handle.
0 1. Place the cutlery rack on a table or
work surface
2. Open the two part handle
3. Remove cutlery
4. Close the two part handle.
1
15
Operating instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower rack.
To ease the loading of large items at
some dishwasher-models the two
rows of prongs for the right-hand
plate insert can be folded down:
0 1. Slightly lift the right plate insert.
3
2. Fold the plate insert to the left.
16
Operating instructions
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
17
Operating instructions
Adjusting the Height of the Upper Basket
Maximum Height of the Dishes in the
Upper Basket
Lower Basket
3
With upper basket raised
22 cm
31 cm
With upper basket lowered
24 cm
29 cm
The height of the basket can also be adjusted when it is loaded.
Depending on the model, your appliance is provided with one of the
following types of upper basket:
Lowering the Upper Basket:
1. Pull the upper basket out completely.
2. Lift and lower the upper basket using
the handle at the rear of the right
hand cup basket.
Type 1
Raising the Upper Basket:
0 1. Pull the upper basket out completely.
2. Lift the upper basket by the handle,
pull gently forwards and allow to
latch into the upper position.
Lowering the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket by the handle, lift it as far as it will go and then
lower it vertically. The upper basket
will engage in the lower position.
Raising the Upper Basket:
0 1. Pull the upper basket out completely.
2. Holding the upper basket by the handle, lift it as far as it will go and then
lower it vertically. The upper basket
will engage in the higher position.
18
Type 2
Operating instructions
Filling with Detergent
1
Use only dishwasher detergent.
Fill with Detergent:
– Prior to the start of a wash programme (not for the Pre Wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer’s dosing and storage recommendations given on the detergent packaging.
The detergent dispenser is on the
inside of the door.
0 1. If the lid is closed: Press the latching
lever (1) forwards. The lid springs
open.
2
2
1
2. Fill the detergent dispenser with
detergent. The markings are an aid to
correct dosing:
"MIN" corresponds to approx. 30 ml
detergent,
"MAX" corresponds to approx. 40 ml
detergent.
3. Close the lid, press it down until the
latch engages.
3
X:
MA
N:
MI
In the case of heavily soiled dishes,
add additional detergent in the cavity in the lid (2). This detergent is
effective during the pre wash.
19
Operating instructions
Bio Wash Programmes and Concentrated Detergents
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– Conventional, alkaline detergents with caustic components
– Weak alkaline concentrated detergents with natural enzymes.
20
2
The use of BIO wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; the BIO wash
programmes are specially matched to the soil dissolving properties of
the enzymes in the concentrated detergent. It is for this reason that
BIO wash programmes can achieve the same results at 50 °C that can
otherwise only be achieved using 65 °C programmes.
During BIO programmes the water is briefly heated to more than 50 °C
so that the active oxygen becomes effective.
3
Detergent tablets from different manufacturers dissolve at different
rates. For this reason some detergent tablets cannot develop their full
cleaning power during short programmes. Therefore please use normal
programmes with pre wash when using detergent tablets.
Operating instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of
Dishes
In Addition
-
Type of
Soiling
Suitable
Programme:
Programme
Sequence 2)
Consumption
Figures: 3)
Dessert Dishes
and Coffee
Service
All Dish Types
with non-temperature resistant dishes
with
delicate glasses
-
• normally
soiled
• lightly
soiled
Dinner Service and Cooking Utensils
-
• heavily
• normally
soiled
soiled
• dried on left- • dried leftovers, particovers
ularly egg
white and
thickeners
particularly suited to the use of
concentrated detergents.
Used dishes
that are being
collected in the
dishwasher for
washing later.
INTENSIVE
NORMAL
NORMAL BIO1)
QUICK
PRE WASH
b
e
f
Pre Wash
Main Wash
2x Intermediate Rinses
Final Rinse
Drying
Pre Wash
Main Wash
Intermediate
Rinse
Final Rinse
Drying
Pre Wash
Main Wash
Intermediate
Rinse
Final Rinse
Drying
]
5
Main Wash
Intermediate
Rinse
Final Rinse
-
A
Pre Wash
-
Duration
100 – 110 min.
Energy
1.45 – 1.65 kWh 1.15 – 1.35 kWh 1.05 – 1.25 kWh 0.85 kWh
< 0.1 kWh
Water
18 – 20 litres
4 litres
1)
2)
3)
85 – 95 min.
14 – 16 litres
85 – 95 min.
14 – 16 litres
30 min.
12 litres
10 min.
During BIO programmes the water is briefly heated to more than 50 °C so that the active oxygen
becomes effective.
The various stages in the wash programme have different sounds because the dishes are washed
more intensely for short periods during certain stages of the wash programme to improve cleaning.
The consumption figures were recorded under standard conditions. They are dependent on the loading of the dish racks. Variations are therefore possible in practice.
21
Operating instructions
Start the wash programme
0 1. Open the door of the dishwasher.
2. Check that the dishes and cutlery are loaded into the dishwasher in
such a manner that the spray arms are free to rotate.
3. Open the tap fully.
4. Press the On/Off switch 9. The indicator in the switch 9 illuminates.
5. Press the programme button for the desired programme (see "Programme Table"). The programme indicator illuminates.
Have you accidentally selected the wrong wash programme?
• If you want to change the wash programme within 6 seconds of
making a programme selection, briefly press the button for the new
wash program.
• If you want to change the wash programme at a later point in time,
use the following procedure:
– Press the button for the new wash programme and hold it pressed.
The indicators for both programmes now flash.
– After a few seconds only the indicator for the new programme
flashes. Release the programme button, the new wash programme
has been saved.
6. Close the door. After around 6 seconds the selected wash programme
begins.
3
If acoustic warning tones can be heard after the start of the programme, please read the "What to do, if..." section.
Deleting a wash programme
A selected wash programme can only be deleted when the door of the
dishwasher is still open, however a programme cannot be deleted in the
first 6 seconds after making a programme selection.
After 6 seconds the wash programme can be deleted as follows:
0 1. Press the button for the current wash programme and hold it pressed.
The programme indicator for the current wash programme flashes for a
few seconds and then extinguishes.
2. Release the programme button, the wash programme is deleted.
3
22
A selected programme is not deleted by switching off the dishwasher.
Operating instructions
Interrupting the wash programme
(only in emergencies)
Interrupt a wash programme in progress only when it is absolutely
necessary to do so. When the appliance is closed again, the air that
has entered is heated and expands significantly. As result water may
penetrate into the base of the appliance and trigger the leak prevention system.
3
Hot steam may escape from the appliance when opening the door.
There is a risk of scolding! Open the door carefully.
0 1. Open the door of the dishwasher.
2. Rectify the reason for opening the appliance.
3. Close the door. The selected programme will then continue.
1
Load Sensing – Sensor Logic
If a wash programme is started even though there are only a few dishes
in the upper and/or lower rack, an intelligent electronic system adjusts
the amount of water and the duration of the wash programme to the
number of dishes. By this means it is possible to wash only a few dishes
quickly and economically. At half load (6 place settings), up to 2 litres
of water and 0.2 kWh of electricity are saved.
Switching Off the Dishwasher
At the end of the wash programme a continuous tone sounds for
5 seconds.
Hot steam may escape from the appliance when opening the door
immediately after the end of the programme. Open the door carefully.
0 1. Open the door
1
2. Press the ON/OFF switch 9. The ON/OFF switch 9 indicator extinguishes. If the dishwasher is not switched off, the continuous tone
sounds again after 10 minutes.
23
Operating instructions
Emptying the Dishwasher
3
• Hot dishes are sensitive to knocks. The dishes should therefore be
allowed to cool down before removing them from the appliance.
• The dishes will dry quicker if, when the programme has finished, you
briefly open the door fully and then leave it slightly ajar.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• First empty the lower rack, and then the upper rack. By using this
procedure you will avoid any water that may be remaining in the
upper rack, dripping onto the dishes in the lower rack and leaving
water marks.
Care and Cleaning
1
24
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• The spray arms do not need cleaning.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Operating instructions
Cleaning the Filter
The filters in the base of the washing compartment are to a large
extent self-cleaning.
Nevertheless the filters should be
checked and cleaned from time to
time. Dirty filters will degrade the
washing result.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1)
by the handle with the hole and
remove from the microfilter (2)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (3) from the
base of the washing compartment
and clean both faces thoroughly
3
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
Under no circumstances may the
dishwasher be used without filters.
25
Operating instructions
What to do, when ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call in customer service to resolve one of
the malfunctions listed here, or rectify an error made in the operation
of the appliance, the customer service engineer’s visit is not free of
charge, even during the period of guarantee.
...Warning Tones Indicate a Fault in the Dishwasher.
• If one or two repetitive warning tones can be heard after the start of
a programme, they are indicative of a fault in the dishwasher that
you can probably rectify yourself.
After rectification of the fault, press the button for the wash programme that has been started and close the door of the dishwasher.
The wash programme continues.
If the same warning tone is heard again, please contact customer
service.
• If more than two repetitive warning tones can be heard after programme start, please contact customer service. Customer service will
need to know the number of tones and whether indicators on the
control and display field are flashing.
Malfunction
Possible Cause
Tap is closed.
1 warning tone that is conThe filter (where
tinuously repeated can be
present) in the threaded
heard and the L indicator
hose fitting at the water
and the programme indica- inlet valve is blocked.
tor on the display and conThe water inlet hose is
trol panel are flashing.
not correctly laid.
2 warning tones that are
continuously repeated can
be heard.
3 warning tones that are
continuously repeated can
be heard.
26
Remedy
Open tap.
Clean the filter in the
threaded hose fitting.
Check hose installation.
The siphon is blocked.
Clean siphon.
The water drain hose is
not correctly laid.
Check hose installation.
The leak prevention sys- Close the tap and contact
tem has been triggered. customer service.
Operating instructions
...problems occur during use of the dishwasher.
Malfunction
Possible Cause
Remedy
The door of the dishwasher is
Shut the door.
not closed properly.
Mains plug is not plugged in. Insert mains plug.
House fuse is defective.
Replace fuse.
In the case of dishwasher
models with start delay
timer:
A start delay is selected.
Where dishes are to be
washed immediately, for
appliances
- with multidisplay, set the
delay start to 0.
- without multidisplay, cancel the delay start timer.
The programme does
not start.
The washing compartment is
made from rust-free stainless
steel. Rust spots in the washing compartment are due to
Rust spots are visible in rust particles from external
the washing compart- sources (rust particles from
water pipes, pans, cutlery,
ment.
etc.). Remove such spots with
one of the stainless steel
cleaners that are generally
available on the market.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the lid of the special
salt container securely.
...the wash results are not satisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were loaded is such a way that the wash waster did not
reach all items. The racks for the dishes must not be overloaded.
– The filter in the base of the washing compartment is dirty or incorrectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: The special salt container
is empty or the water softener is incorrectly adjusted.
– The drain hose is incorrectly laid.
27
Operating instructions
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Lower rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer’s customer advisor.
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x W x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated, Built-In Dishwashers
Dimensions:
820 – 880 x 596 x 570 (H x W x D in mm)
Max. Weight:
50 Kg
Dishwashers that Can Be Fully Integrated
Dimensions:
820 – 880 x 596 x 546 - 550 (H x W x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
28
Operating instructions
Notes for Test Institutes
The salt container for the water softener and the rinse aid container
must be completely full prior to the test.
Test Standard:
EN 5O 242
Comparative Programme:
Normal BIO 50 °C for full and half load
Full Load:
12 place settings incl. serving dishes
Detergent Dosing:
30g (Type B) in the detergent container
Half Load:
6 place settings incl. serving dishes
For half load every second stacking position is left empty
Detergent Dosing:
20g (Type B) in the detergent container
Rinse Aid Setting:
4 (Type III) for full and half load
Example Loading Arrangement: Upper rack (lower and upper positions):
Bottom rack with cutlery basket
Cutlery rack
29
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted to
ensure that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing. Depending on the design of the
threaded feet use either
– an open-end spanner
or
– a screwdriver.
• For built-in, integrated and fully integrated dishwashers, the rear feet
should be adjusted from the front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must not be kinked or
crushed when the dishwasher is in position.
• In addition, the dishwasher must be firmly screwed to the work surface or to the neighbouring units. This is essential to ensure the dishwasher does not tip.
30
Installation and Connection Instructions
Installing the Furniture Door
(see installation stencil supplied)
3
The door of the appliance can be fitted with a wooden furniture door
of the following dimensions:
Width:
591 mm – 594 mm
Thickness:
16 mm – 24 mm
Height:
max. 715 mm
Weight:
max. 10 kg
The installation plate supplied is used to ease installation and to fix
separate facing panels firmly in place.
31
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the return of
wash water into the drinking water system and comply with the applicable plumbing regulations.
• The dishwasher can be connected to cold and hot water supplies up
to max. 60 °C.
• The dishwasher must not be connected to open hot water appliances
or instantaneous water heaters.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10N/cm2 =100 kPa)
For a water pressure of less than 2 bar
please seek advice from customer service.
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
32
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (DIN 259) on the water inlet hose to
a tap with an external thread (¾ inch). Tighten the threaded hose fitting only by hand.
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or the fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose than that supplied, the following VDE approved complete hose sets are to be used, these are available from your dealer:
– Hose set "WRflex 100" (E No.: 911 239 034)
– Hose set "WRflex 200" (E No.: 911 239 035)
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
your dealer or customer service.
The internal diameter of the extension hoses must be 19 mm to
ensure that the function of the
appliance is not impeded.
• Extension hoses may be laid a maximum of 3 metres horizontally; the
maximum permitted height for the
connection for the drain hose is
then 85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
Water drain into wash basins (only possible with free-standing
appliances)
In the case that you wish to hang the drain hose in a wash basin, use a
detachable hose elbow. You can obtain this from AEG customer service
under spare part number ET 646 069 190.
0 1. Fit the elbow to the drain hose.
2. Secure the drain hose against sliding off the edge of the wash basin.
Pass a piece of cord through the hose elbow and fix it to the wall or the
tap.
33
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the safety valve immediately interrupts the supply of water to the appliance and the drain pump switches on. By this
means water can neither escape nor overflow. The remaining water in
the appliance is automatically pumped out.
1
The AQUA CONTROL SYSTEM also works when the appliance is switched
off – the appliance must however not be disconnected from the mains.
Electrical connection
1
34
In compliance with electric company technical requirements for mains
connections, hard-wired connections to the mains may only be made
by approved electri-cians.
When connecting the appliance, observe the German VDE regulations
and, if applicable, any additional conditions required by your local electricity supplier. Following installation, live parts and live insulated wiring must not be accessible using a finger test in accordance with EN
60335/DIN VDE 0700.
Information on the electrical connection can be found on the rating
plate on the right side of the inner edge of the dishwasher door. If the
appliance has a change-over switch, the additional instructions on the
change-over diagram in the mains connector box must be observed.
Prior to connecting ensure that the mains voltage and current rating at
the site of installation match the nominal voltage and current rating
given on the rating plate. The required fuse protection is also to be
found on the rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
If the appliance is hard-wired to the mains supply, then it must be
safely isolated from the mains within the electrical installation with
switches intended to ensure all-pole(N,L1) disconnection, shall be
directly connected to the supply terminals and shall have a contact
separation (fuses, cut outs, current trips or similar) of at least 3mm in
each pole.
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation; the actual situation where the dishwasher is to be installed will define the exact installation (available
connections, local electricity and water board regulations for connecting up appliances, etc.).
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
Mains
cable
Water
drain
Mains socket
Double tap
Water drain
Water inlet
Mains
cable
35
Service Departments
SERVICE DEPARTMENTS
36
U.A.E. Abu Dhabi
Universal Trading Company
P.O. Box 43 99
Tel.: 335331
Jordan
Jordan Household
Supply Co. Ltd.
P.O. Box 3/68
Amman/Tel.: 69 70 50
Malta
ITC
International Trading
Company
White House Building
Mountbatte Street
Blata L-Bajda/Tel.: 220644
Egypt
Middle East Commercial
Center
P.O. Box 19
Kairo-Heliopolis
Tel.: 29917/31634
Kanada
EURO-LINE Appliances
2150 Winston PARK Drive 20
Oakville, Ontario L6H 5V1
Tel.: 905 829 3980
Fax: 905 829 3985
Mauritius
Happy World Centre Ltd.
P.O. 7 54
1 Chausee Street
Port Louis
Tel.: 25355
Australia
ANDI-Co Pty. Ltd
9 Kingston Town Close
Oakleigh VIC 3166
Tel.: (03) 9569 1235
Fax: (03) 9569 1450
Korea (South)
Core Incorp.
3/F Chewoo Bldg.
200 Nonhyun-Dong
Kangnam-Ku
Seoul
Telefon 82 2 549 89 61
Namibia
AEG NAMIBIA (PTY)
LIMITED-Jeppe Street
Northern Industrial Area
Windhoek
Tel.: (061) 21-6082/4
Fax: (061) 217838
Bahrain/Arabian Gulf
A.A. Zayani & Sons
P.O. Box 9 32
Bahrain
Tel.: 261060
Croatia
Electrolux D.O.O.
Suplova 7
10000 Zagreb
Tel.: 1 61 19512
Fax: 1 61 19513
New Zealand
Euro-Life New Zealand Ltd.
Privat Bag
58 Symonds Street
Auckland
Tel.: (09) 525 2222
Bulgaria
Electrolux Bulgaria E.O.O.D.
91 Levski Blvd.
1000 Sofia
Tel.: 2 806676
Fax. 2 980 5276
Kuwait/Arabian Gulf
Ali Al-Ghanim Est.
P.O. Box 10 83
Tel.: 5322463
Fax: 5242114
Nouvelle Caledonie
Socometra N.C.
B.P. 483
Nouman
Tel.: 275444
Cyprus
Servilan Co. Ltd.
P.O. Box 36 05
77, Kennedy Ave.
Nicosia
Tel.: 311 477
Lebanon
Adib & Assaferi
P.O. Box 539
Tripoli
Oman
Moshin Haider Darwish
P.O. Box 1 35
Muscat
Tel.: 703743
Service Departments
Estonia
Electrolux Estonia Ltd.
Mustamäe tee 24
EE0006 Tallinn
Tel.: (372) 6 650 090
Fax: (372) 6 650 092
Latavia
Electrolux Latavia Ltd.
Terlaton Street 42/44
1011 Riga
Tel.: 371 2 297821
Fax: 371 2 821286
Poland
Electrolux Poland Sp. zo.o.
ul. Domaniewska 41
02-034 Warszawa
tel.: 022 874 33 33
fax: 022 874 33 00
Hongkong
Wo Kee Services Ltd.
585-609 Castle Peak Road
Kwai Chung N.T.
Hongkong
Tel.: 2494 4000
Lthuania
Electrolux Lthuania
Verkui 29
2600 Vilnus
Tel.: 372 272 3326
Fax: 372 272 3366
Russia
Electrolux Russia Ltd.
16 Olympiysky prospekt
129090 Moscow
Tel.: (095) 937 7837
Fax: (095) 926 5513
Israel
Evis Ltd.
P.O. Box 70 39
Tel-Aviv – 67013
Tel.: 3257311
Malaysia
Arzbergh Engineering
No. 49A/B, Jalan Petaling
Utama 7
4600 Petaling Jaya
Tel.: 3 795 1084
Fax: 3 795 1082
Saudi Arabia
Alia Trading Corporation
P.O. Box 4101
King Abdul Aziz Street
Riyadh
Tel.: 4645977
Al Nahas Est.
Musaidia Market I
P.O. Box 1 15 29
Jeddah
Tel.: 6606852
Singapore
Japan
Arzbergh Engineering
Electrolux Japan Ltd.
Yasuda Warehouse 4F 3-3-12 19 Tanglin Road 06-07
Singapore 247909
Heiwajima Ota-Ku
Tel.: 65 7356572
Tokyo
Fax: 7351124
Tel.: 81 3 3544 3363
Fax: 81 3 3763 6143
Slovenia
Electrolux Slovenia D.O.O.
Traska Ul. 132
1000 Ljubljana
Tel.: 61 1234 137
Fax: 61 1234 238
Thailand
OLYMPIA Thai Ltd.
44 Ratchadapisek Road
10320 Bangkok
Tel.: 2 513 6111
Fax: 2 513 2574
Slovakia Rep.
Electrolux Slovakia S.R.O.
Seberiniho 1
821 03 Bratislava
Tel.: 7 4333 9745
Fax: 7 4333 6976
South Africa
AEG (Pty) Ltd.
55, 12th Road
P.O. Box 1 02 64
Kew/Johannesburg 2000
Tel.: 8069111
Hungary
Electrolux Lehel KFT
(AEG Div)
Erzsebet’Kiralyne Utja 87
1142 Budapest
Tel.: 00361/251 84 44
USA
ANDI Co. Appl. Inc. East
65 Campus Plaza
Edison, New Jersey 0837
USA/Tel.: (201) 2258839
Syria
Masri & Shami
P.O. Box 24 96
Damascus
Tel.: 214080
37
Guarantee Conditions
GUARANTEE CONDITIONS
Weitere Kundendienststellen im Ausland
In diesen Ländern gelten die Garantiebedingungen der örtlichen
Partner. Diese können dort eingesehen werden.
Further after-sales service agencies overseas
In these countries our AEG agents’ own guarantee conditions are
applicable. Please obtain further details direct.
Autres agences étrangères assurant le service après-vente
Dans ces pays, les conditions de garantie des concessionnaires de la
région sont valables. Vous pouvez les consulter sur place.
Otros puntos de Postventa en el extranjero
En estos países rigen las condiciones de nuestros representantes locales.
las cuales pueden ser consultadas allí mismo.
Ulteriori uffici del servizio tecnico assistenza clienti all’estero
In questi paesi sono valide le condizioni di garanzia dei partner locali.
Queste condizioni possono essere esaminante sul luogo.
Serviços de assistência técnica no estrangeiro
Nestes países são válidas as condições de garantia dos concessionários
locais, podendo aí ser consultadas.
38
Service
SERVICE
In the section "What to do, if..." the most important sources of faults
that you can rectify yourself are summarised.
If, nevertheless, you call in customer service to resolve a problem listed
in these instruction, or because of an error made in operating the
appliance, the customer service engineer’s visit is not free of charge,
even during the warranty period.
If you can not find any information on a specific malfunction in these
operating instructions, please contact customer service.
Please provide customer service the PNC number and the S No. (serial
number), you can find these on the rating plate. The plate is on the
inner edge of the door on the right.
So that you always have these numbers at hand, we recommend you to
make a note of them here:
PNC :...............................................................................................................................
S-No. :.............................................................................................................................
39
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 945 617 - 00 - 0101
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
