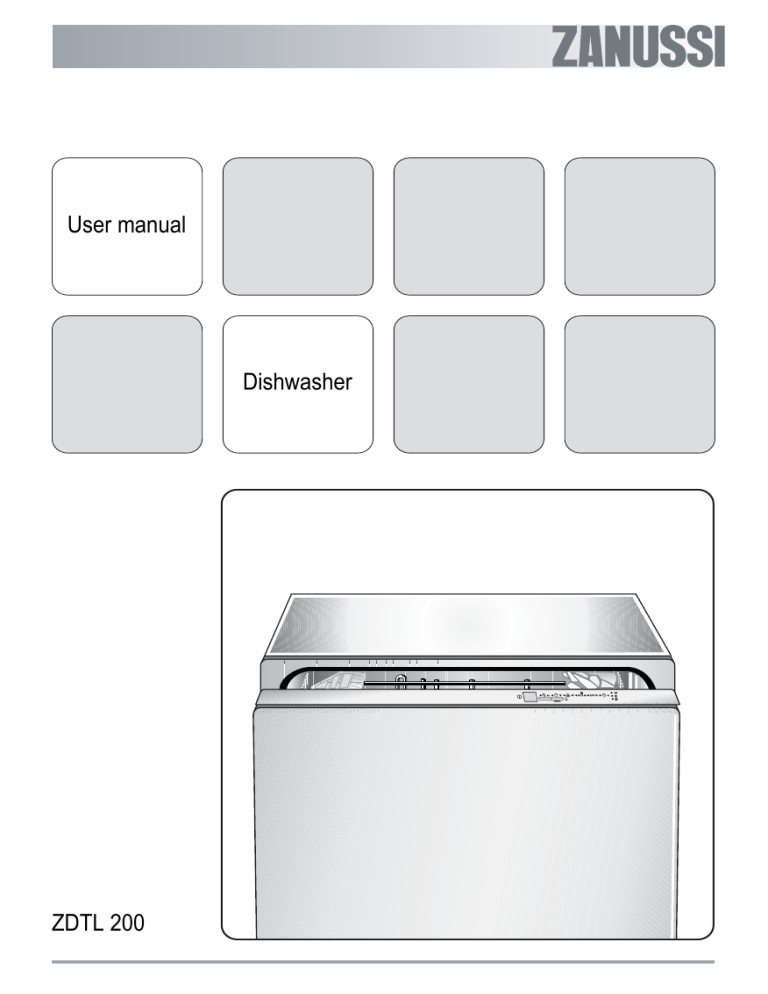

Zanussi ZDTL200 User manual

Zanussi ZDTL200 User manual
User manual
ZDTL 200
Thank you for selecting our
We wish you lots of enjoyment with your new
appliance and we hope that you will consider
our brand again when purchasing household
Please read this user manual carefully and
keep it throughout the product life cycle as a
reference document. The user manual should
be passed on to any future owner of the
Safety information _ _ _ _ _ _ _ _ _ _ _ _ _ 3
Unloading the dishwasher _ _ _ _ _ _ _ _ 16
Control panel _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 4
Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ 17
Washing programmes _ _ _ _ _ _ _ _ _ _ _ 7
Environmental concerns _ _ _ _ _ _ _ _ _ 18
First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 8
What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ 19
Set the water softener _ _ _ _ _ _ _ _ _ _ _ 9
Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ 21
Use of dishwasher salt _ _ _ _ _ _ _ _ _ _ 10
Consumption values _ _ _ _ _ _ _ _ _ _ _ 21
Use of rinse aid _ _ _ _ _ _ _ _ _ _ _ _ _ _ 11
Hints for test institutes _ _ _ _ _ _ _ _ _ _ 22
Load cutlery and dishes _ _ _ _ _ _ _ _ _ 12
Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 23
Use of detergent _ _ _ _ _ _ _ _ _ _ _ _ _ 15
Subject to change without notice
Safety information
In the interest of your safety and to ensure the
correct use, before installing and first using the
appliance, read this user manual carefully, including its hints and warnings. To avoid
unnecessary mistakes and accidents, it is important to ensure that all people using the
appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the
appliance if it is moved or sold, so that everyone
using it through its life will be properly informed
on appliance use and safety.
Correct use
• This dishwasher is only intended for washing
household utensils suitable for machine
• Do not put any solvents in the dishwasher.
This could cause an explosion.
• Knives and other items with sharp points
must be loaded in the cutlery basket with
their points down or placed in a horizontal
position in the upper basket.
• Only use products (detergent, salt and rinse
aid) suitable for dishwashers.
• Avoid opening the door whilst the appliance
is in operation, hot steam may escape.
• Do not take any dishes out of the dishwasher
before the end of the dishwashing cycle.
• After use, isolate the appliance from the
power supply and turn off the water supply.
• This product should be serviced only by an
authorised service engineer, and only genuine spare parts should be used.
• Under no circumstances should you attempt
to repair the machine yourself. Repairs carried out by inexperienced persons will cause
injury or serious malfunctioning. Contact
your local Service Force Centre. Always insist on genuine spare parts.
General safety
• Dishwasher detergents can cause chemical
burns to eyes, mouth and throat. Could endanger life! Comply with the safety instructions of the dishwasher detergent
• The water in your dishwasher is not for drinking. Detergent residues may still be present
in your machine.
• Ensure that the door of the dishwasher is
always closed when it is not being loaded or
unloaded. In this way you will avoid anybody
tripping over the open door and hurting
• Do not sit or stand on the open door.
Child safety
• This appliance is designed to be operated
by adults. Don’t allow children to use the
dishwasher unsupervised.
• Keep all packaging well away from children.
There is risk of suffocation.
• Keep all detergents in a safe place out of
children’s reach.
• Keep children well away from the
dishwasher when the door is open.
• Check your dishwasher for any transport
damage. Never connect a damaged machine. If your dishwasher is damaged contact your supplier.
• All packaging must be removed before use.
• Any electrical and plumbing work required to
install this appliance must be carried out by
a qualified and competent person.
• For safety reasons it is dangerous to alter
the specifications or attempt to modify this
product in any way.
• Never use the dishwasher if the electrical
supply cable and water hoses are damaged;
Control panel
On-Off button
Delay start button
Programme selection/cancel button
Indicator lights
Programme lights
or if the control panel, work top or plinth area
are damaged such that the inside of the appliance is freely accessible. Contact your
local Service Force centre, in order to avoid
• All sides of the dishwasher must never be
drilled to prevent damage to hydraulic and
electric components.
For electrical and water connection carefully
follow the instructions given in specific paragraphs.
Setting mode
The appliance is in setting mode when all
programme lights are off and End of programme light flashes.
Always remember that when performing operations such as:
• selecting a washing programme
• setting the water softener
• deactivation/activation of the audible signals
Delay start button
the appliance MUST be in setting mode.
If a programme light is illuminated and End of
programme light is illuminated with fixed light,
the last performed programme is still set.
In this case the programme has to be cancelled:
1. Press and hold the Programme selection/
Cancel button until the light of the running
programme turns off and the End of programme light is flashing.
2. Release the Programme selection/Cancel button.
This option allows the start of the programme to be
delayed by 3 hours.
Once the washing programme has been set, press the
delay start button. The corresponding indicator light
The countdown of the delay start begins automatically.
Once the countdown has elapsed the washing programme will start automatically. The delay start indicator light turns off.
Programme selection/cancel button
• Starting the washing programme:
1. Press the On-Off button.
2. Press the Programme selection/cancel button
once, the light of the last performed washing programme illuminates and the End of programme
light flashes.
3. Press the Programme selection/cancel button
as many times as necessary to illuminate the light
corresponding to the desired programme.
4. Close the dishwasher’s door, the programme will
start automatically.
Once the programme has started, if you want to
change the selection made you must cancel the washing programme in progress.
• Cancel the washing programme in progress:
1. Open the door.
2. Press and hold the Programme selection/cancel
button until the light of the running programme
turns off and the End of programme light is flashing.
3. Release the Programme selection/cancel button.
4. Switch off the machine by pressing the On-Off
button or select a new washing programme (check
that there is detergent in the detergent dispenser.
Indicator lights
End of programme
Illuminates when the washing programme has ended.
It also has added functions of visual signalling as:
– the setting of the water softener,
– deactivation/activation of the audible signals,
– intervention of an alarm due to the malfunction of
the machine.
Rinse aid
Illuminates when the rinse aid has run out.
Is never illuminated while a washing programme is
Indicator lights
Illuminates when the special salt has run out.
Is never illuminated while a washing programme is
Audible signals
Audible signals have been introduced to help
indicate which operations the dishwasher is
– end of the washing programme,
– malfunction of the appliance
Factory setting: audible signals activated.
It is possible to deactivate the audible signals,
using the Programme selection/Cancel button.
Deactivation/activation of the audible signals
1. Press the On/Off button. The appliance
must be in setting mode.
2. Press and hold Programme selection/
Cancel button until programme light A
flashes and programme light B illuminates
with fixed light.
3. Press Programme selection/Cancel button again: programme light A becomes
fixed and programme light B starts flashing.
4. After a few seconds:
– programme light A turns off
– programme light B goes on flashing
– End of programme light illuminates
with fixed light, indicating that the audible signals are active.
5. To deactivate the audible signals press
again the Programme selection/Cancel
button: the End of programme light turns
off indicating that the audible signals have
been deactivated.
6. To memorise the operation, switch off the
7. To activate again the audible signals, simply follow the above operations until the
End of programme indicator light illuminates.
Washing programmes
Intensive 70°
Degree of soil
Heavy soil
Type of load
Crockery, cutlery, pots
and pans
Programme description
Main wash
2 intermediate rinses
Final rinse
Normal 65°
Degree of soil
Type of load
Programme description
Normal soil
Crockery, cutlery, pots
and pans
Main wash
2 intermediate rinses
Final rinse
Light soil
Crockery and cutlery
Main wash
Final rinse
BIO 50° 2)
Normal soil
Crockery and cutlery
Main wash
1 intermediate rinse
Final rinse
Rinse and Hold
Partial load (to be completed later in the day).
65° A 30'1)
1 cold rinse (to avoid food
scraps from sticking
This programme does not
require the use of detergent.
1) Ideal for washing a partially loaded dishwasher. This is perfect daily programme, made to meet the needs of a family of 4
persons who only wish to load breakfast and dinner crockery and cutlery.
2) Test programme for test institutes.
First use
Before using your dishwasher for the first time:
• Ensure that the electrical and water connections comply with the installation instructions
• Remove all packaging from inside the appliance
• Set the water softener
• Pour 1 litre of water inside the salt container
and then fill with dishwasher salt
• Fill the rinse aid dispenser
When using tablets that integrate rinse aid
and detergent:
there is no need to fill up with rinse aid
– set the water softener
– add special (dishwasher) salt
When using tablets that integrate rinse aid,
detergent, salt function and other additives:
there is no need to fill up with special salt or
rinse aid.
Check whether these detergents are suitable
for your water hardness. Follow the manufacturers instructions.
– Set the water hardness to level 1.
If the drying results are not satisfactory we recommend that you:
1. Fill up the rinse aid dispenser with rinse aid.
2. Set the rinse aid dosage to position 2.
If you decide in future to use separated detergents, we advise that you:
– Fill up the salt and rinse aid container.
– Adjust the water hardness setting to the
highest level and perform 1 normal washing
programme without loading any dishes.
– Adjust the water hardness setting according
to the hardness of the water in your area.
– Adjust the rinse aid dosage
Set the water softener
The dishwasher is equipped with a water
softener designed to remove minerals and salts
from the water supply, which would have a detrimental or adverse effect on the operation of
the appliance.
The higher the content of these minerals and
salts, the harder your water is. Water hardness
is measured in equivalent scales, German degrees (°dH), French degrees (°TH) and mmol/
l (millimol per litre - international unit for the
hardness of water).
The softener should be adjusted according to
the hardness of the water in your area. Your
local Water Authority can advise you on the
hardness of the water in your area.
The water softener must be set in both ways:
manually and electronically.
Adjusting the water hardness
Water hardness
Use of salt
51 - 70
91 - 125
9,1 - 12,5
level 10
43 - 50
76 - 90
7,6 - 8,9
level 9
37 - 42
65 - 75
6,51 - 7,5
level 8
29 - 36
51 - 64
5,1 - 6,4
level 7
23 - 28
40 - 50
4,0 - 5,0
level 6
19 - 22
33 - 39
3,3 - 3,9
level 5
15 - 18
26 - 32
2,61 - 3,2
level 4
11 - 14
19 - 25
1,9 - 2,5
level 3
4 - 10
7 - 18
0,71 - 1,8
level 2
< 0,7
level 1
Setting the water softener manually (see table)
The water softener is factory set at position 2.
Set switch to position 1 or
Setting the water softener
electronically (see table)
1. Press the On/Off button. The appliance
must be in setting mode.
2. Press and hold Programme selection/
Cancel button until programme light A
flashes and programme light B illuminates
with fixed light.
3. After a few seconds:
– programme light B turns off
– programme light A goes on flashing
– End of programme light starts flashing:
the number of flashes corresponds to
Use of dishwasher salt
Use only special salt suitable for dishwashers.
current level set. The flashing is repeated with a pause of a few seconds.
Examples: 5 flashes, pause, 5 flashes,
pause, etc... = level 5.
4. To change the level, press the Programme
selection/Cancel button. Each time the
button is pressed the level increases (level
1 follows level 10). The End of programme light indicates the new setting.
5. To memorise the operation, switch off the
Unscrew the cap.
Only before filling with Using the funnel provided,
salt for the first time, fill pour in the salt until the
the salt container with wa- container is filled with salt.
Immediately start a complete programme.
Water will overflow from the container as salt is added.
Remove any trace of salt. Replace the cap tightly
turning it clockwise until it
stops with a click.
Top up the special salt when the light on the
control panel illuminates.
Use of rinse aid
Open the lid.
Fill up with rinse aid. The Clean up any rinse aid
maximum level for filling is which overflows. Close
the lid and press until it
indicated by "max"
up the rinse aid when the light on the control panel
Never fill the rinse aid dispenser with any other subilluminates.
stances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.
Adjusting the dosage of rinse aid
Increase the dose if there are drops of water or lime
spots on the dishes after washing.
Open the lid.
Reduce the dose if there are whitish streaks on the
dishes or a bluish film on glassware or knife blades.
Set the dosage level. (The Close the lid and press undose is factory set in po- til it locks.
sition 4).
Load cutlery and dishes
Sponges, household cloths and any object that
can absorb water may not be washed in the
• Before loading the dishes, you should:
– Remove all left over food and debris.
– Soften remnants of burnt food in pans
• When loading the dishes and cutlery, please
– Dishes and cutlery must not impede the
rotation of the spray arms.
– Load hollow items such as cups, glasses,
pans, etc. with the opening downwards so
that water cannot collect in the container
or a deep base.
– Dishes and items of cutlery must not lie
inside one another, or cover each other.
– To avoid damage to glasses, they must
not touch.
– Lay small objects in the cutlery basket.
• Plastic items and pans with non stick coatings have a tendency to retain water drops;
these items will not dry as well as porcelain
and steel items.
• Light items (plastic bowls etc.) must be loaded in the upper basket and arranged so
they do not move.
For washing in the dishwasher the following cutlery and dishes
are not suitable:
are of limited suitability:
• Cutlery with wooden, horn, china or mother-of• Only wash stoneware in the dishwasher if it is
pearls handles.
specially marked as being dishwasher-safe by the
• Plastic items that are not heat resistant.
patterns may fade if machine washed
• Older cutlery with glued parts that are not temperafrequently.
ture resistant.
• Silver and aluminium parts have a tendency to dis• Bonded cutlery items or dishes.
colour during washing: Residues, e.g. egg white,
• Pewter or copper items.
egg yolk and mustard often cause discolouring and
• Lead crystal glass.
staining on silver. Therefore always clean left-overs
• Steel items prone to rusting.
from silver immediately, if it is not to be washed
• Wooden platters.
straight after use.
• Items made from synthetics fibres.
Load cutlery. For best results we recommend you
to use the cutlery grid provided (if the size and dimensions of the cutlery
allow it)
Place knives and other
items of cutlery with sharp
points or edges with their
handles facing upwards.
Risk of injury!
Load the lower basket. Arrange serving dishes and
large lids around the edge
of the basket.
Load upper basket. Light
items (plastic bowls etc.)
must be loaded in the upper basket and arranged
so they do not move.
The cutlery basket is in two parts which can be separated to give greater loading flexibility. To separate
the two parts, slide them horizontally in opposite directions and pull them apart. To reassemble, reverse
the procedure.
The two rows of prongs on
the lower basket can be
easily lowered to allow
you to load pots, pans and
For taller items, the cup
racks can be folded upwards.
If plates are to be loaded in the upper basket: load
them starting from the rear positions; tilting them
slightly forwards and avoiding the front positions near
the door.
Adjusting the height of the
upper basket
If washing very large plates you can load them
in the lower basket after moving the upper basket to the higher position.
Maximum height of the dishes in :
upper basket
lower basket
With upper basket raised
22 cm
33 cm
With upper basket lowered
26 cm
29 cm
To move to the higher position proceed as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards until the mechanism is engaged and the basket is stable.
To lower the basket to the original position proceed
as follows:
1. Pull out the basket until it stops.
2. Carefully lift both sides upwards and then allow the
mechanism to drop back down slowly, keeping
hold of it.
Never lift or lower the basket on one side only
When the basket is in the higher position you
will not be able to use the cup racks.
Use of detergent
Only use detergents suitable for dishwashers.
Observe the manufacturer’s dosing and storage recommendations.
Open the lid.
Fill in the detergent in
compartment A.
Observe the dosing levels.
For programmes with pre- When using detergent
Close the lid.
wash add an additional
tablets: place detergent
detergent dose in comtablets in compartment A.
Detergent tablets
Detergent tablets from different manufacturers
dissolve at different rates. For this reason,
some detergent tablets do not attain their full
cleaning power during short washing programmes. Therefore, please use long washing
programmes when using detergent tablets, to
ensure the complete removal of detergent
Unloading the dishwasher
• Hot dishes are sensitive to knocks.
The dishes should therefore be allowed to
cool down before removing from the appliance.
• Empty the lower basket first and then the
upper one; this will avoid water dripping from
the upper basket onto the dishes in the lower
• Water may appear on the sides and the door
of the dishwasher as the stainless steel will
eventually become cooler than the dishes.
When the washing programme has finished, it
is recommended that the dishwasher is unplugged and the water tap turned off.
Care and cleaning
Cleaning the filters
NEVER use the dishwasher without filters. Incorrect repositioning and fitting of the filters will
produce poor washing results.
Clean filters A, B and C Turn the handle about 1/4 Remove filter A from the
thoroughly under running turn anticlockwise and re- base of the washing commove filters B and C.
Replace the filters and
lock by turning the handle
clockwise to the stop.
Cleaning the spray arms
External cleaning
NEVER try to remove the spray arms.
Clean the external surfaces of the machine and
control panel with a damp soft cloth. If
necessary use only neutral detergents. Never
use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc....).
If residues of soil have clogged the holes in the
spray arms, remove them with a cocktail stick.
Internal cleaning
Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned
regularly with a damp cloth.
We recommend every 3 months to run the wash
programme for heavy soiled dishes using detergent but without dishes.
Prolonged periods of nonoperation
If you are not using the machine for any prolonged period of time you are advised to:
1. Unplug the appliance and then turn off the
2. Leave the door ajar to prevent the formation of any unpleasant smells.
3. Leave the inside of the machine clean.
unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe
and empty it.
Moving the machine
If you have to move the machine (moving house
1. Unplug it.
2. Turn the water tap off.
3. Remove the water inlet and discharge hoses.
4. Pull the machine out together with the hoses.
Avoid over tilting the machine during transportation.
Frost precautions
Avoid placing the machine in a location where
the temperature is below 0°C. If this is
Environmental concerns
Packaging material
The packaging materials are environmentally
friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging
materials in the appropriate container at the
community waste disposal facilities.
When a unit is no longer being used:
• Pull the plug out of the socket.
• Cut off the cable and plug and dispose of
• Dispose of the door catch. This prevents
children from trapping themselves inside
and endangering their lives.
The symbol
on the product or on its packaging indicates that this product may not be
treated as household waste. Instead it should
be taken to the appropriate collection point for
the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and
human health, which could otherwise be
caused by inappropriate waste handling of this
product. For more detailed information about
recycling of this product, please contact your
local council, your household waste disposal
service or the shop where you purchased the
What to do if…
The dishwasher will not start or stops during
Certain problems are due to the lack of simple
maintenance or oversights, which can be
Fault code and malfunction
solved with the help of the indications described
in the chart, without calling out an engineer.
Switch off the dishwasher and carry out the following suggested corrective actions.
Possible cause and solution
• continuous flashing of the start/cancel indicator • The water tap is blocked or furred with limescale.
Clean the water tap.
• 1 intermittent audible signal
• The water tap is turned off.
Turn the water tap on.
• 1 flash of the "end of programme" indicator light
The dishwasher does not fill with water.
• The filter (where present) in the threaded hose fitting
at the water inlet valve is blocked.
Clean the filter in the threaded hose fitting.
• The water inlet hose has not been correctly laid or
it is bent or squashed.
Check the water inlet hose connection.
• continuous flashing of the start/cancel indicator • The sink spigot is blocked.
Clean out the sink spigot.
• 2 intermittent audible signals
• The water drain hose has not been correctly laid or
it is bent or squashed.
• 2 flashes of the "end of programme" indicator
Check the water drain hose connection.
The dishwasher will not drain.
• continuous flashing of the start/cancel indicator • Anti-flood device is activated.
Close the water tap and contact your local Service
Force Centre.
• 3 intermittent audible signals
• 3 flashes of the "end of programme" indicator
Fault code and malfunction
The programme does not start.
Possible cause and solution
• The dishwasher door has not been properly closed.
Close the door.
• The main plug is not plugged in.
Insert the mains plug.
• The fuse has blown in the household fuse box.
Replace the fuse.
Once these checks have been carried out;
switch on the dishwasher. The programme will
continue from the point at which it was interrupted.
If the malfunction or fault code reappears contact the Service Force Centre.
For other fault codes not described in the above
chart, please contact your Service Force Centre.
Contact your local Service Force Centre, quoting the model (Mod.), product number (PNC)
and serial number (S.N.). This information can
be found on the rating plate located on the side
of the dishwasher door.. So that you always
have these numbers at hand, we recommend
you to make a note of them here:
Mod. :. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PNC : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
S.N. : . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The wash results are not satisfactory
The dishes are not clean
• The wrong washing programme has been selected.
• The dishes are arranged in such a way as to stop
water reaching all parts of the surface. The baskets
must not be overloaded.
• The spray arms do not rotate freely due to incorrect
arrangement of the load.
• The filters in the base of the washing compartment
are dirty or incorrectly positioned.
• Too little or no detergent has been used.
• Where there are limescales deposits on the dishes;
the salt container is empty or the incorrect level of
the water softener has been set.
• The drain hose connection is not correct.
• The salt container cap is not properly closed.
The dishes are wet and dull
• Rinse aid was not used.
• The rinse aid dispenser is empty.
The wash results are not satisfactory
There are streaks, milky spots or a bluish coating on
glasses and dishes
• Decrease rinse aid dosing.
Water drops have dries onto glasses and dishes
• Increase rinse aid dosing.
• The detergent may be the cause. Contact the detergent manufacturer’s consumer care line.
If after all these checks, the problem persists,
contact your local Service Force Centre.
Technical data
Width x Height x Depth (cm)
Electrical connection
Voltage - Overall power - Fuse
Information on the electrical connection is given on the rating plate on the
inner edge of the dishwasher’s door.
59,6 x 86,8-94,8 x 55,5
Water supply pressure
Minimum - Maximum
0,05 - 0,8
place settings
Consumption values
The consumption values are intended as a
guide and depends on the pressure and the
temperature of the water and also by the var-
iations of the power supply and the amount of
Consumption values
Intensive 70°
Normal 65°
65° A 30'
Bio 50° (Test programme for Test Institutes)
Programme duration (in Energy consumption (in
Water (litres)
85 - 95
1,8 - 2,0
22 - 25
105 - 115
1,5 - 1,7
23 - 25
130 - 140
1,0 - 1,2
14 - 16
Consumption values
Programme duration (in Energy consumption (in
Rinse and Hold
Water (litres)
Hints for test institutes
Testing in accordance with EN 60704 must be
carried out with appliance fully loaded and using the test programme (see "Consumption
Test in accordance with EN 50242 must be
carried out when the salt container and rinse
aid dispenser have been filled with salt and
rinse aid respectively and using the test programme (see "Consumption values").
Full load: 12 standard place settings
Amount of detergent required
5 g + 25 g (Type B)
Rinse aid setting
position 4 (Type III)
Upper basket
cup racks: position A
Cutlery basket
Lower basket
Any electrical and/or plumbing work required to
install this appliance should be carried out by a
qualified electrician and/or plumber or competent person.
Fitting under a counter
Carefully follow the instructions on the enclosed
template for building in the dishwasher and fitting the furniture panel.
The dishwasher must be secured against tilting.
Therefore make sure that the counter it is fixed
under, is suitably secured to a fixed structure
(adjacent kitchen units cabinets, wall).
This dishwasher is designed to be fitted under
a kitchen counter or work surface.
No further openings for the venting of the
dishwasher are required, but only to let the water fill and drain hose and power supply cable
pass through.
The dishwasher incorporates adjustable feet to
allow the adjustment of the height.
During all operations that involve accessibility
to internal components the dishwasher has to
be unplugged.
Be sure that once the appliance has been installed, it is easily accessible for the service
engineer in the event that a repair is required.
Good levelling is essential for correct closure
and sealing of the door.
When the appliance is correctly levelled, the
door will not catch on either side of the cabinet.
If the door does not close correctly, loosen or
tighten the adjustable feet until the machine is
perfectly level. (See enclosed template).
Water connection
The dishwasher must not be connected to open
water appliances or instantaneous water heaters. This dishwasher may be fed with either hot
(max. 60°) or cold water. Nevertheless we advise you a cold water supply.
Only use, for connection to the water mains,
new hose-set; old hose-set must not be reused.
If the machine is connected to new pipes or
pipes which have not been used for a long time,
you should run the water for a few minutes before connecting the inlet hose.
Water inlet hose with safety
Connect the inlet hose to a water tap with an
external thread of 3/4”.
After connecting the double-walled water inlet
hose, the safety valve is next to the tap.
If the water inlet hose leaks, the safety valve
cuts off the water supply.
The electrical cable for the safety valve is in the
double-walled water inlet hose and is live.
Therefore do not immerse the water inlet hose
or the safety valve in water.
Take care when installing the water inlet hose
. Place the water inlet hose in such a way that
it is always lower than the bottom edge of the
safety valve.
If the water inlet hose or the safety valve is
damaged, remove the mains plug immediately.
A water inlet hose with safety valve MUST only
be replaced by your local Service Force Centre.
Drain hose
Connect drain hose to the Required height: 30 to 100 Ensure that the hoses are When connecting the
cm above bottom of the
not kinked, crushed or en- drain hose to an under
sink trap spigot, the entire
plastic membrane (A)
must be removed. Failure to remove all the membrane will result in food
particles building up over
time eventually blocking
the dishwasher drain hose
If you use a drain hose extension the total
length should not be longer than 4 metres.
Likewise the internal diameter of the couplings
used for connections to the waste outlet must
be no smaller than the diameter of the hose
Electrical connection
Safety standards require the appliance to be
Prior to using the appliance for the first time,
ensure that the rated voltage and type of supply
on the rating plate match that of the supply
where the appliance is to be installed.
The fuse rating is also to be found on the rating
Always plug the mains plug into a correctly installed shockproof socket. Multi-way plugs,
connectors and extension cables must not be
This could constitute a fire hazard through overheating.
If necessary, have the domestic wiring system
socket replaced. In case that the electrical cable has to be replaced, contact your local Service Force centre.
The plug must be accessible after the appliance
has been installed.
Never unplug the appliance by pulling on the
cable. Always pull the plug.
The manufacturer accepts no liability for failure
to observe the above safety precautions.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
