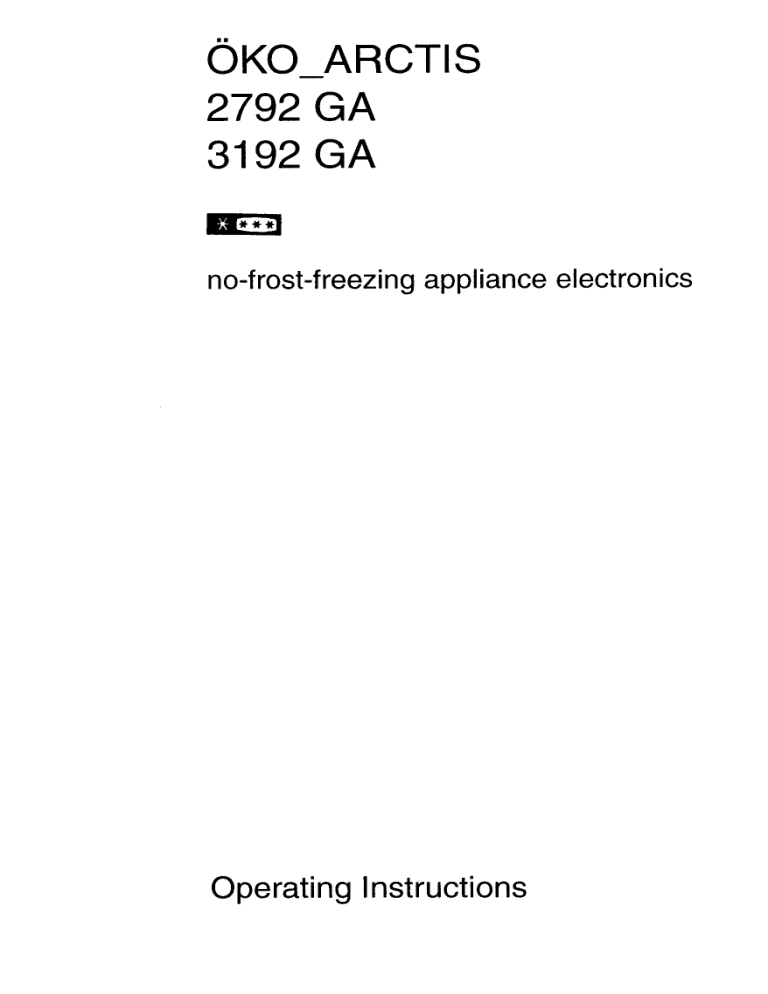

OKO ARCTIS
2792 GA
3192 GA
no-frost-freezing appliance electronics
Operating Instructions
Dear customer,
Before placing your new refrigerator/freezer into operation please read
these operating instructions carefully. They contain important
information for safe use, for installation and for care of the appliance.
Please keep these operating instructions for future reference. Pass them
on to possible new owners of the appliance.
These operating instructions are for use with several technically
comparable models with varying accessories. Please observe the notes
which apply to your model.
Notes which are important for your safety or for the proper
functioning of the appliance are stressed with a warning triangle and/
or with signal words (Warning!, Caution!, Attention!). Please observe
the following carefully.
This symbol guides you step by step in the operation of the appliance.
Supplementary information regarding operation and practical
applications of the appliance appear after this symbol.
Tips and notes concerning economical and environmentally sound use
of the appliance are marked with the cloverleaf.
Explanations about specialist terms, which are used in the operating
manual, are found in the chapter "Specialist Terms".
The operating instructions contain instructions for the correction of
possible malfunctions by the user in the section "What to do if ..." If
these instructions should not be sufficient, our customer service
department is always available to you.
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
Content
Safety Instructions .......... LL ee a en ae aan a ea a a seen 5
Disposal ............. ci eee 7
Energy Saving Tips ........ oi a eee ae aa eee as a ea eee 0 8
The most important characteristic of your appliance ............... 8
Appliance design ............. KARA 10
A BEE 10
Freezer tray EEE 11
Quick door-opener ............oe.eeeeeroosaorooroner recen eecoe.. 11
Interior lllumination ..........eoee_eereocorocoaroreeri ere 0n nen. 11
Control Panel .............eeeeeerecrorer recio enaerconenercev 12
ON/OFF button ............e_..—.eenvocdoderacicranaaeceneaeo 12
Temperature regulator .............—._eeeeeerocorerrorecre ee. 13
Temperature Display .........eeeeooeoccororarooreororeconon e 13
FAST CHILL/-FREEZE button ...........__eeeeeedovccororereae.. 14
WARNING OFF button ..........._—.—e—._eeereerecovecrorecrrere 0 14
Prior to initial start-up ........ RER 14
Initial Start-Up... eee 14
Select "Freezing” or "Cooling" ............ .. iil, 15
Temperature Adjustment ............. ae aa aa ane see sn 15
Switch on FAST CHILL .................... 220.00 s0s0re re ena. 16
Switch on FAST FREEZE ......... ane 0 17
Switching the Appliance Off .......... ....... 00 18
Control and Information Systems ................ iLL. 18
"Open Door"-Warning ..........—..e_eeeeececororereraererorecrA.. 19
Power Interruption ............—.o_.-erererorreocorer recorrer aece.. 19
Temperature Warning .........__eeereeorecaoooreceoae A. nea. 19
Partial/Complete Thaw Warning ...........m_eeereeseoocarverecece. 20
Function Errors .......... o e.eoenceoacaadensoocaronarerecacerecereco, 20
Content
Freezing EEE 21
Freezing oii ee 21
Frozen Storage... eae 22
Preparation of Ice Cubes ......... ci iii ee ae aa ee ae 22
Cooling EEE 23
"Long Fresh" Cooling ..............eeeesreeeoreorvecrecr rar ene. 23
"Standard" Cooling .........._eereenecrvororeoror recen aa as ee en 24
Cooling drinks ............e.eer-eoveerorecaoaar area ea rerarecc ae. 24
Cleaning and Care ..............ee.eeeexcerraciri acer eee eee. 25
What to do if... ..... KRRKKRRRRRKRERRERRK 26
Correcting Malfunctions .............—_e_eeeseccorerorrer eee ene 26
Replace lightbulb... eee nat a ea eee eee aa ra a an 29
Adjust door contacter ................e_eeesxrdaraerer oa recen ea. 29
Noises during Operation ................... i iii 30
Regulations, Standards, Guidelines ........................ LL. 30
Special accessory ............o.e-eeereorrcorerere riera. 31
Technical Terminology ...............eoemeecesrcdader 0 ea ierne e. 31
Installing and connecting ................oe.eeereeererrrceree A. 32
Remove transport safeguard ........._eeoee_eeeeorererorecornorereo.. 32
Installation... i ieee 33
Installation Location ......... iii i i eee 33
The appliance needs air ......... i iii iii 34
Appliance Alignment ia 34
Re-Hanging Door .........1204400 000 ane na ea se aa aa ee see na es ae ana ne 35
Door Alignment... oe ieee 37
Electrical connection ....... cc. iii i eas 37
Customer Service ..........1010210000 0044 LA LL a a a a ae ee aa a a eee» 39
/ Safety Instructions
The safety of our freezers is in accordance with recognised technolo-
gical standards and appliance safety legislation. We nevertheless feel
that it is important to acquaint you with the following safety guidelines:
Use for Intended Purpose
The refrigeration appliance is intended for use at home. Depending
on the preset operation mode, this appliance becomes suitable for
freezing, for deep-cooled storage, for ice preparation or for cooling
foodstuffs. If the appliance is misused or wrongly operated, no
liability for eventual damages can be assumed by the manufacturer.
® Alterations or changes to the freezer are not permitted for reasons of
safety.
e If you should use this refrigeration appliance for commercial or for
another purpose apart from freezing, deep-cooling storage or for
cooling foodstuffs, please observe the legal provisions valid for your
area.
Prior to initial start-up
* Check the refrigerator/freezer for transport damage. Do not under
any circumstances connect a damaged appliance! Please contact your
supplier in the event of damage.
Refrigerant
The refrigerant isobutane (R600a) is contained within the refrigerant
circuit of the appliance, a natural gas with a high level of
environmental compatibility, which is nevertheless flammable.
e During transportation and installation of the appliance, be certain
that none of the components of the refrigerant circuit become
damaged.
* |f the refrigerant circuit should become damaged:
— avoid open flames and sources of ignition;
— thoroughly ventilate the room in which the appliance is situated.
Safety for Children
* Packaging materials (e.g. films, styrofoam) can be dangerous for
children. Danger of suffocation! Keep packaging materials away from
children!
Safety Instructions
® Before disposing of old appliances make them inoperable. Remove
plug from mains, sever the power cable, remove or destroy any snap
or latch closures. This eliminates the danger that playing children
lock themselves into the appliance (danger of suffocation!) or place
themselves into other life-endangering situations.
e Children often do not recognise the dangers involved with household
appliances. Please provide for the necessary supervision and do not
allow children to play with the appliance!
Daily Operation
e Containers with flammable gases or fluids can develop leaks through
contact with the cold. Danger of explosion! Do not store containers
with flammable substances, such as aerosol cans, refill cartridges for
cigarette lighters etc. in the refrigerator/freezer.
* Bottles and cans may not be placed in the freezer compartment. They
can burst when the contents freeze - or even explode if the contents
contain carbonic acid! Never place sodas, juices, beer, wine,
champagne etc. into the freezer compartment. Exception: Spirits
with high alcohol content may be stored in the freezer compartment.
* Do not place ice cream or ice cubes directly from the freezer
compartment into the mouth. Very cold ice can freeze to the lips or
tongue and cause injury.
e Never touch frozen goods with wet hands. Hands can freeze to the
goods.
® Do not operate any electrical appliances in the refrigerator/freezer
(e.g. electric ice cream makers, mixers etc.).
* Before cleaning the appliance switch off and remove the plug from
the mains, or switch off or turn out the circuit breaker or fuse.
e Placing frozen goods on the top of the appliance can lead to the
accumulation of condensate in the cavity of the storage tray through
contact with the cold. Electronic components are housed within this
cavity. If condensate should drip onto these components, the
appliance could be damaged by a short circuit. For this reason do not
place frozen goods on top of the appliance.
* When unplugging always pull the plug from the mains socket, do not
pull on the cable.
In case of malfunction
* |f a malfunction should occur at the appliance, refer first to the
section "What to do if ..." in these operating instruction. If the
instructions in this section are not sufficient, do not undertake any
further work on your own.
e Refrigerators/feezers may only be repaired by trained personnel.
Repairs carried out by untrained personnel can lead to substantial
danger. Please contact your dealer or our customer service
department for repairs.
Disposal
Appliance Packaging Information
All materials are environmentally sound! They can be dumped or
burned at an incinerating plant without danger!
About the materials: The plastics can be recycled and are identified as
follows:
>PE< for polyethylene, e.g. the outer covering and the bags in the
interior.
>PS< for polystyrene foam, e.g. the pads, which are all free of
chlorofluorocarbon.
The carton parts are made from recycled paper and should be disposed
of at a waste-paper recycling collection location.
Disposal of old Appliances
For environmental reasons, refrigeration appliances must be disposed
of properly. This applies to your old appliance, and - at the end of its
service life - for your new appliance as well.
Warning! Before disposing of old appliances make them inoperable.
Remove plug from mains, sever the power cable, remove or destroy any
snap or latch closures. This eliminates the danger that playing children
lock themselves into the appliance (danger of suffocation!) or place
themselves into other life-endangering situations.
Disposal:
® The appliance may not be disposed of with domestic waste or bulky
refuse.
* The refrigerant circuit, especially the heat exchanger at the back of
the apphance, may not be damaged.
* Information concerning collection schedules or locations can be
obtained from the local disposal authorities or town hall.
Energy Saving Tips
e Do not install the appliance near cookers, radiators or other sources
of warmth. High ambient temperatures cause longer, more frequent
operation of the compressor.
¢ Ensure sufficient air circulation and exhaust at the appliance base
and at the back wall of the appliance. Never cover air vent openings.
* Do not place warm foods into the appliance. Allow warm foods to
cool first.
* Only leave door open as long as necessary.
® Do not set temperature any colder than necessary.
® Place frozen goods into the refrigerator for thawing. Cold from
frozen goods is thus used for cooling in the refrigerator.
¢ Always keep the condenser at the back of the appliance clean.
e |f the interior of the appliance should be used partly, the economy
freezing space divider (special accessory) can be inserted instead of a
freezing tray. This enables additional energy saving.
The most important characteristic
of your appliance
* The appliance allows being used as a freezing unit or as a refrigerator
depending on requirement. For this purpose, the operation mode
"Freezing" or the operation mode "Cooling" can be selected on the
appliance.
— In the operation mode "Freezing", the appliance is usable for
freezing and deep-temperature storage with temperatures from
-15 °C up to -24 °C.
— In the operation mode "Cooling”, this appliance can be operated
as a "long fresh” cooling unit with temperatures from 0 °C or +2 °C,
whereby a dry interior room climate is attained through the no-
frost-technology. The appliance is suitable in the adjustable
temperature range of up to +16 °C, but also as a reservoir and
drinks cooler. Naturally, it is also usable as a "normal” refrigerator
for the temperature range of about +5 °C.
The most important characteristic of your
e FAST CHILL/FAST FREEZE can be selected depending on purpose and
need.
— The FAST CHILL function is suitable for fast cooling larger
quantities in the cooling room, e.g. for drinks or salads during a
party.
Thereby, a SET temperature of +2 °C is automatically preset. After
6 hours have expired, the FAST CHILL function is terminated
automatically.
- The FAST FREEZE function caters for quick freezing of fresh
foodstuffs and protects at the same time the already stored
foodstuff against undesired temperature increase in the freezing
room. The electronics of the appliance recognises automatically,
when the quick freezing mode can be completed, and
automatically switches off the FAST FREEZE function.(Depending
upon the quantity to be frozen after 30 up to maximum 51 hours).
* The no-frost-system enables both the freezing of fresh foodstuff as
well as the storage of readily frozen or cooled foodstuff by cold air. A
vaporiser cools the air in the interior space of the appliance, which is
circulated and uniformly distributed by a ventilator. This uniformly
circulating air-flow caters for a dry climate, low temperature
fluctuations and low temperature differences in the entire
appliance’s interior room. The moisture in the air condenses as frost
on the vaporiser. The vaporiser thaws full-automatically, as soon as
this is necessary. The melted water is drained off outside to the
compressor and evaporates through the heat generated by the latter.
Thus, the interior of the appliance and the stored cooled or frozen
foodstuffs always remain ripe and ice-free. Manual thawing is
dispensed of.
10
Appliance design
Front view
(various models)
1
2
3
4
5
6
Freezer tray
Drawers
Evaporator
Interior Hlumination
Control Panel
Serial plate
|
==
9 Ge.
_ DD
A|
AD
_
le—=]
Appliance design
Freezer tray
unio
A freezing tray is inserted in the middle of the appliance's interior
room.
Berries, for example, can be pre-frozen on the freezer tray. Advantage:
The berries are not squeezed and maintain their natural form. The
frozen berries can then be stored in compartments or drawers
packaged in individual portions.
The freezing tray also serves for accommodating small frozen food-
stuffs (e.g. herbal produce), furthermore you can accommodate ice
cube shells.
Quick door-opener —
The quick door-opener enables A m
easy opening through its |
integrated opening mechanism.
Please observe that both tappets
(A) always interlock in the fold
of door seal, according to the
figure.
Interior Hlumination
о
The illumination switches on automatically when the appliance door is
opened. By closing the appliance door it is automatically switched off.
If the appliance door remains open for more than 5 minutes, the
interior illumination starts to blink and then switches off automatically
in order to save energy.
If directly after opening the door the interior illumination is not
glowing although the appliance is in operation (recognisable through
the green mains control indicator), the lamp is defective. Exchanging
procedure is described in the "Exchanging Lamps” chapter.
11
Appliance design
12
Control Panel
ji
FAST CHILL/-FREEZE WARNING
e @ CO) +O +O
ON/OFF SET/ACTUAL ON OFF
Stand-by display (green)
ON/OFF button
Temperature Display
Temperature regulator
Display when FAST CHILL/FAST FREEZE function is switched on
(yellow)
FAST CHILL/-FREEZE button
Warning Display (red)
8 WARNING OFF button
(See the chapter on "Control and Information System")
ON/OFF button
e Switching on:
By the initial switch on (delivery state) your appliance starts ®
in the operation mode “Freezing”. By renewed switching on, ON/OFF
your appliance restarts in the operation mode, which was
set prior to switching off.
e Switch off:
To switch off, hold the button pressed for approx.5 seconds.
* Switching over between the operation modes "Freezing” and
“Cooling”:
When the temperature regulator is extended, the appliance allows
being switched over or vice versa by pressing the ON/OFF button (at
least 2 seconds long) from the operation mode "Freezing" into the
operation mode "Cooling".
сл SW N -
`` <
By an extended temperature regulator, your appliance cannot be
switched off.
Appliance design
Temperature requlator
For temperature adjustment the temperature regulator must A:
be freed from its recessed position. ©
e Briefly pressing on the temperature regulator frees it from — ser/actual
its recessed position.
e Pressing on the temperature regulator returns it to its recessed
position.
e REFERENCE means:
Temperature regulator extended from the retracted position;
Temperature, which should exist in the interior (SET temperature),
can be set in predetermined °C steps (see also the "Temperature
Setting" chapter).
* ACTUAL means:
Temperature regulator in the retracted position; Temperature display
shows the temperature momentarily actually prevalent in the interior
of the appliance (ACTUAL temperature).
Temperature Display
The temperature display shows several types of information. °C
e In normal operation the current freezer compartment
temperature is displayed (actual temperature). The
temperature regulator must be in its recessed position.
e During temperature adjustment, a blinking display of the
temperature selected at the moment occurs (reference temperature).
The temperature regulator must be freed from its recessed position.
e During a mains interruption, the momentary temperature inside the
appliance is displayed flashing (ACTUAL temperature). The tempera-
ture display is not illuminated during the mains interruption.
e |f, for example, the frozen goods were partially or completely thawed
temporarily due to a lengthy power interruption, the temperature
display alternately indicates:
— the current freezer compartment temperature (actual temperature)
and
- the highest temperature to which the frozen goods have warmed.
e If a malfunction has occurred at the appliance the temperature
display alternately indicates:
— the current freezer compartment temperature (actual temperature)
and
- ап error message.
13
14
The error message is coded (e.g. F1, F2, etc.) and assists the
customer service technician in error diagnosis. If the temperature
can no longer be registered, only the error code is displayed.
e |n the FAST CHILL function "IC" for intensive cooling appears in the
display when the temperature regulator is extended from its
retracted position.
In the FAST FREEZE function "SF" for super frost appears in the
display when the temperature regulator is extended from its
retracted position.
FAST CHILL/-FREEZE button
When FAST CHILL/FAST FREEZE function is switched-on, the X
yellow control display near the button illuminates. e
e With the FAST CHILL/FAST FREEZE button, the "FAST
FREEZE" function can be switched on if the appliance is in
the "Freezing" operation mode, or in the "FAST CHILL" function, when
the appliance is in the "Cooling" operation mode.
WARNING OFF button
With the WARNING OFF button, the acoustic warning signal WARNING
can be switched off, e.g. the "Open Door" warning when e
sorting in or out, the commodities to be cooled or frozen. =
Prior to initial start-up
US” Please clean the interior and all outfits prior to the initial operation
(see the "Cleaning and Care" chapter).
ES” The appliance must be correctly erected in accordance with the chapter
"Installing and Connecting” before it is put into operation for the first
time. Care should be especially taken that the mains voltage and
frequency available correspond with the appliance's data.
Initial Start-Up
LS Insert plug into mains socket.
DS” Press ON/OFF button.
The green stand-by display fights up. The temperature display shows
the current freezing room temperature (actual temperature).The
blinking red warning display indicates that the required storage
temperature has not yet been reached.
| il Within 5 minutes after the appliance has been switched on, the
electronics initialise a self-test. The compressor does not start until
after completion of the self-test.
| il In the delivery state, your appliance is present in the operation mode
"Freezing".
If the appliance was once in operation, it restarts in the operation
mode, which was set prior to switching off.
Select "Freezing" or "Cooling"
If necessary, switch over the appliance with the following steps
between the operating modes "Freezing" and "Cooling":
DS” Press temperature regulator and free it from its recessed position.
IS Hold the ON/OFF button pressed for at least 2 seconds. A peep tone
sounds.
The operation mode, in which your appliance is at the moment, is
identifiable if the temperatures can be set above or below О °С.
Return the temperature regulator again to the retracted position.
Set the temperature depending upon the selected operation mode (see
the chapter "Setting the Temperature").
Attention! If you are using the appliance as a freezing unit: Please wait
prior to putting the foodstuff to be frozen, until the freezing room
temperature has attained -18 °C, or until the red warning display goes
off.
Attention! If you are using this appliance as a cooling unit, after it has
been used as a freezing unit: Please wait prior to putting the foodstuff
to be cooled, until the cooling room temperature has attained 0 °C.
unio
8 &
Temperature Adjustment
US” Press temperature regulator and free it from its recessed position. The
temperature display is switched to a blinking display of the currently
selected reference temperature.
15
16
US” Turn temperature regulator to left or right to select the desired
reference temperature. The temperature display immediately indicates
the newly selected adjustment:
F к F
Temperature regulator (С) O ®)
warmer colder
Operation mode "Freezing” -18 °С up to -15°C | up to -24°C
Operation mode "Cooling" +10°C up to +16 °C up to 0 °C
The following SET temperature settings are possible:
e Operating mode "Freezing": from -15 °C up to -24 °C in 1 °C steps;
* Operation mode "Cooling": the values 0 °C / +2 °C / +4 °C / +5 °C /
+6 °C / +8 °C / +10 °C / +12 °C / +14 °C / +16 °C.
IS Press in the temperature regulator into the retracted position. The
temperature display switches over and shows again the momentarily
prevalent ACTUAL temperature inside the appliance.
Attention! If the operation mode “Cooling” is selected, the ambient
temperature at the installation place must be at least 2 *C higher than
the preset SET temperature.
DE” Please check red warning display and temperature display regularly to
assure maintenance of the storage temperature.
ji
Switch on FAST CHILL
(Only possible in operation mode "Cooling")
FAST CHILL function is suitable for fast cooling larger FAST CHILL/-FREEZE
quantities of foodstuff in a freezing room, e.g. drinks or e
salads during a party.
DS” Press the FAST CHILL/-FREEZE button. ON
The yellow control indicator near the FAST CHILL/FAST
FREEZE button illuminates.
| i | The FAST CHILL function now caters for intensive cooling. Thereby a SET
temperature of +2 °C is automatically preset. After 6 hours have lapsed,
the FAST CHILL function is independently ended. The originally set SET
temperature is again decisive and the temperature display again
displays the momentary freezing-room temperature.
I=" You can manually terminate the FAST CHILL function at any time, in
that you press the FAST CHILL/FAST FREEZE button anew.
Attention! While the FAST CHILL function is switched on, the tempe-
rature regulator should not be driven from the recessed position in
order to avoid an inadvertent adjustment of the originally set SET
temperature.
Adjusted SET temperature is not recognisable when the FAST CHILL
function is switched-on! By an extended temperature regulator, “IC”
for intensive cooling appears in the temperature display instead of the
SET-temperature.
If you are not sure whether the SET temperature was inadvertently
altered, please verify after termination of the FAST CHILL function.
Switch on FAST FREEZE
(Only possible in the operating mode "Freezing"
unio
The FAST FREEZE function caters for fast freezing of FAST CHILL/-FREEZE
fresh foodstuffs and simultaneously protects the already € O
stored foodstuffs against undesired temperature rise in
the freezing room. ON
Press the FAST CHILL/-FREEZE button.
The yellow control display near FAST CHILL/FAST FREEZE button
illuminates.
The electronics of the appliance independently recognises when the
quick freezing process can be terminated, and then switches off the
FAST FREEZE function automatically (depending on the quantity to be
frozen after 30 to maximum 51 hours).
You can stop the fast freezing process manually at any time by pressing
the FAST CHILL/FAST FREEZE button again.
Attention! While the FAST FREEZE function is switched on, the tempe-
rature regulator should not be driven from the recessed position, in
order to avoid an inadvertent adjustment of the originally set SET
temperature.
Adjusted SET temperature is not recognisable when FAST CHILL
function is switched-on! By an extended temperature regulator "SF" for
super-frost appears in the temperature display instead of the SET
temperature.
If you are not sure whether the SET temperature was inadvertently
altered, please verify after terminating the FAST FREEZE function.
17
18
Switching the Appliance Off
=
i
Attention! The appliance can only be switched off basically when the
temperature regulator is in the retracted position.
In order to protect frozen goods, the appliance is guarded against
accidental switching off (child-proof).
To switch off press and hold the ON/OFF button for about 5 seconds.
A so-called "count down" is started in the temperature display, which
counts backwards from "5" to "0". When "0" is reached the appliance
switches off. lllumination at the temperature display goes off.
If you remove the plug or disconnect the circuit fuse without
previously switching off the appliance with the ON/OFF button, an
audible warning signal makes you aware of the power interruption. The
warning signal can be temporarily silenced with the WARNING/OFF
button, but it nevertheless sounds again after 2 hours. In this case,
connect the appliance to the mains again and press and hold the ON/
OFF button for about 5 seconds.
If the appliance is to be removed from service for a lengthy period:
Switch appliance off by pressing and holding the ON/OFF button for
about 5 seconds.
Remove the mains plug or switch off or turn out the circuit breaker or
fuse.
It is essential to clean the appliance room (see the "Cleaning and care"
chapter).
Leave door open after defrosting to avoid accumulation of odours.
When put into operation anew, the appliance starts in the operation
mode, in which it was set prior to switching off.
Control and Information Systems
The control and information systems consist of a temperature display,
an optical warning display and an acoustic warning device.
The system warns of:
- open appliance door;
— power interruption;
- excessive temperature in the freezer compartment (only in the
operation mode "Freezing”);
— possible partial or complete thawing of frozen goods;
- functional disturbances at the appliance.
Control and Information Systems
"Open Door"-Warning
The red warning indicator blinks when the door is opened. If the door
remains open longer than approx. 80 seconds, an extra warning tone
sounds. If you need more time for sorting or rearranging frozen
foodstuff, you can switch off the 80 seconds warning tone by pressing
the WARNING OFF button.
Power Interruption
If the power supply is interrupted, an audible warning sounds at
20 second intervals. In addition, the current actual temperature in the
freezer compartment is indicated in blinking fashion by the
temperature display (2 seconds on, 2 seconds off). After one hour the
audible warning only sounds at 40 second intervals.
The audible warning can be switched off for about 2 hours with the
WARNING OFF button.
In the event of a power interruption, the control and information
systems can maintain operation of the temperature display and
warning signal for up to 12 hours.
Temperature Warning
(only in the operating mode “Freezing”)
The red warning display blinks and an audible warning sounds, as soon
as the temperature in the freezer compartment climbs to more than
5*C above the selected reference temperature. A rise in temperature of
more than 5°C may be caused by:
— frequent door opening for long periods of time;
— loading with large quantities of warm foods;
- an error at the appliance.
The audible warning can be switched off with the WARNING OFF
button.
Both warning display and audible warning are automatically switched
off when the actual temperature in the freezer compartment falls to
4°C warmer than the selected reference temperature.
Control and Information Systems
Note:
* The red warning display and the audible warning are inoperable:
— after temperature adjustment, until the selected reference
temperature has been reached (exception: actual temperature
exceeds -10°C).
* Only the audible warning is inoperable:
— after the appliance is switched on, and until the selected reference
temperature has been reached for the first time;
- when the FAST FREEZE button is depressed.
Partial/Complete Thaw Warning
If frozen goods have been partially or completely thawed (e.g. during a
temporary power interruption), the red warning display blinks.
In addition the temperature display alternately indicates:
—- the highest temperature to which the frozen goods have warmed;
- and the current actual temperature in the freezer compartment.
If suspicion of partial or complete thawing exists, please check the
quality of the foods to determine if they can be used.
As soon as the temperature in the freezer compartment has again
fallen below the critical thawing temperature of -4°C, the partial/
complete thaw warning can be switched off with the WARNING OFF
button.
After the appliance has been switched on, the partial/complete thaw
warning remains inoperative until the selected reference temperature
has been reached for the first time.
Function Errors
purée
20
If the appliance electronics have detected a technical malfunction
which has to be corrected by a customer service technician, both
optical and acoustic warnings are activated. In addition the
temperature display alternately indicates:
— an error message (error code F1, F2, etc.) and
- the current freezer compartment temperature (actual temperature).
An appliance malfunction which is indicated by an error code, must be
corrected by a customer service technician. The acoustic warning can
be switched off for 24 hours with the WARNING OFF button. Cancelling
of the error display is possible by switching the appliance off, which
should however only be undertaken during repair by the customer
service technician.
Freezing
Freezing
i
F
i
Attention!
* Before foods are frozen, the actual temperature in the freezer
compartment must be -18°C or colder.
e Please observe indicated freezing capacity on the serial plate. The
freezing capacity represents the maximum amount of fresh goods
that can be frozen within 24 hours. If you freeze goods on several
days, one after the other, freeze amounts equal to 2/3 to 3/4 of the
capacity indicated on the serial plate.
* Thawed foods which have not been processed further (cooked into
meals) may not under any circumstances be frozen a second time.
For exploitation of maximum freezing capacity press the FAST FREEZE
button 24 hours prior to freezing, or 4 to 6 hours for smaller quantities.
Yellow display lights up.
The FAST FREEZE button need not be pressed for freezing of small
quantities of up to 3 kg.
All foods must be packed air tight prior to freezing, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods occurs.
Caution! Do not touch frozen goods with wet hands. Hands can freeze
to the goods.
Place packaged foods in the compartments or drawers. Unfrozen goods
may not come into contact with already frozen goods, otherwise the
frozen goods may start to thaw.
The appliance electronics recognise automatically when the FAST
FREEZE function can be ended, and switch it off automatically. Yellow
display goes out. You can also stop the FAST FREEZE function manually
by pressing the FAST FREEZE button again.
* To allow storage of awkward freezing foodstuff, the drawers of the
appliance are individually removable. They can be stacked in the one
lying below.
* The following are suitable for packing foodstuffs to be frozen:
- freezing bags and foils made of polyethylene;
— special tins for frozen food;
- aluminium foil, extra strong.
21
Freezing
22
* The following are suited for sealing bags and wraps:
plastic clips, rubber bands or adhesive tape.
e Press air out of bags and wraps before sealing, because air
encourages drying of frozen goods.
e Make flat packages, because these freeze more quickly.
* Do not fill cans for frozen goods to the brim with liquid or paste-like
goods, because liquids expand during freezing.
| il Note for inspection authorities:
Batch plans for the determination of freezing performance or warm-up
time can be requested directly from the manufacturer.
Frozen Storage
Attention! Before initial loading of the freezer compartment with
previously frozen goods, the required storage temperature of -18°C
must be reached.
* | oad freezer only with packaged frozen goods, so that they do not
dry out or lose their flavour, and so that no flavour contamination of
other frozen goods can occur.
e Please observe maximum storage times and expiry dates of frozen
goods.
oY Lay in the foodstuff to be frozen, possibly sorted according to types
— into the drawers. Thus, you will have a better overview, avoid opening
the door for a long time and save power.
| i From the dietetics point of view, -18 °C is deemed sufficient as cold
storage temperature.
Preparation of Ice Cubes
ES” Fill ice cube tray (not included with all models) 3/4 full with cold water
and place in the freezer tray or a drawer and aliow to freeze.
US” To remove the finished ice cubes twist the ice cube tray or hold under
running water for a short time.
Attention! Do not, under any circumstances, free an ice tray which is
frozen to the appliance with pointed or sharp edged objects. Use a
spoon-handle or similar object.
Cooling
i
The appliance is suitable, depending upon the preset temperature, for
e "Long Fresh” Cooling
e "Standard" Cooling
* Drinks cooling.
The drawers of the appliance can be removed individually.
The removal is then especially advantageous if due to its size the
foodstuff you want to coo! does not fit inside a drawer. You can in this
case stack the drawer below correspondingly higher.
Instead of the drawers, deposit grids can also be pushed in. You can
purchase the deposit grids as special accessory via specialists shops.
“Long Fresh” Cooling
By selecting the SET temperature of 0 °C or +2 °C this appliance can be
used as a “Long Fresh" cooling unit.
The "Long Fresh" cooling process enables optimum storage conditions
for fresh foodstuff. The foodstuff remains fresh up to three times
longer in comparison to storage in normal refrigerators.
e Commodities suitable for "Long Fresh" cooling are:
- meat and sausages
— fresh poultry
— fresh fish
- milk, butter, curd cheese
— berries, fruits and vegetables
— salads, mushrooms.
* Foodstuff unsuitable for "long fresh” cooling are:
— coldness-sensitive fruits, e.g. bananas, papayas, passion fruits,
avocados and citrus fruits;
— coldness-sensitive vegetables, e.g. paprika, cucumber, zucchini,
egg-plants, potatoes and tomatoes;
- Fruits and vegetables, which should still ripe, e.g. pears.
e Pack all foodstuffs prior to "long fresh” cooling. Thus, the aroma, the
moisture and the colour is retained longer.
* The following are suited for packaging:
— Airtight bags and foils made of polyethylene
- Closable plastic containers
- aluminium foil.
23
Cooling
24
“Standard” Cooling
By selecting the SET temperature in the range of +5 °C, this appliance
can be used as a normal refrigerator.
® Foodstuff should always be covered or packed in the cool room, in
order to prevent drying out and odour or taste transmission to other
cooled foodstuffs.
* The following are suited for packaging:
~ Airtight bags and foils made of polyethylene
— Plastic container with cover
~ Special hoods made of plastic with rubber bandaluminium foil.
Cooling drinks
By selecting the SET-Temperature up to +16 °C, the appliance can
perfectly be used as a cooling unit for drinks.
Cleaning and Care
/N
For hygienic reasons the appliance interior, including interior
accessories, should be cleaned regularly.
Warning!
~ ¢ The appliance may not be connected to the mains during cleaning.
Danger of electrical shock! Before cleaning switch the appliance off
and remove the plug from the mains, or switch off or turn out the
circuit breaker or fuse.
* Never clean the appliance with a steam cleaner. Moisture could
accumulate in electrical components, danger of electrical shock! Hot
vapours can lead to the damage of plastic parts.
* The appliance must be dry before it is placed back into service.
Attention!
e Ethereal oils and organic solvents can attack plastic parts, e.g.
- lemon juice or the juice from orange peals;
~ butyric acid;
—~ cleansers which contain acetic acid.
Do not allow such substances to come into contact with appliance
parts.
® Do not use any abrasive cleansers.
Defrost the freezer compartment (see section: "Defrosting”).
Clean the appliance and the interior accessories with a cloth and
lukewarm water. Commercially available dish washing detergents may
also be used.
After cleaning wipe with fresh water and rub dry.
Accumulation of dust at the condenser increases energy consumption.
For this reason carefully clean the condenser at the back of the
appliance once a year with a soft brush or a vacuum cleaner.
After everything is dry place appliance back into service.
25
What to do if ...
Correcting Malfunctions
Perhaps a malfunction has been caused by a minor error, which you
can correct yourself with the help of the following instructions. Do not
attempt any further repairs if the following instructions do not help in
each specific case.
/N Warning! Refrigerators/freezers may only be repaired by trained
personnel. Repairs carried out by untrained personnel can lead to
substantial danger for the user. Please contact your dealer or our
customer service department for repairs.
26
What to do if …
Possible € cause
-Malfunction :
Stel by pressing the
med warning display | WARNING OFF butt. 5
blinks, audible warnin
‘sounds, temperature
‘display indicates : an erre
A functions: error has
erro
rer door | is closed
27
What to do if …
28
Tel in the fo nt ol =
Freezing or Cooling" Ноу
What to do if ...
Replace light bulb
N Warning! Danger of electrical shock! Before replacing the light bulb
> switch appliance off and remove the mains plug, or switch off or turn
out the circuit breaker or fuse.
Light bulb specifications: 220-240 V, max. 15 W, socket: E 14
UE” To switch the appliance off press A=
and hold ON/OFF button for about a
5 seconds.
DI” Remove mains plug. 1
135" Replace defective light bulb. The
lamp is situated beneath the ~
operating panel and when the door
is opened it becomes accessible
from the bottom.
Adjust door contacter
If, for example, the illumination is not automatically switched off when
the door is closed, or if the "Open Door" warning signal sounds, the
contacter at the top of the door may need to be readjusted.
03” Loosen phillips head screw and push
contacter towards the inner side of
the door. TE
О
033" Re-tighten phillips head screw. Ad) 02
US” Please check, ZA
~ if illumination is switched off when x
the door is closed >
and
— ¡f the audible warning signal sounds
after the door has been open for
about 80 seconds.
If not, readjust contacter again.
4
29
30
Noises during Operation
The following noises are characteristic of refrigeration appliances:
e Clicks
Whenever the compressor switches on or off, a click can be heard.
® Humming
As soon as the compressor is in operation, you can hear it humming.
* Bubbling/Splashing
When refrigerant flows into thin tubes, you can hear bubbling or
splashing noises. Even after the compressor has been switched off,
this noise can be heard for a short time.
e Noise
The ventilator generates air flow whereby noise can be emitted.
Regulations, Standards, Guidelines
CE
This appliance was designed for household use and was manufactured
in accordance with the appropriate standards.
The necessary measures in accordance with appliance safety legislation
regulations (GSG), accident prevention regulations for refrigeration
appliances (VBG 20) and the regulations of the German Society of
Electrical Engineers (VDE) were observed in the manufacture of this
appliance.
The refrigerant circuit has been checked for leaks.
This appliance is in accordance with the following EU guidelines:
- 73/23/EWG dated 19 February 1973 - low voltage guidelines.
- 89/336/EWG dated 3 May 1989
(including guideline change notice 92/31/EWG) - EMV guideline.
Special accessory
You get special accessory through the specialists shops.
® Economy freezing space divider:
If the interior room of the appliance should be used partly, an
economy freezing-room divider can be inserted instead of the
freezing tray. This allows for additional energy saving.
* Deposit grid:
Instead of the drawers, deposit grids can be inserted. This is especially
then advantageous, if the appliance is used as a refrigerator or as
drinks cooler.
Technical Terminology
* Refrigerant
Fluids, which are used for refrigeration are called refrigerants. They
have a relatively low boiling point; so low, that the warmth of foods
in the refrigeration appliance can cause them to boil or vaporise.
* Refrigerant circuit
Sealed circulation system, in which the refrigerant is found. The
refrigerant circuit consists for the most part of an evaporator, a
compressor, a condenser and tubing.
¢ Evaporator
The refrigerant is evaporated in the evaporator. This warmth is
withdrawn from the appliance interior, which is thus cooled. Like all
fluids, refrigerants require warmth in order to be evaporated. For this
reason the evaporator is located in the appliance interior.
* Compressor
The compressor looks like a small bin. It is powered by an electric
motor and is housed at the back in the base of the appliance. It is the
task of the compressor to withdraw vaporous refrigerant from the
evaporator, to compress it and feed it to the condenser.
e Condenser
The condenser is usually in the form of a grid. Compressed refrigerant
from the compressor is liquefied in the condenser. Thus warmth is
released, which is given off into the surrounding air at the surface of
the condenser. The condenser is therefore outside of the appliance,
usually at the back.
31
32
Installing and connecting
Remove transport safeguard
The appliance as well as interior accessory parts are safeguarded for
transport.
LS” Remove tape from left and right of the outside of the door.
| il Tape remnants can be removed with benzene. Wipe off benzene.
US” Remove all tape and pads from the interior of the appliance.
ES Peal off the protective film from the control panel.
US” Remove door seal safeguards from door seal at the inside of the door.
ПОНИ
US” With open door remove transport safeguard at door pivot.
í ` >
TT)
Ni
Installing and connecting
Installation
Installation Location
The appliance should be set up in a well ventilated, dry room. The
basement is an ideal set-up location for freezers.
Energy use is affected by the ambient temperature.
The appliance should therefore
- not be exposed to direct sunlight;
- net be installed next to radiators, cookers or other sources of heat;
~ only be installed at a location whose ambient temperature
corresponds to the climate classification, for which the appliance is
designed.
The climate classification can be found on the serial plate, which is
located at the left on the inside of the appliance.
The subsequent table shows which ambient temperature is assigned to
which climate class if the operation mode "Freezing" is selected:
Attention! If the operation mode "Cooling" is selected, the ambient
temperature at the installation place must be at least 2 °C higher than
the preset SET temperature.
If installation next to a source of heat is unavoidable, the following
minimum clearances must be maintained at the sides of the appliance:
— for electric cookers 3 cm;
— for oil and coal fired ranges 30 cm.
If these clearances cannot be maintained a heat insulating pad is
required between the cooker and the refrigeration appliance.
If the refrigeration appliance is installed next to another refrigerator or
freezer a clearance of 5 cm at the sides is required, in order to prevent
the formation of condensation on the outside of the appliance.
33
Installing and connecting
34
The appliance needs air
Air is fed under the door through
the vent slots in the base and 15
exhausted upwards along the back
wall. To ensure proper air
circulation never cover or alter the
vent openings.
Attention! If the appliance is
installed under, for example, a
hanging cabinet, a clearance of at
least 10 cm between the top of
the appliance and the cabinet
above it must be maintained.
Break both wall spacing
elements from the plinth and
insert them into the sockets at
the back side of the appliance,
according to the figure, so that
the required wall gap for the
necessary ventilation at the back
of the appliance is provided for.
Appliance Alignment
|
min. 10cm
ofl
(
In order to push the appliance to the final installation place, carefully
press at the top on the door and tilt the appliance backwards a bit. The
weight is thus transferred to the rear rollers on which the appliance
can be pushed easily.
The appliance must have a solid, level footing. Please compensate for
unevenness in the floor by turning the two adjustable feet at the front
in or out.
Installing and connecting
Re-Hanging Door
The side at which the door opens can be changed from the right side
(factory adjustment) to the left side, if the installation site requires.
Warning! When changing the side at which the door opens, the
appliance may not be connected to the mains. Remove plug from the
mains beforehand.
Lay the left side of the appliance
onto a soft pad, e.g. rug, blanket
etc.
Turn pivot pin out of lower door —
pivot. oo =
Keep the spacing washer bet- Ч ww о a
ween the door and the bearing. S y о
Romove door carefully and set S 10 mm a
S
aside. | S ma
Turn the 4 phillips head screws S №
out of the base and remove the S S
base. = =
` >
Overturn the plinth's blind
bearing from left to the right.
Unscrew the door bearing and
transfer it to the left.
35
Installing and connecting
IS
=
36
Screw the plinth again and place
the appliance on it.
Put the top eccentric bush on
the left.
Put the cover cap and bearing
pin with the spiral spring on the
top of the door.
Insert and close the door with
the bearing pin carefully in the
upper eccentric bush.
Fit the washer down between
the door and bearing and screw
in the bearing bolt into the
lower door bearing.
Remove the 3 hole covering pins.
Loosen the 3 screws on the door
handle and move the door
handle towards the right.
Insert the hole covering pins on
the left.
TTT,
ОНИ,
Installing and connecting
Door Alignment
If necessary, the appliance door can be aligned.
IS First remove the door (see section: "Re-Hanging Door").
US” Using a smail screw-driver, lift out the eccentric bearing bushes as
required, above the appliance or below the door, rotate and then press
in according to the figures.
==
НН
The diagram only shows a right opening door.
For left opening doors please proceed accordingly at the left of the
door at top and/or bottom.
LS” Replace the door (see section: "Re-Hanging Door")
Electrical connection
A WARNING - THIS APPLIANCE MUST BE EARTHED
Please ensure that the voltage and current indicated on the rating
plate agree with the voltage of your electricity supply.
220/240 volts (i. e. 220/240V AC).
If your appliance has been equipped with a mains lead with a moulded
on type plug, you must comply with the following regulations:
The plug moulded on to the cord incorporates a fuse. For replacement,
use a 13 amp BS 1362 fuse. Only ASTA approved or certified fuses
should be used. The fuse cover/carrier must be replaced in the event of
changing the fuse. The plug must not be used if the fuse cover/carrier
ist lost. A replacement cover/carrier must be obtained from an
37
Installing and connecting
38
electrical goods retailer. If the socket outlets in your home are not
suitable for the plug fitted to the appliance, then the plug must be cut
off and an appropriate one fitted. When fitting the plug please note
the following points:
Important
The wires in the mains lead are coloured in accordance with the
following code:
Green and Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings indentifying the terminals in
your plug, proceed as follows:
1. The wire which is coloured green and yellow must be connected to
the earth terminal in your plug, which is marked with the letter E or
by the earth symbol © or coloured green, or green and yellow.
2. The wire which is coloured brown must be connected to the live
terminal which is marked with the letter L or coloured red.
3. The wire which is coloured blue must be connected to the neutral
terminal which is marked with the letter N or coloured black.
When wiring the plug, ensure that all strand of wire are securely
retained in each terminal.
Do not forget to tighten the mains lead clamp on the plug.
Warning! A cut-off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut-off plug is disposed of safely.
Voltage 220/240V AC
Fuse rating 13 amps
See rating plate for further information. The rating plate is inside, on
the left.
Customer Service
If you cannot find the remedy for a malfunction in these operating
instructions, please contact your dealer or our customer service
department. Addresses and telephone numbers are listed in the
accompanying booklet "Guarantee Conditions/Customer Service
Locations".
Selective ordering of replacement parts can save unnecessary travel
and costs. For this reason always provide the following appliance
information:
This information can be found on the serial plate in the interior at the
* Model Name
* Model Number (E-Nr.)
e Serial Number (F-Nr.)
left of the appliance. We recommend that you enter this information
here, so that it is handy if needed. |
If the temperature display should indicate an error (F1, F2, etc.), inform
customer service of the displayed error.
Note: The customer bears the costs of unjustified customer service
calls even during the guarantee period.
39
AEG Hausgerate AG
Postfach 1036
D-90327 Nurnberg 1
© Copyright by AEG
H 271 282 300- 01/0497
AEG Domestic Appliances Ltd
Customer Care Department
55-77 High Street
Slough
Berkshire SL1 1DZ
Telephone: 08705 350350
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
