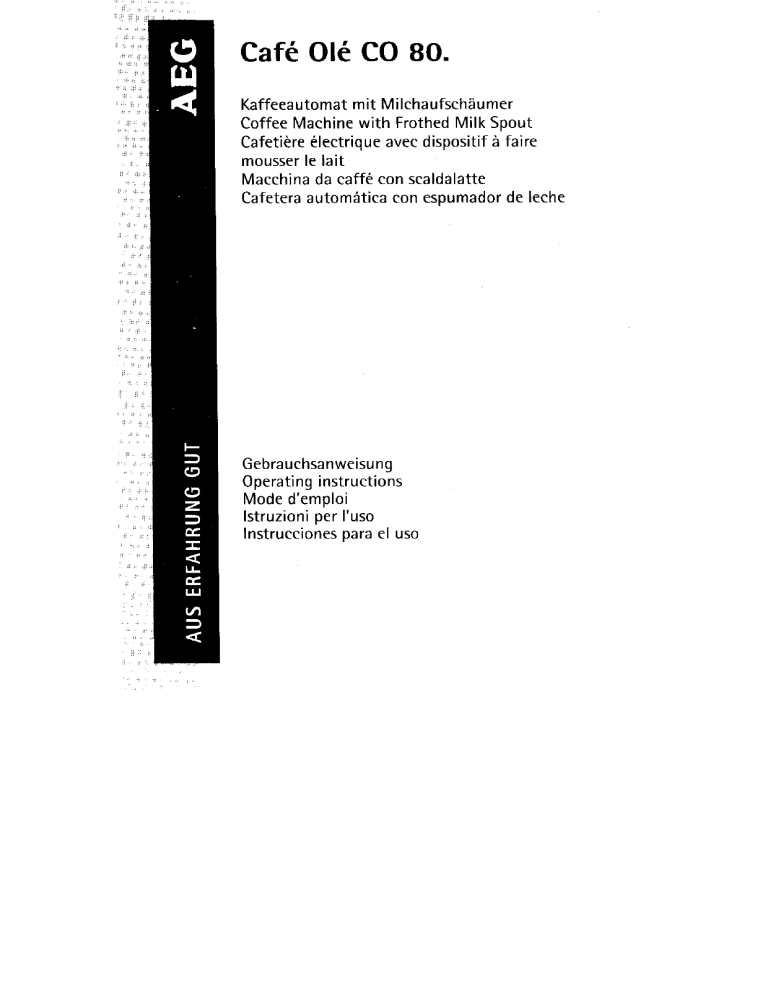

Cafe Ole CO 80.
Kaffeeautomat mit Milchaufschäumer
Coffee Machine with Frothed Milk Spout
Cafetière électrique avec dispositif à faire
mousser le lait |
Macchina da caffé con scaldalatte
Cafetera automática con espumador de leche
Gebrauchsanweisung
Operating instructions
Mode d'emploi
Istruzioni per luso
Instrucciones para el uso
Dear Customer,
Please read these operating instruc-
tions carefully. Above all please
observe the safety instructions on
the initial pages of these operating
instructions! Please keep these operat-
ing instructions for future reference.
Pass them on to any subsequent owner
of the appliance.
Features
Figure 1
A
B
С
D
E
F
G
H
J
K
L
M
Water tank lid
Water tank with cup marking
Swivel filter
Thermos jug with screw-on lid
Plate
Button for opening the swivel filter
On/off switch with power indicator light
Steam selector
Steam nozzle
Frothed milk spout (see also Figure 2)
Drip grid with drip tray
Rating plate (bottom of appliance)
Frothed Milk Spout
Figure 2
Tmo ORE
Knob for regulating the froth
Suction piece
Milk discharge outlet
Connector
Flexible hose
Descaling tube
A Safety Information
* The operating voltage and mains volt-
age must match! (See rating plate on
the bottom of the coffee machine.)
* Never allow the mains lead to come
into contact with hot parts!
e Never pull the plug from the socket by
means of the mains lead!
* Do not use the appliance if:
- the mains lead is damaged,
- the casing shows visible signs of
damage.
* The milk discharge outlet becomes hot
during use, Keep children away!
* Do not put water into the appliance
when it is hot! Switch off the coffee
machine and leave to cool for approx.
5 minutes!
® follow the instructions on descaling!
e Prior to carrying out maintenance or
cleaning, ensure that the appliance is
switched off and unplugged from the
mains!
® Do not immerse the base unit in water!
* |fitis necessary to repair the appliance
or to replace the mains lead, send the
apptiance either to the specialist dealer
you bought it from (specialist tools
must be used for repairs), or to one of
the AEG customer service centres (see
last page).
Repairs to electrical appliances may
only be carried out by qualified spe-
cialists.
Repairs carried out by inexperi-
enced persons may cause serious
injury to the user,
No responsibility can be accepted for
any damage if the appliance is used
incorrectly or for the wrong pur-
poses. :
C € This appliance complies with the fol-
lowing EU Directives:
# 73/23/EEC dated 19.02.1973 "Low Volt-
age Directive”, including Amending
Directive 93/68/EEC
e 89/336/EEC dated 03.05.1989 "EMC
Directive", including Amending Direc-
tive 92/31/EEC
Technical Data
Mains voltage:
Power consumption:
230V
1300 W
Cable compartment (Figure 3)
Your coffee machine has a cable com-
partment. If the lead to the socket is
too long you can store surplus cable in
the base of the casing.
Prior to Using for the First Time
Before making coffee for the first time
you should carry out one or two brew-
ing procedures with water only, but
with a full quantity, in order to clean
the coffee machine.
Fill the fresh water container to the
top cup marking with cold water. Do
not use mineral water. Then switch the
appliance on and allow the water to
flow through into the coffee jug. Do
not use ground coffee or a filter paper.
Throw away the water that has run
through.
i |
Making Coffee
1. Filling with water (Figure 4)
Raise the lid above the water tank.
Remove the water tank and fill with
clear, cold water.
Never use hot water. Nor should you
fill! the water tank with milk, prepared
coffee, tea etc.
The cup markings are on the water
tank (Figure 1/B). The markings apply
10
i
to the quantity of fresh water. As the
ground coffee absorbs water, the
amount of coffee produced will be less.
Insert the water tank and lower the lid
into place again.
Tip: Rinse the thermos jug with hot
water to warm it before preparing
coffee.
2. Inserting filter paper
(Figure 5)
Press the button to open the swivel fil-
ter (Figure 1/F). The filter automatically
swivels to the left (Figure 5). Place size
4 fitter paper in the filter insert. Please
fold over the perforated sides first.
3. Putting in ground coffee
(Figure 6)
Please use medium ground coffee. The
amount of ground coffee used depends
on taste. One measuring spoon full
(approx. 6-7 g) per cup is sufficient for
a medium strength coffee. Swivel the
filter back until it clicks into place.
Check that the filter insert is correctly
positioned {Figure 7).
4, Placing the thermos jug with
screw-on lid on the plate
Place the thermos jug with the lid
screwed on (clockwise) on the plate.
The lid must always be screwed onto
the thermas jug as it opens the anti-
drip valve. Despite the lid being closed
the coffee can enter the thermos jug
through a baffle device. It will stay
warm in the jug for some time.
5. Switching on the appliance
(Figure 8)
Now switch the appliance on using the
onfoff switch (Figure 8/2). The power
indicator light (Figure 8/1) is illumi-
hated.
To obtain an even strength of coffee
you should stir it in the thermos jug
after it has been made.
6. Removing the thermos jug
- Once the thermos jug has been
removed the anti-drip valve prevents
further dripping onto the plate
(Figure 9). For this reason you should
check that the filter insert is correctly
positioned {Figure 7).
To pour the coffee, open the lid of the
thermos jug by turning anticlockwise
until you feel it click into place {or
until the marking is positioned above
the pouring lip). After pouring out the
required quantity, close the lid by turn-
ing it clockwise as far as it will go in
order to keep the remaining coffee
warm.
When all of the water has flown
through and you want to add more
water in order to make more coffee,
please switch the appliance off and
leave it to cool for approx. 5 minutes.
Frothing or Heating Milk
You can use the frothed milk spout
(Figure 2/A, B, C, D) to make cappuc-
cino, café au lait and cocoa or simply
to heat up milk (for example as a drink
with honey when suffering from a
cold) or water.
Attach the milk frothing nozzle as fol-
lows (Figure 10):
Insert the knob for regulating the froth
(Figure 2/A) into the suction piece (Fig-
ure 2/B) and press firmly.
Insert the suction piece (Figure 2/D)
into the connector, and connect the
milk discharge outlet (Figure 2/C) to
the connector,
Firmly push the complete frothed
milk spout onto the steam nozzle
(Figure 1/J) until the red seal on the
steam nozzle is no longer visible.
Leave the appliance switched on after
the coffee has been prepared.
Wait until the temperature indicator
(Figure 8/3) is illuminated to show that
the steam temperature has been
reached.
pie
8
=
Warning: the temperature indicator
(Figure 8/3) goes off occasionally as
part of the way the machine functions.
The necessary steam temperature is
reached quickly when the steam selec-
tor is turned to the right.
Fill a container with, for example, cold
milk.
You can suck up the milk directly from
the carton using the flexible hose
(Figure 2/E).
important: the milk carton must not
exceed the height of the frothing noz-
zte. The flexible hase must be inserted
down into the milk carton.
To do this attach the hose to the
frothing nozzle and insert the other
end of the hose into the milk carton
(Figure 11).
Place an empty cup underneath the
frothing nozzle (Figure 11}.
Turn the steam selector (Figure 8/4) to
the right. The milk will then be sucked
out of the container. Inside the frothed
milk spout it is mixed with steam,
heated and simultaneously frothed up.
The frothed milk flows through the
milk discharge outlet into the waiting
cup.
Important: using the knob for regulat-
ing the froth (Figure 2/A) you can set
the amount of froth (more or less
added air) and the temperature of the
milk to your taste (Figure 12/A, B, C). To
do this turn the knob slowly to the
right or to the left until you achieve
the desired result.
Figure 12/A: maximum froth/
warm milk
Figure 12/B: no froth
Figure 12/C: less froth/
hot milk
After making the frothed milk, return
the steam selector to the O position.
11
ге”
BE &
12
So long as there is water in the water
tank you can continue to make as
much frothed milk and as often as you
wish. If necessary, simply add some
more water,
Warning: when frothing milk, fill the
water tank only to the marking m ,as
otherwise the water will flow through
into the coffee brewing cycle.
Warning: if the appliance is used
without a container and the milk
heated directly in a cup, the suction
piece (Figure 2/B) must always be fitted
and the knob for regulating the froth
(Figure 2/A) must always be closed, i.e,
at right angles to the direction of flow
(Figure 13). Otherwise hot water could
spray out of the side of the connector
(Figure 2/D).
Try out for yourself which way you
prefer or which tastes better: coffee
first, then add the frothed milk, or first
froth the milk, then top up the cup
with coffee.
Preparing cocoa
You can prepare cocoa by putting some
cocoa powder in a container with the
milk and stirring gently. Then proceed
as you would to froth milk. The cocoa
\5 heated in the frothing nozzle by the
hot steam. The cocoa can also be
frothed up according to taste (see
section “Frothing Milk").
Heating water
Put water into a container.
Insert the hose into the container.
Then proceed as you would to froth
milk.
Switch the appliance off using the on/
off switch.
Descaling — to keep your coffee
machine in good condition for
longer
The service life of your coffee machine
can be lengthened with regular descal-
ing. As a precaution we recommend
descaling every three months.
Important: if you have a permanent
- filter remove it from the swivel filter
before descaling.
For descaling use a liquid, environmen-
tally-friendly descaling agent availa-
ble generally at retail outlets. Only use
it in accordance with the manufac-
turer's instructions. Do not use a for-
mic acid based descaler.
Descaling the coffee machine
Fill the water tank with water then add
the descaling agent - not the other
way round! Swing the swivel filter into
position in the appliance. Place the
thermos jug with lid on the plate
(Figure 1/E). (Please note that the lid
opens the anti-drip valve, and so
allows the liquid to flow through prop-
erly.) Leave the descaling solution for
about 15 minutes to take effect, then
switch the machine on and allow the
descaling solution to flow through. If
necessary, repeat the descaling proce-
dure.
Then repeat the procedure at least
twice using clear water. Rinse the ther-
mos jug, lid and swivel filter thor-
oughly under running water. Activate
the anti-drip valve several times as it is
rinsed.
Descaling the steam system
Remove the steam nozzle by turning
anticlockwise. Screw on the descaling
tube (Figure 2{F) and position a cup
beneath it. Switch on the steam selec-
tor for a minute several times. Switch
off the appliance. If necessary, repeat
the descaling procedure. Rinse out the
water tank with clear water to remove
any traces of the descaling solution.
Allow clear water to flow through and What do | do if …
clean the steam system again by
switching on the steam selector.
Remove the descaling tube and screw
on the steam nozzle.
Cleaning
Warning: clean all parts that have
come into contact with milk {frothing
nozzle, steam nozzle, flexible hose, drip
tray and drip grid), immediately after
use in ordinary washing-up water!
Then rinse them with clear water. Dry
all parts.
Check that you wash not only ali the
individual parts of the frothed milk
spout (Figure 14/B, C, D), but in
particular the knob for regulating
the froth (Figure 14/A) must be
thoroughly cleaned. During the froth-
ing procedure milk deposits can form
in the crevice of the knob (Figure 14/A
“arrow”). As these deposits can impair
the frothing result, we recommend
that the part indicated in the figure
with an “arrow” should be cleaned par-
ticularly thoroughly. Finally, rinse the
parts with clear water and dry them.
Do not wash these parts in a dish-
washer as the seals can be damaged.
The inner filter can be removed for
cleaning. To do this swing it out to the
left (Figure 5} as far as it will go. The
inner filter can then be removed (Fig-
ure 7). To remove coffee particles in
particular you should clean the anti-
drip valve thoroughly by activating it
several times as it is rinsed. Clean the
appliance with a damp cloth, but never
immerse it in water! Wash out the
thermos jug and lid with hot water
and, if necessary, a brush, then dry
with a cloth. Do not clean in a dish-
washer.
* only steam, but no frothed milk, is pro-
duced?
~ Attach the flexible hose correctly.
- Assembly the frothed milk spout
correctly and securely.
— Press the knob firmly onto the suc-
tion piece and check the position of
the knob (lengthwise: maximum
froth volume}.
- Too little or no milk in the container.
— The flexible hose in the milk carton
does not reach down far enough
into the milk.
— Clean the steam nozzle.
¢ the frothed milk lacks volume or the
frothing procedure takes too long?
- Use low fat milk,
- Clean the frothed milk spout.
— Clean the steam nozzle.
— Descale the appliance.
* no steam is produced?
— Fill the water tank.
— Insert the water tank correctly.
Spare Parts/Accessories
Thermos jug
If the glass flask inside the thermos
jug breaks, you can buy a new thermos
jug without a lid from AEG customer
service, stating the order number
ET 400 607 612/1.
Customer Service
The highest quality requirements are
placed on our appliances.
Should you, nevertheless, have ques-
tions on the usage of this appliance,
then please write to us. It is only with
your support that we are in a position
to develop appliances that meet your
requirements.
13
AEG Kundendienst in Europa
Deutschland
Sollte dieses AEG Kleingerät wider Erwarten nicht
funktionieren, senden Sie es bitte an folgende Adresse:
Beginnt die Postleitzahl Ihres Wohnortes
mit2-3-4-5
AEG Kleingeräte-Zentralwerkstatt
Firma Elektro Stefan Irsen
Sachtlebenstraße 1, 41541 Dormagen
Beginnt die Postleitzahl Ihres Wohnortes
mit0-1-6-7-8-9
AEG Kleingeräte-Zentralwerkstatt
Firma Trepesch GmbH
SteinstraGe 500, 90419 Nürnberg
In Deutschland stehen wir Ihnen für Fragen, Anregungen
oder bei Problemen rund um unsere Kleingeräte und
Raumpflegegeräte montags bis freitags von 8 bis 18 Uhr
zur Verfügung.
Europa
Österreich, 4010 Linz, 0732 / 770101 - 30
Belgique/Belgié, 1502 Lembeek, 02/363.04.44
Danmark, 7000 Fredericia, 70 11 74 00
España, Madrid, 1-885-2700
France, 60307 Senlis, 03-44 62 24 24
Great Britain, Service Force 08705 929 929
Hellas, 18346 MOTXATO, 01/4822646
Island, Reykjavik (Breeóurnir Ormsson hf}, 91-3 88 20
Italia, 20394 Agrate Brianza (Milano), 39 / 68 99-8 39
Luxembourg, 1273 Luxembourg-Hamm, 4 24 31-433
Nederland, 2400 AC Alphen aan den Rijn, 0172-468 300
Norge, 0516 Oslo, 22 72 58 00
Portugal, 2635-445 Rio de Mouro, (01) 926 75 75
Schweiz/Svizzera, 5506 Mägenwil, 0848 848 348
Suomi, Porissa, puh. (02) 622 3300
Sverige, 10545 Stockholm, 08-738 60 00
AEG Serviceline unter 01805-30 60 80*
Fax; 0911/3 23-4919 30
E-Mail: service. kleingeraete @aeg-hausgeraete.de
Garantiebedingungen
Fir dieses Gerät leisten wir - zusätzlich zu
der gesetzlichen Gewährleistung des
Händlers aus Kaufvertrag - dem Endabneh-
mer gegenüber zu den nachstehenden Be-
dingungen Garantie:
1, Die Garantiezeit betrágt 12 Monate und
beginnt mit dem Zeitpunkt der Ubergabe
des Geráts, der durch Rechnung oder
andere Unterlagen zu belegen ist. Die
Garantiezeit ist auf 6 Monate beschránkt,
wenn das Gerát gewerblich genutzt wird.
2. Die Garantie umfaßt die Behebung aller
innerhalb der Garantiezeit auftretenden
Schäden oder Mängel des Geräts, die
nachweislich auf Material- oder Ferti-
gungsfehlern beruhen. Nicht unter die
Garantie fallen Schäden oder Mängel aus
nicht vorschriftsmäßiger Handhabung
sowie Nichtbeachtung der Gebrauchsan-
welsungen.
3. Im Garantiefall senden Sie das Gerdt an
die fiir Ihren Wohnort zuständige AEG
Kleingeräte-Zentralwerkstatt oder über-
geben es Ihrem Fachhändler.
Bei Einsendung achten Sie bitte auf qute
Verpackung, Ihre vollständige Absender-
Anschrift und eine kurze Fehlerbeschrei-
bung. Fügen Sie zum Nachweis Ihres
Garantieanspruchs den Kaufbeleg bei.
4, Die Garantieleistungen werden ahne jede
Berechnung durchgeführt; sie bewirken
weder eine Verlängerung noch einen
Neubeginn der Garantiezeit, Ausgewech-
selte Teile gehen in unser Eigentum über,
Guarantee
This appliance is covered by the following
guarantee and is in addition to your statuto-
ry and other legal rights. All components
which fail due to defective manufacture will
be repaired or replaced free of charge for a
period of 12 months from the date of
purchase. We will not accept claims if un-
authorised modification is made or if non-
standard components are used. The appli-
ance must be used in accordance with the
operating instructions and: the guarantee
does not cover any damage caused during
transit or through misuse, In order to esta-
blish the date of purchase, advice note or si-
milar document must be produced whenever
the quarantee is claimed.
Garantie
Pour toute mise en œvre de garantie ou de
service après vente, vous devez yous adresser
à votre vendeur.
AEG assure au vendeur |e remplacement gra-
tuit des pièces détachées nécessaires a la re-
paration pendant 1 an, à partir de la date de
votre facture, sauf en cas de non respect des
prescriptions d'utilisation où lorsqu'une cau-
se étrangère à l'appareil est responsable de la
défaillance.
Les dispositions stipulées ci-dessus ne sont
pas exclusives du bénéfice au profit de
l'acheteur de la garantie légale pour défaut
et vice cachés qui s'applique, en tout état de
cause, dans les conditions des articles 1641 et
suivants, du code civil,
Garantie
AEG Huishoudelijke Apparaten neemi voor
reparaties binnen de garantietermijn - voor
zover de defecten zijn terug te voeren ap
materiaal - enfof constructiefouten - de ko-
sten op zich voor materiaal en arbeidslogn.
De garantie bedraagt 12 maanden en gaat in
*{Deutsche Telekom 24 Pf/Min.)
op de dag van aankocop. Wanneer garantie
wordt vertangd, dient de faktuur can aanko-
op te worden overlegd. De garantietermijn
wordt door reparaties niet verlengd. Buiten
elke garantieverplichting vallen losse onder-
delen van glas enfof kunststof. Alle overige
kosten, zoals voorrijdkosten, kosten van op-
zending en administratie, zijn voor rekening
van de eigenaar.
Garanzia
Duranti ¡ primi 12 mesi d'esercizio, vengono
fornite gratuitamente dall'AEG le parti di ri-
cambio riconosciute difettose. La garanzia ha
inizio con il giorno dell'acquisto che deve ve-
nir comprovato a mezzo della fattura o bo-
letta di consegna. Per il resto valgono le
condizioni general di fornitura della rispetti-
va rappresentanza nazionale.
Garantia
Durante los primeros 12 meses, la AEG se
hace cargo de cuantos costes de material y
horas de trabajos invertidas se produzcan en
la subsanación de defectos. La garantia em-
pieza a regir a partir de la fecha de la entre-
ga, la que deberá justificarse mediante
presentación de la factura o de la nota de de-
pacho. Por la demás serán de aplicación las
condiciones generales de venta sé gun rigen
en el respectiva pais de nuestra representa-
ción.
Garantie
In Belgien ist nur die durch belge AEG ausge-
gebene Garantiekarte qultig.
En Belgique, seule la carte de garantie émise
par la beige AEG est valable.
In Belgié is sléchts de door de belge AEG uit-
gegeven waarborgkaart geldig.
NC GDO-GIOU
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 949 150- 0701
1002/60 000% 07692
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
