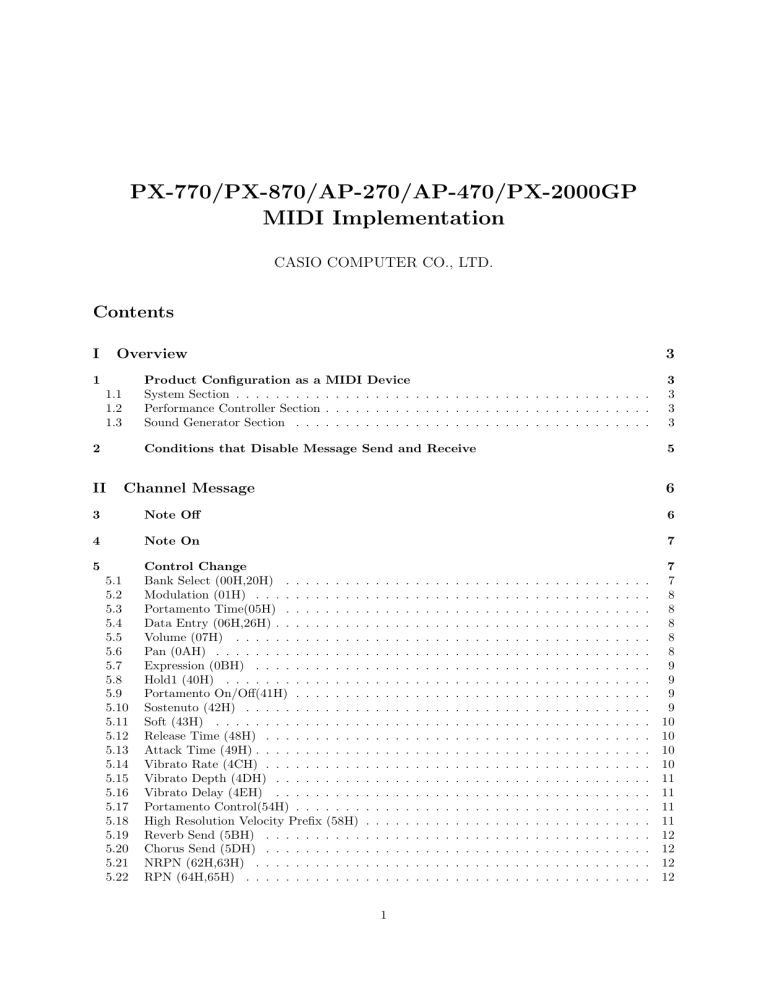

PX-770/PX-870/AP-270/AP-470/PX-2000GP
MIDI Implementation
CASIO COMPUTER CO., LTD.
Contents
I
Overview
1
Product Configuration as a
System Section . . . . . . . . .
Performance Controller Section
Sound Generator Section . . .
1.1
1.2
1.3
2
3
MIDI Device
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conditions that Disable Message Send and Receive
II
3
3
3
3
5
Channel Message
6
3
Note Off
6
4
Note On
7
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
5.12
5.13
5.14
5.15
5.16
5.17
5.18
5.19
5.20
5.21
5.22
Control Change
Bank Select (00H,20H) . . . . . . . .
Modulation (01H) . . . . . . . . . . .
Portamento Time(05H) . . . . . . . .
Data Entry (06H,26H) . . . . . . . . .
Volume (07H) . . . . . . . . . . . . .
Pan (0AH) . . . . . . . . . . . . . . .
Expression (0BH) . . . . . . . . . . .
Hold1 (40H) . . . . . . . . . . . . . .
Portamento On/Off(41H) . . . . . . .
Sostenuto (42H) . . . . . . . . . . . .
Soft (43H) . . . . . . . . . . . . . . .
Release Time (48H) . . . . . . . . . .
Attack Time (49H) . . . . . . . . . . .
Vibrato Rate (4CH) . . . . . . . . . .
Vibrato Depth (4DH) . . . . . . . . .
Vibrato Delay (4EH) . . . . . . . . .
Portamento Control(54H) . . . . . . .
High Resolution Velocity Prefix (58H)
Reverb Send (5BH) . . . . . . . . . .
Chorus Send (5DH) . . . . . . . . . .
NRPN (62H,63H) . . . . . . . . . . .
RPN (64H,65H) . . . . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
1
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7
7
8
8
8
8
8
9
9
9
9
10
10
10
10
11
11
11
11
12
12
12
12
5.23
5.24
5.25
5.26
5.27
5.28
5.29
All Sound Off (78H) . . . .
Reset All Controllers (79H)
All Notes Off (7BH) . . . .
Omni Off (7CH) . . . . . .
Omni On (7DH) . . . . . .
Mono (7EH) . . . . . . . .
Poly (7FH) . . . . . . . . .
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
14
14
14
14
14
14
15
6
Program Change
15
7
Channel After Touch
15
8
Pitch Bend
15
III
System Message
16
9
Active Sensing
16
10
10.1
10.2
System Exclusive Message
16
Universal Real Time System Exclusive Message . . . . . . . . . . . . . . . . . . . . . . . . 16
Universal Non Real Time System Exclusive Message . . . . . . . . . . . . . . . . . . . . . 19
IV
Setting Values and Send/ Receive Values
11
11.1
11.2
11.3
11.4
11.5
11.6
11.7
V
Setting Value Tables
Off/On Setting Value Table . . . .
Sustain Pedal Setting Value Table
–64 - 0 - +63 Setting Value Table
Pan Setting Value Table . . . . . .
Fine Tuning Setting Value Table .
Reverb Type Setting Value Table .
Chorus Type Setting Value Table
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
MIDI Implementation Notation
12
12.1
12.2
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
20
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
20
20
20
20
20
21
21
21
22
Value Notation
22
Hexadecimal Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Binary Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2
Part I
Overview
1
Product Configuration as a MIDI Device
As a MIDI device, this Instrument consists of the System Section, Sound Generator Section, and Performance Controller Section described below. Each of these sections can send and receive specific MIDI
Messages in accordance with its function.
1.1
System Section
The System Section manages the Instrument status.
1.2
Performance Controller Section
The Performance Controller Section performs generates performance messages in accordance with keyboard play and pedal operations, etc. Basically, generated performance messages are sent to external
destinations while also being transmitted to the Sound Generator Section. The channel number of the
sent channel message is in accordance with the Instrument’s part number.
1.3
Sound Generator Section
The Sound Generator Section mainly performs receive of performance information and sound source
setting information. It consists of a common part that does not depend on the channel and a musical
instrument part that is independent of each channel.
1.3.1
Sound Generator Common Block
The common block consists of system effects, master control, etc. These can be controlled by general
universal system exclusive messages, or the Instrument’s system exclusive messages or all.
1.3.2
Instrument Part Block
The instrument part section consists of a total of 32 instrument parts. The settings of each part can be
changed using channel messages or Instrument’s system exclusive messages or all. The functions assigned
to each part are shown below. The MIDI send channel and MIDI receive channel can be changed using
the Instrument’s MIDI settings.
3
Part Number
Part Name
MIDI Receive Ch
MIDI Send Ch
Assigned
Function
Description
00
A01
-
01(Note1)
Keyboard
Upper1(Main)/
(Right-side
keyboard in the
Duet Mode)
01
02
A02
A03
-
02
03
Keyboard
Upper2(Layer)
Keyboard
Lower1(Split)/
(Left-side
keyboard in the
Duet Mode)
03
04
05
06
07
A04
A05
A06
A07
A08
-
05
06
07
-
08
09
10
11
12
13
14
15
16
17
18
A09
A10
A11
A12
A13
A14
A15
A16
B01
B02
B03
01
02
03
04
–
-
19
B04
04
20
21
22
23
24
25
26
27
28
29
30
31
B05
B06
B07
B08
B09
B10
B11
B12
B13
B14
B15
B16
05
06
07
08
09
10
11
12
13
14
15
16
Recorder Play
Track1 main
Recorder Play
Track1 layer
Recorder Play
Track1 split
Metronome/
Count
Note1: Can be changed by Keyboard Channel setting.
4
Recorder Play
Track2
-
-
MIDI/Song Play
Ch.01
MIDI/Song Play
Ch.02
MIDI/Song Play
Ch.03 (Left hand
track)
-
MIDI/Song Play
Ch.04 (Right
hand track)
-
MIDI/Song Play
Ch.05
MIDI/Song Play
Ch.06
MIDI/Song Play
Ch.07
MIDI/Song Play
Ch.08
MIDI/Song Play
Ch.09
MIDI/Song Play
Ch.10
MIDI/Song Play
Ch.11
MIDI/Song Play
Ch.12
MIDI/Song Play
Ch.13
MIDI/Song Play
Ch.14
MIDI/Song Play
Ch.15
MIDI/Song Play
Ch.16
2
Conditions that Disable Message Send and Receive
No MIDI messages at all can be sent or received while “Please Wait ...” is on the display.
5
Part II
Channel Message
Instrument Velocity Resolution The upper seven bits of the 14-bit resolution correspond to the
Note On/Off message, while the lower seven bits correspond to the High Resolution Velocity Prefix
message.
Note On/Off
Upper 7 bits
High Resolution Velocity Prefix
Lower 7 bits
14bits
The initial default value for the lower 7 bits is 00H. Receipt of a High Resolution Prefix message
causes the lower seven bits to be set, but note on/off is not performed.
Receipt of a Note On/Off message causes the upper seven bits to be set with note on/off performed
with 14-bit resolution Velocity.
The High Resolution Velocity Prefix message corresponds the message immediately following the Note
On/Off message, and the lower seven bits are cleared to 00H immediately following note on/off by the
Note On/Off message. 7-bit resolution note on/off using only the Note On/Off message also continues
to be supported.
For details about each message, see ” 3 Note Off”, ”4 Note On”, and ”5.18 High Resolution Velocity
Prefix”.
3
Note Off
Format
Message Format:
n:
kk:
vv:
8nH kkH vvH
9nH kkH 00H(receive only)
MIDI Channel Number
Key Number
Velocity
Transmit Sent when something is played on the keyboard. The key number changes in accordance
with on the Transpose function and Octave Shift function.
Receive Receipt stops a note being sounded by a note on message.
When a High Resolution Velocity Prefix message is received immediately prior to the Note Off message
and the lower seven bits of the 14-bit Velocity are set, the 14-bit resolution note off of the note being
sounded is performed.
For information about the relationship between the Note On/Off message and High Resolution Velocity Prefix message, see ”Instrument Velocity Resolution” at the beginning of part II.
Note off by making the Note On Velocity 00H is identical to note off by the combination of High
Resolution Velocity prefix message 40H and Note Off Message 40H.
6
Note: This Instrument has a function that assumes connection of an external device that sends Note Off Velocity as a fixed
value. Note Off Velocity 00H is replaced with 40H until a Note Off message with a Velocity value other than 00H is received. This
function is enabled when the Instrument is turned on, and disabled by receipt of a Note Off message with a Velocity value other
than 00H.
4
Note On
Message Format:
n:
kk:
vv:
9nH kkH vvH
MIDI Channel Number
Key Number
Velocity
Transmit Sent when something is played on the keyboard. The key number changes in accordance
with on the Transpose function and Octave Shift function.
Receive Receipt sounds a note of the corresponding instrument part.
When a High Resolution Velocity Prefix message is received immediately prior to the Note On message
and the lower seven bits of the 14-bit Velocity are set, the 14-bit resolution note on is performed.
For information about the relationship between the Note On/Off message and High Resolution Velocity Prefix message, see ”Instrument Velocity Resolution” at the beginning of part II.
5
Control Change
Message Format:
n:
cc:
vv:
BnH ccH vvH
MIDI Channel Number
Control Number
Value
For details about messages, see each section of this manual that covers them.
5.1
Bank Select (00H,20H)
Message Format:
n:
mm:
ll:
BnH 00H mmH (MSB)
BnH 20H llH (LSB)
MIDI Channel Number
MSB Value(Note1)
LSB Value(Transmit:00H, Receive:Ignored)
Note1: For details about the relationship between the MSB value and the tone, see the Tone List that comes with the
Instrument.
Transmit Sent when a tone number is selected. For information about numbers, see the Tone List in
the User’s Guide.
Receive Receipt causes a change in the tone bank number stored in Instrument memory, but the
tone is not actually changed until a Program Change message is received. For details, see “6 Program
Change”.
7
5.2
Modulation (01H)
Message Format:
n:
vv:
BnH 01H vvH
MIDI Channel Number
Value
Receive Receipt adds, to the tone being sounded, modulation of a depth specified by the value. In
the case of a tone that already has modulation applied, receipt of this message increases the modulation
depth. The modulation effect differs according to the tone being used.
5.3
Portamento Time(05H)
Message Format:
n:
vv:
BnH 05H vvH
MIDI Channel Number
Value
Receive Receipt changes the portamento application time.
5.4
Data Entry (06H,26H)
Message Format:
n:
mm:
ll:
BnH 06H mmH (MSB)
BnH 26H llH (LSB)
MIDI Channel Number
MSB Value
LSB Value
Transmit Sent when there is a change to the parameter assigned to RPN. For details about information
assigned to parameters that correspond to RPN, see ”5.22 RPN”. This Instrument does not have a
parameter that corresponds to NRPN.
Receive Receipt changes the parameter assigned to RPN.
5.5
Volume (07H)
Message Format:
n:
vv:
BnH 07H vvH
MIDI Channel Number
Value
Transmit Sent when layer balance or lower volume is adjusted.
Receive Receipt changes the part volume.
5.6
Pan (0AH)
Message Format:
n:
vv:
BnH 0AH vvH
MIDI Channel Number
Value(Note1)
8
Note1: For information about the relationship between setting values and send/receive values, see “11.4 Pan Setting Value
Table” in “IV Setting Values and Send/Receive Values”.
Transmit Sent when Music Library play is stopped.
Receive Receipt changes the pan of the corresponding part.
5.7
Expression (0BH)
Message Format:
n:
vv:
BnH 0BH vvH
MIDI Channel Number
Value
Receive Receipt changes the Expression value.
5.8
Hold1 (40H)
Message Format:
n:
vv:
BnH 40H vvH
MIDI Channel Number
Value
Transmit Sent when a pedal that has a sustain (damper) function is operated.
Receive Receipt performs an operation equivalent to a sustain pedal operation.
5.9
Portamento On/Off(41H)
Message Format:
n:
vv:
BnH 41H vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.1 Off/On Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt changes the portamento on/off setting.
5.10
Sostenuto (42H)
Message Format:
n:
vv:
BnH 42H vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.1 Off/On Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
9
Transmit Sent when a pedal that has a sostenuto function is operated.
Receive Receipt performs an operation equivalent to a sostenuto pedal operation.
5.11
Soft (43H)
Message Format:
n:
vv:
BnH 43H vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.1 Off/On Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Transmit Sent when a pedal that has a soft function is operated.
Receive Receipt performs an operation equivalent to a soft pedal operation.
5.12
Release Time (48H)
Message Format:
n:
vv:
BnH 48H vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.3 –64 - 0 - +63
Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt makes a relative change in the time it takes for a note to decay to zero after a key is
released.
5.13
Attack Time (49H)
Message Format:
n:
vv:
BnH 49H vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.3 –64 - 0 - +63
Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt makes a relative change in the time it takes for a note to rise to its maximum level.
5.14
Vibrato Rate (4CH)
Message Format:
n:
vv:
BnH 4CH vvH
MIDI Channel Number
Value (Note1)
10
Note1: For information about the relationship between setting values and send/receive values, see the “11.3 –64 - 0 - +63
Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt changes the note vibrato rate.
5.15
Vibrato Depth (4DH)
Message Format:
n:
vv:
BnH 4DH vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.3 –64 - 0 - +63
Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt changes the degree of pitch modulation.
5.16
Vibrato Delay (4EH)
Message Format:
n:
vv:
BnH 4EH vvH
MIDI Channel Number
Value (Note1)
Note1: For information about the relationship between setting values and send/receive values, see the “11.3 –64 - 0 - +63
Setting Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Receive Receipt changes the time it takes until note vibrato starts.
5.17
Portamento Control(54H)
Message Format:
n:
vv:
BnH 54H vvH
MIDI Channel Number
Source Key Number
Receive Receipt of this message first stores the Source Note Number for the next note. When the next
Note On is received, the portamento effect is applied to the note using this Source Note Number as the
pitch start point and the Note On event key number as the end point. If there already is a note being
sounded by Source Note Number at this time, the new note on is not performed and the portamento
effect is applied to the pitch of the note being sounded. That is to say that legato play is performed.
5.18
High Resolution Velocity Prefix (58H)
Message Format:
n:
vv:
Transmit
BnH 58H vvH
MIDI Channel Number
Value
Sends the lower seven bits of 14-bit Velocity when a key is pressed or released.
11
Receive Receipt is handled, in combination with the following Note On/Off message, as the lower
seven bits of 14-bit Velocity. For information about the relationship between the Note On/Off message
and High Resolution Velocity Prefix message, see ”Instrument Velocity Resolution” at the beginning of
part II.
5.19
Reverb Send (5BH)
Message Format:
n:
vv:
BnH 5BH vvH
MIDI Channel Number
Value
Transmit Sent when Music Library play (etc.) is operated.
Receive Receipt changes the reverb send of the corresponding part.
5.20
Chorus Send (5DH)
Message Format:
n:
vv:
BnH 5DH vvH
MIDI Channel Number
Value
Transmit Sent when Music Library play (etc.) is operated.
Receive Receipt changes the chorus send of the corresponding part.
5.21
NRPN (62H,63H)
Message Format:
n:
ll:
mm:
5.21.1
BnH 62H llH (LSB)
BnH 63H mmH (MSB)
MIDI Channel Number
LSB Value
MSB Value
Assignable Functions to NRPN
This Instrument does not assign any parameters to NRPN.
5.22
RPN (64H,65H)
Message Format:
n:
ll:
mm:
BnH 64H llH (LSB)
BnH 65H mmH (MSB)
MIDI Channel Number
LSB Value
MSB Value
12
5.22.1
Pitch Bend Sensitivity
Message Format:
n:
mm:
ll:
BnH 64H 00H
BnH 65H 00H
BnH 06H mmH
BnH 26H llH
MIDI Channel Number
MSB Value(00H - 18H)
LSB Value(Transmit:00H, Receive:Ignored)
Receive Receipt changes Pitch Bend Sensitivity.
5.22.2
Fine Tune
Message Format:
n:
mm:
ll:
BnH 64H 01H
BnH 65H 00H
BnH 06H mmH
BnH 26H llH
MIDI Channel Number
MSB Value
LSB Value
Receive Receipt changes Channel Fine Tune.
5.22.3
Coarse Tune
Message Format:
n:
mm:
ll:
BnH 64H 02H
BnH 65H 00H
BnH 06H mmH
BnH 26H llH
MIDI Channel Number
MSB Value(28H - 58H)
LSB Value(Transmit:00H, Receive:Ignored)
Receive Receipt changes Channel Coarse Tune.
5.22.4
Null
Message Format:
n:
BnH 64H 7FH
BnH 65H 7FH
MIDI Channel Number
Transmit Sent when an RPN message send operation is performed.
Receive Receipt de-selects RPN.
13
5.23
All Sound Off (78H)
Message Format:
n:
BnH 78H 00H
MIDI Channel Number
Receive Receipt stops all voices that are sounding.
5.24
Reset All Controllers (79H)
Message Format:
n:
BnH 79H 00H
MIDI Channel Number
Transmit Sent when MIDI send related settings are changed.
Receive Receipt initializes each performance controller.
5.25
All Notes Off (7BH)
Message Format:
n:
BnH 7BH 00H
MIDI Channel Number
Transmit Sent when MIDI send related settings are changed.
Receive Receipt releases (key release) all voices that are sounding.
5.26
Omni Off (7CH)
Message Format:
n:
BnH 7CH 00H
MIDI Channel Number
Receive Receipt performs the same operation as when All Notes Off is received. Regardless of the
reception of this message, the instrument always operates as Omni Off mode.
5.27
Omni On (7DH)
Message Format:
n:
BnH 7DH 00H
MIDI Channel Number
Receive Receipt performs the same operation as when All Notes Off is received. Regardless of the
reception of this message, the instrument always operates as Omni Off mode.
5.28
Mono (7EH)
Message Format:
n:
BnH 7EH 00H
MIDI Channel Number
14
Receive Receipt performs the same operation as when All Notes Off is received. Regardless of the
reception of this message, the instrument always operates as Poly mode.
5.29
Poly (7FH)
Message Format:
n:
BnH 7FH 00H
MIDI Channel Number
Receive Receipt performs the same operation as when All Notes Off is received. Regardless of the
reception of this message, the instrument always operates as Poly mode.
6
Program Change
Message Format:
n:
pp:
CnH ppH
MIDI Channel Number
Program Number (Note1)
Note1: For details about the relationship between the program number and the tone, see the Tone List that comes with the
Instrument.
Transmit Sent when a tone number is selected.
Receive Receipt changes the tone of the corresponding part. The selected tone is determined by the
program value of this message and the Bank Select message value received prior to this message.
7
Channel After Touch
Message Format:
n:
vv:
DnH vvH
MIDI Channel Number
Value
Receive Receipt adds, to the tone being sounded, modulation of a depth specified by the value. In
the case of a tone that already has modulation applied, receipt of this message increases the modulation
depth. The modulation effect differs according to the tone being used.
8
Pitch Bend
Message Format:
n:
ll:
mm:
EnH llH mmH
MIDI Channel Number
Value LSB
Value MSB
Receive Receipt changes the pitch of the currently sounding note. Pitch bend change sensitivity
depends on the pitch bend sensitivity configured with RPN.
15
Part III
System Message
9
Active Sensing
Message Format:
FEH
Transmit This message is never sent.
Receive Once this message is received, the Active Sensing mode is entered. If no MIDI message is
received for a specified amount of time, voices being sounded by this Instrument’s sound source are
released, the controller is reset, and the Active Sensing mode is exited.
10
System Exclusive Message
Message Format:
ii:
dd:
F0H iiH ddH....F7H
ID Number
Device ID
The Instrument sends and receives standard universal system exclusive messages, and system exclusive
messages that have Instrument-specific formats.
ID Number
ID Number
44H
7EH
7FH
The ID numbers handed by this Instrument are shown below.
ID Name
Casio Computer Co. Ltd
Non Real Time System Exclusive Message
Real Time System Exclusive Message
Device ID The device ID is used mainly for individual control of multiple devices. When a System
Exclusive message is sent, the sending device sends messages that include a value that matches the
device ID of the sending device. When a System Exclusive message is received, the receiving device
receives only messages that include a value that matches the receiving device ID. The device ID 7FH is
a special value, and receipt is always performed whenever the device ID of either the receiving device
or the message is 7FH. MIDI Device ID is one of Spec Parameter and can be changed by the System
Exclusive Message. Device ID of MIDI System Exclusive Message in this case should be sent is set to
7FH.(Initial Value:7FH)
10.1
Universal Real Time System Exclusive Message
Message Format:
dd:
F0H 7FH ddH....F7H
Device ID
16
10.1.1
Master Volume
Message Format:
dd:
ll:
mm:
F0H 7FH ddH 04H 01H llH mmH F7H
Device ID
LSB Value(Receive:Ignored)
MSB Value
Receive Receipt changes the Master Volume.
10.1.2
Master Fine Tuning
Message Format:
dd:
ll:
mm:
F0H 7FH ddH 04H 03H llH mmH F7H
Device ID
LSB Value(Note1)
MSB Value(Note1)
Note1: For information about the relationship between setting values and send/receive values, see “11.5 Fine Tuning Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Transmit This message is sent when the tuning setting is changed.
Receive Receipt changes the tuning setting.
10.1.3
Master Coarse Tuning
Message Format:
dd:
ll:
mm:
F0H 7FH ddH 04H 04H llH mmH F7H
Device ID
LSB Value(Transmit:00H,Receive:Ignored)
MSB Value(28H - 58H)
Receive Receipt changes the Patch Master Coarse Tune parameter.
10.1.4
Reverb Type
Message Format:
dd:
vv:
F0H 7FH ddH 04H 05H 01H 01H 01H 01H 01H 00H vvH F7H
Device ID
Value(Note1)
Note1: For information about the relationship between setting values and send/receive values, see “11.6 Reverb Type Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Transmit This message is sent when the reverb type is changed. This Instrument treats a hall simulator
as a reverb.
Receive Receipt changes the reverb type.
17
10.1.5
Reverb Time
Message Format:
dd:
vv:
F0H 7FH ddH 04H 05H 01H 01H 01H 01H 01H 01H vvH F7H
Device ID
Value
Receive Receipt changes the Reverb duration.
10.1.6
Chorus Type
Message Format:
dd:
vv:
F0H 7FH 7FH 04H 05H 01H 01H 01H 01H 02H 00H vvH F7H
Device ID
Value(Note1)
Note1: For information about the relationship between setting values and send/receive values, see “11.7 Chorus Type Setting
Value Table” in “IV Setting Values and Send/Receive Values” of this document.
Transmit This message is sent when the chorus type is changed.
Receive Receipt changes the chorus type.
10.1.7
Modulation Rate
Message Format:
dd:
vv:
F0H 7FH ddH 04H 05H 01H 01H 01H 01H 02H 01H vvH F7H
Device ID
Value
Receive Receipt changes the Chorus Rate.
10.1.8
Modulation Depth
Message Format:
dd:
vv:
F0H 7FH ddH 04H 05H 01H 01H 01H 01H 02H 02H vvH F7H
Device ID
Value
Receive Receipt changes the chorus level setting.
10.1.9
Send To Reverb
Message Format:
dd:
vv:
F0H 7FH ddH 04H 05H 01H 01H 01H 01H 02H 04H vvH F7H
Device ID
Value
Receive Receipt changes the Chorus Sent To Reverb setting.
18
10.2
Universal Non Real Time System Exclusive Message
Message Format:
dd:
10.2.1
F0H 7EH ddH....F7H
Device ID
GM System On
Message Format:
dd:
F0H 7EH ddH 09H 01H F7H
Device ID
Receive Receipt puts the settings of sound source into the default of this instrument.
10.2.2
GM System Off
Message Format:
dd:
F0H 7EH ddH 09H 02H F7H
Device ID
Receive Receipt changes the sound source setting to the Instrument presetting.
10.2.3
GM2 System On
Message Format:
dd:
F0H 7EH ddH 09H 03H F7H
Device ID
Receive Though the Instrument does not support GM2, receipt of the GM2 System On message has
the same result as receipt of the GM System On message.
19
Part IV
Setting Values and Send/ Receive Values
11
11.1
Setting Value Tables
Off/On Setting Value Table
Transmit Value
00H
7FH
11.2
Receive Value
00H
:
7FH
Parameter
Off
(continuous)
Full
–64 - 0 - +63 Setting Value Table
Transmit Value
00H
:
40H
:
7FH
11.4
Parameter
Off
On
Sustain Pedal Setting Value Table
Transmit Value
00H
:
7FH
11.3
Receive Value
00H - 3FH
40H - 7FH
Receive Value
00H
:
40H
:
7FH
Parameter
-64
:
0
:
+63
Pan Setting Value Table
Transmit Value
00H
:
40H
:
7FH
Receive Value
00H
:
40H
:
7FH
Parameter
Left
:
Center
:
Right
20
11.5
Fine Tuning Setting Value Table
Transmit Value
(LSB, MSB)
(43H, 00H)
(65H, 00H)
(07H, 01H)
(29H, 01H)
:
(40H, 3FH)
(60H, 3FH)
(00H, 40H)
(20H, 40H)
(40H, 40H)
:
(54H, 7EH)
(73H, 7EH)
(11H, 7FH)
(30H, 7FH)
11.6
(00H,
(60H,
(00H,
(20H,
:
(30H,
(50H,
(70H,
(20H,
(40H,
:
(50H,
(70H,
(10H,
(30H,
Parameter
00H)
00H)
01H)
01H)
-
(5FH,
(7FH,
(1FH,
(3FH,
00H)
00H)
01H)
01H)
3FH)
3FH)
3FH)
40H)
40H)
-
(4FH,
(6FH,
(1FH,
(3FH,
(5FH,
3FH)
3FH)
40H)
40H)
40H)
7EH)
7EH)
7FH)
7FH)
-
(6FH,
(0FH,
(2FH,
(7FH,
7EH)
7FH)
7FH)
7FH)
415.5
415.6
415.7
415.8
:
439.8
439.9
440.0
440.1
440.2
:
465.6
465.7
465.8
465.9
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Hz
Reverb Type Setting Value Table
Transmit Value
00H
01H
02H
03H
04H
11.7
Receive Value
Receive Value
00H
01H
02H
03H
04H
Parameter
Off
Hall Simulator1
Hall Simulator2
Hall Simulator3
Hall Simulator4
Chorus Type Setting Value Table
Transmit Value
00H
01H
02H
03H
04H
Receive Value
00H
01H
02H
03H
04H
Parameter
Off
Light Cho
Chorus
FB Chorus
Flanger
21
Part V
MIDI Implementation Notation
12
12.1
Value Notation
Hexadecimal Notation
MIDI implementation sometimes requires that data be expressed in hexadecimal format. Hexadecimal
values are indicated by the letter “H” after the value. The hexadecimal equivalents of decimal values 10
through 15 are expressed as the letters A through F.
The table below shows the hexadecimal equivalents for decimal values 0 through 127, which are often
used in MIDI messages.
Decimal
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Hexadecimal
00H
01H
02H
03H
04H
05H
06H
07H
08H
09H
0AH
0BH
0CH
0DH
0EH
0FH
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
1AH
1BH
1CH
1DH
1EH
1FH
Decimal
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
Hexadecimal
20H
21H
22H
23H
24H
25H
26H
27H
28H
29H
2AH
2BH
2CH
2DH
2EH
2FH
30H
31H
32H
33H
34H
35H
36H
37H
38H
39H
3AH
3BH
3CH
3DH
3EH
3FH
Decimal
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
Hexadecimal
40H
41H
42H
43H
44H
45H
46H
47H
48H
49H
4AH
4BH
4CH
4DH
4EH
4FH
50H
51H
52H
53H
54H
55H
56H
57H
58H
59H
5AH
5BH
5CH
5DH
5EH
5FH
22
Decimal
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
Hexadecimal
60H
61H
62H
63H
64H
65H
66H
67H
68H
69H
6AH
6BH
6CH
6DH
6EH
6FH
70H
71H
72H
73H
74H
75H
76H
77H
78H
79H
7AH
7BH
7CH
7DH
7EH
7FH
12.2
Binary Notation
When a MIDI implementation data value is expressed in binary, the letter 、B、 (for Binary) is affixed
at the end of the value. The table below shows the binary equivalents for the decimal values 0 through
127, which are often used for settings.
Decimal
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
:
125
126
127
Hexadecimal
00H
01H
02H
03H
04H
05H
06H
07H
08H
09H
0AH
0BH
0CH
0DH
0EH
0FH
10H
:
7DH
7EH
7FH
Binary
00000000B
00000001B
00000010B
00000011B
00000100B
00000101B
00000110B
00000111B
00001000B
00001001B
00001010B
00001011B
00001100B
00001101B
00001110B
00001111B
00010000B
01111101B
01111110B
01111111B
23
Download PDF

advertising
