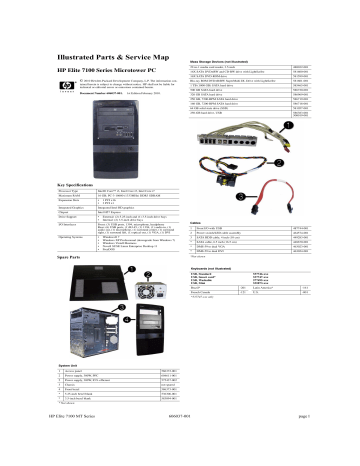

Illustrated Parts & Service Map
HP Elite 7100 Series Microtower PC
Mass Storage Devices (not illustrated)
22-in-1 media card reader, 3.5-inch
480032-001
16X SATA DVD±RW and CD-RW drive with LightScribe
581600-001
16X SATA DVD-ROM drive
581599-001
© 2010 Hewlett-Packard Development Company, L.P. The information con-
Blu-ray ROM DVD±R/RW SuperMulti DL Drive with LightScribe
581601-001
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
1 TB (1000 GB) SATA hard drive
585465-001
500 GB SATA hard drive
586720-001
Document Number 606037-001.
1st Edition February 2010.
320 GB SATA hard drive
586969-001
250 GB, 7200-RPM SATA hard drive
586719-001
160 GB, 7200-RPM SATA hard drive
586718-001
64 GB solid state drive (SSD)
581057-001
250-GB hard drive, USB
586383-001
500019-001
Key Specifications
Processor Type
Intel® Core™ i3, Intel Core i5, Intel Core i7
Maximum RAM
16 GB; PC-3-10600 (1333MHz) DDR3 SDRAM
Expansion Slots
•
•
1 PCI x16
3 PCI x1
Integrated Graphics
Integrated Intel HD graphics
Chipset
Intel H57 Express
Drive Support
•
•
I/O Interfaces
Front: (3) USB ports, 1394, microphone, headphone
Rear: (6) USB ports, (1) RJ-45, (1) 1394, (1) audio in, (1)
audio out, (1) microphone, (1) surround center, (1) surround
right, (1) surround left, (1) optical out, (1) VGA, (1) DVI
Operating Systems
•
•
•
•
•
External: (2) 5.25-inch and (1) 3.5-inch drive bays
Internal: (2) 3.5-inch drive bays
Windows® 7
Windows XP Professional (downgrade from Windows 7)
Windows Vista® Business
Novell SUSE Linux Enterprise Desktop 11
FreeDOS
Cables
1
Front I/O with USB
487744-001
2
Power switch/LED cable assembly
464574-001
3
SATA HDD cable, 4 inch (10 cm)
449283-001
*
SATA cable, 6.5 inch (16.5 cm)
448670-001
*
DMS-59 to dual VGA
463023-001
*
DMS-59 to dual DVI
463024-001
*Not shown
Spare Parts
Keyboards (not illustrated)
USB, Standard
USB, Smart card*
USB, Washable
USB, Mini
537746-xxx
537747-xxx
577495-xxx
535873-xxx
Brazil*
-201
Latin America*
-161
French Canada
-121
U.S.
-001
*537747-xxx only
System Unit
1
Access panel
586372-001
2
Power supply, 300W, PFC
604611-001
2
Power supply, 300W, 85% efficient
575437-002
3
Chassis
not spared
4
Front bezel
586373-001
*
5.25-inch bezel blank
536306-001
*
3.5-inch bezel blank
583094-001
* Not shown
HP Elite 7100 MT Series
606037-001
page 1
Miscellaneous Parts
1
Chassis fan
449207-001
2
Heat sink with alcohol pad and factory-applied thermal grease
586374-001
*
Rubber feet
530593-001
*
Mouse, optical, black
537749-001
*
Mouse, USB laser
570580-001
*
USB-powered speakers
466618-001
*Not shown
LP = Low profile
System Board
Standard and Optional Boards
1
System board, includes heat sink backplate
601312-001
Memory modules (DDR3, PC3-10600)**
*
4 GB
585157-001
*
2 GB
576110-001
2
1 GB
576109-001
Other boards
3
ATI Radeon HD 4550 256-MB Dual Head graphics adapter (PCIe x16),
includes bracket
538051-001
584217-001
*
ATI Radeon HD 4650 1-GB Dual Head graphics adapter (PCIe x16),
includes bracket
578174-001
*
nVidia GeForce GT230 1.5-GB graphics adapter, includes bracket
586381-001
*
nVidia GeForce G210 512-MB graphics adapter, includes bracket
586382-001
*
Intel Pro 1000 PT Gb Ethernet PCIe NIC, includes bracket
490367-001
System Board Connectors and Jumpers (position of some untitled
components may vary in location)
*
LSI PCIe x1 56K International SoftModem, includes bracket
490689-001
CPU1
Processor
JUSB1
*
802.11b/g/n WLAN PCIe adapter
538048-001
CPU_FAN1
Primary CPU fan
BAT
Real-time-clock battery
DIMM4
DIMM 4 (Channel A)
CON1
Internal connector
Intel Core processors (8-MB L3 cache, 1333-MHz FSB, quad core)
Front USB
*
i7-870, 2.93-GHz processor
586378-001
DIMM3
DIMM 3 (Channel B)
J1394_1
Front 1394 port connector
*
i7-860, 2.80-GHz processor
586377-001
DIMM2
DIMM 2 (Channel A)
JAUD1
Front audio connector
*
i5-750, 2.66-GHz processor
586376-001
DIMM1
DIMM 1 (Channel B)
PCI_E4
PCIe X1, slot 3
ATX1
Main power
PCI_E3
PCIe X1, slot 2
Intel Core processors (4-MB L3 cache, 1333-MHz FSB, dual core)
*
i5-670, 3.46-GHz processor
604616-001
SATA1
Primary HDD connector
PCI_E2
PCIe X1, slot 1
*
i5-660, 3.33-GHz processor
604615-001
SATA2
Primary ODD connector
PCI_E1
PCIe X16 slot
*
i5-650, 3.2-GHz processor
604614-001
SATA3
Secondary HDD connector
AUDIO1
External audio connector
*
i3-540, 3.06-GHz processor
604613-001
SATA4
Secondary ODD connector
SYS_FAN1
Primary chassis fan
*
i3-530, 2.93-GHz processor
604612-001
JFP1
Power button/LED
JVGA_DVI1 Display/DVI connector
JUSB6
USB connector
PWR1
JUSB5
USB connector
LAN_USB1 RJ-45/USB connector
JUSB4
USB connector
I1394_USB1 1394 port/USB connector
JUSB3
Front I/O connector
SPDIF
SP/DIF connector
JUSB2
Media card reader connector
USB1
USB connector
* Not shown
HP Elite 7100 MT Series
606037-001
CPU power
page 2
Setup Utility
Basic system information is in the Setup Utility held in the system ROM, accessed by pressing
F10 when prompted (on screen) during the boot sequence.
Computer Setup Menu
Setup. When you establish only a power-on password, the power-on password is required to
access Computer Setup and any other information on the computer. When you establish both
passwords, only the setup password will give you access to Computer Setup.
When both passwords are set, the setup password can also be used in place of the power-on
password as an override to log in to the computer. This is a useful feature for a network
administrator.
If you forget the password for the computer, you can clear that password so you can gain access
to the information on the computer by resetting the password jumper.
Heading
Option / Description
Main
System Time
Allows you to set system time.
System Date
Allows you to set system date.
Resetting the password jumper
Language
Allows you to select the language.
1st Drive
2nd Drive
3rd Drive
4th Drive
Allow you to: view capacity (HDD only). Also allows
you to run HDD self-test for selected channel: SMART
status check, SMART short self test, SMART extended
self test.
1. Shut down the computer. With the power cord disconnected, press the power button again to
drain the system of any residual power.
System Information
Allows you to view installed memory, memory banks 14, BIOS revision, core version.
4. Remove the jumper from pins 1 and 2. Place the jumper on pins 2 and 3.
Model Number
Allows you to modify the model number.
Serial Number
Allows you to manually enter the serial number.
6. Plug in and turn on power. Allow the operating system to start. This clears the current
passwords and disables the password features.
Asset Tag
Allows you to manually enter the Asset Tag.
Advanced
Power
Exit
3. Locate the header and jumper labeled JPD1.
5. Replace the access panel.
7. To establish new passwords, repeat steps 1 - 4, replace the password jumper on pins 1 and 2,
then repeat steps 5 - 6. Establish new passwords in Computer Setup.
Product Number
View only. Allows you to view the product number.
CPU Type
View only.
Resetting the CMOS jumper
CPU Speed
View only.
The CMOS button resets CMOS but does not clear the power-on and setup passwords.
Cache RAM(L2)
View only.
1. Turn off the computer and any external devices, and disconnect power.
Cache RAM(L3)
View only.
2. Remove the access panel.
Primary Video
Adapter
Allows you to select boot display device when more
than 2 video options are offered by system: PCIe x1 and
PCIe x16.
3. Locate the header and jumper labeled JBAT1.
SATA Controller
Mode
If SATA controller is enabled, allows you to set the
mode to: IDE, AHCI, RAID.
5. Put the jumper back on pins 1 and 2.
SATA Controller
Allows you to disable/enable the SATA controller.
Onboard LAN
Disable/enable onboard LAN controller.
Onboard LAN Boot
ROM
Disable/enable the boot ROM of the onboard LAN chip.
USB Ports
Allows you to individually enable/disable available USB
ports.
4. Remove the CMOS jumper from pins 1 and 2 and put the jumper on pins 2 and 3. This clears
the CMOS.
6. Replace the access panel, external devices, and reconnect the power cord.
7. Turn on the computer.
Use Computer Setup to reset any special system setups along with the date and time.
HP Vision Diagnostics
The Hewlett-Packard Vision Diagnostics utility allows you to view information about the hardware configuration of the computer and perform hardware diagnostic tests on the subsystems of
the computer. The utility simplifies the process of effectively identifying, diagnosing, and isolating hardware issues.
The Survey tab is displayed when you invoke HP Vision Diagnostics. This tab shows the current
configuration of the computer. From the Survey tab, there is access to several categories of
information about the computer. Other tabs provide additional information, including diagnostic
test options and test results. The information in each screen of the utility can be saved as an html
file and stored on a USB flash drive.
Use HP Vision Diagnostics to determine if all the devices installed on the computer are recognized by the system and functioning properly. Running tests is optional but recommended after
installing or connecting a new device.
Vision Diagnostics may be found on the CD that shipped with some computer models. The tool
may also be downloaded from the HP Web site using the following procedure:
Onboard 1394
Allows you to enable/disable all 1394 ports.
Supervisor Password
Allows you to view the supervisor password.
User Password
Allows you to view the user password.
Onboard Audio
Auto/disable/enable.
ESC: Boot Menu
Allows you to enable/disable the option to press the Esc
key to access the Boot menu during computer startup.
F9:Diagnostics
Allows you to enable/disable the option to press the F9
key to access the Diagnostics menu during computer
startup.
F10:Setup
Allows you to enable/disable the option to press the F10
key to access the Setup menu during computer startup.
F11:Recovery
Allows you to enable/disable the option to press the F11
key to access the Recovery menu during computer startup.
F12:Boot from LAN
Allows you to enable/disable the option to press the F12
key to access the Boot from LAN option
during computer startup.
5. Select the specific product.
After AC Power Failure
Allows you to select system restart behavior after power
loss: Stay off, Power on, Auto.
7. Click the Diagnostic link.
Hyper-threading
Disable/enable.
WOL from S5
Allows you to enable/disable Limited (normal shutdown) WOL from S5 support.
Boot-time Diagnostic
Screen
Disable/enable POST diagnostic messages display.
Boot Device Priority:
1st Boot Device, 2nd
Boot Device, 3rd
Boot Device, 4th Boot
Device
Allows you to specify which device groups will boot
first, second, third, and fourth or to disable any
of the four: Floppy group, CD-ROM group, Hard drive
group, Network boot group. MS-DOS drive lettering
assignments maybe apply after a non-MS-DOS operating system has started.
Floppy Group Boot
Priority
Specifies boot device priority within removable devices.
CD-ROM Boot Priority
Specifies boot device priority within CD/DVD drives.
Hard Drive Boot Priority
Specifies boot device priority within hard drives.
Network Group Boot
Priority
Specifies boot device priority within bootable network
devices.
Exit Saving Changes
Press Enter to exit saving changes.
Exit Discarding
Changes
Press Enter to exit discarding changes.
Press Enter to load setup defaults.
Press Enter to discard changes.
Save Changes
Press Enter to save changes.
3. Select Download drivers and software (and firmware).
4. Enter the product number in the text box and press Enter.
6. Select the OS.
NOTE: The download includes instructions on how to create a bootable CD or USB flash drive.
Disable/enable.
Discard Changes
2. Click the Software & Drivers link.
8. Click Hewlett-Packard Vision Diagnostics.
Virtualization Technology
Load Setup Defaults
1. Go to www.hp.com
9. Click Download.
XD (Execute Disable) Disable/enable XD bit.
Boot
2. Remove the access panel.
Recovering the Configuration Settings
POST Front Panel LEDs and Audible Codes
Beeps/
Activity
Meaning
Recommended Action
1 short, 1 long,
3 sec pause
Bad memory or memory
configuration error.
Check that the memory modules have been
installed correctly and that proper modules are
used.
2 short, 1 long,
3 sec pause
No graphics card installed
or graphics card initialization failed.
For systems with a graphics card:
1. Reseat graphics card. Power on system.
2. Replace the graphics card.
3. Replace the system board.
For systems with integrated graphics, replace
the system board.
3 short, 1 long,
3 sec pause
CPU configuration error or
invalid CPU detected
before graphics card initialized.
1. Upgrade the BIOS to proper version.
2. Change the processor.
1 short,
1 sec pause
No optical drive found.
1. Check cable connections.
2. Run the Computer Setup utility and ensure
the device port is enabled.
2 short,
1 sec pause
No CD found.
1. Check the type of drive and use the correct
media type.
2. Replace the CD with a new one.
3 short,
1 sec pause
Flashing not ready (missing utility or BIOS image
file, etc.)
Upgrade the BIOS to proper version.
4 short,
1 sec pause
Flashing operation has
failed (checksum
error, corrupted image,
etc.)
1. Verify the correct ROM.
2. Flash the ROM if needed.
3. If an expansion board recently added,
remove to see if the problem remains.
4. Clear CMOS.
5. If the message disappears, there may be a
problem with the expansion card.
6. Replace the system board.
5 short,
1 sec pause
BIOS recovery was successful.
No action required.
To reset all BIOS Setup options to their default values (including options for Ctrl+F10), you
must enter F10 Setup mode and press F5.
This does not include updates to system date, system time, supervisor password, user password,
and CPU frequency multiplier.
Password Security
This computer supports security password features, which can be established through the
Computer Setup Utilities menu.
This computer supports two security password features that are established through the
Computer Setup Utilities menu: setup password and power-on password. When you establish
only a setup password, any user can access all the information on the computer except Computer
HP Elite 7100 MT Series
606037-001
page 3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
