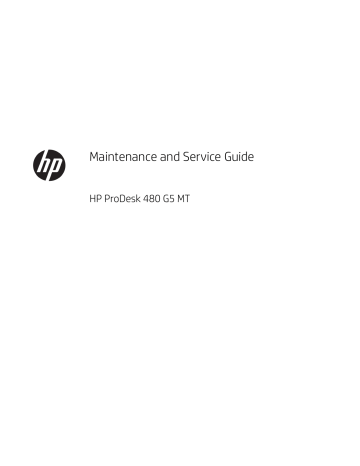

Maintenance and Service Guide
HP ProDesk 480 G5 MT
© Copyright 2018 HP Development Company,
L.P.
Product notice
Bluetooth is a trademark owned by its proprietor
and used by HP Inc. under license. Intel, Core,
Celeron, and Pentium are trademarks of Intel
Corporation in the U.S. and other countries.
Microsoft and Windows are either registered
trademarks or trademarks of Microsoft
Corporation in the United States and/or other
countries. SD Logo is a trademark of
its proprietor.
This guide describes features that are common
to most models. Some features may not be
available on your computer.
Not all features are available in all editions of
Windows 10. This computer may require
upgraded and/or separately purchased
hardware, drivers and/or software to take full
advantage of Windows 10 functionality. See
http://www.microsoft.com for details.
The only warranties for HP products and
services are set forth in the express warranty
statements accompanying such products and
services. Nothing herein should be construed as
constituting an additional warranty. HP shall not
be liable for technical or editorial errors or
omissions contained herein.
The information contained herein is subject to
change without notice. The only warranties for
HP products and services are set forth in
the express warranty statements accompanying
such products and services. Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable for
technical or editorial errors or omissions
contained herein.
First Edition: May 2018
Document Part Number: L18703-001
Software terms
By installing, copying, downloading, or otherwise
using any software product preinstalled on this
computer, you agree to be bound by the terms
of the HP End User License Agreement (EULA). If
you do not accept these license terms, your sole
remedy is to return the entire unused product
(hardware and software) within 14 days for a full
refund subject to the refund policy of your seller.
About This Book
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or
loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to
equipment or loss of information.
NOTE:
Text set off in this manner provides important supplemental information.
iii
iv
About This Book
Table of contents
1 Product features ....................................................................................................................................................................................... 1
Standard configuration features ............................................................................................................................................ 1
Front panel components ......................................................................................................................................................... 2
Rear panel components .......................................................................................................................................................... 3
2 Illustrated parts catalog ........................................................................................................................................................................... 4
Serial number location ............................................................................................................................................................. 4
Computer major components ................................................................................................................................................ 4
Miscellaneous parts ................................................................................................................................................................. 7
3 Routine care, SATA drive guidelines, and disassembly preparation ............................................................................................... 22
Electrostatic discharge information .................................................................................................................................... 22
Generating static ............................................................................................................................................... 22
Preventing electrostatic damage to equipment ........................................................................................... 23
Personal grounding methods and equipment .............................................................................................. 23
Grounding the work area .................................................................................................................................. 23
Recommended materials and equipment ..................................................................................................... 24
Operating guidelines .............................................................................................................................................................. 24
Routine care ............................................................................................................................................................................ 25
General cleaning safety precautions .............................................................................................................. 25
Cleaning the computer case ............................................................................................................................ 25
Cleaning the keyboard ...................................................................................................................................... 25
Cleaning the monitor ........................................................................................................................................ 26
Cleaning the mouse .......................................................................................................................................... 26
Service considerations .......................................................................................................................................................... 26
Tools and software requirements .................................................................................................................. 26
Screws ................................................................................................................................................................. 26
Cables and connectors ..................................................................................................................................... 27
Hard Drives ......................................................................................................................................................... 27
Lithium coin cell battery ................................................................................................................................... 27
SMART ATA drives ................................................................................................................................................................... 27
4 Removal and replacement procedures .............................................................................................................................................. 28
Preparation for disassembly ................................................................................................................................................ 28
Access panel ........................................................................................................................................................................... 29
Optical drive ............................................................................................................................................................................ 30
v
Dust filter ................................................................................................................................................................................. 31
Front bezel .............................................................................................................................................................................. 32
Drive cage ................................................................................................................................................................................ 33
Hard drives .............................................................................................................................................................................. 35
Fan ............................................................................................................................................................................................ 37
WLAN module ......................................................................................................................................................................... 38
Solid-state drive ..................................................................................................................................................................... 39
Memory module ..................................................................................................................................................................... 40
Speaker .................................................................................................................................................................................... 41
Power supply .......................................................................................................................................................................... 42
Fan-sink ................................................................................................................................................................................... 43
Processor ................................................................................................................................................................................. 44
System board .......................................................................................................................................................................... 46
Connector board ..................................................................................................................................................................... 48
5 Computer Setup (F10) Utility ................................................................................................................................................................ 49
Computer Setup (F10) Utilities ............................................................................................................................................ 49
Using Computer Setup (F10) Utilities ............................................................................................................. 50
Computer Setup–Main ...................................................................................................................................... 51
Computer Setup—Security .............................................................................................................................. 53
Computer Setup—Advanced ........................................................................................................................... 55
Recovering the Configuration Settings ............................................................................................................................... 60
6 Troubleshooting without diagnostics ................................................................................................................................................. 61
Safety and comfort ................................................................................................................................................................ 61
Before you call for technical support .................................................................................................................................. 61
Helpful hints ............................................................................................................................................................................ 62
Solving general problems ..................................................................................................................................................... 63
Solving power problems ....................................................................................................................................................... 66
Solving hard drive problems ................................................................................................................................................ 67
Solving media card reader problems .................................................................................................................................. 69
Solving display problems ...................................................................................................................................................... 70
Solving audio problems ........................................................................................................................................................ 74
Solving printer problems ...................................................................................................................................................... 76
Solving keyboard and mouse problems ............................................................................................................................. 77
Solving hardware installation problems ............................................................................................................................. 79
Solving network problems .................................................................................................................................................... 80
Solving memory problems ................................................................................................................................................... 83
Solving USB flash drive problems ........................................................................................................................................ 84
Solving front panel component problems ......................................................................................................................... 85
Solving Internet access problems ....................................................................................................................................... 85
vi
Solving software problems .................................................................................................................................................. 86
7 POST error messages and diagnostic front panel LEDs and audible codes ................................................................................. 87
POST numeric codes and text messages ........................................................................................................................... 87
Interpreting system validation diagnostic front panel LEDs and audible codes .......................................................... 92
8 Password security and resetting CMOS .............................................................................................................................................. 94
Resetting CMOS and/or the password jumper .................................................................................................................. 95
Changing a Setup or Power-on password ......................................................................................................................... 97
Deleting a Setup or Power-on password ........................................................................................................................... 97
9 Using HP PC Hardware Diagnostics (UEFI) .......................................................................................................................................... 98
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device ............................................................................... 99
10 System backup and recovery ........................................................................................................................................................... 100
Backing up, restoring, and recovering .............................................................................................................................. 100
Creating recovery media and backups ........................................................................................................ 100
Creating HP Recovery media (select products only) ............................................................. 101
Using Windows tools ...................................................................................................................................... 102
Restore and recovery ..................................................................................................................................... 102
Recovering using HP Recovery Manager ................................................................................ 103
What you need to know before you get started ............................................... 103
Using the HP Recovery partition (select products only) .................................. 103
Using HP Recovery media to recover .................................................................. 104
Changing the computer boot order .................................................................... 104
Removing the HP Recovery partition (select products only) .......................... 104
Appendix A Battery replacement .......................................................................................................................................................... 105
Appendix B Statement of memory volatility ....................................................................................................................................... 108
Current BIOS steps ............................................................................................................................................................... 108
Nonvolatile memory usage ................................................................................................................................................ 110
Questions and answers ...................................................................................................................................................... 112
Using HP Sure Start ............................................................................................................................................................. 113
Appendix C Power cord set requirements ........................................................................................................................................... 114
General requirements ......................................................................................................................................................... 114
Japanese power cord requirements ................................................................................................................................. 114
Country-specific requirements .......................................................................................................................................... 115
vii
Appendix D Specifications ...................................................................................................................................................................... 116
Index ........................................................................................................................................................................................................... 117
viii
1
Product features
Standard configuration features
Features may vary depending on the model. For support assistance and to learn more about the hardware and
software installed on the computer model, run the HP Support Assistant utility.
Standard configuration features
1
Front panel components
Drive configuration may vary by model. Some models have a bezel blank covering the optical drive bay.
(1)
Slim optical drive (optional)
(5)
USB port with HP Sleep and Charge
(2)
Dual-state power button
(6)
USB port
(3)
Hard drive activity light
(7)
USB SuperSpeed ports (2)*
(4)
Audio-out (headphone)/Audio-in (microphone)
combo jackAudio-out (headphone)/Audio-in (microphone)
combo jack
(8)
Memory card reader
*This port connects a USB device, provides high-speed data transfer, and even when the computer is off, charges products such as a cell
phone, camera, activity tracker, or smartwatch.
NOTE:
2
When a device is plugged into the combo jack, a dialog box is displayed. Select the type of device that is connected.
Chapter 1 Product features
Rear panel components
(1)
Audio-out jack for power audio devices
(6)
Audio-in jack
(2)
DisplayPort monitor connectors (2)
(7)
RJ-45 (network) jack
(3)
Optional port
(8)
Serial port (select products only)
(4)
USB ports with Wake from S4/S5 (2)
(9)
Power cord connector
(5)
USB SuperSpeed ports (2)
NOTE:
An optional second serial port and an optional parallel port are available from HP.
If using a USB keyboard, HP recommends connecting the keyboard to one of the USB 2.0 ports with the Wake from S4/S5 feature. The
Wake from S4/S5 feature is also supported on the PS/2 connectors if enabled in BIOS F10 Setup.
When a graphics card is installed in one of the system board slots, the video connectors on the graphics card and the integrated graphics
on the system board may be used at the same time. However, for such a configuration, only the display connected to the discrete graphics
card will display POST messages.
The system board graphics can be disabled by changing settings in Computer Setup.
Rear panel components
3
2
Illustrated parts catalog
Serial number location
Each computer has a unique serial number and a product ID number that are located on the exterior of
the computer. Keep these numbers available for use when contacting support for assistance.
Computer major components
Description
Access panel
Front bezel
SD card blank bezel
Dust filter
System boards (includes replacement thermal material):
Equipped with both the NetC and Windows 10 operating systems
Equipped with the NetC operating system
Equipped with the Windows 10 operating system
Equipped with a non-NetC/non-Windows 10 operating system and PCI slots
Processors:
Intel Core i7-8700 3.20-GHz processor (2666-MHz front-side bus [FSB], 12.0-MB SmartCache, six cores)
4
Chapter 2 Illustrated parts catalog
Description
Intel Core i5-8600 3.10-GHz processor (2666-MHz FSB, 9.0-MB SmartCache, six cores)
Intel Core i5-8500 3.00-GHz processor (2666-MHz FSB, 9.0-MB SmartCache, six cores)
Intel Core i3-8300 3.70-GHz processor (2400-MHz FSB, 8.0-MB SmartCache, quad core)
Intel Core i3-8100 3.60-GHz processor (2400-MHz FSB, 6.0-MB SmartCache, quad core)
Intel Pentium Gold G5600 3.90-GHz processor (2400-MHz FSB, 4.0-MB SmartCache, dual core)
Intel Pentium Gold G5500 3.80-GHz processor (2400-MHz FSB, 4.0-MB SmartCache, dual core)
Intel Pentium Gold G5400 3.70-GHz processor (2400-MHz FSB, 4.0-MB SmartCache, dual core)
Intel Celeron G4900 3.10-GHz processor (2.0-MB SmartCache, dual core)
Power supply (includes cables):
310-W, 12-V, 90-percent high volume, 2 out connectors
250-W, 12-V, 92-percent high volume, 2 out connectors
180-W, 12-V, 90-percent high volume, 1 out connector
Fan-sink, 65-W (includes retention-clips)
Fan (includes cable)
Speaker, 40×28.5-mm, 2-W, 4-ohm, 140-mm (includes cable)
Hood sensor module
Serial port modules:
PS2/serial port combination module
Serial port module
Optical drive:
DVD-BluRay 6x Writer Drive, 9.5-mm, slim
DVD±RW SuperMulti Dual Layer Drive, 9.5-mm, slim
DVD-ROM Drive, 9.5-mm, slim
Optical drive long bezel blank, 9.5-mm, slim
Optical drive latch, 9.5-mm, slim
Networking:
Intel Ethernet I210-T1 GbE network interface card (NIC)
Intel 9560 ac 2×2 + Bluetooth 5 non-vPro WW
Realtek 8822BE 802.11ac PCIe×1 Card
Realtek ac 1×1 + Bluetooth 4.2 LE M.2 2230 PCI-e+USB WW
Realtek RTL8723DE bgn 1×1 + Bluetooth 4.2 LE M.2 2230 PCI-e+USB WW with 1 antenna
Antenna cover
Internal wireless antenna cable assembly
Memory modules (4, DDR4-2666, NECC, UDIMM):
Computer major components
5
Description
16-GB
8-GB
4-GB
Hard drive:
2-TB, 7200-rpm, 3.5-in.
2-TB, 5400-rpm, 7.0-mm
2-TB, 5400-rpm, 7.0-mm, HYBRID 8-GB
1-TB, 7200-rpm, 3.5-in.
1-TB, 7200-rpm, 9.5-mm
1-TB, 5400-rpm, 7.0-mm, HYBRID 8-GB
500-GB, 7200-rpm, 3.5-in.
500-GB, 7200-rpm, 7.0-mm
500-GB, 5400-rpm, 7.0-mm, HYBRID 8-GB
500-GB, 5400-rpm with Federal Information Processing Standard (FIPS) security and OPAL2
500-GB, 7200-rpm, SATA with self-encryption (SED) and OPAL2
500-GB, 7200-rpm, Hybrid 8-GB NAND with OPAL2
5.25-in.–to–3.5-in. hard drive adapter
Solid-state drive:
1-TB, M2 2280, Non-Volatile Memory express (NVMe) solid-state drive with secure seal (SS) and triple-level cell (TLC)
512-GB, M2 2280, peripheral component interconnect express (PCIe), NVMe solid-state drive with SS and TLC
512-GB, M2 2280, PCIe, NVMe solid-state drive
512-GB, SATA-3 solid-state drive with TLC
512-GB SATA-3 solid-state drive with Federal Information Processing Standard (FIPS) security and TLC
512-GB M2 2280, PCIe3×4 solid-state drive with self-encryption (SED) and TLC
512-GB SATA-3 solid-state drive with SED, OPAL2, and TLC
256-GB, M2 2280, PCIe, NVMe solid-state drive with SS and TLC
256-GB, M2 2280, PCIe, NVMe solid-state drive
256-GB, SATA-3 solid-state drive with TLC
256-GB SATA-3 solid-state drive with FIPS security and TLC
256-GB M2 2280, PCIe3×4 solid-state drive with SED and TLC
256-GB SATA-3 solid-state drive with SED, OPAL2, and TLC
128-GB, M2 2280, PCIe3×4, NVMe solid-state drive with TLC
128-GB, M2 2280, PCIe3×4, NVMe solid-state drive
6
Chapter 2 Illustrated parts catalog
Description
118-GB, M2 2280, PCIe, NVMe solid-state drive
16-GB, M2 2280, PCIe3×2, NVMe solid-state drive with TLC
Miscellaneous parts
Description
Power cord with C13 receptacle, 2.50-meter (6.00-feet):
For use in Argentina
For use in Australia and New Zealand
Power cord with C13 receptacle, 1.83-meter (6.00-feet)
For use in Brazil
For use in Denmark
For use in Europe
For use in Israel
For use in Italy
For use in the North America
For use in the People’s Republic of China
For use in South Africa
For use in South Korea
For use in Switzerland
For use in Taiwan
For use in the United Kingdom and Singapore
Power cord with C13 receptacle, 1.83-meter (6.00-feet) 5-15P for use in Thailand
Power cord with C13 receptacle, 1.83-meter (6.00-feet) 6-amp for use in India
Power cord with 7A certification for use in Japan
Power cord with Option-949 adapter ROHS
Adapters:
HP DisplayPort–to–DVI SL adapter
HP DisplayPort–to–HDMI 2.0 adapter
HP DisplayPort–to–VGA adapter
HP USB–to–serial port adapter
HP USB Type-C–to–DisplayPort adapter
HP USB Type-C–to–DisplayPort adapter
HP USB Type-C–to–USB Type-A hub
Miscellaneous parts
7
Description
Cables:
DisplayPort cable (1.83-m)
DisplayPort–to–VGA cable
DVI monitor cable
Hard drive SATA power cable (2×2-pin)
Optical drive SATA power cable (2×2-pin)
SATA cable (straight–to–right angle connector, 11-in.)
SATA cable (straight–to–right angle connector, 11-in., RF solution)
SATA cable (straight–to–straight connector, 11-in.)
SATA cable (straight–to–straight connector, 11-in., RF solution)
SATA cable (straight–to–straight connector, 14-in.)
SATA cable (straight–to–straight connector, 14-in., RF solution)
Wireless antenna cable (internal)
Expansion cards:
DisplayPort option board
HDMI option board
Parallel port PCIe x1 card
VGA option board
Graphics cards:
AMD Radeon R7 430 2-GB 2DP Card
AMD Radeon R7 430 2-GB LP 2DP PCIe×16 2nd GFX
AMD Radeon R7 430 2-GB LP 2DP PCIe×16 GFX
AMD Radeon R7 430 2-GB LP DP VGA PCIe x16
AMD Radeon R7 430 PCIe×16 GFX (for use only in the People’s Republic of China)
AMD Radeon RX550 4-GB 2DP Card
AMD Radeon RX550 4-GB FH 2DP 1HDMI PCIe×16
AMD Radeon RX580 4-GB FH 3DP 1HDMI PCIe×16 GFX
Keyboards:
HP antimicrobial slim business keyboard for use in the People’s Republic of China
HP conferencing keyboard:
For use in Asia/Pacific countries and regions
For use in Belgium
For use in Bulgaria
For use in Canada
8
Chapter 2 Illustrated parts catalog
Description
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
For use in Italy
For use in the Netherlands
For use in Norway
For use in the People’s Republic of China
For use in Poland
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in Spain
For use in Sweden
For use in Switzerland
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP essential keyboard:
For use in India
For use in Japan
For use in Latin America
For use in the People’s Republic of China
For use in Taiwan
For use in Thailand
For use in the United States
HP Premium Wireless Keyboard/Mouse Kit:
For use in Belgium
For use in Bosnia, Herzegovina, Crotia, Slovenia, Yugoslavia
Miscellaneous parts
9
Description
For use in Bulgaria
For use in Canada
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in Latin America
For use in the Netherlands
For use in the Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP PS/2 slim Windows 8 keyboard:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in Denmark, Finland, and Norway
10
Chapter 2 Illustrated parts catalog
Description
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in South Korea
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP USB slim business keyboard in grey finish:
For use in Belgium
For use in France
For use in Germany
HP USB collaboration keyboard:
For use in Belgium
For use in Bulgaria
For use in Denmark
Miscellaneous parts
11
Description
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in SCC
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP USB premium keyboard:
For use in Belgium
For use in Bulgaria
For use in Canada
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
12
Chapter 2 Illustrated parts catalog
Description
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in SCC
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP USB slim Windows 8 keyboard:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
Miscellaneous parts
13
Description
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in South Korea
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP USB slim Windows 8 keyboard with PCR:
For use in Brazil
For use in Latin America
HP USB SmartCard slim keyboard with CCID:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
14
Chapter 2 Illustrated parts catalog
Description
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in South Korea
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP wireless collaboration keyboard:
For use in Belgium
For use in Bulgaria
For use in Canada
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in Latin America
For use in the Netherlands
Miscellaneous parts
15
Description
For use in Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in SCC
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP wireless premium keyboard:
For use in Belgium
For use in Bulgaria
For use in Canada
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
16
Chapter 2 Illustrated parts catalog
Description
For use in SCC
For use in Spain
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
HP wireless Windows 8 keyboard/mouse combination with dongle:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Russia
For use in Saudi Arabia
For use in South Korea
For use in Spain
Miscellaneous parts
17
Description
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
Katydid black USB keyboard with U.S. layout:
For use in Brazil
For use in KD2
Moonraker Healthcare USB wired keyboard:
For use in Canada
For use in Latin America
For use in the United Kingdom
For use in the United States
Unbranded USB keyboard:
For use in Australia
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in France
For use in Greece
For use in Hungary
For use in Israel
For use in Italy
For use in Latin America
For use in Northwest Africa
For use in Norway
For use in Portugal
For use in Romania
For use in Russia
18
Chapter 2 Illustrated parts catalog
Description
For use in Saudi Arabia
For use in Spain
For use in Sweden and Finland
For use in Switzerland
For use in Turkey
For use in the United Kingdom and Singapore
Unbranded USB keyboard ME:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in Denmark, Finland, and Norway
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Romania
For use in Russia
For use in Saudi Arabia
For use in South Korea
For use in Spain
Miscellaneous parts
19
Description
For use in Sweden
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in United Kingdom and Singapore
For use in the United States
Unbranded USB slim business keyboard in grey finish:
For use in Belgium
For use in Germany
Unbranded USB SmartCard slim keyboard with CCID:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
For use in Canada
For use in the Czech Republic and Slovakia
For use in Denmark
For use in France
For use in Germany
For use in Greece
For use in Hungary
For use in India
For use in Israel
For use in Italy
For use in Japan
For use in Latin America
For use in the Netherlands
For use in Northwest Africa
For use in Norway
For use in the People’s Republic of China
For use in Portugal
For use in Romania
For use in Russia
20
Chapter 2 Illustrated parts catalog
Description
For use in Saudi Arabia
For use in South Korea
For use in Spain
For use in Sweden and Finland
For use in Switzerland
For use in Taiwan
For use in Thailand
For use in Turkey
For use in the United Kingdom and Singapore
For use in the United States
Unbranded USB SmartCard slim keyboard with CCID:
For use in Belgium
For use in Bosnia, Herzegovina, Croatia, Slovenia, and Yugoslavia
For use in Brazil
For use in Bulgaria
Unbranded USB/PS2 BFRAPVC washable Windows 8 keyboard:
For use in Canada
For use in Latin America
For use in the United Kingdom
For use in the United States
Solenoid lock
Mouse:
HP PS/2 optical mouse
HP USB antimicrobial mouse
HP USB hardened mouse
HP USB laser mouse
HP USB mouse in grey finish
HP USB mouse in grey finish v.2
HP USB optical mouse
HP USB premium mouse
Moonraker Healthcare USB wired mouse
USB PS/2 washable mouse
USB 3.0 SD Card reader
Miscellaneous parts
21
3
Routine care, SATA drive guidelines, and
disassembly preparation
This chapter provides general service information for the computer. Adherence to the procedures and
precautions described in this chapter is essential for proper service.
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system
board. The power cord must be disconnected from the power source before opening the computer to prevent
system board or component damage.
Electrostatic discharge information
A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices
or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to
electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal
cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its
life expectancy.
Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains
enough power to alter device parameters or melt silicon junctions.
Generating static
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
A product can be degraded by 700 volts.
●
Different activities generate different amounts of static electricity.
●
Static electricity increases as humidity decreases.
Relative Humidity
22
Event
55%
40%
10%
Walking across carpet
7,500 V
15,000 V
35,000 V
Walking across vinyl floor
3,000 V
5,000 V
12,000 V
Motions of bench worker
400 V
800 V
6,000 V
Removing DIPs from plastic tube
400 V
700 V
2,000 V
Removing DIPs from vinyl tray
2,000 V
4,000 V
11,500 V
Removing DIPs from Styrofoam
3,500 V
5,000 V
14,500 V
Removing bubble pack from PCB
7,000 V
20,000 V
26,500 V
Packing PCBs in foam-lined box
5,000 V
11,000 V
21,000 V
Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
Preventing electrostatic damage to equipment
Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of
sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric
components and accessories.
●
To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.
●
Protect all electrostatic-sensitive parts and assemblies with conductive or approved containers
or packaging.
●
Keep electrostatic-sensitive parts in their containers until they arrive at static-free stations.
●
Place items on a grounded surface before removing them from their containers.
●
Always be properly grounded when touching a sensitive component or assembly.
●
Avoid contact with pins, leads, or circuitry.
●
Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive foam.
Personal grounding methods and equipment
Use the following equipment to prevent static electricity damage to equipment:
●
Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground cords. To
provide proper ground, a strap must be worn snugly against bare skin. The ground cord must be connected
to the banana plug connector on the grounding mat or workstation and fit snugly into it.
●
Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with most
types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet with a
maximum of one-megohm ± 10% resistance between the operator and ground.
Static Shielding Protection Levels
Method
Voltage
Antistatic plastic
1,500
Carbon-loaded plastic
7,500
Metallized laminate
15,000
Grounding the work area
To prevent static damage at the work area, observe the following precautions:
●
Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to
the work surface and use properly grounded tools and equipment.
●
Use static-dissipative mats, foot straps, or air ionizers to give added protection.
●
Handle electrostatic-sensitive components, parts, and assemblies by the case or PCB laminate. Handle
them only at static-free work areas.
●
Turn off power and input signals before inserting and removing connectors or test equipment.
●
Use fixtures made of static-safe materials when fixtures must directly contact dissipative surfaces.
●
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam.
●
Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.
Electrostatic discharge information
23
Recommended materials and equipment
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, or sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Conductive foam
●
Conductive tabletop workstations with ground cords of one-megohm +/- 10% resistance
●
Static-dissipative table or floor mats with hard ties to ground
●
Field service kits
●
Static awareness labels
●
Wrist straps and footwear straps providing one-megohm +/- 10% resistance
●
Material handling packages
●
Conductive plastic bags
●
Conductive plastic tubes
●
Conductive tote boxes
●
Opaque shielding bags
●
Transparent metallized shielding bags
●
Transparent shielding tubes
Operating guidelines
To prevent overheating and to help prolong the life of the computer:
24
●
Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.
●
Operate the computer on a sturdy, level surface. Leave a 10.2 cm (4-inch) clearance on all vented sides of
the computer and above the monitor to permit the required airflow.
●
Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the keyboard,
with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.
●
Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter can
block the vents and limit the airflow. Be sure to unplug the computer before cleaning the air vents.
●
Never operate the computer with the cover or side panel removed.
●
Do not stack computers on top of each other or place computers so near each other that they are subject
to each other’s re-circulated or preheated air.
●
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be
provided on the enclosure, and the same operating guidelines listed above will still apply.
●
Keep liquids away from the computer and keyboard.
●
Never cover the ventilation slots on the monitor with any type of material.
●
Install or enable power management functions of the operating system or other software, including
sleep states.
Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
Routine care
General cleaning safety precautions
1.
Never use solvents or flammable solutions to clean the computer.
2.
Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use
the cloth on the component.
3.
Always unplug the computer when cleaning with liquids or damp cloths.
4.
Always unplug the computer before cleaning the keyboard, mouse, or air vents.
5.
Disconnect the keyboard before cleaning it.
6.
Wear safety glasses equipped with side shields when cleaning the keyboard.
Cleaning the computer case
Follow all safety precautions in General cleaning safety precautions on page 25 before cleaning the computer.
To clean the computer case, follow the procedures described below:
●
To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.
●
For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping the surface with a
cloth or swab dampened with clear water.
●
For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed; alcohol will evaporate quickly
without leaving a residue.
●
After cleaning, always wipe the unit with a clean, lint-free cloth.
●
Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents and
limit the airflow.
Cleaning the keyboard
Follow all safety precautions in General cleaning safety precautions on page 25 before cleaning the keyboard.
To clean the tops of the keys or the keyboard body, follow the procedures described in Cleaning the computer
case on page 25.
When cleaning debris from under the keys, review all rules in General cleaning safety precautions on page 25
before following these procedures:
CAUTION:
the keys.
Use safety glasses equipped with side shields before attempting to clean debris from under
●
Visible debris underneath or between the keys may be removed by vacuuming or shaking.
●
Canned, pressurized air may be used to clean debris from under the keys. Caution should be used as too
much air pressure can dislodge lubricants applied under the wide keys.
●
If you want to remove a key, use a specially designed key puller to prevent damage to the keys. This tool is
available through many electronics supply outlets.
Routine care
25
CAUTION: Never remove a wide, level key (like the space bar) from the keyboard. If these keys are
improperly removed or installed, the keyboard may not function properly.
●
Cleaning under a key may be done with a swab moistened with isopropyl alcohol and then squeezed out.
Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any
fibers or dirt in confined areas. Allow the parts to air dry before reassembly.
Cleaning the monitor
●
Wipe the monitor screen with a towelette designed for cleaning monitors or with a clean cloth moistened
with water. Do not use sprays or aerosols directly on the screen; the liquid may seep into the housing and
damage a component. Never use solvents or flammable liquids on the monitor.
●
To clean the monitor body follow the procedures in Cleaning the computer case on page 25.
Cleaning the mouse
Before cleaning the mouse, ensure that the power to the computer is turned off.
●
Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out any debris
from the ball socket and wipe the ball with a clean, dry cloth before reassembly.
●
To clean the mouse body, follow the procedures in Cleaning the computer case on page 25.
Service considerations
Listed below are some of the considerations that you should keep in mind during the disassembly and assembly
of the computer.
Tools and software requirements
To service the computer, you need the following:
●
Torx T-15 screwdriver
●
Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)
●
Phillips #2 screwdriver
●
Diagnostics software
Screws
The screws used in the computer are not interchangeable. They may have standard or metric threads and may
be of different lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP
strongly recommends that all screws removed during disassembly be kept with the part that was removed, then
returned to their proper locations.
CAUTION:
Metric screws have a black finish. U.S. screws have a silver finish and are used on hard drives only.
CAUTION: As each subassembly is removed from the computer, it should be placed away from the work area to
prevent damage.
26
Chapter 3 Routine care, SATA drive guidelines, and disassembly preparation
Cables and connectors
Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care to avoid
damage. Apply only the tension required to seat or unseat the cables during insertion or removal from
the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting
the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts
being removed or replaced.
CAUTION: When servicing this computer, ensure that cables are placed in their proper location during
the reassembly process. Improper cable placement can damage the computer.
Hard Drives
Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies to
failed drives as well as replacement spares.
●
If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging and
label the package “Fragile: Handle With Care.”
●
Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective
packaging until they are actually mounted in the computer.
●
Avoid dropping drives from any height onto any surface.
●
If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive while
the computer is on or in standby mode.
●
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
●
Do not use excessive force when inserting a drive.
●
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such
as monitors or speakers.
Lithium coin cell battery
The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime of
about three years.
See the appropriate removal and replacement chapter for the chassis you are working on in this guide for
instructions on the replacement procedures.
WARNING! This computer contains a lithium battery. There is a risk of fire and chemical burn if the battery is
handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or
expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the battery.
NOTE: Batteries, battery packs, and accumulators should not be disposed of together with general household
waste. In order to forward them for recycling or proper disposal, please use the public collection system or
return them to HP.
SMART ATA drives
The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for HP personal computers have
built-in drive failure prediction that warns the user or network administrator of an impending failure (crash) of
the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated
sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it
generates a fault alert.
SMART ATA drives
27
4
Removal and replacement procedures
Adherence to the procedures and precautions described in this chapter is essential for proper service. After
completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all
components operate properly.
NOTE: Not all features listed in this guide are available on all computers.
Preparation for disassembly
WARNING! Voltage is always present on the system board when the computer is plugged into an active
AC outlet. To avoid possible personal injury and damage to the equipment the power cord should be
disconnected from the computer and/or the AC outlet before opening the computer.
See Routine care, SATA drive guidelines, and disassembly preparation on page 22 for initial safety procedures.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION:
Turn off the computer before disconnecting any cables.
Regardless of the power-on state, voltage is always present on the system board as long as the system is
plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in
the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.
NOTE: During disassembly, label each cable as you remove it, noting its position and routing. Keep all screws
with the removed components.
28
Chapter 4 Removal and replacement procedures
Access panel
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Position the computer with the rear toward you.
3.
Loosen the access panel security screw (1).
4.
Use the access panel release handle (2) to pull the access panel back.
5.
Remove the access panel (3).
Reverse this procedure to install the access panel.
Access panel
29
Optical drive
30
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Disconnect the power cable (1) from the optical drive.
4.
Disconnect the data cable (2) from the optical drive.
5.
Press the optical drive release latch (1).
6.
Remove the optical drive (2).
Chapter 4 Removal and replacement procedures
Reverse this procedure to install the optical drive.
Dust filter
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Position the computer in the tower mode with the front facing you.
4.
Remove the dust filter from the computer chassis.
Reverse this procedure to install the dust filter.
Dust filter
31
Front bezel
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Detach the three clips (1) on the top edge of the front bezel from the tabs on the computer chassis.
4.
Swing the top edge of the front cover (2) away from the computer chassis.
5.
Remove the front bezel.
Reverse this procedure to install the front bezel.
32
Chapter 4 Removal and replacement procedures
Drive cage
Follow these steps to remove the drive cage:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Disconnect the power cable (1) from the 3.5-inch hard drive.
4.
Disconnect the data cable (2) from the 3.5-inch hard drive.
5.
Disconnect the power cable (1) from the 2.5-inch hard drive.
Drive cage
33
6.
Disconnect the data cable (2) from the 2.5-inch hard drive.
7.
Lift the rear edge of the drive cage (1) to disengage it from the computer chassis.
8.
Slide the drive cage (2) away from the computer chassis.
9.
Remove the drive cage (3).
Reverse this procedure to install the drive cage.
34
Chapter 4 Removal and replacement procedures
Hard drives
Follow these steps to remove a 3.5-inch hard drive:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the drive cage (see Drive cage on page 33).
4.
Remove the two Torx-15 M3.0×9.0 screws (1) that secure the 3.5-inch hard drive to the drive cage.
5.
Slide the 3.5-inch hard drive (2) to the right, and then remove the 3.5-inch hard drive.
Follow these steps to remove a 2.5-inch hard drive:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the drive cage (see Drive cage on page 33).
4.
Remove the three Torx-15 M3.0×9.0 screws (1) that secure the 2.5-inch hard drive to the drive cage.
Hard drives
35
5.
Remove the 2.5-inch hard drive (2) from the drive cage.
Reverse this procedure to install the hard drives.
36
Chapter 4 Removal and replacement procedures
Fan
Follow these steps to remove the speaker:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Position the computer with the front panel toward you.
4.
Disconnect the fan cable (1) from the system board.
5.
Remove the three Phillips screws (2) that secure the fan to the computer chassis.
6.
Remove the fan (3).
Reverse this procedure to install the fan.
Fan
37
WLAN module
CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless module
authorized for use in the computer by the governmental agency that regulates wireless devices in your country
or region. If you replace the module and then receive a warning message, remove the module to restore device
functionality, and then contact technical support.
Before removing the WLAN module, follow these steps:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the front bezel (see Front bezel on page 32).
4.
Remove the drive cage (see Drive cage on page 33).
Remove the WLAN module:
1.
Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The WLAN antenna cable labeled "1/MAIN" connects to the WLAN module "Main" terminal. The
WLAN antenna cable labeled "2/AUX" connects to the WLAN module "Aux" terminal.
2.
Remove the Phillips M2.0×3.5 screw (2) that secures the WLAN module to the system board. (The module
tilts up.)
3.
Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE:
WLAN modules are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the WLAN module.
38
Chapter 4 Removal and replacement procedures
Solid-state drive
Before removing the solid-state drive, follow these steps:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the front bezel (see Front bezel on page 32).
4.
Remove the drive cage (see Drive cage on page 33).
Remove the solid-state drive:
1.
Remove the Phillips screw (1) that secures the solid-state drive to the computer chassis.
2.
Remove the solid-state drive (2) by pulling it away from the connector.
NOTE:
Solid-state drives are designed with notches to prevent incorrect insertion.
Reverse this procedure to install the solid-state drive.
Solid-state drive
39
Memory module
The computer has four memory module sockets.
CAUTION: You must disconnect the power cord and wait approximately 30 seconds for the power to drain
before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to
the memory modules as long as the computer is plugged into an active AC outlet. Adding or removing memory
modules while voltage is present may cause irreparable damage to the memory modules or system board.
The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to
use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from
having incompatible metals in contact with each other.
Static electricity can damage the electronic components of the computer or optional cards. Before beginning
these procedures, ensure that you are discharged of static electricity by briefly touching a grounded
metal object.
When handling a memory module, be careful not to touch any of the contacts. Doing so may damage
the module.
Follow these steps to remove a memory module:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the front bezel (see Front bezel on page 32).
3.
Remove the drive cage (see Drive cage on page 33).
Remove the memory module:
1.
Open both latches (1) of the memory module socket.
2.
Remove the memory module (2) from the socket.
NOTE:
Memory modules are designed with notches to prevent incorrect insertion.
Reverse this procedure to install a memory module. Reconfigure the computer, if necessary.
40
Chapter 4 Removal and replacement procedures
Speaker
Follow these steps to remove the speaker:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the front bezel (see Front bezel on page 32).
4.
Remove the drive cage (see Drive cage on page 33).
Remove the speaker:
1.
Position the computer with the front panel toward you.
2.
Disconnect the speaker cable (1) from the system board.
3.
Remove the two Torx-15 M3.0×9.0 screws (2) that secure the speaker to the computer chassis.
4.
Remove the speaker (3).
Reverse this procedure to install the speaker.
Speaker
41
Power supply
Follow these steps to remove the power supply:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the front bezel (see Front bezel on page 32).
4.
Remove the drive cage (see Drive cage on page 33).
Remove the speaker:
1.
Position the computer with the rear panel toward you.
2.
Disconnect the power supply P1 (1), P2 (2), and P3 (3) cables from the system board.
3.
Release the power supply P3 cable from the two retention clips (4) built into the fan-sink.
4.
Remove the three Torx-15 M3.0×9.0 screws (5) that secure the power supply to the computer chassis.
5.
Press down on the power supply release tab (6).
6.
Slide the power supply forward, and then lift and remove the power supply (7).
Reverse this procedure to install the power supply.
42
Chapter 4 Removal and replacement procedures
Fan-sink
NOTE:
The fan-sink spare park kit includes replacement thermal material.
Follow these steps to remove the fan-sink:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29).
3.
Remove the front bezel (see Front bezel on page 32).
4.
Remove the drive cage (see Drive cage on page 33).
Remove the fan-sink:
1.
Disconnect the fan-sink cable (1) from the system board.
2.
Release the power supply P3 cable from the two retention clips (2) built into the fan-sink.
3.
Loosen the four slotted Torx-15 captive screws (3) that secure the fan-sink to the computer chassis.
NOTE: Due to the adhesive nature of the thermal material located between the fan-sink and
the processor, it may be necessary to move the fan-sink from side to side when removing the it.
4.
Remove the fan-sink (4).
Reverse this procedure to install the fan-sink.
Fan-sink
43
Processor
NOTE: The processor spare park kit includes replacement thermal material.
Follow these steps to remove the fan-sink:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28), and then remove the
following components:
2.
Remove the access panel (see Access panel on page 29), and then remove the following components:
a.
Front bezel (see Front bezel on page 32)
b.
Drive cage (see Drive cage on page 33)
c.
Fan-sink (see Fan-sink on page 43)
Remove the processor:
44
1.
Depress the processor release lever (1), and then slide the lever to the right until it clears the locking clip.
2.
Swing the processor release lever (2) up and back as far as it will go.
3.
Swing the processor retention bracket (3) up and back as far as it will go.
Chapter 4 Removal and replacement procedures
4.
Lift the processor (4) straight up, and remove it.
CAUTION: When installing the processor, the gold triangle (1) on the processor must be aligned with
the triangle icon (2) embossed on the system board. Failure to follow this caution can result in damage to
the pins on the processor and system board processor socket.
Reverse this procedure to install the processor.
Processor
45
System board
NOTE: The system board spare park kit includes replacement thermal material.
Follow these steps to remove the system board:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29), and then remove the following components:
a.
Front bezel (see Front bezel on page 32)
b.
WLAN module (see WLAN module on page 38)
c.
Solid-state drive (see Solid-state drive on page 39)
d.
Drive cage (see Drive cage on page 33)
e.
Fan-sink (see Fan-sink on page 43)
NOTE: When replacing the system board, be sure that the processor (see Processor on page 44) and
connector board (see Connector board on page 48) are removed from the defective system board and
installed on the replacement system board.
3.
Disconnect the following cables from the system board:
(1) Fan cable
(2) Power supply P1 cable
(3) Drive data cables (three locations)
(4) Speaker cable
(5) Power supply P3 cable
(6) Power supply P2 cable
(7) Drive power cable
46
Chapter 4 Removal and replacement procedures
4.
Remove the eight Torx-15 M3.0×9.0 screws that secure the system board to the computer chassis.
5.
Slide the system board (1) forward through the opening in the front of the computer chassis.
6.
Swing the rear edge of the system board (2) up and forward until the components on the rear edge are
clear of the rear panel.
7.
Remove the system board (3) by sliding the rear edge up and back at an angle.
Reverse this procedure to install the system board.
System board
47
Connector board
Follow these steps to remove the connector board:
1.
Prepare the computer for disassembly (see Preparation for disassembly on page 28).
2.
Remove the access panel (see Access panel on page 29), and then remove the following components:
a.
Front bezel (see Front bezel on page 32)
b.
WLAN module (see WLAN module on page 38)
c.
Solid-state drive (see Solid-state drive on page 39)
d.
Drive cage (see Drive cage on page 33)
e.
Fan-sink (see Fan-sink on page 43)
f.
System board (see System board on page 46)
Remove the connector board:
1.
Remove the two Phillips PM2.0×3.5 screws (1) that secure the connector board to the system board.
2.
Remove the connector board (2).
NOTE: When the connector board is removed, make sure the connector board bracket does not become
separated from the board.
Reverse this procedure to install the connector board.
48
Chapter 4 Removal and replacement procedures
5
Computer Setup (F10) Utility
Computer Setup (F10) Utilities
Use Computer Setup (F10) Utility to do the following:
●
Change settings from the defaults or restore the settings to default values.
●
View the system configuration, including settings for processor, graphics, memory, audio, storage,
communications, and input devices.
●
Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash media devices.
●
Enter the Asset Tag or property identification number assigned by the company to this computer.
●
Enable the power-on password prompt during system restarts (warm boots) as well as during power-on.
●
Establish an administrator password that controls access to the Computer Setup (F10) Utility and
the settings described in this section.
●
Establish minimum requirements for valid passwords, including length and required types of characters.
●
Secure integrated I/O functionality, including the serial, USB, or audio, or embedded NIC, so that they
cannot be used until they are unsecured.
●
Enable or disable different types of boot sources.
●
Configure features such as Secure Boot, power management, virtualization support, and language and
keyboard type used in Setup and POST.
●
Replicate the system setup by saving system configuration information on a USB device and restoring it on
one or more computers.
●
Enable or disable DriveLock security or securely erase a hard drive (when supported by drive).
Computer Setup (F10) Utilities
49
Using Computer Setup (F10) Utilities
Computer Setup can be accessed only by turning the computer on or restarting the system. To access
the Computer Setup Utilities menu, complete the following steps:
1.
Turn on or restart the computer.
2.
Repeatedly press F10 when the monitor light turns green to access the utility.
You can also press Esc to a menu that allows you to access different options available at startup, including
the Computer Setup utility.
NOTE: If you do not press F10 at the appropriate time, you must restart the computer and again
repeatedly press F10 when the monitor light turns green to access the utility.
3.
A choice of four headings appears in the Computer Setup Utilities menu: Main, Security, Advanced, and
UEFI Drivers.
NOTE: Selecting UEFI Drivers restarts the computer into the 3rd party option ROM management
application. You can access this application directly by pressing F3 during startup.
4.
Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys to
select the option you want, then press Enter. To return to the Computer Setup Utilities menu, press Esc.
5.
To apply and save changes, select Main > Save Changes and Exit.
●
If you have made changes that you do not want applied, select Ignore Changes and Exit.
●
To restore settings from the Advanced and Main menus to original values, select Apply Factory
Defaults and Exit.
●
To restore settings from the Advanced and Main menus to those previously saved by Save Custom
Defaults, select Apply Custom Defaults and Exit. If no custom defaults have been saved, then factory
defaults are used.
NOTE: Settings in the Security menu are not modified by Apply Defaults. Those values are reset by
Restore Security Settings to Default at the bottom of the Security menu.
NOTE:
Not all settings shown in the following sections are available for all models
CAUTION: Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup (F10) changes
because the settings could become corrupted. It is safe to turn off the computer only after exiting the F10
Setup screen.
50
Chapter 5 Computer Setup (F10) Utility
Computer Setup–Main
NOTE:
Support for specific Computer Setup options may vary depending on the hardware configuration.
Table 5-1 Computer Setup—Main
Option
Description
System Information
Lists all information in following list if Advanced System Information is selected. Lists smaller subset if Basic
System Information is selected.
System Diagnostics
Update System BIOS
●
Product name
●
Installed memory size
●
Processor type
●
Processor cache size (L1/L2/L3)
●
Processor speed
●
MicroCode Revision
●
Processor Stepping
●
DIMM size (for each installed module)
●
System BIOS version
●
ME Firmware version (Intel only)
●
Video BIOS version
●
Super I/O Firmware version
●
Born On Date
●
Serial Number
●
SKU number
●
UUID (Universally Unique Identifier)
●
Asset Tracking Number
●
Feature Byte
●
Build ID
●
Product Family
●
System Board ID
●
System Board CT
●
Integrated MAC Address
If the hard drive has the HP Advanced Diagnostics installed, the application will launch. If HP Advanced
Diagnostics is not installed, then a basic version built into the BIOS will provide the capability to perform
the following functions:
●
Memory Test
●
Hard Drive Check
●
Language
Lets you update the system BIOS from www.hp.com or another network server, from a removable USB drive,
or from a file located on the hard drive.
●
‘Check HP.com for BIOS Updates’ or ‘Check the Network for BIOS Updates’
The string that appears here depends on the setting in ‘BIOS Update Preferences’.
Computer Setup (F10) Utilities
51
Table 5-1 Computer Setup—Main (continued)
Option
Description
●
Lock BIOS Version
If this option is checked, the system is locked to the current BIOS version and updates are not allowed.
●
BIOS Update Preferences
Allows the administrator to select the source of network updates (www.hp.com or another network
server) and allows configuration of a periodic check for updates, including policies for:
■
Check for updates and prompt the user to accept or reject the update at that time
■
Check for updates and install all new versions
■
Check for updates and install only new versions marked important
●
Network Configuration Settings
●
Update BIOS Using Local Media
Lets you access files on either USB storage or the hard drive. The HP BIOS Update and Recovery
application included in BIOS Softpaqs at www.hp.com will copy the BIOS file to the correct location on
the hard drive or USB device.
System IDs
Replicated Setup
Lets you set the following values:
●
Asset Tracking Number
●
Ownership Tag
Backup current settings to USB device
Saves system configuration to a formatted USB flash media device.
Restore current settings from USB device
Restores system configuration from a USB flash media device.
52
Save Custom Defaults
Saves the current system configuration settings as the custom default set.
Apply Custom Defaults
and Exit
Applies the custom default settings to the computer after rebooting. Does not apply to options in
the Security menu.
Apply Factory Defaults and
Exit
Restores the factory system configuration settings to the computer after rebooting. Does not apply to
options in the Security menu.
Ignore Changes and Exit
Exits Computer Setup without applying or saving any changes.
Save Changes and Exit
Saves changes to current system configuration, exits Computer Setup, and reboots.
Chapter 5 Computer Setup (F10) Utility
Computer Setup—Security
NOTE:
Support for specific Computer Setup options may vary depending on the hardware configuration.
Table 5-2 Computer Setup—Security
Option
Description
Set up BIOS Administrator
Password
Lets you set and enable a BIOS administrator password, which includes the following privileges:
●
Manage other BIOS users
●
Full access to BIOS policy and settings
●
Unlock the computer when other BIOS users fail the preboot authentication.
NOTE:
Creating a BIOS user disables the Fast Boot option.
NOTE: If the password is set, it is required to change Computer Setup options, update the BIOS, and make
changes to certain plug and play settings under Windows.
Change BIOS Administrator
Password (This selection is
active only if a BIOS
administrator password is
set.)
Lets you change the BIOS administrator password.
Password Policies
Let you set the guidelines for a valid password. Options include:
You must know the current password to be able to change it.
●
Password minimum length
●
Requires at least one symbol
●
Requires at least one number
●
Requires at least one upper case character
●
Requires at least one lower case character
●
Allow spaces
Clear Password Jumper
Select ‘Honor’ to allow or ‘Ignore’ to not allow the absence of the password jumper to clear the passwords at
boot up. Default is ‘Honor’.
Security Configuration
TPM Embedded Security
●
TPM Device
Lets you set the Trusted Platform Module as available or hidden.
●
TPM State
Select to enable the TPM.
●
TPM Clear
Select to reset the TPM to an unowned state. After the TPM is cleared, it is also turned off. To
temporarily suspend TPM operations, turn the TPM off instead of clearing it.
CAUTION: Clearing the TPM resets it to factory defaults and turns it off. You will lose all created keys
and data protected by those keys.
BIOS Sure Start
●
Verify Boot Block on every Boot
Select to check validity of boot block region each boot. If not selected, boot block region will be
validated on power cycles.
Computer Setup (F10) Utilities
53
Table 5-2 Computer Setup—Security (continued)
Option
Description
●
Data Recovery Policy
Select ‘Automatic’ or ‘Manual’ to set data recovery policy. ‘Manual’ lets you select whether or not to
execute recovery of a corrupted region if it is detected.
Set Up BIOS Power-On
Password
Lets you set and enable a BIOS power-on password. The power-on password prompt appears after a power
cycle or reboot. If the user does not enter the correct power-on password, the unit will not boot.
Change BIOS Power-On
Password (This selection is
active only if a BIOS
power-on password is set.)
Lets you change the BIOS power-on password.
DriveLock
Allows you to assign or modify a master or user password for hard drives. When this feature is enabled,
the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully
entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during a
subsequent cold-boot sequence.
You must know the current password to be able to change it.
NOTE: This selection will only appear when at least one drive that supports the DriveLock feature is
attached to the system.
CAUTION:
Be aware that these settings take place immediately. A save is not necessary.
CAUTION: Be sure to document the DriveLock password. Losing a DriveLock password will render a drive
permanently locked.
After you select a drive, the following options are available:
Set DriveLock Master Password. Sets the drive’s master password but does not enable DriveLock.
Enable DriveLock. Sets the drive’s user password and enables DriveLock.
Secure Erase
Lets you select a hard drive to completely erase.
Once a hard drive has been erased with a program that utilizes Secure Erase firmware commands, no file
recovery program, partition recovery program, or other data recovery method will be able to extract data
from the drive.
Save/Restore MBR of
the system hard drive
NOTE: Windows 10 systems are generally not formatted to include an MBR. Instead they use GUID Partition
Table (GPT) format, which better supports large hard drives.
Enabling this feature will save the Master Boot Record (MBR) of the system hard drive. If the MBR gets
changed, the user will be prompted to restore the MBR. Default is disabled.
The MBR contains information needed to successfully boot from a disk and to access the data stored on
the disk. Master Boot Record Security may prevent unintentional or malicious changes to the MBR, such as
those caused by some viruses or by the incorrect use of certain disk utilities. It also allows you to recover
the "last known good" MBR, should changes to the MBR be detected when the system is restarted.
NOTE: Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot
prevent changes that may occur while the operating system is running.
Restores the backup Master Boot Record to the current bootable disk. Default is disabled.
Only appears if all of the following conditions are true:
●
MBR security is enabled
●
A backup copy of the MBR has been previously saved
●
The current bootable disk is the same disk from which the backup copy was saved
CAUTION: Restoring a previously saved MBR after a disk utility or operating system has modified the MBR,
may cause the data on the disk to become inaccessible. Only restore a previously saved MBR if you are
confident that the current bootable disk's MBR has been corrupted or infected with a virus.
Smart Cover
54
Cover Lock (Lock/Unlock)
Chapter 5 Computer Setup (F10) Utility
Table 5-2 Computer Setup—Security (continued)
Option
Description
Default is ‘Unlock’.
Cover Removal Sensor (Disabled/Notify user/Administrator password)
Lets you disable the cover sensor or configure what action is taken if the computer cover was removed.
Default is ‘Disabled’.
NOTE: Notify user alerts the user with a POST error on the first boot after the sensor detects removal of
the cover. If the password is set, Administrator Password requires that the password be entered to boot
the computer if the sensor detects that the cover has been removed.
System Management
Command
Allows authorized personnel to reset security settings during a service event. Default is enabled.
Restore Security Settings
to Default
This action resets security devices, clears BIOS passwords (not including DriveLock), and restores settings in
the Security menu to factory defaults.
Computer Setup—Advanced
NOTE:
Support for specific Computer Setup options may vary depending on the hardware configuration.
Table 5-3 Computer Setup—Advanced (for advanced users)
Option
Heading
Display Language
Lets you select the language of the menus in F10 Setup and the keyboard layout.
Scheduled Power-On
This feature wakes the system up from a powered off state at a specified date and time.
Boot Options
Select the devices that the computer can boot from, as well as other options, including:
●
Startup Menu Delay(sec). Enabling this feature will add a user-specified delay to the POST process. One
purpose for the delay is to provide additional time to activate hotkeys such as Esc for the Startup Menu
or F10 for Computer Setup.
●
Fast Boot. Default is enabled.
●
CD-ROM Boot. Default is enabled.
●
Network (PXE) Boot. Default is enabled.
●
Prompt on Memory Size Change. Default is enabled.
●
Prompt on Fixed Storage Change. Default is disabled.
●
After Power Loss. Default is Power Off.
■
Power off—causes the computer to remain powered off when power is restored.
■
Power on—causes the computer to power on automatically as soon as power is restored.
■
Previous state—causes the computer to power on automatically as soon as power is restored, if
it was on when power was lost.
NOTE: If the system is configured to ‘Power On from Keyboard Ports’ (see Power Management
Options), then this setting is forced to ‘Power On’.
●
Audio Alerts During Boot. Default is enabled. When disabled, most audible beeps from errors, warnings,
and password prompts during boot up are suppressed.
●
UEFI Boot Order.
Default is enabled. Specify the order in which UEFI boot sources (such as a internal hard drive, USB hard
drive, USB optical drive, or internal optical drive) are checked for a bootable operating system image.
Computer Setup (F10) Utilities
55
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option
Heading
UEFI boot sources always have precedence over legacy boot sources.
●
Legacy Boot Order
Specify the order in which legacy boot sources (such as a network interface card, internal hard drive,
USB optical drive, or internal optical drive) are checked for a bootable operating system image.
Specify the order of attached hard drives. The first hard drive in the order will have priority in the boot
sequence and will be recognized as drive C (if any devices are attached).
NOTE:
To drag a device to a preferred place, press Enter.
NOTE: MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has
started.
Shortcut to Temporarily Override Boot Order
To boot one time from a device other than the default device specified in Boot Order, restart the computer
and press Esc (to access the Startup menu) and then F9 (Boot Menu), or only F9 (skipping the Startup menu)
when the monitor light turns green. After POST is completed, a list of bootable devices is displayed. Use
the arrow keys to select the preferred bootable device and press Enter. The computer then boots from
the selected non-default device for this one time.
Secure Boot Configuration
Configure Legacy Support and Secure Boot
Legacy Support – Lets you turn off all legacy support on the computer, including booting to DOS, running
legacy graphics cards, booting to legacy devices, and so on.
Secure Boot – Lets you make sure an operating system is legitimate before booting to it, making Windows
resistant to malicious modification from preboot to full OS booting, preventing firmware attacks. UEFI and
Windows Secure Boot only allow code signed by pre-approved digital certificates to run during the firmware
and OS boot process.
Default is ‘Legacy Support Enable and Secure Boot Disable’ for non-Windows configurations. Default is
‘Legacy Support Disable and Secure Boot Enable’ for Windows 10 configurations.
Secure Boot Key Management
Lets you manage the custom key settings.
Clear Secure Boot Keys
Lets you delete any previously loaded custom boot keys. Clearing keys will disable secure boot. Default is
disabled.
Reset Secure Boot keys to factory defaults
Default is disabled.
Enable MS UEFI CA key
Disabling this setting alters the Secure Boot key list to further restrict the allowed software components. Set
this option to ‘disable’ to support Device Guard.
System Options
Configure Storage Controller for RAID (enable/disable)
Lets you enable onboard RAID. Default is disabled.
POST Prompt for RAID Configuration (Intel only)
When disabled, the prompt for ‘RAID option ROM’ in legacy mode is suppressed.
SVM CPU Virtualization (AMD only)
Controls the virtualization features of the processor. Changing this setting requires turning the computer off
and then back on. Default is disabled.
Virtualization Technology (VTx) (Intel only)
56
Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option
Heading
Controls the virtualization features of the processor. Changing this setting requires turning the computer off
and then back on. Default is disabled.
Virtualization Technology for Directed I/O (VTd) (Intel only)
Controls virtualization DMA remapping features of the chipset. Changing this setting requires turning
the computer off and then back on. Default is disabled.
PCI Express Slot x (enable/disable)
Lets you disable individual expansion slots.
Allow PCIe/PCI SERR# Interrupt (enable/disable)
Allows PCI devices to report PCI/PCIe System Error signals, such as address parity errors, data parity errors,
and critical errors other than parity. Default is enabled.
Power Button Override (disable/4 sec/15 sec)
Lets you disable or enable and select the number of seconds you have to hold down the power button for it
to force the system to power off. Default is ‘4 sec’.
Built-In Device Options
Embedded LAN Controller
Select to show the device in the operating system. Default is enabled.
Wake On LAN
Lets you either disable the Wake On LAN feature, or configure where the computer boots, including
the network or hard drive. Default is Boot to Network.
Dust Filter
Select to enable the Dust Filter replacement reminder, which can be set for 15, 30, 60, 90, 120, or 180
days. The reminder will show during POST after the reminder timer has expired.
Video Memory Size
Use this option to manage graphics memory allocation. The value you choose is allocated permanently to
graphics and is unavailable to the operating system.
Audio Device
Select to show the device in the operating system. Default is enabled.
Internal Speakers (does not affect external speakers)
Clear to disable the chassis speaker or speakers. This function is applicable to normal audio playback in
the operating system and does not affect the error or warning beeps during POST. Default is enabled.
Integrated Microphone
Clear to disable the integrated microphone. This does not affect devices plugged into audio jacks. Default is
enabled.
Integrated Camera
Clear to disable the integrated webcam. Default is enabled.
Increase Idle Fan Speed(%)
Sets idle fan speed percentage. This setting only changes the minimum fan speed. The fan is still
automatically controlled.
Fingerprint Device
Select to show the device in the operating system. Default is enabled.
Touch Panel
Computer Setup (F10) Utilities
57
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option
Heading
Clear to disable the display panel touch feature. Default is enabled.
Port Options
Allows you to hide the following ports from the operating system:
●
Serial port A
●
Serial port B
●
SATA0
●
SATA1
●
SATA2
●
SATA3
●
SATA5
●
Front USB ports
●
Rear USB ports
●
USB charging port function
●
Media card reader
Restrict USB Devices
Specify the following categories of USB devices to enable:
●
Allow all USB devices
●
Allow only keyboard and mouse
●
Allow all but storage devices and hubs.
When some devices are restricted, the system will disable USB ports that do not meet the allowed
criteria. This feature is usually combined with similar policies within the operating system since USB devices
can be moved to different ports. The ports disabled by the BIOS will remain disabled until the system is
restarted.
Option ROM Launch Policy
These policies control whether Legacy Option ROMs or UEFI drivers are loaded. Default is ‘All legacy’ for nonWindows configurations. Default is ‘All UEFI’ for Windows 10.
Configure Option ROM Launch Policy
Power Management
Options
●
All legacy
●
All UEFI
●
All UEFI except video
Runtime Power Management (enable/disable)
Allows certain operating systems to reduce processor voltage and frequency when the current software load
does not require the full capabilities of the processor. Default is enabled.
Extended Idle Power States (enable/disable)
Allows certain operating systems to decrease the processors power consumption when the processor is idle.
Default is enabled.
S5 Maximum Power Savings (enable/disable)
Enabling this feature reduces the power of the system as much as possible in the S5 state. Power is
removed from the wake up circuitry, the expansion slots, and any management features while in S5. Default
is disabled.
SATA Power Management (enable/disable)
58
Chapter 5 Computer Setup (F10) Utility
Table 5-3 Computer Setup—Advanced (for advanced users) (continued)
Option
Heading
Enables or disables SATA bus and/or device power management. Default is enabled.
PCI Express Power Management (enable/disable)
Enabling this option permits the PCI Express links to use Active Power State Management (ASPM) to enter
lower power states while not in use. Default is enabled.
Unique Sleep State Blink Rates (enable/disable)
This feature is designed to provide a visual indication of what sleep state the system is in. Each sleep state
has a unique blink pattern. Default is disabled.
NOTE:
A normal shutdown goes to the S4 state for Windows 10.
S0 (On) = Solid white LED.
S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) — repeated
cycles of 3 blinks and a pause.
S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds (white LED) — repeated
cycles of 4 blinks and a pause.
S5 (Soft Off) = LED is off.
Power On from Keyboard Ports (enable/disable)
When enabled, this feature allows a key press to power on the system when it is off (S5 state). If using a USB
keyboard, it must be plugged into one of the rear ports labeled with the keyboard icon. Default is disabled.
Remote Management
Options
Active Management (AMT) (Intel only) (enable/disable). Default is enabled.
Allows you to discover, repair, and protect networked computing devices.
USB Key Provisioning Support (enable/disable) Default is disabled.
USB Redirection Support (enable/disable). Default is enabled.
USB redirection allows USB devices plugged into a client computer to be transparently redirected to
the guest operating system.
Unconfigure AMT on next boot (Do Not Apply/Apply). Default is ‘Do Not Apply’.
SOL Terminal Emulation Mode (ANSI / VT100). Default is ANSI.
SOL terminal emulation mode is only activated during remote AMT redirection operations. The emulation
options allow administrators to select which mode works best with their console.
Show Unconfigure ME Confirmation Prompt (enable/disable). Default is enabled.
Verbose Boot Messages (enable/disable). Default is enabled.
Verbose boot shows additional logging information during the boot. mainly for debugging if something goes
wrong during bootup.
Watchdog Timer (enable/disable). Default is enabled.
Allows you to set amount of time for a operating system and BIOS watchdog alert to be sent if the timers are
not deactivated. BIOS watchdog is deactivated by BIOS and would indicate that a halt occurred during
execution if the alert is sent to the management console. An operating system alert is deactivated by
the operating system image and would indicate that a hang occurred during its initialization.
●
OS Watchdog Timer (min.) – (5/10/15/20/25). Default is 5 min.
●
BIOS Watchdog Timer (min.) – (5/10/15/20/25). Default is 5 min.
CIRA Timeout (min.) (1/2/3/4/Never)
CIRA is Customer Initiated Remote Assistance, an Intel service to help users employing Active Management
Technology (AMT).
Computer Setup (F10) Utilities
59
Recovering the Configuration Settings
This method of recovery requires that you first perform the Save to Removable Media command with
the Computer Setup (F10) Utility before Restore is needed. (See Computer Setup–Main on page 51 in
the Computer Setup—File table.)
The Save to Removable Media option creates a file named HPSETUP.TXT on an inserted USB flash media
device. This file can be edited to change the settings on Restore. An asterisk (*) marks the selected option for a
setting.
NOTE: It is recommended that you save any modified computer configuration settings to a USB flash media
device and save the device for possible future use.
To restore the configuration, insert the USB flash media device with the saved configuration and perform
the Restore from Removable Media command with the Computer Setup (F10) Utility. (See Computer Setup–Main
on page 51 in the Computer Setup—File table.)
60
Chapter 5 Computer Setup (F10) Utility
6
Troubleshooting without diagnostics
This chapter provides information on how to identify and correct minor problems, such as USB devices, hard
drive, graphics, audio, memory, and software problems. If you encounter problems with the computer, refer to
the tables in this chapter for probable causes and recommended solutions.
NOTE: For information on specific error messages that may appear on the screen during Power-On Self-Test
(POST) at startup, refer to POST error messages and diagnostic front panel LEDs and audible codes on page 87.
Safety and comfort
WARNING! Misuse of the computer or failure to establish a safe and comfortable work environment may result
in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/ergo for more
information on choosing a workspace and creating a safe and comfortable work environment. For more
information, refer to the Safety & Regulatory Information guide.
Before you call for technical support
If you are having problems with the computer, try the appropriate solutions below to try to isolate the exact
problem before calling for technical support.
●
Run the HP diagnostic tool.
●
Run the hard drive self-test in Computer Setup. Refer to Computer Setup (F10) Utility on page 49 for more
information.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights are error
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 87 for more information.
●
If the screen is blank, plug the monitor into a different video port on the computer if one is available. Or,
replace the monitor with a monitor that you know is functioning properly.
●
If you are working on a network, plug another computer with a different cable into the network connection.
There may be a problem with the network plug or cable.
●
If you recently added new hardware, remove the hardware and see if the computer functions properly.
●
If you recently installed new software, uninstall the software and see if the computer functions properly.
●
Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When booting
the operating system, use “Last Known Configuration.”
●
Refer to the comprehensive online technical support at http://www.hp.com/support.
●
Refer to Helpful hints on page 62 in this guide.
To assist you in resolving problems online, HP Instant Support Professional Edition provides you with self-solve
diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's online chat feature.
Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe.
Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online support
information, software and drivers, proactive notification, and worldwide community of peers and HP experts.
Safety and comfort
61
If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that your
service call is handled properly:
●
Be in front of your computer when you call.
●
Write down the computer serial number, product ID number, and monitor serial number before calling.
●
Spend time troubleshooting the problem with the service technician.
●
Remove any hardware that was recently added to your system.
●
Remove any software that was recently installed.
●
Restore the system from the Recovery Disc Set that you created or restore the system to its original
factory condition in System Software Requirement Disks (SSRD).
CAUTION: Restoring the system will erase all data on the hard drive. Be sure to back up all data files before
running the restore process.
NOTE: For sales information and warranty upgrades (Care Packs), call your local authorized service provider or
dealer.
Helpful hints
If you encounter problems with the computer, monitor, or software, see the following list of general suggestions
before taking further action:
62
●
Check that the computer and monitor are plugged into a working electrical outlet.
●
Check that the voltage select switch (some models) is set to the appropriate voltage for your region (115V
or 230V).
●
Check that the computer is turned on and the white power light is on.
●
Check that the monitor is turned on and the green monitor light is on.
●
Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights are error
codes that will help you diagnose the problem. Refer to POST error messages and diagnostic front panel
LEDs and audible codes on page 87 for more information.
●
Turn up the brightness and contrast controls of the monitor if the monitor is dim.
●
Press and hold any key. If the system beeps, then the keyboard should be operating correctly.
●
Check all cable connections for loose connections or incorrect connections.
●
Wake the computer by pressing any key on the keyboard or pressing the power button. If the system
remains in suspend mode, shut down the computer by pressing and holding the power button for at least
four seconds then press the power button again to restart the computer. If the system will not shut down,
unplug the power cord, wait a few seconds, then plug it in again. The computer will restart if it is set to
power on automatically as soon as power is restored in Computer Setup. If it does not restart, press
the power button to start the computer.
●
Reconfigure the computer after installing a non-plug and play expansion board or other option. See Solving
hardware installation problems on page 79 for instructions.
●
Be sure that all the needed device drivers have been installed. For example, if you are using a printer, you
need a driver for that model printer.
●
Remove all bootable media (CD/DVD or USB device) from the system before turning it on.
Chapter 6 Troubleshooting without diagnostics
●
If you have installed an operating system other than the factory-installed operating system, check to be
sure that it is supported on the system.
●
If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed (embedded
video on some models only) and a single monitor, the monitor must be plugged into the monitor connector
on the source selected as the primary VGA adapter. During boot, the other monitor connectors are disabled
and if the monitor is connected into these ports, the monitor will not function. You can select which source
will be the default VGA source in Computer Setup.
CAUTION: When the computer is plugged into an AC power source, there is always voltage applied to
the system board. You must disconnect the power cord from the power source before opening the computer to
prevent system board or component damage.
Solving general problems
You may be able to easily resolve the general problems described in this section. If a problem persists and you
are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact an
authorized dealer or reseller.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect
the power cord from the wall outlet and allow the internal system components to cool before touching.
Cannot access the Computer Setup (F10) Utility when booting the computer.
Cause
Solution
The Computer Setup (F10) Utility is set to “fast boot” causing
the F10 access screen to display too briefly when booting
the computer.
Before turning on the computer, press and hold F10. Turn on
the computer and continue to hold F10 until the Computer Setup
(F10) Utility is displayed.
- or –
Follow the Windows instructions for rebooting the computer into
the Computer Setup (F10) Utility.
Computer appears locked up and will not turn off when the power button is pressed.
Cause
Solution
Software control of the power switch is not functional.
1.
Press and hold the power button for at least four seconds
until the computer turns off.
2.
Disconnect the power cord from the electrical outlet.
Computer will not respond to keyboard or mouse.
Cause
Solution
Computer is in Sleep state.
To resume from Sleep state, press the power button.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
System has locked up.
Restart computer.
Solving general problems
63
Computer date and time display is incorrect.
Cause
Solution
RTC (real-time clock) battery may need to be replaced.
Reset the date and time under Control Panel (Computer Setup can
also be used to update the RTC date and time). If the problem
persists, replace the RTC battery. See the Removal and
Replacement section for instructions on installing a new battery, or
contact an authorized dealer or reseller for RTC battery
replacement.
NOTE: Connecting the computer to a live AC outlet prolongs
the life of the RTC battery.
To access Control Panel, type control panel in the taskbar
search box, and then select Control Panel.
There is no sound or sound volume is too low.
Cause
Solution
System volume may be set low or muted.
1.
Check the Computer Setup settings to make sure the internal
system speaker is not muted (this setting does not affect
the external speakers).
2.
Make sure the external speakers are properly connected and
powered on and that the speakers' volume control is set
correctly.
3.
Use the system volume control available in the operating
system to make sure the speakers are not muted or to
increase the volume.
Cannot remove computer cover or access panel.
Cause
Solution
Smart Cover Lock, featured on some computers, is locked.
Unlock the Smart Cover Lock using Computer Setup.
In case of forgotten password, power loss, or computer
malfunction, you must manually disable the Smart Cover lock . A
key to unlock the Smart Cover Lock is not available from HP. Keys
are typically available from a hardware store.
Poor performance.
64
Cause
Solution
Processor is too hot.
1.
Make sure airflow to the computer is not blocked. Leave a
10.2-cm (4-inch) clearance on all vented sides of
the computer and above the monitor to permit the required
airflow.
2.
Make sure fans are connected and working properly (some
fans only operate when needed).
3.
Make sure the processor fan-sink is installed properly.
Hard drive is full.
Transfer data from the hard drive to create more space on the hard
drive.
Low on memory.
Add more memory.
Chapter 6 Troubleshooting without diagnostics
Poor performance.
Cause
Solution
Hard drive fragmented.
Defragment hard drive.
Program previously accessed did not release reserved memory
back to the system.
Restart the computer.
Virus resident on the hard drive.
Run virus protection program.
Too many applications running.
1.
Close unnecessary applications to free up memory.
2.
Add more memory.
3.
Some applications run in the background and can be closed by
right-clicking on their corresponding icons in the task tray. To
prevent these applications from launching at startup:
Some software applications, especially games, are stressful on
the graphics subsystem.
Cause unknown.
a.
Type msconfig in the taskbar search box, and then
select msconfig.
b.
On the Startup tab of the System Configuration Utility,
click Open Task Manager.
c.
Select applications that you do not want to launch
automatically, and the click Disable.
1.
Lower the display resolution for the current application or
consult the documentation that came with the application for
suggestions on how to improve performance by adjusting
parameters in the application.
2.
Add more memory.
3.
Upgrade the graphics solution.
Restart the computer.
Computer powered off automatically and the Power LED flashes red four times and then white two times.
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3.
If fan a plugged in and not spinning, replace it.
A fan may be blocked or not turning.
–or–
The fan-sink is not properly attached to the processor.
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
System unable to power on.
Press and hold the power button for less than 4 seconds. If the hard
drive LED turns white, then:
1.
If equipped with a voltage selector, check that the voltage
selector (located on the rear of the power supply) is set to
the appropriate voltage. Proper voltage setting depends on
your region.
Solving general problems
65
System does not power on and the LEDs on the front of the computer are not flashing.
Cause
Solution
2.
Remove the expansion cards one at a time until the 5V_aux
light on the system board turns on.
3.
Replace the system board.
–or–
Press and hold the power button for less than 4 seconds. If the hard
drive LED does not turn on white then:
1.
Check that the unit is plugged into a working AC outlet.
2.
Open the access panel and check that the power button cable
is properly connected to the system board.
3.
Check that the power supply cables are properly connected to
the system board.
4.
Check to see if the 5V_aux light on the system board is turned
on. If it is turned on, then replace the power button assembly.
5.
If the 5V_aux light on the system board is off, then replace
the power supply.
6.
Replace the system board.
Solving power problems
Common causes and solutions for power problems are listed in the following table.
Power supply shuts down intermittently.
Cause
Solution
If equipped with a voltage selector, voltage selector switch on rear
of computer chassis (some models) not switched to correct line
voltage (115V or 230V).
Select the proper AC voltage using the selector switch.
Power supply will not turn on because of internal power supply
fault.
Replace the power supply.
Computer powered off automatically and the Power LED flashes red two times, once every second, followed by a two second pause, and
the computer beeps two times. (Beeps stop after fifth iteration but LEDs continue flashing.) Computer powered off automatically and
the Power LED flashes red four times and then white two times.
Cause
Solution
Processor thermal protection activated:
1.
Ensure that the computer air vents are not blocked and
the processor cooling fan is running.
2.
Open the access panel, press the power button, and see if
the processor fan (or other system fan) spins. If the fan does
not spin, make sure the fan cable is plugged onto the system
board header.
3.
If fan a plugged in and not spinning, replace it.
A fan may be blocked or not turning.
–or–
The fan-sink is not properly attached to the processor.
66
Chapter 6 Troubleshooting without diagnostics
Power LED flashes red four times, once every second, followed by a two second pause, and the computer beeps four times. (Beeps stop
after fifth iteration but LEDs continue flashing.) Computer powered off automatically and the Power LED flashes red three times and then
white four times.
Cause
Solution
Power failure (power supply is overloaded).
1.
If equipped with a voltage selector, check that the voltage
selector, located on the rear of the power supply (some
models), is set to the appropriate voltage. Proper voltage
setting depends on your region.
2.
Open the access panel and ensure the power supply cable is
seated into the connector on the system board.
3.
Check if a device is causing the problem by removing ALL
attached devices (such as hard drives or optical drives). Power
on the system. If the system enters POST, then power off and
replace one device at a time and repeat this procedure until
failure occurs. Replace the device that is causing the failure.
Continue adding devices one at a time to ensure all devices
are functioning properly.
4.
Replace the power supply.
5.
Replace the system board.
Solving hard drive problems
Hard drive error occurs.
Cause
Solution
Hard disk has bad sectors or has failed.
1.
Type file in the taskbar search box, and then select File
Explorer from the list of applications. In the left column,
expand This PC, right-click on a drive, select Properties, and
then select the Tools tab. Under Error checking click Check.
2.
Use a utility to locate and block usage of bad sectors. If
necessary, reformat the hard disk.
Disk transaction problem.
Cause
Solution
Either the directory structure is bad or there is a problem with a file.
Type file in the taskbar search box, and then select File Explorer
from the list of applications. In the left column, expand This PC,
right-click on a drive, select Properties, and then select the Tools
tab. Under Error checking click Check.
Drive not found (identified).
Cause
Solution
Cable could be loose.
Check cable connections.
The system may not have automatically recognized a newly
installed device.
See reconfiguration directions in the Solving hardware installation
problems on page 79 section. If the system still does not
recognize the new device, check to see if the device is listed within
Solving hard drive problems
67
Drive not found (identified).
Cause
Solution
Computer Setup. If it is listed, the probable cause is a driver
problem. If it is not listed, the probable cause is a hardware
problem.
If this is a newly installed drive, run the Computer Setup utility and
try adding a POST delay under Advanced > Boot Options.
The device is attached to a SATA port that has been hidden in
Computer Setup.
Run the Computer Setup utility and ensure Device Available is
selected for the device's SATA port in Advanced > Port Options.
Drive responds slowly immediately after power-up.
Run Computer Setup and increase the POST Delay in Advanced >
Boot Options.
Nonsystem disk/NTLDR missing message.
Cause
Solution
The system is trying to start from the hard drive but the hard drive
may have been damaged.
▲
Perform Drive Protection System (DPS) testing in system
ROM.
System files missing or not properly installed.
1.
Insert bootable media and restart the computer.
2.
Boot to the windows installation media and select
the recovery option. If only a restore kit is available, then
select the File Backup Program option, and then restore
the system.
3.
Install system files for the appropriate operating system.
Hard drive boot has been disabled in Computer Setup.
Run the Computer Setup utility and enable the hard drive entry in
the Advanced > Boot Options list.
Bootable hard drive is not attached as first in a multi-hard drive
configuration.
If attempting to boot from a hard drive, ensure it is attached to
the system board dark blue SATA connector.
Bootable hard drive is not listed first in the Boot Order.
Run the Computer Setup utility and select Advanced > Boot Options
and ensure the bootable hard drive is listed immediately under
the Hard Drive entry.
Computer will not boot from hard drive.
Cause
Solution
The device is attached to a SATA port that has been hidden in
Computer Setup.
1.
Check SATA cable connections.
2.
Run the Computer Setup utility and ensure Device Available is
selected for the device's SATA port in Advanced > Port
Options.
Boot order is not correct.
Run the Computer Setup utility and change boot sequence in
Advanced > Boot Options.
Hard drive is damaged.
Observe if the front panel Power LED is blinking RED and if any
beeps are heard. See POST error messages and diagnostic front
panel LEDs and audible codes on page 87 to determine possible
causes for the blinking red and beep codes.
See the Worldwide Limited Warranty for terms and conditions.
68
Chapter 6 Troubleshooting without diagnostics
Computer seems to be locked up.
Cause
Solution
Program in use has stopped responding to commands.
1.
Use the task manager to close programs that do not respond.
2.
Attempt the normal Windows “Shut Down” procedure. If this
fails, press the power button for four or more seconds to turn
off the power. To restart the computer, press the power
button again.
Solving media card reader problems
Media card will not work in a digital camera after formatting it in Windows.
Cause
Solution
By default, Windows will format any media card with a capacity
greater than 32MB with the FAT32 format. Some digital cameras
use the FAT (FAT16 & FAT12) format and can not operate with a
FAT32 formatted card.
Either format the media card in the digital camera or select FAT file
system to format the media card in a computer with Windows.
A write-protected or locked error occurs when attempting to write to the media card.
Cause
Solution
Media card is locked. Locking the media card is a safety feature that
prevents writing to and deleting from an SD/Memory Stick/PRO
card.
If using an SD card, make sure that the lock tab located on the right
of the SD card is not in the locked position. If using a Memory
Stick/PRO card, make sure that the lock tab located on the bottom
of the Memory Stick/PRO card is not in the locked position.
Can not write to the media card.
Cause
Solution
The media card is a read-only memory (ROM) card.
Check the manufacturer’s documentation included with your card to
see if it writable. Refer to the previous section for a list of
compatible cards.
Media card is locked. Locking the media card is a safety feature that
prevents writing to and deleting from an SD/Memory Stick/PRO
card.
If using an SD card, make sure that the lock tab located on the right
of the SD card is not in the locked position. If using a Memory
Stick/PRO card, make sure that the lock tab located on the bottom
of the Memory Stick/PRO card is not in the locked position.
Unable to access data on the media card after inserting it into a slot.
Cause
Solution
The media card is not inserted properly, is inserted in the wrong
slot, or is not supported.
Ensure that the card is inserted properly with the gold contact on
the correct side. The green LED will light if inserted properly.
Solving media card reader problems
69
Do not know how to remove a media card correctly.
Cause
Solution
The computer’s software is used to safely eject the card.
Type file in the taskbar search box, and then select File Explorer
from the list of applications. In the left column, expand This PC,
right-click on the corresponding drive icon, and then select Eject.
Pull the card out of the slot.
NOTE:
Never remove the card when the green LED is flashing
After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized by the computer.
Cause
Solution
The operating system needs time to recognize the device if
the reader was just installed into the computer and you are turning
the PC on for the first time.
Wait a few seconds so that the operating system can recognize
the reader and the available ports, and then recognize the media
inserted in the reader.
After inserting a media card in the reader, the computer attempts to boot from the media card.
Cause
Solution
The inserted media card has boot capability.
1.
If you do not want to boot from the media card, remove it
during boot or do not select the option to boot from
the inserted media card during the boot process.
2.
During POST (Power On Self-Test), press F9 to modify
the boot menu.
3.
Change the boot sequence in F10 Computer Setup.
Solving display problems
If you encounter display problems, see the documentation that came with the monitor and to the common
causes and solutions listed in the following table.
Blank screen (no video).
70
Cause
Solution
Monitor is not turned on and the monitor light is not on.
Turn on the monitor and check that the monitor light is on.
Bad monitor.
Try a different monitor.
The cable connections are not correct.
Check the cable connection from the monitor to the computer and
to the electrical outlet.
You may have a screen blanking utility installed or energy saver
features are enabled.
Press any key or click the mouse button and type your password (if
set).
System ROM is corrupted; system is running in Boot Block
Emergency Recovery Mode (indicated by eight beeps).
Reflash the system ROM with the latest BIOS image.
You are using a fixed-sync monitor and it will not sync at
the resolution chosen.
Be sure that the monitor can accept the same horizontal scan rate
as the resolution chosen.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
Chapter 6 Troubleshooting without diagnostics
Blank screen (no video).
Cause
Solution
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Monitor cable is plugged into the wrong connector.
Systems may have a monitor connection on both the motherboard
or an add-in card. Try moving the monitor connection to a different
connector on the back of the computer
Monitor settings in the computer are not compatible with
the monitor.
1.
In Control Panel, select Category from the View by list, then
under Appearance and Personalization, select Adjust screen
resolution.
To access Control Panel, type control panel in
the taskbar search box, and then select Control Panel from
the list of applications.
2.
Monitor is configured to use an input that is not active.
Expand the Resolution box, and then use the sliding control to
reset the resolution.
Use the monitor's on-screen menu controls to select the input that
is being driven by the system. Refer to the monitor's user
documentation for more information on the on-screen controls and
settings.
Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video memory error.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six
times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
Pre-video graphics error.
For systems with a graphics card:
1.
Reseat the graphics card (if applicable). Power on the system.
2.
Replace the graphics card (if applicable).
3.
Replace the system board.
For systems with integrated graphics, replace the system board.
Solving display problems
71
Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and the computer beeps
seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)
Cause
Solution
System board failure (ROM detected failure prior to video).
Replace the system board.
Monitor does not function properly when used with energy saver features.
Cause
Solution
Monitor without energy saver capabilities is being used with energy
saver features enabled.
Disable monitor energy saver feature.
Dim characters.
Cause
Solution
The brightness and contrast controls are not set properly.
Adjust the monitor brightness and contrast controls.
Cables are not properly connected.
Check that the graphics cable is securely connected to the graphics
card (if applicable) or video connector and the monitor.
Blurry video or requested resolution cannot be set.
Cause
Solution
If the graphics controller was upgraded, the correct graphics drivers
may not be loaded.
Install the video drivers included in the upgrade kit.
Monitor is not capable of displaying requested resolution.
Change requested resolution.
Graphics card is bad.
Replace the graphics card.
The picture is broken up, rolls, jitters, or flashes.
Cause
Solution
The monitor connections may be incomplete or the monitor may be
incorrectly adjusted.
1.
Be sure the monitor cable is securely connected to
the computer.
2.
In a two-monitor system or if another monitor is in close
proximity, be sure the monitors are not interfering with each
other’s electromagnetic field by moving them apart.
3.
Fluorescent lights or fans may be too close to the monitor.
Monitor needs to be degaussed.
72
Chapter 6 Troubleshooting without diagnostics
Degauss the monitor. Refer to the documentation that came with
the monitor for instructions.
Image is not centered.
Cause
Solution
Position may need adjustment.
Press the monitor's Menu button to access the OSD menu. Select
ImageControl/ Horizontal Position or Vertical Position to adjust
the horizontal or vertical position of the image.
“No Connection, Check Signal Cable” displays on screen.
Cause
Solution
Monitor video cable is disconnected.
Connect the video cable between the monitor and computer.
CAUTION: Ensure that the computer power is off while connecting
the video cable.
“Out of Range” displays on screen.
Cause
Solution
Video resolution and refresh rate are set higher than what
the monitor supports.
Restart the computer and enter Safe Mode. Change the settings to
a supported setting then restart the computer so that the new
settings take effect.
To enter Safe Mode:
1.
Log into the computer using an Administrator account.
2.
Type msconfig in the taskbar search box, and then select
msconfig from the list of applications.
3.
Click the Boot tab, select Safe boot and then click OK.
When your computer is in safe mode, Safe Mode displays in
the corners of your monitor. To exit safe mode, restart your
computer and let Windows start normally.
High pitched noise coming from inside a flat panel monitor.
Cause
Solution
Brightness and/or contrast settings are too high.
Lower brightness and/or contrast settings.
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the picture on
the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
Flat panel monitor’s internal digital conversion circuits may be
unable to correctly interpret the output synchronization of
the graphics card.
1.
Select the monitor’s Auto-Adjustment option in the monitor’s
on-screen display menu.
2.
Manually synchronize the Clock and Clock Phase on-screen
display functions. To download a SoftPaq that will assist you
with the synchronization, go to the following Web site, select
Solving display problems
73
Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the picture on
the screen (flat panel monitors using an analog VGA input connection only).
Cause
Solution
the appropriate monitor, and download either SP32347 or
SP32202: http://www.hp.com/support
Graphics card is not seated properly or is bad (some models).
1.
Reseat the graphics card.
2.
Replace the graphics card.
Certain typed symbols do not appear correct.
Cause
Solution
The font you are using does not support that particular symbol.
Use the Character Map to locate and select the appropriate symbol.
You can copy the symbol from the Character Map into a document.
Type ch in the taskbar search box, and then select Character Map
from the list of applications.
Solving audio problems
If the computer has audio features and you encounter audio problems, see the common causes and solutions
listed in the following table.
Sound cuts in and out.
Cause
Solution
Processor resources are being used by other open applications.
Shut down all open processor-intensive applications.
Sound does not come out of the speaker or headphones.
74
Cause
Solution
Software volume control is turned down or muted.
Double-click the Speaker icon on the taskbar, then make sure that
Mute is not selected and use the volume slider to adjust
the volume.
Audio is hidden in Computer Setup.
Enable the audio in Computer Setup: Advanced > Built-in Device
Options.
The external speakers are not turned on.
Turn on the external speakers.
The audio device may be connected to the wrong jack.
Ensure that the device is connected to the correct jack on
the computer. The speakers should be plugged into the line-out jack
and the headphones should be plugged into the headphone jack.
External speakers plugged into the wrong audio jack on a recently
installed sound card.
See the sound card documentation for proper speaker connection.
The rear audio jack output is the green receptacle.
Headphones or devices connected to the line-out connector mute
the internal speaker.
Turn on and use headphones or external speakers, if connected, or
disconnect headphones or external speakers.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
Chapter 6 Troubleshooting without diagnostics
Sound does not come out of the speaker or headphones.
Cause
Solution
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Internal speaker is disabled in Computer Setup.
Enable the internal speaker in Computer Setup. Select Advanced >
Built-in Device Options.
The application is set to use a different audio device than speakers.
Some graphics cards support audio over the DisplayPort connection
(if applicable), so multiple audio devices may be listed in Device
Manager. Make sure the correct device is being used.
To access Device Manager, type device manager in the taskbar
search box, and then select Device Manager from the list of
applications.
Some applications can select which audio output device is used.
Make sure the application has selected the correct audio device.
The operating system controls may be set to use a different audio
device as the default output device than what is expected.
Set the operating system to use the correct audio device.
Sound from headphones is not clear or muffled.
Cause
Solution
Headphones are plugged into the rear audio output connector. The
rear audio output connector is for powered audio devices and is not
designed for headphone use.
Plug the headphones into the headphone connector on the front of
the computer.
Computer appears to be locked up while recording audio.
Cause
Solution
The hard disk may be full.
Before recording, make sure there is enough free space on the hard
disk. You can also try recording the audio file in a compressed
format.
Line-in jack is not functioning properly.
Cause
Solution
Jack has been reconfigured in the audio driver or application
software.
In the audio driver or application software, reconfigure the jack or
set the jack to its default value.
There is no sound or very weak sound is detected by the headset microphone.
Cause
Solution
The incorrect style of headset is being used.
The front headset jack supports only Cellular Telephone Industries
Association (CTIA) style headsets. Open Mobile Terminal Platform
(OMTP) style headsets are not supported. These styles of headsets
differ by the way that the microphone signals are oriented on the
Solving audio problems
75
There is no sound or very weak sound is detected by the headset microphone.
Cause
Solution
connector. To solve the issue, use a CTIA style headset or a
commercially available adapter that will convert from OMTP to CTIA
signaling.
There is no sound or sound volume is too low.
Cause
Solution
The application is set to use a different audio device than speakers.
Some graphics cards support audio over the DisplayPort connection
(if applicable), so multiple audio devices may be listed in Device
Manager. Make sure the correct device is being used.
To access Device Manager, type device manager in the taskbar
search box, and then select Device Manager from the list of
applications.
Some applications can select which audio output device is used.
Make sure the application has selected the correct audio device.
The operating system controls may be set to use a different audio
device as the default output device than what is expected.
Set the operating system to use the correct audio device.
Solving printer problems
If you encounter printer problems, see the documentation that came with the printer and to the common causes
and solutions listed in the following table.
Printer will not print.
Cause
Solution
Printer is not turned on and online.
Turn the printer on and make sure it is online.
The correct printer drivers for the application are not installed.
1.
Install the correct printer driver for the application.
2.
Try printing using the MS-DOS command:
DIR C:\ > [printer port]
where [printer port] is the address of the printer being
used. If the printer works, reload the printer driver.
To run MS-DOS commands, press the Windows key + r, type cmd in
the Open box, and then click OK.
If you are on a network, you may not have made the connection
to the printer.
Make the proper network connections to the printer.
Printer may have failed.
Run printer self-test.
Printer will not turn on.
76
Cause
Solution
The cables may not be connected properly.
Reconnect all cables and check the power cord and electrical outlet.
Chapter 6 Troubleshooting without diagnostics
Printer prints garbled information.
Cause
Solution
The correct printer driver for the application is not installed.
Install the correct printer driver for the application.
The cables may not be connected properly.
Reconnect all cables.
Printer memory may be overloaded.
Reset the printer by turning it off for one minute, then turn it back
on.
Printer will not print.
Cause
Solution
The printer may be out of paper.
Check the paper tray and refill it if it is empty.
Solving keyboard and mouse problems
If you encounter keyboard or mouse problems, see the documentation that came with the equipment and to
the common causes and solutions listed in the following table.
A wireless keyboard/mouse is not working correctly. Symptoms include lagging mouse movement, jumpy mouse/keyboard, or no function
of mouse/keyboard and external drive.
Cause
Solution
If your computer is equipped with USB 3.0 ports, connected USB 3.0
devices can interfere with the wireless keyboard USB receiver.
Connect the wireless keyboard USB receiver to a USB 2.0 port that
is separated from ports with USB 3.0 devices. If you still experience
interference, you may have to place the connectors farther apart
using an external USB hub.
Keyboard commands and typing are not recognized by the computer.
Cause
Solution
Keyboard connector is not properly connected.
Shut down the computer, reconnect the keyboard to the back of
the computer, and then restart the computer.
Program in use has stopped responding to commands.
Shut down your computer using the mouse and then restart
the computer.
Keyboard needs repairs.
See the Worldwide Limited Warranty for terms and conditions.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep date, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Solving keyboard and mouse problems
77
Mouse does not respond to movement or is too slow.
Cause
Solution
Mouse connector is not properly plugged into the back of
the computer.
Shut down the computer using the keyboard.
1.
Press the Ctrl and Esc keys at the same time (or press
the Windows logo key) to display the Start menu.
2.
Use the arrow keys to scroll to and select the power icon at
the top right on the menu, and then press Enter.
3.
Use the arrow keys to select Shut Down, and then press Enter.
4.
After the shutdown is complete, plug the mouse connector
into the back of the computer (or the keyboard) and restart.
Program in use has stopped responding to commands.
Shut down the computer using the keyboard then restart
the computer.
Mouse may need cleaning.
Remove the roller ball cover on the mouse and clean the internal
components.
Mouse may need repair.
See the Worldwide Limited Warranty for terms and conditions.
Computer is in Sleep state.
Press the power button to resume from Sleep state.
CAUTION: When attempting to resume from Sleep state, do not
hold down the power button for more than four seconds.
Otherwise, the computer will shut down and you will lose any
unsaved data.
Mouse will only move vertically, horizontally, or movement is jerky.
78
Cause
Solution
Mouse roller ball or the rotating encoder shafts that make contact
with the ball are dirty.
Remove roller ball cover from the bottom of the mouse and clean
the internal components with a mouse cleaning kit available from
most computer stores.
Chapter 6 Troubleshooting without diagnostics
Solving hardware installation problems
You may need to reconfigure the computer when you add or remove hardware, such as an additional drive or
expansion card. If you install a plug and play device, Windows automatically recognizes the device and
configures the computer. If you install a non-plug and play device, you must reconfigure the computer after
completing installation of the new hardware. In Windows, use the Add Hardware Wizard and follow
the instructions that appear on the screen.
To open the Add Hardware Wizard, open a Command Prompt and open hdwwiz.exe.
WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system
board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect
the power cord from the wall outlet and allow the internal system components to cool before touching.
Table 6-1 Solving hardware installation problems
A new device is not recognized as part of the system.
Cause
Solution
Device is not seated or connected properly.
Ensure that the device is properly and securely connected and that
pins in the connector are not bent down.
Cable(s) of new external device are loose or power cables are
unplugged.
Ensure that all cables are properly and securely connected and that
pins in the cable or connector are not bent down.
Power switch of new external device is not turned on.
Turn off the computer, turn on the external device, then turn on
the computer to integrate the device with the computer system.
When the system advised you of changes to the configuration, you
did not accept them.
Reboot the computer and follow the instructions for accepting
the changes.
A plug and play board may not automatically configure when
added if the default configuration conflicts with other devices.
Use Windows Device Manager to deselect the automatic settings for
the board and choose a basic configuration that does not cause a
resource conflict. You can also use Computer Setup to reconfigure
or disable devices to resolve the resource conflict.
To access Device Manager, type device manager in the taskbar
search box, and then select Device Manager from the list of
applications.
USB ports on the computer are disabled in Computer Setup.
Run the Computer Setup utility and ensure that Device available is
selected for appropriate USB ports under Advanced > Port Options.
Computer will not start.
Cause
Solution
Wrong memory modules were used in the upgrade or memory
modules were installed in the wrong location.
1.
Review the documentation that came with the system to
determine if you are using the correct memory modules and
to verify the proper installation.
NOTE: DIMM1 or XMM1 must always be installed. DIMM1
must be installed before DIMM2, and DIMM3 must be installed
before DIMM4.
2.
Observe the beeps and LED lights on the front of
the computer. Beeps and flashing LEDs are codes for specific
problems.
3.
If you still cannot resolve the issue, contact Customer
Support.
Solving hardware installation problems
79
Power LED flashes Red three times and then white two times.
Cause
Solution
Memory is installed incorrectly or is bad.
CAUTION: To avoid damage to the DIMMs or the system board,
you must unplug the computer power cord before attempting to
reseat, install, or remove a DIMM module.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
NOTE: DIMM1 or XMM1 must always be installed. DIMM1
must be installed before DIMM2, and DIMM3 must be installed
before DIMM4
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Solving network problems
Some common causes and solutions for network problems are listed in the following table. These guidelines do
not discuss the process of debugging the network cabling.
Table 6-2 Solving network problems
Network driver does not detect network controller.
Cause
Solution
Network controller is disabled.
1.
Run Computer Setup and enable network controller.
2.
Enable the network controller in the operating system using
Device Manager.
To access Device Manager, type device manager in
the taskbar search box, and then select Device Manager from
the list of applications.
Incorrect network driver.
Check the network controller documentation for the correct driver
or obtain the latest driver from the manufacturer’s Web site.
Network status link light never flashes.
NOTE:
The network status light is supposed to flash when there is network activity.
Cause
Solution
No active network is detected.
Check cabling and network equipment for proper connection.
Network controller is not set up properly.
Check for the device status within Windows, such as Device
Manager for driver load and the Network Connections applet within
Windows for link status.
To access Device Manager, type device manager in the taskbar
search box, and then select Device Manager from the list of
applications.
Network controller is disabled.
80
Chapter 6 Troubleshooting without diagnostics
1.
Run Computer Setup and enable network controller.
Table 6-2 Solving network problems (continued)
Network status link light never flashes.
NOTE:
The network status light is supposed to flash when there is network activity.
Cause
Solution
2.
Enable the network controller in the operating system using
Device Manager.
To access Device Manager, type device manager in
the taskbar search box, and then select Device Manager from
the list of applications.
Network driver is not properly loaded.
Reinstall network drivers.
System cannot autosense the network.
Disable auto-sensing capabilities and force the system into
the correct operating mode.
Diagnostics reports a failure.
Cause
Solution
The cable is not securely connected.
Ensure that the cable is securely attached to the network connector
and that the other end of the cable is securely attached to
the correct device.
The cable is attached to the incorrect connector.
Ensure that the cable is attached to the correct connector.
There is a problem with the cable or a device at the other end of
the cable.
Ensure that the cable and device at the other end are operating
correctly.
The network controller is defective.
Contact an authorized service provider.
Diagnostics passes, but the computer does not communicate with the network.
Cause
Solution
Network drivers are not loaded, or driver parameters do not match
current configuration.
Make sure the network drivers are loaded and that the driver
parameters match the configuration of the network controller.
Make sure the correct network client and protocol is installed.
The network controller is not configured for this computer.
Select the Network and Sharing Center icon in the Control Panel and
configure the network controller.
To access Control Panel, type control panel in the taskbar
search box, and then select Control Panel from the list of
applications.
Network controller stopped working when an expansion board was added to the computer.
Cause
Solution
The network controller requires drivers.
Verify that the drivers were not accidentally deleted when
the drivers for a new expansion board were installed.
Solving network problems
81
Network controller stops working without apparent cause.
Cause
Solution
The files containing the network drivers are corrupted.
Reinstall the network drivers using the Windows recovery tools.
If necessary, download the softpaq from the web (from a different
computer).
The cable is not securely connected.
Ensure that the cable is securely attached to the network connector
and that the other end of the cable is securely attached to
the correct device.
The network controller is defective.
Contact an authorized service provider.
New network card will not boot.
Cause
Solution
New network card may be defective or may not meet industrystandard specifications.
Install a working, industry-standard NIC, or change the boot
sequence to boot from another source.
Cannot connect to network server when attempting Remote System Installation.
Cause
Solution
The network controller is not configured properly.
Verify Network Connectivity, that a DHCP Server is present, and that
the Remote System Installation Server contains the NIC drivers for
your NIC.
System setup utility reports unprogrammed EEPROM.
82
Cause
Solution
Unprogrammed EEPROM.
Contact an authorized service provider.
Chapter 6 Troubleshooting without diagnostics
Solving memory problems
If you encounter memory problems, some common causes and solutions are listed in the following table.
CAUTION: Power may still be supplied to the DIMMs when the computer is turned off (depending on
the Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you must unplug
the computer power cord before attempting to reseat, install, or remove a memory module.
For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory. Otherwise,
the computer will not boot the operating system.
NOTE: The memory count will be affected by configurations with the Management Engine (ME) enabled. The
ME uses 8MB of system memory in single channel mode or 16MB of memory in dual-channel mode to
download, decompress, and execute the ME firmware for Out-of-Band (OOB), third-party data storage, and other
management functions.
System will not boot or does not function properly after installing additional memory modules.
Cause
Solution
A memory module is not installed in the DIMM1 or XMM1 socket.
Ensure that a memory module is installed in the DIMM1 or XMM1
socket on the system board. This socket must be populated with a
memory module.
Memory module is not the correct type or speed grade for
the system or the new memory module is not seated properly.
Replace module with the correct industry-standard device for
the computer. On some models, ECC and non-ECC memory
modules cannot be mixed.
Out of memory error.
Cause
Solution
You have run out of memory to run the application.
Check the application documentation to determine the memory
requirements.
Memory count during POST is wrong.
Cause
Solution
The memory modules may not be installed correctly.
Check that the memory modules have been installed correctly and
that proper modules are used.
Integrated graphics may use system memory.
No action required.
Insufficient memory error during operation.
Cause
Solution
Too many Terminate and Stay Resident programs (TSRs) are
installed.
Delete any TSRs that you do not need.
You have run out of memory for the application.
Check the memory requirements for the application or add more
memory to the computer.
Solving memory problems
83
Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop
after fifth iteration but LEDs continue flashing.)
Cause
Solution
Memory is installed incorrectly or is bad.
1.
Reseat DIMMs. Power on the system.
2.
Replace DIMMs one at a time to isolate the faulty module.
3.
Replace third-party memory with HP memory.
4.
Replace the system board.
Solving USB flash drive problems
If you encounter USB flash drive problems, common causes and solutions are listed in the following table.
USB flash drive is not seen as a drive letter in Windows.
Cause
Solution
The drive letter after the last physical drive is not available.
Change the default drive letter for the flash drive in Windows.
USB flash drive not found (identified).
Cause
Solution
The device is attached to a USB port that has been hidden in
Computer Setup.
Run the Computer Setup utility and enable USB ports in Advanced >
Port Options.
The device was not properly seated before power-up.
Ensure the device is fully inserted into the USB port before applying
power to the system
System will not boot from USB flash drive.
Cause
Solution
Boot order is not correct.
Run the Computer Setup utility and change boot sequence in
Advanced > Boot Options.
Removable Media Boot is disabled in the Computer Setup utility.
Run the Computer Setup utility and enable booting to removable
media in Advanced > Boot Options. Ensure USB is enabled in
Storage > Boot Order.
The computer boots to DOS after making a bootable flash drive.
84
Cause
Solution
Flash drive is bootable.
Install the flash drive only after the operating system boots.
Flash drive is defective.
Try a different flash drive.
Chapter 6 Troubleshooting without diagnostics
Solving front panel component problems
If you encounter problems with devices connected to the front panel, refer to the common causes and solutions
listed in the following table.
A USB device, headphone, or microphone is not recognized by the computer.
Cause
Solution
Device is not properly connected.
1.
Turn off the computer.
2.
Reconnect the device to the front of the computer and restart
the computer.
The device does not have power.
If the USB device requires AC power, be sure one end is connected
to the device and one end is connected to a live outlet.
The correct device driver is not installed.
1.
Install the correct driver for the device.
2.
You might need to reboot the computer.
1.
If possible, replace the cable.
2.
Restart the computer.
1.
Replace the device.
2.
Restart the computer.
The cable from the device to the computer does not work.
The device is not working.
USB ports on the computer are disabled in Computer Setup.
Run the Computer Setup utility and ensure that the USB ports are
set to Enabled in Security > USB Security.
Solving Internet access problems
If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the common
causes and solutions listed in the following table.
Unable to connect to the Internet.
Cause
Solution
Internet Service Provider (ISP) account is not set up properly.
Verify Internet settings or contact your ISP for assistance.
Web browser is not set up properly.
Verify that the Web browser is installed and set up to work with
your ISP.
Cable/DSL modem is not plugged in.
Plug in cable/DSL modem. You should see a “power” LED light on
the front of the cable/DSL modem.
Cable/DSL service is not available or has been interrupted due to
bad weather.
Try connecting to the Internet at a later time or contact your ISP. (If
the cable/DSL service is connected, the “cable” LED light on
the front of the cable/DSL modem will be on.)
The CAT5 UTP cable is disconnected.
Connect the CAT5 UTP cable between the cable modem and
the computers’s RJ-45 connector. (If the connection is good,
the “PC” LED light on the front of the cable/DSL modem will be on.)
IP address is not configured properly.
Contact your ISP for the correct IP address.
Cookies are corrupted. (A “cookie” is a small piece of information
that a Web server can store temporarily with the Web browser. This
is useful for having the browser remember some specific
information that the Web server can later retrieve.)
1.
Type control panel in the taskbar search box, and then
select Control Panel from the list of applications.
2.
Click Internet Options.
Solving front panel component problems
85
Unable to connect to the Internet.
Cause
Solution
3.
In the Browsing history section, click the Delete button.
4.
Select the Cookies and website data check box and click
the Delete button.
Cannot automatically launch Internet programs.
Cause
Solution
You must log on to your ISP before some programs will start.
Log on to your ISP and launch the desired program.
Solving software problems
Most software problems occur as a result of the following:
●
The application was not installed or configured correctly.
●
There is insufficient memory available to run the application.
●
There is a conflict between applications.
●
Be sure that all the needed device drivers have been installed.
●
If you have installed an operating system other than the factory-installed operating system, check to be
sure it is supported on the system.
If you encounter software problems, see the applicable solutions listed in the following table.
Computer will not continue and the HP logo does not display.
Cause
Solution
ROM issue - POST error has occurred.
Observe the beeps and LED lights on the front of the computer. See
POST error messages and diagnostic front panel LEDs and
audible codes on page 87 to determine possible causes.
See the Worldwide Limited Warranty for terms and conditions.
“Illegal Operation has Occurred” error message is displayed.
86
Cause
Solution
Software being used is not Microsoft-certified for your version of
Windows.
Verify that the software is certified by Microsoft for your version of
Windows (see program packaging for this information).
Configuration files are corrupt.
If possible, save all data, close all programs, and restart
the computer.
Chapter 6 Troubleshooting without diagnostics
7
POST error messages and diagnostic front
panel LEDs and audible codes
This appendix lists the error codes, error messages, and the various indicator light and audible sequences that
you may encounter during Power-On Self-Test (POST) or computer restart, the probable source of the problem,
and steps you can take to resolve the error condition.
POST Message Disabled suppresses most system messages during POST, such as memory count and non-error
text messages. If a POST error occurs, the screen will display the error message. To manually switch to the POST
Messages Enabled mode during POST, press any key (except F10, F11, or F12). The default mode is POST
Message Disabled.
The speed at which the computer loads the operating system and the extent to which it is tested are determined
by the POST mode selection.
Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory test. Full
Boot runs all of the ROM-based system tests and takes longer to complete.
Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish
the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.
NOTE:
For more information on Computer Setup, see Computer Setup (F10) Utility on page 49.
POST numeric codes and text messages
This section covers those POST errors that have numeric codes associated with them. The section also includes
some text messages that may be encountered during POST.
NOTE:
The computer will beep once after a POST text message is displayed on the screen.
Control panel message
Description
Recommended action
002-Option ROM Checksum Error
System ROM or expansion board option ROM
checksum.
1.
Verify the correct ROM.
2.
Flash the ROM if needed.
3.
If an expansion board was recently added,
remove it to see if the problem remains.
4.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
5.
If the message disappears, there may be a
problem with the expansion card.
6.
Replace the system board.
1.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
2.
Remove expansion boards.
3.
Replace the system board.
003-System Board Failure
005-Real-Time Clock Power Loss
DMA or timers.
Invalid time or date in configuration memory.
Reset the date and time under Control Panel
(Computer Setup can also be used). If
POST numeric codes and text messages
87
Control panel message
008–Microcode Patch Error
009–PMM Allocation Error during MEBx
Download
Recommended action
RTC (real-time clock) battery may need to
be replaced.
the problem persists, replace the RTC battery.
See the Removal and Replacement section for
instructions on installing a new battery.
Processor is not supported by the BIOS.
1.
Upgrade BIOS to proper version.
2.
Change the processor.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat
the memory modules, and reboot
the computer.
3.
If the memory configuration was recently
changed, unplug the computer, restore
the original memory configuration, and
reboot the computer.
4.
If the error persists, replace the system
board.
Memory error during POST execution of
the Management Engine (ME) BIOS Extensions
option ROM.
00A-Product Information Not Valid
The product information programmed into
the system board is missing or invalid.
Use Computer Setup to update this information.
00B-MEBx Module did not checksum correctly
Memory error during POST execution of
the Management Engine (ME) BIOS Extensions
option ROM.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat
the memory modules, and reboot
the computer.
3.
If the memory configuration was recently
changed, unplug the power cord, restore
the original memory configuration, and
reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat
the memory modules, and reboot
the computer.
3.
If the memory configuration was recently
changed, unplug the power cord, restore
the original memory configuration, and
reboot the computer.
4.
If the error persists, replace the system
board.
1.
Reboot the computer.
2.
Unplug the power cord, re-seat
the memory modules, and reboot
the computer.
3.
If the memory configuration was recently
changed, unplug the power cord, restore
the original memory configuration, and
reboot the computer.
4.
If the error persists, replace the system
board.
00C-PMM Deallocation Error during MEBx
Cleanup
00D-Setup Error during MEBx Execution
88
Description
Memory error during POST execution of
the Management Engine (ME) BIOS Extensions
option ROM.
MEBx selection or exit resulted in a setup failure.
Chapter 7 POST error messages and diagnostic front panel LEDs and audible codes
Control panel message
Description
Recommended action
00E-Inventory Error during MEBx Execution
BIOS information passed to the MEBx resulted in
a failure.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the system
board.
1.
Reboot the computer.
2.
If the error persists, update to the latest
BIOS version.
3.
If the error still persists, replace the system
board.
00F-Interface Error during MEBx Execution
MEBx operation experienced a hardware error
during communication with the ME.
100-Front Audio Not Connected
Front audio cable has been detached or
unseated from system board.
Reconnect or replace front audio cable.
2E1-MemorySize Error
Memory amount has changed since the last boot
(memory added or removed).
The system memory size is different from
the last startup. The most common reason is
the removal of memory from the system board.
Press the F1 key to save the memory changes. If
this message persists, verify that the memory
modules are installed correctly.
2E2-Memory Error
Memory module configuration failed during boot
up.
1.
Ensure memory modules are correctly
installed.
2.
Verify proper memory module type.
3.
Remove and replace the identified faulty
memory module(s).
4.
If the error persists after replacing memory
modules, replace the system board.
1.
Verify proper memory module type.
2.
Try another memory socket.
3.
Replace with a supported module.
2E3-Incompatible Memory Module in Memory
Socket(s) X, X, ...
A memory module in memory socket identified in
the error message is missing critical SPD
information, or is incompatible with the chipset.
2E4-DIMM Configuration Warning
The current memory configuration is not
optimized.
Rearrange the DIMMs so that each channel has
the same amount of memory.
2E5-ECC Memory Module Detected on
Unsupported Platform
Recently added memory module(s) support ECC
memory error correction.
1.
If additional memory was recently added,
remove it to see if the problem remains.
2.
Check product documentation for memory
support information.
2E6–Memory Not Configured Correctly for Proper
MEBx Execution
DIMM1 is not installed.
Make sure there is a memory module in
the DIMM1 socket and that it is properly seated.
300–Configuration Change Warning
The storage device configuration will be updated
as shown.
Not applicable
301-Hard Disk 1: SMART Hard Drive Detects
Imminent Failure
Hard drive is about to fail. (Some hard drives
have a hard drive firmware patch that will fix an
erroneous error message.)
1.
Determine if hard drive is giving correct
error message. Run the Drive Protection
System test under using F2 Diagnostics
when booting the computer.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard drive.
POST numeric codes and text messages
89
Control panel message
Description
Recommended action
302-Hard Disk 2: SMART Hard Drive Detects
Imminent Failure
Hard drive is about to fail. (Some hard drives
have a hard drive firmware patch that will fix an
erroneous error message.)
1.
Determine if hard drive is giving correct
error message. Run the Drive Protection
System test under using F2 Diagnostics
when booting the computer.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard drive.
1.
Determine if hard drive is giving correct
error message. Run the Drive Protection
System test under using F2 Diagnostics
when booting the computer.
2.
Apply hard drive firmware patch
if applicable. (Available at
http://www.hp.com/support.)
3.
Back up contents and replace hard drive.
309 – 30C: Hard Disk 3–6: SMART Hard Drive
Detects Imminent Failure
3F0–Boot Device Not Found
Boot device not found.
Insert boot device or load operating system.
3F1–Hard Disk 1 Error
Hard disk 1 error.
1.
Check and/or replace cables.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Replace the hard disk drive.
1.
Check and/or replace cables.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Replace the hard disk drive.
1.
Remove any serial port expansion cards.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion cards.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion cards.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
1.
Remove any serial port expansion cards.
2.
Clear CMOS. (See Password security and
resetting CMOS on page 94.)
3.
Reconfigure card resources and/or run
Computer Setup or Windows utilities.
3F2–Hard Disk 2 Error
400-Serial Port A Address Conflict Detected
401-Serial Port B Address Conflict Detected
402-Serial Port C Address Conflict Detected
403-Serial Port D Address Conflict Detected
90
Hard drive is about to fail. (Some hard drives
have a hard drive firmware patch that will fix an
erroneous error message.)
Hard disk 2 error.
Both external and internal serial ports are
assigned to the same resources.
Both external and internal serial ports are
assigned to the same resources.
Both external and internal serial ports are
assigned to the same resources.
Both external and internal serial ports are
assigned to the same resources.
Chapter 7 POST error messages and diagnostic front panel LEDs and audible codes
Control panel message
Description
Recommended action
419-Out of Memory Space for Option ROMs
Recently added PCI expansion card contains an
option ROM too large to download during POST.
▲
41A-Front USB1/USB2 Not Connected
Front USB cable has been detached or unseated
from system board.
Reconnect or replace front USB cable.
41B-Device in PCI Express Slot Failed To Initialize
There is an incompatibility or problem with a
PCIe device and the system or PCIe link could not
be configured to a valid bus width or speed.
Try rebooting the system. If the error reoccurs,
the device may not work with this system
43A-USB Type-C I2C Not Connected
Cable is required between I2C on card and USB-C
on the system board.
Install cable between I2C on card and USB-C on
the system board.
43B-More Than One USB type-C Cards Are
Installed
More than one USB type-C card is installed.
Remove USB type-C card so only one is installed.
500–BIOS Recovery
A system BIOS recovery has occurred.
Not applicable.
70x-Wireless Mode Not Supported
The system has detected a wireless module
installed in the system that is not supported and
has been disabled.
Replace with a supported module.
800-Keyboard Error
Keyboard failure.
1.
Reconnect keyboard with computer turned
off.
2.
Check connector for bent or missing pins.
3.
Ensure that none of the keys are
depressed.
4.
Replace keyboard.
1.
Reconnect the keyboard with computer
turned off.
2.
Ensure that none of the keys are
depressed.
3.
Replace the keyboard.
4.
Replace the system board.
1.
Reseat CPU fan.
2.
Reseat fan cable.
3.
Replace CPU fan.
1.
Reseat chassis, rear chassis, or front
chassis fan.
2.
Reseat fan cable.
3.
Replace chassis, rear chassis, or front
chassis fan.
801-Keyboard or System Unit Error
900-CPU Fan Not Detected
901-Chassis, Rear Chassis, or Front Chassis Fan
not Detected
Keyboard failure.
CPU fan is not connected or may have
malfunctioned.
Chassis, rear chassis, or front chassis fan is not
connected or may have malfunctioned.
903-Computer Cover Has Been Removed Since
Last System Startup
If a PCI expansion card was recently added,
remove it to see if the problem remains.
N/A
904-SATA Cabling Error
One or more SATA devices are improperly
attached. For optimal performance, the SATA 0
and SATA 1 ports should be used for hard drives
before other ports.
Ensure SATA connectors are used in ascending
order. For one device, use SATA 0. For two
devices, use SATA 0 and SATA 1. For three
devices, use SATA 0, SATA 1, and SATA 2.
90B-Fan Failure
The system has detected that a cooling fan is not
operating correctly.
1.
Reseat fan.
2.
Reseat fan cable.
POST numeric codes and text messages
91
Control panel message
Description
Recommended action
3.
Replace fan.
90D-System Temperature
Thermal shutdown occurred. The system BIOS
has detected your machine was previously shut
down to avoid overheating. Overheating may
occur if the cooling vents are blocked or
the operating temperature exceeds the system
specifications. The machine should return to
normal operation once the situation is resolved.
Make sure system has proper airflow.
90E-Power Supply Fan Not detected
Power supply fan is not connected or may have
malfunctioned.
1.
Reseat power supply fan.
2.
Reseat fan cable.
3.
Replace power supply fan.
910–Filter Warning
Airflow filter is dirty.
Replace the airflow filter.
Interpreting system validation diagnostic front panel LEDs and
audible codes
During the system validation phase that occurs at system startup, the BIOS validates the functionality of
the following subsystems and conditions:
●
AC adapter
●
System board power
●
Processor failure
●
BIOS corruption
●
Memory failure
●
Graphics failure
●
System board failure
●
BIOS authentication failure
If an error is detected, specific patterns of long and short blinks, accompanied by long and short beeps (where
applicable) are used to identify the error. These patterns will make up a two part code:
●
Major – the category of the error
●
Minor – the specific error within the category
NOTE: Single beep/blink codes are not used.
92
Number of long beeps/blinks
Error category
1
Not used
2
BIOS
3
Hardware
4
Thermal
5
System board
Chapter 7 POST error messages and diagnostic front panel LEDs and audible codes
Patterns of blink/beep codes are determined by using the following parameters:
●
1 second pause occurs after the last major blink.
●
2 second pause occurs after the last minor blink.
●
Beep error code sequences occur for the first 5 iterations of the pattern and then stop.
●
Blink error code sequences continue until the computer is unplugged or the power button is pressed.
NOTE:
Not all diagnostic lights and audible codes are available on all models.
The red LED blinks to represent the major error category (long blinks). The white LED blinks to represent
the minor error category (short blinks). For example, ‘3.5’ indicates 3 long red blinks and 5 short white blinks to
communicate the processor is not detected.
Category
BIOS
Hardware
Thermal
System board
Major/minor code
Description
2.2
The main area (DXE) of BIOS has become corrupted and there is no recovery
binary image available.
2.3
The embedded controller policy requires the user to enter a key sequence.
2.4
The embedded controller is checking or recovering the boot block.
3.2
The embedded controller has timed out waiting for BIOS to return from
memory initialization.
3.3
The embedded controller has timed out waiting for BIOS to return from
graphics initialization.
3.4
The system board displays a power failure (crowbar).*
3.5
The processor is not detected.*
3.6
The processor does not support an enabled feature.
4.2
A processor over temperature condition has been detected.*
4.3
An ambient temperature over temperature condition has been detected.
4.4
An MXM over temperature condition has been detected.
5.2
The embedded controller cannot find valid firmware.
5.3
The embedded controller has timed out waiting for the BIOS.
5.4
The embedded controller has timed out waiting for BIOS to return from system
board initialization.
5.5
The embedded controller rebooted the system after a possible lockup condition
had been detected through the use of a System Health Timer, Automated
System Recovery Timer, or other mechanism.
* Indicates hardware triggered event; all other events are controlled by the BIOS.
Interpreting system validation diagnostic front panel LEDs and audible codes
93
8
Password security and resetting CMOS
This computer supports security password features, which can be established through the Computer Setup
Utilities menu.
This computer supports two security password features that are established through the Computer Setup
Utilities menu: administrator password and power-on password. When you establish only an administrator
password, any user can access all the information on the computer except Computer Setup. When you establish
only a power-on password, the power-on password is required to access Computer Setup and any other
information on the computer. When you establish both passwords, only the administrator password will give you
access to Computer Setup.
When both passwords are set, the administrator password can also be used in place of the power-on password
as an override to log in to the computer. This is a useful feature for a network administrator.
If you forget one or both passwords, you can clear all passwords by powering off the system, opening the cover,
temporarily removing the CLR_PSWD jumper, and booting once. This will erase the administrator and power-on
passwords. You must restore the jumper to create new passwords.
The computer’s configuration memory (CMOS) stores information about the computer’s configuration.
The CMOS jumper resets CMOS but does not clear the power-on and setup passwords.
CAUTION: Resetting the CMOS with power removed will reset the BIOS settings to factory defaults. It may be
useful to back up the BIOS settings or save them as custom defaults before resetting them in case they are
needed later. Back up can be performed in Computer Setup or using the BiosConfigUtility tool available from
www.hp.com. See Computer Setup (F10) Utility on page 49 for information on backing up the BIOS settings.
Resetting CMOS resets BIOS settings to default, but does not clear the passwords or affect any of the other
Security settings. On Intel systems with advanced manageability features, resetting CMOS will also partially
unprovision AMT.
CAUTION: Stringent security is a mode where there is no physical bypass of the password function. If enabled,
removing the password jumper will be ignored. To enable this mode, change the security setting Clear Password
Jumper in Password Policies to Ignore.
If you lose or forget the password when in stringent security mode, the system can only be reset by System
Management Command. This is a way for HP Service and Support to provide a secure method to access the BIOS
and command a password reset for a specifically identified unit under the direction of the owner. This scenario
may not be covered under warranty.
To prevent needing a customer service event to restore access to the system, record your configured
administrator and power-on passwords in a safe place away from your computer.
NOTE: You will receive POST error messages after clearing CMOS and rebooting advising you that configuration
changes have occurred. Use Computer Setup to reset any special system setups along with the date and time.
CAUTION: It is important to back up the computer CMOS settings before resetting them in case they are needed
later. Back up is easily done through Computer Setup. See Computer Setup (F10) Utility on page 49 for
information on backing up the CMOS settings.
94
Chapter 8 Password security and resetting CMOS
Resetting CMOS and/or the password jumper
This computer supports security password features, which can be established through the Computer Setup
Utilities menu.
This computer supports two security password features that are established through the Computer Setup
Utilities menu: administrator password and power-on password. When you establish only an administrator
password, any user can access all the information on the computer except Computer Setup. When you establish
only a power-on password, the power-on password is required to access Computer Setup and any other
information on the computer. When you establish both passwords, only the administrator password will give you
access to Computer Setup.
When both passwords are set, the administrator password can also be used in place of the power-on password
as an override to log in to the computer. This is a useful feature for a network administrator.
If you forget one or both passwords, you can clear all passwords by powering off the system, opening the cover,
temporarily removing the CMOS/PSWD jumper, and booting once. This will erase the administrator and power-on
passwords. You must restore the jumper to create new passwords.
CAUTION: Resetting the CMOS with power removed will reset the BIOS settings to factory defaults. It may be
useful to back up the BIOS settings or save them as custom defaults before resetting them in case they are
needed later. Back up can be performed in Computer Setup or using the BiosConfigUtility tool available from
www.hp.com. See Computer Setup (F10) Utility on page 49 for information on backing up the BIOS settings.
Resetting CMOS resets BIOS settings to default, but does not clear the passwords or affect any of the other
Security settings. On Intel systems with advanced manageability features, resetting CMOS will also partially
unprovision AMT.
CAUTION: Stringent security is a mode where there is no physical bypass of the password function. If enabled,
removing the password jumper will be ignored. To enable this mode, change the security setting Clear Password
Jumper in Password Policies to Ignore.
If you lose or forget the password when in stringent security mode, the system can only be reset by System
Management Command. This is a way for HP Service and Support to provide a secure method to access the BIOS
and command a password reset for a specifically identified unit under the direction of the owner. This scenario
may not be covered under warranty.
To prevent needing a customer service event to restore access to the system, record your configured
administrator and power-on passwords in a safe place away from your computer.
NOTE: You will receive POST error messages after clearing CMOS and rebooting advising you that configuration
changes have occurred. Use Computer Setup to reset any special system setups along with the date and time.
To clear CMOS, disable the power-on or administrator password features, or to clear the power-on or
administrator passwords, complete the following steps:
Resetting CMOS and/or the password jumper
95
1.
Shut down the operating system properly, then turn off the computer and any external devices, and
disconnect the power cord from the power outlet.
2.
With the power cord disconnected, press the power button again to drain the system of any residual power.
WARNING! To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to
disconnect the power cord from the wall outlet, and allow the internal system components to cool before
touching.
CAUTION: When the computer is plugged in, the power supply always has voltage applied to the system
board even when the unit is turned off. Failure to disconnect the power cord can result in damage to
the system.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a
grounded metal object. See the Safety & Regulatory Information guide for more information.
3.
Remove the access panel.
4.
Locate the header and jumper labeled CMOS/PSWD.
NOTE:
The password jumper is blue so that it can be easily identified.
5.
Remove the jumper from pins 1 and 2.
6.
Place the jumper on either pin 1 or 2, but not both, so that it does not get lost.
7.
Replace the access panel and reconnect the external equipment.
8.
Plug in the computer and turn on power. Allow the operating system to start. This clears the current
passwords and disables the password features.
9.
Shut down the computer, unplug the power, and disconnect the external equipment.
10. Remove the access panel.
11. Place the jumper on pins 1 and 2.
12. Replace the access panel.
13. Reconnect the external equipment and plug in the computer.
96
Chapter 8 Password security and resetting CMOS
Changing a Setup or Power-on password
To change the power-on or setup password, complete the following steps:
1.
Turn on or restart the computer.
To change the Setup password, go to step 2.
To change the Power-on password, go to step 3.
2.
To change the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
3.
When the key icon appears, type your current password, a slash (/) or alternate delimiter character, your
new password, another slash (/) or alternate delimiter character, and your new password again as shown:
current password/new password/new password
NOTE:
4.
Type the new password carefully since the characters do not appear on the screen.
Press Enter.
The new password will take effect the next time the computer is restarted.
Deleting a Setup or Power-on password
To delete the power-on or setup password, complete the following steps:
1.
Turn on or restart the computer.
To delete the Setup password, go to step 2.
To delete the Power-on password, go to step 3.
2.
To delete the Setup password, as soon as the computer turns on:
- Press the Esc key while “Press the ESC key for Startup Menu” message is displayed.
- Press the F10 key to enter Computer Setup.
3.
When the key icon appears, type your current password, a slash (/) or alternate delimiter character, your
new password, another slash (/) or alternate delimiter character, and your new password again as shown:
current password/
4.
Press Enter.
Changing a Setup or Power-on password
97
9
Using HP PC Hardware Diagnostics (UEFI)
HP PC Hardware Diagnostics is a Unified Extensible Firmware Interface (UEFI) that allows you to run diagnostic
tests to determine whether the computer hardware is functioning properly. The tool runs outside the operating
system so that it can isolate hardware failures from issues that are caused by the operating system or other
software components.
When HP PC Hardware Diagnostics (UEFI) detects a failure that requires hardware replacement, a 24-digit Failure
ID is generated. This ID can then be provided to support to help determine how to correct the problem.
To start HP PC Hardware Diagnostics (UEFI), follow these steps:
1.
Turn on or restart the computer, and quickly press esc
2.
Press F2.
The BIOS searches three places for the diagnostic tools, in the following order:
a.
Connected USB drive
NOTE: To download the HP PC Hardware Diagnostics (UEFI) tool to a USB drive, see Downloading HP
PC Hardware Diagnostics (UEFI) to a USB device on page 99.
3.
b.
Hard drive
c.
BIOS
When the diagnostic tool opens, select the type of diagnostic test you want to run, and then follow the onscreen instructions.
NOTE: If you need to stop a diagnostic test, press esc.
98
Chapter 9 Using HP PC Hardware Diagnostics (UEFI)
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
NOTE: The HP PC Hardware Diagnostics (UEFI) download instructions are provided in English only, and you
must use a Windows computer to download and create the HP UEFI support environment because only .exe files
are offered.
There are two options to download HP PC Hardward Diagnostics to USB device.
Download the latest UEFI version
1.
Go to http://www.hp.com/go/techcenter/pcdiags. The HP PC Diagnostics home page is displayed.
2.
In the HP PC Hardware Diagnostics section, click the Dowload link, and then select Run.
Download any version of UEFI for a specific product
1.
Go to http://www.hp.com/support, and then select your country. The HP Support page is displayed. .
2.
Click Drivers & Downloads.
3.
Use the categories listed to find your product.
– or –
Click Find Now to let HP automatically detect your product.
4.
Select your computer, and then select your operating system.
5.
In the Diagnostic section, follow the on-screen instructions to select and download the UEFI version you
want.
Downloading HP PC Hardware Diagnostics (UEFI) to a USB device
99
10 System backup and recovery
Backing up, restoring, and recovering
This section provides information about the following processes. The information in the section is standard
procedure for most products.
●
Creating recovery media and backups
●
Restoring and recovering your system
For additional information, refer to Help and Support.
▲
Type help in the taskbar search box, and then select Help and Support.
Creating recovery media and backups
The following methods of creating recovery media and backups are available on select products only. Choose
the available method according to your computer model.
●
Use HP Recovery Manager to create HP Recovery media after you successfully set up the computer. This
step creates a backup of the HP Recovery partition on the computer. The backup can be used to reinstall
the original operating system in cases where the hard drive is corrupted or has been replaced. For
information on creating recovery media, see Creating HP Recovery media (select products only)
on page 101. For information on the recovery options that are available using the recovery media, see
What you need to know before you get started on page 103.
●
Use Windows tools to create system restore points and create backups of personal information.
For more information, see Using Windows tools on page 102.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
100 Chapter 10 System backup and recovery
Creating HP Recovery media (select products only)
If possible, check for the presence of the Recovery partition and the Windows partition. From the Start menu,
select File Explorer.
●
If your computer does not list the Windows partition and the Recovery partition, you can obtain recovery
media for your system from support. See the Worldwide Telephone Numbers booklet included with
the computer. You can also find contact information on the HP website. Go to http://www.hp.com/support,
select your country or region, and follow the on-screen instructions.
You can use Windows tools to create system restore points and create backups of personal information,
see Using Windows tools on page 102.
●
If your computer does list the Recovery partition and the Windows partition, you can use HP Recovery
Manager to create recovery media after you successfully set up the computer. HP Recovery media can be
used to perform system recovery if the hard drive becomes corrupted. System recovery reinstalls
the original operating system and software programs that were installed at the factory and then configures
the settings for the programs. HP Recovery media can also be used to customize the system or restore
the factory image if you replace the hard drive.
○
Only one set of recovery media can be created. Handle these recovery tools carefully, and keep them
in a safe place.
○
HP Recovery Manager examines the computer and determines the required storage capacity for
the media that will be required.
○
To create recovery discs, your computer must have an optical drive with DVD writer capability, and
you must use only high-quality blank DVD-R, DVD+R, DVD-R DL, or DVD+R DL discs. Do not use
rewritable discs such as CD±RW, DVD±RW, double-layer DVD±RW, or BD-RE (rewritable Blu-ray) discs;
they are not compatible with HP Recovery Manager software. Or, instead, you can use a high-quality
blank USB flash drive.
○
If your computer does not include an integrated optical drive with DVD writer capability, but you
would like to create DVD recovery media, you can use an external optical drive (purchased separately)
to create recovery discs. If you use an external optical drive, it must be connected directly to a USB
port on the computer; the drive cannot be connected to a USB port on an external device, such as a
USB hub. If you cannot create DVD media yourself, you can obtain recovery discs for your computer
from HP. See the Worldwide Telephone Numbers booklet included with the computer. You can also find
contact information on the HP website. Go to http://www.hp.com/support, select your country or
region, and follow the on-screen instructions.
○
Be sure that the computer is connected to AC power before you begin creating the recovery media.
○
The creation process can take an hour or more. Do not interrupt the creation process.
○
If necessary, you can exit the program before you have finished creating all of the recovery DVDs. HP
Recovery Manager will finish burning the current DVD. The next time you start HP Recovery Manager,
you will be prompted to continue.
To create HP Recovery media:
1.
Type recovery in the taskbar search box, and then select HP Recovery Manager.
2.
Select Create recovery media, and then follow the on-screen instructions.
If you ever need to recover the system, see Recovering using HP Recovery Manager on page 103.
Backing up, restoring, and recovering 101
Using Windows tools
You can create recovery media, system restore points, and backups of personal information using Windows
tools.
NOTE: If storage is 32 GB or less, Microsoft System Restore is disabled by default.
For more information and steps, see Help and Support.
▲
Type help in the taskbar search box, and then select Help and Support.
Restore and recovery
There are several options for recovering your system. Choose the method that best matches your situation and
level of expertise:
IMPORTANT:
●
Windows offers several options for restoring from backup, refreshing the computer, and resetting
the computer to its original state. For more information see Help and Support.
▲
●
Not all methods are available on all products.
Type help in the taskbar search box, and then select Help and Support.
If you need to correct a problem with a preinstalled application or driver, use the Reinstall drivers and/ or
applications option (select products only) of HP Recovery Manager to reinstall the individual application or
driver.
▲
Type recovery in the taskbar search box, select HP Recovery Manager, select Reinstall drivers
and/or applications, and then follow the on-screen instructions.
●
If you want to recover the Windows partition to original factory content, you can choose the System
Recovery option from the HP Recovery partition (select products only) or use the HP Recovery media. For
more information, see Recovering using HP Recovery Manager on page 103. If you have not already
created recovery media, see Creating HP Recovery media (select products only) on page 101.
●
On select products, if you want to recover the computer's original factory partition and content, or if you
have replaced the hard drive, you can use the Factory Reset option of HP Recovery media. For more
information, see Recovering using HP Recovery Manager on page 103.
●
On select products, if you want to remove the recovery partition to reclaim hard drive space, HP Recovery
Manager offers the Remove Recovery Partition option.
For more information, see Removing the HP Recovery partition (select products only) on page 104.
102 Chapter 10 System backup and recovery
Recovering using HP Recovery Manager
HP Recovery Manager software allows you to recover the computer to its original factory state by using the HP
Recovery media that you either created or that you obtained from HP, or by using the HP Recovery partition
(select products only). If you have not already created recovery media, see Creating HP Recovery media (select
products only) on page 101.
What you need to know before you get started
●
HP Recovery Manager recovers only software that was installed at the factory. For software not provided
with this computer, you must either download the software from the manufacturer's website or reinstall
the software from the media provided by the manufacturer.
IMPORTANT: Recovery through HP Recovery Manager should be used as a final attempt to correct
computer issues.
●
HP Recovery media must be used if the computer hard drive fails. If you have not already created recovery
media, see Creating HP Recovery media (select products only) on page 101.
●
To use the Factory Reset option (select products only), you must use HP Recovery media. If you have not
already created recovery media, see Creating HP Recovery media (select products only) on page 101.
●
If your computer does not allow the creation of HP Recovery media or if the HP Recovery media does not
work, you can obtain recovery media for your system from support. See the Worldwide Telephone Numbers
booklet included with the computer. You can also find contact information from the HP website. Go to
http://www.hp.com/support, select your country or region, and follow the on-screen instructions.
IMPORTANT: HP Recovery Manager does not automatically provide backups of your personal data. Before
beginning recovery, back up any personal data you want to retain.
Using HP Recovery media, you can choose from one of the following recovery options:
NOTE:
Only the options available for your computer display when you start the recovery process.
●
System Recovery—Reinstalls the original operating system, and then configures the settings for
the programs that were installed at the factory.
●
Factory Reset—Restores the computer to its original factory state by deleting all information from the hard
drive and re-creating the partitions. Then it reinstalls the operating system and the software that was
installed at the factory.
The HP Recovery partition (select products only) allows System Recovery only.
Using the HP Recovery partition (select products only)
The HP Recovery partition allows you to perform a system recovery without the need for recovery discs or a
recovery USB flash drive. This type of recovery can be used only if the hard drive is still working.
To start HP Recovery Manager from the HP Recovery partition:
1.
Type recovery in the taskbar search box, select Recovery Manager, and then select HP Recovery
Environment.
- or Press f11 while the computer boots, or press and hold f11 as you press the power button.
2.
Select Troubleshoot from the boot options menu.
3.
Select Recovery Manager, and then follow the on-screen instructions.
Backing up, restoring, and recovering 103
Using HP Recovery media to recover
You can use HP Recovery media to recover the original system. This method can be used if your system does not
have an HP Recovery partition or if the hard drive is not working properly.
1.
If possible, back up all personal files.
2.
Insert the HP Recovery media, and then restart the computer.
NOTE: If the computer does not automatically restart in HP Recovery Manager, change the computer boot
order. See Changing the computer boot order on page 104.
3.
Follow the on-screen instructions.
Changing the computer boot order
If your computer does not restart in HP Recovery Manager, you can change the computer boot order, which is
the order of devices listed in BIOS where the computer looks for startup information. You can change
the selection to an optical drive or a USB flash drive.
To change the boot order:
1.
Insert the HP Recovery media.
2.
Access BIOS.
Restart the computer, quickly press esc, and then press f9 for boot options.
3.
Select the optical drive or USB flash drive from which you want to boot.
4.
Follow the on-screen instructions.
Removing the HP Recovery partition (select products only)
HP Recovery Manager software allows you to remove the HP Recovery partition to free up hard drive space.
IMPORTANT: After you remove the HP Recovery partition, you will not be able to perform System Recovery or
create HP recovery media from the HP Recovery partition. So before you remove the Recovery partition, create
HP Recovery media; see Creating HP Recovery media (select products only) on page 101.
NOTE: The Remove Recovery Partition option is only available on products that support this function.
Follow these steps to remove the HP Recovery partition:
1.
Type recovery in the taskbar search box, and then select HP Recovery Manager.
2.
Select Remove Recovery Partition, and then follow the on-screen instructions.
104 Chapter 10 System backup and recovery
A
Battery replacement
The battery that comes with the computer provides power to the real-time clock. When replacing the battery,
use a battery equivalent to the battery originally installed in the computer. The computer comes with a 3-volt
lithium coin cell battery.
WARNING! The computer contains an internal lithium manganese dioxide battery. There is a risk of fire and
burns if the battery is not handled properly. To reduce the risk of personal injury:
Do not attempt to recharge the battery.
Do not expose to temperatures higher than 60°C (140ºF).
Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.
Replace the battery only with the HP spare designated for this product.
CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When
the battery is removed or replaced, the CMOS settings will be cleared.
Static electricity can damage the electronic components of the computer or optional equipment. Before
beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded
metal object.
NOTE: The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall socket.
The lithium battery is only used when the computer is NOT connected to AC power.
HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable
batteries. For more information about recycling programs, go to http://www.hp.com/recycle.
1.
Remove/disengage any security devices that prohibit opening the computer.
2.
Remove all removable media, such as compact discs or USB flash drives, from the computer.
3.
Turn off the computer properly through the operating system, then turn off any external devices.
4.
Disconnect the power cord from the power outlet and disconnect any external devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as
the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to
the internal components of the computer.
5.
Remove the access panel.
6.
Locate the battery and battery holder on the system board.
NOTE: On some computer models, it may be necessary to remove an internal component to gain access
to the battery.
7.
Depending on the type of battery holder on the system board, complete the following instructions to
replace the battery.
Type 1
a.
Lift the battery out of its holder.
105
b.
Slide the replacement battery into position, positive side up. The battery holder automatically secures
the battery in the proper position.
Type 2
a.
To release the battery from its holder, squeeze the metal clamp that extends above one edge of
the battery. When the battery pops up, lift it out (1).
b.
To insert the new battery, slide one edge of the replacement battery under the holder’s lip with
the positive side up. Push the other edge down until the clamp snaps over the other edge of
the battery (2).
Type 3
a.
Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).
106 Appendix A Battery replacement
b.
Insert the new battery and position the clip back into place.
NOTE:
After the battery has been replaced, use the following steps to complete this procedure.
8.
Replace the access panel.
9.
Plug in the computer and turn on power to the computer.
10. Reset the date and time, your passwords, and any special system setups using Computer Setup.
11. Lock any security devices that were disengaged when the access panel was removed.
107
B
Statement of memory volatility
The purpose of this chapter is to provide general information regarding nonvolatile memory in HP Business PCs.
This chapter also provides general instructions for restoring nonvolatile memory that can contain personal data
after the system has been powered off and the hard drive has been removed.
HP Business PC products that use Intel®-based or AMD®-based system boards contain volatile DDR memory.
The amount of nonvolatile memory present in the system depends upon the system configuration. Intel-based
and AMD-based system boards contain nonvolatile memory subcomponents as originally shipped from HP,
assuming that no subsequent modifications have been made to the system and assuming that no applications,
features, or functionality have been added to or installed on the system.
Following system shutdown and removal of all power sources from an HP Business PC system, personal data
can remain on volatile system memory (DIMMs) for a finite period of time and will also remain in nonvolatile
memory. Use the steps below to remove personal data from the PC, including the nonvolatile memory found in
Intel-based and AMD-based system boards.
Current BIOS steps
1.
Follow steps (a) through (l) below to restore the nonvolatile memory that can contain personal data.
Restoring or reprogramming nonvolatile memory that does not store personal data is neither necessary
nor recommended.
a.
Turn on or restart the computer, and then press esc.
NOTE:
b.
If the system has a BIOS administrator password, enter the password at the prompt.
Select Main, select Apply Factory Defaults and Exit, and then select Yes to load defaults.
The computer will reboot.
c.
During the reboot, press esc.
NOTE:
d.
If the system has a BIOS administrator password, enter the password at the prompt.
Select the Security menu, select Restore Security Settings to Factory Defaults, and then select Yes to
restore security level defaults.
The computer will reboot.
e.
During the reboot, press esc.
NOTE:
If the system has a BIOS administrator password, enter the password at the prompt.
f.
If an asset or ownership tag is set, select the Security menu and scroll down to the Utilities menu.
Select System IDs, and then select Asset Tracking Number. Clear the tag, and then make the selection
to return to the prior menu.
g.
If a DriveLock password is set, select the Security menu, and scroll down to Hard Drive Utilities under
the Utilities menu. Select Hard Drive Utilities, select DriveLock, then uncheck the checkbox for
DriveLock password on restart. Select OK to proceed.
108 Appendix B Statement of memory volatility
h.
Select the Main menu, and then select Reset BIOS Security to factory default. Click Yes at the warning
message.
The computer will reboot.
i.
During the reboot, press esc.
NOTE:
2.
If the system has a BIOS administrator password, enter the password at the prompt.
j.
Select the Main menu, select Apply Factory Defaults and Exit, select Yes to save changes and exit, and
then select Shutdown.
k.
Reboot the system. If the system has a Trusted Platform Module (TPM) and/or fingerprint reader, one
or two prompts will appear—one to clear the TPM and the other to Reset Fingerprint Sensor; press or
tap F1 to accept or F2 to reject.
l.
Remove all power and system batteries for at least 24 hours.
Complete one of the following:
●
Remove and retain the storage drive.
– or –
●
Clear the drive contents by using a third party utility designed to erase data from a solid-state drive.
– or –
●
Clear the contents of the drive by using the following BIOS Setup Secure Erase command
option steps:
IMPORTANT:
If you clear data using Secure Erase, it cannot be recovered.
a.
Turn on or restart the computer, and then press esc while the "Press the ESC key for Startup Menu"
message is displayed at the bottom of the screen.
b.
Select the Security menu and scroll down to the Utilities menu.
c.
Select Hard Drive Utilities.
d.
Under Utilities, select Secure Erase, select the hard drive storing the data you want to clear, and then
follow the on-screen instructions to continue.
Current BIOS steps 109
Nonvolatile memory usage
Nonvolatile
memory type
HP Sure Start flash
(select models
only)
Amount (Size)
Does this
memory
store
customer
data?
Does this
memory
retain data
when power
is removed?
8 MBytes
No
Yes
What is the
purpose of this
memory?
Provides
protected
backup of
critical System
BIOS code, EC
firmware, and
critical PC
configuration
data for select
platforms that
support HP Sure
Start.
How is data input into this
memory?
How is this memory writeprotected?
Data cannot be written to this
device via the host processor.
The content is managed solely
by the HP Sure Start
Embedded Controller.
This memory is protected
by the HP Sure Start
Embedded Controller.
For more
information, see
Using HP Sure
Start
on page 113.
Real Time Clock
(RTC) battery
backed-up CMOS
configuration
memory
256 Bytes
No
Yes
Stores system
date and time
and noncritical
data.
RTC battery backed-up CMOS
is programmed using the
Computer Setup (BIOS), or
changing the Microsoft
Windows date and time.
This memory is not writeprotected.
Controller (NIC)
EEPROM
64 KBytes (not
customer
accessible)
No
Yes
Stores NIC
configuration
and NIC
firmware.
NIC EEPROM is programmed
using a utility from the NIC
vendor that can be run from
DOS.
A utility is required to
write data to this memory
and is available from the
NIC vendor. Writing data to
this ROM in an
inappropriate manner will
render the NIC nonfunctional.
DIMM Serial
Presence Detect
(SPD) configuration
data
256 Bytes per
memory board,
128 Bytes
programmable
(not customer
accessible)
No
Yes
Stores memory
board
information.
DIMM SPD is programmed by
the memory vendor.
Data cannot be written to
this memory when the
board is installed in a PC.
The specific writeprotection method varies
by memory vendor.
System BIOS
9 MBytes
Yes
Yes
Stores system
BIOS code and
PC configuration
data.
System BIOS code is
programmed at the factory.
Code is updated when the
system BIOS is updated.
Configuration data and
settings are input using the
Computer Setup (BIOS) or a
custom utility.
NOTE: Writing data to
this ROM in an
inappropriate manner can
render the PC nonfunctional.
110 Appendix B Statement of memory volatility
A utility is required for
writing data to this
memory and is available
on the HP website; go to
http://www.hp.com/
support, and select your
country. Select Drivers &
Downloads, and then
Nonvolatile
memory type
Amount (Size)
Does this
memory
store
customer
data?
Does this
memory
retain data
when power
is removed?
What is the
purpose of this
memory?
How is data input into this
memory?
How is this memory writeprotected?
follow the on-screen
instructions.
Intel Management
Engine Firmware
7 MBytes
Yes
Yes
Stores
Management
Engine Code,
Settings,
Provisioning
Data and iAMT
third-party data
store.
Management Engine Code is
programmed at the factory.
Code is updated via Intel
secure firmware update utility.
Unique Provisioning Data can
be entered at the factory or by
an administrator using the
Management Engine (MEBx)
setup utility. The third-party
data store contents can be
populated by a remote
management console or local
applications that have been
registered by an administrator
to have access to the space.
The Intel chipset is
configured to enforce
hardware protection to
block all direct read/write
access to this area. An
Intel utility is required for
updating the firmware.
Only firmware updates
digitally signed by Intel
can be applied using this
utility.
Nonvolatile memory usage 111
Questions and answers
1.
How can the BIOS settings be restored (returned to factory settings)?
IMPORTANT: Restore defaults does not securely erase any data on your hard drive. See question and
answer 6 for steps to securely erase data.
Restore defaults does not reset the Custom Secure Boot keys. See question and answer 7 for information
about resetting the keys.
2.
a.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b.
Select Main, and then select Restore defaults.
c.
Follow the on-screen instructions.
d.
Select Main, select Save Changes and Exit, and then follow the on-screen instructions.
What is a UEFI BIOS, and how is it different from a legacy BIOS?
The Unified Extensible Firmware Interface (UEFI) BIOS is an industry-standard software interface between
the platform firmware and an operating system (OS). It is a replacement for the older BIOS architecture, but
supports much of the legacy BIOS functionality.
Like the legacy BIOS, the UEFI BIOS provides an interface to display the system information and
configuration settings and to change the configuration of your computer before an OS is loaded. BIOS
provides a secure run-time environment that supports a Graphic User Interface (GUI). In this environment,
you can use either a pointing device (Touchscreen, TouchPad, pointing stick, or USB mouse) or the keyboard
to navigate and make menu and configuration selections. The UEFI BIOS also contains basic system
diagnostics.
The UEFI BIOS provides functionality beyond that of the legacy BIOS. In addition, the UEFI BIOS works to
initialize the computer’s hardware before loading and executing the OS; the run-time environment allows
the loading and execution of software programs from storage devices to provide more functionality, such
as advanced hardware diagnostics (with the ability to display more detailed system information) and
advanced firmware management and recovery software.
HP has provided options in Computer Setup (BIOS) to allow you to run in legacy BIOS, if required by the
operating system. Examples of this requirement would be if you upgrade or downgrade the OS.
3.
Where does the UEFI BIOS reside?
The UEFI BIOS resides on a flash memory chip. A utility is required to write to the chip.
4.
What kind of configuration data is stored on the DIMM Serial Presence Detect (SPD) memory board? How
would this data be written?
The DIMM SPD memory contains information about the memory board, such as size, serial number, data
width, speed/timing, voltage, and thermal information. This information is written by the board
manufacturer and stored on an EEPROM. This EEPROM cannot be written to when the memory board is
installed in a PC. Third-party tools do exist that can write to the EEPROM when the memory board is not
installed in a PC. Various third-party tools are available to read SPD memory.
5.
What is meant by “Restore the nonvolatile memory found in Intel-based system boards”?
This message relates to clearing the Real Time Clock (RTC) CMOS memory that contains PC
configuration data.
6.
How can the BIOS security be reset to factory defaults and data erased?
112 Appendix B Statement of memory volatility
IMPORTANT:
Resetting will result in the loss of information.
These steps will not reset Custom Secure Boot Keys. See question and answer 7 for information about
resetting the keys.
7.
a.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b.
Select Main, and then select Reset BIOS Security to Factory Default.
c.
Follow the on-screen instructions.
d.
Select Main, select Save Changes and Exit, and then follow the on-screen instructions.
How can the Custom Secure Boot Keys be reset?
Secure Boot is a feature to ensure that only authenticated code can start on a platform. If you enabled
Secure Boot and created Custom Secure Boot Keys, simply disabling Secure Boot will not clear the keys.
You must also select to clear the Custom Secure Boot Keys. Use the same Secure Boot access procedure
you used to create the Custom Secure Boot Keys, but make the selection to clear or delete all Secure Boot
Keys.
a.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
b.
Select the Security menu, select Secure Boot Configuration, and then follow the on-screen
instructions.
c.
At the Secure Boot Configuration window, select Secure Boot, select Clear Secure Boot Keys, and then
follow the on-screen instructions to continue.
Using HP Sure Start
Select computer models are configured with HP Sure Start, a technology that continuously monitors your
computer's BIOS for attacks or corruption. If the BIOS becomes corrupted or is attacked, HP Sure Start restores
the BIOS to its previously safe state, without user intervention. Those select computer models ship with HP Sure
Start configured and enabled. HP Sure Start is configured and already enabled so that most users can use the HP
Sure Start default configuration. The default configuration can be customized by advanced users.
To access the latest documentation on HP Sure Start, go to http://www.hp.com/support, and select your country.
Select Drivers & Downloads, and then follow the on-screen instructions.
Using HP Sure Start 113
C
Power cord set requirements
The power supplies on some computers have external power switches. The voltage select switch feature on
the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power supplies
on those computers that do not have external power switches are equipped with internal switches that sense
the incoming voltage and automatically switch to the proper voltage.
The power cord set received with the computer meets the requirements for use in the country where you
purchased the equipment.
Power cord sets for use in other countries must meet the requirements of the country where you use
the computer.
General requirements
The requirements listed below are applicable to all countries:
1.
The power cord must be approved by an acceptable accredited agency responsible for evaluation in
the country where the power cord set will be installed.
2.
The power cord set must have a minimum current capacity of 10A (7A Japan only) and a nominal voltage
rating of 125 or 250 volts AC, as required by each country’s power system.
3.
The diameter of the wire must be a minimum of 0.75 mm2 or 18AWG, and the length of the cord must be
between 1.8 m (6 feet) and 3.6 m (12 feet).
The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or
against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits
from the product.
WARNING! Do not operate this product with a damaged power cord set. If the power cord set is damaged in any
manner, replace it immediately.
Japanese power cord requirements
For use in Japan, use only the power cord received with this product.
CAUTION:
Do not use the power cord received with this product on any other products.
114 Appendix C Power cord set requirements
Country-specific requirements
Additional requirements specific to a country are shown in parentheses and explained below.
Country
Accrediting Agency
Country
Accrediting Agency
Australia (1)
EANSW
Italy (1)
IMQ
Austria (1)
OVE
Japan (3)
METI
Belgium (1)
CEBC
Norway (1)
NEMKO
Canada (2)
CSA
Sweden (1)
SEMKO
Denmark (1)
DEMKO
Switzerland (1)
SEV
Finland (1)
SETI
United Kingdom (1)
BSI
France (1)
UTE
United States (2)
UL
Germany (1)
VDE
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm2 conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.
2.
The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with
a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.
3.
Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm2 conductor size. Wall plug must be a two-pole
grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.
Country-specific requirements 115
D
Specifications
Unit
Value
Chassis (in the desktop position)
Height
3.7 in
95 mm
Width
10.6 in
270 mm
Depth
11.8 in
300 mm
Approximate Weight
9.8 lb
4.43 kg
Weight Supported (maximum distributed load in desktop position)
77 lb
35 kg
Operating
50° to 95°F
10° to 35°C
Nonoperating
-22° to 140°F
-30° to 60°C
Temperature Range
NOTE: Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained
sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.
Relative Humidity (noncondensing)
Operating
10-90%
10-90%
Nonoperating (38.7°C max wet bulb)
5-95%
5-95%
Operating
16,404 ft
5,000 m
Nonoperating
50,000 ft
15,240 m
Maximum Altitude (unpressurized)
Power Supply
Operating Voltage Range
90-264 VAC
Rated Voltage Range1
100-240 VAC
Rated Line Frequency
50-60 Hz
Operating Line Frequency
47-63 Hz
Standard Efficiency
180 W / 310 W active PFC
High Efficiency
87/90/87 % efficient at 20/50/100% load (115V)
Standard Efficiency
250 W active PFC
High Efficiency
90/92/89 % efficient at 20/50/100% load (115V)
Rated Input Current
310 W / 4 A
250 W / 3 A
180 W / 2.3 A
1
This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements for use in
the countries of the European Union. The active power factor corrected power supply also has the added benefit of not requiring an input
voltage range select switch.
116 Appendix D Specifications
Index
A
access panel
locked 64
removal and replacement
audible codes 92
audio problems 74
audio-in jack 2, 3
audio-out jack 2
audio-out jack jack 3
B
battery
disposal 27
battery replacement
beep codes 92
booting options
Full Boot 87
Quick Boot 87
buttons
power 2
29
105
C
cautions
AC power 22
cables 27
electrostatic discharge 22
keyboard cleaning 25
keyboard keys 26
changing a Power-On password 97
changing a Setup password 97
cleaning
computer 25
mouse 26
safety precautions 25
CMOS
backing up 94
components
front panel 2
rear panel 3
computer
serial number 4
specifications 116
computer cleaning 25
Computer Setup
access problem 63
connector board
removal and replacement
connectors
DisplayPort monitor 3
power cord 3
country power cord set
requirements 115
Customer Support 61
48
D
deleting a Power-On password 97
deleting a Setup password 97
disassembly preparation 28
DisplayPort monitor connector 3
drive cage
removal and replacement 33
dust filter
removal and replacement 31
E
electrostatic discharge (ESD) 22
preventing damage 23
error
codes 87, 92
messages 87
F
F10 Setup
access problem 63
fan
removal and replacement 37
fan-sink
removal and replacement 43
flash drive problems 84
flashing LEDs 92
front bezel
removal and replacement 32
front panel components 2
front panel problems 85
G
general problems 63
grounding methods 23
H
hard drive
proper handling 27
hard drive activity light 2
hard drive problems 67
hard drives
removal and replacement 35
hardware installation problems 79
headphone jack 2
helpful hints 62
HP PC Hardware Diagnostics (UEFI)
downloading 99
HP Sure Start 113
I
installing
battery 105
Internet access problems
85
J
jacks
audio-in 2, 3
audio-out 2
audio-out jack 3
headphone 2
microphone 2
network 3
RJ-45 3
K
keyboard
cleaning 25
keyboard problems 77
L
lights
hard drive activity
2
M
media card reader
problems 69
memory
nonvolatile 108
problems 83
volatile 108
Index 117
memory card reader 2
memory module
removal and replacement
microphone jack 2
monitor problems 70
mouse
cleaning 26
problems 77
40
N
network jack 3
network problems 80
nonvolatile memory 108
numeric error codes 87
O
operating guidelines 24
optical drive
removal and replacement
optional port port 3
overheating, prevention 24
30
P
password
clearing 94
power-on 94
setup 94
passwords 97
ports
optional port 3
serial 3
USB 2
USB SuperSpeed 2, 3
USB with HP Sleep and Charge 2
USB with Wake from S4/S5 3
POST error messages 87
power button 2
power cord connector 3
power cord set requirements
country specific 115
power problems 66
power supply
operating voltage range 116
removal and replacement 28, 42
Power-On password 97
power-on password 94
printer problems 76
problems
audio 74
Computer Setup 63
F10 Setup 63
118 Index
flash drive 84
front panel 85
general 63
hard drive 67
hardware installation 79
Internet access 85
keyboard 77
Media Card Reader 69
memory 83
monitor 70
mouse 77
network 80
power 66
printer 76
software 86
processor
removal and replacement 44
R
rear panel components 3
removal and replacement
access panel 29
connector board 48
drive cage 33
dust filter 31
fan 37
fan-sink 43
front bezel 32
hard drives 35
memory module 40
optical drive 30
power supply 28, 42
processor 44
speaker 41
system board 46
removing
battery 105
removing personal data from volatile
system memory 108
resetting
CMOS 94
password jumper 94
RJ-45 jack 3
S
safety and comfort 61
safety precautions
cleaning 25
screws, correct size 26
serial port 3
service considerations 26
Setup password 97
setup password 94
slim optical drive
location 2
software
problems 86
servicing computer 26
solid-state drive
removal 39
spare part numbers 39
speaker
removal and replacement 41
specifications
computer 116
static electricity 22
system board
removal and replacement 46
system memory, removing personal
data from volatile 108
T
temperature control 24
tools, servicing 26
Torx T-15 screwdriver 26
U
USB port 2
USB port with HP Sleep and Charge
2
USB port with Wake from S4/S5 3
USB SuperSpeed port 2, 3
V
ventilation, proper 24
W
Windows
backup and restore 100
WLAN module
removal 38
spare part number 38
