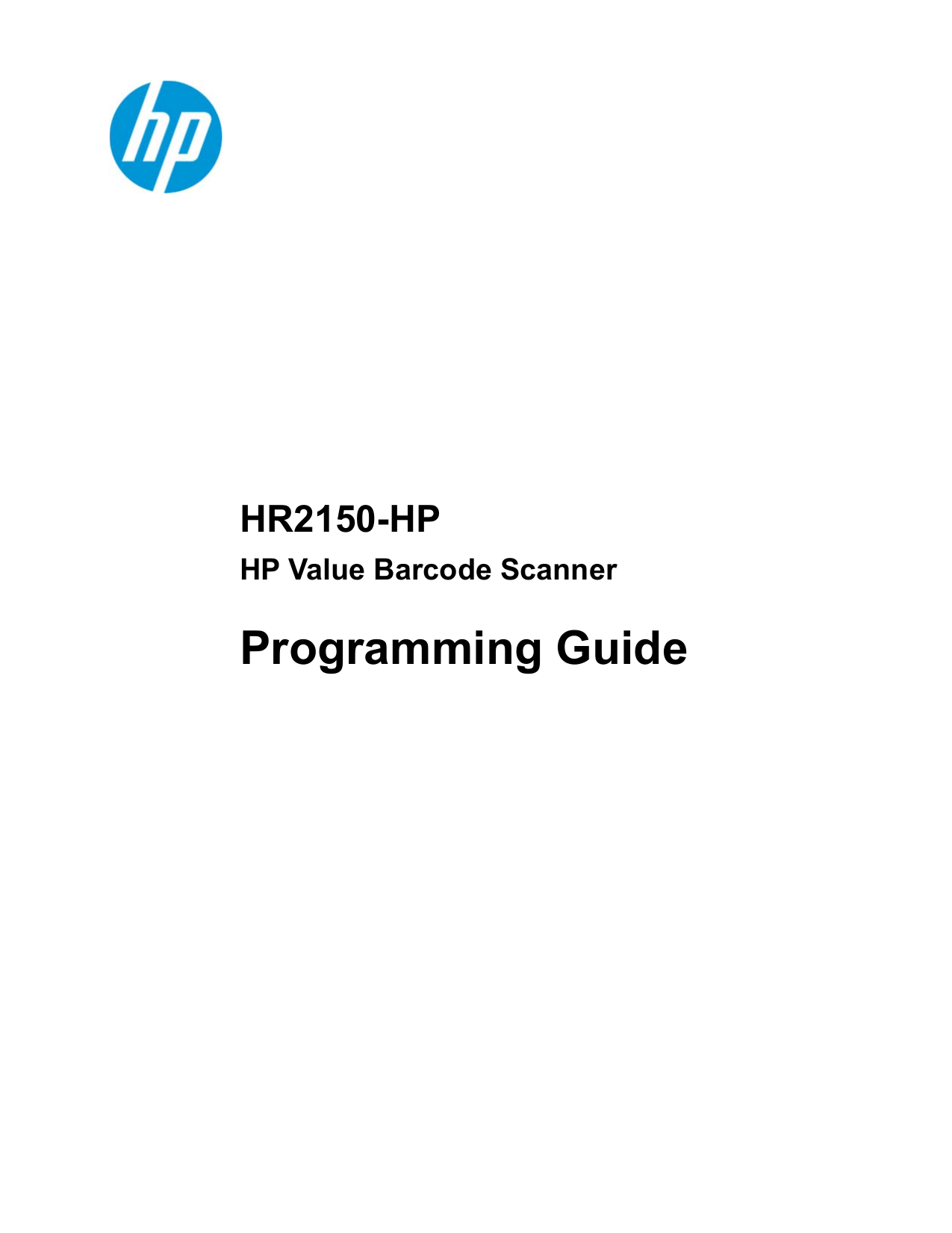

HP Value Barcode Scanner Guide

HR2150-HP
HP Value Barcode Scanner
Programming Guide
© Copyright 2018 HP Development Company, L.P.
Windows is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: May 2018
Document Part Number: L32017-001
Product notice
This user guide describes features that are common to most models. Some features may not be available on your computer.
To access the latest user guides, go to http://www.hp.com/support, and follow the instructions to find your product. Then select
User Guides.
Software terms
By installing, copying, downloading, or otherwise using any software product preinstalled on this computer, you agree to be
bound by the terms of the HP End User License Agreement (EULA). If you do not accept these license terms, your sole remedy
is to return the entire unused product (hardware and software) within 14 days for a full refund subject to the refund policy of your
seller.
For any further information or to request a full refund of the price of the computer, please contact your seller
Table of Contents
Preface ............................................................................................................................................................................................................ 1
Introduction ..................................................................................................................................................................................... 1
Chapter Description ....................................................................................................................................................................... 1
Explanation of Icons....................................................................................................................................................................... 2
Chapter 1 Getting Started .......................................................................................................................................................................... 3
Introduction ..................................................................................................................................................................................... 3
Features of the HR2150-HP ......................................................................................................................................................... 3
Unpacking ....................................................................................................................................................................................... 3
HR2150-HP Scanner ..................................................................................................................................................................... 3
Data Port ......................................................................................................................................................................................... 4
Connecting the HR2150-HP to a Host ........................................................................................................................................ 5
Using USB Cable ................................................................................................................................................................... 6
Removing Communication Cable ................................................................................................................................................ 7
Power On, Sleep, Power Off, Reboot .......................................................................................................................................... 7
Maintenance ................................................................................................................................................................................... 8
Dimensions (unit: mm)................................................................................................................................................................... 9
Left View .................................................................................................................................................................................. 9
Front View ............................................................................................................................................................................... 9
Top View .................................................................................................................................................................................. 9
Scanning Instructions .................................................................................................................................................................. 10
Chapter 2 HP Barcode Scanner N-Series Configuration Utility ..................................................................................................... 11
Chapter 3 System Settings ...................................................................................................................................................................... 12
Introduction ................................................................................................................................................................................... 12
Barcode Programming ......................................................................................................................................................... 12
Command Programming ..................................................................................................................................................... 12
Utility Programming .............................................................................................................................................................. 12
Programming Barcode/ Programming Command/Function ................................................................................................... 13
Use of Programming Command................................................................................................................................................. 14
Command Syntax ................................................................................................................................................................. 14
Query Commands ................................................................................................................................................................ 14
Responses ............................................................................................................................................................................ 15
Examples ............................................................................................................................................................................... 15
Use of Programming Barcodes .................................................................................................................................................. 16
Illumination .................................................................................................................................................................................... 17
Aiming ............................................................................................................................................................................................ 17
Good Read LED ........................................................................................................................................................................... 18
Good Read LED Duration ................................................................................................................................................... 19
Power On Beep ............................................................................................................................................................................ 20
Good Read Beep.......................................................................................................................................................................... 20
Good Read Beep Duration .................................................................................................................................................. 21
Good Read Beep Frequency .............................................................................................................................................. 22
Good Read Beep Volume ................................................................................................................................................... 23
Scan Mode .................................................................................................................................................................................... 24
Decode Session Timeout ............................................................................................................................................................ 25
Image Stabilization Timeout (Sense Mode) .............................................................................................................................. 26
Timeout between Decodes (Same Barcode) ........................................................................................................................... 27
Image Decoding Timeout ............................................................................................................................................................ 28
Sensitivity ...................................................................................................................................................................................... 29
Trigger Commands ...................................................................................................................................................................... 30
Modify Start Scanning Command ...................................................................................................................................... 30
Modify Stop Scanning Command ...................................................................................................................................... 31
Read Barcode On/Off .................................................................................................................................................................. 31
Decode Area ................................................................................................................................................................................. 32
Image Flipping .............................................................................................................................................................................. 34
Smart Stand Mode ....................................................................................................................................................................... 35
Bad Read Message ..................................................................................................................................................................... 36
Set Bad Read Message ...................................................................................................................................................... 36
Default Settings ............................................................................................................................................................................ 37
Factory Defaults ................................................................................................................................................................... 37
Custom Defaults ................................................................................................................................................................... 37
Query Product Information .......................................................................................................................................................... 38
Query Product Name ........................................................................................................................................................... 38
Query Firmware Version ...................................................................................................................................................... 38
Query Decoder Version ....................................................................................................................................................... 39
Query Data Formatter Version............................................................................................................................................ 39
Query Hardware Version ..................................................................................................................................................... 39
Query Product Serial Number ............................................................................................................................................ 40
Query Manufacturing Date .................................................................................................................................................. 40
Query OEM Serial Number ................................................................................................................................................. 40
Chapter 4 USB Interface ........................................................................................................................................................................... 41
Introduction ................................................................................................................................................................................... 41
USB HID Keyboard ...................................................................................................................................................................... 42
USB Country Keyboard Types ............................................................................................................................................ 43
Beep on Unknown Character.............................................................................................................................................. 47
Emulate ALT+Keypad .......................................................................................................................................................... 48
Code Page ............................................................................................................................................................................ 49
Unicode Encoding ................................................................................................................................................................ 51
Emulate Keypad with Leading Zero ................................................................................................................................... 51
Function Key Mapping ......................................................................................................................................................... 52
ASCII Function Key Mapping Table ................................................................................................................................... 53
ASCII Function Key Mapping Table (Continued) ............................................................................................................. 54
Inter-Keystroke Delay .......................................................................................................................................................... 55
Caps Lock.............................................................................................................................................................................. 55
Convert Case ........................................................................................................................................................................ 56
Emulate Numeric Keypad ................................................................................................................................................... 57
Fast Mode.............................................................................................................................................................................. 59
Polling Rate ........................................................................................................................................................................... 60
USB CDC (COM) ......................................................................................................................................................................... 62
HID POS (POS HID Barcode Scanner) .................................................................................................................................... 63
Introduction............................................................................................................................................................................ 63
Access the Scanner with Your Program ............................................................................................................................ 63
Acquire Scanned Data ......................................................................................................................................................... 64
Send Command to the Scanner ......................................................................................................................................... 64
VID/PID .......................................................................................................................................................................................... 65
Chapter 5 Symbologies ............................................................................................................................................................................ 66
Introduction ................................................................................................................................................................................... 66
Global Settings ............................................................................................................................................................................. 66
Enable/Disable All Symbologies ......................................................................................................................................... 66
Enable/Disable 1D Symbologies ........................................................................................................................................ 66
Enable/Disable 2D Symbologies ........................................................................................................................................ 67
Enable/Disable Postal Symbologies .................................................................................................................................. 67
1D Twin Code ....................................................................................................................................................................... 68
Code 128 ....................................................................................................................................................................................... 69
Restore Factory Defaults..................................................................................................................................................... 69
Enable/Disable Code 128 ................................................................................................................................................... 69
Set Length Range for Code 128 ........................................................................................................................................ 70
EAN-8 ............................................................................................................................................................................................ 71
Restore Factory Defaults..................................................................................................................................................... 71
Enable/Disable EAN-8 ......................................................................................................................................................... 71
Transmit Check Character .................................................................................................................................................. 71
2-Digit Add-On Code ............................................................................................................................................................ 72
5-Digit Add-On Code ............................................................................................................................................................ 73
Convert EAN-8 to EAN-13 .................................................................................................................................................. 74
EAN-13 .......................................................................................................................................................................................... 75
Restore Factory Defaults..................................................................................................................................................... 75
Enable/Disable EAN-13 ....................................................................................................................................................... 75
Transmit Check Character .................................................................................................................................................. 76
2-Digit Add-On Code ............................................................................................................................................................ 76
5-Digit Add-On Code ............................................................................................................................................................ 77
UPC-E ............................................................................................................................................................................................ 78
Restore Factory Defaults..................................................................................................................................................... 78
Enable/Disable UPC-E ........................................................................................................................................................ 78
Transmit Check Character .................................................................................................................................................. 79
2-Digit Add-On Code ............................................................................................................................................................ 79
5-Digit Add-On Code ............................................................................................................................................................ 80
Transmit Preamble Character............................................................................................................................................. 81
Convert UPC-E to UPC-A ................................................................................................................................................... 81
UPC-A ............................................................................................................................................................................................ 82
Restore Factory Defaults..................................................................................................................................................... 82
Enable/Disable UPC-A ........................................................................................................................................................ 82
Transmit Check Character .................................................................................................................................................. 82
2-Digit Add-On Code ............................................................................................................................................................ 83
5-Digit Add-On Code ............................................................................................................................................................ 84
Transmit Preamble Character............................................................................................................................................. 85
Coupon .......................................................................................................................................................................................... 86
UPC-A/EAN-13 with Extended Coupon Code .................................................................................................................. 86
Coupon GS1 Databar Output ............................................................................................................................................. 87
Interleaved 2 of 5.......................................................................................................................................................................... 88
Restore Factory Defaults..................................................................................................................................................... 88
Enable/Disable Interleaved 2 of 5 ...................................................................................................................................... 88
Set Length Range for Interleaved 2 of 5 ........................................................................................................................... 89
Check Character Verification .............................................................................................................................................. 90
ITF-14 ............................................................................................................................................................................................ 91
Restore Factory Defaults..................................................................................................................................................... 91
Enable/Disable ITF-14 ......................................................................................................................................................... 91
ITF-6 ............................................................................................................................................................................................... 92
Restore Factory Defaults..................................................................................................................................................... 92
Enable/Disable ITF-6 ........................................................................................................................................................... 92
Matrix 2 of 5 .................................................................................................................................................................................. 93
Restore Factory Defaults..................................................................................................................................................... 93
Enable/Disable Matrix 2 of 5 ............................................................................................................................................... 93
Set Length Range for Matrix 2 of 5 .................................................................................................................................... 94
Check Character Verification .............................................................................................................................................. 95
Code 39 ......................................................................................................................................................................................... 96
Restore Factory Defaults..................................................................................................................................................... 96
Enable/Disable Code 39 ...................................................................................................................................................... 96
Set Length Range for Code 39 ........................................................................................................................................... 97
Check Character Verification .............................................................................................................................................. 98
Transmit Start/Stop Character ............................................................................................................................................ 99
Enable/Disable Code 39 Full ASCII ................................................................................................................................... 99
Enable/Disable Code 32 (Italian Pharma Code) ............................................................................................................ 100
Code 32 Prefix .................................................................................................................................................................... 100
Transmit Code 32 Start/Stop Character .......................................................................................................................... 101
Transmit Code 32 Check Character ................................................................................................................................ 101
Codabar ....................................................................................................................................................................................... 102
Restore Factory Defaults................................................................................................................................................... 102
Enable/Disable Codabar ................................................................................................................................................... 102
Set Length Range for Codabar ........................................................................................................................................ 103
Check Character Verification ............................................................................................................................................ 104
Start/Stop Character .......................................................................................................................................................... 105
Code 93 ....................................................................................................................................................................................... 106
Restore Factory Defaults................................................................................................................................................... 106
Enable/Disable Code 93 .................................................................................................................................................... 106
Set Length Range for Code 93 ......................................................................................................................................... 107
Check Character Verification ............................................................................................................................................ 108
China Post 25 ............................................................................................................................................................................. 109
Restore Factory Defaults................................................................................................................................................... 109
Enable/Disable China Post 25 .......................................................................................................................................... 109
Set Length Range for China Post 25 ............................................................................................................................... 110
Check Character Verification .............................................................................................................................................111
GS1-128 (UCC/EAN-128) ......................................................................................................................................................... 112
Restore Factory Defaults................................................................................................................................................... 112
Enable/Disable GS1-128 ................................................................................................................................................... 112
Set Length Range for GS1-128 ........................................................................................................................................ 113
GS1 Databar (RSS) ................................................................................................................................................................... 114
Restore Factory Defaults................................................................................................................................................... 114
Enable/Disable GS1 Databar............................................................................................................................................ 114
Transmit Application Identifier “01” .................................................................................................................................. 115
GS1 Composite (EAN·UCC Composite)................................................................................................................................. 115
Restore Factory Defaults................................................................................................................................................... 115
Enable/Disable GS1 Composite ....................................................................................................................................... 115
Enable/Disable UPC/EAN Composite ............................................................................................................................. 116
Code 11 ....................................................................................................................................................................................... 116
Restore Factory Defaults................................................................................................................................................... 116
Enable/Disable Code 11 .................................................................................................................................................... 116
Set Length Range for Code 11 ......................................................................................................................................... 118
Check Character Verification ............................................................................................................................................ 119
Transmit Check Character ................................................................................................................................................ 120
ISBN ............................................................................................................................................................................................. 121
Restore Factory Defaults................................................................................................................................................... 121
Enable/Disable ISBN ......................................................................................................................................................... 121
Set ISBN Format ................................................................................................................................................................ 122
ISSN ............................................................................................................................................................................................. 123
Restore Factory Defaults................................................................................................................................................... 123
Enable/Disable ISSN ......................................................................................................................................................... 123
Industrial 25................................................................................................................................................................................. 124
Restore Factory Defaults................................................................................................................................................... 124
Enable/Disable Industrial 25 ............................................................................................................................................. 124
Set Length Range for Industrial 25 .................................................................................................................................. 125
Check Character Verification ............................................................................................................................................ 126
Standard 25................................................................................................................................................................................. 127
Restore Factory Defaults................................................................................................................................................... 127
Enable/Disable Standard 25 ............................................................................................................................................. 127
Set Length Range for Standard 25 .................................................................................................................................. 128
Check Character Verification ............................................................................................................................................ 129
Plessey ........................................................................................................................................................................................ 130
Restore Factory Defaults................................................................................................................................................... 130
Enable/Disable Plessey ..................................................................................................................................................... 130
Set Length Range for Plessey .......................................................................................................................................... 131
Check Character Verification ............................................................................................................................................ 132
MSI-Plessey ................................................................................................................................................................................ 133
Restore Factory Defaults................................................................................................................................................... 133
Enable/Disable MSI-Plessey ............................................................................................................................................ 133
Set Length Range for MSI-Plessey ................................................................................................................................. 134
Check Character Verification ............................................................................................................................................ 135
Transmit Check Character ................................................................................................................................................ 136
AIM 128 ....................................................................................................................................................................................... 137
Restore Factory Defaults................................................................................................................................................... 137
Enable/Disable AIM 128 .................................................................................................................................................... 137
Set Length Range for AIM 128 ......................................................................................................................................... 138
ISBT 128 ...................................................................................................................................................................................... 139
Restore Factory Defaults................................................................................................................................................... 139
Enable/Disable ISBT 128 .................................................................................................................................................. 139
Code 49 ....................................................................................................................................................................................... 140
Restore Factory Defaults................................................................................................................................................... 140
Enable/Disable Code 49 .................................................................................................................................................... 140
Set Length Range for Code 49 ......................................................................................................................................... 141
Code 16K..................................................................................................................................................................................... 142
Restore Factory Defaults................................................................................................................................................... 142
Enable/Disable Code 16K ................................................................................................................................................. 142
Set Length Range for Code 16K ...................................................................................................................................... 143
PDF417 ........................................................................................................................................................................................ 144
Restore Factory Defaults................................................................................................................................................... 144
Enable/Disable PDF417 .................................................................................................................................................... 144
Set Length Range for PDF417 ......................................................................................................................................... 145
PDF417 Twin Code ............................................................................................................................................................ 146
PDF417 Inverse .................................................................................................................................................................. 147
Character Encoding ........................................................................................................................................................... 147
PDF417 ECI Output ........................................................................................................................................................... 148
Micro PDF417 ............................................................................................................................................................................. 149
Restore Factory Defaults................................................................................................................................................... 149
Enable/Disable Micro PDF417 ......................................................................................................................................... 149
Set Length Range for Micro PDF417 .............................................................................................................................. 150
QR Code ...................................................................................................................................................................................... 151
Restore Factory Defaults................................................................................................................................................... 151
Enable/Disable QR Code .................................................................................................................................................. 151
Set Length Range for QR Code ....................................................................................................................................... 152
QR Twin Code..................................................................................................................................................................... 153
QR Inverse .......................................................................................................................................................................... 154
Character Encoding ........................................................................................................................................................... 154
QR ECI Output .................................................................................................................................................................... 155
Micro QR Code ........................................................................................................................................................................... 156
Restore Factory Defaults................................................................................................................................................... 156
Enable/Disable Micro QR .................................................................................................................................................. 156
Set Length Range for Micro QR ....................................................................................................................................... 157
Aztec ............................................................................................................................................................................................ 158
Restore Factory Defaults................................................................................................................................................... 158
Enable/Disable Aztec Code .............................................................................................................................................. 158
Set Length Range for Aztec Code ................................................................................................................................... 159
Read Multi-barcodes on an Image ................................................................................................................................... 160
Set the Number of Barcodes ............................................................................................................................................ 161
Character Encoding ........................................................................................................................................................... 162
Aztec ECI Output ................................................................................................................................................................ 162
Data Matrix .................................................................................................................................................................................. 163
Restore Factory Defaults................................................................................................................................................... 163
Enable/Disable Data Matrix .............................................................................................................................................. 163
Set Length Range for Data Matrix ................................................................................................................................... 164
Data Matrix Twin Code ...................................................................................................................................................... 165
Rectangular Barcode ......................................................................................................................................................... 166
Data Matrix Inverse ............................................................................................................................................................ 166
Character Encoding ........................................................................................................................................................... 167
Data Matrix ECI Output ..................................................................................................................................................... 167
Maxicode ..................................................................................................................................................................................... 168
Restore Factory Defaults................................................................................................................................................... 168
Enable/Disable Maxicode .................................................................................................................................................. 168
Set Length Range for Maxicode ....................................................................................................................................... 169
Chinese Sensible Code ............................................................................................................................................................. 170
Restore Factory Defaults................................................................................................................................................... 170
Enable/Disable Chinese Sensible Code ......................................................................................................................... 170
Set Length Range for Chinese Sensible Code .............................................................................................................. 171
Chinese Sensible Twin Code ............................................................................................................................................ 172
Chinese Sensible Code Inverse ....................................................................................................................................... 173
GM Code ..................................................................................................................................................................................... 174
Restore Factory Defaults................................................................................................................................................... 174
Enable/Disable GM ............................................................................................................................................................ 174
Set Length Range for GM ................................................................................................................................................. 175
Code One .................................................................................................................................................................................... 176
Restore Factory Defaults................................................................................................................................................... 176
Enable/Disable Code One................................................................................................................................................. 176
Set Length Range for Code One...................................................................................................................................... 177
USPS Postnet ............................................................................................................................................................................. 178
Restore Factory Defaults................................................................................................................................................... 178
Enable/Disable USPS Postnet ......................................................................................................................................... 178
Transmit Check Character ................................................................................................................................................ 178
USPS Intelligent Mail ................................................................................................................................................................. 179
Restore Factory Defaults................................................................................................................................................... 179
Enable/Disable USPS Intelligent Mail ............................................................................................................................. 179
Royal Mail .................................................................................................................................................................................... 180
Restore Factory Defaults................................................................................................................................................... 180
Enable/Disable Royal Mail ................................................................................................................................................ 180
USPS Planet ............................................................................................................................................................................... 181
Restore Factory Defaults................................................................................................................................................... 181
Enable/Disable USPS Planet............................................................................................................................................ 181
Transmit Check Character ................................................................................................................................................ 181
KIX Post ....................................................................................................................................................................................... 182
Restore Factory Defaults................................................................................................................................................... 182
Enable/Disable KIX Post ................................................................................................................................................... 182
Australian Postal ........................................................................................................................................................................ 183
Restore Factory Defaults................................................................................................................................................... 183
Enable/Disable Australian Postal ..................................................................................................................................... 183
Specific OCR-B .......................................................................................................................................................................... 184
Restore Factory Defaults................................................................................................................................................... 184
Enable/Disable Specific OCR-B ....................................................................................................................................... 184
Passport OCR ............................................................................................................................................................................. 185
Restore Factory Defaults................................................................................................................................................... 185
Enable/Disable Passport OCR ......................................................................................................................................... 185
Chapter 6 Data Formatter....................................................................................................................................................................... 186
Introduction ................................................................................................................................................................................. 186
Add a Data Format ..................................................................................................................................................................... 186
Enable/Disable Data Formatter ................................................................................................................................................ 188
Non-Match Error Beep............................................................................................................................................................... 189
Data Format Selection ............................................................................................................................................................... 190
Change Data Format for a Single Scan .................................................................................................................................. 191
Clear Data Format...................................................................................................................................................................... 192
Query Data Formats .................................................................................................................................................................. 192
Formatter Commands ................................................................................................................................................................ 193
Send Commands ................................................................................................................................................................ 193
Move Commands ............................................................................................................................................................... 196
Search Commands ............................................................................................................................................................ 198
Miscellaneous Commands ................................................................................................................................................ 201
Chapter 7 Prefix & Suffix........................................................................................................................................................................ 207
Introduction ................................................................................................................................................................................. 207
Global Settings ........................................................................................................................................................................... 208
Enable/Disable All Prefixes/Suffixes ................................................................................................................................ 208
Prefix Sequence ......................................................................................................................................................................... 208
Custom Prefix ............................................................................................................................................................................. 209
Enable/Disable Custom Prefix .......................................................................................................................................... 209
Set Custom Prefix .............................................................................................................................................................. 209
AIM ID Prefix ............................................................................................................................................................................... 210
Code ID Prefix ............................................................................................................................................................................ 211
Restore All Default Code IDs ............................................................................................................................................ 211
Modify Code ID ................................................................................................................................................................... 211
Custom Suffix.............................................................................................................................................................................. 220
Enable/Disable Custom Suffix .......................................................................................................................................... 220
Set Custom Suffix ............................................................................................................................................................... 220
Data Packing ............................................................................................................................................................................... 221
Introduction.......................................................................................................................................................................... 221
Data Packing Options ........................................................................................................................................................ 221
Terminating Character Suffix .................................................................................................................................................... 223
Enable/Disable Terminating Character Suffix ................................................................................................................. 223
Set Terminating Character Suffix...................................................................................................................................... 223
Chapter 8 Batch Programming ............................................................................................................................................................. 225
Introduction ................................................................................................................................................................................. 225
Create a Batch Command ........................................................................................................................................................ 226
Create a Batch Barcode ............................................................................................................................................................ 226
Use Batch Barcode .................................................................................................................................................................... 227
Appendix .................................................................................................................................................................................................... 228
Digit Barcodes ............................................................................................................................................................................ 228
Save/Cancel Barcodes .............................................................................................................................................................. 231
Factory Defaults Table ............................................................................................................................................................... 232
AIM ID Table................................................................................................................................................................................ 240
Code ID Table ............................................................................................................................................................................. 242
Symbology ID Number .............................................................................................................................................................. 244
ASCII Table ................................................................................................................................................................................. 246
Unicode Key Maps ..................................................................................................................................................................... 250
Preface
Introduction
This guide provides detailed instructions for setting up and using the HR2150-HP barcode scanner.
Chapter Description
Chapter 1 Getting Started
: Gives a general description of HR2150-HP scanner.
Chapter 2 HP Barcode Scanner N-Series
: Introduces a useful tool you can use to set up HR2150-HP scanner and
Configuration Utility
Chapter 3 System Settings
develop new applications.
: Introduces three configuration methods and describes how to configure
general parameters of HR2150-HP scanner.
Chapter 4 USB Interface
: Describes how to configure USB communication parameters.
Chapter 5 Symbologies
: Lists all compatible symbologies and describes how to configure the
relevant parameters.
Chapter 6 Data Formatter
: Explains how to customize scanned data with the data formatter.
Chapter 7 Prefix & Suffix
: Describes how to use prefix and suffix to customize scanned data.
Chapter 8 Batch Programming
: Explains how to integrate a complex programming task into a single
barcode.
Appendix
: Provides factory defaults table and a bunch of frequently used
programming barcodes.
1
Explanation of Icons
This icon indicates something relevant to this guide.
This icon indicates this information requires extra attention from the reader.
This icon indicates handy tips that can help you use or configure the scanner with ease.
This icon indicates practical examples that can help you to acquaint yourself with operations.
2
Chapter 1 Getting Started
Introduction
The HR2150-HP barcode scanner reads a 1D or 2D barcode by capturing its image. It provides four scan modes, including
Level Mode, Sense Mode, Continuous Mode and Pulse Mode, tailored to different scanning needs.
An illustrated introduction to the HR2150-HP scanner is included in this chapter. If you have an HR2150-HP scanner at
hand, make good use of it to develop a better understanding of this guide. This chapter is written for normal users,
maintenance staff and software developers.
Features of the HR2150-HP

Comprehensive data capture: 1D, 2D and postal barcodes.

Fast and accurate decoding capability: integrates high-performance processor and barcode decoder board.

Easy to configure and update.
Unpacking
Open the package and take out HR2150-HP scanner and its accessories. Check to make sure everything on the packing
list is present and intact. If any contents are damaged or missing, please keep the original package and contact your dealer
immediately for after-sales service.
HR2150-HP Scanner
Decode LED Definitions
Red: Scanner is powered on.
Green: Barcode is decoded successfully.
Fig. 1-1
3
Data Port
Fig. 1-2
PIN
Signal
Type
Function
1
KB_CLK
I/O
Keyboard clock signal
2
KB_DATA
I/O
Keyboard data signal
3
VCC
P
Power+ (DC5V)
4
TXD
O
RS-232 output
5
RXD
I
RS-232 input
6
PC_CLK / CTS
I/O
PC clock signal / Clear to send
7
PC_DATA / RTS
I/O
PC data signal / Request to send
8
GND
P
Ground
9
D-
I/O
10
D+
I/O
USB signal
4
Connecting the HR2150-HP to a Host
The scanner must be connected to a Host in actual application, such as PC, POS or any intelligent terminal with a USB port,
using a communication cable (USB cable).
USB
USB port on the Host
5
Using USB Cable
Fig. 1-3
Connect the scanner to a Host through a USB cable with RJ45 and USB connectors:
1.
Plug the RJ45 connector into the data port (see Fig.1-3) on the HR2150-HP scanner.
2.
Plug the USB connector into the USB port on the Host.
6
Removing Communication Cable
Fig. 1-5
Get an appropriate needle or a straightened paper clip (Fig. 1-5) and then follow the steps below:
1.
Disconnect the power adaptor from mains if there is one.
2.
Insert the needle into the hole.
3.
Pull out the cable slowly from the scanner while pressing the needle in.
4.
Remove the needle.
5.
Disconnect the cable from the Host.
Power On, Sleep, Power Off, Reboot
Power on the scanner
Connect the scanner to a Host. Then the scanner will be turned on and automatically enter the sleep mode.
Enter the sleep mode
If no operation is performed on the device for some time, the device will automatically enter the sleep state.
Power off the scanner
Remove the cable from the scanner; or remove the cable from the Host; or disconnect the power adapter from mains.
Reboot the scanner
If the scanner stops responding to input or runs abnormally, turn off the scanner and then turn it back on.
7
Maintenance

The scan window should be kept clean.

Do not scratch the scan window.

Use soft brush to remove the stain from the scan window.

Use the soft cloth to clean the window, such as eyeglass cleaning cloth.

Do not spray any liquid on the scan window.

Do not use any detergent to clean other parts of the device except for water.
The warranty DOES NOT cover damages caused by inappropriate care and maintenance.

8
Dimensions (unit: mm)
Left View
Fig. 1-6
Front View
Fig. 1-7
Top View
Fig. 1-8
9
Scanning Instructions
When the scanner is in the Level scan mode, you can follow the steps below to scan a barcode:
1. Press and hold the trigger (see Fig.1-1). Then the scanner will project a red aiming beam.
2. Aim the red beam across the center of barcode.
3. Release the trigger when the red beam goes off. If the barcode is decoded successfully, the scanner will emit a good
read beep and the decoded data will be sent to the Host.
Note: For barcodes of the same batch, the scanner keeps a very high success ratio in certain distance which is regarded
as the optimal scanning distance.
10
Enter Setup
Chapter 2 HP Barcode Scanner N-Series Configuration Utility
HP Barcode Scanner N-Series Configuration Utility is a Windows-based configuration tool, which allows users to gain
access to decoded data and captured images and to configure scanners.
11
** Exit Setup
Enter Setup
Chapter 3 System Settings
Introduction
There are three ways to configure the scanner: barcode programming, command programming and utility programming.
Barcode Programming
The scanner can be configured by scanning programming barcodes. All user programmable features/options are described
along with their programming barcodes/commands in the following sections.
This programming method is most straightforward. However, it requires manually scanning barcodes. As a result, errors are
more likely to occur.
Command Programming
The scanner can also be configured by serial commands sent from the host device.
Users can design an application program to send those command strings to the scanners to perform device configuration.
Utility Programming
Besides the two methods mentioned above, you can conveniently perform scanner configuration through HP Barcode
Scanner N-Series Configuration Utility too. This utility is a Windows-based configuration tool, enabling users to gain access
to decoded data and captured images and to configure scanners.
** Exit Setup
12
Enter Setup
Programming Barcode/ Programming Command/Function
The figure above is an example that shows you the programming barcode and command for the Enter Setup function:
1. The No Case Conversion barcode.
2. The No Case Conversion command.
3. The description of feature/option.
4. ** indicates factory default settings.
13
** Exit Setup
Enter Setup
Use of Programming Command
Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the
host device. All commands must be entered in uppercase letters.
Command Syntax
Prefix StorageType Tag SubTag {Data} [,SubTag {Data}] [;Tag SubTag {Data}] […] Suffix
Prefix: “~<SOH>0000” (HEX: 7E 01 30 30 30 30), 6 characters.
StorageType: “@” (HEX: 40) or “#” (HEX: 23), 1 character. “@” means permanent setting which will not be lost by removing
power from the scanner or rebooting it; “#” means temporary setting which will be lost by removing power from the scanner
or rebooting it.
Tag: A 3-character case-sensitive field that identifies the desired command group. For example, all USB HID Keyboard
configuration settings are identified with a Tag of KBW.
SubTag: A 3-character case-sensitive field that identifies the desired parameter within the tag group. For example, the
SubTag for the keyboard layout is CTY.
Data: The value for a feature or parameter setting, identified by the Tag and SubTag.
Suffix: “;<ETX>” (HEX: 3B 03), 2 characters.
Multiple commands can be issued within one Prefix/Suffix sequence. For configuration commands, only the Tag, SubTag,
and Data fields must be repeated for each command in sequence. If an additional command is to be applied to the same
Tag, then the command is separated with a comma (,) and only the SubTag and Data fields of the additional commands
are issued. If the additional command requires a different Tag field, the command is separated from previous command by
a semicolon (;).
Query Commands
For query commands, the entry in the Data field in the syntax above is one of the following characters means:
* (HEX: 2A)
What is the scanner’s current value for the setting(s).
& (HEX: 26)
What is the factory default value for the setting(s).
^ (HEX: 5E)
What is the range of possible values for the setting(s).
** Exit Setup
14
Enter Setup
The value of the StoreType field in a query command can be either “@” (HEX: 40) or “#” (HEX: 23).
A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query
all the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 2A 3B 03 (i.e.
~<SOH>0000@C11*;<ETX>).
Responses
Different from command sequence, the prefix of a response consists of the six characters of “<STX><SOH>0000” (HEX: 02
01 30 30 30 30).
The scanner responds to serial commands with one of the following three responses:
<ACK> (HEX: 06)
Indicates a good command which has been processed.
<NAK> (HEX: 15)
Indicates a good configuration command with its Data field entry out of the allowable range for this
Tag and SubTag combination (e.g. an entry for an inter-keystroke delay of 100 when the field will
only allow 2 digits), or an invalid query command.
<ENQ> (HEX: 05)
Indicates an invalid Tag or SubTag command.
When responding, the scanner echoes back the command sequence with the status character above inserted directly before
each of the punctuation marks (the comma or semicolon) in the command.
Examples
Example 1: Enable Code 11, set the minimum and maximum lengths to 12 and 22 respectively.
Enter:
7E 01 30 30 30 30 40 43 31 31 45 4E 41 31 2C 4D 49 4E 31 32 2C 4D 41 58 32 32 3B 03
(~<SOH>0000@C11ENA1,MIN12,MAX22;<ETX>)
Response: 02 01 30 30 30 30 40 43 31 31 45 4E 41 31 06 2C 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03
(<STX><SOH>0000@C11ENA1<ACK>,MIN12<ACK>,MAX22<ACK>;<ETX>)
Example 2: Query the current minimum and maximum lengths of Code 11.
Enter:
7E 01 30 30 30 30 40 43 31 31 4D 49 4E 2A 2C 4D 41 58 2A 3B 03
(~<SOH>0000@C11MIN*,MAX*;<ETX>)
Response: 02 01 30 30 30 30 40 43 31 31 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03
(<STX><SOH>0000@C11MIN12<ACK>,MAX22<ACK>;<ETX>)
15
** Exit Setup
Enter Setup
Use of Programming Barcodes
Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of
programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode or a nonprograming barcode, or reboot the scanner.
** Exit Setup
Enter Setup
Programming barcode data (i.e. the characters under programming barcode) can be transmitted to the host device. Scan
the appropriate barcode below to enable or disable the transmission of programming barcode data to the host device.
** Do Not Transmit Programming Barcode Data
Transmit Programming Barcode Data
** Exit Setup
16
Enter Setup
Illumination
** On
Off
Aiming
** On
Off
17
** Exit Setup
Enter Setup
Good Read LED
The green LED can be programmed to be On or Off to indicate good read.
** On
Off
** Exit Setup
18
Enter Setup
Good Read LED Duration
This parameter sets the amount of time that the Good Read LED to remain on following a good read. It is programmable in
1ms increments from 1ms to 2,500ms.
** Short (20ms)
Medium (120ms)
Long (220ms)
Prolonged (320ms)
Custom (1 - 2,500ms)
Set the Good Read LED duration to 800ms:
19
1.
Scan the Enter Setup barcode.
2.
Scan the Custom barcode.
3.
Scan the numeric barcodes “8”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Power On Beep
The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep.
** On
Off
Good Read Beep
Scanning the Off barcode can turn off the beep that indicate successful decode; scanning the On barcode can turn it back
on.
** On
Off
** Exit Setup
20
Enter Setup
Good Read Beep Duration
This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 1ms increments from
20ms to 300ms.
Short (40ms)
** Medium (80ms)
Long (120ms)
Custom (20 – 300ms)
Set the Good Read Beep duration to 200ms:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “2”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
21
** Exit Setup
Enter Setup
Good Read Beep Frequency
This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz.
Extra Low (800Hz)
Low (1600Hz)
** Medium (2730Hz)
High (4200Hz)
Custom (20 - 20,000Hz)
Set the Good Read Beep frequency to 2,000Hz:
1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes “2”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
** Exit Setup
22
Enter Setup
Good Read Beep Volume
** Loud
Medium
Low
23
** Exit Setup
Enter Setup
Scan Mode

Level Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded or
you release the trigger.

Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. The decode
session continues until a barcode is decoded or the decode session timeout expires. Timeout between Decodes
(Same Barcode) can avoid undesired rereading of same barcode in a given period of time. Sensitivity can change
the Sense Mode’s sensibility to changes in images captured. Image Stabilization Timeout gives the scanner time to
adapt to ambient environment after it decodes a barcode and “looks” for another.

Continuous Mode: The scanner automatically starts one decode session after another. To suspend/resume barcode
reading, simply press the trigger. Timeout between Decodes (Same Barcode) can avoid undesired rereading of
same barcode in a given period of time.

Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode
session timeout expires (The decode session timeout begins when the trigger is released).
** Level Mode
Sense Mode
Continuous Mode
Pulse Mode
** Exit Setup
24
Enter Setup
Decode Session Timeout
This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms
increments from 1ms to 3,600,000ms. When it is set to 0, the timeout is infinite. The default setting is 3,000ms.
Decode Session Timeout
Set the decode session timeout to 1,500ms:
1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcodes “1”, “5”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
25
** Exit Setup
Enter Setup
Image Stabilization Timeout (Sense Mode)
This parameter defines the amount of time the scanner will spend adapting to ambient environment after it decodes a
barcode and “looks” for another. It is programmable in 1ms increments from 0ms to 3,000ms. The default setting is 200ms.
Image Stabilization Timeout
Set the image stabilization timeout to 800ms:
1. Scan the Enter Setup barcode.
2. Scan the Image Stabilization Timeout barcode.
3. Scan the numeric barcodes “8”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
** Exit Setup
26
Enter Setup
Timeout between Decodes (Same Barcode)
Timeout between Decodes (Same Barcode) can avoid undesired rereading of same barcode in a given period of time. This
feature is only applicable to the Sense and Continuous modes.
To enable/disable the Timeout between Decodes (Same Barcode), scan the appropriate barcode below.
Enable Timeout between Decodes (Same Barcode): Do not allow the scanner to re-read same barcode before the
timeout between decodes (same barcode) expires.
Disable Timeout between Decodes (Same Barcode): Allow the scanner to re-read same barcode.
Enable Timeout between Decodes (Same Barcode)
** Disable Timeout between Decodes (Same Barcode)
The following parameter sets the timeout between decodes for same barcode. It is programmable in 1ms increments from
1ms to 3,600,000ms. When it is set to a value greater than 3,000, the timeout for rereading same programming barcode is
limited to 3,000ms. The default setting is 1,500ms.
Timeout between Decodes (Same Barcode)
Set the timeout between decodes (same barcode) to 1,000ms:
1. Scan the Enter Setup barcode.
2. Scan the Timeout between Decodes (Same Barcode) barcode.
3. Scan the numeric barcodes “1”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Exit Setup barcode.
27
** Exit Setup
Enter Setup
Image Decoding Timeout
Image Decoding Timeout specifies the maximum time the scanner will spend decoding an image. This parameter is
programmable in 1ms increments from 1ms to 3,000ms. The default timeout is 500ms.
Image Decoding Timeout
Set the image decoding timeout to 1,000ms:
1.
Scan the Enter Setup barcode.
2.
Scan the Image Decoding Timeout barcode.
3.
Scan the numeric barcodes “1”, “0”, “0” and “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
** Exit Setup
28
Enter Setup
Sensitivity
Sensitivity specifies the degree of acuteness of the scanner’s response to changes in images captured. The higher the
sensitivity, the lower requirement in image change to trigger the scanner. You can select an appropriate degree of sensitivity
that fits the application environment. The feature is only applicable to the Sense mode.
Low Sensitivity
** Medium Sensitivity
High Sensitivity
Enhanced Sensitivity
Custom Sensitivity (Level 1-20)
Set the sensitivity to Level 10:
29
1.
Scan the Enter Setup barcode.
2.
Scan the Custom Sensitivity barcode.
3.
Scan the numeric barcodes “1” and “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Trigger Commands
When Enable Trigger Commands is selected, you can activate and deactivate the scanner in the Level mode with serial
trigger commands. Sending the Start Scanning command (default: <SOH> T <EOT>, user-programmable) to the scanner
in the Level mode activates a decode session. The decode session continues until a barcode is decoded or the decode
session timeout expires or the scanner receives the Stop Scanning command (default: <SOH> P <EOT>, userprogrammable).
** Disable Trigger Commands
Enable Trigger Commands
Modify Start Scanning Command
The Start Scanning command can consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the
character “?” (HEX: 0x3F) cannot be the first character. The default Start Scanning command is <SOH> T <EOT>.
Modify Start Scanning Command
Set the Start Scanning command to “*T”:
1.
Scan the Enter Setup barcode.
2.
Scan the Modify Start Scanning Command barcode.
3.
Scan the numeric barcodes “2”, “A”, “5” and “4” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
** Exit Setup
30
Enter Setup
Modify Stop Scanning Command
The Stop Scanning command can consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the
character “?” (HEX: 0x3F) cannot be the first character. The default Stop Scanning command is <SOH> P <EOT>.
Modify Stop Scanning Command
Set the Stop Scanning command to “*P”:
1.
Scan the Enter Setup barcode.
2.
Scan the Modify Stop Scanning Command barcode.
3.
Scan the numeric barcodes “2”, “A”, “5” and “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
Read Barcode On/Off
Sending the Read Barcode Off command ~<SOH>0000#SCNENA0;<ETX> to the scanner can disable it from reading
barcode, and the scanner is unable to scan barcode unless you send the Read Barcode On command
~<SOH>0000#SCNENA1;<ETX> to it or power cycle it. By default, Read Barcode is On.
31
** Exit Setup
Enter Setup
Decode Area
Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery,
and transmits the barcode that has been first decoded.
Specific Area Decoding: The scanner attempts to read barcode(s) within a specified decoding area and transmits the
barcode that has been first decoded. This option allows the scanner to narrow its field of view to make sure it reads only
those barcodes intended by the user. For instance, if multiple barcodes are placed closely together, specific area decoding
in conjunction with appropriate pre-defined decoding area will insure that only the desired barcode is read.
** Whole Area Decoding
Specific Area Decoding
If Specific Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area. The
default decoding area is an area of 40% top, 60% bottom, 40% left and 60% right of the scanner’s field of view
You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area
and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100). The
value of Bottom must be greater than that of Top; the value of Right must be greater than that of Left.
Top of Decoding Area
Bottom of Decoding Area
Left of Decoding Area
Right of Decoding Area
** Exit Setup
32
Enter Setup
Barcode 1
Barcode 2
Program the scanner to only read Barcode 1 in the figure above by setting the decoding area
to 10% top, 45% bottom, 15% left and 30% right:
1.
Scan the Enter Setup barcode.
2.
Scan the Top of Decoding Area barcode.
3.
Scan the numeric barcode “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Bottom of Decoding Area barcode.
6.
Scan the numeric barcodes “4” and “5” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Top of Decoding Area barcode.
9.
Scan the numeric barcodes “1” and “0” from the “Digit Barcodes” section in Appendix.
10. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
11. Scan the Left of Decoding Area barcode.
12. Scan the numeric barcode “0” from the “Digit Barcodes” section in Appendix.
13. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
14. Scan the Right of Decoding Area barcode.
15. Scan the numeric barcodes “3” and “0” from the “Digit Barcodes” section in Appendix.
16. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
17. Scan the Left of Decoding Area barcode.
18. Scan the numeric barcodes “1” and “5” from the “Digit Barcodes” section in Appendix.
19. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
20. Scan the Exit Setup barcode.
33
** Exit Setup
Enter Setup
Image Flipping
** Do Not Flip
Flip Horizontally
Flip Vertically
Flip Horizontally & Vertically
Example of image not flipped
Example of image flipped horizontally
Example of image flipped vertically
Example of image flipped horizontally & vertically
** Exit Setup
34
Enter Setup
Smart Stand Mode
After this feature is turned on, the scanner will switch from its current scan mode to the Sense mode when it is inserted in
the stand, and it will operate in its previous scan mode when it is removed from the stand.
Off
** On
35
** Exit Setup
Enter Setup
Bad Read Message
Scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable) when a
good read does not occur before trigger release, or the decode session timeout expires, or the scanner receives the Stop
Scanning command (For more information, see the “Serial Trigger Command” section in this Chapter).
** Bad Read Message OFF
Bad Read Message ON
Set Bad Read Message
A bad read message can contain up to 7 characters (HEX values from 0x00 to 0xFF). To set a bad read message, scan the
Set Bad Read Message barcode, the numeric barcodes representing the hexadecimal values of desired character(s) and
the Save barcode. The default setting is “NG”.
Set Bad Read Message
Set the bad read message to “F” (HEX: 0x46):
** Exit Setup
1.
Scan the Enter Setup barcode.
2.
Scan the Set Bad Read Message barcode.
3.
Scan the numeric barcodes “4” and “6” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
36
Enter Setup
Default Settings
Factory Defaults
Scanning the following barcode can restore the scanner to the factory defaults.
You may need to reset all parameters to the factory defaults when:
1.
scanner is not properly configured so that it fails to decode barcodes.
2.
you forget previous configuration and want to avoid its impact.
Restore All Factory Defaults
Custom Defaults
Scanning the Restore All Custom Defaults barcode can reset all parameters to the custom defaults. Scanning the Save
as Custom Defaults barcode can set the current settings as custom defaults.
Custom defaults are stored in the non-volatile memory.
Save as Custom Defaults
Restore All Custom Defaults
Restoring the scanner to the factory defaults will not remove the custom defaults from the scanner.
37
** Exit Setup
Enter Setup
Query Product Information
After scanning the barcode below, the product information (including product name, firmware version, decoder version,
hardware version, product serial number, OEM serial number and manufacturing date) will be sent to the host device.
Query Product Information
Query Product Name
Query Product Name
Query Firmware Version
Query Firmware Version
** Exit Setup
38
Enter Setup
Query Decoder Version
Query Decoder Version
Query Data Formatter Version
Query Data Formatter Version
Query Hardware Version
Query Hardware Version
39
** Exit Setup
Enter Setup
Query Product Serial Number
Query Product Serial Number
Query Manufacturing Date
Query Manufacturing Date
Query OEM Serial Number
Query OEM Serial Number
** Exit Setup
40
Enter Setup
Chapter 4 USB Interface
Introduction
There are three options for USB connection:

USB HID Keyboard: The scanner’s transmission is simulated as USB keyboard input with no need for command
configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for
the host device to receive data.

USB CDC (COM): It is compliant with the standard USB CDC (COM) class specifications defined by the USB-IF and
allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature.

HID POS (POS HID Barcode Scanner): It is based on the HID interface, with no need for a custom driver. It excels
virtual keyboard and traditional RS-232 interface in transmission speed.
41
** Exit Setup
Enter Setup
USB HID Keyboard
When the scanner is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by
scanning the barcode below. Then scanner’s transmission will be simulated as USB keyboard input. The Host receives
keystrokes onthe virtual keyboard. It works on a Plug and Play basis and no driver is required.
** USB HID Keyboard
If the host device allows keyboard input, then no extra software is needed for HID Keyboard input.
** Exit Setup
42
Enter Setup
USB Country Keyboard Types
Keyboard layouts vary from country to country. The default setting is U.S. keyboard.
** U.S. (English)
Belgium
Brazil
Canada (French)
Czechoslovakia
Denmark
Finland (Swedish)
43
** Exit Setup
Enter Setup
France
Germany/ Austria
Greece
Hungary
Israel (Hebrew)
Italy
Latin America
Netherlands (Dutch)
** Exit Setup
44
Enter Setup
Norway
Poland
Portugal
Romania
Russia
Slovakia
Spain
Sweden
45
** Exit Setup
Enter Setup
Switzerland (German)
Turkey_F
Turkey_Q
UK
Japan
Bulgaria (Cyrillic)
Bulgaria (Latin)
Serbia (Cyrillic)
Serbia (Latin)
** Exit Setup
46
Enter Setup
Beep on Unknown Character
Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected
keyboard. As a result, the scanner fails to transmit the unknown characters.
Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.
** Do Not Beep on Unknown Character
Beep on Unknown Character
Supposing French keyboard is selected and barcode data ”AÐF” is being dealted with, the keyboard will
fail to locate the “Д (0xD0) character and the scanner will ignore the character and continue to process
the next one.
Do Not Beep on Unknown Character: The scanner does not beep and the Host receives “AF”.
Beep on Unknown Character: The scanner beeps and the Host still receives “AF”.
If Emulate ALT+Keypad ON is selected, Beep on Unknown Character does not function.
47
** Exit Setup
Enter Setup
Emulate ALT+Keypad
When Emulate ALT+Keypad is turned on, any character whose ASCII value is greater than or equal to 0x20 is sent over
the numeric keypad no matter which keyboard type is selected.
1.
ALT Make
2.
Enter the number corresponding to a desired character on the keypad.
3.
ALT Break
After Emulate ALT+Keypad ON is selected, you need to choose the code page with which the barcodes were created and
to turn Unicode Encoding On or Off depending on the encoding used by the application software.
** Emulate ALT+Keypad OFF
Emulate ALT+Keypad ON
Since sending a character involves multiple keystroke emulations, this method appears less efficient.
Supposing Emulate ALT+Keypad is ON, Unicode Encoding is Off, Code Page 1252 (West European
Latin) is selected and Leading Zero is turned off, barcode data ”AÐF” (65/208/70) is sent as below:
“A” – “ALT Make” + “065” + “ALT Break”
“Д -- “ALT Make” + “208” + “ALT Break”
“F” -- “ALT Make” + “070” + “ALT Break”
** Exit Setup
48
Enter Setup
Code Page
Code pages define the mapping of character codes to characters. If the data received does not display with the proper
characters, it may be because the barcode being scanned was created using a code page that is different from the one the
host program is expecting. If this is the case, select the code page with which the barcodes were created by scanning the
appropriate barcode below. For PDF417, QR Code, Aztec and Data Matrix, besides setting the code page, you also need
to set the character encoding in the “Character Encoding” section in Chapter 6. This feature is only effective when Emulate
ALT+Keypad is turned on.
** Code Page 1252 (West European Latin)
Code Page 1251 (Cyrillic)
Code Page 1250 (Central and East European Latin)
Code Page 1253 (Greek)
Code Page 1254 (Turkish)
Code Page 1255 (Hebrew)
49
** Exit Setup
Enter Setup
Code Page 1256 (Arabic)
Code Page 1257 (Baltic)
Code Page 1258 (Vietnamese)
Code Page 936 (Simplified Chinese, GB2312,GBK）
Code Page 950 (Traditional Chinese, Big5)
Code Page 874 (Thai)
Code Page 932 (Japanese, Shift-JIS)
Code Page 949 (Korean, Unified Hangul Code)
** Exit Setup
50
Enter Setup
Unicode Encoding
Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft
Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel
or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective
when Emulate ALT+Keypad is turned on.
** Off
On
Emulate Keypad with Leading Zero
You may turn this feature on to send character sequences sent over the numeric keypad as ISO characters which have a
leading zero. For example, ASCII A transmits as “ALT MAKE” 0065 “ALT BREAK”. This feature is only effective when
Emulate ALT+Keypad is enabled.
** On
Off
51
** Exit Setup
Enter Setup
Function Key Mapping
When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences.
** Disable
Ctrl+ASCII Mode
Alt+Keypad Mode
If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, barcode
data “A<HT>(i.e. Horizontal Tab)F” (0x41/0x09/0x46) is sent as below:
“A” - Keystroke “A”.
<HT> - “Ctrl Make” + Keystroke “I” + “Ctrl Break”
“F” - Keystroke “F”
For some text editors, “Ctrl I” means italic convert. So the output may be “AF”.
If Alt+Keypad Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, the
data above is sent as below:
“A” - Keystroke “A”.
<HT> - “Alt Make” + Keystrokes “009” + “Alt Break”
“F” - Keystroke “F”
** Exit Setup
52
Enter Setup
ASCII Function Key Mapping Table
53
ASCII Function
ASCII Value (HEX)
Function Key Mapping Disabled
Ctrl+ASCII
NUL
00
Null
Ctrl+@
SOH
01
Keypad Enter
Ctrl+A
STX
02
Caps Lock
Ctrl+B
ETX
03
ALT
Ctrl+C
EOT
04
Null
Ctrl+D
ENQ
05
CTRL
Ctrl+E
ACK
06
Null
Ctrl+F
BEL
07
Enter
Ctrl+G
BS
08
Left Arrow
Ctrl+H
HT
09
Horizontal Tab
Ctrl+I
LF
0A
Down Arrow
Ctrl+J
VT
0B
Vertical Tab
Ctrl+K
FF
0C
Delete
Ctrl+L
CR
0D
Enter
Ctrl+M
SO
0E
Insert
Ctrl+N
SI
0F
Esc
Ctrl+O
DLE
10
F11
Ctrl+P
DC1
11
Home
Ctrl+Q
DC2
12
PrintScreen
Ctrl+R
DC3
13
Backspace
Ctrl+S
DC4
14
tab+shift
Ctrl+T
NAK
15
F12
Ctrl+U
SYN
16
F1
Ctrl+V
ETB
17
F2
Ctrl+W
CAN
18
F3
Ctrl+X
EM
19
F4
Ctrl+Y
SUB
1A
F5
Ctrl+Z
ESC
11
F6
Ctrl+[
FS
1C
F7
Ctrl+\
GS
1D
F8
Ctrl+]
RS
1E
F9
Ctrl+6
US
1F
F10
Ctrl+-
** Exit Setup
Enter Setup
ASCII Function Key Mapping Table (Continued)
The last five characters (0x1B~0x1F) in the table above apply to US keyboard layout only. The following chart provides the
equivalents of these five characters for other countries.
Country
Ctrl+ASCII
United States
Ctrl+[
Ctrl+\
Ctrl+]
Ctrl+6
Ctrl+-
Belgium
Ctrl+[
Ctrl+<
Ctrl+]
Ctrl+6
Ctrl+-
Scandinavia
Ctrl+8
Ctrl+<
Ctrl+9
Ctrl+6
Ctrl+-
France
Ctrl+^
Ctrl+8
Ctrl+$
Ctrl+6
Ctrl+=
Germany
Ctrl+Ã
Ctrl++
Ctrl+6
Ctrl+-
Italy
Ctrl+\
Ctrl++
Ctrl+6
Ctrl+-
Switzerland
Ctrl+<
Ctrl+..
Ctrl+6
Ctrl+-
United Kingdom
Ctrl+[
Ctrl+￠
Ctrl+]
Ctrl+6
Ctrl+-
Denmark
Ctrl+8
Ctrl+\
Ctrl+9
Ctrl+6
Ctrl+-
Norway
Ctrl+8
Ctrl+\
Ctrl+9
Ctrl+6
Ctrl+-
Spain
Ctrl+[
Ctrl+\
Ctrl+]
Ctrl+6
Ctrl+-
** Exit Setup
54
Enter Setup
Inter-Keystroke Delay
This parameter specifies the delay between emulated keystrokes.
** No Delay
Long Delay (40ms)
Short Delay (20ms)
Caps Lock
The Caps Lock ON option can invert upper and lower case characters contained in barcode data. This inversion occurs
regardless of the state of Caps Lock key on the host device’s keyboard.
** Caps Lock OFF
Caps Lock ON
Emulate ALT+Keypad ON/ Convert All to Upper Case/ Convert All to Lower Case prevails over Caps
Lock ON.
When the Caps Lock ON feature is selected, barcode data “AbC” is transmitted as “aBc”.
55
** Exit Setup
Enter Setup
Convert Case
Scan the appropriate barcode below to convert all bar code data to your desired case.
** No Case Conversion
Convert All to Upper Case
Convert All to Lower Case
When the Convert All to Lower Case feature is enabled, barcode data “AbC” is transmitted as “abc”.
If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case do
not function.
** Exit Setup
56
Enter Setup
Emulate Numeric Keypad
Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num
Lock on the simulated numeric keypad is determined by its equivalent on the host device. If Num Lock on the host device
is turned off, the output of simulated numeric keypad is function key instead of number.
Do Not Emulate Numeric Keypad 2: Sending “+”, “－”, “*” and “/” is emulated as keystroke(s) on main keyboard.
Emulate Numeric Keypad 2: Sending “+”, “－”, “*” and “/” is emulated as keystroke(s) on numeric keypad.
** Do Not Emulate Numeric Keypad 1
Emulate Numeric Keypad 1
57
** Exit Setup
Enter Setup
** Do Not Emulate Numeric Keypad 2
Emulate Numeric Keypad 2
Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad.
Supposing the Emulate Numeric Keypad 1 feature is enabled:
if Num Lock on the host device is ON, “A4.5” is transmitted as “A4.5”;
if Num Lock on the host device is OFF, “A4.5” is transmitted as “.A”:
1. “A” is sent on main keyboard;
2. “4” is sent as the function key “Cursor Move to Left”;
3. “.” is sent on main keyboard;
4. “5” is not sent as it does not correspond to any function key.
** Exit Setup
58
Enter Setup
Fast Mode
When Fast Mode On is selected, the scanner sends characters to the Host faster. If the Host drops characters, turn the
Fast Mode off or change the polling rate to a bigger value.
** Fast Mode Off
Fast Mode On
59
** Exit Setup
Enter Setup
Polling Rate
This parameter specifies the polling rate for a USB keyboard. If the Host drops characters, change the polling rate to a
bigger value.
1ms
2ms
3ms
** 4ms
5ms
6ms
7ms
** Exit Setup
60
Enter Setup
8ms
9ms
10ms
61
** Exit Setup
Enter Setup
USB CDC (COM)
If your scanner is connected to the USB port on a host device, the USB CDC (COM) feature allows the host device to
receive data in the way as a serial port does. A driver is needed when using this feature.
USB CDC (COM)
** Exit Setup
62
Enter Setup
HID POS (POS HID Barcode Scanner)
Introduction
The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB
report and appears more efficient than keyboard emulation.
Features:
1.
HID based, no custom driver required.
2.
Way more efficient in communication than keyboard emulation and traditional RS-232 interface.
USB HID-POS
Access the Scanner with Your Program
Use CreateFile to access the scanner as a HID device and then use ReadFile to deliver the scanned data to the application
program. Use WriteFile to send data to the scanner.
For detailed information about USB and HID interfaces, go to www.USB.org.
63
** Exit Setup
Enter Setup
Acquire Scanned Data
After a barcode is decoded, the scanner sends an input report as below:
Bit
Byte
7
6
5
4
3
0
Report ID = 0x02
1
Barcode Length
2-57
Decoded Data (1-56)
58-61
Reserved
62
Symbology Identifier or N/C: 0x00
63
-
-
-
-
-
2
1
0
-
-
Decoded data
continued
Send Command to the Scanner
This output report is used to send commands to the scanner. All programming commands can be used.
Bit
Byte
7
6
5
4
3
0
Report ID = 0x04
1
Length of command
2-63
Command (1-62)
** Exit Setup
2
1
0
64
Enter Setup
VID/PID
USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers
Forum. HP’s vendor ID is 03F0 (Hex).
Product
HR2150-HP
65
Interface
PID (Hex)
PID (Dec)
USB HID Keyboard
0A69
2665
USB CDC (COM)
0B69
2921
HID POS
0C69
3177
** Exit Setup
Enter Setup
Chapter 5 Symbologies
Introduction
Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring
the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase
the efficiency of the scanner.
Global Settings
Enable/Disable All Symbologies
If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes
except the programming barcodes.
Enable All Symbologies
Disable All Symbologies
Enable/Disable 1D Symbologies
Enable 1D Symbologies
Disable 1D Symbologies
** Exit Setup
66
Enter Setup
Enable/Disable 2D Symbologies
Enable 2D Symbologies
Disable 2D Symbologies
Enable/Disable Postal Symbologies
Enable All Postal Symbologies
Disable All Postal Symbologies
67
** Exit Setup
Enter Setup
1D Twin Code
1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must have
similar specifications and be placed closely together.
There are 3 options for reading 1D twin code:
Single 1D Code Only: Read either 1D code.
Twin 1D Code Only: Read both 1D codes. Transmission sequence: upper 1D code followed by lower 1D code.
Both Single & Twin: Read both 1D codes. If successful, transmit as twin 1D code only. Otherwise, try single 1D code only.
** Single 1D Code Only
Twin 1D Code Only
Both Single & Twin
** Exit Setup
68
Enter Setup
Code 128
Restore Factory Defaults
Restore the Factory Defaults of Code 128
Enable/Disable Code 128
** Enable Code 128
Disable Code 128
If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 128 barcode.
69
** Exit Setup
Enter Setup
Set Length Range for Code 128
The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 128
barcodes with either the minimum or maximum length. If minimum length is same as maximum length,
only Code 128 barcodes with that length are to be decoded.
Set the scanner to decode Code 128 barcodes containing between 8 and12 characters:
** Exit Setup
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
70
Enter Setup
EAN-8
Restore Factory Defaults
Restore the Factory Defaults of EAN-8
Enable/Disable EAN-8
** Enable EAN-8
Disable EAN-8
If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable EAN-8 barcode.
Transmit Check Character
EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit EAN-8 Check Character
Do Not Transmit EAN-8 Check Character
71
** Exit Setup
Enter Setup
2-Digit Add-On Code
An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented
with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit add-on
codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit
add-on codes.
** Exit Setup
72
Enter Setup
5-Digit Add-On Code
An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented
with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit add-on
codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 5-digit
add-on codes.
73
** Exit Setup
Enter Setup
Convert EAN-8 to EAN-13
Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the data
follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character).
Do Not Convert EAN-8 to EAN-13: EAN-8 decoded data is transmitted as EAN-8 data, without conversion.
** Do Not Convert EAN-8 to EAN-13
Convert EAN-8 to EAN-13
** Exit Setup
74
Enter Setup
EAN-13
Restore Factory Defaults
Restore the Factory Defaults of EAN-13
Enable/Disable EAN-13
** Enable EAN-13
Disable EAN-13
If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable EAN-13 barcode.
75
** Exit Setup
Enter Setup
Transmit Check Character
** Transmit EAN-13 Check Character
Do Not Transmit EAN-13 Check Character
2-Digit Add-On Code
An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when
presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without 2digit add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit
add-on codes.
** Exit Setup
76
Enter Setup
5-Digit Add-On Code
An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when
presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without 5digit add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 5-digit
add-on codes.
77
** Exit Setup
Enter Setup
UPC-E
Restore Factory Defaults
Restore the Factory Defaults of UPC-E
Enable/Disable UPC-E
** Enable UPC-E0
Disable UPC-E0
Enable UPC-E1
** Disable UPC-E1
If the scanner fails to identify UPC-E0/UPC-E1 barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable UPC-E0/UPC-E1 barcode.
** Exit Setup
78
Enter Setup
Transmit Check Character
UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit UPC-E Check Character
Do Not Transmit UPC-E Check Character
2-Digit Add-On Code
A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when
presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit
add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit
add-on codes.
79
** Exit Setup
Enter Setup
5-Digit Add-On Code
A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when
presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit
add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 5-digit
add-on codes.
** Exit Setup
80
Enter Setup
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of
the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
** System Character
No Preamble
System Character & Country Code
Convert UPC-E to UPC-A
Convert UPC-E to UPC-A: Convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After
conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check
Character).
Do Not Convert UPC-E to UPC-A: UPC-E decoded data is transmitted as UPC-E data, without conversion.
** Do Not Convert UPC-E to UPC-A
Convert UPC-E to UPC-A
81
** Exit Setup
Enter Setup
UPC-A
Restore Factory Defaults
Restore the Factory Defaults of UPC-A
Enable/Disable UPC-A
** Enable UPC-A
Disable UPC-A
If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable UPC-A barcode.
Transmit Check Character
UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data.
** Transmit UPC-A Check Character
Do Not Transmit UPC-A Check Character
** Exit Setup
82
Enter Setup
2-Digit Add-On Code
A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code.
** Disable 2-Digit Add-On Code
Enable 2-Digit Add-On Code
Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when
presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit
add-on codes.
Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit
add-on codes.
83
** Exit Setup
Enter Setup
5-Digit Add-On Code
A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part
surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code.
** Disable 5-Digit Add-On Code
Enable 5-Digit Add-On Code
Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when
presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit
add-on codes.
Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 5-digit
add-on codes.
** Exit Setup
84
Enter Setup
Transmit Preamble Character
Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of
the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system
character and country code (“0” for USA), or transmit no preamble.
** No Preamble
System Character
System Character & Country Code
85
** Exit Setup
Enter Setup
Coupon
UPC-A/EAN-13 with Extended Coupon Code
The following three types of coupon code + extended coupon code are supported:
1.
UPC-A (starting with “5”) + GS1-128
2.
UPC-A (starting with “5”) + GS1 Databar
3.
EAN-13 (starting with “99”) + GS1-128
Use the appropriate barcode below to enable or disable UPC-A/EAN-13 with Extended Coupon Code. When left on the
default setting (Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.
If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a
single scan, it transmits both as separate symbologies. Otherwise, it transmits the first coupon code it reads.
If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code
in a single read to transmit the data. No data is output unless both codes are read.
** Off
Allow Concatenation
Require Concatenation
When using the UPC-A Coupon feature, please ensure that System Character or System Character &
Country Code is selected for the “Transmit UPC-A Preamble Character” feature.
** Exit Setup
86
Enter Setup
Coupon GS1 Databar Output
If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the
GS1 Databar code. Scan the GS1 Output On barcode below to scan and output only the GS1 Databar code data.
When GS1 Output Off is selected, coupons that have both UPC and GS1 Databar codes are transmitted depending on
your selection for the “UPC-A/EAN-13 with Extended Coupon Code” feature.
** GS1 Output Off
GS1 Output On
When using the UPC-A Coupon feature, please ensure that System Character or System Character &
Country Code is selected for the “Transmit UPC-A Preamble Character” feature.
87
** Exit Setup
Enter Setup
Interleaved 2 of 5
Restore Factory Defaults
Restore the Factory Defaults of Interleaved 2 of 5
Enable/Disable Interleaved 2 of 5
** Enable Interleaved 2 of 5
Disable Interleaved 2 of 5
If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.
** Exit Setup
88
Enter Setup
Set Length Range for Interleaved 2 of 5
The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
Interleaved 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Interleaved 2 of 5 barcodes containing between 8 and12 characters:
89
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Check Character Verification
A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to
verify the integrity of the data.
Disable: The scanner transmits Interleaved 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes
to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except
the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those
failing it will not be transmitted.
Since Interleaved 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when
the check character is added. The check character is automatically generated when making Interleaved 2 of 5 barcodes.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Interleaved 2 of 5 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verificationoption
is enabled and the minimum length is set to 4, Interleaved 2 of 5 barcodes with a total length of 4 characters
including the check character cannot be read.)
** Exit Setup
90
Enter Setup
ITF-14
ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character.
ITF-14 priority principle: Forthe Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the
check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.
Restore Factory Defaults
Restore the Factory Defaults of ITF-14
Enable/Disable ITF-14
** Disable ITF-14
Enable ITF-14 But Do Not Transmit Check Character
Enable ITF-14 and Transmit Check Character
An example of the ITF-14 priority principle: when ITF-14 is enabled and Interleaved 2 of 5 is disabled, the
scanner only decodes Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as
the check character.
91
** Exit Setup
Enter Setup
ITF-6
ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character.
ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check
character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.
Restore Factory Defaults
Restore the Factory Defaults of ITF-6
Enable/Disable ITF-6
** Disable ITF-6
Enable ITF-6 But Do Not Transmit Check Character
Enable ITF-6 and Transmit Check Character
An example of the ITF-6 priority principle: when ITF-6 is enabled and Interleaved 2 of 5 is disabled, the
scanner only decodes Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as
the check character.
** Exit Setup
92
Enter Setup
Matrix 2 of 5
Restore Factory Defaults
Restore the Factory Defaults of Matrix 2 of 5
Enable/Disable Matrix 2 of 5
** Enable Matrix 2 of 5
Disable Matrix 2 of 5
If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Matrix 2 of 5 barcode.
93
** Exit Setup
Enter Setup
Set Length Range for Matrix 2 of 5
The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
Matrix 2 of 5 barcodes with that length are to be decoded.
Set the scanner to decode Matrix 2 of 5 barcodes containing between 8 and12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
** Exit Setup
94
Enter Setup
Check Character Verification
A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmitsMatrix 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the
last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that
the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing
it will not be transmitted.
Since Matrix 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the
check character is added. The check character is automatically generated when making Matrix 2 of 5 barcodes.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Matrix 2 of 5 barcodes with
a length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Matrix 2 of 5 barcodes with a total length of 4 characters
including the check character cannot be read.)
95
** Exit Setup
Enter Setup
Code 39
Restore Factory Defaults
Restore the Factory Defaults of Code 39
Enable/Disable Code 39
** Enable Code 39
Disable Code 39
If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Code 39 barcode.
** Exit Setup
96
Enter Setup
Set Length Range for Code 39
The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Code 39
barcodes with that length are to be decoded.
Set the scanner to decode Code 39 barcodes containing between 8 and 12 characters:
97
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Check Character Verification
A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the
integrity of the data.
Disable: The scanner transmitsCode 39 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last
digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the
data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it
will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 39 barcodes with a
length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Code 39 barcodes with a total length of 4 characters including
the check character cannot be read.)
** Exit Setup
98
Enter Setup
Transmit Start/Stop Character
Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the
start/stop characters by scanning the appropriate barcode below.
** Do Not Transmit Start/Stop Character
Transmit Start/Stop Character
Enable/Disable Code 39 Full ASCII
The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.
** Disable Code 39 Full ASCII
Enable Code 39 Full ASCII
99
** Exit Setup
Enter Setup
Enable/Disable Code 32 (Italian Pharma Code)
Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable
or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter
to function.
** Disable Code 32
Enable Code 32
Code 32 Prefix
Scan the appropriate barcode below to enable or disable adding the prefix character “A” to all Code 32 barcodes. Code 32
must be enabled for this parameter to function.
** Disable Code 32 Prefix
Enable Code 32 Prefix
** Exit Setup
100
Enter Setup
Transmit Code 32 Start/Stop Character
Code 32 must be enabled for this parameter to function.
** Do Not Transmit Code 32 Start/Stop Character
Transmit Code 32 Start/Stop Character
Transmit Code 32 Check Character
Code 32 must be enabled for this parameter to function.
** Do Not Transmit Code 32 Check Character
Transmit Code 32 Check Character
101
** Exit Setup
Enter Setup
Codabar
Restore Factory Defaults
Restore the Factory Defaults of Codabar
Enable/Disable Codabar
** Enable Codabar
Disable Codabar
If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Codabar barcode.
** Exit Setup
102
Enter Setup
Set Length Range for Codabar
The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 2)
Set the Maximum Length (Default: 60)
If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Codabar
barcodes with that length are to be decoded.
Set the scanner to decode Codabar barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
103
** Exit Setup
Enter Setup
Check Character Verification
A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the
integrity of the data.
Disable: The scanner transmits Codabar barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last
digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the
data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it
will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Codabar barcodes with a
length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Codabar barcodes with a total length of 4 characters including
the check character cannot be read.)
** Exit Setup
104
Enter Setup
Start/Stop Character
You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the
appropriate barcode below.
** Do Not Transmit Start/Stop Character
Transmit Start/Stop Character
** ABCD/ABCD as the Start/Stop Character
ABCD/TN*E as the Start/Stop Character
abcd/abcd as the Start/Stop Character
abcd/tn*e as the Start/Stop Character
105
** Exit Setup
Enter Setup
Code 93
Restore Factory Defaults
Restore the Factory Defaults of Code 93
Enable/Disable Code 93
Enable Code 93
** Disable Code 93
If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Code 93 barcode.
** Exit Setup
106
Enter Setup
Set Length Range for Code 93
The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Code 93
barcodes with that length are to be decoded.
Set the scanner to decode Code 93 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
107
** Exit Setup
Enter Setup
Check Character Verification
Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used
to verify the integrity of the data.
Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last
two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the
data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing
them will not be transmitted.
Disable
** Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Code 93 barcodes with a
length that is less than the configured minimum length after having the two check characters excluded will
not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Code 93 barcodes with a total length of 4 characters including
the two check characters cannot be read.)
** Exit Setup
108
Enter Setup
China Post 25
Restore Factory Defaults
Restore the Factory Defaults of China Post 25
Enable/Disable China Post 25
Enable China Post 25
** Disable China Post 25
If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable China Post 25 barcode.
109
** Exit Setup
Enter Setup
Set Length Range for China Post 25
The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes China Post 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
China Post 25 barcodes with that length are to be decoded.
Set the scanner to decode China Post 25 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
** Exit Setup
110
Enter Setup
Check Character Verification
A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits China Post 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the
last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those
failing it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, China Post 25 barcodes
with a length that is less than the configured minimum length after having the check character excluded
will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option
is enabled and the minimum length is set to 4, China Post 25 barcodes with a total length of 4 characters
including the check character cannot be read.)
111
** Exit Setup
Enter Setup
GS1-128 (UCC/EAN-128)
Restore Factory Defaults
Restore the Factory Defaults of GS1-128
Enable/Disable GS1-128
** Enable GS1-128
Disable GS1-128
If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the EnterSetup
barcode and then Enable GS1-128 barcode.
** Exit Setup
112
Enter Setup
Set Length Range for GS1-128
The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only GS1-128
barcodes with that length are to be decoded.
Set the scanner to decode GS1-128 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
113
** Exit Setup
Enter Setup
GS1 Databar (RSS)
Restore Factory Defaults
Restore the Factory Defaults of GS1 Databar
Enable/Disable GS1 Databar
** Enable GS1 Databar
Disable GS1 Databar
If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable GS1 Databar barcode.
** Exit Setup
114
Enter Setup
Transmit Application Identifier “01”
** Transmit Application Identifier “01”
Do Not Transmit Application Identifier “01”
GS1 Composite (EAN·UCC Composite)
Restore Factory Defaults
Restore the Factory Defaults of GS1 Composite
Enable/Disable GS1 Composite
Enable GS1 Composite
** Disable GS1 Composite
If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable GS1 Composite barcode.
115
** Exit Setup
Enter Setup
Enable/Disable UPC/EAN Composite
Enable UPC/EAN Composite
** Disable UPC/EAN Composite
Code 11
Restore Factory Defaults
Restore the Factory Defaults of Code 11
Enable/Disable Code 11
Enable Code 11
** Disable Code 11
** Exit Setup
116
Enter Setup
If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Code 11 barcode.
117
** Exit Setup
Enter Setup
Set Length Range for Code 11
The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Code 11
barcodes with that length are to be decoded.
Set the scanner to decode Code 11 barcodes containing between 8 and 12 characters:
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
118
Enter Setup
Check Character Verification
Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values
used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits Code 11 barcodes as is.
Disable
** One Check Character, MOD11
Two Check Characters, MOD11/MOD11
Two Check Characters, MOD11/MOD9
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD11(Len>10)
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD9 (Len>10)
119
** Exit Setup
Enter Setup
Transmit Check Character
Do Not Transmit Code 11 Check Character
** Transmit Code 11 Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11
barcodes with a length that is less than the configured minimum length after having the check character(s)
excluded will not be decoded. (For example, when the One Check Character, MOD11 and Do Not
Transmit Check Character options are enabled and the minimum length is set to 4, Code 11 barcodes
with a total length of 4 characters including the check character cannot be read.)
** Exit Setup
120
Enter Setup
ISBN
Restore Factory Defaults
Restore the Factory Defaults of ISBN
Enable/Disable ISBN
Enable ISBN
** Disable ISBN
If the scanner fails to identify ISBN barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable ISBN barcode.
121
** Exit Setup
Enter Setup
Set ISBN Format
** ISBN-10
ISBN-13
** Exit Setup
122
Enter Setup
ISSN
Restore Factory Defaults
Restore the Factory Defaults of ISSN
Enable/Disable ISSN
Enable ISSN
** Disable ISSN
If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable ISSN barcode.
123
** Exit Setup
Enter Setup
Industrial 25
Restore Factory Defaults
Restore the Factory Defaults of Industrial 25
Enable/Disable Industrial 25
Enable Industrial 25
** Disable Industrial 25
If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Industrial 25 barcode.
** Exit Setup
124
Enter Setup
Set Length Range for Industrial 25
The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
Industrial 25 barcodes with that length are to be decoded.
Set the scanner to decode Industrial 25 barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
125
** Exit Setup
Enter Setup
Check Character Verification
A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits Industrial 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the
last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that
the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing
it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Industrial 25 barcodes with
a length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Industrial 25 barcodes with a total length of 4 characters
including the check character cannot be read.)
** Exit Setup
126
Enter Setup
Standard 25
Restore Factory Defaults
Restore the Factory Defaults of Standard 25
Enable/Disable Standard 25
Enable Standard 25
** Disable Standard 25
If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Standard 25 barcode.
127
** Exit Setup
Enter Setup
Set Length Range for Standard 25
The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 6)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
Standard 25 barcodes with that length are to be decoded.
Set the scanner to decode Standard 25 barcodes containing between 8 and 12 characters:
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
128
Enter Setup
Check Character Verification
A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify
the integrity of the data.
Disable: The scanner transmits Standard 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to
verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the
last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that
the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing
it will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Standard 25 barcodes with
a length that is less than the configured minimum length after having the check character excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Standard 25 barcodes with a total length of 4 characters
including the check character cannot be read.)
129
** Exit Setup
Enter Setup
Plessey
Restore Factory Defaults
Restore the Factory Defaults of Plessey
Enable/Disable Plessey
Enable Plessey
** Disable Plessey
If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Plessey barcode.
** Exit Setup
130
Enter Setup
Set Length Range for Plessey
The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and
maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Plessey
barcodes with that length are to be decoded.
Set the scanner to decode Plessey barcodes containing between 8 and 12 characters:
131
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Check Character Verification
Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used
to verify the integrity of the data.
Disable: The scanner transmits Plessey barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify
that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last
two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the
data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing
them will not be transmitted.
** Disable
Do Not Transmit Check Character After Verification
Transmit Check Character After Verification
If the Do Not Transmit Check Character After Verification option is enabled, Plessey barcodes with a
length that is less than the configured minimum length after having the check characters excluded will not
be decoded. (For example, when the Do Not Transmit Check Character After Verification option is
enabled and the minimum length is set to 4, Plessey barcodes with a total length of 4 characters including
the check characters cannot be read.)
** Exit Setup
132
Enter Setup
MSI-Plessey
Restore Factory Defaults
Restore the Factory Defaults of MSI-Plessey
Enable/Disable MSI-Plessey
Enable MSI-Plessey
** Disable MSI-Plessey
If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable MSI-Plessey barcode.
133
** Exit Setup
Enter Setup
Set Length Range for MSI-Plessey
The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 4)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey
barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only
MSI-Plessey barcodes with that length are to be decoded.
Set the scanner to decode MSI-Plessey barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
** Exit Setup
134
Enter Setup
Check Character Verification
Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated
values used to verify the integrity of the data.
If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is.
Disable
** One Check Character, MOD10
Two Check Characters, MOD10/MOD10
Two Check Characters, MOD10/MOD11
135
** Exit Setup
Enter Setup
Transmit Check Character
** Transmit MSI-Plessey Check Character
Do Not Transmit MSI-Plessey Check Character
If you select a check character algorithm and the Do Not Transmit Check Character option, MSI-Plessey
barcodes with a length that is less than the configured minimum length after having the check character(s)
excluded will not be decoded. (For example, when the One Check Character, MOD10 and Do Not
Transmit Check Character options are enabled and the minimum length is set to 4, MSI-Plessey barcodes
with a total length of 4 characters including the check character cannot be read.)
** Exit Setup
136
Enter Setup
AIM 128
Restore Factory Defaults
Restore the Factory Defaults of AIM 128
Enable/Disable AIM 128
Enable AIM 128
** Disable AIM 128
If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable AIM 128 barcode.
137
** Exit Setup
Enter Setup
Set Length Range for AIM 128
The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 48)
If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only AIM 128
barcodes with that length are to be decoded.
Set the scanner to decode AIM 128 barcodes containing between 8 and 12 characters:
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
138
Enter Setup
ISBT 128
Restore Factory Defaults
Restore the Factory Defaults of ISBT 128
Enable/Disable ISBT 128
Enable ISBT 128
** Disable ISBT 128
If the scanner fails to identify ISBT 128 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable ISBT 128 barcode.
139
** Exit Setup
Enter Setup
Code 49
Restore Factory Defaults
Restore the Factory Defaults of Code 49
Enable/Disable Code 49
Enable Code 49
** Disable Code 49
If the scanner fails to identify Code 49 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable Code 49 barcode.
** Exit Setup
140
Enter Setup
Set Length Range for Code 49
The scanner can be configured to only decode Code 49 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 49 barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Code 49
barcodes with that length are to be decoded.
Set the scanner to decode Code 49 barcodes containing between 8 and 12 characters:
141
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Code 16K
Restore Factory Defaults
Restore the Factory Defaults of Code 16K
Enable/Disable Code 16K
Enable Code 16K
** Disable Code 16K
If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code 16K barcode.
** Exit Setup
142
Enter Setup
Set Length Range for Code 16K
The scanner can be configured to only decode Code 16K barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 80)
If minimum length is set to be greater than maximum length, the scanner only decodes Code 16K barcodes
with either the minimum or maximum length. If minimum length is same as maximum length, only Code
16K barcodes with that length are to be decoded.
Set the scanner to decode Code 16K barcodes containing between 8 and 12 characters:
143
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
PDF417
Restore Factory Defaults
Restore the Factory Defaults of PDF417
Enable/Disable PDF417
** Enable PDF417
Disable PDF417
If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable PDF417 barcode.
** Exit Setup
144
Enter Setup
Set Length Range for PDF417
The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 2710)
Minimum length is not allowed to be greater than maximum length. If you only want to read PDF417
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode PDF417 barcodes containing between 8 and 12 characters:
145
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
PDF417 Twin Code
PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse
barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading PDF417 twin codes:

Single PDF417 Only: Read either PDF417 code.

Twin PDF417 Only: Read both PDF417 codes.

Both Single & Twin: Read both PDF417 codes. If successful, transmit as twin PDF417 only. Otherwise, try single
PDF417 only.
** Single PDF417 Only
Twin PDF417 Only
Both Single & Twin
** Exit Setup
146
Enter Setup
PDF417 Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular PDF417 Barcodes Only
Decode Inverse PDF417 Barcodes Only
Decode Both
Character Encoding
** Default Character Encoding
UTF-8
147
** Exit Setup
Enter Setup
PDF417 ECI Output
Disable PDF417 ECI Output
** Enable PDF417 ECI Output
** Exit Setup
148
Enter Setup
Micro PDF417
Restore Factory Defaults
Restore the Factory Defaults of Micro PDF417
Enable/Disable Micro PDF417
Enable Micro PDF417
** Disable Micro PDF417
If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Micro PDF417 barcode.
149
** Exit Setup
Enter Setup
Set Length Range for Micro PDF417
The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the
minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 366)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro PDF417
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Micro PDF417 barcodes containing between 8 and 12 characters:
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
150
Enter Setup
QR Code
Restore Factory Defaults
Restore the Factory Defaults of QR Code
Enable/Disable QR Code
** Enable QR Code
Disable QR Code
If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable QR Code barcode.
151
** Exit Setup
Enter Setup
Set Length Range for QR Code
The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 7089)
Minimum length is not allowed to be greater than maximum length. If you only want to read QR Code
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode QR Code barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
** Exit Setup
152
Enter Setup
QR Twin Code
QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes.
They must have similar specifications and be placed closely together.
There are 3 options for reading QR twin codes:
Single QR Only: Read either QR code.
Twin QR Only: Read both QR codes. Transmission sequence: left (upper) QR code followed by right (lower) QR code.
Both Single & Twin: Read both QR codes. If successful, transmit as twin QR only. Otherwise, try single QR only.
** Single QR Only
Twin QR Only
Both Single & Twin
153
** Exit Setup
Enter Setup
QR Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular QR Barcodes Only
Decode Inverse QR Barcodes Only
Decode Both
Character Encoding
** Default Character Encoding
UTF-8
** Exit Setup
154
Enter Setup
QR ECI Output
Disable QR ECI Output
** Enable QR ECI Output
155
** Exit Setup
Enter Setup
Micro QR Code
Restore Factory Defaults
Restore the Factory Defaults of Micro QR
Enable/Disable Micro QR
** Enable Micro QR
Disable Micro QR
If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Micro QR barcode.
** Exit Setup
156
Enter Setup
Set Length Range for Micro QR
The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 35)
Minimum length is not allowed to be greater than maximum length. If you only want to read Micro QR
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Micro QR Code barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
157
** Exit Setup
Enter Setup
Aztec
Restore Factory Defaults
Restore the Factory Defaults of Aztec Code
Enable/Disable Aztec Code
Enable Aztec Code
** Disable Aztec Code
If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Aztec Code barcode.
** Exit Setup
158
Enter Setup
Set Length Range for Aztec Code
The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and
maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3832)
Minimum length is not allowed to be greater than maximum length. If you only want to read Aztec barcodes
with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Aztec barcodes containing between 8 and 12 characters:
159
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Read Multi-barcodes on an Image
There are three options:
Mode 1: Read one barcode only.
Mode 2: Read fixed number of barcodes only.
Mode 3: Composite Reading. Read fixed number of barcodes first. If unsuccessful, read one barcode only.
** Mode 1
Mode 2
Mode 3
** Exit Setup
160
Enter Setup
Set the Number of Barcodes
** 1
2
3
4
5
6
7
8
161
** Exit Setup
Enter Setup
Character Encoding
** Default Character Encoding
UTF-8
Aztec ECI Output
Disable Aztec ECI Output
** Enable Aztec ECI Output
** Exit Setup
162
Enter Setup
Data Matrix
Restore Factory Defaults
Restore the Factory Defaults of Data Matrix
Enable/Disable Data Matrix
** Enable Data Matrix
Disable Data Matrix
If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Data Matrix barcode.
163
** Exit Setup
Enter Setup
Set Length Range for Data Matrix
The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3116)
Minimum length is not allowed to be greater than maximum length. If you only want to read Data Matrix
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Data Matrix barcodes containing between 8 and 12 characters:
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
164
Enter Setup
Data Matrix Twin Code
Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or
inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading Data Matrix twin codes:
Single Data Matrix Only: Read either Data Matrix code.
Twin Data Matrix Only: Read both Data Matrix codes. Transmission sequence: left (upper) Data Matrix code followed by
right (lower) Data Matrix code.
Both Single & Twin: Read both Data Matrix codes. If successful, transmit as twin Data Matrix only. Otherwise, try single
Data Matrix only.
** Single Data Matrix Only
Twin Data Matrix Only
Both Single & Twin
165
** Exit Setup
Enter Setup
Rectangular Barcode
Data Matrix has two formats:
Square barcodes having the same amount of modules in length and width: 10*10, 12*12.... 144*144.
Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22.
** Enable Rectangular Barcode
Disable Rectangular Barcode
Data Matrix Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular Data Matrix Barcodes Only
Decode Inverse Data Matrix Barcodes Only
Decode Both
** Exit Setup
166
Enter Setup
Character Encoding
** Default Character Encoding
UTF-8
Data Matrix ECI Output
Disable Data Matrix ECI Output
** Enable Data Matrix ECI Output
167
** Exit Setup
Enter Setup
Maxicode
Restore Factory Defaults
Restore the Factory Defaults of Maxicode
Enable/Disable Maxicode
Enable Maxicode
** Disable Maxicode
If the scanner fails to identify Maxicode barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Maxicode barcode.
** Exit Setup
168
Enter Setup
Set Length Range for Maxicode
The scanner can be configured to only decode Maxicode barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default:150)
Minimum length is not allowed to be greater than maximum length. If you only want to read Maxicode
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Maxicode barcodes containing between 8 and 12 characters:
169
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Chinese Sensible Code
Restore Factory Defaults
Restore the Factory Defaults of Chinese Sensible Code
Enable/Disable Chinese Sensible Code
Enable Chinese Sensible Code
** Disable Chinese Sensible Code
If the scanner fails to identify Chinese Sensible Code barcodes, you may first try this solution by scanning
the Enter Setup barcode and then Enable Chinese Sensible Code barcode.
** Exit Setup
170
Enter Setup
Set Length Range for Chinese Sensible Code
The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive)
the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 7827)
Minimum length is not allowed to be greater than maximum length. If you only want to read Chinese
Sensible Code barcodes with a specific length, set both minimum and maximum lengths to be that desired
length.
Set the scanner to decode Chinese Sensible Code barcodes containing between 8 and 12 characters:
171
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Chinese Sensible Twin Code
Chinese Sensible twin code is 2 Chinese Sensible barcodes paralleled vertically or horizontally. They must both be either
regular or inverse barcodes. They must have similar specifications and be placed closely together.
There are 3 options for reading Chinese Sensible twin codes:
Single Chinese Sensible Code Only: Read either Chinese Sensible code.
Twin Chinese Sensible Code Only: Read both Chinese Sensible codes. Transmission sequence: left (upper) Chinese
Sensible code followed by right (lower) Chinese Sensible code.
Both Single & Twin: Read both Chinese Sensible codes. If successful, transmit as twin Chinese Sensible Code only.
Otherwise, try single Chinese Sensible Code only.
** Single Chinese Sensible Code Only
Twin Chinese Sensible Code Only
Both Single & Twin
** Exit Setup
172
Enter Setup
Chinese Sensible Code Inverse
Regular barcode: Dark bars on a bright background.
Inverse barcode: Bright bars on a dark background.
** Decode Regular Chinese Sensible Barcodes Only
Decode Inverse Chinese Sensible Barcodes Only
Decode Both
173
** Exit Setup
Enter Setup
GM Code
Restore Factory Defaults
Restore the Factory Defaults of GM
Enable/Disable GM
Enable GM
** Disable GM
If the scanner fails to identify GM barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable GM barcode.
** Exit Setup
174
Enter Setup
Set Length Range for GM
The scanner can be configured to only decode GM barcodes with lengths that fall between (inclusive) the minimum and
maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 2751)
Minimum length is not allowed to be greater than maximum length. If you only want to read GM barcodes
with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode GM barcodes containing between 8 and 12 characters:
175
1.
Scan the Enter Setup barcode.
2.
Scan the Set the Minimum Length barcode.
3.
Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Set the Maximum Length barcode.
6.
Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
Code One
Restore Factory Defaults
Restore the Factory Defaults of Code One
Enable/Disable Code One
Enable Code One
** Disable Code One
If the scanner fails to identify Code One barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Code One barcode.
** Exit Setup
176
Enter Setup
Set Length Range for Code One
The scanner can be configured to only decode Code One barcodes with lengths that fall between (inclusive) the minimum
and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.
Set the Minimum Length (Default: 1)
Set the Maximum Length (Default: 3550)
Minimum length is not allowed to be greater than maximum length. If you only want to read Code One
barcodes with a specific length, set both minimum and maximum lengths to be that desired length.
Set the scanner to decode Code One barcodes containing between 8 and 12 characters:
1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode “8” from the “Digit Barcodes” section in Appendix.
4. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes “1” and “2” from the “Digit Barcodes” section in Appendix.
7. Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
8. Scan the Exit Setup barcode.
177
** Exit Setup
Enter Setup
USPS Postnet
Restore Factory Defaults
Restore the Factory Defaults of USPS Postnet
Enable/Disable USPS Postnet
Enable USPS Postnet
** Disable USPS Postnet
If the scanner fails to identify USPS Postnet barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable USPS Postnet barcode.
Transmit Check Character
Do Not Transmit USPS Postnet Check Character
** Transmit USPS Postnet Check Character
** Exit Setup
178
Enter Setup
USPS Intelligent Mail
Restore Factory Defaults
Restore the Factory Defaults of USPS Intelligent Mail
Enable/Disable USPS Intelligent Mail
Enable USPS Intelligent Mail
** Disable USPS Intelligent Mail
If the scanner fails to identify USPS Intelligent Mail barcodes, you may first try this solution by scanning
the Enter Setup barcode and then Enable USPS Intelligent Mail barcode.
179
** Exit Setup
Enter Setup
Royal Mail
Restore Factory Defaults
Restore the Factory Defaults of Royal Mail
Enable/Disable Royal Mail
Enable Royal Mail
** Disable Royal Mail
If the scanner fails to identify Royal Mail barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Royal Mail barcode.
** Exit Setup
180
Enter Setup
USPS Planet
Restore Factory Defaults
Restore the Factory Defaults of USPS Planet
Enable/Disable USPS Planet
Enable USPS Planet
** Disable USPS Planet
If the scanner fails to identify USPS Planet barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable USPS Planet barcode.
Transmit Check Character
Do Not Transmit USPS Planet Check Character
** Transmit USPS Planet Check Character
181
** Exit Setup
Enter Setup
KIX Post
Restore Factory Defaults
Restore the Factory Defaults of KIX Post
Enable/Disable KIX Post
Enable KIX Post
** Disable KIX Post
If the scanner fails to identify KIX Post barcodes, you may first try this solution by scanning the Enter Setup
barcode and then Enable KIX Post barcode.
** Exit Setup
182
Enter Setup
Australian Postal
Restore Factory Defaults
Restore the Factory Defaults of Australian Postal
Enable/Disable Australian Postal
Enable Australian Postal
** Disable Australian Postal
If the scanner fails to identify Australian Postal barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Australian Postal barcode.
183
** Exit Setup
Enter Setup
Specific OCR-B
Restore Factory Defaults
Restore the Factory Defaults of Specific OCR-B
Enable/Disable Specific OCR-B
Enable Specific OCR-B
** Disable Specific OCR-B
If the scanner fails to identify Specific OCR-B barcodes, you may first try this solution by scanning the
Enter Setup barcode and then Enable Specific OCR-B barcode.
** Exit Setup
184
Enter Setup
Passport OCR
Restore Factory Defaults
Restore the Factory Defaults of Passport OCR
Enable/Disable Passport OCR
Enable Passport OCR
** Disable Passport OCR
If the scanner fails to identify Passport OCR barcodes, you may first try this solution by scanning the Enter
Setup barcode and then Enable Passport OCR barcode.
185
** Exit Setup
Enter Setup
Chapter 6 Data Formatter
Introduction
You may use the Data Formatter to modify the scanner’s output. For example, you can use the Data Formatter to insert
characters at certain points in barcode data or to suppress/ replace/ send certain characters in barcode data as it is scanned.
Normally, when you scan a barcode, it gets outputted automatically; however, when you create a format, you must use a
“send” command (see the “Send Commands” section in this chapter) within the format programming to output data. The
maximum size of all data formats (up to four data formats) created is 2048 characters. By default, the data formatter is
disabled. Enable it when required. If you have changed data format settings, and wish to clear all formats and return to the
factory defaults, scan the Default Data Format code below.
Default Data Format
Add a Data Format
Data format is used to edit barcode data only. You can program up to four data formats, i.e. Format_0, Format_1, Format_2
and Format_3. When you create a data format, you must specify the application scope of your data format (such as barcode
type and data length) and include formatter commands. When scanned data does not match your data format requirements,
you will hear the non-match error beep (if the non-match error beep is ON).
There are two methods to program a data format: Programming with barcodes and programming with HP Barcode Scanner
N-Series Configuration Utility.
The following explains how to program a data format by scanning the specific barcodes. Scanning any irrelevant barcode
or failing to follow the setting procedure will result in programming failure. To find the alphanumeric barcodes needed to
create a data format, see the “Digit Barcodes” section in Appendix.
Step 1: Scan the Enter Setup barcode.
Step 2: Scan the Add Data Format barcode.
Add Data Format
** Exit Setup
186
Enter Setup
Step 3: Select data format.
Scan a numeric barcode 0 or 1 or 2 or 3 to set this to Format_0 or Format_1 or Format_2 or Format_3.
Step 4: Scan 6999.
Step 5: Set Symbology ID Number
Refer to the “Symbology ID Number” section in Appendix and find the ID number of the symbology to which you want to
apply the data format. Scan three numeric barcodes for the symbology ID number. If you wish to create a data format for all
symbologies, scan 999.
Step 6: Set barcode data length
Specify what length of data will be acceptable for this symbology. Scan the four numeric barcodes that represent the data
length. 9999 is a universal number, indicating all lengths. For example, 32 characters should be entered as 0032.
Step 7: Enter formatter command
Refer to the “Formatter Commands” section in this chapter. Scan the alphanumeric barcodes that represent the command
you need to edit data. For example, when a command is F141, you should scan F141.
Step 8: Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix to save your data format.
Example: Program format_0 using formatter command type 6, Code 128 containing 10 characters applicable, send all
characters followed by “A”.
1. Scan the Enter Setup barcode
Enter the Setup mode
2. Scan the Add Data Format barcode
Add a data format
3. Scan the 0 barcode
Select format_0
4. Scan the barcodes 6999
5. Scan the barcodes 002
Only Code 128 applicable
6. Scan the barcodes 0010
Only a length of 10 characters applicable
7. Scan the alphanumeric barcodes F141
Send all characters followed by “A” (HEX: 41)
8. Scan the Save barcode
Save the data format
9. Scan the Exit Setup barcode
Exit the Setup mode
To streamline the programming process, you may as well generate a batch barcode by inputting the batch command (e.g.
@DFMADD069990020010F141;) used to create a data format. See the “Use Batch Barcode” section in Chapter 9 to
learn how to put a batch barcode into use.
187
** Exit Setup
Enter Setup
Enable/Disable Data Formatter
When Data Formatter is disabled, the barcode data is outputted to the host as read, including prefixes and suffixes.
** Disable Data Formatter
You may wish to require the data to conform to a data format you have created. The following settings can be applied to
your data format:
Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Any data that
does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the
data in that barcode is not transmitted.
Enable Data Formatter, Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is modified
accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Any data that does not
match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the data in that
barcode is not transmitted.
Enable Data Formatter, Not Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Barcode data that
does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix are
enabled).
Enable Data Formatter, Not Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is
modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Barcode data
that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix
are enabled).
** Exit Setup
188
Enter Setup
Enable Data Formatter, Required, Keep Prefix/Suffix
Enable Data Formatter, Required, Drop Prefix/Suffix
Enable Data Formatter, Not Required, Keep Prefix/Suffix
Enable Data Formatter, Not Required, Drop Prefix/Suffix
Non-Match Error Beep
If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not
match your required data format.
Non-Match Error Beep Off
** Non-Match Error Beep On
189
** Exit Setup
Enter Setup
Data Format Selection
After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode below.
** Format_0
Format_1
Format_2
Format_3
** Exit Setup
190
Enter Setup
Change Data Format for a Single Scan
You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here,
then reverts to the format you have selected above.
For example, you may have set your scanner to use the data format you saved as Format_3. You can switch to Format_1
for a single trigger pull by scanning the Single Scan – Format_1 barcode below. The next barcode that is scanned uses
Format_1, then reverts back to Format_3.
Note: This setting will be lost by removing power from the scanner, or turning off/ rebooting the device.
Single Scan – Format_0
Single Scan – Format_1
Single Scan – Format_2
Single Scan – Format_3
191
** Exit Setup
Enter Setup
Clear Data Format
There are two methods to remove data format created from your scanner:
Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to
delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode
Delete all data formats: Scan the Clear All barcode.
Clear All
Clear One
Query Data Formats
You may scan the appropriate barcode below to get the information of data format(s) created by you or preset by
manufacturer. For instance, if you have added Format_0 as per the example in the “Add a Data Format” section in this
chapter, scanning the Query Current Data Formats barcode, you will get the result: Data Format0:069990020010F141;.
Query Current Data Formats
Query Preset Data Formats
** Exit Setup
192
Enter Setup
Formatter Commands
When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are
used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex
value of ASCII characters involved in the commands, refer to the “ASCII Table” in Appendix.
Send Commands
F1 Send all characters
Syntax=F1xx (xx: The insert character’s hex value)
Include in the output message all of the characters from the input message, starting from current cursor position, followed
by an insert character.
F2 Send a number of characters
Syntax=F2nnxx (nn: The numeric value (00-99) for the number of characters; xx: The insert character’s hex value)
Include in the output message a number of characters followed by an insert character. Start from the current cursor position
and continue for “nn” characters or through the last character in the input message, followed by character “xx.”
F2 Example: Send a number of characters
Send the first 10 characters from the barcode above, followed by a carriage return.
Command string: F2100D
F2 is the “Send a number of characters” command
10 is the number of characters to send
0D is the hex value for a CR
The data is output as: 1234567890
<CR>
193
** Exit Setup
Enter Setup
F3 Send all characters up to a particular character
Syntax=F3ssxx (ss: The particular character’s hex value; xx: The insert character’s hex value)
Include in the output message all characters from the input message, starting with the character at the current cursor position
and continuing to, but not including, the particular character “ss,” followed by character “xx.” The cursor is moved forward
to the “ss” character.
F3 Example: Send all characters up to a particular character
Using the barcode above, send all characters up to but not including “D,” followed by a carriage return.
Command string: F3440D
F3 is the “Send all characters up to a particular character” command
44 is the hex value for a “D”
0D is the hex value for a CR
The data is output as: 1234567890ABC
<CR>
E9 Send all but the last characters
Syntax=E9nn (nn: The numeric value (00-99) for the number of characters that will not be sent at the end of the message)
Include in the output message all but the last “nn” characters, starting from the current cursor position. The cursor is moved
forward to one position past the last input message character included.
F4 Insert a character multiple times
Syntax=F4xxnn (xx: The insert character’s hex value; nn: The numeric value (00-99) for the number of times it should be
sent)
Send “xx” character “nn” times in the output message, leaving the cursor in the current position.
** Exit Setup
194
Enter Setup
E9 and F4 Example: Send all but the last characters, followed by 2 tabs
Send all characters except for the last 8 from the barcode above, followed by 2 tabs.
Command string: E908F40902
E9 is the “Send all but the last characters” command
08 is the number of characters at the end to ignore
F4 is the “Insert a character multiple times” command
09 is the hex value for a horizontal tab
02 is the number of time the tab character is sent
The data is output as: 1234567890AB<tab><tab>
B3 Insert symbology name
Insert the name of the barcode’s symbology in the output message, without moving the cursor.
B4 Insert barcode length
Insert the barcode’s length in the output message, without moving the cursor. The length is expressed as a numeric string
and does not include leading zeros.
195
** Exit Setup
Enter Setup
B3 and B4 Example: Insert the symbology name and length
Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with
spaces. End with a carriage return.
Command string: B3F42001B4F42001F10D
B3 is the “Insert symbology name” command
F4 is the “Insert a character multiple times” command
20 is the hex value for a space
01 is the number of time the space character is sent
B4 is the “Insert barcode length” command
F4 is the “Insert a character multiple times” command
20 is the hex value for a space
01 is the number of time the space character is sent
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: Code128 20 1234567890ABCDEFGHIJ
<CR>
Move Commands
F5 Move the cursor forward a number of characters
Syntax=F5nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved ahead)
Move the cursor ahead “nn” characters from current cursor position.
** Exit Setup
196
Enter Setup
F5 Example: Move the cursor forward and send the data
Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage
return.
Command string: F503F10D
F5 is the “Move the cursor forward a number of characters” command
03 is the number of characters to move the cursor
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 4567890ABCDEFGHIJ
<CR>
F6 Move the cursor backward a number of characters
Syntax=F6nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved back)
Move the cursor back “nn” characters from current cursor position.
F7 Move the cursor to the beginning
Syntax＝F7
Move the cursor to the first character in the input message.
EA Move the cursor to the end
Syntax＝EA
Move the cursor to the last character in the input message.
197
** Exit Setup
Enter Setup
Search Commands
F8 Search forward for a character
Syntax＝F8xx (xx: The search character’s hex value)
Search the input message forward for “xx” character from the current cursor position, leaving the cursor pointing to the “xx”
character.
F8 Example: Send barcode data that starts after a particular character
Search for the letter “D” in barcodes and send all the data that follows, including the “D”. Using the barcode above:
Command string: F844F10D
F8 is the “Search forward for a character” command
44 is the hex value for “D”
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: DEFGHIJ
<CR>
F9 Search backward for a character
Syntax＝F9xx(xx: The search character’s hex value)
Search the input message backward for “xx” character from the current cursor position, leaving the cursor pointing to the
“xx” character.
** Exit Setup
198
Enter Setup
B0 Search forward for a string
Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search forward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example,
B0000454657374 will search forward for the first occurrence of the 4-character string “Test.”
B0 Example: Send barcode data that starts after a string of characters
Search for the letters “FGH” in barcodes and send all the data that follows, including “FGH.” Using the barcode above:
Command string: B00003464748F10D
B0 is the “Search forward for a string” command
0003 is the string length (3 characters)
46 is the hex value for “F”
47 is the hex value for “G”
48 is the hex value for “H”
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: FGHIJ
<CR>
B1 Search backward for a string
Syntax＝B1nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)
Search backward for “S” string from the current cursor position, leaving cursor pointing to “S” string. For example,
B1000454657374 will search backward for the first occurrence of the 4-character string “Test.”
199
** Exit Setup
Enter Setup
E6 Search forward for a non-matching character
Syntax=E6xx (xx: The search character’s hex value)
Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing
to the non-“xx” character.
E6 Example: Remove zeros at the beginning of barcode data
This example shows a barcode that has been zero filled. You may want to ignore the zeros and send all the data that follows.
E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage return. Using
the barcode above:
Command string: E630F10D
E6 is the “Search forward for a non-matching character” command
30 is the hex value for 0
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 37692
<CR>
E7 Search backward for a non-matching character
Syntax＝E7xx(xx: The search character’s hex value)
Search the input message backward for the first non-“xx” character from the current cursor position, leaving the cursor
pointing to the non-“xx” character.
** Exit Setup
200
Enter Setup
Miscellaneous Commands
FB Suppress characters
Syntax＝FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of
the characters to be suppressed)
Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced
by other commands.
FB Example: Remove spaces in barcode data
This example shows a barcode that has spaces in the data. You may want to remove the spaces before sending the data.
Using the barcode above:
Command string: FB0120F10D
FB is the “Suppress characters” command
01 is the number of the characters to be suppressed
20 is the hex value for a space
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 34567890
<CR>
E4 Replace characters
Syntax ＝ E4nnxx1xx2yy1yy2…zz1zz2(nn: The total count of the number of characters (characters to be replaced plus
replacement characters; xx1: The characters to be replaced, xx2: The replacement characters, continuing through zz1 and
zz2)
Replace up to 15 characters in the output message, without moving the cursor.
201
** Exit Setup
Enter Setup
E4 Example: Replace zeros with CRs in barcode data
If the barcode has characters that the host application does not want included, you can use the E4 command to replace
those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns.
Command string: E402300DF10D
E4 is the “Replace characters” command
02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total characters=2)
30 is the hex value for 0
0D is the hex value for a CR (the character that will replace the 0)
F1 is the “Send all characters” command
0D is the hex value for a CR
The data is output as: 1234
5678
ABC
<CR>
** Exit Setup
202
Enter Setup
BA Replace a string with another
Syntax＝BAnnNN1SS1NN2SS2
nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then
replace all occurrences of that string.
NN1: The length of the string to be replaced, NN1>0.
SS1: The ASCII hex value of each character in the string to be replaced.
NN2: The length of replacement string, NN2>=0. To replace string “SS1” with NUL (i.e. deIete string “SS1”), you should set
NN2 to 00 and leave out SS2.
SS2: The ASCII hex value of each character in the replacement string.
From the current cursor position, search forward for the occurrence of “SS1” string (of length “NN1”) and replace the string
with “SS2” string (of length “NN2”) in the output message until every “SS1” stringis replaced or the count of replacements
made reaches “nn” times, without moving the cursor.
BA Example: Replace “23”s with “ABC”s in barcode data
If the barcode has a string of characters that the host application does not want included, you can use the BA command to
replace the string with something else. In this example, you will replace the “23”s in the barcode above with “ABC”s.
Command string: BA0002323303414243F100
BA is the “Replace a string with another” command
00 is the count of replacements to be made, 00 means to replace all occurrences of that string
02 is the length of the string to be replaced
203
** Exit Setup
Enter Setup
32 is the hex value for 2 (character in the string to be replaced)
33 is the hex value for 3 (character in the string to be replaced)
03 is the length of the replacement string
41 is the hex value for A (character in the replacement string)
42 is the hex value for B (character in the replacement string)
43 is the hex value for C (character in the replacement string)
F1 is the “Send all characters” command
00 is the hex value for a NUL
The data is output as: cd1ABCabcABCbc12abABC2
BA Example: Remove only the first occurrence of “23”s in barcode data
If the barcode has a string of characters that the host application wants removed, you can use the BA command to replace
the string with NUL. In this example, you will remove the first occurrence of “23” in the barcode above.
Command string: BA0102323300F100
BA is the “Replace a string with another” command
01 is the count of replacements to be made
02 is the length of the string to be replaced
32 is the hex value for 2 (character in the string to be replaced)
33 is the hex value for 3 (character in the string to be replaced)
00 is the length of the replacement string, 00 means to replace the string to be replaced with NUL
F1 is the “Send all characters” command
00 is the hex value for a NUL
The data is output as: cd1abc23bc12ab232
** Exit Setup
204
Enter Setup
EF Insert a delay
Syntax＝EFnnnn (nnnn: The delay in 5ms increments, up to 9999)
Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can
only be used with USB HID Keyboard.
EF Example: Insert a delay of 1s between the 5th and 6th character
Send the first 5 characters in a barcode, wait for 1s, then send the rest of the barcode data.
Command string: F20500EF0200E900
F2 is the “Send a number of characters” command
05 is the number of characters to send
00 is the hex value for a Null character
EF is the “Insert a delay” command
0200 is the delay value (5msX200=1000ms=1s)
E9 is the “Send all but the last characters” command
00 is the number of characters that will not be sent at the end of the message
205
** Exit Setup
Enter Setup
B5 Insert key strokes
Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx:
the key number from the “Unicode Key Maps” in Appendix.)
Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the “Unicode Key Maps”
in Appendix). This command can only be used with USB HID Keyboard.
Key Modifiers
No Key Modifier
00
Shift Left
01
Shift Right
02
Alt Left
04
Alt Right
08
Control Left
10
Control Right
20
For example, B501001F inserts an “a” on a U.S. style keyboard. B5 = the command, 01 = number of keys pressed (without
the key modifier), 00 is No Key Modifier, and 1F is the “a” key. If an “A” were to be inserted, B501011F or B501021F would
be entered.
If there are two keystrokes, the syntax would change from Syntax=B5nnssxx for one keystroke to Syntax=B5nnssxxssxx.
An example that would insert “aA” is as follows: B502001F011F.
Note: Key modifiers can be added together when needed. Example: Shift Left + Alt Left + Control Left =15.
** Exit Setup
206
Enter Setup
Chapter 7 Prefix & Suffix
Introduction
A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters
and other multi-byte characters. However, in real applications, they do not and should not have all information we need,
such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.
Preffix and suffix are how to fulfill the needs mentioned above. They can be added, removed and modified while the original
barcode data remains intact.
Barcode processing procedure:
207
1.
Edit data with Data Formatter
2.
Append prefix/suffix
3.
Pack data
4.
Append terminating character
** Exit Setup
Enter Setup
Global Settings
Enable/Disable All Prefixes/Suffixes
Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix.
Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character
to the barcode data before the transmission.
** Disable All Prefixes/Suffixes
Enable All Prefixes/Suffixes
Prefix Sequence
** Code ID+ Custom +AIM ID
Custom + Code ID + AIM ID
** Exit Setup
208
Enter Setup
Custom Prefix
Enable/Disable Custom Prefix
If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters.
For example, if the custom prefix is “AB” and the barcode data is “123”, the Host will receive “AB123”.
** Disable Custom Prefix
Enable Custom Prefix
Set Custom Prefix
To set a custom prefix, scan the Set Custom Prefix barcode then the numeric barcodes corresponding to the hexadecimal
value of a desired prefix then the Save barcode.
Note: A custom prefix cannot exceed 10 characters.
Set Custom Prefix
Set the custom prefix to “CODE” (HEX: 0x43/0x4F/0x44/0x45):
1.
Scan the Enter Setup barcode.
2.
Scan the Set Custom Prefix barcode.
3.
Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5” from the “Digit Barcodes” section in
Appendix.
209
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Enable Custom Prefix barcode.
6.
Scan the Exit Setup barcode.
** Exit Setup
Enter Setup
AIM ID Prefix
AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the “AIM ID Table”
section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data
after decoding.
** Disable AIM ID Prefix
Enable AIM ID Prefix
AIM ID is not user programmable.
** Exit Setup
210
Enter Setup
Code ID Prefix
Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist
of one or two English letters.
** Disable Code ID Prefix
Enable Code ID Prefix
Restore All Default Code IDs
For the information of default Code IDs, see the “Code ID Table” section in Appendix.
Restore All Default Code IDs
Modify Code ID
See the examples below to learn how to modify a Code ID and restore the default Code IDs of all symbologies.
211
** Exit Setup
Enter Setup
Modify PDF417 Code ID to be “p” (HEX: 0x70):
1.
Scan the Enter Setup barcode.
2.
Scan the Modify PDF417 Code ID barcode.
3.
Scan the numeric barcodes “7” and “0” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Exit Setup barcode.
Restore the default Code IDs of all symbologies:
1.
Scan the Enter Setup barcode.
2.
Scan the Restore All Default Code IDs barcode.
3.
Scan the Exit Setup barcode.
** Exit Setup
212
Enter Setup
1D symbologies:
Modify Code 128 Code ID
Modify GS1-128 Code ID
Modify EAN-8 Code ID
Modify EAN-13 Code ID
Modify UPC-E Code ID
Modify UPC-A Code ID
Modify Interleaved 2 of 5 Code ID
213
** Exit Setup
Enter Setup
Modify ITF-14 Code ID
Modify ITF-6 Code ID
Modify Matrix 2 of 5 Code ID
Modify Code 39 Code ID
Modify Codabar Code ID
Modify Code 93 Code ID
Modify China Post 25 Code ID
Modify AIM 128 Code ID
** Exit Setup
214
Enter Setup
Modify ISBT 128 Code ID
Modify ISSN Code ID
Modify ISBN Code ID
Modify Industrial 25 Code ID
Modify Standard 25 Code ID
Modify Plessey Code ID
Modify Code 11 Code ID
Modify MSI-Plessy Code ID
215
** Exit Setup
Enter Setup
Modify GS1 Composite Code ID
Modify GS1 Databar Code ID
Modify Code 49 Code ID
Modify Code 16K Code ID
** Exit Setup
216
Enter Setup
2D symbologies:
Modify PDF417 Code ID
Modify QR Code ID
Modify Aztec Code ID
Modify Data Matrix Code ID
Modify Maxicode Code ID
Modify Chinese Sensible Code ID
Modify GM Code ID
217
** Exit Setup
Enter Setup
Modify Micro PDF417 Code ID
Modify Micro QR Code ID
Modify Code One Code ID
** Exit Setup
218
Enter Setup
Postal symbologies:
Modify USPS Postnet Code ID
Modify USPS Inteligent Mail Code ID
Modify Royal Mail Code ID
Modify USPS Planet Code ID
Modify KIX Post Code ID
Modify Australian Postal Code ID
219
** Exit Setup
Enter Setup
Custom Suffix
Enable/Disable Custom Suffix
If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters.
For example, if the custom suffix is “AB” and the barcode data is “123”, the Host will receive “123AB”.
** Disable Custom Suffix
Enable Custom Suffix
Set Custom Suffix
To set a custom suffix, scan the Set Custom Suffix barcode then the numeric barcodes corresponding to the hexadecimal
value of a desired suffix then the Save barcode.
Note: A custom suffix cannot exceed 10 characters.
Set Custom Suffix
Set the custom suffix to “CODE” (HEX: 0x43/0x4F/0x44/0x45):
1.
Scan the Enter Setup barcode.
2.
Scan the Set Custom Suffix barcode.
3.
Scan the numeric barcodes “4”, “3”, “4”, “F”, “4”, “4”, “4” and “5” from the “Digit Barcodes” section in
Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Enable Custom Suffix barcode.
6.
Scan the Exit Setup barcode.
** Exit Setup
220
Enter Setup
Data Packing
Introduction
Data packing is designed for a specific group of users who want to have the data packed before transmission. Data packing
influences data format, so it is advised to disable this feature when it is not required.
Data Packing Options
Disable Data Packing: Transmit decoded data in raw format (unpacketed).
Enable Data Packing, Format 1: Transmit decoded data with the packet format 1 defined below.
Packet format 1: [STX + ATTR + LEN] + [AL_TYPE + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x36
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+DATA; computation method is XOR, byte
by byte.
Enable Data Packing, Format 2: Transmit decoded data with the packet format 2 defined below.
Packet format 2: [STX + ATTR + LEN] + [AL_TYPE] + [Symbology_ID + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).
AL_TYPE: 0x3B
Symbology_ID: The ID number of symbology, 1 byte.
DATA: Raw barcode data.
LRC: Check digit.
LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+Symbology_ID+DATA; computation
method is XOR, byte by byte.
221
** Exit Setup
Enter Setup
** Disable Data Packing
Enable Data Packing, Format 1
Enable Data Packing, Format 2
** Exit Setup
222
Enter Setup
Terminating Character Suffix
Enable/Disable Terminating Character Suffix
A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the
end of data, which means nothing can be added after it.
** Disable Terminating Character Suffix
Enable Terminating Character Suffix
Set Terminating Character Suffix
To set a terminating character suffix, scan the Set Terminating Character Suffix barcode then the numeric barcodes
corresponding to the hexadecimal value of a desired terminating character then the Save barcode.
Note: A terminating character suffix cannot exceed 2 characters.
Set Terminating Character Suffix
** Set Terminating Character to CR (0x0D)
Set Terminating Character to CRLF (0x0D,0x0A)
223
** Exit Setup
Enter Setup
Set the terminating character suffix to 0x0A:
1.
Scan the Enter Setup barcode.
2.
Scan the Set Terminating Character Suffix barcode.
3.
Scan the numeric barcodes “0” and “A” from the “Digit Barcodes” section in Appendix.
4.
Scan the Save barcode from the “Save/Cancel Barcodes” section in Appendix.
5.
Scan the Enable Terminating Character Suffix barcode.
6.
Scan the Exit Setup barcode.
** Exit Setup
224
Enter Setup
Chapter 8 Batch Programming
Introduction
Batch programming enables users to integrate a batch of commands into a single batch barcode.
Listed below are batch programming rules:
1. Command format: Command + Parameter Value.
2. Each command is terminated by a semicolon (;). Note that there is no space between a command and its terminator
semicolon.
3. Use the barcode generator software to generate a 2D batch barcode.
Example: Create a batch barcode for Illumination On (command: ILLSCN1), Sense Mode (command: SCNMOD2),
Decode Session Timeout = 2s (command: ORTSET2000) and Disable Interleaved 2 of 5 (command: I25ENA0):
1. Input the commands:
@ILLSCN1;SCNMOD2;ORTSET2000;I25ENA0;
Note: “@” means permanent setting which will not be lost by removing power from the scanner or rebooting it
2. Generate a batch barcode.
When setting up a scanner with the above configuration, scan the Enable Batch Barcode barcode and then the batch
barcode generated.
Enable Batch Barcode
225
** Exit Setup
Enter Setup
Create a Batch Command
A batch command may contain a number of individual commands each of which is terminated by a semicolon (;).
For more information, refer to the “Use of Programming Command” section in Chapter 3.
Create a Batch Barcode
Batch barcodes can be produced in the format of PDF417, QR Code or Data Matrix.
Example: Create a batch barcode for lllumination On, Sense Mode, Decode Session Timeout = 2s and Disable
Interleaved 2 of 5:
1. Input the following commands:
@ILLSCN1;SCNMOD2;ORTSET2000;I25ENA0;
2. Generate a PDF417 batch barcode.
** Exit Setup
226
Enter Setup
Use Batch Barcode
To put a batch barcode into use, scan the following barcodes. (Use the example above.)
Enter Setup
Enable Batch Barcode
Batch Barcode
Exit Setup
227
** Exit Setup
Appendix
Digit Barcodes
0~9
0
1
2
3
4
5
228
6
7
8
9
229
A~F
A
B
C
D
E
F
230
Save/Cancel Barcodes
After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you
can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode
and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.
For instance, after reading the Maximum Length barcode and numeric barcodes “1”, “2” and “3”, you scan:

Delete the Last Digit: The last digit “3” will be removed.

Delete All Digits: All digits “123” will be removed.

Cancel: The maximum length configuration will be cancelled. And the scanner is still in the setup mode.
Save
Cancel
Delete the Last Digit
Delete All Digits
231
Factory Defaults Table
Parameter
Factory Default
Remark
System Settings
Barcode Programming
Disabled (Exit Setup)
Programming Barcode Data
Do not transmit
Illumination
On
Aiming
On
Good Read LED
On
Good Read LED Duration
Short (20ms)
Power On Beep
On
Good Read Beep
On
Good Read Beep Duration
Medium (80ms)
Good Read Beep Frequency
Medium (2730Hz)
Good Read Beep Volume
Loud
Scan Mode
Level Mode
Decode Session Timeout
3,000ms.
1-3,600,000ms; 0: Infinite
Image Stabilization Timeout (Sense Mode)
200ms
0-3,000ms
Timeout between Decodes (Same
Disabled
Barcode)
1,500ms
1-3,600,000ms
Image Decoding Timeout
500ms
1-3,000ms
Sensitivity
Medium Sensitivity
Trigger Commands
Disabled
Read Barcode
On
Decode Area
Whole Area Decoding
Specify Decoding Area
40% top, 60% bottom, 40% left, 60% right
Image Flipping
Do Not Flip
Smart Stand Mode
On
Bad Read Message
Default Interface
Off
NG
1-7 characters
USB HID Keyboard
USB Interface
USB Country Keyboard
US keyboard
USB HID Keyboard
Beep on Unknown Character
Off
USB HID Keyboard
Emulate ALT+Keypad
Off
USB HID Keyboard
Code Page 1252 (West European Latin)
USB HID Keyboard
Code Page
232
Unicode Encoding
Off
USB HID Keyboard
Emulate Keypad with Leading Zero
Off
USB HID Keyboard
Function Key Mapping
Disable
USB HID Keyboard
Inter-Keystroke Delay
No Delay
USB HID Keyboard
Caps Lock
Off
USB HID Keyboard
Convert Case
No Case Conversion
USB HID Keyboard
Emulate Numeric Keypad 1
Off
USB HID Keyboard
Emulate Numeric Keypad 2
Off
USB HID Keyboard
Fast Mode
Off
USB HID Keyboard
Polling Rate
4ms
USB HID Keyboard
Symbologies
Global Settings
1D Twin Code
Single 1D Code Only
Code 128
Code 128
Enabled
Maximum Length
48
Minimum Length
1
EAN-8
EAN-8
Enabled
Check Character
Transmit
2-Digit Add-On Code
Disabled
5-Digit Add-On Code
Disabled
Convert EAN-8 to EAN-13
Disabled
EAN-13
EAN-13
Enabled
Check Character
Transmit
2-Digit Add-On Code
Disabled
5-Digit Add-On Code
Disabled
UPC-E
UPC-E0
Enabled
UPC-E1
Disabled
Check Character
Transmit
2-Digit Add-On Code
Disabled
5-Digit Add-On Code
Disabled
Transmit Preamble Character
System Character
Convert UPC-E to UPC-A
Disabled
233
UPC-A
UPC-A
Enabled
Check Character
Transmit
2-Digit Add-On Code
Disabled
5-Digit Add-On Code
Disabled
Transmit Preamble Character
No Preamble
Coupon
UPC-A/EAN-13 with Extended Coupon
Off
Code
Coupon GS1 DataBar Output
Off
Interleaved 2 of 5
Interleaved 2 of 5
Enabled
Maximum Length
80
Minimum Length
6
Check Character Verification
Disabled
No less than 4
ITF-14
ITF-14
Disabled
ITF-6
ITF-6
Disabled
Matrix 2 of 5
Matrix 2 of 5
Enabled
Maximum Length
80
Minimum Length
4
Check Character Verification
Disabled
No less than 4
Code 39
Code 39
Enabled
Maximum Length
48
Minimum Length
1
Check Character Verification
Disabled
Start/Stop Character
Do not transmit
Code 39 Full ASCII
Disabled
Code 32 Pharmaceutical (PARAF)
Disabled
Code 32 Prefix
Disabled
Code 32 Start/Stop Character
Do not transmit
Code 32 Check Character
Do not transmit
Codabar
234
Codabar
Enabled
Maximum Length
60
Minimum Length
2
Check Character Verification
Disabled
Start/Stop Character
Do not transmit
ABCD/ABCD
Code 93
Code 93
Disabled
Maximum Length
48
Minimum Length
1
Check Character Verification
Do Not Transmit Check Character After Verification
China Post 25
China Post 25
Disabled
Maximum Length
48
Minimum Length
1
Check Character Verification
Disabled
No less than 1
GS1-128 (UCC/EAN-128)
GS1-128
Enabled
Maximum Length
48
Minimum Length
1
GS1 Databar
GS1 Databar
Enabled
Application Identifier “01”
Transmit
EAN•UCC Composite
GS1 Composite
Disabled
UPC/EAN Composite
Disabled
Code 11
Code 11
Disabled
Maximum Length
48
Minimum Length
4
Check Character Verification
One Check Character, MOD11
Check Character
Transmit
ISBN
ISBN
Disabled
Set ISBN Format
ISBN-10
ISSN
235
No less than 4
ISSN
Disabled
Industrial 25
Industrial 25
Disabled
Maximum Length
48
Minimum Length
6
Check Character Verification
Disabled
No less than 4
Standard 25
Standard 25
Disabled
Maximum Length
48
Minimum Length
6
Check Character Verification
Disabled
No less than 4
Plessey
Plessey
Disabled
Maximum Length
48
Minimum Length
4
Check Character Verification
Disabled
No less than 4
MSI-Plessey
MSI-Plessey
Disabled
Maximum Length
48
Minimum Length
4
Check Character Verification
One Check Character, MOD10
Check Character
Transmit
No less than 4
AIM 128
AIM 128
Disabled
Maximum Length
48
Minimum Length
1
ISBT 128
ISBT 128
Disabled
Code 49
Code 49
Disabled
Maximum Length
80
Minimum Length
1
Code 16K
Code 16K
Disabled
Maximum Length
80
Minimum Length
1
236
PDF417
PDF417
Enabled
Maximum Length
2710
Minimum Length
1
PDF417 Twin Code
Single PDF417 Only
PDF417 Inverse
Decode Regular PDF417 Barcodes Only
Character Encoding
Default Character Encoding
PDF417 ECI Output
Enabled
Micro PDF417
Micro PDF417
Disabled
Maximum Length
366
Minimum Length
1
QR Code
QR Code
Enabled
Maximum Length
7089
Minimum Length
1
QR Twin Code
Single QR Only
QR Inverse
Decode Regular QR Barcodes Only
Character Encoding
Default Character Encoding
QR ECI Output
Enabled
Micro QR Code
Micro QR
Enabled
Maximum Length
35
Minimum Length
1
Aztec
Aztec Code
Disabled
Maximum Length
3832
Minimum Length
1
Read Multi-barcodes on an Image
Mode 1
Character Encoding
Default Character Encoding
Aztec ECI Output
Enabled
Data Matrix
Data Matrix
Enabled
Maximum Length
3116
Minimum Length
1
Data Matrix Twin Code
Single Data Matrix Only
237
Rectangular Barcode
Enabled
Data Matrix Inverse
Decode Regular Data Matrix Barcodes Only
Character Encoding
Default Character Encoding
Data Matrix ECI Output
Enabled
Maxicode
Maxicode
Disabled
Maximum Length
150
Minimum Length
1
Chinese Sensible Code
Chinese Sensible Code
Disabled
Maximum Length
7827
Minimum Length
1
Chinese Sensible Twin Code
Single Chinese Sensible Code Only
Chinese Sensible Code Inverse
Decode Regular Chinese Sensible Barcodes Only
GM Code
GM
Disabled
Maximum Length
2571
Minimum Length
1
Code One
Code One
Disabled
Maximum Length
3550
Minimum Length
1
USPS Postnet
USPS Postnet
Disabled
Check Character
Transmit
USPS Intelligent Mail
USPS Intelligent Mail
Disabled
Royal Mail
Royal Mail
Disabled
USPS Planet
USPS Planet
Disabled
Check Character
Transmit
KIX Post
KIX Post
Disabled
Australian Postal
Australian Postal
Disabled
238
Specific OCR-B
Specific OCR-B
Disabled
Passport OCR
Passport OCR
Disabled
Data Formatter
Data Formatter
Disabled
Non-Match Error Beep
On
Data Format Selection
Format_0
Prefix & Suffix
All Prefixes/Suffixes
Disabled
Prefix Sequence
Code ID+ Custom +AIM ID
Custom Prefix
Disabled
AIM ID Prefix
Disabled
Code ID Prefix
Disabled
Custom Suffix
Disabled
Data Packing
Disable Data Packing
Terminating Character Suffix
Disabled
CR (0x0D)
239
AIM ID Table
Symbology
AIM ID
Possible AIM ID Modifiers (m)
Code128
]C0
GS1-128 (UCC/EAN-128)
]C1
EAN-8
]E4
EAN-8 with Addon
]E3
EAN-13
]E0
EAN-13 with Addon
]E3
UPC-E
]E0
UPC-E with Addon
]E3
UPC-A
]E0
UPC-A with Addon
]E3
Interleaved 2 of 5
]Im
0, 1, 3
ITF-14
]Im
1, 3
ITF-6
]Im
1, 3
Matrix 2 of 5
]X0
Code 39
]Am
0, 1, 3, 4, 5, 7
Codabar
]Fm
0, 2, 4
Code 93
]G0
China Post 25
]X0
AIM 128
]C2
ISBT 128
]C4
ISSN
]X0
ISBN
]X0
Industrial 25
]S0
Standard 25
]R0
Plessey
]P0
Code 11
]Hm
0, 1, 3
MSI Plessey
]Mm
0, 1
GS1 Composite
]em
0-3
GS1 Databar (RSS)
]e0
Code 49
]T0
Code 16K
]K0
240
Symbology
AIM ID
Possible AIM ID Modifiers (m)
PDF417
]Lm
0-2
QR Code
]Qm
0-6
Aztec
]zm
0-9, A-C
Data Matrix
]dm
0-6
Maxicode
]Um
0-3
Chinese Sensible Code
]X0
GM
]gm
Micro PDF417
]L0
Micro QR
]Q1
Code One
]X0
USPS Postnet
]X0
USPS Inteligent Mail
]X0
Royal Mail
]X0
USPS Planet
]X0
KIX Post
]X0
Australian Postal
]X0
Specific OCR-B
]o2
Passport OCR
]o2
(0~9)
Note: “m” represents the AIM modifier character. Refer to ISO/IEC 15424:2008 Information technology – Automatic identification
and data capture techniques – Data Carrier Identifiers (including Symbology Identifiers) for AIM modifier character details.
241
Code ID Table
Symbology
Code ID
Code128
j
GS1-128 (UCC/EAN-128)
j
EAN-8
d
EAN-13
d
UPC-E
c
UPC-A
c
Interleaved 2 of 5
e
ITF-14
e
ITF-6
e
Matrix 2 of 5
v
Code 39
b
Codabar
a
Code 93
i
China Post 25
X
AIM 128
X
ISBT 128
X
ISSN
g
ISBN
B
Industrial 25
I
Standard 25
f
Plessey
n
Code 11
H
MSI Plessey
m
GS1 Composite
y
GS1 Databar (RSS)
R
Code 49
X
Code 16K
X
PDF417
r
QR Code
s
Aztec
z
Data Matrix
u
242
Symbology
Code ID
MaxiCode
x
Chinese Sensible Code
h
GM Code
x
Micro PDF417
R
Micro QR
X
Code One
X
USPS Postnet
P
USPS Inteligent Mail
M
Royal Mail
x
USPS Planet
L
KIX Post
K
Australian Postal
A
Specific OCR-B
S
Passport OCR
O
243
Symbology ID Number
Symbology
ID Number
Code 128
002
GS1-128 (UCC/EAN-128)
003
EAN-8
004
EAN-13
005
UPC-E
006
UPC-A
007
Interleaved 2 of 5
008
ITF-14
009
ITF-6
010
Matrix 2 of 5
011
Code 39
013
Codabar
015
Code 93
017
China Post 25
019
AIM 128
020
ISBT 128
021
ISSN
023
ISBN
024
Industrial25
025
Standard25
026
Plessey
027
Code11
028
MSI-Plessey
029
GS1 Composite
030
GS1 Databar (RSS)
031
PDF417
032
QR Code
033
Aztec
034
Data Matrix
035
Maxicode
036
Chinese Sensible Code
039
244
Symbology
ID Number
GM Code
040
Micro PDF417
042
Micro QR
043
Code One
048
Specific OCR-B
064
Passport OCR
066
USPS Postnet
096
USPS Inteligent Mail
097
Royal Mail
098
USPS Planet
099
KIX Post
100
Australian Postal
101
245
ASCII Table
Hex
Dec
Char
00
0
NUL
(Null char.)
01
1
SOH
(Start of Header)
02
2
STX
(Start of Text)
03
3
ETX
(End of Text)
04
4
EOT
(End of Transmission)
05
5
ENQ
(Enquiry)
06
6
ACK
(Acknowledgment)
07
7
BEL
(Bell)
08
8
BS
(Backspace)
09
9
HT
(Horizontal Tab)
0a
10
LF
(Line Feed)
0b
11
VT
(Vertical Tab)
0c
12
FF
(Form Feed)
0d
13
CR
(Carriage Return)
0e
14
SO
(Shift Out)
0f
15
SI
(Shift In)
10
16
DLE
(Data Link Escape)
11
17
DC1
(XON) (Device Control 1)
12
18
DC2
(Device Control 2)
13
19
DC3
(XOFF) (Device Control 3)
14
20
DC4
(Device Control 4)
15
21
NAK
(Negative Acknowledgment)
16
22
SYN
(Synchronous Idle)
17
23
ETB
(End of Trans. Block)
18
24
CAN
(Cancel)
19
25
EM
(End of Medium)
1a
26
SUB
(Substitute)
1b
27
ESC
(Escape)
1c
28
FS
(File Separator)
1d
29
GS
(Group Separator)
246
247
Hex
Dec
Char
1e
30
RS
(Request to Send)
1f
31
US
(Unit Separator)
20
32
SP
(Space)
21
33
!
(Exclamation Mark)
22
34
"
(Double Quote)
23
35
#
(Number Sign)
24
36
$
(Dollar Sign)
25
37
%
(Percent)
26
38
&
(Ampersand)
27
39
`
(Single Quote)
28
40
(
(Left/ Opening Parenthesis)
29
41
)
(Right/ Closing Parenthesis)
2a
42
*
(Asterisk)
2b
43
+
(Plus)
2c
44
,
(Comma)
2d
45
-
(Minus/ Dash)
2e
46
.
(Dot)
2f
47
/
(Forward Slash)
30
48
0
31
49
1
32
50
2
33
51
3
34
52
4
35
53
5
36
54
6
37
55
7
38
56
8
39
57
9
3a
58
:
(Colon)
3b
59
;
(Semi-colon)
3c
60
<
(Less Than)
3d
61
=
(Equal Sign)
Hex
Dec
Char
3e
62
>
(Greater Than)
3f
63
?
(Question Mark)
40
64
@
(AT Symbol)
41
65
A
42
66
B
43
67
C
44
68
D
45
69
E
46
70
F
47
71
G
48
72
H
49
73
I
4a
74
J
4b
75
K
4c
76
L
4d
77
M
4e
78
N
4f
79
O
50
80
P
51
81
Q
52
82
R
53
83
S
54
84
T
55
85
U
56
86
V
57
87
W
58
88
X
59
89
Y
5a
90
Z
5b
91
[
(Left/ Opening Bracket)
5c
92
\
(Back Slash)
5d
93
]
(Right/ Closing Bracket)
248
249
Hex
Dec
Char
5e
94
^
(Caret/ Circumflex)
5f
95
_
(Underscore)
60
96
'
(Grave Accent)
61
97
a
62
98
b
63
99
c
64
100
d
65
101
e
66
102
f
67
103
g
68
104
h
69
105
i
6a
106
j
6b
107
k
6c
108
l
6d
109
m
6e
110
n
6f
111
o
70
112
p
71
113
q
72
114
r
73
115
s
74
116
t
75
117
u
76
118
v
77
119
w
78
120
x
79
121
y
7a
122
z
7b
123
{
(Left/ Opening Brace)
7c
124
|
(Vertical Bar)
7d
125
}
(Right/ Closing Brace)
7e
126
~
(Tilde)
7f
127
DEL
(Delete)
Unicode Key Maps
104 Key U.S. Style Keyboard
105 Key European Style Keyboard
250
