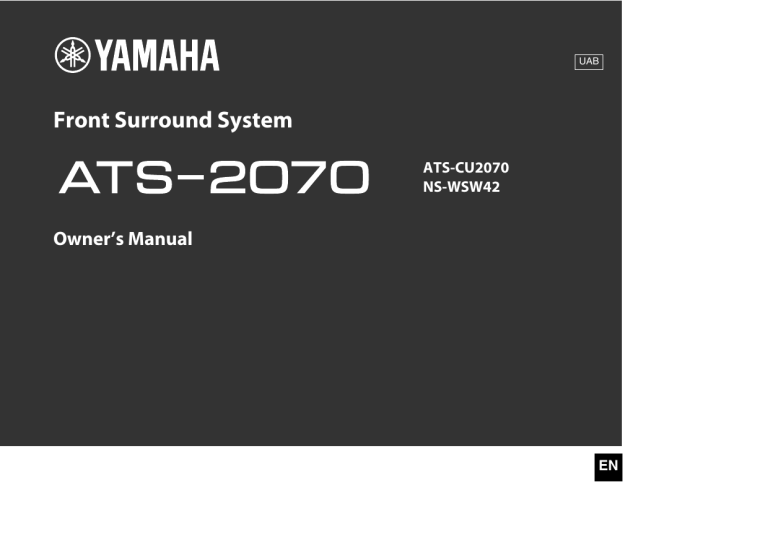

Yamaha ATS-2070 Owner's manual

Yamaha ATS-2070 Owner's manual
UAB
English
Front Surround System
Français
ATS-CU2070
NS-WSW42
Español
Owner’s Manual
XXX
EN
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol within
an equilateral triangle is intended to alert the user
to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be
of sufficient magnitude to constitute a risk of
electric shock to persons.
C A U TION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The above warning is located on the bottom or rear of the unit.
IMPORTANT SAFETY INSTRUCTIONS
1
Read these instructions.
2
3
4
5
6
7
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or
the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the manufacturer.
8
9
10
11
2
En
12
13
14
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
(UL60065_03)
FCC/IC NOTICE (U.S.A. and Canada)
FCC INFORMATION (U.S.A.)
1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this
manual, meets FCC requirements. Modifications not expressly approved by
Yamaha may void your authority, granted by the FCC, to use the product.
2. IMPORTANT:
When connecting this product to accessories and/or another product use only high
quality shielded cables. Cable/s supplied with this product MUST be used. Follow
all installation instructions. Failure to follow instructions could void your FCC
authorization to use this product in the USA.
3. NOTE:
This product has been tested and found to comply with the requirements listed in
FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these
requirements provides a reasonable level of assurance that your use of this
product in a residential environment will not result in harmful interference with
other electronic devices. This equipment generates/uses radio frequencies and, if
not installed and used according to the instructions found in the users manual,
may cause interference harmful to the operation of other electronic devices.
Compliance with FCC regulations does not guarantee that interference will not
occur in all installations. If this product is found to be the source of interference,
which can be determined by turning the unit “OFF” and “ON”, please try to
eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or
install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the
antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.
If these corrective measures do not produce satisfactory results, please contact
the local retailer authorized to distribute this type of product. If you can not locate
the appropriate retailer, please contact Yamaha Corporation of America,
Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620
The above statements apply ONLY to those products distributed by Yamaha
Corporation of America or its subsidiaries.
* This applies only to products distributed by YAMAHA CORPORATION OF
AMERICA.
• This equipment compiles with FCC/IC radiation exposure limits set forth for an
uncontrolled environment and meets the FCC radio frequency (RF) Exposure
Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This
equipment has very low levels of RF energy that it deemed to comply without
maximum permissive exposure evaluation (MPE). But it is desirable that it should
be installed and operated with at least 20 cm and more between the radiator and
person’s body.
• This device complies with Part 15 of FCC Rules and Industry Canada licenseexempt RSS standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired operation of this
device.
• This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
This product contains a battery that contains perchlorate material.
Perchlorate Material—special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
The model number, serial number, power requirements, etc., may be found on or
near the name plate, which is at the bottom of the unit. You should note this serial
number in the space provided below and retain this manual as a permanent record
of your purchase to aid identification in the event of theft.
Model No.
Serial No.
(Perchlorate/Ser.No)
* This applies only to products distributed by YAMAHA CORPORATION OF
AMERICA.
CAN ICES-3 (B)/NMB-3(B)
(can-b-02)
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, Yamaha Music Europe GmbH declares that the radio equipment type
[ATS-2070] is in compliance with Directive 2014/53/EU. The full text of the EU
declaration of conformity is available at the following internet address:
https://europe.yamaha.com/en/support/compliance/doc.html
* This applies only to products distributed by Yamaha Music Europe GmbH.
En
3
PRECAUTIONS
PLEASE READ CAREFULLY
BEFORE USE. BE SURE TO
FOLLOW THESE INSTRUCTIONS.
The precautions listed below are to prevent risk of
harm to the user and others, as well as to prevent
property damage, and to help the user use this unit
properly and safely. Be sure to follow these
instructions.
After reading this manual, be sure to keep it in a safe place
where it can be referenced at any time.
• Be sure to request inspections or repairs from the
dealer where you purchased the unit or from qualified
Yamaha service personnel.
• Yamaha cannot be held responsible for injury to you or
damage of the products caused by improper use or
modifications to the unit.
• This product is for ordinary homes. Do not use for
applications requiring high reliability, such as managing
lives, health care or high-value assets.
4
En
WARNING
This content indicates “risk of serious injury or
death.”
Power supply/power cord
• Do not do anything that could damage the power cord.
- Do not place it near a heater.
- Do not bend it excessively or alter it.
- Do not scratch it.
- Do not place it under a heavy object.
Using the power cord with the core of the cord exposed could cause electric shocks
or a fire.
• Do not touch the power plug or cord if there is a chance of lightning. Failure to
observe this may cause electric shocks.
• Use this unit with the power supply voltage printed on it. Failure to connect to an
appropriate AC outlet may cause a fire, electric shocks, or malfunctions.
• Be sure to use the supplied AC power cord. Also, do not use the supplied power
cord for other units. Failure to observe the above may cause a fire, burns, or
malfunctions.
• Check the electric plug periodically and remove any dirt or dust which may have
accumulated on it. Failure to observe this may cause a fire or electric shocks.
• When setting up the unit, make sure that the AC outlet you are using is easily
accessible. If some trouble or malfunction occurs, immediately turn off the power
switch and disconnect the plug from the AC outlet. Even when the power switch is
turned off, as long as the power cord is not unplugged from the wall AC outlet, the
unit will not be disconnected from the power source.
• If you hear thunder or suspect approaching lightning, quickly turn off the power
switch and pull the power plug from the AC outlet. Failure to observe this may
cause a fire or malfunctions.
• If not using the unit for long periods of time, be sure to pull the power plug from the
AC outlet. Failure to observe this may cause a fire or malfunctions.
Do not disassemble
• Do not disassemble or modify this unit. Failure to observe this may cause a fire,
electric shocks, injury, or malfunctions. If you notice any irregularities, be sure to
request an inspection or repair from the dealer where you purchased the unit or
from qualified Yamaha service personnel.
Water warning
• Do not expose the unit to rain, use it near water or in damp or wet conditions, or
place on it any containers (such as vases, bottles or glasses) containing liquids
which might spill into any openings or places where water may drop. A liquid such
as water getting into the unit may cause a fire, electric shocks, or malfunctions. If
any liquid such as water seeps into the device, turn off the power immediately and
unplug the power cord from the AC outlet. Then, request an inspection from the
dealer where you purchased the unit or from qualified Yamaha service personnel.
• Never insert or remove an electric plug with wet hands. Do not handle this unit with
wet hands. Failure to observe this may cause electric shocks or malfunctions.
Fire warning
• Do not place any burning items or open flames near the unit, since they may cause
a fire.
Installation
• Install in the manner instructed in the manual. Falling or toppling may result in injury
or damage.
• Once the unit is installed, the security of the installation should be checked on a
regular basis. Failure to do so may cause the unit to fall or topple, resulting in injury
or damage.
Battery use
WARNING
DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
The remote control supplied with this product contains a coin/
button cell battery. If the coin/button cell battery is swallowed, it
can cause severe internal burns in just 2 hours and can lead to
death.
Keep new and used batteries away from children. If the battery
compartment does not close securely, stop using the product
and keep it away from children.
If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
• Do not disassemble a battery. If the contents of the battery get on your hands or in
your eyes, it can cause blindness or chemical burns.
• Do not dispose of batteries in fire. Doing so may result in the battery bursting,
causing a fire or injury.
• Do not expose a battery to high temperatures, such as direct sunlight or a fire. The
battery may burst, causing a fire or injury.
• Do not attempt to recharge batteries that are not intended to be charged. Charging
could cause the battery to burst or leak, which can cause blindness, chemical
burns, or injury.
• If the batteries do leak, avoid contact with the leaked fluid. If the battery fluid should
come in contact with your eyes, mouth, or skin, wash immediately with water and
consult a doctor. Battery fluid is corrosive and may possibly cause loss of sight or
chemical burns.
Wireless unit
• Do not use this unit near medical devices or inside medical facilities. Radio waves
from this unit may affect electro-medical devices.
• Do not use this unit within 15 cm (6 in) of persons with a heart pacemaker implant
or a defibrillator implant. Radio waves from this unit may affect electro-medical
devices, such as a heart pacemaker implant or defibrillator implant.
En
5
If you notice any abnormality
• If any of the following abnormalities occur, immediately turn off the power and
disconnect the power plug.
- The power cord/plug is damaged.
- An unusual smell or smoke is emitted from the unit.
- Foreign material gets into the interior of the unit.
- There is a loss of sound during use.
- There is a crack or damage in the unit.
Continued use could cause electric shocks, a fire, or malfunctions. Immediately
request an inspection or repair from the dealer where you purchased the unit or
from qualified Yamaha service personnel.
• Be careful not to drop or apply strong impact to this unit. If you suspect the unit may
have been damaged due to dropping or impact, immediately turn off the power and
pull the power plug from the AC outlet. Failure to observe this may cause electric
shocks, a fire, or malfunctions. Immediately request an inspection from the dealer
where you purchased the unit or from qualified Yamaha service personnel.
CAUTION
This content indicates “risk of injury.”
Power supply/power cord
• Do not use an AC outlet where the power plug fits loosely when inserted. Failure to
observe this may cause a fire, electric shocks, or burns.
• When removing the electric plug from the unit or an AC outlet, always hold the plug
itself and not the cord. Pulling by the cord can damage it and cause electric shocks
or a fire.
• Insert the power plug firmly all the way into the AC outlet. Using the unit when it is
not plugged in sufficiently can cause dust to accumulate on the plug, causing a fire
or burns.
Installation
• Do not place the unit in an unstable position where it might accidentally drop or fall
over and cause injuries.
• Do not block this unit's ventilation holes (cooling slits). This unit has ventilation
holes on the bottom to prevent the internal temperature from becoming too high.
Failure to observe this may trap heat inside the unit, causing a fire or malfunctions.
• When installing this unit:
- Do not cover it with any cloth.
- Do not install it on a carpet or rug.
- Make sure the top surface faces up; do not install on its sides or upside down.
- Do not use the device in a confined, poorly-ventilated location.
Failure to observe the above may trap heat inside the unit, causing a fire or
malfunctions. Ensure that there is adequate space:
around the center unit: at least 10 cm (4 in) on top, 10 cm (4 in) on the sides, and 10
cm (4 in) on the rear,
around the subwoofer: at least 20 cm (8 in) on top, 20 cm (8 in) on the sides, and 20
cm (8 in) on the rear.
• Do not place the unit in a location where it may come into contact with corrosive
gases or salt air or places that have excessive smoke or steam. Doing so may
result in malfunction.
• Avoid being near the unit during a disaster, such as an earthquake. Since the unit
may turn over or fall and cause injury, quickly move away from the unit and go to a
safe place.
6
En
• Before moving this unit, be sure to turn off the power switch and disconnect all
connection cables. Failure to observe this may damage the cables or cause you or
someone else to trip and fall.
• Be sure to request that the dealer where you purchased the unit or qualified service
personnel mounts the unit on a wall. The unit could fall and cause injury. Installation
requires special skills and experience.
Hearing loss
• Do not use the unit for a long period of time at a high or uncomfortable volume level,
since this can cause permanent hearing loss. If you experience any hearing loss or
ringing in the ears, consult a physician.
• Before connecting the unit to other devices, turn off the power for all devices. Also,
before turning the power of all devices on or off, make sure that all volume levels
are set to the minimum. Failing to do so may result in hearing loss, electric shock,
or device damage.
• When turning on the AC power in your audio system, always turn on the unit LAST,
to avoid hearing loss and speaker damage. When turning the power off, the unit
should be turned off FIRST for the same reason. Failure to observe the above may
cause hearing impairment or speaker damage.
Maintenance
• Remove the power plug from the AC outlet before cleaning the unit. Failure to
observe this may cause electric shocks.
Handling caution
• Do not do the following:
- stand on or sit on the equipment.
- put heavy items on top of the equipment.
- place the equipment in a stack.
- apply unreasonable force to buttons, switches, input/output terminals, etc.
- hang on the equipment.
- lean against the equipment.
• Avoid pulling the connected cables to prevent injuries or damage to the unit by
causing it to fall.
• Do not operate the unit if the sound is distorting. Prolonged use in this condition
could cause overheating and result in fire.
Battery use
• Risk of explosion if battery is incorrectly replaced. Replace only with the same
equivalent type.
• Do not use batteries other than specified batteries. Doing so cause fire, burns, or
inflammation due to leakage.
• Do not put in a pocket or bag, carry, or store batteries together with pieces of metal.
The battery could short, burst, or leak, causing a fire or injury.
• Always make sure all batteries are inserted in conformity with the +/- polarity
markings. Failure to do so might result in a fire, burns, or inflammation due to fluid
leaks.
• When the batteries run out, or if the unit is not to be used for a long time remove the
batteries from the remote control to prevent possible leakage of the battery fluid.
• When storing or discarding batteries, insulate the terminal area by applying tape, or
some other protection. Mixing them with other batteries or metal objects can cause
a fire, burns, or inflammation due to fluid.
• Do not insert your hand or fingers into the bass reflex port on the front of the
subwoofer. Failure to observe this may cause injury.
• Do not insert foreign materials such as metal or paper into the ventilation holes/
bass reflex port (on the front of the subwoofer) of this unit. Failure to observe this
may cause a fire, electric shocks, or malfunctions. If foreign material gets into the
unit, immediately shut off the power and pull the power plug from the AC outlet and
request an inspection from the dealer where you purchased the unit or from
qualified Yamaha service personnel.
• Keep small parts out of the reach of infants. Your children may accidentally swallow
them.
En
7
Notice
Handling
Indicates points that you must observe in order to
prevent product failure, damage or malfunction and
data loss, as well as to protect the environment.
• Do not place vinyl, plastic, or rubber products on this unit. Failure to observe this
may cause discoloration or deformation in the panel of this unit.
• If the ambient temperature changes drastically (such as during unit transportation
or under rapid heating or cooling) and there is a chance condensation may have
formed in the unit, leave the unit for several hours without turning on the power until
it is completely dry before use. Using the unit while there is condensation can cause
malfunctions.
Power / power cord
• If not using the unit for a long period of time, be sure to pull the power plug from the
outlet. Even if the z (Power) has been turned off (indicators are turned off), a
minute current is still flowing.
Installation
• Do not use this unit in the vicinity of other electronic equipment, such as a TV,
radio, AV unit, or mobile phone. Failure to observe this may cause this unit or the
TV or radio to produce noise.
• Do not use this unit in a location that is exposed to direct sunlight, that becomes
extremely hot, such as near a heater, or extremely cold, or that is subject to
excessive dust or vibration. Failure to observe this may cause the unit's panel to
become deformed, the internal components to malfunction, or for operation to
become unstable.
• Install this unit as far away from other electronic equipment as possible. Digital
signals from this unit may interfere with other electronic equipment.
• If using a wireless network, avoid installing this unit near metal walls or desks,
microwave ovens, or other wireless network devices. Obstructions could shorten
the transmission distance.
Connections
• If connecting external units, be sure to thoroughly read the manual for each unit and
connect them in accordance with the instructions. Failure to properly handle a unit
in accordance with the instructions could cause malfunctions.
• Do not connect this unit to industrial units. Digital audio interface standards for
consumer use and industrial use are different. This unit has been designed to
connect to a consumer-use digital audio interface. Connections to an industrial-use
digital audio interface could not only cause this unit to malfunction, but could also
damage the speakers.
8
En
Maintenance
• If the temperature or humidity changes drastically, water droplets (condensation)
may form on the unit surface. If water droplets form, immediately wipe them off with
a soft cloth. If water droplets are left on the unit, they may be absorbed into the
wooden parts, causing deformation.
• When cleaning the unit, use a dry, soft cloth. Using chemicals such as benzine or
thinner, cleaning agents, or chemical scrubbing cloths can cause discoloration or
deformation.
Information
About disposal
• Be sure to discard used batteries in accordance with local regulations.
Information for users on collection and disposal of old equipment and used
batteries:
These symbols on the products, packaging, and/or accompanying
documents mean that used electrical and electronic products and
batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and
used batteries, please take them to applicable collection points, in
accordance with your national legislation.
By disposing of these products and batteries correctly, you will help
to save valuable resources and prevent any potential negative
effects on human health and the environment which could
otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products
and batteries, please contact your local municipality, your waste
disposal service or the point of sale where you purchased the
items.
For business users in the European Union:
If you wish to discard electrical and electronic equipment, please
contact your dealer or supplier for further information.
Information on Disposal in other Countries outside the
European Union:
These symbols are only valid in the European Union. If you wish to
discard these items, please contact your local authorities or dealer
and ask for the correct method of disposal.
Indicates information of note regarding this
product.
Functions included in the unit
• Air may be blown out from the bass reflex port. This is not a malfunction. This
occurs particularly often when outputting music with heavy bass.
About the name plate of the unit
The model number, serial number, power requirements, etc., may
be found on or near the name plate, which is at the bottom of the
unit.
You should note this serial number in the space provided below
and retain this manual as a permanent record of your purchase to
aid identification in the event of theft.
Model No.
Serial No.
(bottom_en_01)
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol.
In this case it complies with the requirement set by the EU Battery
Directive for the chemical involved.
(weee_battery_eu_en_02)
En
9
Trademarks
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Yamaha Corporation is under license.
About content in this manual
• This manual is for the following readers:
– the users of the unit
– the constructor, builder and dealer that mount the unit on the wall
• This manual uses the following signal words for the important information:
WARNING
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, Pro Logic, and the double-D symbol are trademarks of Dolby
Laboratories.
This content indicates “risk of serious injury or death.”
CAUTION
This content indicates “risk of injury.”
NOTICE
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS,
Inc. DTS, the Symbol, DTS and the Symbol together, DTS Digital Surround, and DTS
Virtual:X are registered trademarks or trademarks of DTS, Inc. in the United States
and/or other countries. © DTS, Inc. All Rights Reserved.
The terms HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries.
Blu-ray
“Blu-ray Disc™”, “Blu-ray™”, and the logos are trademarks of the Blu-ray Disc
Association.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its compliance
with safety and regulatory standards. Please note that the use of this accessory with
iPod, iPhone, or iPad may affect wireless performance.
10
En
Indicates points that you must observe in order to prevent product failure, damage or
malfunction and data loss, as well as to protect the environment.
NOTE
Indicates notes on instructions, restrictions on functions, and additional information
that may be helpful.
• The illustrations and screens in this manual are for instructional purposes only.
• The company names and product names in this manual are the trademarks or
registered trademarks of their respective companies.
Contents
IMPORTANT SAFETY INSTRUCTIONS ........... 2
PRECAUTIONS ................................................ 4
Listening to the sound from a
Bluetooth device .......................................... 31
Supplied items ............................................. 12
Settings ......................................................... 34
Features ........................................................ 15
Frequently asked questions........................ 16
Part names and functions ........................... 17
Center unit (front panel)................................................ 17
Center unit (rear panel).................................................. 18
Subwoofer .......................................................................... 19
Configuring the HDMI control function..................
Configuring HDMI audio output ...............................
Enabling/disabling the auto power standby
function ..............................................................................
Initializing the unit..........................................................
34
34
35
35
Troubleshooting........................................... 36
Specifications ............................................... 43
Installation ................................................... 20
Installing the unit on a TV stand, etc......................... 20
Mounting the unit on a wall......................................... 20
Connections ................................................. 22
Operations.................................................... 25
Operating the unit by TV’s remote control
(HDMI control)................................................................... 30
En
11
Supplied items
Make sure you have received all of the following items.
Center unit (ATS-CU2070)
HDMI
Mounting template
Use when mounting the center unit on a wall
Wireless subwoofer (NS-WSW42)
In this manual, the wireless subwoofer is referred
to as “subwoofer”.
Power cable × 2
Optical digital audio cable
Owner’s Manual (this booklet)
Quick Start Guide
Remote control
A CR2025 Lithium battery has
already been inserted into the
remote control.
12
En
Analog audio cable
(RCA plug (L/R)-3.5 mm
mini plug cable)
Preparing the remote control
Operating range of the remote control
Remove the battery’s insulating strip before attempting to use the
remote control.
Operate the remote control within the range as shown below.
Within 6 m (20 ft)
Remote control sensor
Battery’s insulating strip
En
13
Replacing the battery in the remote control
Press and hold the release tab in the direction indicated by A ,
and slide the battery holder out in the direction indicated by B .
Battery holder
Release tab
CR2025 Lithium
battery
14
En
Features
This front surround system, comprised of the center unit and wireless subwoofer, allows you to enjoy dynamic sound
with video played on your home TV.
• 3D surround playback
Surround sound can be heard not only from horizontal directions, but also from varying heights when DTS Virtual:X is used (p. 27).
• Wireless subwoofer
Dynamic sound can be heard by using the dedicated wireless subwoofer.
• Transmission of 4K high dynamic range (HDR) video supported
Enjoy high-resolution video from a cable or satellite set top box, or a BD/DVD player. When a TV that supports Audio Return Channel (ARC)
is used, this ARC-compatible unit can be connected to the TV via a single HDMI cable (p. 22).
• HDMI control function
Link TV and unit functions using the TV’s remote control (p. 30).
• Bluetooth connection
Easily play content from a Bluetooth-compatible smartphone, tablet, or computer (p. 31).
Our exclusive Compressed Music Enhancer technology improves sound quality and characteristics, and can be used to enjoy realistic and
impressive sound.
• HOME THEATER CONTROLLER app
HOME THEATER CONTROLLER, a free app for smartphones, allows you to easily operate the unit using a smartphone (p. 33).
• Bass extension
Boost low bass levels to enjoy more powerful sound (p. 27).
• Clear voice
This feature makes speech, such as dialog and narration, clearer (p. 27).
En
15
Frequently asked questions
The following section covers popular functions and frequently asked questions about the unit.
Q1
A1
16
En
Can I use the TV’s remote control to operate the unit?
Q4
Can the brightness of the indicators be adjusted?
Yes. When the unit is connected to a TV via HDMI cable, the
TV’s remote control can be used to operate both the TV and
the unit (p. 30).
A4
Yes. Use the DIMMER key on the remote control (p. 29).
Q5
How can surround playback be enabled?
A5
Use the SURROUND key on the remote control to select 3D
or surround playback (p. 27).
Q6
Can the subwoofer’s volume be adjusted?
A6
Yes. Use the SUBWOOFER (+/–) keys on the remote
control (p. 28).
Q2
Can I improve the clarity of dialogue?
A2
Yes. Dialogue in movies, TV news, sports programs, etc.,
can be made clearer using the “clear voice” function (p. 27).
Q3
Can I use a smartphone to operate the unit? Can I use a
smartphone to turn the unit on or off?
A3
Yes. The unit can be operated with a smartphone using the
free app, HOME THEATER CONTROLLER, installed on the
smartphone (p. 33).
In addition, the Bluetooth standby function can be used to
turn on the unit when a Bluetooth connection between the
unit and the smartphone is established, and to turn off the
unit when that connection is terminated (p. 33).
Part names and functions
Center unit (front panel)
1
2
1
4
(input)
Select an input source to be played
back (p. 26).
5
(mute)
Mute the audio output. Touch
to unmute (p. 28).
6
/
again
(volume +/-)
Adjust the volume (p. 28).
3
4
5
6
7
7
(power)
Turn on or off the unit (p. 25).
1 Speakers
NOTE
2 Remote control sensors
• The unit may automatically turn off when the
auto power standby function is enabled (p. 35).
Receive infrared signals from the remote control of the unit (p. 13).
3 Indicators
The indicators on the top panel flash or glow, to show the operation and setting status.
In this manual, illustrations of the nine in-line indicators are used for explanation as
necessary.
: Off
: Glows
4, 5, 6, and 7 are touch sensors.
Touch icons with your finger to control
functions.
: Flashes
Example: When the DPL and SURROUND indicators glow, and the HDMI indicator
flashes
En
17
Center unit (rear panel)
Illustrations of the rear panel of the center unit used in this manual show the respective positions of jacks with the labels used on the bottom of the
center unit itself so that jacks may be easily recognized.
AC IN
8
8 AC IN jack
Connect the power cable of the center unit (p. 24).
9 HDMI IN jack
For connecting an HDMI-compatible playback device such as a
BD/DVD player, a satellite and cable TV tuner, and a game
console (p. 22).
0 HDMI OUT (ARC) jack
For connecting to an HDMI-compatible TV (p. 22).
18
En
9
0
a
b
c
a ANALOG input jack
For connecting to an external device with an analog audio cable
(RCA plug (L/R)-3.5 mm mini plug cable) (p. 23).
b TV input jack
For connecting to a TV with an optical digital audio cable (p. 22).
c UPDATE ONLY jack
Use to update this unit’s firmware.
Refer to the instructions supplied with the firmware for details.
Subwoofer
Front panel
Rear panel
2 3 4
PAIRING
STANDBY
PAIRING STANDBY
1
1 Bass reflex port
2 PAIRING button
Used to pair the center unit with the subwoofer manually (p. 42).
3 STANDBY indicator
Shows subwoofer’s status (p. 25).
5
4
indicator
Glows when the center unit and subwoofer are connected
wirelessly.
5 AC IN jack
Connect the power cord of the subwoofer (p. 24).
En
19
Installation
The center unit can be installed on a TV stand or mounted on a wall.
Position the subwoofer to the left or right of the center unit. Angle the subwoofer slightly toward the center of the room to prevent sound from
reflecting off of walls.
Installing the unit on a TV stand, etc.
Position the unit with the touch panel facing forward.
Mounting the unit on a wall
Refer to “Mount the unit on a wall” (p. 21) for instructions on
mounting the unit on a wall so that the touch panel faces
forward.
Touch panel
Touch panel
NOTICE
•
•
•
•
•
Do not stack the center unit and a BD player or other device directly on each other. Doing so may cause a malfunction due to vibrations.
Avoid touching, and never place any weight or pressure on, the speakers (portion covered with fabric) of the subwoofer. Doing so may damage the speakers.
The subwoofer can only be used in its upright position. Do not position the subwoofer on its side.
The subwoofer contains non-magnetic shielding speakers. Do not place magnetically sensitive items (hard disk drive, etc.) near the unit.
The center unit and subwoofer communicate wirelessly. Do not place objects that block or interfere with wireless signals, such as metallic furniture or devices, between the
center unit and the subwoofer as wireless communication may be adversely affected.
• If the subwoofer is covered with a cloth or other object, sound volume will be reduced. Position the subwoofer so that it is not hidden behind heavy fabric, such as a curtain.
20
En
Mount the unit on a wall
1
Attach the mounting template on a wall and mark for
the screw holes.
Mounting template (supplied)
HDMI
CAUTION
• When mounting the unit on a wall, all installation work
must be performed by a qualified contractor or dealer. The
customer must never attempt to perform this installation
work. Improper or inadequate installation could cause the
unit to fall, resulting in personal injury.
• To prevent the unit from falling, attach it to a wall
constructed of drywall (plasterboard).
• Make sure you use commercially available screws that
can support the weight of the installation (specified in Step
2 on the right). Using clamps other than specified screws,
such as short screws, nails, and two-sided tape, may
cause the unit to fall.
• Fix the cables in place where they will not become loose.
If your foot or hand accidentally gets caught on a loose
cable, the unit may fall.
• Do not lean on the unit or apply excessive force to the top
of the unit. Doing so may cause the unit to fall.
• Check that the unit is fixed securely after the installation.
Yamaha will bear no responsibility for any accidents
caused by improper installations.
Screw holes
Tapes or thumbtacks
2
Remove the mounting template from the wall, then
install commercially available screws (as illustrated
below) at the points marked on the wall.
HDMI
7 to 9 mm
(1/4" to 3/8")
4 mm (#8)
20 mm (3/4")
or more
4.5 to 6 mm (1/8" to 1/4")
3
Hang the unit on the screws.
HDMI
Mounting holes on
bottom of the unit
Touch panel
En
21
Connections
a Connecting a TV and set-top box
For the cable connection, follow the procedure below.
1
HDMI INPUT
2
: Video signals
: Audio signals
TV
HDMI
OUTPUT
Cable, satellite or
network set-top box, or
BD/DVD player
1
2
22
En
1
OPTICAL
OUTPUT
3
HDMI cable (optional)
The digital audio/video signals from the settop box or BD/DVD player are input to this
unit.
2
Use the optical digital
audio cable (supplied)
when connecting the
center unit to a TV that
does not support
Audio Return Channel.
1. Remove the cap
2. Check the
direction of the
plug
HDMI cable (optional)
Digital video from the set-top box or BD/DVD
player is displayed on the TV.
NOTE
• Use a 19-pin HDMI cable with the HDMI logo printed on it.
A cable with a maximum length of 5 m (16 ft) is
recommended to prevent degradation of signal quality.
• Use of a flat HDMI cable may make installing the center
unit difficult because the cable will be bent by the bottom of
the center unit when connected. Confirm the layout and
position of jacks on the center unit before choosing an
appropriate HDMI cable.
• This unit supports HDCP version 2.2, a copy protection
technology. For playback of 4K video, connect the unit to
the HDMI input jack (one compatible with HDCP 2.2) on an
HDCP 2.2-compliant TV, and to the HDMI output jack on a
HDCP 2.2-compliant BD/DVD player.
• Use a high-speed HDMI cable for playback of 3D video
content.
• Use a premium HDMI cable for playback of 4K video
content.
b Connecting a game console via the
analog jack
NOTE
Audio Return Channel (ARC) supported TV
• Connect an HDMI cable to the audio return channel supported jack (the jack with
“ARC” indicated) on TV.
• Once the HDMI control function has been activated, video and audio content from
playback devices can be output from the TV even when this unit is off (HDMI signal
pass-through).
• Enable the HDMI control function of this unit to activate the Audio Return Channel
(ARC) (p. 34).
What is Audio Return Channel (ARC)?
In order for the unit to play audio from a TV, the TV must usually be
connected to the unit via an audio cable as well as an HDMI cable.
If, however, the TV supports Audio Return Channel (ARC), TV
audio signals can be input to the unit via the HDMI cable that
outputs video signals from the unit to the TV.
Connect an external device, such as a game console or TV that does
not have an optical digital audio output, to the ANALOG input jack of
the center unit.
ANALOG
Analog audio cable
(RCA plug (L/R)3.5 mm mini plug
cable; supplied)
Game console
CAUTION
• If volume can be adjusted on the device connected to the
unit’s ANALOG input jack, set that device's volume to the
same level as that of other devices connected to the unit’s
HDMI jacks to prevent volume from being louder than
expected.
En
23
c Connecting the power cable
d Turning on the unit
After all connections are complete, connect the supplied power
cables to the AC IN jack on the center unit and subwoofer
respectively, and plug the power cables into an AC wall outlet.
Press the
(power) key on the remote control or touch
on the
center unit. The unit turns on and the center unit and subwoofer are
automatically connected via wireless connection. Once the
connection has been successfully established, the
indicator on
the subwoofer’s rear panel glows, and the unit is ready for playback.
Center unit
Glows
To an AC wall outlet
Subwoofer
NOTE
• If the
indicator on the subwoofer does not glow properly the first time the unit
is turned on, pair the center unit and subwoofer manually (p. 42).
To an AC wall outlet
24
En
Operations
Remote control signal transmitter
Transmits infrared signals.
1
(power) key
Turns on or off the unit.
Center unit
Turned on
The indicator for the last input source selected glows.
Turned off (Bluetooth standby function enabled, p. 33)
Subwoofer
Turned on
Off
Glows
STANDBY
Turned off
Glows
STANDBY
En
25
2
Input keys
Select an input source to be played back.
HDMI .................Sound from a device connected to the HDMI IN
jack
TV ......................TV audio or sound from a device connected to
the unit’s TV input jack
ANALOG ...........Sound from a device connected to the ANALOG
input jack
BLUETOOTH ....Sound from a Bluetooth connected device (p. 31)
The indicator for the selected input source glows.
(Example: when TV is selected)
HDMI
TV
ANALOG BLUETOOTH
NOTE
• To play sound from the device connected to the TV or to watch video from
the device, set the TV’s input source to the device.
26
En
3
SURROUND and STEREO keys
Switch between surround and stereo (2-channel) playback.
SURROUND key
The unit switches between 3D surround playback and surround
playback each time the SURROUND key is pressed. When 3D
surround is selected, DTS Virtual:X makes it possible to hear
sound not only from horizontal directions, but also from varying
heights.
SURROUND
SURROUND
Glows blue (3D surround playback)
CLEAR VOICE key
Enable/disable the clear voice function.
When this function is enabled, human voices such as lines in
movies and TV shows, or news and sport commentary, are
played clearly.
CLEAR
VOICE
Glows (enabled)
CLEAR
VOICE
Off (disabled)
BASS EXTENSION key
Enable/disable the bass extension function. When this
function is enabled, you can enjoy more powerful sound.
Glows green (surround playback)
STEREO key
Switch to stereo (2-channel) playback.
SURROUND
4
BASS
EXTENSION
Glows (enabled)
BASS
EXTENSION
Off (disabled)
Off
5
NOTE
• The DPL indicator glows when 2-channel stereo signal is played in
surround.
BLUETOOTH STANDBY key
Hold down the key for more than 3 seconds to enable/disable
the Bluetooth standby function (p. 33).
Glows
(Dolby ProLogic II)
• The TV Program, Movie, Music, Sports, or Game surround mode can be
selected using the HOME THEATER CONTROLLER app (p. 33) installed
on a smartphone that supports the Bluetooth function.
En
27
6
SUBWOOFER (+/–) keys
Adjust the volume of the subwoofer.
Volume down (–)
Volume up (+)
NOTE
• The SUBWOOFER (–) key is also used when pairing the center unit and
subwoofer manually.
MUTE key
Mute the audio output. Press the key again to unmute.
Flash (on mute)
VOLUME (+/–) keys
Adjust the volume of the unit.
Volume down (–)
28
En
Volume up (+)
Decoder indicator
7
DIMMER key
Change the brightness of the indicators. Each time the key is
pressed, the brightness of the indicators changes as follows.
Dim (default setting) → Off → Bright
↑
The unit supports the following audio signals. The color of the
indicator identifies the type of audio input signal.
Green (Dolby Digital), Red (DTS)
Off (PCM/analog signal/no input signal)
Indicators glow brightly just after operation and change to the
specified brightness after a few seconds.
En
29
Operating the unit by TV’s remote control (HDMI control)
The HDMI control function (link function) coordinates operation of a TV and the unit so that the unit can be operated using the TV’s remote
control.
When a TV is connected to the center unit with an HDMI cable (p. 22), the TV’s remote control can be used to perform the following operations.
Coordinated functions via the TV remote control
Remote control of TV (Example)
1. Turn on/off
Both the TV and this unit turn on/off at the same
time.
2. Switch input sources
• The unit’s input source switches accordingly when
the TV’s input source is switched.
Examples
- When a TV program is selected on the TV, the
unit’s audio input source is switched to the HDMI
OUT (ARC) jack using the ARC function or TV
jack.
- When a BD/DVD player is connected to the
HDMI IN jack on the unit, the unit’s input source
switches to HDMI when the BD/DVD player is
selected with the TV’s remote control.
• The input source can be switched while the unit is
off.
3. Switch the audio output device
(TV or this unit (amplifier))
4. Adjust volume
This unit's volume can be adjusted when the
TV’s audio output is set to this unit (amplifier).
30
En
NOTE
• If you are unable to operate the unit with your TV’s remote control, configure the
HDMI control function of your TV and the unit. See page 34 for more information.
• Even if your TV supports the HDMI control function, some functions may not be
available. For details, refer to documentation supplied with your TV.
• We suggest using devices (TV, BD/DVD player, etc.) from the same manufacturer.
Listening to the sound
from a Bluetooth
device
1
Press the BLUETOOTH key on the unit’s remote
control to select Bluetooth as the input source.
The BLUETOOTH indicator on the unit flashes.
BLUETOOTH
Flashes
Audio from a Bluetooth device, such as a smartphone or a digital
music player, can be played over a wireless connection.
Bluetooth device
If a Bluetooth device has been connected before, the unit will
connect to the last connected device when the BLUETOOTH
key is pressed. Terminate this connection to connect a new
device.
2
Enable the Bluetooth function on the Bluetooth
device.
NOTE
• Adjust the volume level of the Bluetooth device as required.
• Perform Bluetooth connection with the device and unit within 10 m (33 ft) of each
other.
• See documentation supplied with your Bluetooth device for more information.
En
31
3
Select “ATS-2070 Yamaha” in the Bluetooth device list
on the device.
Terminating Bluetooth connection
If a passkey (PIN) is required, enter the number “0000”.
Bluetooth connection is terminated in the following cases.
• The Bluetooth function is turned off on the compatible device.
• The BLUETOOTH key on the unit’s remote control is pressed for
more than 3 seconds.
• The unit is turned off.
When the Bluetooth connection is terminated with the unit turned on,
the BLUETOOTH indicator flashes and the unit enters the connection
wait status.
PIN 0 0 0 0
ATS-2070 Yamaha
1
4
7
2
5
8
0
3
6
9
When the connection is established, the
indicator or a
completion message is displayed on the Bluetooth device, and
the BLUETOOTH indicator on the unit glows.
Glows
4
32
En
Play back a song on the Bluetooth device.
Using the Bluetooth standby function
The Bluetooth standby function allows you to turn on or off the unit
automatically, linked with the operation of the Bluetooth device.
1
Using the HOME THEATER CONTROLLER
app
With the unit turned on, hold down the BLUETOOTH
STANDBY key on the unit’s remote control for more
than 3 seconds.
When the free HOME THEATER CONTROLLER app is installed on a
Bluetooth-compatible smartphone or other device, various operations
(basic operation of the unit, selection of a surround mode, adjustment
of sound settings, etc.) can be easily performed using the Bluetooth
device.
Holding down the BLUETOOTH STANDBY key for 3 seconds
switches function status between enabled and disabled.
NOTE
• To use the app, connect the unit and a Bluetooth device via Bluetooth connection.
• If the Bluetooth standby function is enabled, the unit will be turned on with the
Bluetooth device.
Flash 3 times (enabled), flash once (disabled; default)
For details on the “HOME THEATER CONTROLLER” app, see the
product information on our website.
Enabling the Bluetooth standby function allows the unit to be turned on
or off using a Bluetooth device.
Power on interlock function (when the unit is turned off)
When Bluetooth connection is made on the device, the unit will turn on
and will be ready to play back sound from the device.
Power off interlock function (when the unit is turned on)
The unit will be turned off when Bluetooth connection is terminated on a
Bluetooth device. (Only when BLUETOOTH is selected as the input
source.)
En
33
Settings
Configuring the HDMI control function
Follow the procedure below to enable or disable the unit’s HDMI
control function. This function is enabled by default.
1
2
Turn off the unit.
Hold down the HDMI key on the unit’s remote control
for more than 3 seconds.
Configuring HDMI audio output
Specify whether HDMI audio input signal will be played from the unit
or the TV. This setting can only be configured when the HDMI control
function is disabled.
The unit (default)
Play HDMI audio input signal from the unit.
TV
Play HDMI audio input signal from the TV
connected to the HDMI OUT (ARC) jack on
the unit. The unit cannot be used to adjust
volume. Use TV controls to adjust volume.
The HDMI control function is enabled or disabled, and the unit
turns on. The indicator shows HDMI control function status for
several seconds immediately after the unit is turned on.
Glows (enabled; default)
Off (disabled)
NOTE
• Enable the HDMI control function when connecting a TV that supports Audio Return
Channel (ARC) (p. 23), or when using HDMI signal pass-through (p. 23).
If the unit cannot be operated with the TV’s remote control
Confirm the settings are properly configured as described below.
- The HDMI control function of this unit is enabled.
- The HDMI control function is enabled on the TV.
Examples of TV settings
• From the setup menu on your TV, select “Link setting” ➔ “HDMI control
setting”, then set a setting such as “HDMI control function” to “ON”.
• Set audio output to any option other than TV.
If the unit cannot be operated with the TV’s remote control even after the settings
described above have been applied correctly:
- Turn off this unit and the TV, and then turn them back on again.
- Disconnect the power cables of the center unit, subwoofer, and external devices
connected to the center unit via HDMI cable. Plug them in again after about 30
seconds.
34
En
1
2
Turn off the unit.
Hold down the SURROUND key on the remote control
for more than 3 seconds.
HDMI audio output switches between this unit and the TV, or
vice versa, and the unit turns on. The indicator shows HDMI
audio output status for several seconds immediately after the
unit is turned on.
Glows (audio is played from the unit; default)
Off (audio is played from the TV)
NOTE
• To configure HDMI audio output with the HDMI control function enabled, select the
audio output device configured for the TV connected to this unit.
• HDMI video signals input to the HDMI IN jack of this unit are always output from the
HDMI OUT (ARC) jack of this unit.
Enabling/disabling the auto power
standby function
Enabling the auto power standby function prevents the unit from
remaining on when not in use. When the auto power standby function
is enabled, the unit automatically turns off in any of the following
situations.
• No operations for 8 hours
• No audio input and no operations for 20 minutes when
BLUETOOTH or HDMI is selected as the input source.
1
2
Initializing the unit
Follow the procedure below to initialize the unit.
1
2
Turn off the unit.
Touch and hold
indicators flash.
and
on the center unit until all
Turn off the unit.
Touch and hold
and touch
on the center unit.
The auto power standby function is enabled or disabled, and the
unit turns on. The indicator shows auto power standby function
status for several seconds immediately after the unit is turned
on.
Flash (initialized)
Glows (disabled)
Off (enabled)
NOTE
• The default setting for the auto power function varies by country or region.
− U.K., Europe, Central and South America, and Asia models: enabled
− Other models: disabled
En
35
Troubleshooting
Refer to the table below when the unit does not function properly. If the problem you are experiencing is not listed below or if the instructions
below do not help, turn off the unit, disconnect the power cables of the center unit and subwoofer, and contact the nearest authorized Yamaha
dealer or service center.
First, check the following:
1 The power cables of the center unit, subwoofer, TV and playback devices (such as BD/DVD players) are connected to AC wall outlet
securely.
2 The center unit, subwoofer, TV and playback devices (such as BD/DVD players) are turned on.
3 The connectors of each cable are securely inserted into jacks on each device.
Power and system
Problem
The power turns off
suddenly.
The power cannot be turned
on.
36
En
Cause
Remedy
When the auto power standby function is enabled, the unit
automatically turns off in any of the following situations:
- No operations have been performed for 8 hours
- BLUETOOTH or HDMI is selected as the input source,
but no audio has been input to the unit or no operations
have been performed with the unit for more than 20
minutes.
Turn on the unit again. If the auto power standby function is not
used, disable the function (p. 35).
The protection circuitry has been activated. (The
DTS indicator on the center unit flashes.)
After confirming that all connections are made properly, turn on
the unit again. If the power still turns off frequently, unplug the
power cable from the AC wall outlet and contact the nearest
authorized Yamaha dealer or service center.
DD /
The Bluetooth connection was terminated by a Bluetooth
device with the unit’s Bluetooth standby function enabled.
Disable the Bluetooth standby function (p. 33).
The protection circuitry has been activated three times
consecutively. (If you try to turn on the power in this
condition, the
DD / DTS indicator on the center unit will
flash.)
To protect the product, the power cannot be turned on. Unplug
the power cable from the AC wall outlet and contact the nearest
authorized Yamaha dealer or service center.
Problem
Cause
Remedy
All indicators go out although
the unit is turned on (it may
seem that the unit is turned
off).
The unit is configured so that indicators do not glow or
flash unless the unit is being operated.
Use the DIMMER key to select the desired brightness (p. 29).
The unit does not function
correctly.
The internal microcomputer is frozen, due to an external
electric shock (such as lightning or excessive static
electricity) or to a drop in the power supply voltage.
Unplug the power cable from the AC wall outlet and plug it again.
The unit turns on by itself.
Another Bluetooth device is being operated nearby.
Terminate Bluetooth connection with the unit (p. 32).
The TV’s 3D glasses do not
work.
The unit is blocking the TV’s 3D glasses transmitter.
Confirm the position of the TV’s 3D glasses transmitter, and
position the unit so that it does not obstruct the transmitter.
The unit cannot be operated
with the HOME THEATER
CONTROLLER app. (The
screen on the Bluetooth
device will not exit the app’s
demo mode.)
The Bluetooth device on which the app has been installed
is not connected to the unit.
Establish a Bluetooth connection between the Bluetooth device
and the unit to use the app (p. 31).
En
37
Audio
Problem
No sound.
Cause
Another input source is selected.
Remedy
Select an appropriate input source (p. 26).
The mute function is activated.
Cancel the mute function (p. 28).
The volume is too low.
Turn up the volume (p. 28).
The power cable of the center unit is not connected
properly.
Make sure that the power cable of the center unit is connected to
an AC wall outlet securely (p. 24).
Input jacks on a playback device are connected.
Connect the input jack on the center unit and the output jack on
the playback device.
Signals that the unit cannot play back are being input.
Change the digital audio output setting on the playback device to
PCM, Dolby Digital or DTS.
The center unit is configured so that HDMI audio input
signals are output from the TV.
Configure the unit so that HDMI audio input signals are output
from the unit (p. 34)
The HDMI control function is disabled.
When connecting a TV that supports ARC (Audio Return
Channel) to the unit using an HDMI cable only, enable the HDMI
control function (p. 34).
To output audio signals from this unit with the HDMI control
function disabled, connect the TV’s audio output jack to the
center unit’s TV input jack (optical digital) via the optical digital
audio cable (p. 22).
No sound is coming from the
subwoofer.
38
En
Sound from an HDMI control-enabled TV is set for output
from the TV’s built-in speakers.
Use the TV’s HDMI settings to set audio output to any option
other than the TV’s built-in speakers.
The subwoofer is not connected to an AC wall outlet.
Plug in the power cable of the subwoofer to an AC wall outlet (p.
24).
The protection circuitry in the subwoofer has been
activated.
To protect the product, the power of the subwoofer cannot be
turned on. Unplug the power cable from the AC wall outlet and
contact the nearest authorized Yamaha dealer or service center.
Problem
Cause
No sound is coming from the
subwoofer. (The
indicator on the subwoofer
flashes or the STANDBY
indicator on the subwoofer
glows.)
The center unit and subwoofer are not connected due to a
bad wireless communication status.
Remedy
Move the subwoofer closer to the center unit. If the issue is not
resolved, move the subwoofer to a location that supports better
communication (one in which the
indicator glows).
If the communication between the center unit and subwoofer is
obstructed by a metallic object or another object, change the
position of the center unit and subwoofer or change the
installation location of the subwoofer.
If there is a device (microwave oven, wireless LAN, etc.) that
emits radio frequency signals, move the center unit and
subwoofer away from the device.
The center unit and subwoofer are not paired.
Pair the center unit and subwoofer manually (p. 42).
If a wireless connection is not established, the unit may be
malfunctioning. Unplug the power cables from the AC wall outlets
and contact the nearest authorized Yamaha dealer or service
center.
Though the
indicator on
the subwoofer glows, little or
no sound is coming from the
subwoofer.
The volume is too low.
Turn up the volume of the subwoofer (p. 28).
The front side of the subwoofer is blocked.
Clear the area around the front side and the bass reflex port of
the subwoofer.
The playback source does not contain low-frequency
signals.
Play back a sound source containing low-frequency signals, and
confirm that the sound is output from the subwoofer.
The volume decreases when
the unit is turned on.
The automatic volume adjustment function is activated.
To prevent excessive loudness, the unit automatically
controls its volume within a certain level when the unit is
turned on.
Turn up the volume as required (p. 28).
En
39
Problem
No surround effect.
Cause
Stereo playback is selected.
Remedy
Select surround playback or 3D surround playback (p. 27).
The volume is too low.
Turn up the volume (p. 28).
The TV or playback device is set to output 2 channel
audio (such as PCM) only.
Change the digital audio output setting on the TV or playback
device to BitStream.
Sound is also heard from the TV built-in speakers.
Set the TV volume to minimum (p. 30).
The listening position is too close to the unit.
The listening position should be at some distance from the unit.
Noise is heard.
The unit is too close to another digital or high-frequency
device.
Move those devices away from the unit.
Video is not displayed on TV
screen.
The HDMI cable is not securely connected.
Connect the HDMI cable properly (p. 22).
When the unit is turned off,
video and/or audio from a
playback device are not
output to the TV.
The HDMI control function is disabled.
Enable the HDMI control function (p. 34).
Remote control
Problem
The unit cannot be operated
using the remote control.
The TV cannot be operated
using the TV’s remote
control.
40
En
Cause
The unit is out of the operating range.
Remedy
Use the remote control within the operating range (p. 13).
The batteries are weak.
Replace with new batteries (p. 14).
The remote control sensor of the center unit is exposed to
direct sunlight or strong lighting.
Adjust the lighting angle, or reposition the center unit.
The center unit is blocking the TV’s remote control
sensor.
Position the center unit so that it does not obstruct the TV’s
remote control sensor.
Bluetooth
Problem
The unit cannot be connected
to a Bluetooth device.
No sound can be heard, or
the sound cuts off
intermittently.
Cause
Remedy
Bluetooth is not selected as the input source.
Select Bluetooth as the input source (p. 31).
The unit is connected to a different Bluetooth device.
Unpair the Bluetooth device that is currently connected, and pair
with the desired Bluetooth device.
The unit is too far away from the Bluetooth device.
Move the Bluetooth device closer to this unit.
A device emitting electromagnetic waves (such as a
microwave oven, a wireless device and so on) may be
located nearby.
Do not use this unit near devices that emit electromagnetic
waves.
The Bluetooth device you are using may not support the
A2DP protocol.
Use a Bluetooth device that supports the A2DP protocol.
The connection profile registered in the Bluetooth device
may not be functioning correctly for some reason.
Delete the connection profile in the Bluetooth device, and then
connect the Bluetooth device to this unit.
The passkey on the Bluetooth adapter or other device
may be set to a code besides “0000”.
Use a Bluetooth device on which the passkey is set to “0000”.
The volume on the Bluetooth device may be too low.
Raise the volume on the Bluetooth device.
Bluetooth is not selected as the input source.
Select Bluetooth as the input source (p. 31).
Playback on the device has not been performed.
Perform playback on the device.
The sound output on the Bluetooth device may not be set
to this unit.
Select this unit as the output destination on the Bluetooth device.
The connection to the Bluetooth device was cut off.
Connect with the Bluetooth device one more time.
The unit may be too far away from the Bluetooth device.
Move the Bluetooth device near this unit.
A device emitting electromagnetic waves (such as a
microwave oven, a wireless device and so on) may be
located nearby.
Do not use this unit near devices that emit electromagnetic
waves.
En
41
Pairing the center unit and subwoofer manually
1
2
3
Turn off the unit.
Within 30 seconds, press and hold the PAIRING
button on the rear panel of the subwoofer for more
than 3 seconds.
Press and hold the SUBWOOFER (–) key on the
remote control for more than 3 seconds.
Once the center unit and subwoofer have been paired and a
wireless connection established, the
indicator will glow, and
the center unit and subwoofer turn on.
The DPL indicator on the center unit flashes.
PAIRING button
indicator
Center unit
Flashes
PAIRING STANDBY
PAIRING
STANDBY
If the
indicator on the subwoofer does not glow after following the
procedure described here, refer to “Troubleshooting” (p. 36).
NOTE
• Pairing is the process of establishing a wireless connection between the center unit
and subwoofer.
42
En
Specifications
Item
Amplifier Section
Center unit (ATS-CU2070)
Subwoofer (NS-WSW42)
Maximum Rated Output Power
Front L/R 50 W x 2 ch
100 W
Type
Front L/R: Acoustic suspension type
Bass reflex type
Driver
Front L/R: 46 mm (1-3/4") cone magnetic shielding
type x 4
Tweeter: 25 mm (1") dome magnetic shielding type
x2
16 cm (6-1/4") cone non-magnetic shielding type x 1
Frequency Response
Front L/R: 180 Hz to 23 kHz
Tweeter: 7 kHz to 23 kHz
40 Hz to 180 Hz
Impedance
Front L/R: 4 Ω (8 Ω x 2)
Tweeter: 4 Ω
2Ω
Decoder
Supported audio signal
(TV, BD/DVD)
PCM (up to 5.1ch)
Dolby Digital (up to 5.1ch)
DTS Digital Surround (up to 5.1ch)
—
HDMI
1 (HDMI IN)
—
Input Jacks
Digital (Optical)
1 (TV)
—
Analog (3.5 mm stereo mini)
1 (ANALOG)
—
HDMI
1 (HDMI OUT (ARC))
—
—
Speaker Section
Output Jack
Other Jacks
Wireless subwoofer
UPDATE ONLY
1
Radio frequency band
2.4 GHz
Radio frequency (Operational
frequency)
2402 MHz to 2480 MHz
Maximum output power (EIRP)
20 dBm (100 mW)
Transmission range
10 m ([33 ft] without interference)
En
43
Item
Bluetooth
Center unit (ATS-CU2070)
Ver. 4.1
Supported profiles
A2DP, SPP
—
Supported codecs
SBC, MPEG4 ACC
—
Radio frequency (Operational
frequency)
2402 MHz to 2480 MHz
—
Maximum output power (EIRP)
20 dBm (100 mW)
—
Bluetooth Class 2
—
Range (line-of-sight)
Approx. 10 m (33 ft)
—
Supported content protection
method
SCMS-T
—
Power Supply
U.S.A. and Canada models: AC 120 V, 60 Hz
U.K., Europe, Central and South America, and Asia models: AC110 - 240 V, 50/60Hz
Taiwan model: AC 110 V, 60 Hz
Korea model: AC 220 V, 60 Hz
China model: AC 220 V, 50 Hz
Australia model: AC 240 V, 50 Hz
Power Consumption
30 W
U.S.A., Canada and Taiwan models
HDMI Control Off, Bluetooth Standby Off: 0.3 W
HDMI Control On, Bluetooth Standby Off: 0.6 W
HDMI Control Off, Bluetooth Standby On: 0.3 W
HDMI Control On, Bluetooth Standby On: 0.8 W
Standby Power Consumption
U.K. and Europe models, and other models
HDMI Control Off, Bluetooth Standby Off: 0.4 W
HDMI Control On, Bluetooth Standby Off: 0.9 W
HDMI Control Off, Bluetooth Standby On: 0.5 W
HDMI Control On, Bluetooth Standby On: 0.9 W
En
—
Bluetooth class
General
44
Subwoofer (NS-WSW42)
Bluetooth version
19 W
U.S.A., Canada, and Taiwan models: 0.5 W
U.K. and Europe models, and other models: 0.6 W
Dimensions (W x H x D)
930 x 60 x 108 mm
36-5/8" x 2-3/8" x 4-1/4"
180 x 437 x 401 mm
7-1/8" x 17-1/4" x 15-3/4"
Weight
2.7 kg (6.0 lbs)
7.9 kg (17.4 lbs)
HDMI signal
Digital audio signal
• Audio signals
• Optical
Audio signal types
Audio signal formats
Compatible media
2ch Linear PCM
2ch, 32–192 kHz,
16/20/24 bit
CD, DVD-Video, DVDAudio, etc.
Multi-ch Linear PCM
6ch, 32–192 kHz,
16/20/24 bit
DVD-Audio, Blu-ray disc,
HD DVD, etc.
Bitstream
Dolby Digital, DTS
DVD-Video, etc.
Audio signal types
• Refer to documentation supplied with the playback device, and set the device
appropriately.
• When CPPM copy-protected DVD-Audio is played back, video and audio signals
may not be output depending on the type of the DVD player.
• This unit is not compatible with HDCP-incompatible HDMI or DVI devices. Refer to
documentation supplied with the HDMI or DVI device for HDCP compatibility.
• To decode audio bitstream signals on this unit, set the input source device
appropriately so that the device outputs the bitstream audio signals directly (does
not decode the bitstream signals on the device). Refer to documentation supplied
with the device for details.
Compatible media
2ch Linear PCM
CD, DVD-Video, DVDAudio, etc.
Bitstream
Dolby Digital, DTS
DVD-Video, etc.
• HDMI (ARC)
Audio signal types
NOTE
Audio signal formats
2ch, 32–96 kHz,
16/20/24 bit
Audio signal formats
Compatible media
2ch Linear PCM
2ch, 32–96 kHz,
16/20/24 bit
TV
Bitstream
Dolby Digital, DTS
TV
The contents of this manual apply to the latest specifications as of the publishing
date.
To obtain the latest manual, access the Yamaha website then download the manual
file.
• Video signals
This unit is compatible with the following video signals.
• Deep Color
• x.v.Color
• 3D video signal
• High Dynamic Range (HDR) video
This unit is compatible with the following resolutions.
•
•
•
•
•
VGA
480i/60 Hz
480p/60 Hz
576i/50 Hz
576p/50 Hz
•
•
•
•
720p/60 Hz, 50 Hz
1080i/60 Hz, 50 Hz
1080p/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
4K/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
NOTE
• The resolution of transmitted video signal varies according to specifications of the
TV connected to this unit.
En
45
AVEEA11102A
Important Notice: Guarantee Information for customers in EEA*
and Switzerland
English
For detailed guarantee information about this Yamaha product, and Pan-EEA* and
Switzerland warranty service, please either visit the website address below (Printable file is
available at our website) or contact the Yamaha representative office for your country.
* EEA: European Economic Area
http://europe.yamaha.com/warranty/
Yamaha Global Site
http://www.yamaha.com/
Yamaha Downloads
http://download.yamaha.com/
Manual Development Group
© 2017 Yamaha Corporation
Published 10/2017 KS-B0
Printed in China
10-1 Nakazawa-cho, Naka-ku, Hamamatsu, 430-8650 Japan
AV16-0021
